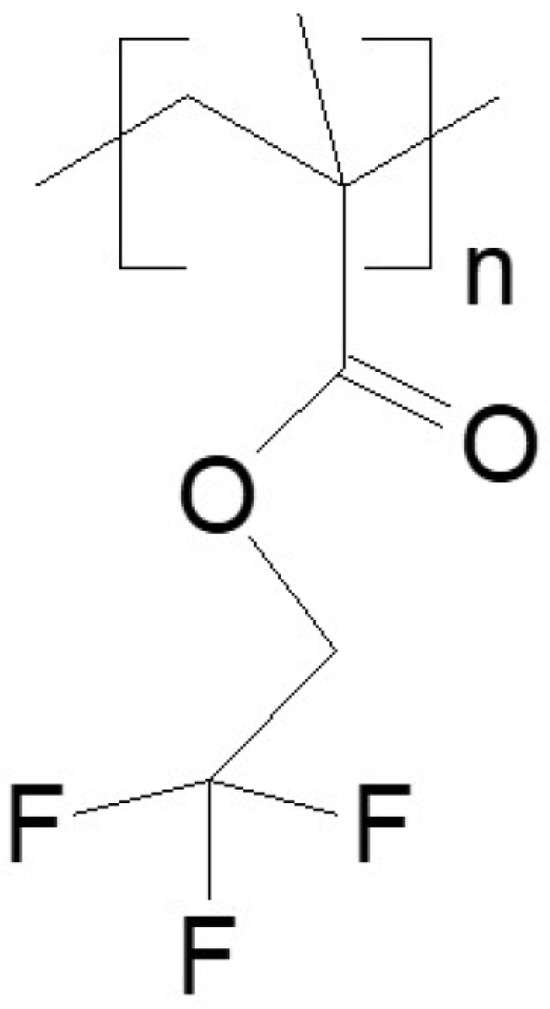

The aim of this study was to investigate the nucleation, growth, and surface deposition of poly(2,2,2-trifluoroethyl methacrylate) [poly(TFEMA)] from the one-phase, cloud point, and two-phase regions of a supercritical CO
2–toluene solvent. A ternary mixture of 20 wt% toluene + 79 wt% scCO

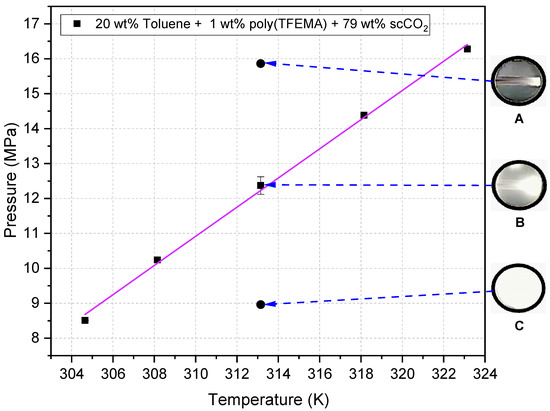

2 + 1 wt% poly(TFEMA) at 40.0 °C was exposed to a fluorine-doped tin oxide (FTO) surface for 30 min at pressures placing the solution in (i) a one-phase region (15.86 MPa), (ii) the cloud point (12.37 MPa), and (iii) a two-phase region (8.96 MPa). Using the Altunin–Gadetskii–Haar–Gallagher–Kell (AG–HGK) equation of state (EOS), the corresponding CO
2 densities are 793.9, 729.2, and 477.8 kg m

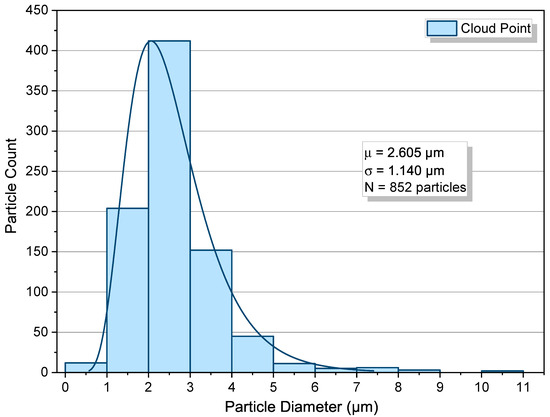

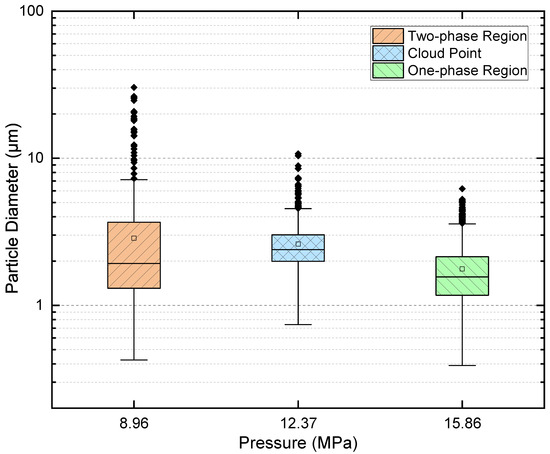

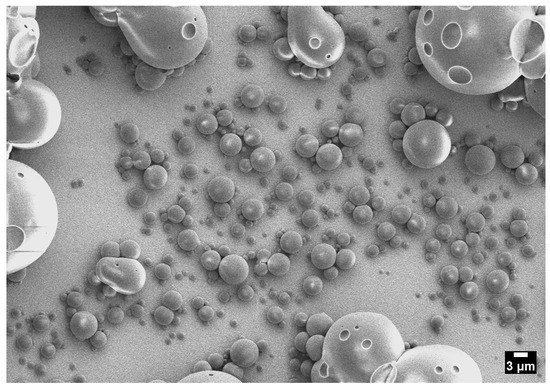

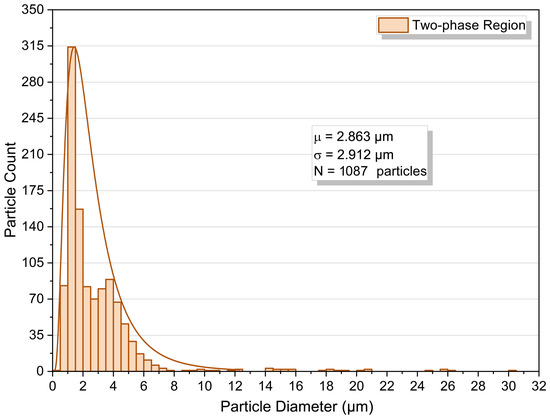

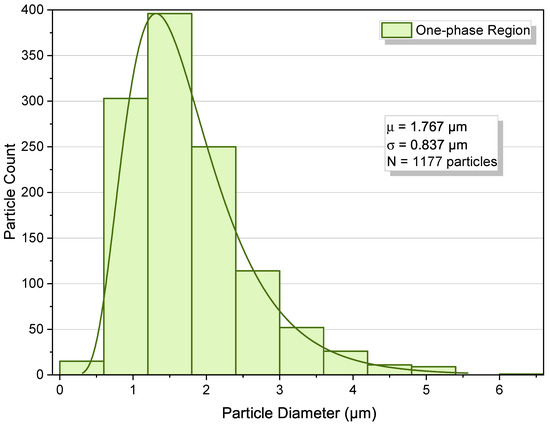

−3. Scanning electron microscopy (SEM) and particle-size analysis (sample sizes
N = 852–1177) show particle-size distributions (PSDs) that are well described by the following lognormal form: the mean diameter increases monotonically with a decrease in pressure (1.767 μm → 2.605 μm → 2.863 μm), while dispersion tightens slightly near the cloud point (coefficient of variation, CV: ≈0.47 → 0.44) and then broadens strongly in the two-phase region (CV ≈ 1.02). Morphologies transition from sparse, compact islands (one-phase) to agglomerated, necked spheres (cloud point) and finally hierarchical populations containing hollow/pitted large particles (two-phase). These outcomes are consistent with a phase-state-controlled shift in nucleation pathways, as follows: from heterogeneous surface nucleation in the one-phase regime to homogeneous nucleation with agglomeration at the cloud point, and to homogeneous nucleation with coalescence and solvent capture in the two-phase regime. The results provide a mechanistic basis and practical design rules for pressure-programmable control of fluoropolymer coatings prepared from scCO
2/aromatic-cosolvent systems.
