Design and Preliminary Experiment of W-Band Broadband TE02 Mode Gyro-TWT

,
,
,
,
,
,
and
1
National Key Laboratory of Science and Technology on Vacuum Electronics, Beijing Vacuum Electronics Research Institute, Beijing 100015, China
2
School of Electronics Engineering and Computer Science, Peking University, Beijing 100871, China
*
Authors to whom correspondence should be addressed.

Abstract

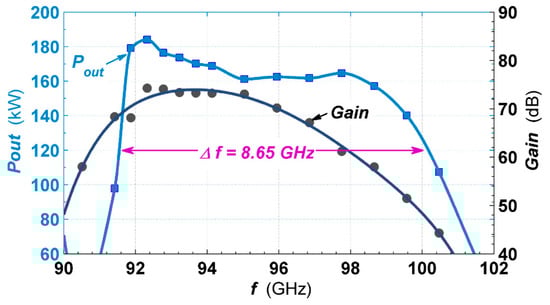

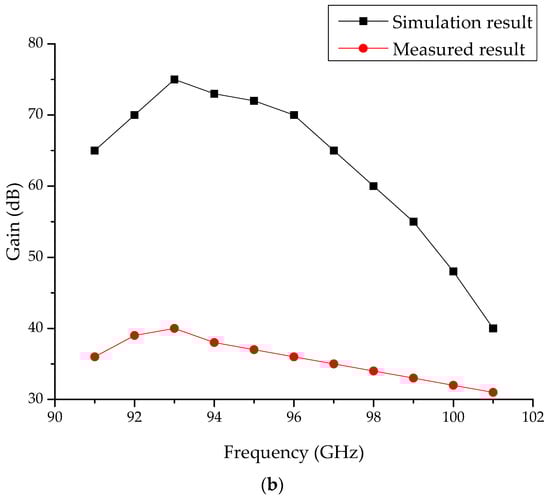

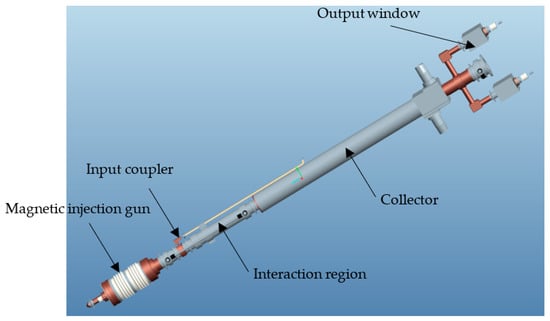

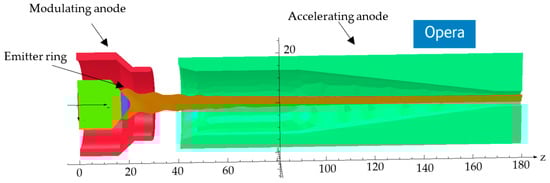

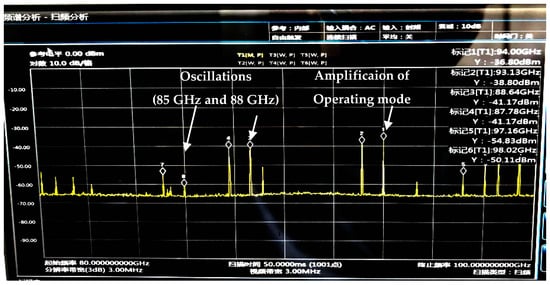

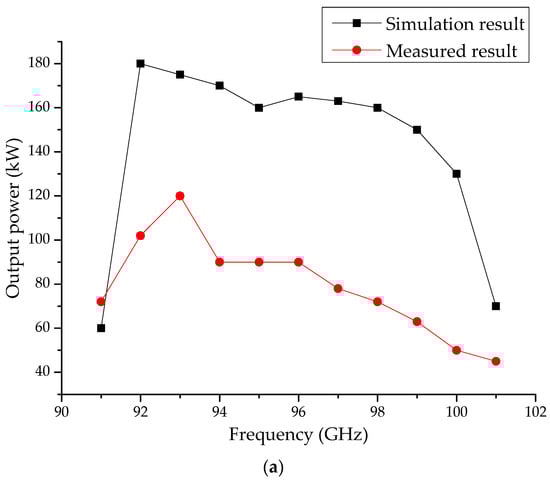

The gyrotron travelling wave tube (gyro-TWT) is an ideal high-power, broadband vacuum electron amplifier in millimeter and sub-millimeter wave bands. It can be applied as the source of the imaging radar to improve the resolution and operating range. To satisfy the requirements of the W-band high-resolution imaging radar, the design and the experimentation of the W-band broadband TE02 mode gyro-TWT were carried out. In this paper, the designs of the key components of the vacuum tube are introduced, including the interaction area, electron optical system, and transmission system. The experimental results show that when the duty ratio is 1%, the output power is above 60 kW with a bandwidth of 8 GHz, and the saturated gain is above 32 dB. In addition, parasitic mode oscillations were observed in the experiment, which limited the increase in duty ratio and caused the measured gains to be much lower than the simulation results. For this phenomenon, the reasons and the suppression methods are under study.
