Underwater Wireless Charging System of Unmanned Surface Vehicles with High Power, Large Misalignment Tolerance and Light Weight: Analysis, Design and Optimization

by
Songyan Niu
1,2,3,
Qingyu Zhao
1,2,
Haibiao Chen
1,2,
Hang Yu
1,
Shuangxia Niu
3 and
Linni Jian
1,2,*
1
Southern University of Science and Technology Jiaxing Research Institute, Jiaxing 314000, China
2
Department of Electronic and Electrical Engineering, Southern University of Science and Technology, Shenzhen 518055, China
3
Department of Electrical Engineering, The Hong Kong Polytechnic University, Kowloon, Hong Kong, China
*
Author to whom correspondence should be addressed.
Energies 2022, 15(24), 9529; https://doi.org/10.3390/en15249529
Submission received: 22 November 2022 / Revised: 6 December 2022 / Accepted: 12 December 2022 / Published: 15 December 2022
Browse Figures
Versions Notes

Abstract

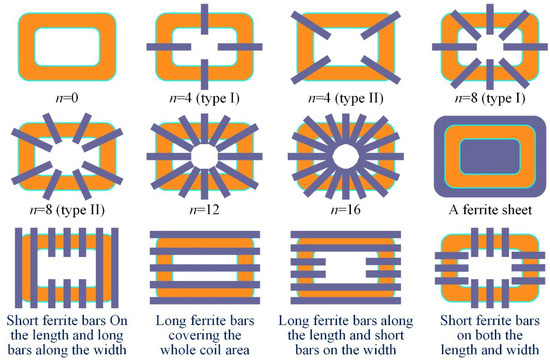

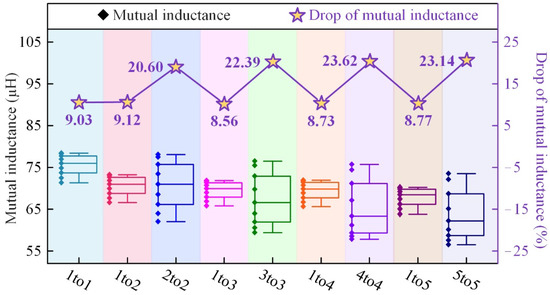

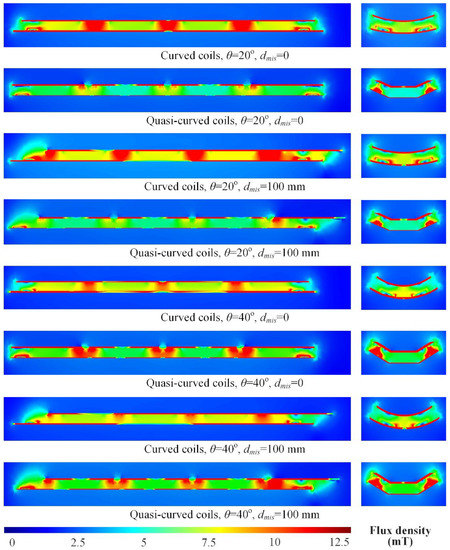

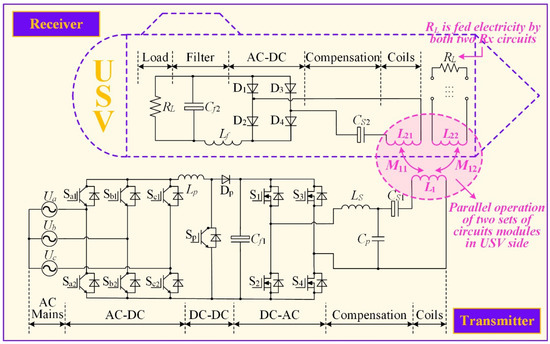

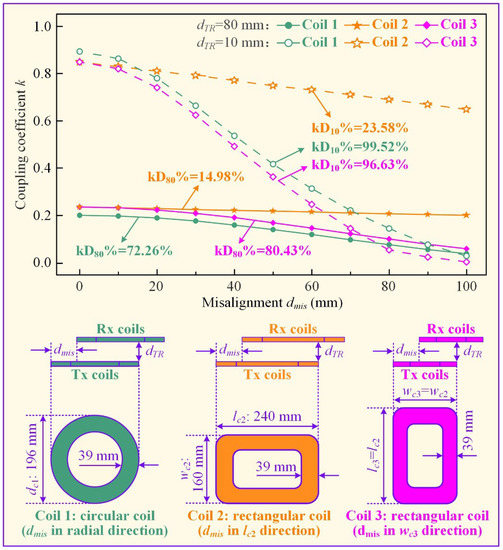

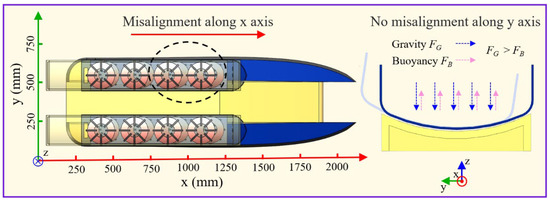

Wireless charging systems (WCSs) are considered very appropriate to recharge underwater surface vehicles (USVs) due to their safe, flexible, and cost-effective characteristics. The small depth of immersion of USVs allows a WCS operated at an mm-level distance using a dock. Resultant tight coupling between the transmitter and receiver is conducive to high power, yet faces a challenge to alleviating misalignment sensitivity. In addition, considering USVs’ endurance, the weight of a WCS should be strictly limited. In this paper, a 6.0 kW underwater WCS is analyzed, designed, and optimized, which achieves a good balance of power capacity, misalignment tolerance, and onboard weight. A multi-receiving-coil structure is employed, which is crucial to large misalignment tolerance. On this basis, two types of coils adapting the hull shape of USV, viz., curved and quasi-curved coils, are devised and compared in case the hydrodynamic performance of USV is degraded. Finally, the weight of receiver is effectively reduced using bar-shaped ferrite without sacrificing the power capacity of WCSs. The results indicate a merely 8.73% drop in coupling coefficient with misalignment ranging from 0 to 100 mm. Moreover, ferrite use is reduced by 40.48 kg compared to a ferrite sheet, which accounts for 50.28% weight of the receiver.
Keywords: wireless power transmission; inductive power transmission; underwater vehicle; coils; magnetic coupler; misalignment; lightweight design wireless power transmission; inductive power transmission; underwater vehicle; coils; magnetic coupler; misalignment; lightweight design
