Dissociation and Combustion of a Layer of Methane Hydrate Powder: Ways to Increase the Efficiency of Combustion and Degassing

Abstract

The interest in natural gas hydrates is due both to huge natural reserves and to the strengthened role of environmentally friendly energy sources conditioned by the deterioration of the global environmental situation. The combustion efficiency increase is associated with the development of understanding of both the processes of dissociation and combustion of gas hydrates. To date, the problems of dissociation and combustion have, as a rule, been considered separately, despite their close interrelation. Usually, during combustion, there is a predetermined methane flow from the powder surface. In the present paper, the combustion of methane hydrate is simulated taking into account the non-stationary dissociation process in the powder layer. Experimental studies on the methane hydrate dissociation at negative temperatures have been carried out. It is shown that due to the increase in the layer temperature and changes in the porosity of the layer over time, i.e., coalescence of particles, the thermal conductivity of the layer can change significantly, which affects the heat flux and the dissociation rate. The flame front velocity was measured at different external air velocities. The air velocity and the vapor concentration in the combustion zone are shown to strongly affect the combustion temperature, flame stability and the flame front velocity. The obtained results may be applied to increase the efficiency of burning of a layer of methane hydrate powder, as well as for technologies of degassing the combustible gases and their application in the energy sector.

1. Introduction

The huge natural reserves of methane in the form of gas hydrate deposits induce a large number of scientific research and solutions to various technological problems realized in the world’s scientific centers. Even in the coming decades, natural gas hydrates, as well as artificial methane hydrates, will be considered as an additional source of energy [1]. The prospects for the production of natural gas hydrates, as well as the problems of the development of these technologies, are considered in [2,3,4]. Despite the higher cost, the production of gas hydrates is approaching the efficiency of methane production using conventional production methods. The deterioration of the environment leads to the need to increase the costs of eliminating the influence of polluting factors. Today, great efforts are being made to reduce the rate of climate warming, which also strengthens the role of environmentally cleaner energy sources.

The main regularities of the growth and dissociation of gas hydrates and equilibrium curves, as well as the types of gas hydrates and the structure of their elementary cells are given in [5,6]. Already, today, gas hydrates are used in various tasks: the gas flow assurance [7]; storage of natural gas hydrates [8,9]; increasing the efficiency of the natural hydrate recovery [10,11]; and technologies related to the gas separation and CO₂ sequestration [12,13,14]. The technology of the water desalination has high efficiency [15]. Environmental problems are considered in [16,17]. When burning gas hydrates, a significantly smaller amount of NOx is released, and there are also no emissions of sulfur and other harmful substances that are released during the combustion of various coal fuels that cause significant harm to the environment [18,19].

The rate of growth and dissociation of methane hydrate depends on a large number of factors: pressure, temperature, powder surface area, and type of unit cell [5,6]. Empirical expressions in the form of Arrhenius equations describing the dissociation of methane hydrate using activation energy are given in [20,21]. The kinetic coefficients in these studies are found by processing experimental data obtained at different sample temperatures. The method of describing the growth rate of methane hydrate is considered in [22]. The heterogeneity of the powder porosity during the dissociation of methane hydrate leads to the formation of an uneven outflow of methane from the surface of the powder layer. Incomplete combustion of methane leads to the formation of methane gas bubbles, which are removed upwards from the combustion region [23,24]. Insufficient speed of air-fuel mixing in the methane bubble area may result in incomplete methane combustion and in a decrease in combustion efficiency [24].

When describing the dissociation rate of a gas hydrate, it is important to take into account both the dissociation kinetics and the heat and mass transfer inside a porous rock. Modeling of offshore methane hydrate production is considered in [25,26]. This simulation should deal not only with the kinetics of dissociation of natural gas hydrate, but also the mechanisms of transfer in a porous space. The account of heat and mass transfer in modeling of the injection of carbon dioxide in the gas hydrate deposits is given in [27,28]. The effect of heat transfer on the gas hydrate dissociation in porous media is given in [29].

The dissociation rate and simulation depend on the temperature range. Methane hydrate decomposes into gas (methane) and water (a film of water forms on the surface of the particle) at sample temperatures above 273 K. In the range of temperatures below 273 K, the dissociation of methane hydrate is accompanied by the formation of an ice crust (on the surface of the particle) and gas (methane), which is removed from the particle through a porous space in the ice shell. When modeling the dissociation of methane hydrate in the region of negative temperatures, it is necessary to take into account both the pore structure and the phenomenon of so called “self-preservation” [30,31]. Self-preservation refers to abnormally low dissociation rates in the temperature range of 228–271 K [30]. The dissociation rate of gas hydrate during self-preservation decreases by several orders of magnitude. The dissociation behavior depends on the thickness of the ice shell, as well as on the ice structural characteristics on the particle surface [31,32,33]. Due to the occurrence of self-preservation at the initial moment of fuel ignition, a noticeable decrease in the flame front velocity is realized [34]. Experimental studies on the influence of key factors on the dissociation of gas hydrates are given in [35,36,37,38]. Modeling of dissociation, taking into account the porosity of gas hydrate particles is given in [39]. A semi-empirical model of dissociation of a spherical gas hydrate particle using an effective diffusion coefficient is given in [40]. The kinetic coefficients in the dissociation equation in the Arrhenius form (at negative powder temperatures) are obtained by processing experimental data in [41,42]. These kinetic coefficients significantly differ from those corresponding to methane hydrate dissociation at positive temperatures, i.e., when ice does not form during dissociation [42]. The diffusion model of dissociation of gas hydrate taking into account self-preservation is given in [43]. The characteristic pore sizes and their influence on the gas hydrate dissociation are discussed in [44]. The formation and dissociation kinetics of gas hydrates presented in the review [45].

When a gas hydrate burns over a powder layer, the gas flow is unevenly distributed over the surface due to inhomogeneous dissociation and an uneven temperature field inside the layer. In addition, the dissociation rate changes over time, which complicates the modeling. The spherical shape of the particles also leads to the dependence of the dissociation rate of the gas hydrate on time [46]. Combustion of a porous layer of propane hydrate is inhomogeneous and unstable. Non-stationary combustion is realized inside the layer in the form of flames [47]. The motion of the flame front edge in the presence of a laminar air flow is studied in [48,49,50]. Measurement of the temperature profile in the gap during the combustion of the methane-oxygen mixture is performed in [51,52]. Methane enters the narrow gap from the powder tank, where the dissociation of methane hydrate is realized. The maximum temperature value on the slit axis does not exceed the value of 1600–1650 K. The simulation shows that the combustion temperature decrease is due to the high concentration of water vapor in the combustion zone. Experimental studies of the combustion of the methane hydrate sphere are carried out in [53,54]. The square of the sphere diameter decreases non-linearly with the burning time, which is associated with self-preservation inside the pressed sphere. Modeling of the effect of water vapor on the combustion of a methane hydrate particle in the air atmosphere is given in [55,56]. The simulation data on the combustion temperature correlate with [51,52]. The maximum calculated combustion temperature does not exceed 1650 K. The influence of water vapor on the combustion kinetics is studied in [57].

An analysis of the literature has shown that there is very little experimental data on the effect of methane hydrate combustion on the powder texture, particle size, and porosity of the layer. Additional experimental data are needed to establish the effect of combustion on the non-stationary nature of dissociation.

2. Experimental Methods

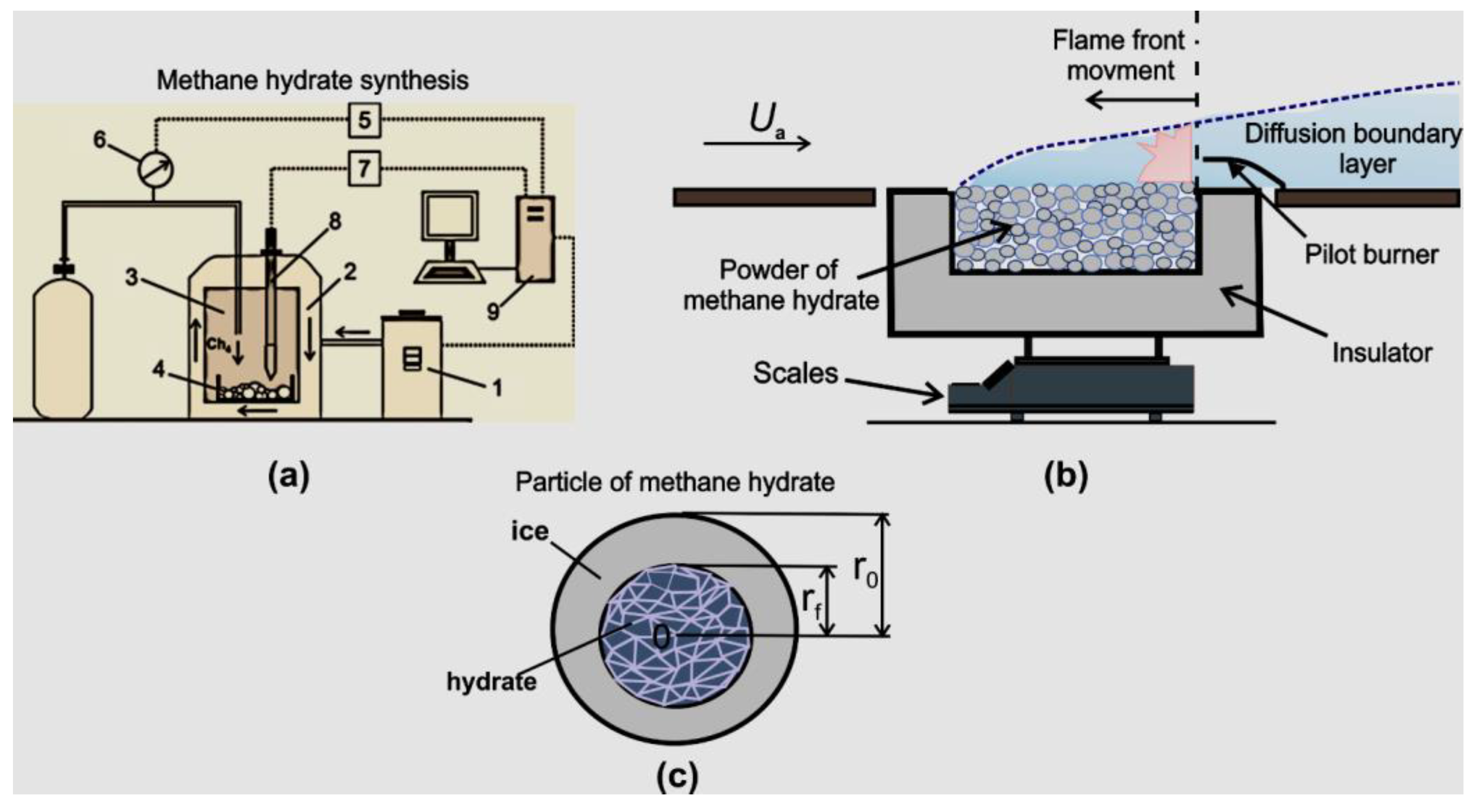

For experimental studies on the dissociation and combustion of methane hydrate, an artificial methane hydrate synthesized in a high-pressure reactor was used (Figure 1a). The method of synthesis of methane hydrate and a detailed description of the experimental setup are given in [24,42]. To accelerate the production of methane hydrate powder, finely crushed ice with a particle diameter of 0.2–0.3 mm was used. Methane gas with purity 99.98% and distilled water were used. The ice powder was placed in a reactor with methane for the synthesis of gas hydrate. In the working chamber of the reactor, the temperature was 274 K, and the methane pressure was 5.5–6 MPa (with an error of $\pm$0.5 bar).

After the gas hydrate synthesis, the pressure in the chamber decreased. The powder was removed from the working chamber, crushed again and cooled at the temperature of liquid nitrogen. This scheme was repeated several times until the required amount of gas hydrate was reached. After sieving the powder using sieves, the particle diameter corresponded to a range of values from 0.2 mm to 0.3 mm. The X-ray diffraction served to find that the mass content of ice in the synthesized methane hydrate was approximately 1–2%. The manufactured methane hydrate corresponded to cubic structure I. The elementary cell of the methane hydrate was 2D·6 T·46H₂O. The initial mass content of methane in the powder was 9–10%. The scheme of the working installation is shown in Figure 1b. At methane hydrate dissociations, ice and gas were formed. Methane was removed from the powder into the atmosphere, and as a result, the mass of the sample decreased with time. The change in the powder mass was measured using the gravimetric method (scales Vibra AJH 4200 CE). The working area with the gas hydrate was located on the scales. Before the experiment, the methane hydrate powder was extracted from liquid nitrogen and poured into the working area. The temperature of the powder continuously increased due to heat exchange with the ambient medium. The outside air temperature corresponded to 297 K. The external air pressure was 1 bar. When the equilibrium temperature was exceeded (approximately 193 K), the gas hydrate dissociated. A methane–air–water vapor diffusion layer was formed above the powder layer. Combustion occurred with the help of the pilot burner (Figure 1b). When combustion occurred, the edge of the flame front moved from right to left, in the opposite direction from the forced laminar air flow. The powder was located in the working area with dimensions: layer height of 15 mm, width of 40 mm, and length of 50 mm. The dissociation rate of methane hydrate was determined as J = Δm/Δt, where Δm was the change in the powder mass over the dissociation time interval Δt. The experimental error in measuring the dissociation rate of the gas hydrate (taking into account the measurement error of the powder mass and the approximation error of the measurement data) did not exceed 7–8%. It is important to note that J is not a local value, but is defined as an integral value for the entire surface of the powder (there is an inhomogeneous distribution of J on the surface of the layer). The temperature inside the powder layer was measured by thermocouples. The layer surface temperature T_s was measured using a thermal imager (NEC San Instruments). The relative measurement error T_s corresponded to ±1 K. In this case, the error of the thermocouple (after calibration) corresponds to ±0.1 K (the error range of ±1 K is mainly of a methodological nature, since the thermocouple is located inside a porous layer, but not inside a solid particle).

3. Modeling and Experimental Results

3.1. Dissociation of Gas Hydrates at Negative Temperatures

In the quasi-stationary approximation of the isothermal dissociation process, as well as at moderate dissociation rates, the diffusion flow of methane (during dissociation) is assumingly equal to the dissociation rate of methane hydrate. This approximation is justified, since, for methane hydrate particles with a size of 0.1 mm, the time period of dissociation is many times longer than the period of establishing stationary equilibrium. In experiments, particles with a significantly larger size are usually used. In addition, the Lewis number (the ratio of the diffusion coefficient to the thermal conductivity coefficient) is much less than one. As a result, the main resistance for the dissociation process will be the internal dissociation kinetics and diffusion. Since the value of the dimensionless Bio criterion is very low, the temperature inside the particles will be quasi-uniformly distributed. The temperature unevenness occurs only for a thick layer of powder and will be taken into account when solving the equations for heat transfer. Let us consider the problem for the dissociation of a spherical particle (each layer consists of separate spherical particles). The particle packing density is regulated by the porosity, which is determined experimentally based on the mass and volume of the layer. A schematic representation of the dissociation of the methane hydrate sphere is shown in Figure 1c. During dissociation, the thickness of the ice crust layer δ (δ = r₀ − r_f) increases, and the radius of the non-dissociated sphere of the methane hydrate r_f decreases with time.

Taking into account the Darcy equation, the flow of methane J_m through the pores of individual particles will correspond to Equation (1),

$$-4\pi r^2{\rho }_m\frac{k_D}{\mu }\frac{dP}{dr}=J_m$$

(1)

where r is the average particle radius for the entire powder, ρ_m is the density of methane inside the pores, P is the pressure of methane inside the pores, μ is the dynamic viscosity of methane at a set temperature and gas pressure inside the pores, and k_D is the permeability coefficient, which is associated with a diameter of pores d_p, and with a density of pores σ_p (a density of pores is number of pores per 1 square meter (1/m²)) by the equation: k_D = (F₁d_p²)/32 [58], where F₁ = (σ_fπd_p²)/4 (F₁ is a surface part occupied by open pores).

In the approximation of the ideal gas equation (the maximum pressure used in experiments with the gas hydrate dissociation is below 30 bar, which allows using the ideal gas equation), as well as a result of integration, we obtain Equation (2) for the flow of methane J_m through the porous space of spherical particles.

$$J_m=\frac{2\pi k_D{M}_r}{\mu R_{g}T}\frac{\left(P_f^2-P_0^2\right)}{\left(r_f{}^{-1}-r_0^{-1}\right)}$$

(2)

The dissociation rate of methane hydrate can also be expressed using a semi-geometric kinetic expression [20,21] $J_m=4\pi r_f^2{k}_R\left(P_{eq}-P_f\right)$, where the kinetic constant k_R = k₀·exp(−E_a)/R_gT) (k₀ is the internal kinetic constant and E_a is the activation energy during the dissociation of methane hydrate). The values of k₀ and E_a at negative dissociation temperatures of methane hydrate were obtained experimentally in [24] (k₀ = 0.003 kg/(m²Pa·s), E_a = 33.8 kJ/mol). Equating the expressions for the flows taking into account the dissociation kinetics and the filtration rate, we obtain Equation (3)

$$\frac{2r_f^2{k}_R\mu R_{g}T}{k_D{M}_r}\left(\frac{1}{r_f}-\frac{1}{r_0}\right)\left(P_{eq}-P_f\right)=\left(P_f^2-P_0^2\right)$$

(3)

Let us represent the parameters in the left part of Equation (3) in the form of the parameter λ and solve the resulting quadratic equation with respect to the unknown pressure in the pores P_f, so we obtain the solution in the form of Equation (4) for the methane flow J_m.

$$J_m=4\pi r_f^2{k}_R\left(P_{eq}+\frac{\lambda }{2}-\sqrt{\frac{{\lambda }^2}{4}+P_0^2+\lambda P_{eq}}\right)$$

(4)

Let us represent the dissociation rate of methane hydrate as a degree of transformation of the particle X over time t (A = m_H/m₀, m_H is the current mass of methane hydrate, m₀ is the initial mass of methane hydrate, m_H = m_g/B, B is the initial mass concentration of methane in the gas hydrate (B = 0.14), the initial mass of the particle $m_0=\frac{4}{3}\pi {\rho }_s{r}_0^3$, and the parameter $\lambda =\frac{2r_0{k}_R\mu R_{g}T}{k_D{M}_r}\left(A^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}-A^{\raisebox{1ex}{$2$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}\right)).$ Changes in the degree of transformation of methane hydrate over time will be written as Equation (5).

$$\frac{dA}{dt}=-\frac{3k_R}{B{\rho }_s{r}_0}{A}^{2/3}\left(P_{eq}+\frac{\lambda }{2}-\sqrt{\frac{{\lambda }^2}{4}+P_0^2+\lambda P_{eq}}\right)$$

(5)

The obtained expressions employ the pore parameters (porosity, pore diameter, and pore density) to calculate the methane flow. In other works [20,21,22,29,40,43,45], the porosity of the particles and the ratio of kinetic and filtration resistances are not considered, which prevents the correct dependence of the dissociation rate of gas hydrate on temperature in a wide temperature range from being established (at temperatures below the melting point of ice, including during self-preservation). In order to solve the system of equations, we have developed a special computational code to find the characteristic parameters of the dissociation of gas hydrates, as well as parameters of combustion under quasi-stationary modes. When calculating the temperature field, the difference grid has the first order of approximation for the time step and the second order for the spatial step (the time step was 0.1 s; the maximum number of layers in the powder layer (at the maximum layer height) corresponded to 60 layers). The maximum difference between calculating the powder mass during dissociation of methane hydrate and the experimental data, does not exceed 10%.

The dissociation rate of methane hydrate is inversely proportional to the initial average radius of the particles. To increase the efficiency of storage and transportation of methane hydrate, it is more profitable to produce methane hydrate in the form of large particles when low dissociation rates are realized. For effective combustion of methane hydrate, it is necessary, on the contrary, to use particles of small size, since low rates of methane release can lead to the termination of combustion.

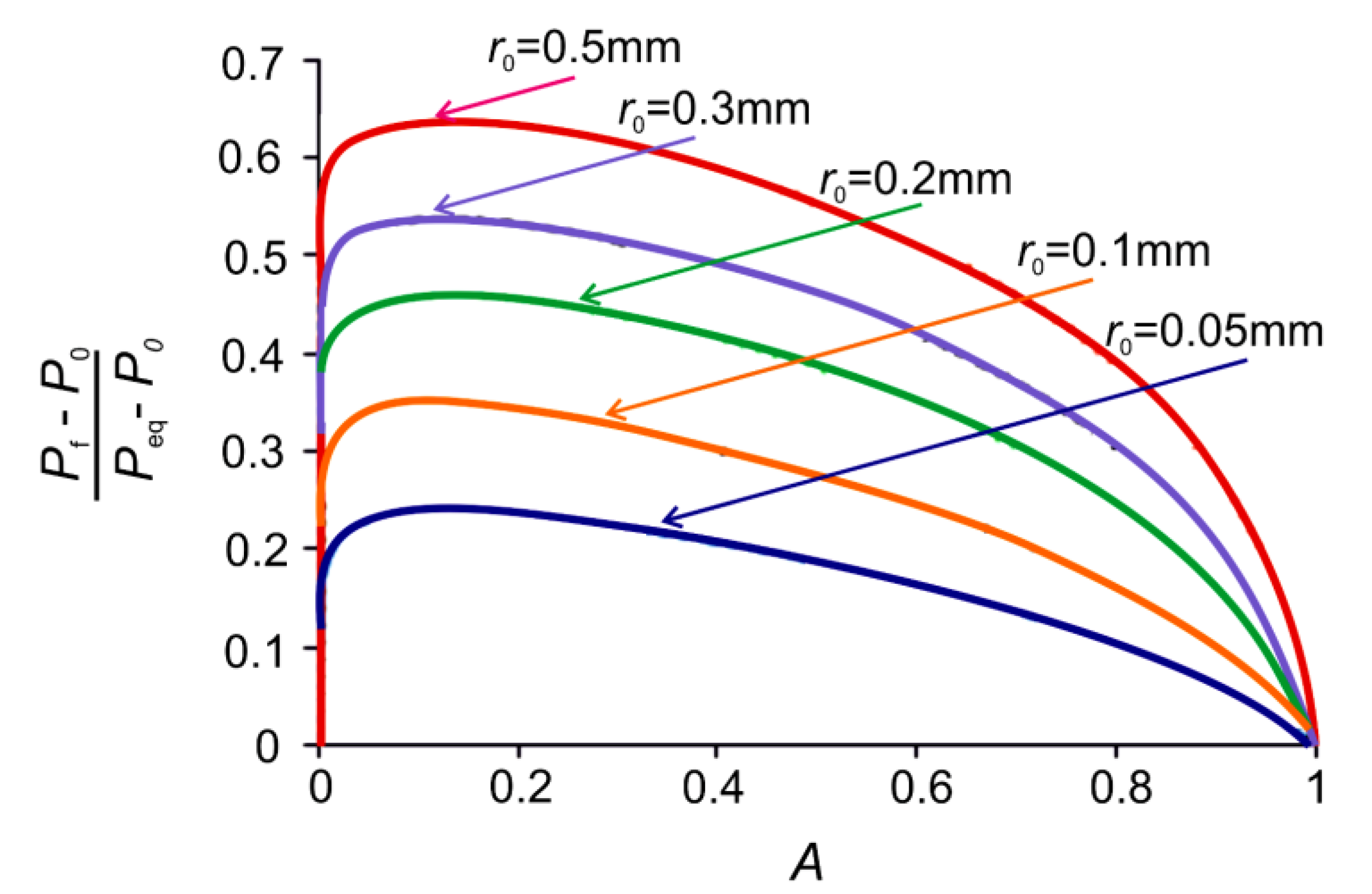

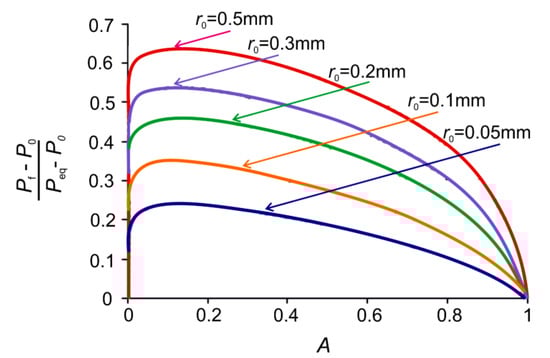

Figure 2 shows the calculated data on the change in the pressure difference in the pores for different values of the average radius of particles in the methane hydrate powder layer. These curves are obtained under the condition of self-preservation, in which the pore size reaches a low value, and the filtration resistance becomes sufficiently high and controls the nature of the decomposition of methane hydrate. For the calculation, the following data are taken: the external air pressure P₀ = 1 atm, the pore radius inside the spherical particles r_p corresponds to the average pore radius of 0.3 µm (this pore radius is taken in accordance with the data of various works where a high degree of self-preservation is achieved). With the time of dissociation, the degree of transformation A increases.

As follows from Figure 2, the pressure in the pores at the methane hydrate dissociation front varies greatly with time and has a nonlinear character. P_f depends on the initial particle size. The above equations addressed a thin layer of powder, when a quasi-isothermal formulation is acceptable not only for particles, but also for the entire layer, as well as a homogeneous temperature distribution within the layer. For a thick layer and at a high heat flux, a spatially inhomogeneous and non-stationary temperature field will be observed. In this case, it is necessary to simultaneously solve both the equation for heat transfer inside the powder layer and the equation of dissociation of methane hydrate. Let us consider the heat transfer in the powder layer using the effective thermal conductivity coefficient with λ_ef, which takes into account the thermal conductivity of solid particles and methane as well as the porosity of the layer. During the dissociation process, the layer height decreases, which indicates a change in the porosity of the powder over time due to the coalescence of particles. Next, we will vary the λ_ef for numerical solutions of the equations. Let us consider the heat transfer equation in a powder layer in the form of a one-dimensional equation, Equation (6):

$$c_p\rho \frac{\partial T}{\partial t}={\lambda }_{ef}\frac{{\partial }^{2}T}{\partial z^2}-Q{\rho }_H(1-P_{or.})\frac{\partial A}{\partial t}$$

(6)

where T is the temperature inside the powder layer; t is the dissociation time of methane hydrate; z is the height coordinate of the powder layer; c_p is the specific heat capacity of powder particles (taking into account the transformation A, both the heat capacity of ice and the heat capacity of gas hydrate are considered); λ_ef is the effective value of the thermal conductivity coefficient for the entire powder layer; Q is the heat of dissociation of methane hydrate; A is the degree of transformation of a methane hydrate particle; P_or. is the porosity in the powder layer, which is defined as P_or. = (ρ_H − ρ)/ρ (ρ_H is the density of the gas hydrate; and p is the average density of the powder in the layer (ρ = ρ_H(1 − P_or.)). In this formulation, the heat flux along the longitudinal coordinate is neglected (the side walls are considered as heat-insulated with high thermal resistance). The z coordinate changes with the height of the powder layer. Boundary and initial conditions of heat exchange are introduced for the upper surface of the layer. The average density in the powder layer and the degree of transformation are related by the ratio ${\frac{\rho }{1-P}}_{{}_{or.}}=A{\rho }_H+\left(1-A\right){\rho }_I$ (ρ_H and ρ_I are the densities of methane hydrate and ice in a solid particle). For the upper boundary of the powder layer (coordinate z = 0), a boundary condition is introduced, $-{\lambda }_{}{\frac{\partial T}{\partial z}|}_{z=0}=\alpha \left(T-T_a\right)$, where T_a is the temperature of the external air, and α is the convective heat transfer coefficient for the gas medium.

For the lower boundary of the powder layer, we write the boundary condition for conductive heat transfer $-\lambda {\frac{\partial T}{\partial z}|}_{z=H}=\frac{{\lambda }_{1w}}{{\delta }_w}\left(T-T_0\right)$, where λ_1w is the thermal conductivity of the heat-insulating material of the wall, δ_w is the wall thickness, and T₀ is the temperature of the outer boundary of the thermal insulation. The heat transfer coefficient α can be related to the gas velocity through the equation for the Nusselt number ($Nu=\frac{\alpha L}{\lambda }=0.664R{e}^{0.5}P{r}^{0.33}$), where $Re=\frac{U_{a}L}{\nu }$, $Pr=\frac{\nu }{a}$, ν is the kinematic viscosity of the gas, λ is the thermal conductivity of the gas, a is the temperature diffusivity, and L is the characteristic longitudinal length of the layer on which the wall boundary layer develops.

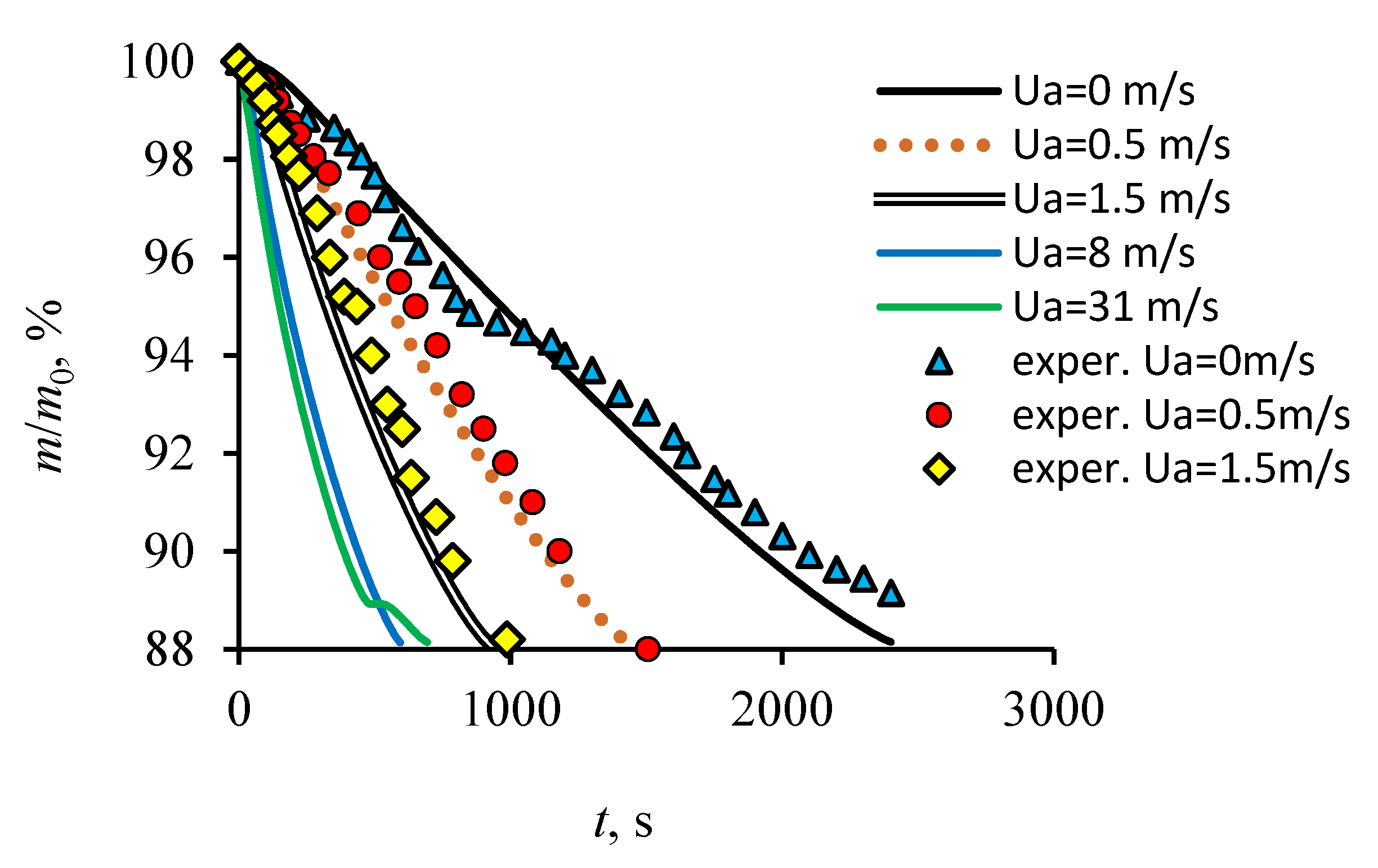

Figure 3 shows calculated and experimental data on the change in the dimensionless mass of the powder with a continuous increase in the temperature of the powder due to heat exchange with the ambient medium (the presence of conductive and convective heat flux). With an increase in the velocity of the laminar forced air flow U_a, the dissociation rate of the gas hydrate J_m increases (the total dissociation time decreases and the slope of the curved lines increases). The increase in J_m is associated with an increase in the heat transfer coefficient α and the heat flux, which is proportional to (U_a)^0.5. It should be noted that at U_a = 0 m/s, there is also a gas flow over the surface of the powder layer due to buoyancy, since there is a temperature gradient on the surface. The characteristic value of the convective velocity of the gas U at the characteristic length of the heat exchange section L can be determined (in accordance with the gas buoyancy) by an approximate ratio (without taking into account the forces of viscous friction) $U\approx \sqrt{2\beta \overline{\Delta T}L}$ (β is the coefficient of thermal expansion of the gas). At high values of U_a (U_a > 6–8 m/s), an increase in the air velocity practically ceases to affect the change in dissociation, i.e., the curves tend to an asymptotic solution. At low heat fluxes (U_a = 0 m/s), the self-preservation site is more prominent. The above equations allow the behavior of methane hydrate dissociation to be predicted, taking into account the air velocity and the thickness of the powder layer.

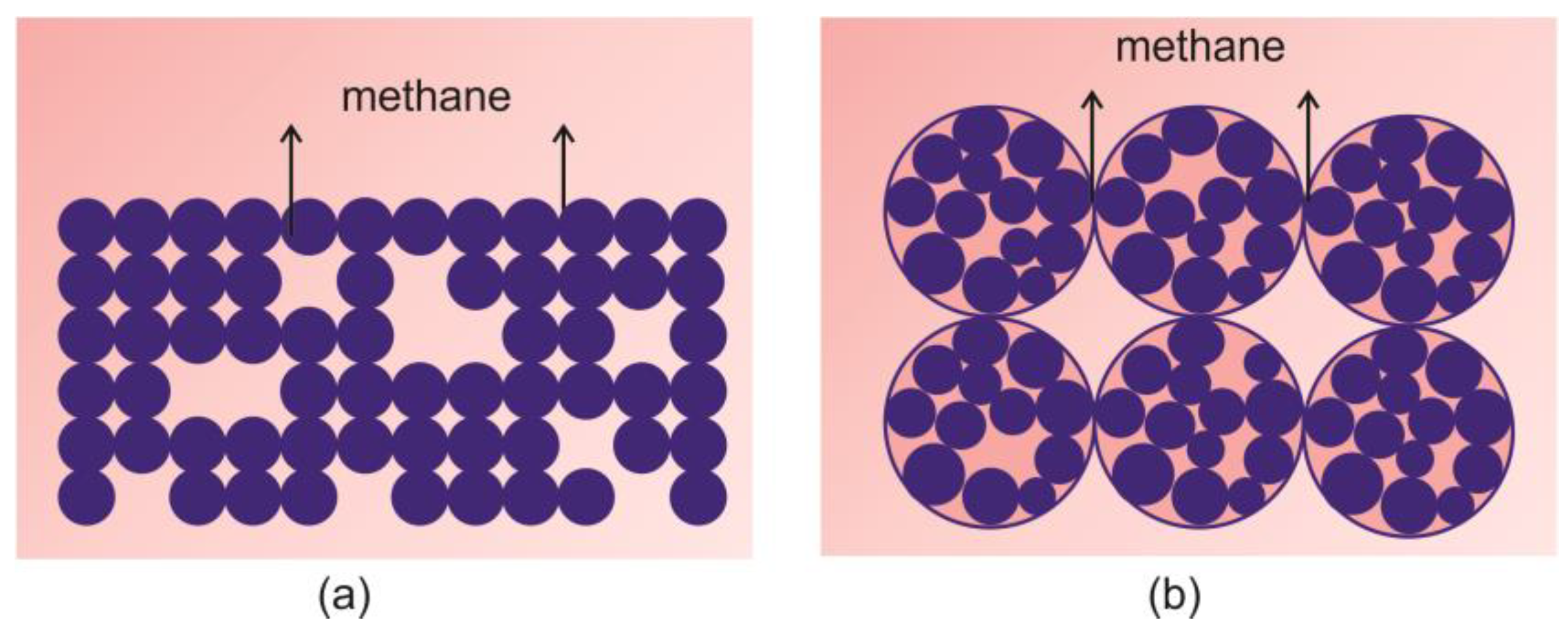

The effective thermal conductivity of the powder layer [58] is usually calculated when the particles are integral solid spheres (Figure 4a). In this case, the effective value of the thermal conductivity coefficient in the powder (λ_ef) can be calculated using Equation (7) [58]:

$${\lambda }_{ef}={\lambda }_m{P}_{or.}+{\lambda }_s\left(1-P_{or.}\right)\frac{1}{G\frac{{\lambda }_s}{{\lambda }_m}+\frac{2}{3}}$$

(7)

where λ_m and λ_s are the thermal conductivity coefficients of methane and solid particles, and G is the parameter that takes into account the contact surface between the particles. When the powder is poured into the working area, the dimensions of the aggregates, due to the coalescence of particles, change in the range of 0.5–3 mm. Thus, the size of the aggregates is much larger than the particle size of 0.2–0.3 mm. In this case, the packaging of aggregates in the layer (Figure 4b) is fundamentally different from the packaging shown in (Figure 4a).

It is obvious that the heating of an integral solid sphere will be faster than for the aggregate consisting of many particles. Given that the thermal conductivity of ice and methane hydrate is higher than that of gas, the heating of a powder layer consisting of aggregates may be slower than for a layer of integral solid spheres (particles). In addition, the porosity is distributed unevenly across the layer, which can also slow down the conductive heat transfer in the layer. With reference to the above, it is important to assess how a decrease in the effective thermal conductivity (due to particle aggregation) will affect the rate of dissociation of methane hydrate. To simplify the analysis, Figure 5 shows the calculated curves for the total dissociation time of methane hydrate t_full. The value of the effective thermal conductivity is varied using the coefficient a, which varies from 1 to 0.1. The calculation results are performed at different thicknesses of the powder layer h; 3, 7, 17 mm.

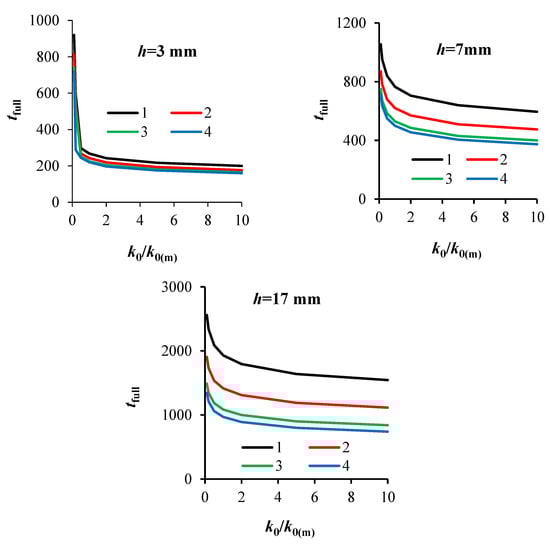

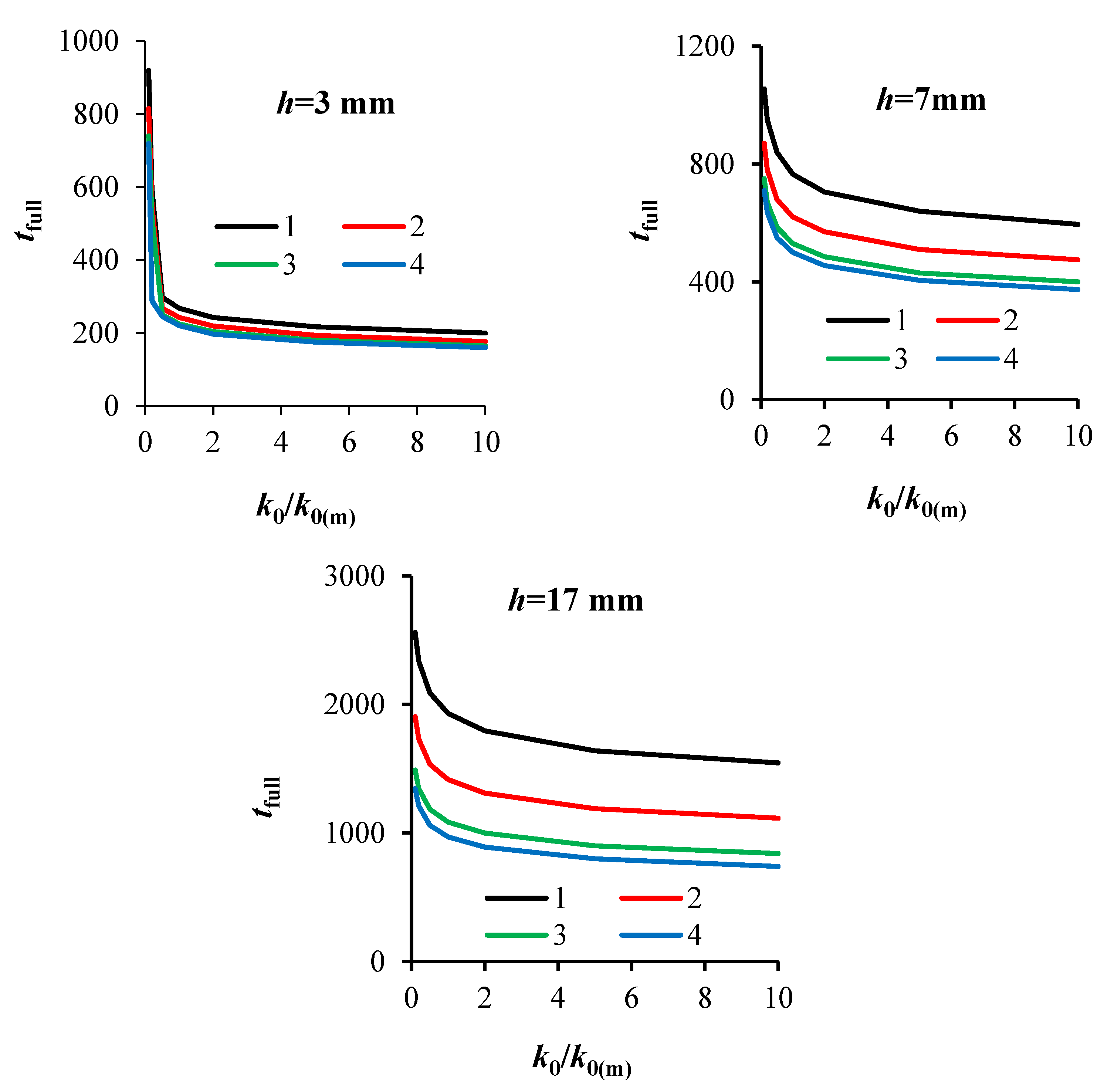

An increase in the dissociation rate (an increase in k₀/k_0(m)) at k₀/k_0(m) > 1 has a weak effect on a decrease in the total dissociation time of the gas hydrate. In this case, the decisive role is played by the thermal resistance of the layer and external heat fluxes. A strong influence of the dissociation kinetics is manifested for small values of k₀/k_0(m) (k₀/k_0(m) $\ll$ 1). At very low values of k₀/k_0(m), the predominant dissociation time corresponds to the maximum deviation of the system from equilibrium. The powder warms up quickly and turns out to be in the region of maximum temperature, which leads to an increase in the heat of dissociation (there is an exponential dependence of the dissociation rate on temperature and a linear dependence on the pressure difference). Therefore, in the specified region (k₀/k_0(m) $\ll$ 1), there is a strong dependence of the dissociation kinetics on the internal dissociation constant. A small error in the measurement of the activation energy, or in k₀, will lead to a significant error in the calculation of the total dissociation time. As mentioned above, high values of k₀/k_0(m), on the contrary, lead to a weak dependence of the calculation error on the accuracy of determining k_0(m). With a thick layer (h = 17 mm), the effect of the thermal conductivity of the layer is maximum. A 10-fold decrease in the effective thermal conductivity of λ_ef1 leads to a more than two-fold increase in t_full. For a thin powder layer (h = 3 mm), the thermal conductivity of the layer has a noticeably weaker effect on the solution at k₀/k_0(m) > 1.

3.2. Combustion of Methane Hydrate at Dissociation of a Powder Layer

When combustion occurs above the powder layer, the heat flux from the gas phase to the layer increases dozens of times. In addition, the combustion region is located at a distance of several millimeters from the layer surface. As a result, areas with a relatively high temperature may appear near the gas hydrate, which leads to the formation of a high concentration of steam in the combustion region. The presence of an external air flow affects the effective convective heat transfer coefficient, which is calculated both in the previous paragraph using the numbers Nu, Re and Pr. The heat balance in the combustion zone is written as Equation (8),

$${\displaystyle \sum _j^{}{h}_j^0{n}_j^0}={\displaystyle \sum _j^{}{h}_j^{}{n}_j^{}+\tau \chi \left(T-T_s\right)}={\displaystyle \sum _j^{}{h}_j^{}{n}_j^{}+\frac{{\alpha }_{ef1}}{U_a}\left(T-T_s\right)}$$

(8)

where τ is the average time of finding the reacting gases in the combustion region; χ is the effective volumetric heat transfer coefficient for a mixture of gases, which takes into account the volumetric heat losses during fuel combustion W·m⁻³·K⁻¹); n_j is the molar concentrations of the gas components (mole·m⁻³) (superscript 0 refers to the initial composition, i.e., before the combustion reaction); h is the molar enthalpy (J·mole⁻¹), and h⁰ is the molar enthalpy at the initial gas temperature (T₀ = 300 K). Specific enthalpies were determined in accordance with [59]. The initial average temperature on the surface of the powder layer at the occurrence of combustion T_s = 243 K. The relative humidity of the external air corresponded to 30%. The reaction rate at the stationary front was considered in the approximation of an ideal mixing reactor in accordance with [60] (Equation (9)):

$$\begin{array}{c}r=k_0\exp \left(-\frac{E}{R_{g}T}\right)n_{C{H}_4}^{m_1}{n}_{O_2}^{m_2},n_{C{H}_4}^0-n_{C{H}_4}^{}=\frac{L_{ef}}{U_0}r,\\ n_{O_2}^0-n_{O_2}^{}=2\frac{L_{ef}}{U_0}r\\ n_{C{O}_2}^{}-n_{C{O}_2}^0=\frac{L_{ef}}{U_0}r,n_{H_{2}O}^{}-n_{H_{2}O}^0=2\frac{L_{ef}}{U_0}r\end{array}$$

(9)

where the pre-exponential factor is k₀ = 0.883·10⁷ (s⁻¹), and the activation energy is E = 121·10³ (J·mole⁻¹), m = m₁ + m₂ = 1.69.

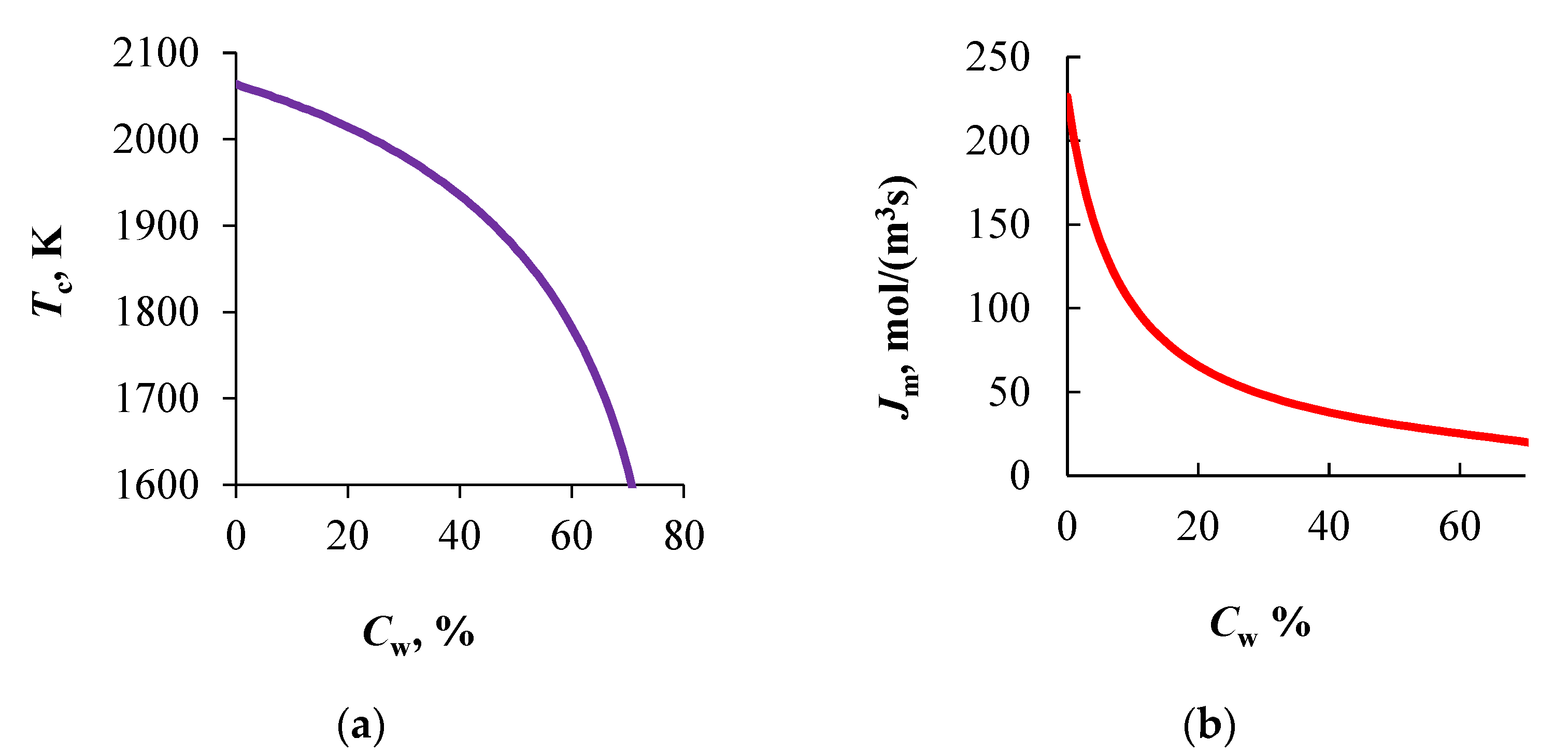

Figure 6a shows the results of modeling the combustion temperature and the methane flow (Figure 6b) with a change in the concentration of water vapor in the combustion region (at the external air velocity U_a = 1 m/s). The methane flow reflects the dissociation rate of methane hydrate. Thus, with an increase in C_w дo of 60–70%, the molar concentration of methane in the mixing layer (methane–air–water vapor) will decrease several times, which can lead to the cessation of combustion.

Experimental data show that the combustion becomes unstable at a high air velocity ((U_a > 1–1.5 m/s), which is associated with both high heat losses and a decrease in the rate of methane entering the combustion zone. The combustion temperature drops by 450 K when the C_w increases from 0 to 70%. The experimental value of the maximum combustion temperature is 1700–1750 K, which corresponds to C_w = 60–65%. These values correlate well both with the calculated curve in Figure 6a and with the results of the work [51,52,55,56].

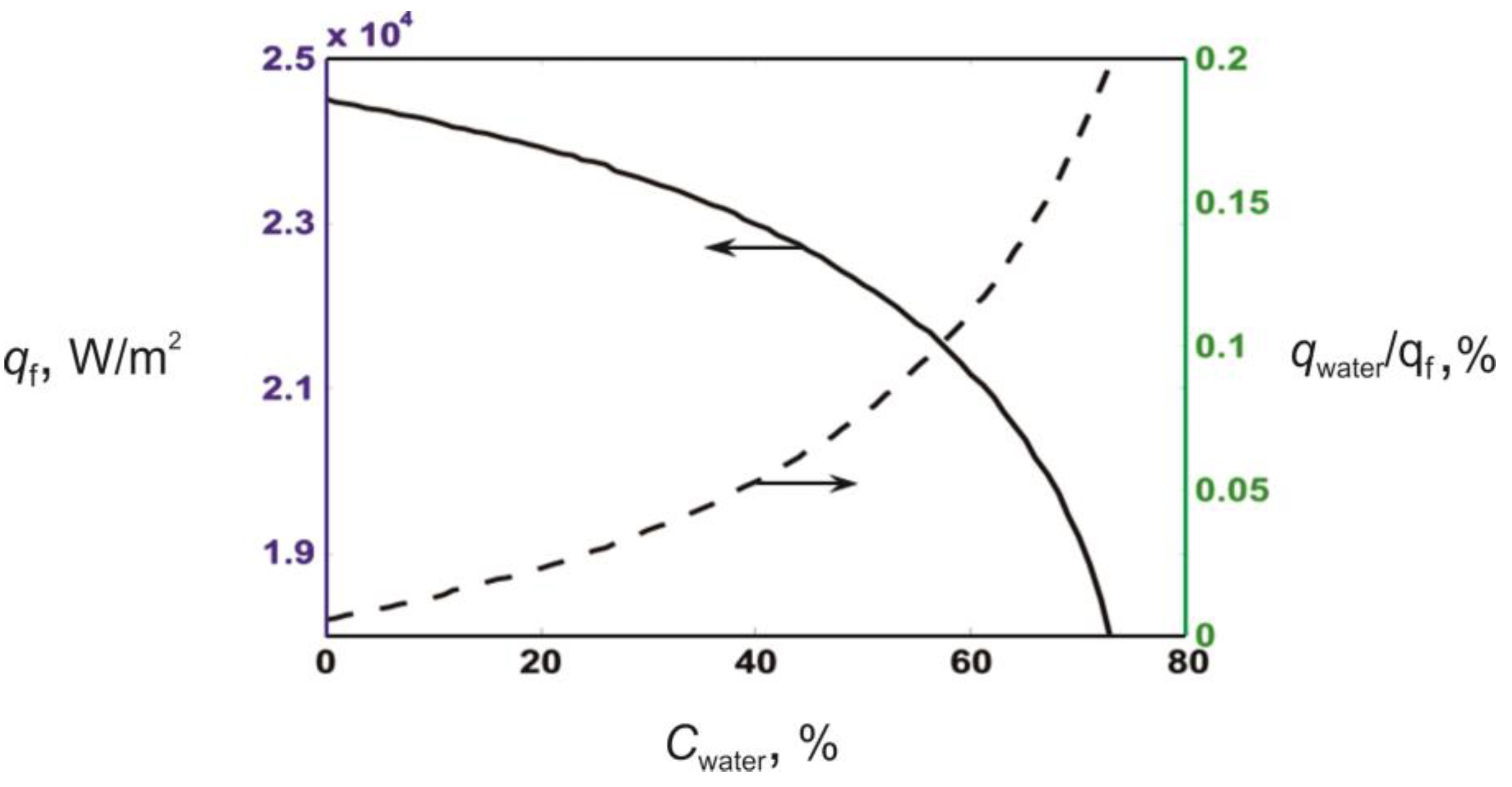

The effect of the water vapor concentration on the heat flux q_f, directed from the combustion region to the upper surface of the powder is shown in Figure 7. When C_w = 55–60% is exceeded, the slope of the curve increases noticeably. An increase in the amount of water vapor leads to a decrease in the combustion temperature and, accordingly, to a drop in the heat flux into the wall. For correct modeling of heat transfer and dissociation rate, it is important to take into account the nonlinear dependence of heat transfer on C_w. The ratio of heat loss q_w due to water vapor to the heat flux q_f also strongly depends on C_w. The maximum value of q_w/q_f corresponds to the maximum concentration of water vapor.

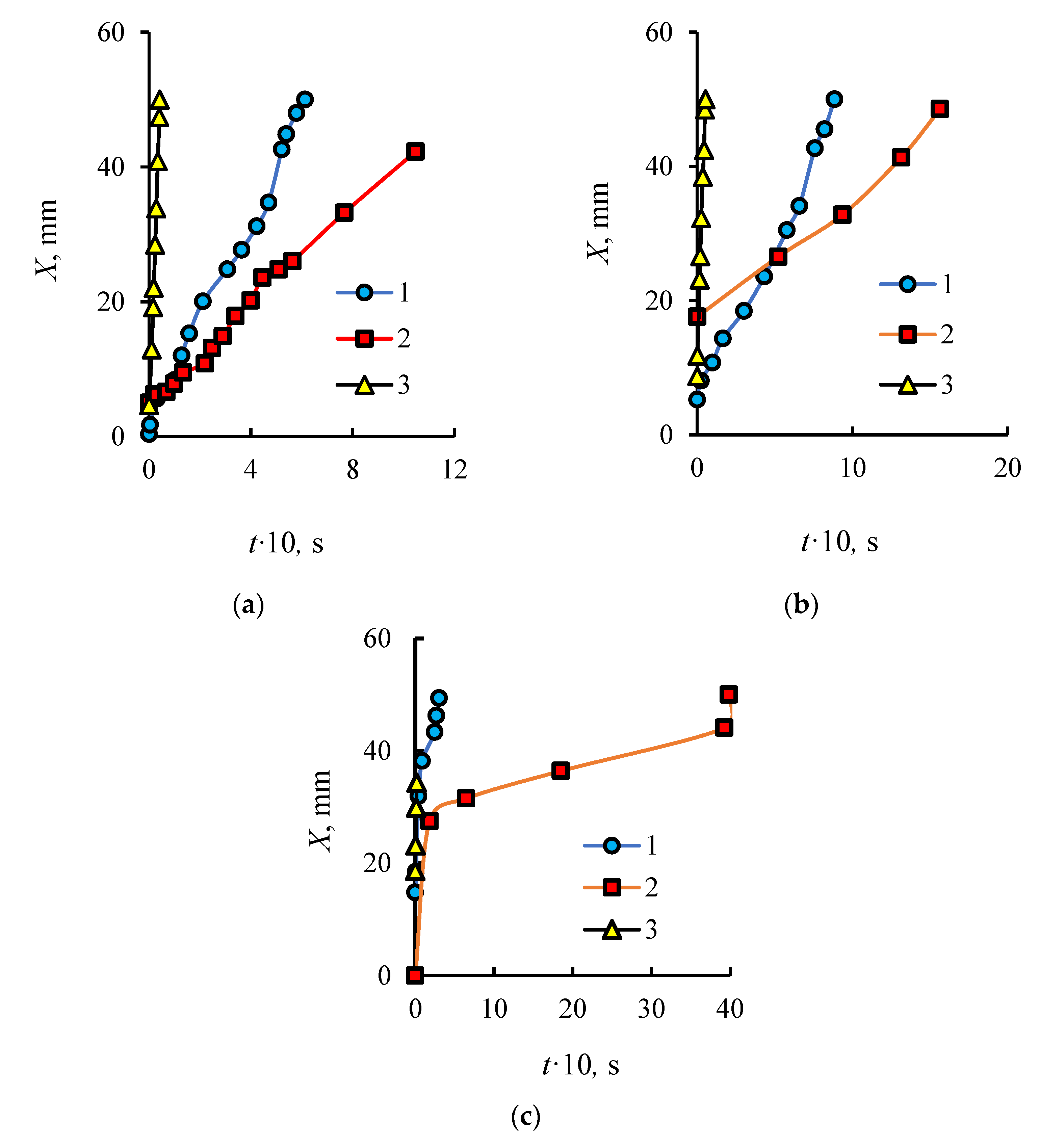

Figure 8 shows the experimental curves of the flame edge motion at different heights of the powder layer h, as well as at different external air velocity U_a. The three re-conducted experiments showed that the qualitative character of the curves remains, although the values of the points somewhat differ (the discrepancies between the curves under identical conditions do not exceed 20–30%). The flame front motion is realized from the rightmost point of the working area to the left (against the air motion) (Figure 1b). When U_a = 0 m/s, all three curves have a quasi-linear character. The linear nature of the curves and the highest velocity of the flame front (V_f) correspond to the thickest layer (h = 17 mm). The ignition, with the help of the pilot burner, for all experiments, begins at the surface temperature of the powder T_s = 233–235 K (in the center of the working area—determined by the measurements of the thermal imager). For lower layer heights h = 3 and 7 mm, the flame front velocity V_fg decreases and there are 2–3 characteristic modes. For example, for curve 2 in Figure 8c, the first mode corresponds to V_f = 0.15 m/s. The flame front velocity of the second mode is equal to V_f = 0.0043 m/s (about 40 times decrease in V_f compared to the first mode).

The third mode corresponds to the velocity V_f = 0.09 m/s (about 20 times growth of V_f in comparison with the second mode). Such a strong and contradictory dependence of the behavior of V_f on the layer height and air velocity is associated with a complex dependence of the dissociation rate of methane hydrate on temperature, as well as on the strong inhomogeneity of the temperature field.

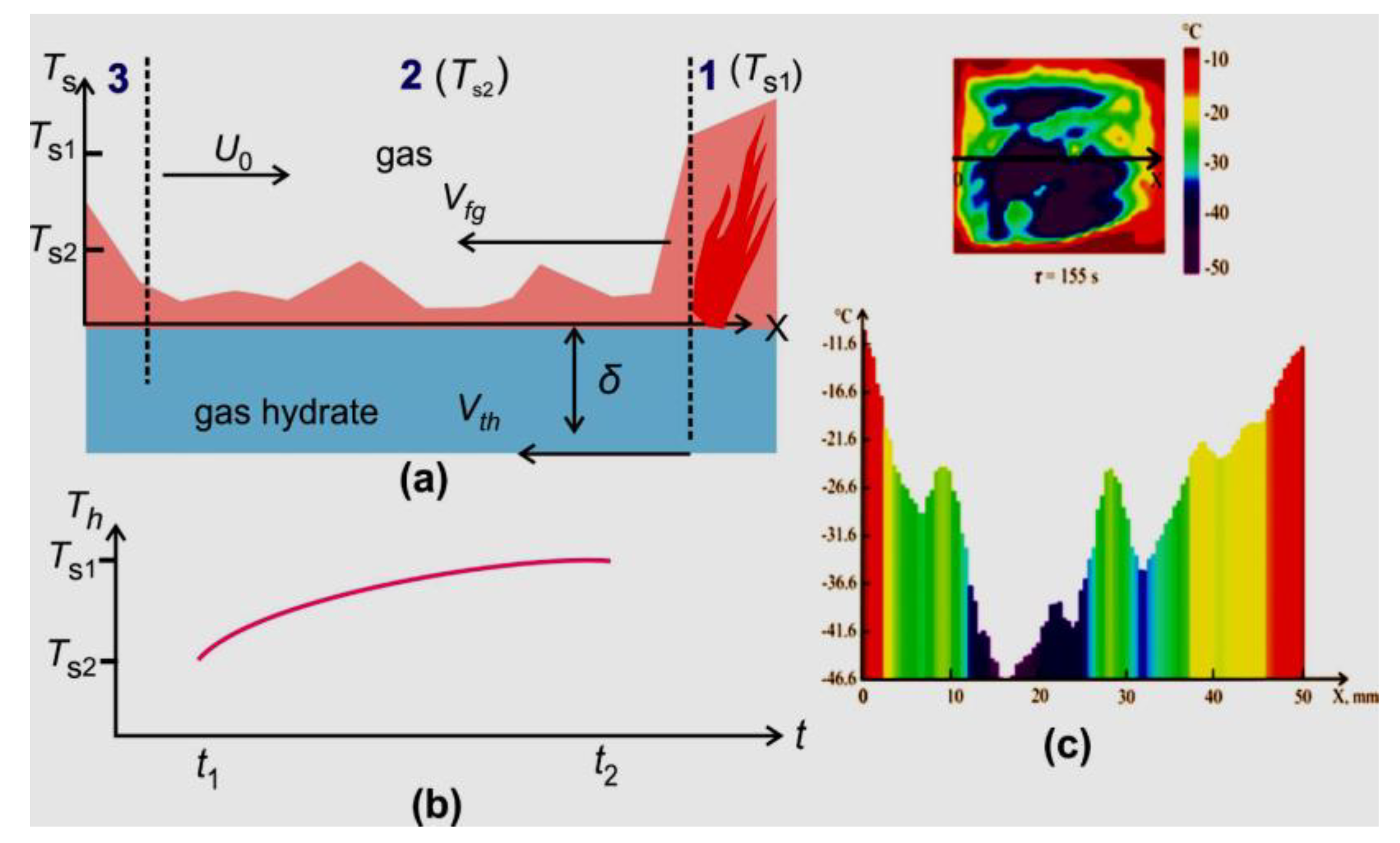

Figure 9c shows thermal imaging measurements of the layer surface before the start of combustion. It can be seen that the temperature field is extremely unevenly distributed. The maximum temperatures always correspond to the side walls of the tank. Three characteristic temperature sections are shown in the schematic Figure 9a. Section 1 corresponds to the area of the beginning of combustion. The combustion front moves above the powder surface at a velocity V_fg. The heat front also moves in the powder layer with the velocity V_th. There is a higher temperature gradient at the boundary of this front. The temperature of the second section (before the combustion front) increases from T_s2 to T_s1 during the time interval t₂–t₁. As mentioned above, the beginning of combustion is realized at a temperature close to the self-preservation region (238 K). For a thick layer of powder (h = 17 mm), heating inside the layer is realized more slowly (at any velocity U_a), compared with thinner layers.

For all cases, there is both a self-preservation region and an area outside the annealing temperature window at the same time. However, due to the slower heating (q~λΔT/h, the characteristic heating time is t_h~h, where h is the height of the layer), for a thicker layer, a larger amount of powder is outside the self-preservation region and a higher dissociation rate is achieved (a higher methane flow, both on the layer surface and in the combustion region). This leads to stable combustion and a higher combustion temperature, which provides a higher rate of chemical reaction when the fuel interacts with the oxidizer. Conversely, a decrease in the height of the layer and an increase in the air velocity lead to a faster heating of the powder and to its ingress into the region of a low dissociation rate. As a result, the stability of combustion and the reaction rate decrease. Thus, when simulating combustion gas hydrates, it is important to take into account not only the air velocity, but also the influence of the height of the powder layer, convective and conductive heat flux on the dissociation rate.

4. Conclusions

With the growth of air velocity, the dissociation rate increases as well. For a correct modeling of dissociation, it is important to take into account both convective and conductive heat exchange.

The thermal conductivity of the powder layer and the conductive heat flux can change significantly due to the formation of particle aggregates inside the powder layer, which affects the dissociation rate of methane hydrate.

The air velocity and vapor concentration in the combustion zone strongly affect the combustion temperature, flame stability and the flame front velocity.

An increase in the amount of water vapor leads to a decrease in the combustion temperature and, accordingly, to a drop in the heat flux to the wall. For correct modeling of heat transfer and dissociation rate, it is important to take into account the nonlinear dependence of heat transfer on the concentration of water vapor.

A decrease in the height of the layer and an increase in the air velocity lead to a faster heating of the powder and to its ingress in the self-preservation area. When simulating combustion of gas hydrates, it is important to take into account not only the air velocity, but also the influence of the height of the powder layer, as well as the convective and conductive heat flux on the dissociation rate.

The obtained results may be applied to increase the efficiency of methane hydrate combustion, as well as to develop existing methods for calculating the methane hydrate powder layer, as well as for technologies for degassing combustible gases and their application in the energy sector.
