Temporal-Correlated Deep Learning-Based GNSS Signal Classification in the Built Environment: A Comparative Experiment ^†

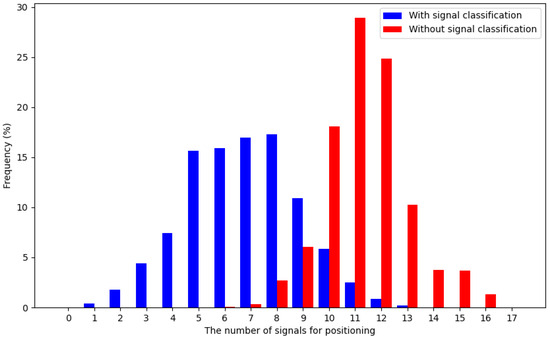

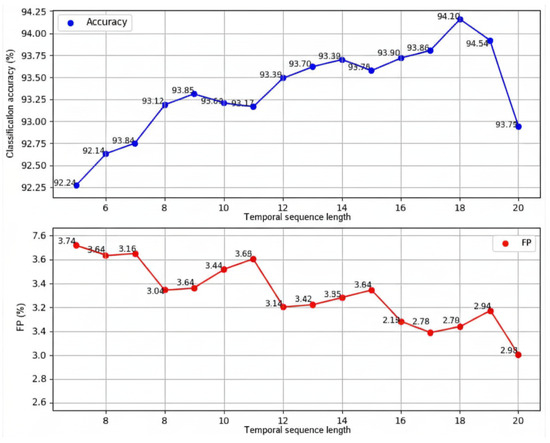

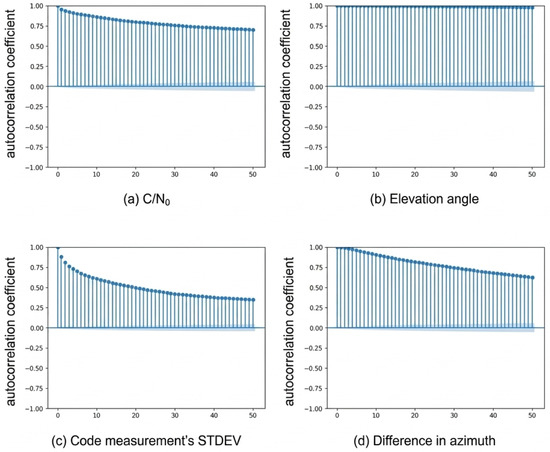

As a key provider of Positioning, Navigation, and Timing (PNT) information, the characteristics of Global Navigation Satellite System (GNSS) signals, including types, Quality Indicators (QIs), and measurements, should be understood. This study employs temporally correlated deep learning models to classify GNSS signals as Line-of-Sight (LOS) or non-LOS using four QIs: the elevation angle, Carrier to Noise Ratio (C/N₀), code measurement’s standard deviation, and difference in azimuth angle. Autocorrelation analysis confirmed that these QIs exhibit significant temporal dependencies. The Bidirectional LSTM (Bi-LSTM) model, with four hidden layers, 64 units, and a sequence length of 18, achieved the best performance: 94.17% classification accuracy and a 2.61% False Positive (FP) rate. Positioning based on classified LOS signals significantly improved accuracy, reducing the mean errors in the horizontal, vertical, and 3D domain by 36.6%, 81.4%, and 59.6%, respectively, and reducing the Standard Deviation (STDEV) by 46.3%, 33.5%, and 45.5%, respectively. Moreover, the non-LOS probability output enables flexible signal selection and mitigates the issue of insufficient signal availability. These results highlight the effectiveness of temporally correlated models in GNSS signal classification and positioning performance.
