This study investigates the electromagnetic performance of two carbon fiber monopole antennas integrated into a UAV copter frame, with emphasis on design adaptation, impedance matching, and propagation behavior. A comprehensive experimental campaign was conducted to characterize key parameters such as center frequency, bandwidth, gain, VSWR, and S

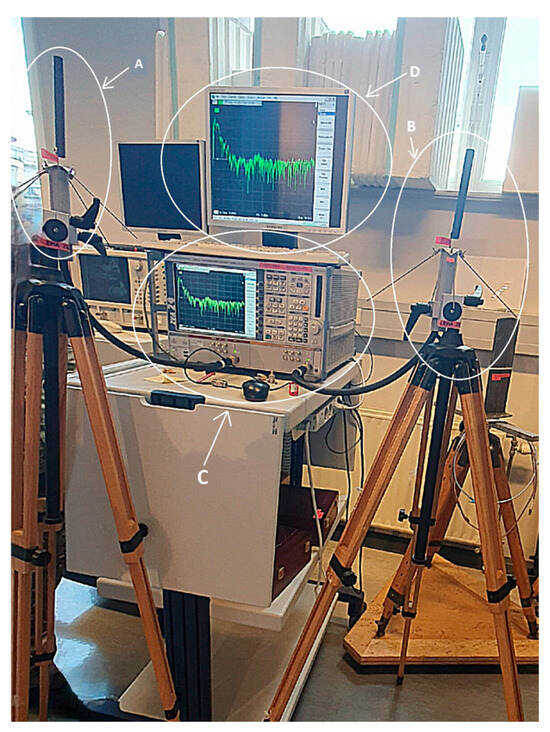

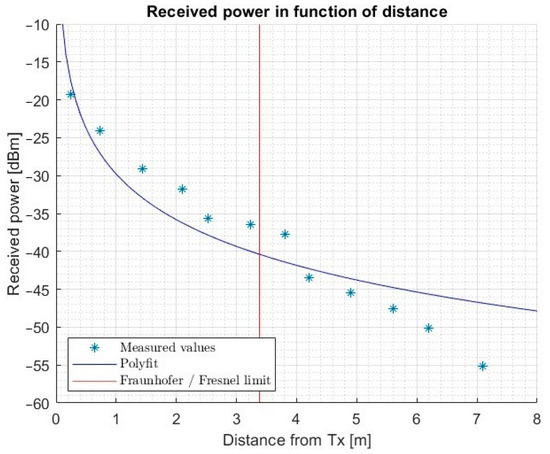

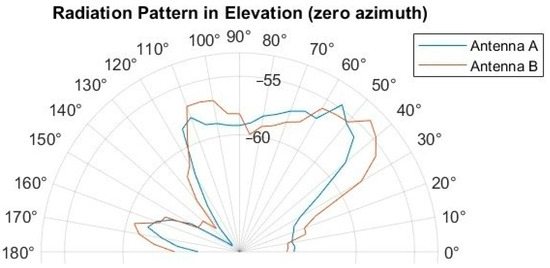

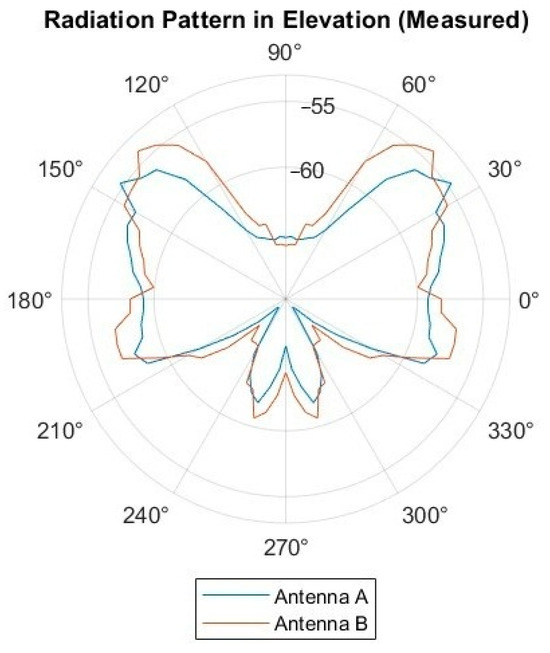

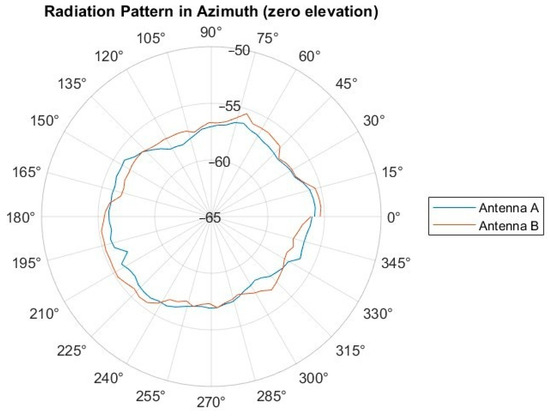

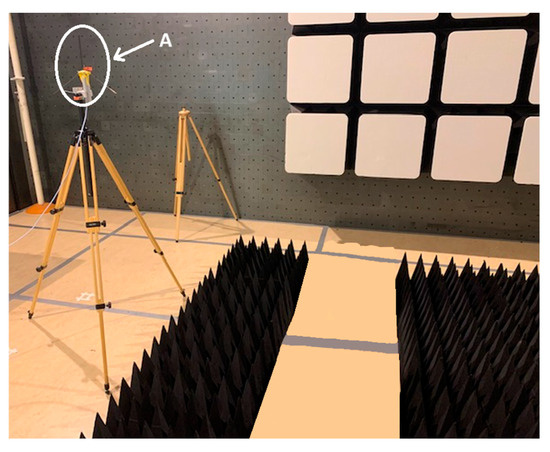

11. Both antennas exhibited dual-band resonance at approximately 381 MHz and 1.19 GHz, each achieving a 500 MHz bandwidth where VSWR ≤ 2. The modified antenna achieved a minimum reflection coefficient of –14.6 dB and a VSWR of 1.95 at 381.45 MHz, closely aligning with theoretical predictions. Gain deviations between measured (0.15–0.19 dBi) and calculated (0.19 dBi) values remained within 0.04 dB, while received power fluctuations did not exceed 1.3 dB under standard test conditions despite the composite material’s finite conductivity. Free-space link-budget tests at 0.5 m and 2 m of separation revealed received-power deviations of 0.9 dB and 1.3 dB, respectively, corroborating the Friis model. Radiation pattern measurements in both azimuth and elevation planes confirmed good directional behavior, with minor side lobe variations, where Antenna A displayed variations between 270° and 330° in azimuth, while Antenna B remained more uniform. A 90° polarization mismatch led to a 15 dBm signal drop, and environmental obstructions caused losses of 9.4 dB, 12.6 dB, and 18.3 dB, respectively, demonstrating the system’s sensitivity to alignment and surroundings. Additionally, signal strength changes observed in a Two-Ray propagation setup validated the importance of ground reflection effects. Small-scale fading analysis at 5 m LOS indicated a Rician-distributed envelope with mean attenuation of 53.96 dB, σ
dB = 5.57 dB, and a two-sigma interval spanning 42.82 dB to 65.11 dB; the fitted K-factor confirmed the dominance of the LOS component. The findings confirm that carbon fiber UAV frames can serve as effective directional antenna supports, providing proper alignment and tuning. These results support the future integration of lightweight, structure-embedded antennas in UAV systems, with potential benefits in communication efficiency, stealth, and design simplification.
