Fast Focus Ultrasound Liver Technique for the Assessment of Cystic Echinococcosis in Sheep
Abstract
:Simple Summary
Abstract
1. Introduction
2. Materials and Methods
2.1. Animal Selection

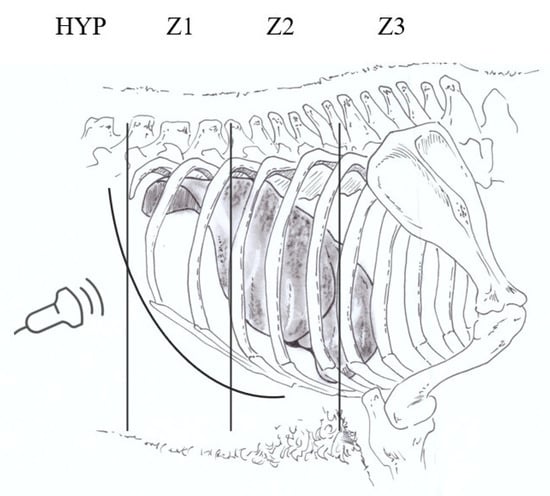

2.2. Ultrasound Examination and Fast Scanning Technique

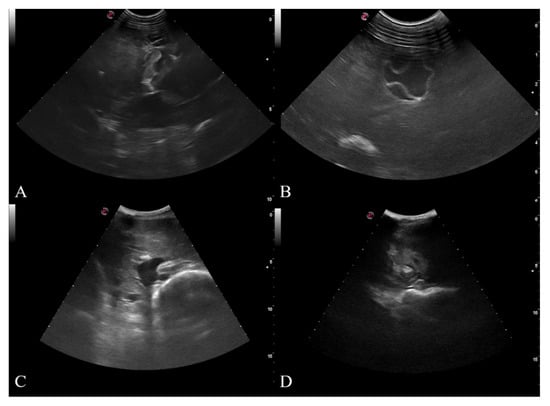

- CL: unilocular anechoic cystic lesion with uniform anechoic content. The cyst wall is not visible.
- CE1: uniformly anechoic cyst with uniform anechoic content or fine internal echoes.
- CE2: cyst with internal septation, sometimes with a honeycomb appearance
- CE3: unilocular cyst that can show the presence of a daughter cyst.
- CE4: hypoechoic and hyperechoic matrix, the appearance resembles a ball of wool.
- CE5: cyst with partially or completely calcified wall.
2.3. Post-Mortem Examination
2.4. Statistical Analysis
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Craig, P.S.; McManus, D.P.; Lightowlers, M.W.; Chabalgoity, J.A.; Garcia, H.H.; Gavidia, C.M.; Gilman, R.H.; Gonzalez, A.E.; Lorca, M.; Naquira, C.; et al. Prevention and control of cystic echinococcosis. Lancet Infect. Dis. 2007, 7, 385–394. [Google Scholar] [CrossRef]
- Deplazes, P.; Rinaldi, L.; Alvarez Rojas, C.A.; Torgerson, P.R.; Harandi, M.F.; Romig, T.; Antolova, D.; Schurer, J.M.; Lahmar, S.; Cringoli, G.; et al. Global Distribution of Alveolar and Cystic Echinococcosis. Adv. Parasitol. 2017, 95, 315–493. [Google Scholar]
- Budke, C.M.; Deplazes, P.; Torgerson, P.R. Global Socioeconomic Impact of Cystic Echinococcosis. Emerg. Infect. Dis. 2006, 12, 296–303. [Google Scholar] [CrossRef]
- Torgerson, P.R.; Macpherson, C.N.L. The socioeconomic burden of parasitic zoonoses: Global trends. Vet. Parasitol. 2011, 182, 79–95. [Google Scholar] [CrossRef]
- Battelli, G. Echinococcosis: Costs, losses and social consequences of a neglected zoonosis. Vet. Res. Commun. 2009, 33, 47–52. [Google Scholar] [CrossRef] [PubMed]
- Cringoli, G.; Rinaldi, L.; Musella, V.; Veneziano, V.; Maurelli, M.P.; Di Pietro, F.; Frisiello, M.; Di Pietro, S. Geo-referencing livestock farms as tool for studying cystic echinococcosis epidemiology in cattle and water buffaloes from southern Italy. Geospat. Health 2007, 2, 105–111. [Google Scholar] [CrossRef]
- Naidich, A.; McManus, D.P.; Canova, S.G.; Gutierrez, A.M.; Zhang, W.; Guarnera, E.A.; Rosenzvit, M. Patent and pre-patent detection of Echinococcus granulosus genotypes in the definitive host. Mol. Cell. Probes 2006, 20, 5–10. [Google Scholar] [CrossRef] [PubMed]
- Sage, A.M.; Wachira, T.M.; Zeyhle, E.E.; Weber, E.P.; Njoroge, E.; Smith, G. Evaluation of diagnostic ultrasound as a mass screening technique for the detection of hydatid cysts in the liver and lung of sheep and goats. Int. J. Parasitol. 1998, 28, 349–352. [Google Scholar] [CrossRef]
- Eckert, J.; Gemmell, M.A.; Meslin, F.-X.; Pawlowski, Z.S.; World Health Organization. WHO/OIE Manual on Echinococcosis in Humans and Animals: A Public Health Problem of Global Concern; World Health Organization and the World Organisation for Animal Health (OIE—Office International des Epizooties): Paris, France, 2001; pp. 31–34. [Google Scholar]
- Zhuo, X.; Yu, Y.; Chen, X.; Zhang, Z.; Yang, Y.; Du, A. Development of a colloidal gold immunochromatographic strip based on HSP70 for the rapid detection of Echinococcus granulosus in sheep. Vet. Parasitol. 2017, 240, 34–38. [Google Scholar]
- Wyn-Jones, G.; Clarkson, M.J. Radiologic detection of ovine hydatidosis. Vet. Radiol. 1984, 25, 182–186. [Google Scholar]
- Maxson, A.D.; Wachira, T.M.; Zeyhle, E.E.; Fine, A.; Mwangi, T.W.; Smith, G. The use of ultrasound to study the prevalence of hydatid cysts in the right lung and liver of sheep and goats in Turkana, Kenya. Int. J. Parasitol. 1996, 26, 1335–1338. [Google Scholar] [CrossRef]
- Dore, F.; Varcasia, A.; Pipia, A.P.; Sanna, G.; Pinna Parpaglia, M.L.; Corda, A.; Romig, T.; Scala, A. Ultrasound as a monitoring tool for cystic echinococcosis in sheep. Vet. Parasitol. 2014, 203, 59–64. [Google Scholar] [CrossRef]
- Hussein, A.; Elrashidy, M. Ultrasonographic features of the liver with cystic echinococcosis in sheep. Vet. Rec. Open 2014, 1, e000004. [Google Scholar] [CrossRef] [Green Version]
- Lahmar, S.; Ben Chéhida, F.; Pétavy, A.F.; Hammou, A.; Lahmar, J.; Ghannay, A.; Gharbi, H.A.; Sarciron, M.E. Ultrasonographic screening for cystic echinococcosis in sheep in Tunisia. Vet. Parasitol. 2007, 143, 42–49. [Google Scholar] [CrossRef]
- Gharbi, H.A.; Hassine, W.; Brauner, M.W.; Dupuch, K. Ultrasound examination of the hydatic liver. Radiology 1981, 139, 459–463. [Google Scholar] [CrossRef]
- Borriello, G.; Di Loria, A.; Rinaldi, L.; Bosco, A.; Guccione, J.; D’Andrea, L.; Cringoli, G.; Ciaramella, P. Focused ultrasonography assessment of hepatic hydatyd cyst in sheep. In Proceedings of the 73 Società Italiana delle Scienze Veterinarie (SISVET) Congress, Olbia, Italy, 19–22 June 2019. [Google Scholar]
- Guarnera, E.A.; Zanzottera, E.M.; Pereyra, H.; Franco, A.J. Ultrasonographic diagnosis of ovine cystic echinococcosis. Vet. Radiol. Ultrasound 2001, 42, 352–354. [Google Scholar] [CrossRef]
- Larrieu, E.; Mujica, G.; Araya, D.; Labanchi, J.L.; Arezo, M.; Herrero, E.; Santillán, G.; Vizcaychipi, K.; Uchiumi, L.; Salvitti, J.C.; et al. Pilot field trial of the EG95 vaccine against ovine cystic echinococcosis in Rio Negro, Argentina: 8 years of work. Acta Trop. 2019, 191, 1–7. [Google Scholar] [CrossRef]
- Brunetti, E.; Kern, P.; Vuitton, D.A. Expert consensus for the diagnosis and treatment of cystic and alveolar echinococcosis in humans. Acta Trop. 2010, 114, 1–6. [Google Scholar] [CrossRef] [PubMed]
- Njoroge, E. Evaluation of Ultrasonographic Diagnosis, Treatment Methods and Epidemiology of Cystic Echinococcosis in Sheep and Goats. Ph.D. Thesis, University of Nairobi, Nairobi, Kenya, 2001. [Google Scholar]
- Cringoli, G.; Pepe, P.; Bosco, A.; Maurelli, M.P.; Baldi, L.; Ciaramella, P.; Musella, V.; Buonanno, M.L.; Capuano, F.; Corrado, F.; et al. An integrated approach to control Cystic Echinococcosis in southern Italy. Vet. Parasitol. 2021, 290, 109347. [Google Scholar] [CrossRef] [PubMed]
- Pugh, D.G.; Baird, A.N. Sheep and Goat Medicine; Elsevier Saunders: Maryland Height, MO, USA, 2012; pp. 2–3. [Google Scholar]
- EMA. VICH GL9: Guideline on Good Clinical Practice; EMA/CVMP/VICH/463202/2009; EMA: Amsterdam, The Netherlands, 2000. [Google Scholar]
- Braun, U.; Hausammann, K. Ultrasonographic examination of the liver in sheep. Am. J. Vet. Res. 1992, 53, 198–202. [Google Scholar] [PubMed]
- Bigi, D.; Zanon, A. Atlante Delle Razze Autoctone: Bovini, Equini, Ovicaprini, Suini Allevati in Italia; Edagricole-New Business Media: Milan, Italy, 2010; pp. 272–274. [Google Scholar]
- Van Burgel, A.J.; Oldham, C.M.; Behrendt, R.; Curnow, M.; Gordon, D.J.; Thompson, A.N. The merit of condition score and fat scores as alternatives to live weight for managing the nutrition of ewes. Anim. Prod. Sci. 2011, 51, 834–841. [Google Scholar] [CrossRef] [Green Version]
- Scott, P.R. Abdominal ultrasonography as an adjunct to clinical examination in sheep. Small Rumin. Res. 2017, 152, 132–134. [Google Scholar] [CrossRef]
Breed | n° Sheep (%) | Mean Weight (±SD) | G1 | G2 | G3 |
---|---|---|---|---|---|
Mixed | 105/172 (61%) | 68.4 ± 9.9 | 5/22 (23%) | 45/69 (65%) | 55/81 (68%) |
Merinizzata | 24/172 (14%) | 79.2 ± 2.8 | 0/22 (0%) | 0 (0%) | 24/81 (30%) |
Bagnolese | 21/172 (12%) | 62.0 ± 2.5 | 0/22 (0%) | 19/69 (28%) | 2/81 (2%) |
Comisana | 10/172(6%) | 51.5 ± 7.6 | 5/22 (23%) | 5/69 (7%) | 0 (0%) |
Sarda | 12/172 (7%) | 42.1 ± 4.0 | 12/22 (55%) | 0 (0%) | 0 (0%) |
cUS | HYP | Z1 | Z2 | Z3 | HYP + Z1 | Z1 + Z2 | Z2 + Z3 | ||
---|---|---|---|---|---|---|---|---|---|
G1 + G2 + G3 | TP | 73 | 48 | 38 | 51 | 35 | 49 | 62 | 65 |
(42%) | (28%) | (22%) | (30%) | (20%) | (28%) | (36%) | (37%) | ||
FP | 18 | 8 | 5 | 11 | 5 | 8 | 15 | 15 | |
(10%) | (5%) | (3%) | (6%) | (3%) | (5%) | (9%) | (9%) | ||
TN | 74 | 84 | 87 | 81 | 87 | 84 | 77 | 77 | |
(43%) | (49%) | (51%) | (47%) | (51%) | (49%) | (45%) | (45%) | ||
FN | 7 | 32 | 42 | 29 | 45 | 31 | 18 | 15 | |
(4%) | (18%) | (24%) | (17%) | (26%) | (18%) | (10%) | (9%) | ||
TOTAL | 172 | 172 | 172 | 172 | 172 | 172 | 172 | 172 | |
(100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | ||
G1 | TP | 10 | 10 | 6 | 8 | 5 | 10 | 10 | 10 |
(45%) | (45%) | (27%) | (36%) | (23%) | (45%) | (45%) | (45%) | ||
FP | 2 | 2 | 1 | 2 | 1 | 2 | 2 | 2 | |
(9%) | (9%) | (5%) | (9%) | (5%) | (9%) | (9%) | (9%) | ||
TN | 9 | 9 | 10 | 9 | 10 | 9 | 9 | 9 | |
(41%) | (41%) | (45%) | (41%) | (45%) | (41%) | (41%) | (41%) | ||
FN | 1 | 1 | 5 | 3 | 6 | 1 | 1 | 1 | |
(5%) | (5%) | (23%) | (14%) | (27%) | (5%) | (5%) | (5%) | ||
TOTAL | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | |
(100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | ||
G2 | TP | 30 | 20 | 15 | 22 | 11 | 21 | 27 | 26 |
(43%) | (29%) | (22%) | (32%) | (16%) | (31%) | (39%) | (38%) | ||
FP | 10 | 5 | 3 | 6 | 2 | 5 | 9 | 8 | |
(15%) | (7%) | (4%) | (9%) | (3%) | (7%) | (13%) | (11%) | ||
TN | 26 | 31 | 33 | 30 | 34 | 31 | 27 | 28 | |
(38%) | (45%) | (48%) | (43%) | (49%) | (45%) | (39%) | (41%) | ||
FN | 3 | 13 | 18 | 11 | 22 | 12 | 6 | 7 | |
(4%) | (19%) | (26%) | (16%) | (32%) | (17%) | (9%) | (10%) | ||
TOTAL | 69 | 69 | 69 | 69 | 69 | 69 | 69 | 69 | |
(100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | ||
G3 | TP | 33 | 18 | 17 | 21 | 19 | 18 | 25 | 29 |
(41%) | (22%) | (21%) | (26%) | (24%) | (22%) | (31%) | (36%) | ||
FP | 6 | 1 | 1 | 3 | 2 | 1 | 4 | 5 | |
(7%) | (1%) | (1%) | (4%) | (2%) | (1%) | (5%) | (6%) | ||
TN | 39 | 44 | 44 | 42 | 43 | 44 | 41 | 40 | |
(48%) | (55%) | (54%) | (52%) | (53%) | (55%) | (51%) | (50%) | ||
FN | 3 | 18 | 19 | 15 | 17 | 18 | 11 | 7 | |
(4%) | (22%) | (24%) | (18%) | (21%) | (22%) | (13%) | (8%) | ||
TOTAL | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | |
(100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) | (100%) |
cUS | HYP | Z1 | Z2 | Z3 | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Se(%) | Sp(%) | Se(%) | Sp(%) | Se(%) | Sp(%) | Se(%) | Sp(%) | Se(%) | Sp(%) | |
(95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | |
G1 | 91 (59–100) | 82 (48–98) | 91 (59–100) | 82 (48–98) | 55 (23–83) | 91 (59–100) | 73 (39–94) | 82 (48–98) | 45 (17–77) | 91 (59–100) |
G2 | 91 (76–98) | 72 (55–86) | 61 (42–77) | 86 (71–95) | 47 (28–64) | 92 (78–98) | 67 (48–82) | 83 (67–94) | 33 (18–52) | 94 (81–98) |
G3 | 92 (78–98) | 87 (73–95) | 50 (33–67) | 98 (88–100) | 47 (30–65) | 98 (88–100) | 58 (41–74) | 93 (82–99) | 53 (35–70) | 96 (85–98) |
G1 + G2 + G3 | 91 (81–96) | 80 (71–88) | 60 (48–71) | 91 (84–96) | 48 (36–59) | 95 (88–98) | 64 (52–74) | 88 (80–84) | 44 (33–55) | 95 (88–98) |
HYP + Z1 | Z1 + Z2 | Z2 + Z3 | ||||
---|---|---|---|---|---|---|
Se (%) | Sp (%) | Se (%) | Sp (%) | Se (%) | Sp (%) | |
(95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | (95% CI) | |
G1 | 91 (59–100) | 82 (48–98) | 91 (59–100) | 82 (48–98) | 91 (59–100) | 82 (48–98) |
G2 | 64 (45–80) | 86 (71–95) | 82 (65–93) | 75 (58–88) | 79 (61–91) | 81 (61–80) |
G3 | 50 (33–67) | 98 (88–100) | 69 (52–84) | 91 (79–98) | 81 (64–92) | 89 (76–96) |
G1 + G2 + G3 | 61 (50–72) | 91 (84–96) | 78 (67–86) | 84 (75–91) | 79 (71–89) | 84 (75–91) |
cUS | AE | |
---|---|---|
CL | 0% (0/259) | 0% (0/301) |
CE1 | 0% (0/259) | 0% (0/301) |
CE2 | 1.2% (3/259) | 1% (3/301) |
CE3 | 5% (13/259) | 4.6% (14/301) |
CE4 | 1.5% (4/259) | 3% (9/301) |
CE5 | 92.3% (239/259) | 91.4% (275/301) |
