Discharge Formula and Hydraulics of Rectangular Side Weirs in the Small Channel and Field Inlet

,
,
and
1
Institute of Farmland Irrigation, Chinese Academy of Agricultural Sciences, Xinxiang 453002, China
2
Key Laboratory of Water Saving Irrigation Engineering, Ministry of Agriculture and Rural Affairs, Xinxiang 453002, China
3
Key Laboratory of Agricultural Soil and Water Engineering in Arid and Semiarid Areas, Ministry of Education, Northwest A&F University, Xianyang 712100, China
4
Yellow River Engineering Consulting Co., Ltd., Zhengzhou 450003, China
This article belongs to the Section Hydraulics and Hydrodynamics

Abstract

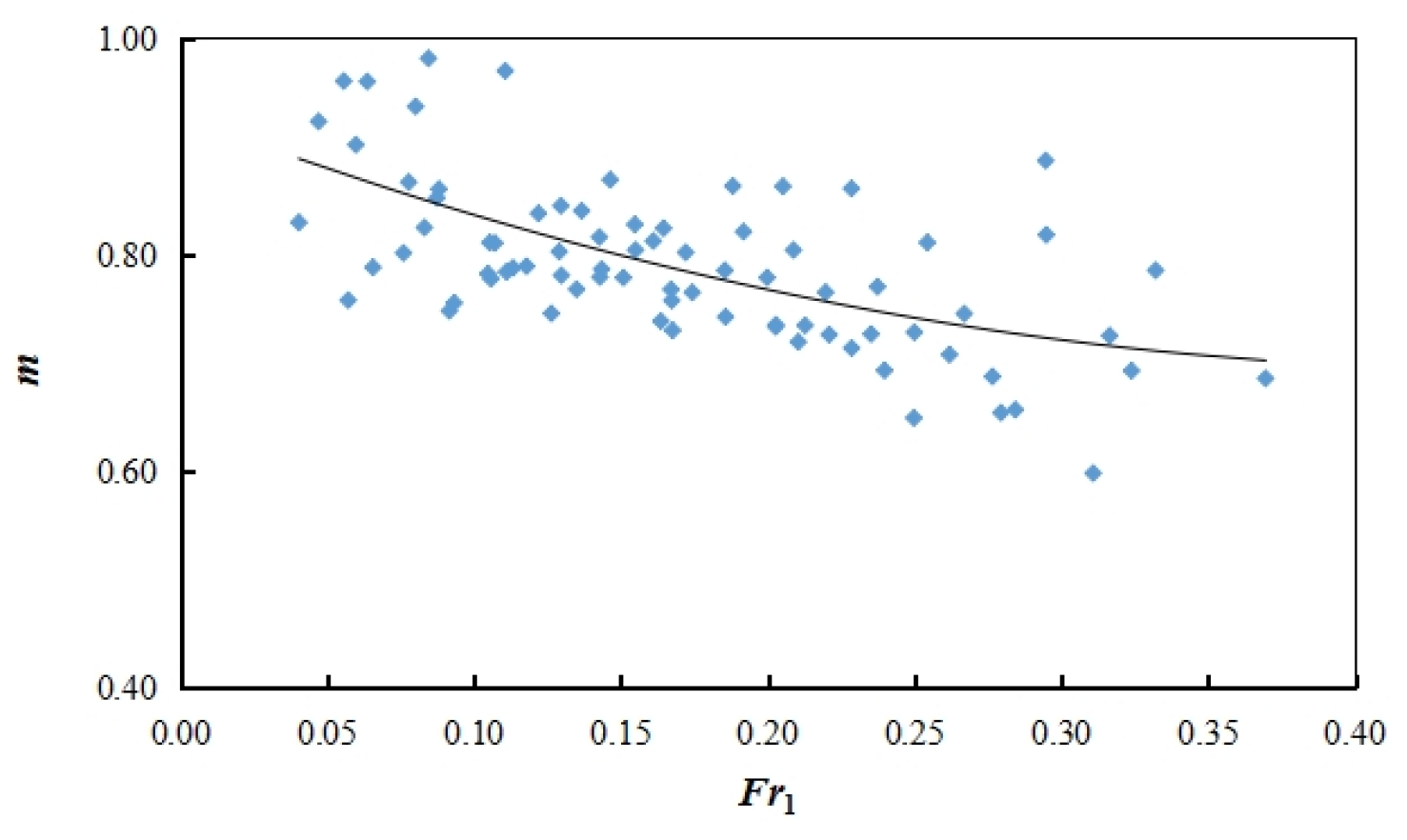

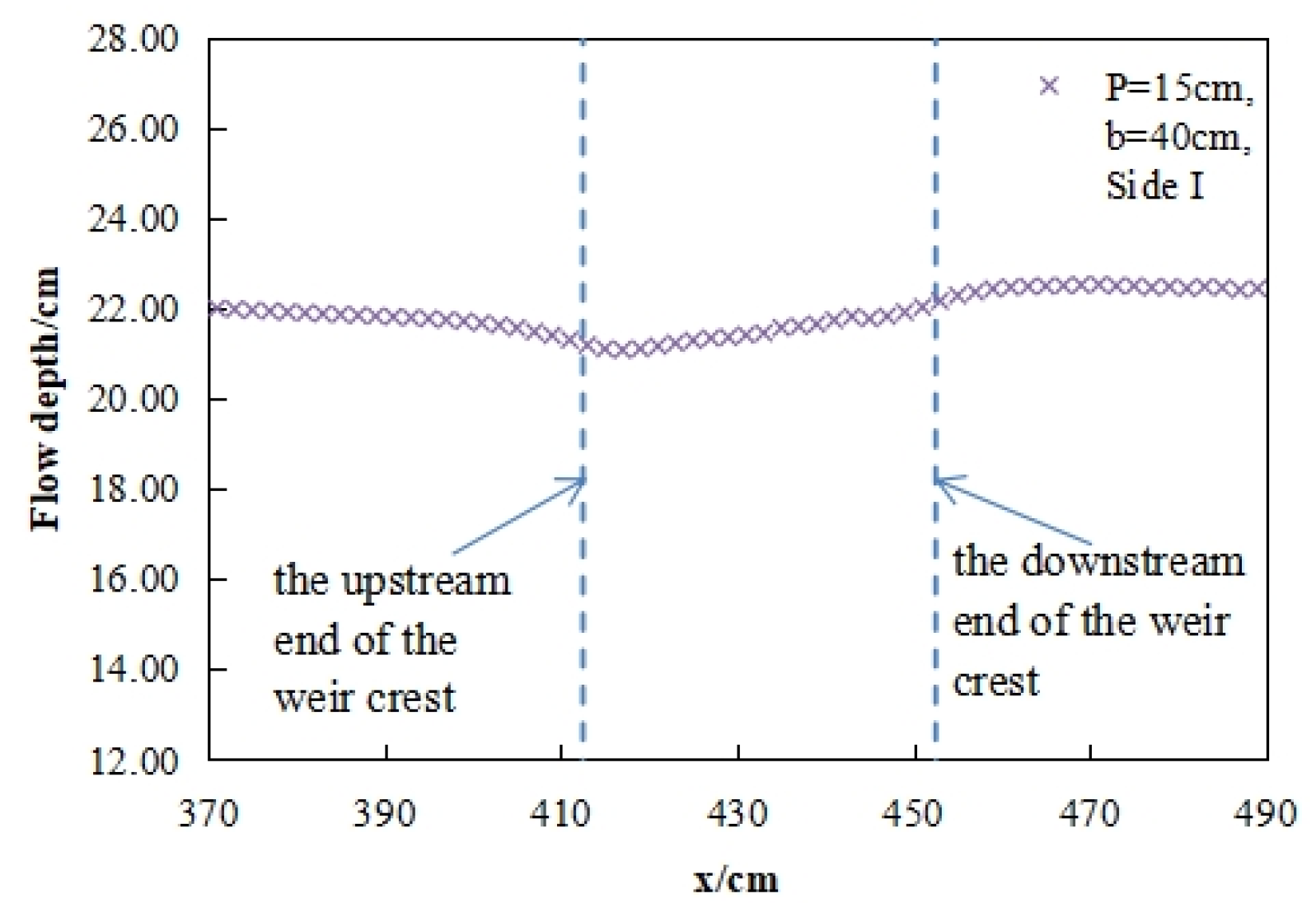

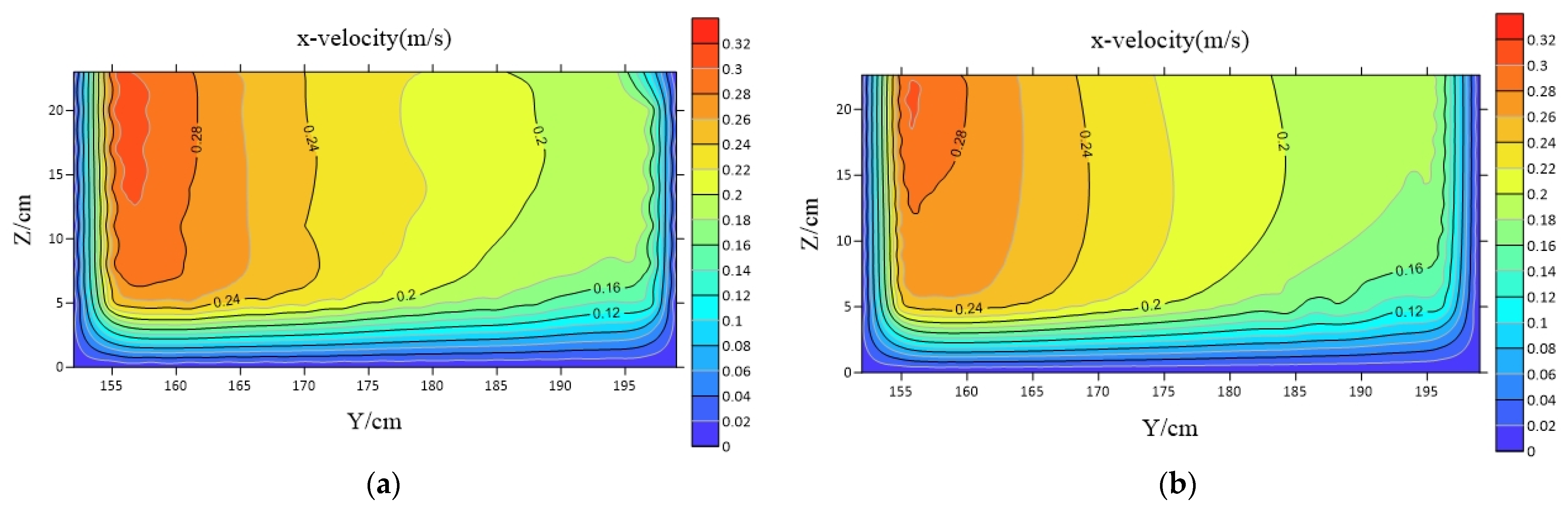

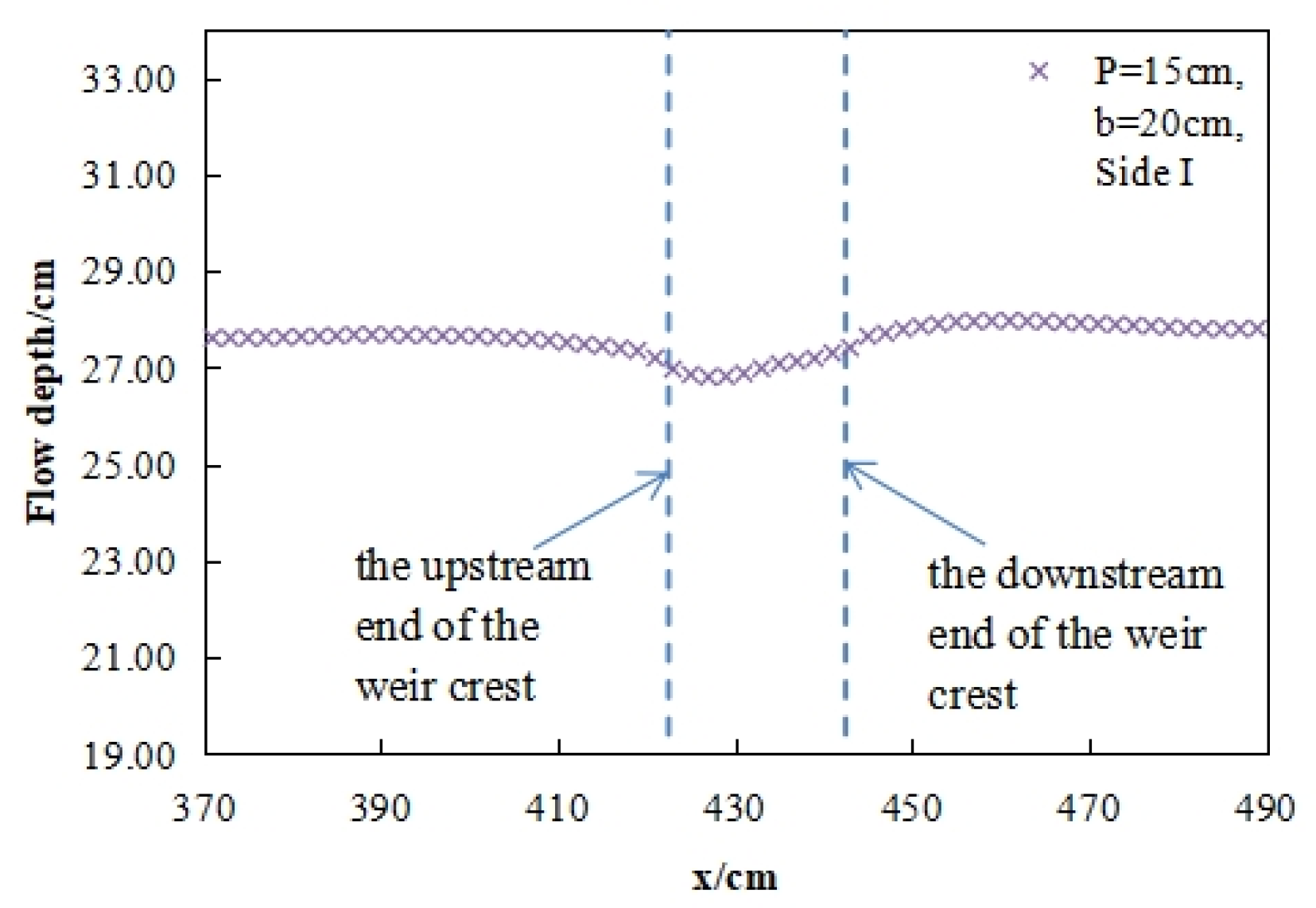

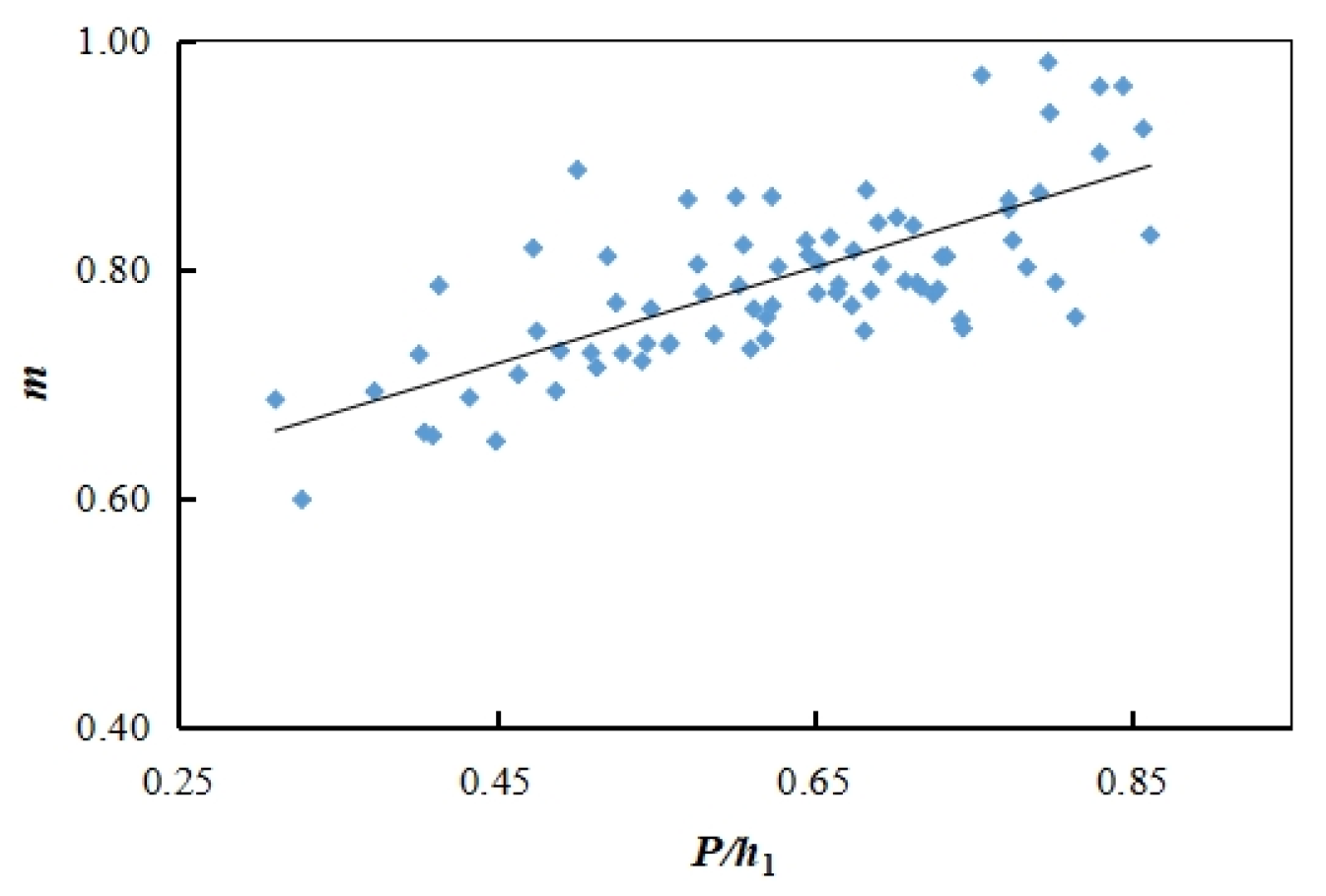

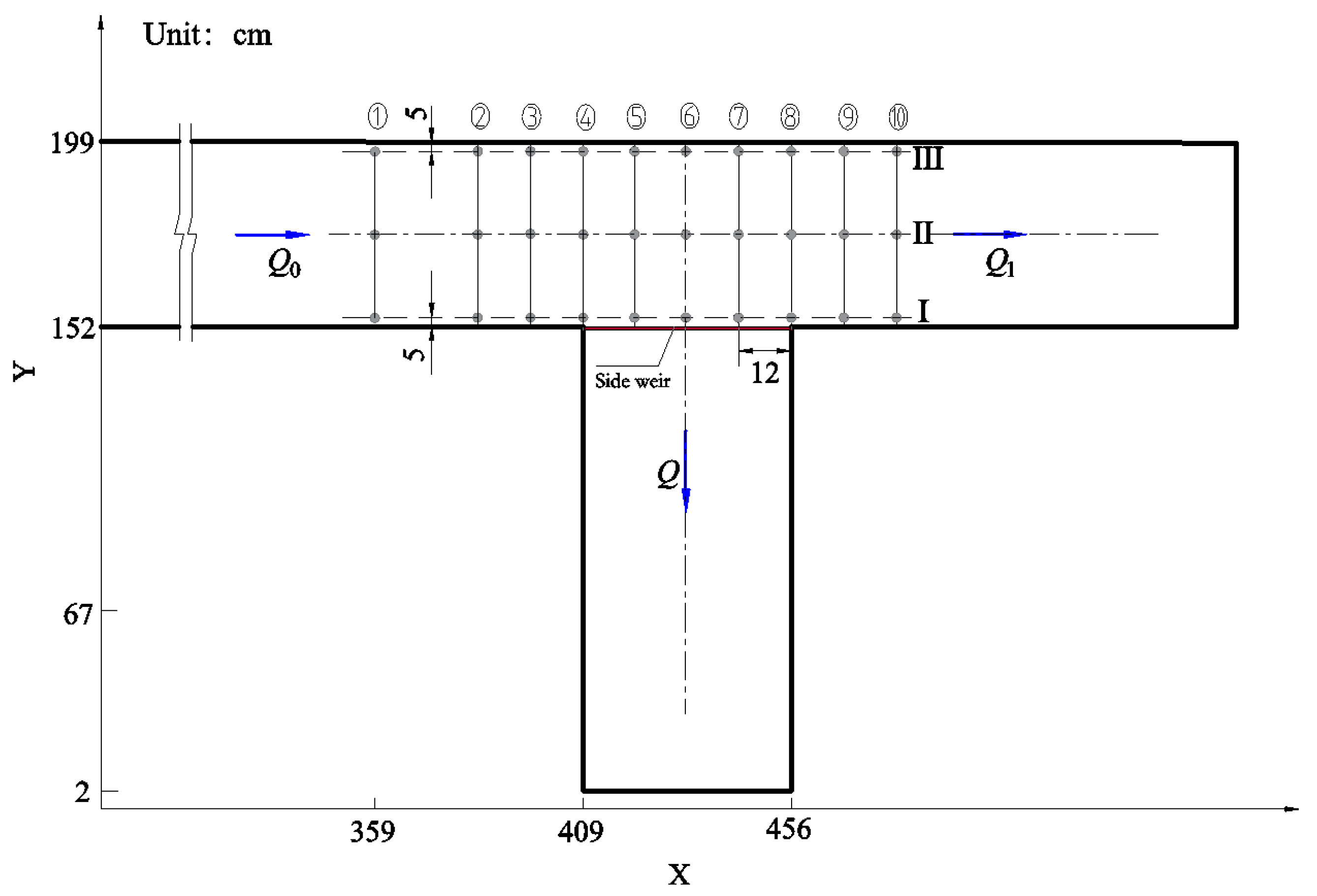

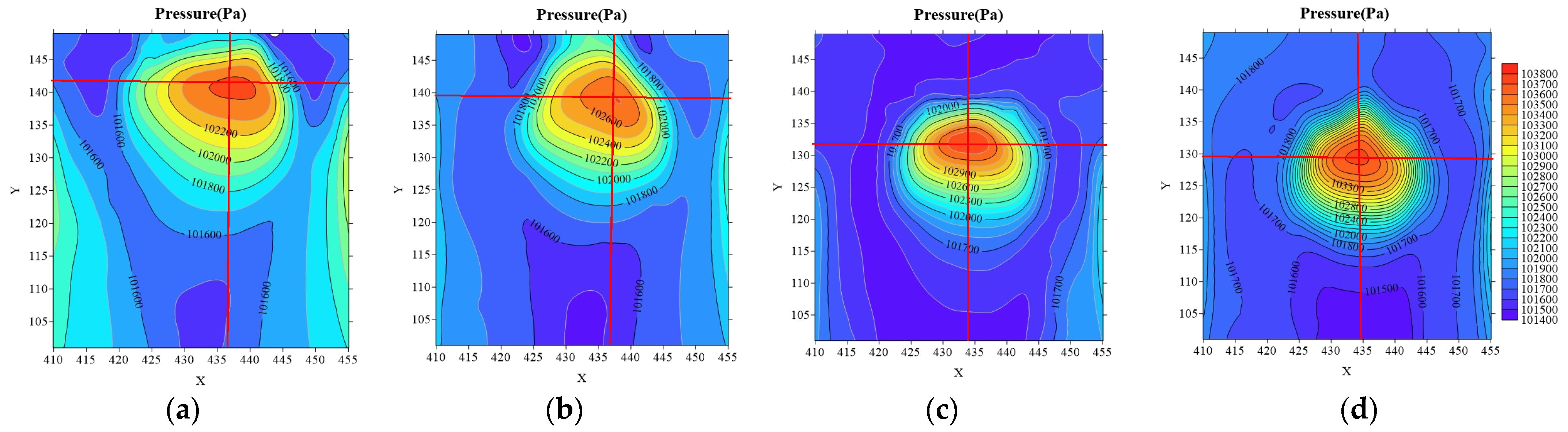

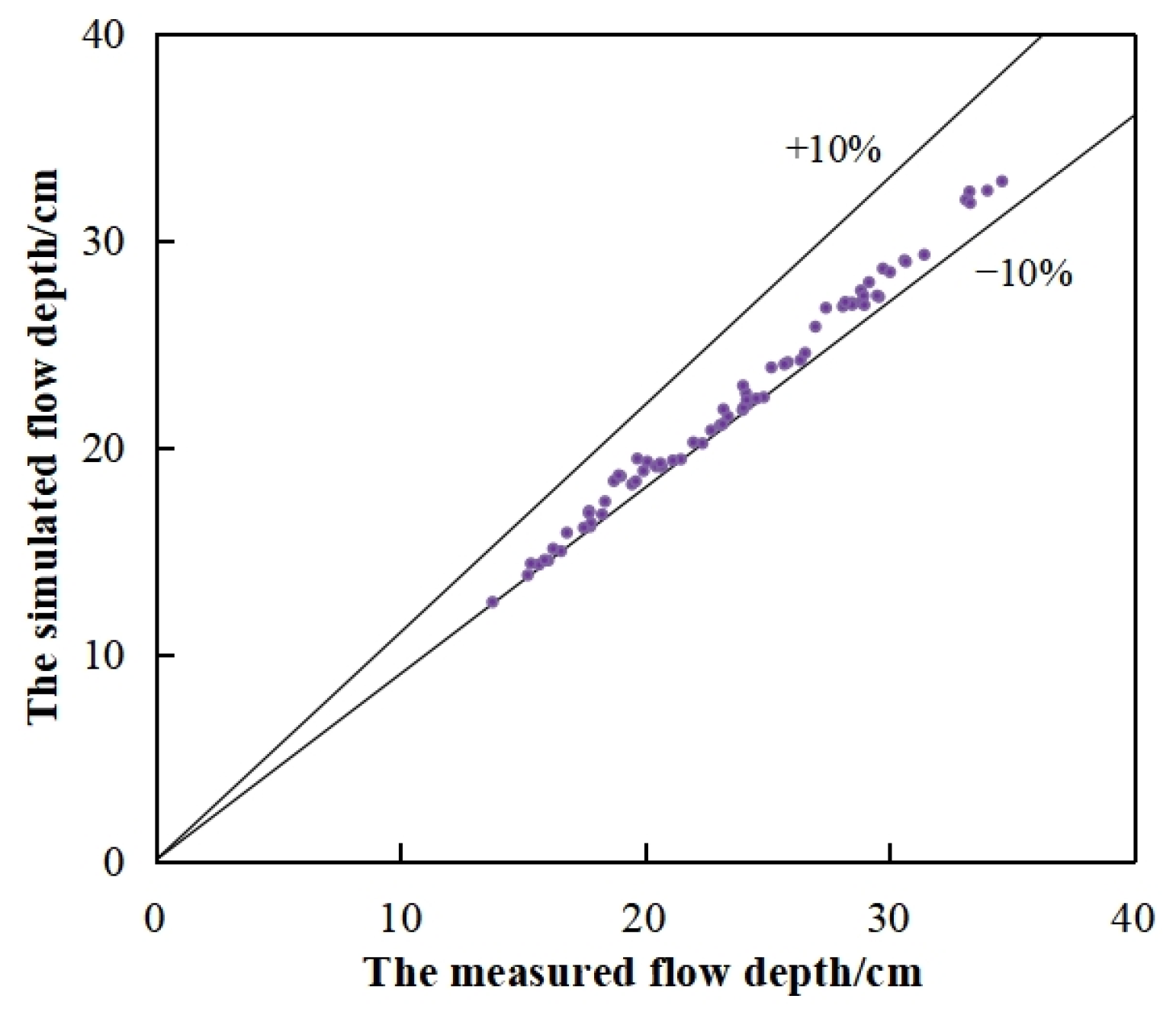

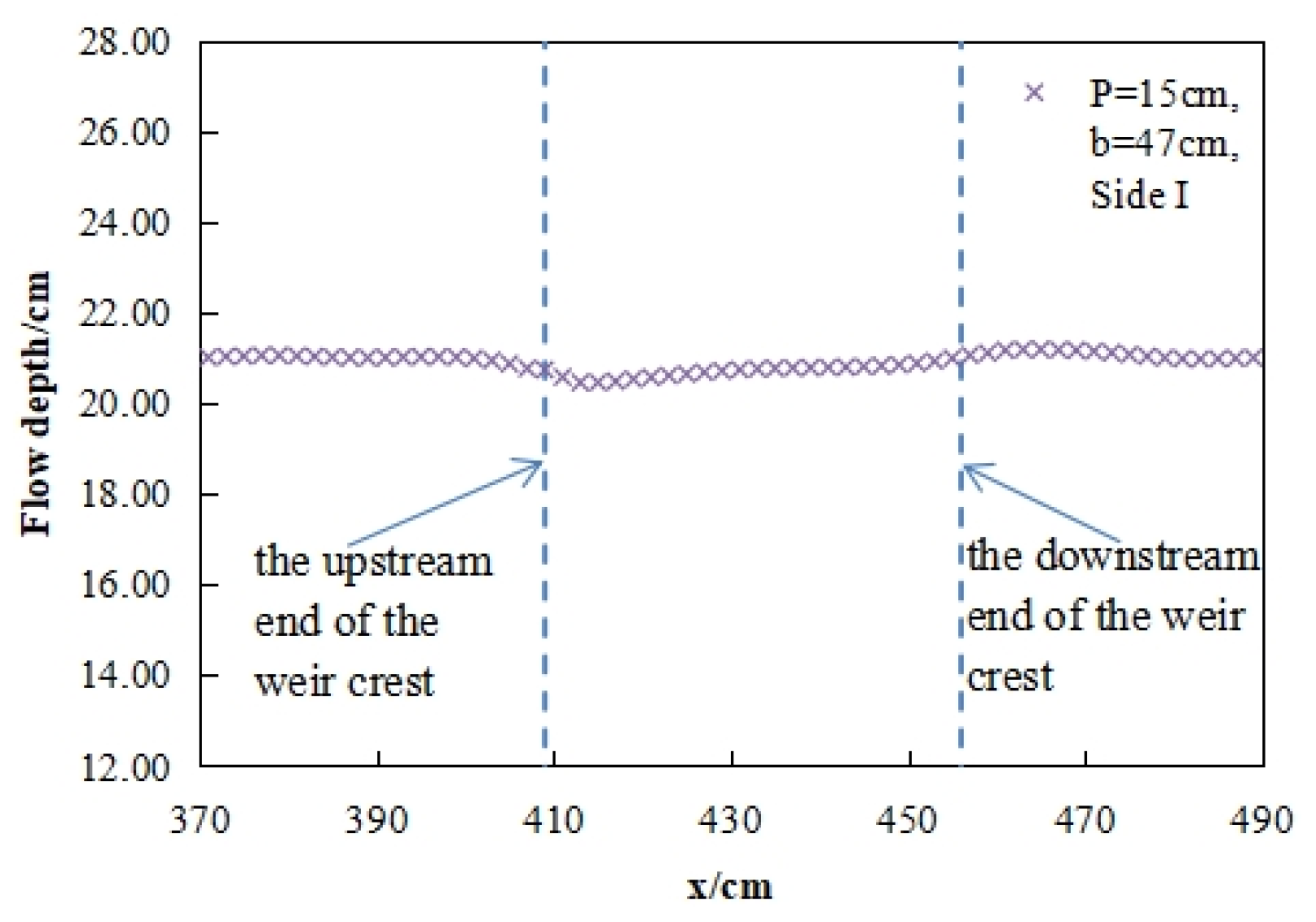

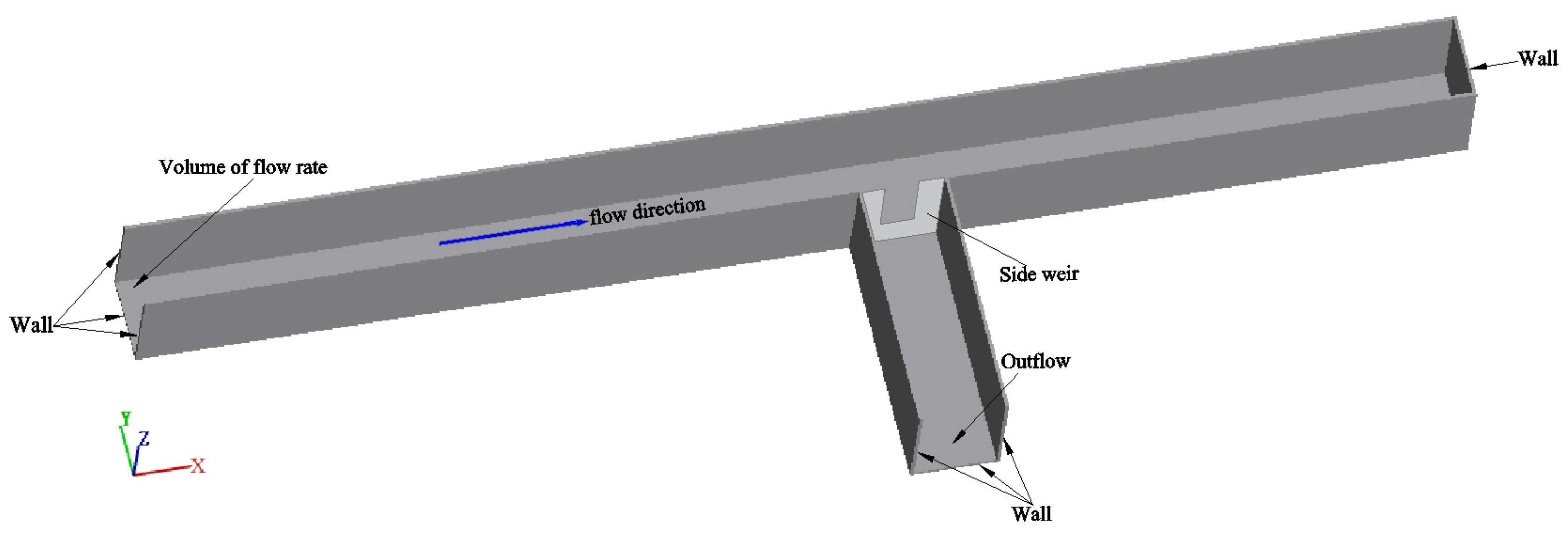

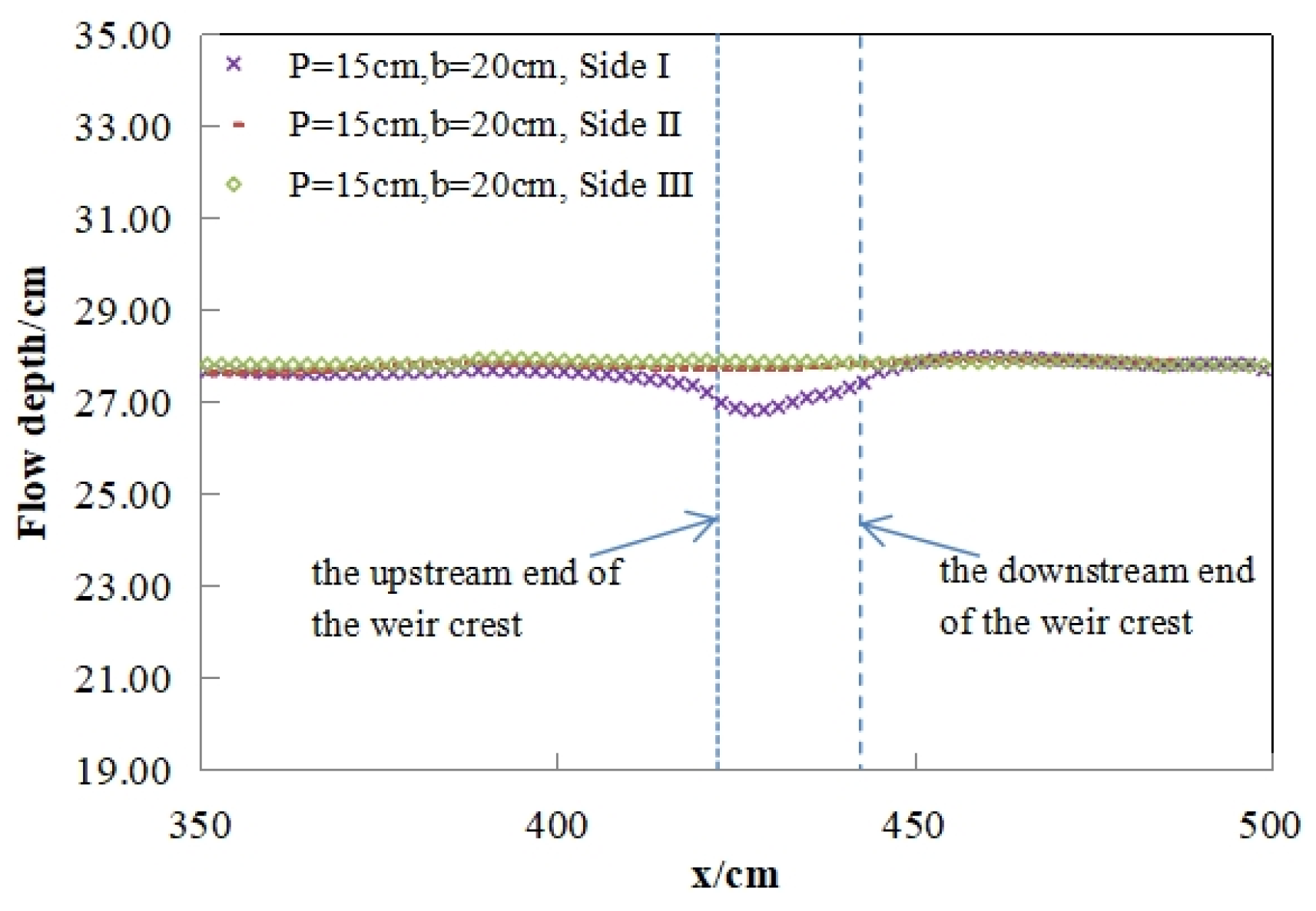

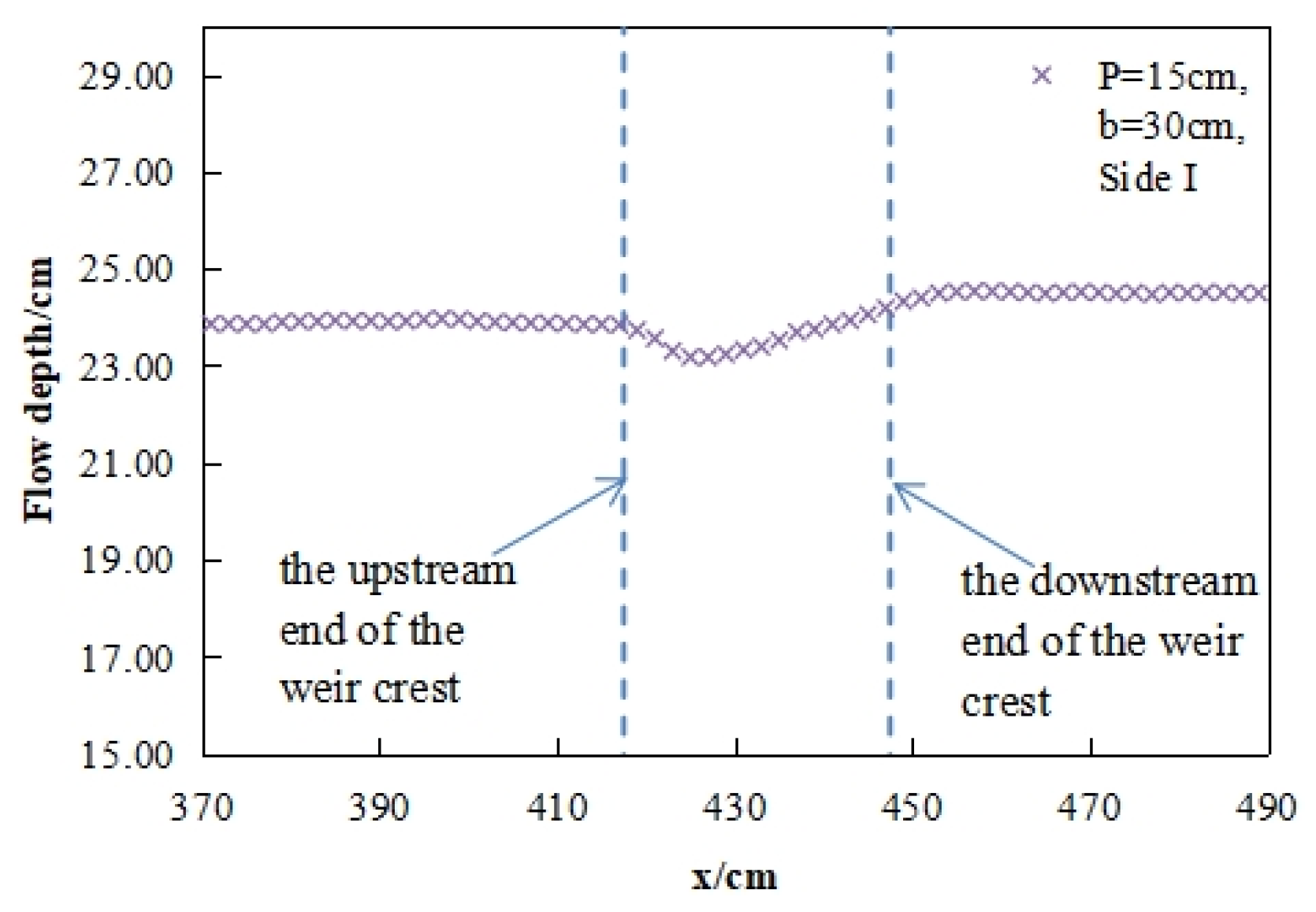

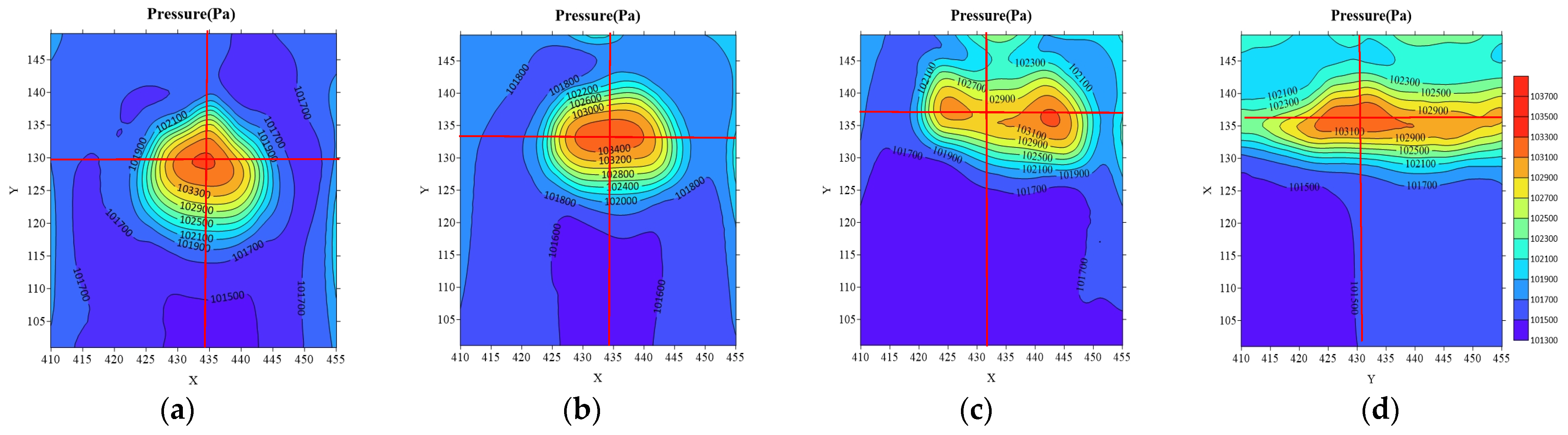

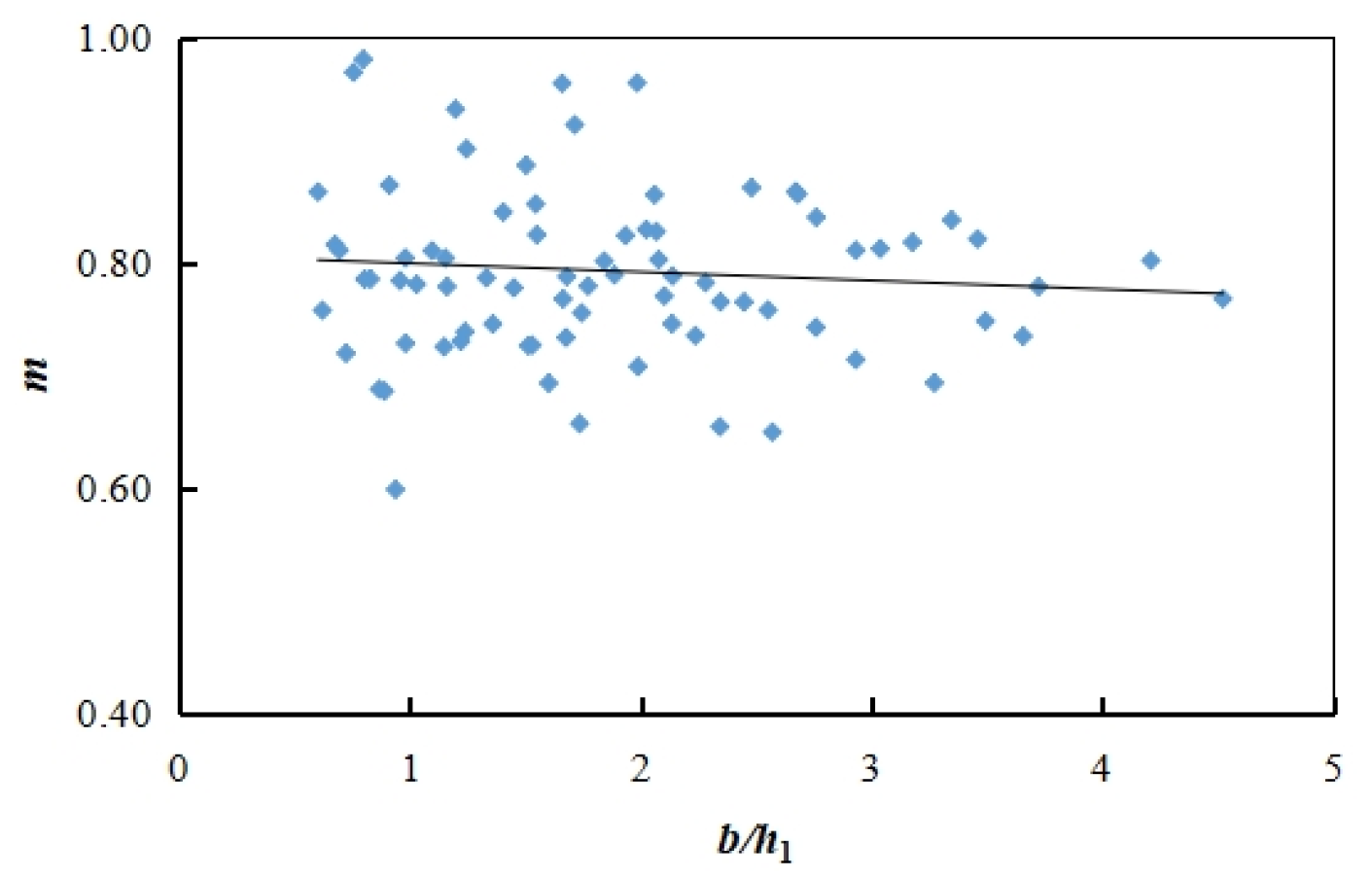

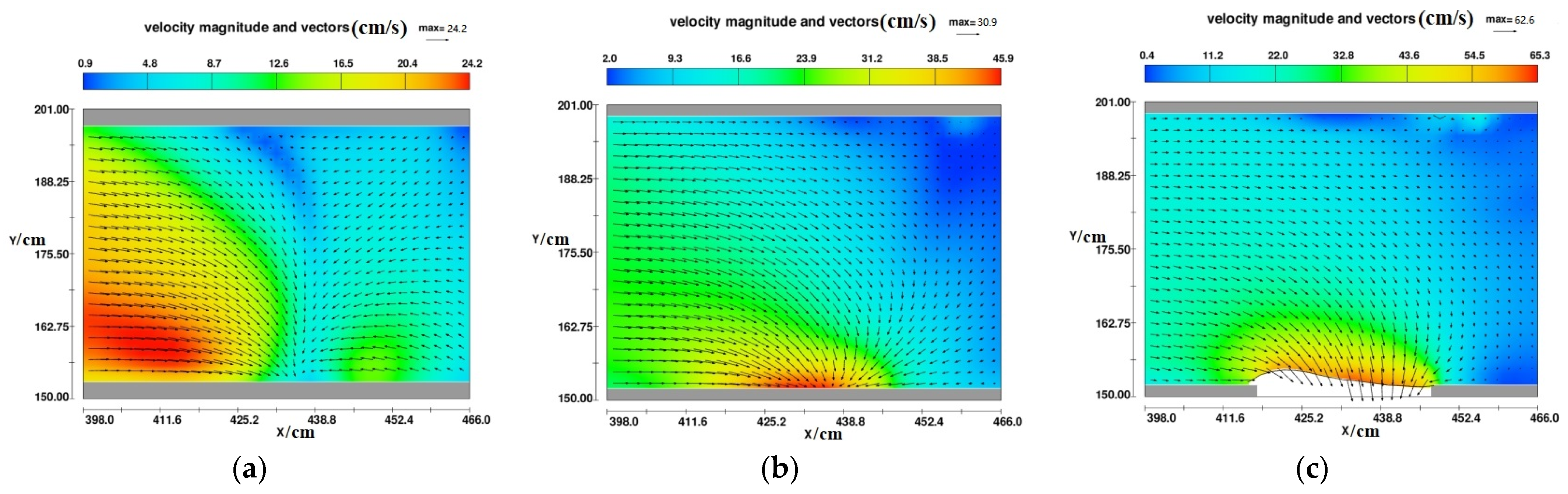

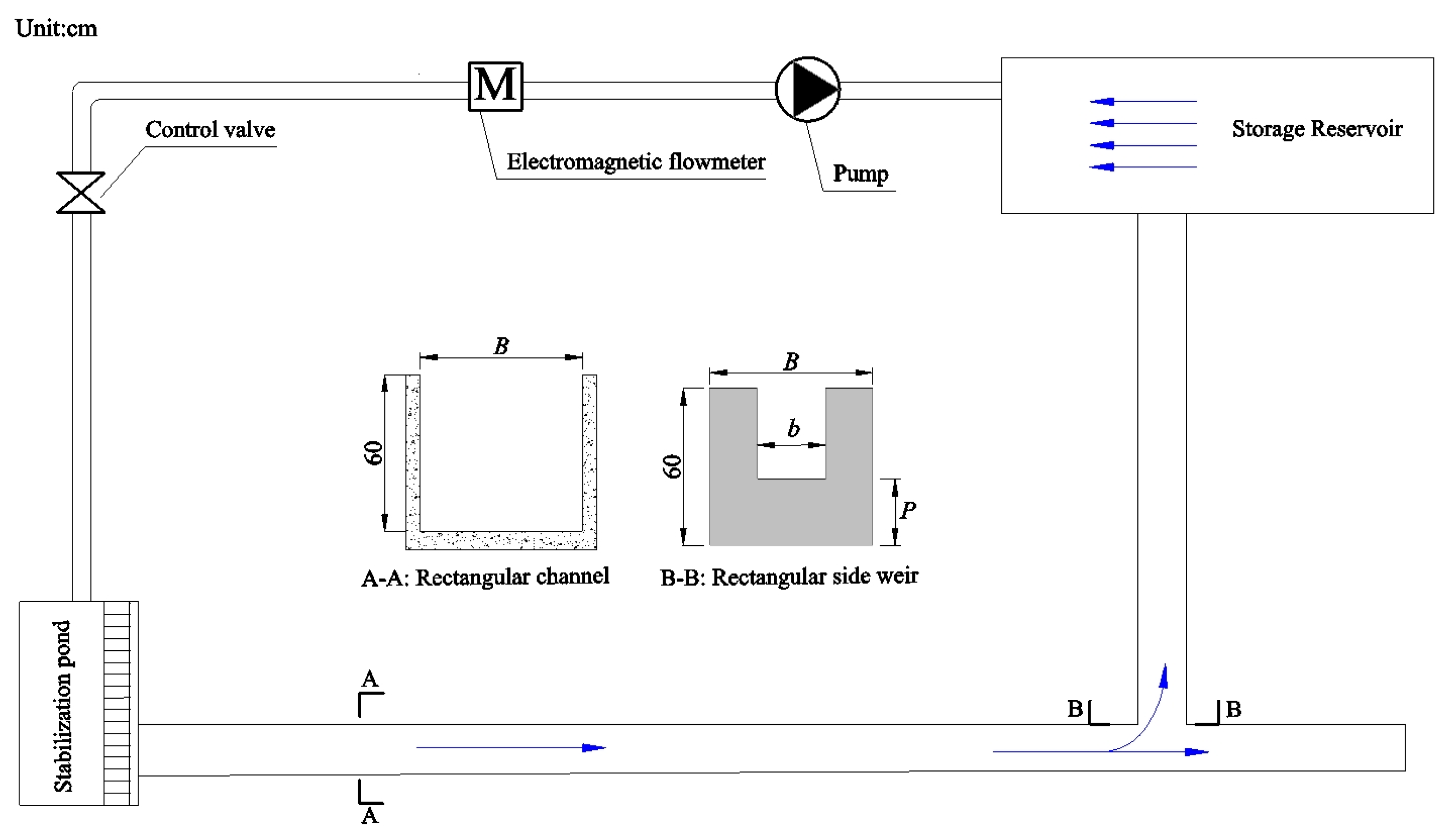

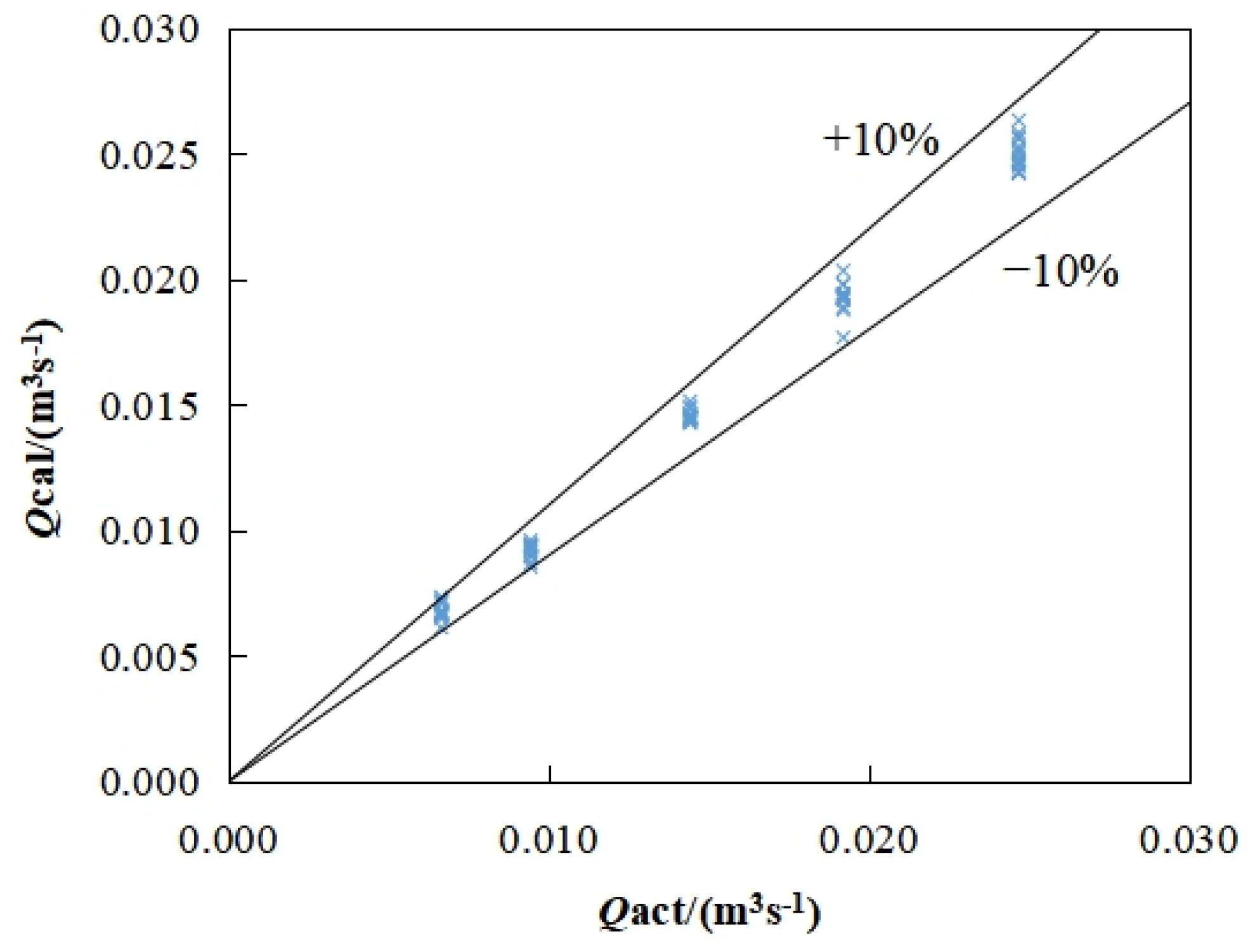

In this study, experimental investigations were conducted on rectangular side weirs with different widths and heights. Corresponding simulations were also performed to analyze hydraulic characteristics including the water surface profile, flow velocity, and pressure. The relationship between the discharge coefficient and the Froude number, as well as the ratios of the side weir height and width to upstream water depth, was determined. A discharge formula was derived based on a dimensional analysis. The results demonstrated good agreement between simulated and experimental data, indicating the reliability of numerical simulations using FLOW-3D software (version 11.1). Notably, significant fluctuations in water surface profiles near the side weir were observed compared to those along the center line or away from the side weir in the main channel, suggesting that the entrance effect of the side weir did not propagate towards the center line of the main channel. The proposed discharge formula exhibited relative errors within 10%, thereby satisfying the flow measurement requirements for small channels and field inlets.
