Effects of Graphene Nanosheets with Different Lateral Sizes as Conductive Additives on the Electrochemical Performance of LiNi0.5Co0.2Mn0.3O2 Cathode Materials for Li Ion Batteries

Department of Chemical Engineering, R&D Center for Membrane Technology, Research Center for Circular Economy, Chung Yuan Christian University, 200 Chung Pei Road, Chung Li District, Taoyuan City 32023, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(5), 1162; https://doi.org/10.3390/polym12051162
Received: 27 March 2020 / Revised: 9 May 2020 / Accepted: 14 May 2020 / Published: 19 May 2020

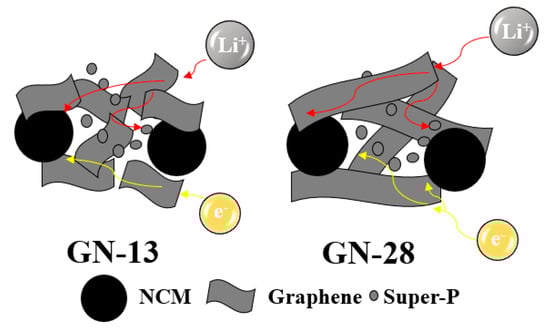

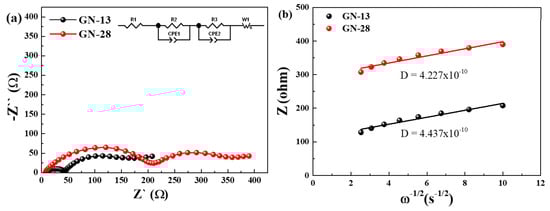

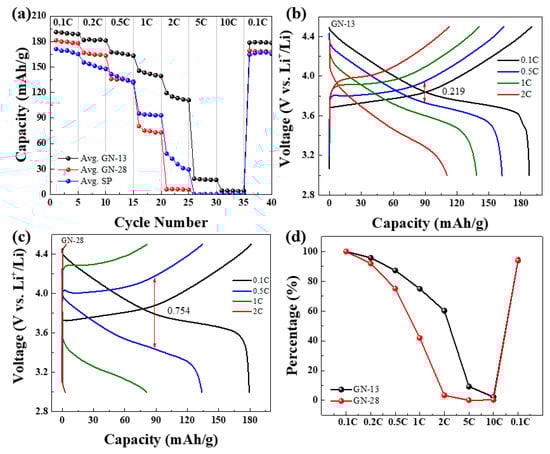

In this study, we focus on lateral size effects of graphene nanosheets as conductive additives for LiNi0.5Co0.2Mn0.3O2 (NCM) cathode materials for Li-ion batteries. We used two different lateral sizes of graphene, 13 (GN-13) and 28 µm (GN-28). It can be found that the larger sheet sizes of graphene nanosheets give a poorer rate capability. The electrochemical measurements indicate that GN-13 delivers an average capacity of 189.8 mAh/g at 0.1 C and 114.2 mAh/g at 2 C and GN-28 exhibits an average capacity of 179.4 mAh/g at 0.1 C and only 6 mAh/g at 2 C. Moreover, according to the results of alternating current (AC) impedance, it can be found that the GN-28 sample has much higher resistance than that of GN-13. The reason might be attributed to that GN-28 has a longer diffusion distance of ion transfer and the mismatch of particle size between NCM and GN-28. The corresponding characterization might provide important reference for Li-ion battery applications. View Full-Text
Keywords: cathode; graphene; Li-ion batteries; conductive additives cathode; graphene; Li-ion batteries; conductive additives
Show Figures

Graphical abstract

MDPI and ACS Style

Hsu, T.-H.; Liu, W.-R. Effects of Graphene Nanosheets with Different Lateral Sizes as Conductive Additives on the Electrochemical Performance of LiNi0.5Co0.2Mn0.3O2 Cathode Materials for Li Ion Batteries. Polymers 2020, 12, 1162.
