Abstract

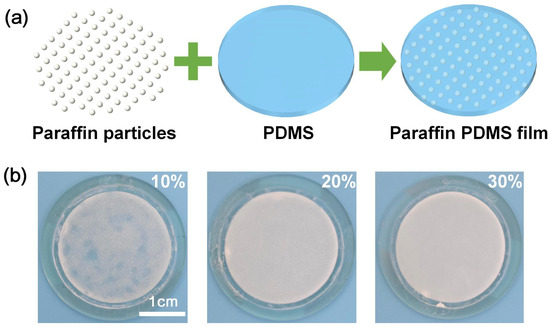

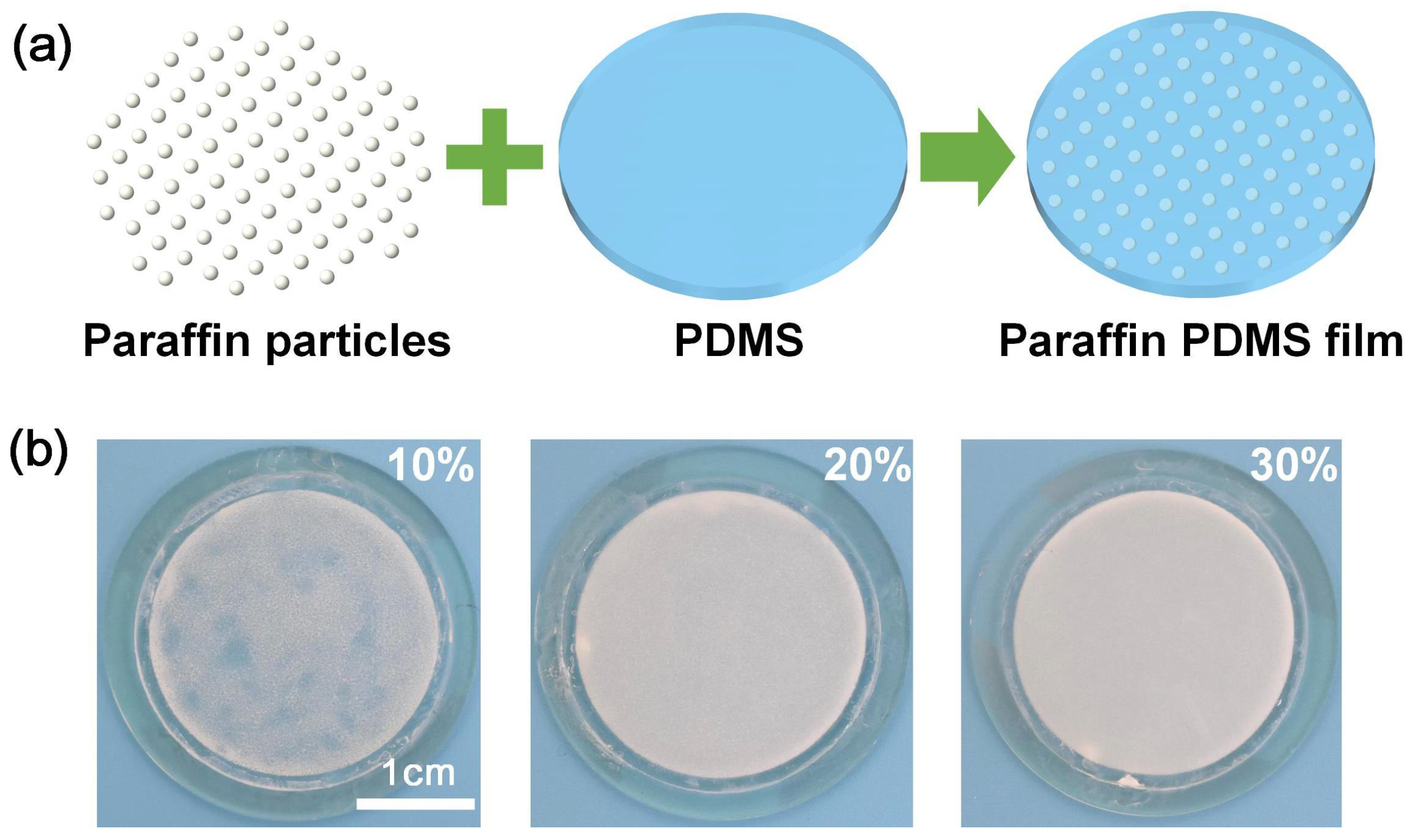

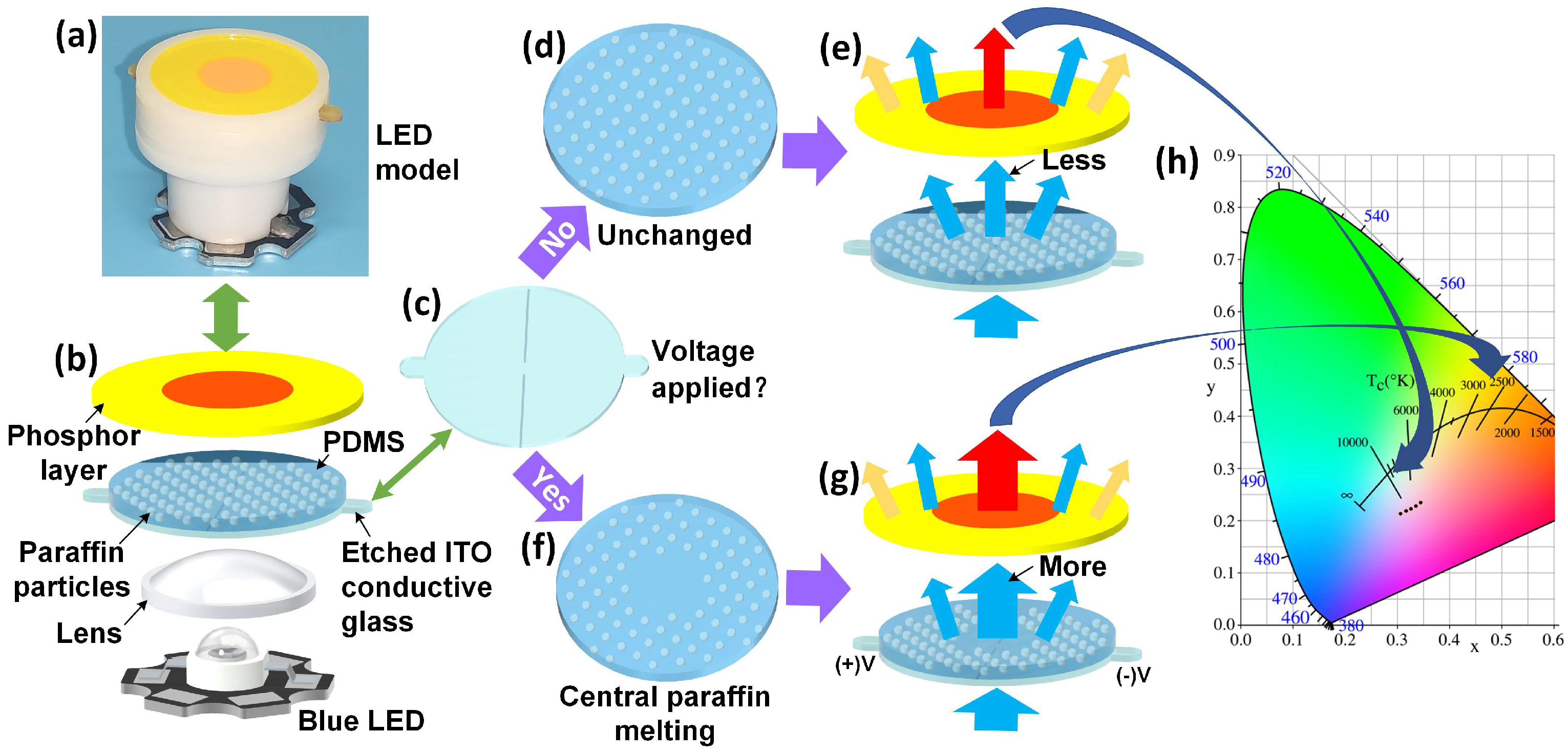

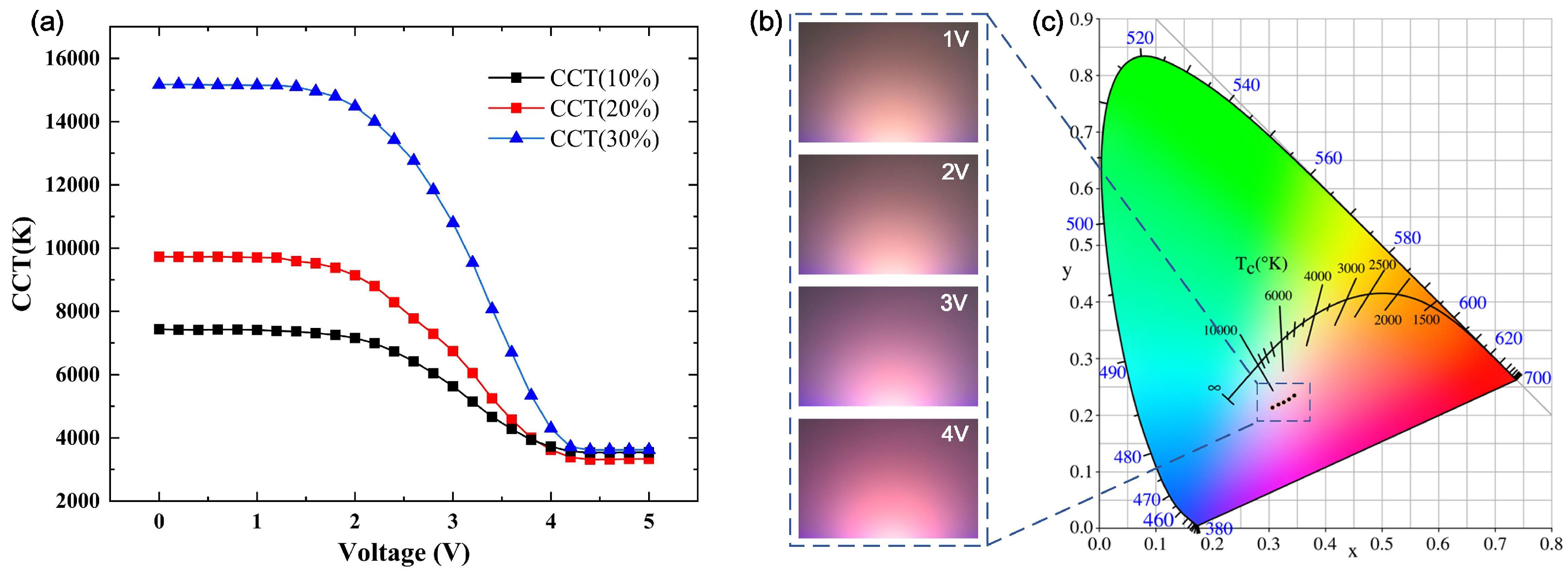

In this paper, a new method to regulate the correlated color temperature (CCT) of white light-emitting diodes (LEDs) is proposed for the single-chip packaging structure, in which the blue light distribution emitted from the chip in the red/yellow phosphor layer was modulated through changing the paraffin-polydimethylsiloxane (PDMS) film transparence and haze. The results show that the transmittance of the paraffin-PDMS film can be modulated from 49.76% to 97.64%, while the haze of that ranges from 88.19% to 63.10%. When the thickness of paraffin-PDMS film is 0.6 mm, and the paraffin-PDMS film concentration is 30 wt%, the CCT of white LED decreases from 15177 K to 3615 K with the increase of thermal load in the paraffin-PDMS film. The modulating range of its CCT reaches 11562 K. The maximum CCT variation at the same test condition is only 536 K in the repeated experiments within one week.
