Energy Consumption Prediction in Battery Electric Vehicles: A Systematic Literature Review

Abstract

Predicting energy consumption in battery electric vehicles (BEVs) is a complex task due to the large number of influencing factors and their interdependencies. Nevertheless, reliable energy consumption estimation is essential to reduce range anxiety, facilitate route planning, manage charging infrastructure, and support more effective travel decisions that lower operational risks in transportation, thereby fostering wider BEV adoption. In this context, the present study examines the existing literature on methodologies for predicting BEV energy consumption through a systematic literature review (SLR) following the Denyer and Tranfield protocol and the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. The analysis covers modelling approaches, computational tools, model accuracy metrics, variable topology, sampling frequency and analysis period, modelling scale, and data sources. In addition, this review incorporates a structured assessment of the methodological quality of the included studies and a systematic evaluation of risk of bias, enabling a critical appraisal of the reliability and generalisability of reported findings. A comprehensive classification of modelling methodologies and variables is proposed, providing an integrative reference framework for future research. Overall, this study addresses existing research gaps, identifies current methodological limitations, and outlines directions for future work on BEV energy consumption prediction.

1. Introduction

The transport sector has been recognised as a major source of air pollution. In the US, 28% of anthropogenic greenhouse gas (GHG) emissions were associated with transport activities in 2022 [1]. In Europe, 23% of total CO₂ emissions were due to road transport in 2022 [2]. Asia Pacific (AP) is the largest vehicle market in the world, led by China, Japan, South Korea, and India, where vehicle sales exceeded 7 million units in the first quarter of 2023 [3]; it is estimated that the vast majority of increases in global transport emissions will come from AP and that AP’s share of global transport emissions will continue to rise [4]. Globally, the transport sector is one of the main contributors to the increase in GHG emissions, accounting for more than 14% of total global emissions; the main concern is that, if this trend continues, GHG emissions from this sector are forecast to rise by up to 70% by 2050 [5]. To reduce these emissions, together with the dependence on fossil fuels, and to achieve a sustainable future, it is a priority to promote alternative transport sources such as battery electric vehicles (BEV) [6,7,8,9]. Electric cars use electricity, a secondary energy source that replaces fossil fuels and produces no emissions while driving [10]. The negative impact on the environment can be further mitigated, especially if the electricity is generated from renewable energy sources such as wind, solar, biomass, etc. [11].

Despite supply chain disruptions, macroeconomic and geopolitical uncertainty, and high prices of raw materials and energy, electric car sales recorded a record year in 2023, reaching 14 million units sold, 35% more than in 2022; this figure includes both BEV and plug-in hybrid electric vehicles (PHEV) [12]. Globally, around 40 million electric cars were on the road in 2023, nearly eight times more than in 2018, as shown in Figure 1; it is noteworthy that approximately 70% of the global stock of electric cars in 2023 were BEVs. Going further, around 250,000 electric cars were sold each week in 2023, which is more than the total annual sales just a decade ago, in 2013. With respect to the global vehicle fleet, electric cars accounted for around 18% of all vehicles sold in 2023, compared with 14% in 2022 and only 2% in 2018.

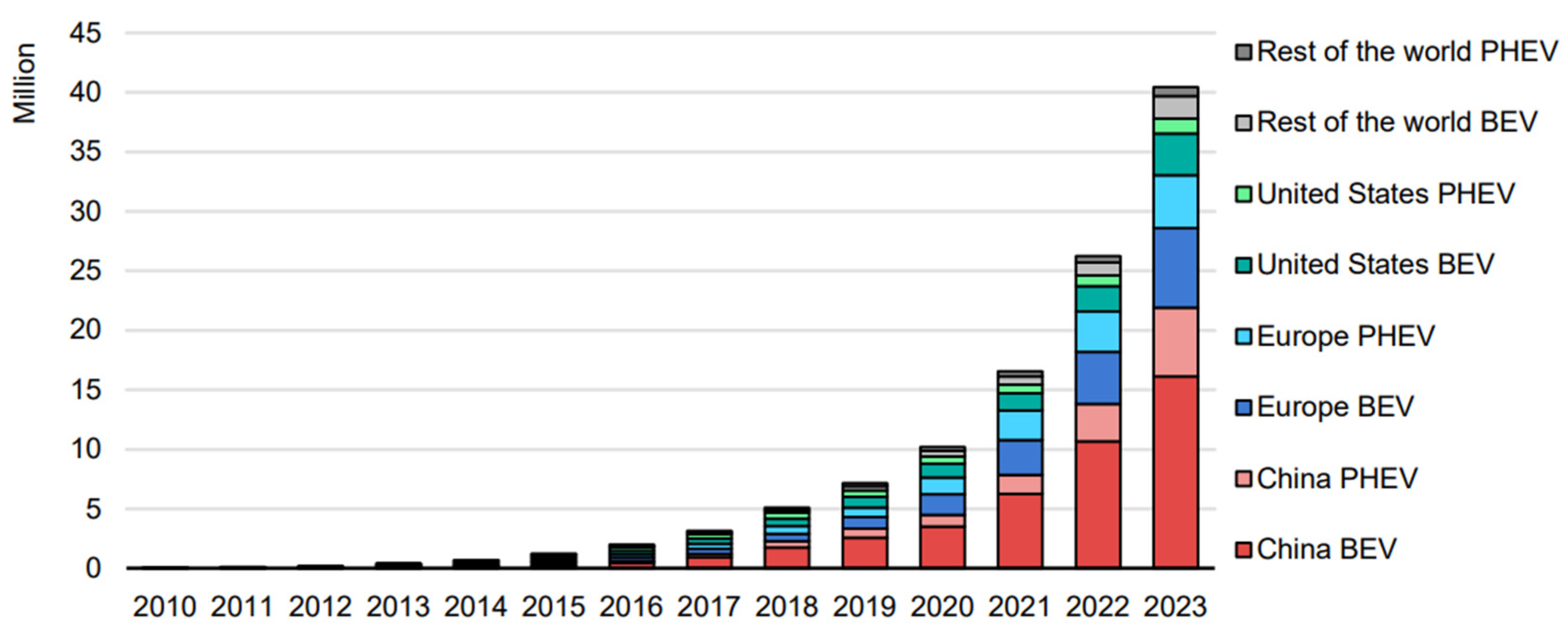

Figure 1. Global stock of electric vehicles in selected regions, 2010–2023 [12].

Although the BEV market has experienced remarkable growth in recent years as a way to promote zero-emission transport, it still accounts for a small percentage of the global vehicle market [13]. In this regard, different market analysts forecast a high global penetration of BEV, expected to increase to 33% by 2040 and 50% by 2050, but they conclude that, at present, their share in the global vehicle fleet remains low [14]. In addition, most electric cars are concentrated in a few countries or regions with high market shares, such as China, which accounted for around 60% of newly registered electric cars in 2023, followed by Europe with 25% and the US with 10%. Together, these figures represent almost 95% of global electric car sales [12].

There are several risk factors responsible for this sluggish penetration of BEV into the market, mainly the following can be highlighted: the limited driving range of BEV compared to internal combustion engine vehicles (ICEV) due to low battery capacity [15,16]; insufficient charging infrastructure that does not guarantee successful trip completion and minimal or no delays in charging time [17]; the higher initial investment and maintenance costs of BEV, which are particularly driven by the high cost of batteries and uncertainty over future electricity prices [18,19]; and range anxiety, defined as the psychological anxiety experienced by a consumer and the perception that the BEV battery may be depleted during a trip before reaching the destination or a charging station [20,21]. In fact, range anxiety seriously affects users’ future route planning and greatly reduces consumer confidence in the use of BEV [22].

Conclusively, the operation of transport, both for passenger transfer and goods delivery, based on electric vehicles is constrained by their limited energy. More precisely, BEV range data are not directly extrapolable to every application scenario of such vehicles, since they are subject to certain externalities, namely: road conditions, itinerary, load, unforeseen events along the route, among others. This creates an uncertainty gap regarding BEV range and the energy required to complete the journey and ensure the fulfilment of the intended task. In this regard, a reliable estimation of BEV energy consumption is imperative to mitigate range anxiety, enable informed decision-making in transport planning and policy, and ultimately encourage the acceptance of BEV in the automotive market [22,23].

During BEV operation, energy consumption depends on a set of vehicle-specific factors, including size, weight, aerodynamics, efficiency, etc.; driving conditions and external environmental conditions also play an important role [22,24,25], as they change dynamically [26]. Several studies on BEV energy consumption models have been conducted. The modelling approaches presented in the literature can generally be classified from two perspectives, namely modelling scale and modelling methodology [27,28,29,30,31]. The modelling scale involves the temporal–spatial resolution of BEV energy consumption prediction results. In this regard, some authors focused on estimating the instantaneous rates of vehicle energy consumption from a microscopic perspective, for example, kWh per second [32,33,34], which provides higher accuracy in energy consumption estimation but relies on a large number of vehicle- and trip-specific characteristics [35], requiring instrumentation to monitor vehicle dynamic parameters as well as the powertrain [36]. Other authors estimated average energy consumption over an aggregated spatial or temporal span, i.e., from a mesoscopic and macroscopic perspective, either at the trip level (e.g., kWh per kilometre), road-link level, daily, etc. [31,37,38,39]. The macroscopic modelling scale for the purpose of assessing vehicle energy consumption takes as a statistical object the traffic flow on the road network within a given geographic area, and time is generally measured in days, months, or years [40]. Macroscopic-scale models based on road networks are used to evaluate regional energy consumption in transport projects. Here, it is assumed that all vehicles consume similarly for the same average speed and vehicle miles travelled, and variation in second-by-second speed profiles and driver behaviour can be disregarded. Consequently, estimates differ significantly from reality [41]. On the other hand, the mesoscopic modelling scale is employed to calculate energy consumption along the entire road link, i.e., at the roadway level, and can achieve a comparative balance between the less accurate macroscopic methods and the data-intensive microscopic methods [42]. The mesoscopic driving-parameter-based energy consumption quantification model uses a series of instantaneous vehicle driving data collected on a specific road segment, for example, with a fixed length (1 to 10 km) or duration (1 to 30 min). Then, the relevant model parameters, such as average speed and acceleration, are statistically calculated, and their relationship with the average value of energy consumption is examined. The mesoscopic-scale model is mainly focused on calculating the energy consumption of vehicles on urban roads [40].

With regard to modelling methodology, it can be divided into three clearly differentiated groups, namely: rule-based models, data-driven models, and hybrids. Rule-based models (white-box approach) adopt some fundamental physical laws to simulate vehicle dynamics, powertrain operation, and the interactions of various vehicle system components in order to estimate energy consumption [43]. On the other hand, data-driven models (black-box approach) generally use data mining techniques to explore statistical relationships, or to identify patterns, between the input variables under study and energy consumption as the output variable, without the need to investigate or understand the physical process of electricity generation and consumption in BEV, nor even the interaction of the elements that make up the powertrain [44]. Drawing on the attributes and flexibility offered by each group, some studies combine both methodologies (grey-box approach), where variable selection is generally based on rules or knowledge, and statistical or machine learning (ML) models are applied to estimate energy consumption.

Although two review articles on energy consumption models for electric vehicles (EVs) have been published, neither adopts a formal systematic literature review (SLR) methodology nor addresses several analytical dimensions that are crucial for advancing research and supporting the large-scale deployment of battery electric vehicles (BEVs). Table 1 explicitly summarises the main characteristics and research gaps of these existing reviews in comparison with the SLR proposed in this study, including the absence of a reproducible review protocol, limited methodological classification, and the lack of analysis of variables, modelling scales, evaluation metrics, and data sources.

Table 1. Main characteristics and research gaps of existing reviews compared with the present SLR.

Ref.	Num. Papers	Review Characteristics	Limitations Relative to the Present SLR
[45]	Not reported	The authors provide an overview of strategies for modelling the energy consumption of electric vehicles, offering an explanation and attributes of the vehicle model-based approach, the data-driven analysis approach, and the hybrid approach. Their review also considered hybrid electric vehicles (HEV), PHEV, and fuel cell electric vehicles (FCEV).	Does not report or classify data-driven models. Does not report which hybrid models are used. Does not assess how frequently the different methodologies are applied, nor identify the most commonly used ones. Does not describe the computational tools or evaluation metrics employed. Does not indicate which variables are most frequently used across studies. Does not propose a variable classification scheme. Does not state the sampling frequency or analysis period of the variables used. Does not assess the modelling scale applied in the studies. Does not evaluate the data sources on which the studies rely. Does not assess the methodological quality of the included studies. Does not apply a risk-of-bias assessment.
[29]	81	The authors present an overview of research efforts in the field of energy consumption estimation for electric vehicles. Energy consumption estimation models were reviewed in terms of influencing variables, modelling scale, and methodology. The properties of the data used for these models were also reviewed, including the data source, the type of vehicles modelled (car, truck, bus, train, or off-road vehicles), and the year of publication (2011–2019).	Does not provide an in-depth classification of data-driven models. Does not include hybrid modelling approaches. Does not describe the computational tools or evaluation metrics employed in the studies. Does not state the sampling frequency or analysis period of the variables used in the studies. Does not include the mesoscopic modelling scale. Does not assess the methodological quality of the included studies. Does not apply a risk-of-bias assessment.

Beyond methodological differences, this review addresses the specific research gaps identified in Table 1. In particular, it provides a systematic and comprehensive classification of BEV energy consumption modelling approaches—including rule-based models (encompassing physics-based simulations and digital twin implementations), data-driven models, and hybrid approaches—which have not been jointly examined in previous reviews. Moreover, it offers a granular and structured synthesis of the variables employed across models, explicitly reporting their topological categories, sampling frequencies, and analysis periods, as well as the modelling scales, evaluation metrics, and data sources used.

By integrating these dimensions into a unified and reproducible synthesis, and by incorporating for the first time a systematic assessment of methodological quality and risk of bias, this review advances the field beyond a descriptive comparison of modelling approaches. The proposed synthesis enables a more critical interpretation of existing evidence, facilitates systematic cross-study comparison, and provides a robust foundation for informed model selection and future research directions in BEV energy consumption prediction.

The main objective of this SLR is to synthesise the available evidence on the methodologies employed to predict the energy consumption of BEVs. Specifically, the review analyses modelling approaches, computational tools, model accuracy metrics, the topology of the variables used, their sampling frequencies and analysis periods, modelling scales, and data sources. In addition, this study incorporates a systematic evaluation of the methodological quality of the included studies and a structured assessment of risk of bias, providing a critical perspective on the robustness and reliability of the existing evidence. By addressing these dimensions within a transparent and reproducible SLR framework, this article bridges identified research gaps, complements previous literature, and supports the identification of methodological limitations and future research directions in BEV energy consumption prediction.

The remainder of the article is structured as follows: Section 2 provides background on the energy interactions within the BEV powertrain; Section 3 describes the SLR methodology in detail; Section 4 presents the results of the review; Section 5 analyses the findings, discusses the limitations, and outlines suggestions for future work; and finally, Section 6 summarises the main conclusions of the study.

2. Background

BEV relies exclusively on the energy stored in its battery pack to power the traction system [46]. Therefore, its driving range depends on the battery energy capacity and a set of variables, namely: intrinsic vehicle characteristics, environment-related factors, trip-related attributes, and those associated with driving style. Figure 2 illustrates the typical configuration of a BEV powertrain. Energy consumption in a BEV involves the interaction of the following energy events:

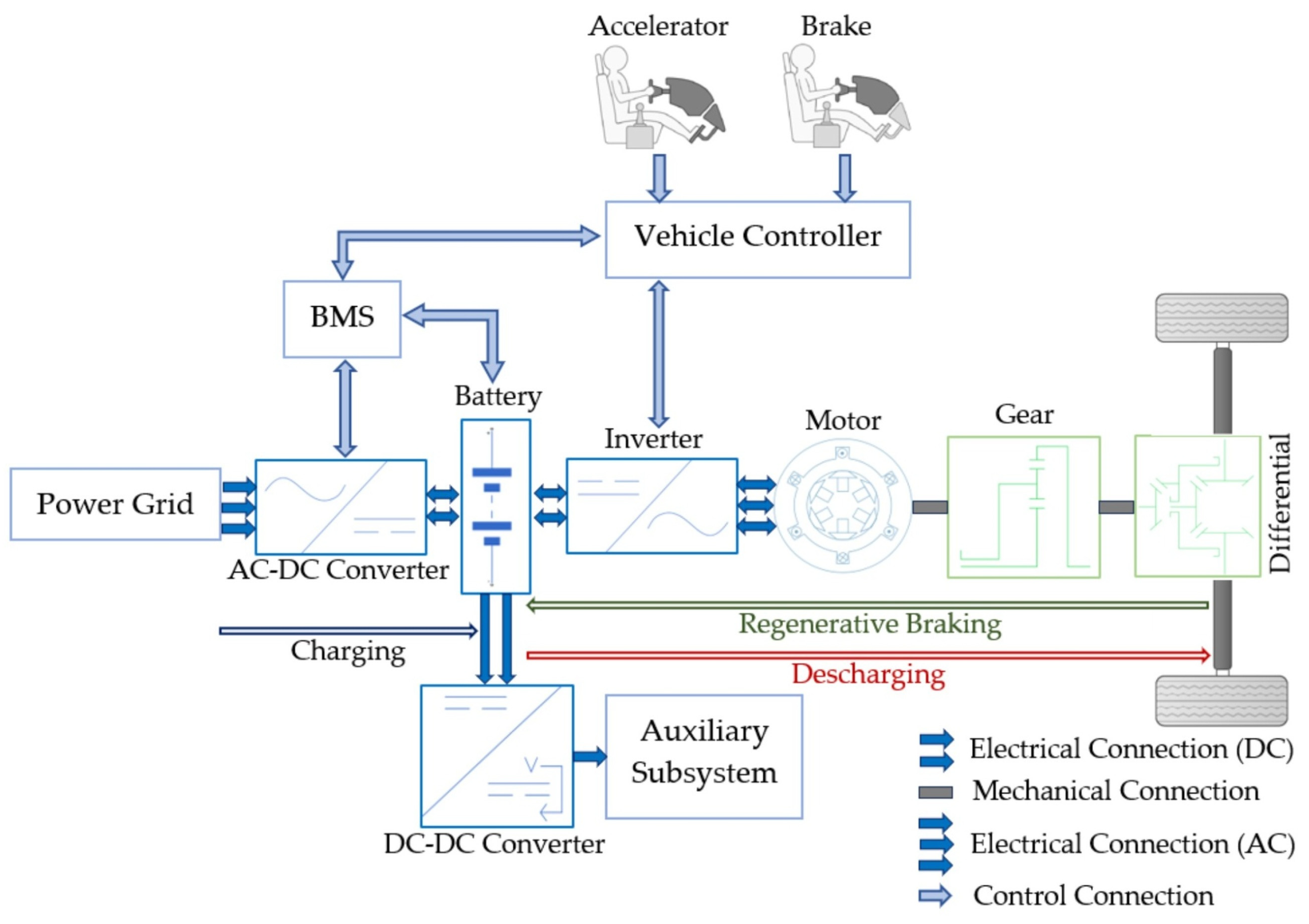

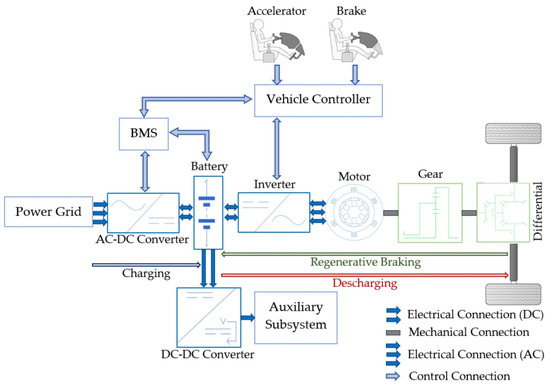

Figure 2. Schematic of BEV’s drivetrain. Note the direction of the arrows, which indicate both the direction of energy flow and the direction of signal transmission, respectively.

-

The energy required at the wheels to provide traction to the vehicle and overcome the resistances to motion during driving. In this case, the system operates by supplying energy to the electric motor so that it drives the wheels according to the accelerator pedal signal, which translates the driver’s power demand to the vehicle. During this operating mode, the state of charge (SoC) of the high-voltage battery decreases.

-

The energy required to operate auxiliary devices (electric steering, heating, ventilation and air conditioning—HVAC, lighting, multimedia, etc.) is stored in the low-voltage battery. For this purpose, the high voltage is previously converted into low voltage by means of the DC–DC converter.

-

The energy losses in the powertrain components, since the motor cannot fully convert electrical energy into mechanical energy.

-

Energy regeneration. In this case, the electric motor is used as a generator, recovering part of the vehicle’s kinetic energy and converting it into electrical energy to recharge the high-voltage battery. The system operates during braking or coasting of the vehicle, which increases the SoC of the high-voltage battery. The regenerated energy depends on the vehicle’s speed and deceleration, the battery’s ability to absorb energy, the brake structure, and the electric generator [47].

The battery management system (BMS), in harmony with the BEV controller, manages the energy flows, either unidirectional or bidirectional as appropriate, to meet the requirements of traction, auxiliary subsystem operation, vehicle charging process, and regenerative braking.

3. Method

The objective of this SLR is to provide a clear and comprehensive overview of the available evidence regarding the current state of methodologies employed to predict the energy consumption of electric cars. In this way, methodological concerns in the previous studies analysed can be identified, serving as input to improve future work in this research area of interest. An SLR must be explicit, rigorous, and reproducible [48], through the application of transparent protocols that allow synthesising and integrating the findings of diverse investigations [49]. In the present SLR, the protocol proposed by Denyer and Tranfield [50] was applied, comprising five steps: formulation of the research question, locating studies, study selection and evaluation, analysis and synthesis, and communication and use of the results.

3.1. Formulation of the Research Question

What are the methodologies employed to predict the energy consumption of electric vehicles?

3.2. Locating Studies

The search for studies to answer the research question was conducted in the SCOPUS and Web of Science (WoS) databases. The semantic structure, shown in Table 2, was defined based on three categories of search terms related to the topic and the research question, making use of a scientific thesaurus. These categories are explained below:

Table 2. Semantic search structure.

Category of Search Terms	Description
1	(“electric vehicl*” OR “electric car*”) 1
2	(“energy consumption” OR “power consumption”)
3	(“prediction” OR “estimation” OR “forecasting”)

¹ Asterisks are used to cover all possibilities.

(1)

The first category addresses terms related to BEV.

(2)

The second category focuses on terms related to energy consumption.

(3)

The third category was intended for studies related to prediction.

The search was conducted in the fields: article title, abstract, and keywords in the SCOPUS database, while for the WoS database, the field tag TS = Topic was used. In both cases, the search was carried out using all possible combinations of the three categories of terms. In this regard, the search script used to collect the scientific literature to answer the research question was constructed, as shown in Table 3; it is noted that the areas of knowledge of interest have been defined. The search was performed on 30 December 2024.

Table 3. Search script.

TITLE-ABS-KEY (“electric vehicl*” OR “electric car*” AND “energy consumption” OR “power consumption” AND “prediction” OR “estimation” OR “forecasting”) AND LANGUAGE (english) AND SUBJAREA (comp) OR SUBJAREA (ener) OR SUBJAREA (engi) OR SUBJAREA (envi) OR SUBJAREA (math) OR SUBJAREA (phys) 1

¹ Asterisks are used to cover all possibilities.

Definition of Inclusion and Exclusion Criteria

The inclusion criteria forming part of the search strategy encompass studies written in English, with no restriction on the year of publication. In addition, original articles published in conference proceedings and indexed peer-reviewed journals were considered, provided that their purpose reflects methodologies for estimating the energy consumption of electric cars, i.e., passenger cars and vans.

With regard to the exclusion criteria, studies that evaluated the incidence or effects of one or several factors, intrinsic or extrinsic to the vehicle, on its energy consumption were discarded. These included: impact of road gradient [51,52,53], impact of speed profile [54,55], impact of traffic [7,56], effect of ambient temperature [56,57,58,59,60], impact of auxiliary loads [61], effect of lateral dynamics [62], influence of driving style [56], effect of selected transmission [63,64], effect of the air conditioning system [65,66,67], effect of regenerative braking [68], effect of vehicle mass reduction [69], effect of environmental factors [70], impact of standardised driving cycles [71,72], effect of real driving conditions [72,73,74,75], and effect during vehicle acceleration [76]. These scientific articles did not focus exclusively on defining a methodology for predicting or estimating BEV energy consumption.

In addition, studies unrelated to battery electric vehicles, i.e., HEV, FCEV, and solar electric vehicles, were omitted. Finally, research carried out on buses, heavy-duty vehicles, scooters, bicycles, and, in general, all those not corresponding to passenger cars and vans were excluded.

3.3. Selection and Evaluation of Studies

For the selection and evaluation of studies, the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement was applied. This statement consists of the following phases: identification, screening, eligibility, and inclusion [77]. The identification phase was explained in the previous section, allowing 834 articles to be located or identified, of which 381 corresponded to the SCOPUS database and 453 to WoS. Before carrying out the screening phase, 165 duplicate articles were removed, detected through the Mendeley reference manager, and 10 studies cited in the previously identified articles were included, resulting in a total of 679 studies. In the screening phase, the titles of the articles were reviewed, and 553 were excluded for not being relevant to the review topic, leaving 126 studies that were subsequently examined by abstract. At this point, 26 articles were excluded for not meeting the eligibility criteria, such as: not related to the study topic; not using electric cars; evaluating the incidence of one or more factors on BEV energy consumption. In the third phase, 100 publications were selected for full-text reading. However, 45 publications were excluded for not meeting the review criteria. Finally, in the fourth phase, 55 studies were included in the review. The process described is summarised in the flow diagram shown in Figure 3. The PRISMA 2020 checklist is provided as Supplementary Material (see Table S1).

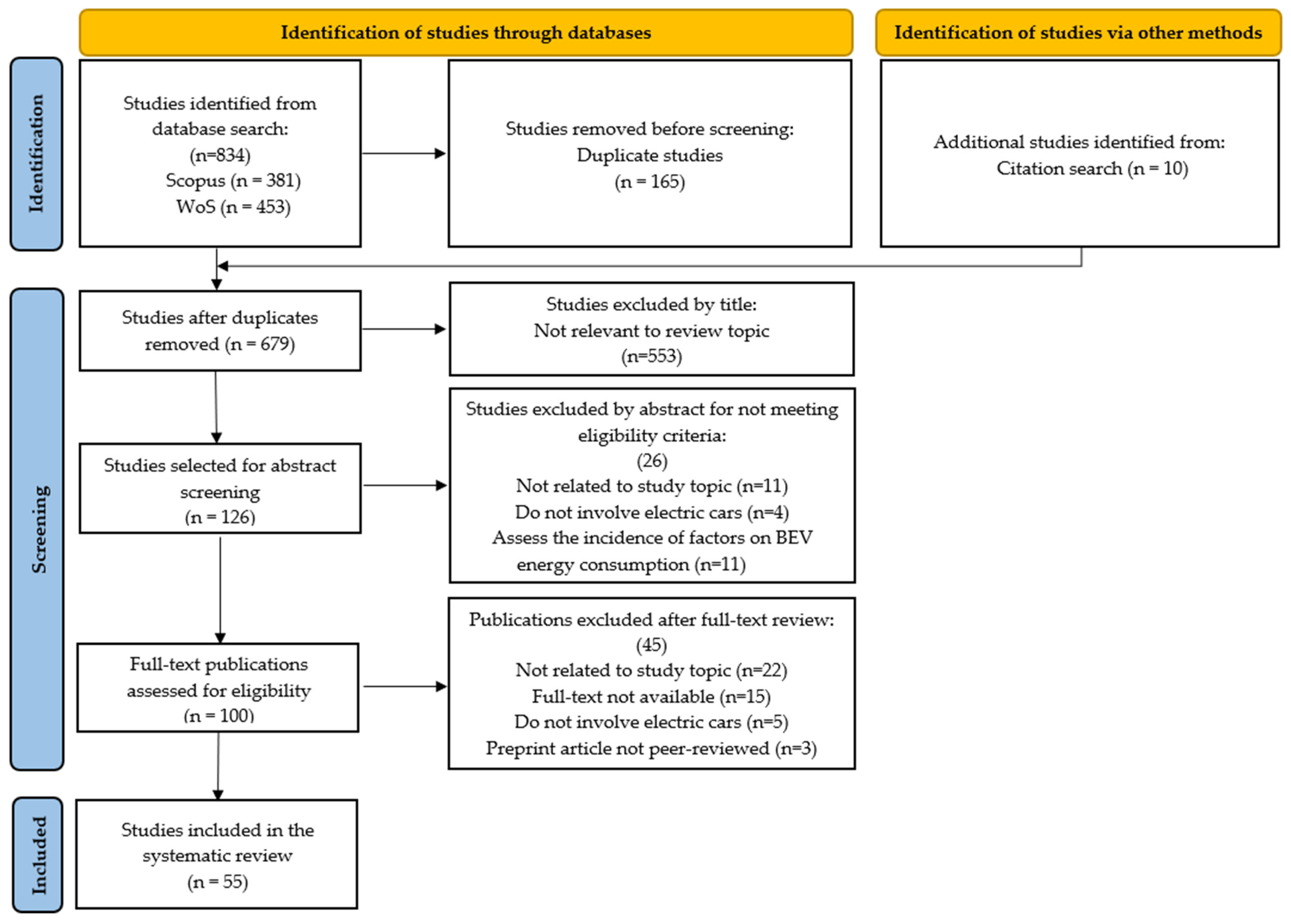

Figure 3. PRISMA flow diagram for study selection.

3.4. Analysis and Synthesis

In the first instance, each article was analysed according to the year and source of publication. Then, a series of axes of analysis and categories were defined to group the studies in order to answer the research question, including the following:

Axis of analysis 1—methodology and methods; the categories considered are as follows:

-

Methodologies for predicting BEV energy consumption (rule-based models, data-driven models, and hybrids).

-

Computational tools used.

-

Evaluation metrics of the prediction model (accuracy).

Axis of analysis 2—variables used; the categories considered are as follows:

-

Topology of variables used, including intrinsic vehicle variables, environment-related variables (environmental and road characteristics), trip-related attributes (operational), and those associated with driving style.

-

Sampling frequency of variables.

-

Analysis period.

Axis of analysis 3—modelling scale; the categories considered are as follows:

-

Microscopic-, mesoscopic-, and macroscopic-scale models.

Axis of analysis 4—data source; the categories considered are as follows:

-

BEV energy estimation models based on real-world data or simulation data.

The purpose of the synthesis is to define links between the parts identified in the selected studies, reconstructing information and developing new knowledge that is not evident in an isolated reading of the individual studies [50]. As mentioned in [10], the data extracted from the relevant articles for this study were explored, compared, and rigorously analysed in terms of the research question of the present SLR, given the importance of harmonising the synthesis with the objective of the review.

3.5. Communication and Use of Results

In this step, the results of the bibliographic search are systematically reported and critically discussed, thereby strengthening the evidence base on BEV energy consumption prediction. First, general descriptive information about the selected studies is presented, including the year and source of publication. Subsequently, tables and figures are used to summarise the different axes of analysis, the associated categories, the bibliographic references, and their frequency of occurrence across the reviewed literature. In addition to the descriptive and comparative synthesis, this stage incorporates a structured evaluation of the methodological quality of the included studies, as well as an assessment of the risk of bias. These evaluations provide a critical appraisal of the robustness, transparency, and reliability of the proposed modelling approaches, allowing the identification of methodological limitations, sources of heterogeneity, and potential threats to the validity and generalisability of the reported findings. The integration of these analytical dimensions supports a more critical interpretation of the evidence and informs the discussion of current limitations and future research directions. This step will be explained in detail in Section 4 and Section 5.

4. Results

This section presents the findings extracted from the 55 selected articles. First, general information about the relevant articles is described, namely: the year and source of publication. Then, the results of the axes of analysis and categories that address the research question are presented.

4.1. Year of Publication

Research on the estimation or prediction of energy consumption in electric cars is a relatively new topic in the literature. In 2014, the first studies appeared [78,79] in China and Korea, respectively. Most of the identified articles are recent, with 33 articles published in the last five years, representing 60% of all articles in the sample, as shown in Figure 4. In 2021, the highest number of publications was recorded, with 9 articles, equivalent to 16.3% of the total scientific articles.

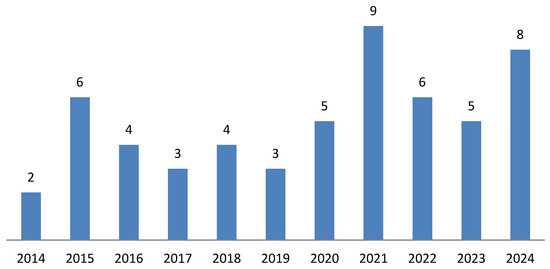

Figure 4. Number of articles by year of publication.

4.2. Source of Publication

Table 4 shows the list of journals and conference proceedings corresponding to the selected scientific articles. The order of importance of the publication outlets was weighted using Equation (1), which encompasses the number of articles and the main metrics, such as the impact factor (IF), the quartile ranking according to JCR (Journal Citation Report) and SJR (Scimago Journal Rank), and the h5-index from Google Scholar [80].

Ord = (# papers research × 25%) (JCR IF) (SJR IF) (h5 index)

(1)

Table 4. List and metrics of publication outlets.

Journal	Number of Articles	JCR		SJR		h5 Google	Value
		Quartile	IF	Quartile	IF
Applied Energy	3	Q1	10.1	Q1	2.82	189	4037.32
Transportation Research Part D: Transport and Environment	5	Q1	7.4	Q1	2.33	99	1706.96
Energy	2	Q1	9.0	Q1	2.11	165	1566.68
Sustainable Cities and Society	1	Q1	10.5	Q1	2.55	147	983.98
Energies	9	Q3	3.0	Q1	0.65	137	534.30
Applied Soft Computing	1	Q1	7.2	Q1	1.84	133	440.50
IEEE Transactions on Transportation Electrification	1	Q1	7.2	Q1	2.77	75	373.95
Sustainable Energy Technologies and Assessments	1	Q1	7.1	Q1	1.57	90	250.81
IEEE Access	1	Q2	3.4	Q1	0.96	266	217.06
ISA Transactions	1	Q1	6.3	Q1	1.57	83	205.24
Complex & Intelligent Systems	1	Q2	5.0	Q1	1.32	66	108.90
International Journal of Energy Research	1	Q1	4.3	Q1	0.83	89	79.41
Results in Engineering	1	Q1	6.0	Q1	0.79	54	63.99
Soft Computing	1	Q2	3.1	Q2	0.81	90	56.50
International Journal of Sustainable Transportation	1	Q2	3.1	Q1	1.22	47	44.44
International journal of green energy	2	Q3	3.1	Q2	0.72	39	43.52
World Electric Vehicle Journal	2	Q2	2.6	Q2	0.57	40	29.64
Energy & Environment	1	Q2	4.0	Q2	0.64	40	25.60
IET Intelligent Transport Systems	1	Q2	2.3	Q1	0.78	44	19.73
Transportation Research Record	1	Q3	1.6	Q2	0.54	56	12.10
Promet—Traffic & Transportation	1	Q4	0.8	Q3	0.3	17	1.02
International Journal of Electric and Hybrid Vehicles	1	Q4	0.4	Q3	0.26	10	0.26
IAES International Journal of Artificial Intelligence (IJ-AI)	1	-	-	Q3	0.37	29	0.00
Procedia Computer Science	1	-	-	-	0.51	113	0.00
IFAC-PapersOnLine	1	-	-	-	0.37	56	0.00
2014 IEEE/ACM International Conference on Computer-Aided Design, ICCAD	1	-	-	-	-	41	0.00
Advances in Intelligent Systems and Computing	1	-	-	-	-	40	0.00
Proceedings—2016 International Conference on Computational Science and Computational Intelligence, CSCI 2016	1	-	-	-	-	22	0.00
Proceedings—2022 IEEE 4th Global Power, Energy and Communication Conference, GPECOM 2022	1	-	-	-	-	18	0.00
IEEE Conference on Intelligent Transportation Systems, Proceedings, ITSC	2	-	-	-	-	16	0.00
International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS)	1	-	-	-	-	16	0.00
2019 IEEE Transportation Electrification Conference, ITEC-India 2019	1	-	-	-	-	13	0.00
2021 21st International Symposium on Power Electronics, Ee 2021	1	-	-	-	-	10	0.00
Proceedings—2018 IEEE International Conference on Environment and Electrical Engineering and 2018 IEEE Industrial and Commercial Power Systems Europe, EEEIC/I and CPS Europe	1	-	-	-	-	-	0.00
SSTD ’21: Proceedings of the 17th International Symposium on Spatial and Temporal Databases	1	-	-	-	-	-	0.00
Medicon Engineering Themes	1	-	-	-	-	-	0.00
28th International Electric Vehicle Symposium and Exhibition 2015, EVS 2015	1	-	-	-	-	-	0.00

With regard to the publisher, Elsevier tops the list with 30.9% of publications, followed by MDPI with 21.8% and IEEE with 18.2%, as shown in Table 5.

Table 5. Publishers with the highest number of publications.

Publisher	Percentage of Articles
Elsevier	30.9
MDPI	21.8
IEEE	18.2
Taylor & Francis	5.5
Springer	5.5
Sage	3.6
Others	14.5

4.3. Axis of Analysis 1—Methodology and Methods

As shown in Table 6, the findings reveal a predominance of studies that use data-driven BEV energy modelling methods. In total, 25 models or techniques were identified, most of them based on machine learning (ML). Among these, Multiple Linear Regression (MLR) and Multilayer Perceptron (MLP) stand out, whose models were applied in 10 and 9 of the scientific articles reviewed, respectively. In addition, Extreme Gradient Boosting (XGBoost) appears in 7 studies. On the other hand, 17 articles opted for rule-based models, 15 represented by simulations and two by means of digital twins. With regard to hybrid models, 8 articles combined the features of rule-based and data-driven models.

Table 6. Articles on methodologies for predicting BEV energy consumption.

Category 1. Methodologies for Predicting BEV Energy Consumption				Number of Articles
A: Rule-based models	A1	Simulación	[25,32,34,36,81,82,83,84,85,86,87,88,89,90,91]	15
	A2	Digital Twin (DT)	[92,93]	2
B: Data-driven models	B1	Convolutional Neural Networks (CNN)	[33]	1
	B2	Polynomial Regression (PR)	[78,94,95,96]	4
	B3	Exponential Regression (ER)	[78]	1
	B4	Multilayer Perceptron (MLP)	[13,95,96,97,98,99,100,101,102]	9
	B5	Quantile Regression Neural Networks (QRNN)	[103]	1
	B6	k-Nearest Neighbours (KNN)	[39,104,105]	3
	B7	Mixture of Experts (MoE)	[98]	1
	B8	Multiple Linear Regression (MLR)	[39,96,100,101,106,107,108,109,110,111]	10
	B9	Support Vector Regression (SVR)	[13,39,106,112]	4
	B10	Extreme Gradient Boosting (XGBoost)	[13,39,100,106,113,114,115]	7
	B11	Decision Tree (DT)	[99,105]	2
	B12	Ensemble Stacked Generalisation (ESG)	[105]	1
	B13	Random Forest (RF)	[13,101,105]	3
	B14	Transfer Learning (TL)	[107]	1
	B15	Multifunctional Neural Networks (MNN)	[116]	1
	B16	Light Gradient Boosting Machine (LightGBM)	[39,100,114]	3
	B17	Deep Neural Networks (DNN)	[39,117]	2
	B18	Quantile Regression (QR)	[103]	1
	B19	Long Short-Term Memory Networks (LSTM)	[111,117]	2
	B20	CNN—Bagged Decision Tree (BDT)	[118,119]	2
	B21	Quantile Extreme Gradient Boosted Regression (QEGBR)	[103]	1
	B22	Quantile Regression Forests (QRF)	[103]	1
	B23	Gradient Boosting Machines (GBM)	[101,114]	2
	B24	LSTM + Transformer	[111]	1
	B25	Probabilistic Neural Networks (PNN)	[102]	1
C: Hybrids	A-B2		[79,120]	2
	A-B3		[121]	1
	A-B8		[41,44,122]	3
	A-C1	Linear Mixed Models (LMM)	[122]	1
	A-B4		[123]	1
	A-C2	MLR (Fitting with the Recursive Least Squares–RLS–algorithm) + MLP	[124]	1

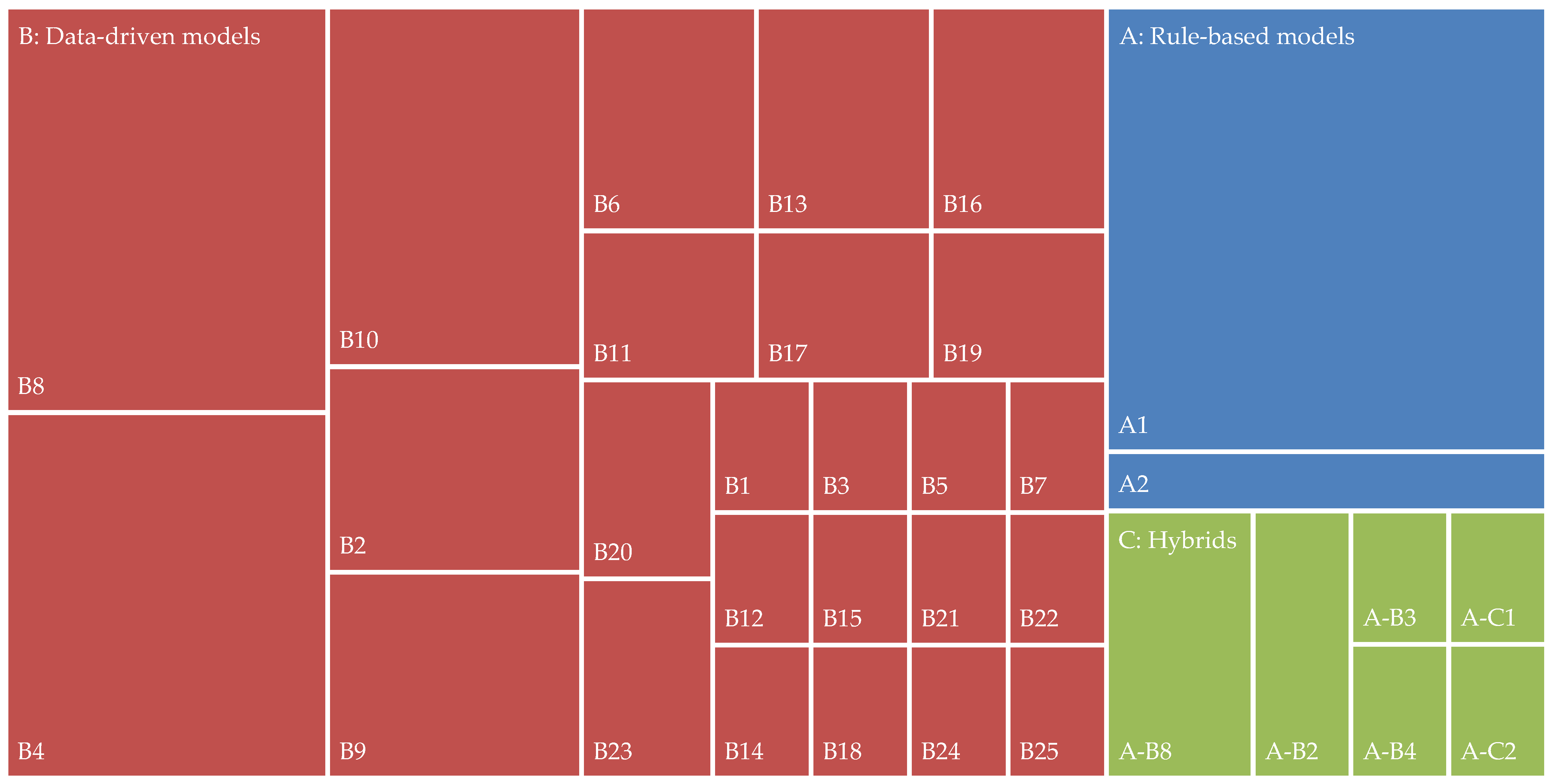

Specifically, when observing Figure 5, the heterogeneity of data-driven models becomes evident, with MLR showing the highest frequency, as previously mentioned. At this point, it is important to note that there are scientific articles that apply more than one model to estimate BEV energy consumption, such as [100], which uses advanced ML models, XGBoost and LightGBM, to compare them with traditional models such as MLP and MLR. The results demonstrated that the first two models improved the prediction performance of BEV energy consumption. Another example is presented in [101], where the most robust validation indicators were exhibited for MLP when compared with GBM, RF, and MLR. In [106], it was concluded that XGBoost achieved better prediction accuracy for BEV energy consumption influenced by external vehicle parameters, with an R² of 0.92 compared to MLR and SVR. In [13], several ML techniques, namely XGBoost, MLP, RF, and SVR, were used to analyse the collected data and establish predictive models of BEV energy consumption, particularly in the context of urban route conditions. In [95], BEV energy consumption was estimated at the road-link level under real traffic congestion through two models, PR and MLP, where positive kinetic energy (PKE) and negative kinetic energy (NKE), as predictive variables, achieved more than 95% accuracy. In [99], MLP and DT were applied to address the nonlinear problem and the correlation between heterogeneous data involving BEV energy consumption. In [117], deep learning models, DNN and LSTM, were used for predicting BEV energy use. In [96], MLP and three different MLR models were used, varying the predictor variables to estimate the energy consumption of electric vehicles on a road link under real-world traffic conditions. The authors in [102] predicted a probability distribution for BEV trip energy consumption through PNN, achieving a mean absolute percentage error (MAPE) of 9.3% compared with other methods in the literature and deterministic neural networks. In [78], PR and ER were used to describe the relationship between BEV energy consumption rate and microscopic driving parameters in controlled environments. In [39], the efficiency of including static and dynamic features of a selected route for predicting BEV energy consumption was demonstrated using a DNN model, whose results outperformed MLR, KNN, SVR, XGBoost, and LightGBM models.

Figure 5. Distribution of the number of articles on methodologies for predicting BEV energy consumption.

Likewise, studies have reported opting for complementary ML techniques to improve results. In [118,119], CNN was first applied, and the prediction was further refined by integrating ensemble learning (EL). Specifically, BDT was used through the “bagging” ensemble strategy, also known as bootstrap aggregating, for better model generalisation. EL involves multiple models combined in some way so that the ensemble model outperforms any of the individual models [125]. In [98], BEV energy consumption was estimated using MoE, an EL strategy based on neural networks [126]. The improvement of the combined predictive model compared to the base model, i.e., a monolithic neural network, was demonstrated. In [105], an ESG approach was presented for predicting BEV energy consumption. ESG, as an ML strategy, is a weighted combination of multiple base regression models, in this case, DT, RF, and KNN, improving the overall prediction and reducing variance compared to individual models. In [107], the authors proposed a model to accurately predict the energy consumption of new BEVs using TL, starting from a previous model based on MLR that considered data from conventional BEVs. In [101,114], GBM was applied, an EL strategy typically based on decision trees to build a more robust regression model. A single decision tree is a fast but unstable algorithm, easily affected by small perturbations in the training data, but its performance can be significantly improved by EL strategies [127]. Unlike “bagging”, where several models are trained independently, “boosting” trains models sequentially, each correcting the errors of the previous one. The authors in [103] innovatively applied four quantile-based ML algorithms for the accurate and reliable prediction of both BEV energy consumption and its associated uncertainties, where QRNN models outperformed QR, QEGBR, and QRF with an average prediction error of 5.04%. In [111], an energy consumption prediction framework integrating LSTM with the Transformer model was proposed, showing high accuracy with an MAPE of 4.63% compared with individual MLR and LSTM.

Based on the reviewed literature, rule-based models for predicting BEV energy consumption have been represented either through simulations or with digital twins (DT). DT have a broader scope compared with traditional simulations, since they integrate real-time data from the physical system, thereby enabling continuous interaction with it and dynamic optimisation [128]. In this regard, traditional simulations allow the analysis or prediction of a system’s behaviour based on models under specific initial conditions, whether historical or future, operating independently without the need to update their data in real time. The accuracy of rule-based models for predicting BEV energy consumption largely depends on the level of detail of the model and the nature of the variables. For instance, the authors in [82] developed a powertrain model, including the regenerative braking system, for a case study of a BMW i3. They considered the energy consumption of auxiliary devices; however, these were estimated from average values found in the literature. Similarly, efficiency values were interpolated across the full range of the electric motor based on efficiency maps available in the literature. One limitation of this study lies in the use of standard driving cycles, where slope is not included. The model proposed in [32], in an attempt to improve the estimation of BEV energy consumption, calculates the efficiency of regenerative braking using the instantaneous operating variables of the vehicle. The BEV energy consumption model presented in [84] comprises five parts: the vehicle dynamics model, the powertrain model, the regenerative braking model, the auxiliary system model, and the battery model. The parameters of these models were obtained through road tests and chassis dynamometer tests. The authors in [92] proposed a DT model to predict BEV energy consumption. However, only the effect of temperature in the model was modified in real time through the vehicle data monitoring platform. Other factors, namely vehicle speed, regenerative braking energy, rolling resistance, slope, etc., were not optimised in real time. Similarly, in [93], a DT model was developed considering the effects of different environmental and control parameters on BEV energy consumption; nevertheless, it shows certain limitations, for example, it does not integrate the battery cooling and heating functions, the air conditioning system, or the vehicle cold start process. Moreover, it was developed based on standardised driving cycles. Last but not least, the authors suggested that various topologies or configurations of BEV drivetrains should be implemented in the DT.

With regard to hybrid models, authors generally develop a rule-based approach to model vehicle dynamics, the powertrain, or the regenerative braking system. Then, by conveniently postulating the factors that could explain BEV energy consumption, they establish predictive models either from a traditional statistical perspective [41,44,79,120,122] or by employing ML models [121,123,124].

The classification presented in Figure 6 is derived from a cross-study synthesis of the reviewed literature and aims to organise existing BEV energy consumption modelling approaches according to their underlying modelling paradigm and methodological principles. This framework does not introduce new categories but consolidates heterogeneous approaches reported in prior studies into a coherent structure, enabling systematic comparison of their assumptions, strengths, and limitations. It is important to highlight that MLR, PR, ER, and QR can be classified either as traditional statistical regression models or as ML regression models. Nevertheless, there is a clear differentiation between these two approaches. On the one hand, traditional statistical models focus on inference, seeking to establish causal relationships and to understand the underlying structure of the data. That is, it is assumed that the expert knows beforehand how the predictor variables relate to the predicted variable in order to formulate the statistical model, which simplifies the interpretation of results and facilitates the understanding of the relationships among variables. On the other hand, ML models are capable of handling complex interactions in large datasets to predict outcomes with higher accuracy, but these models require larger sample sizes for this purpose. Moreover, they often sacrifice interpretability compared to traditional statistics, since their primary goal is to optimise prediction accuracy [129].

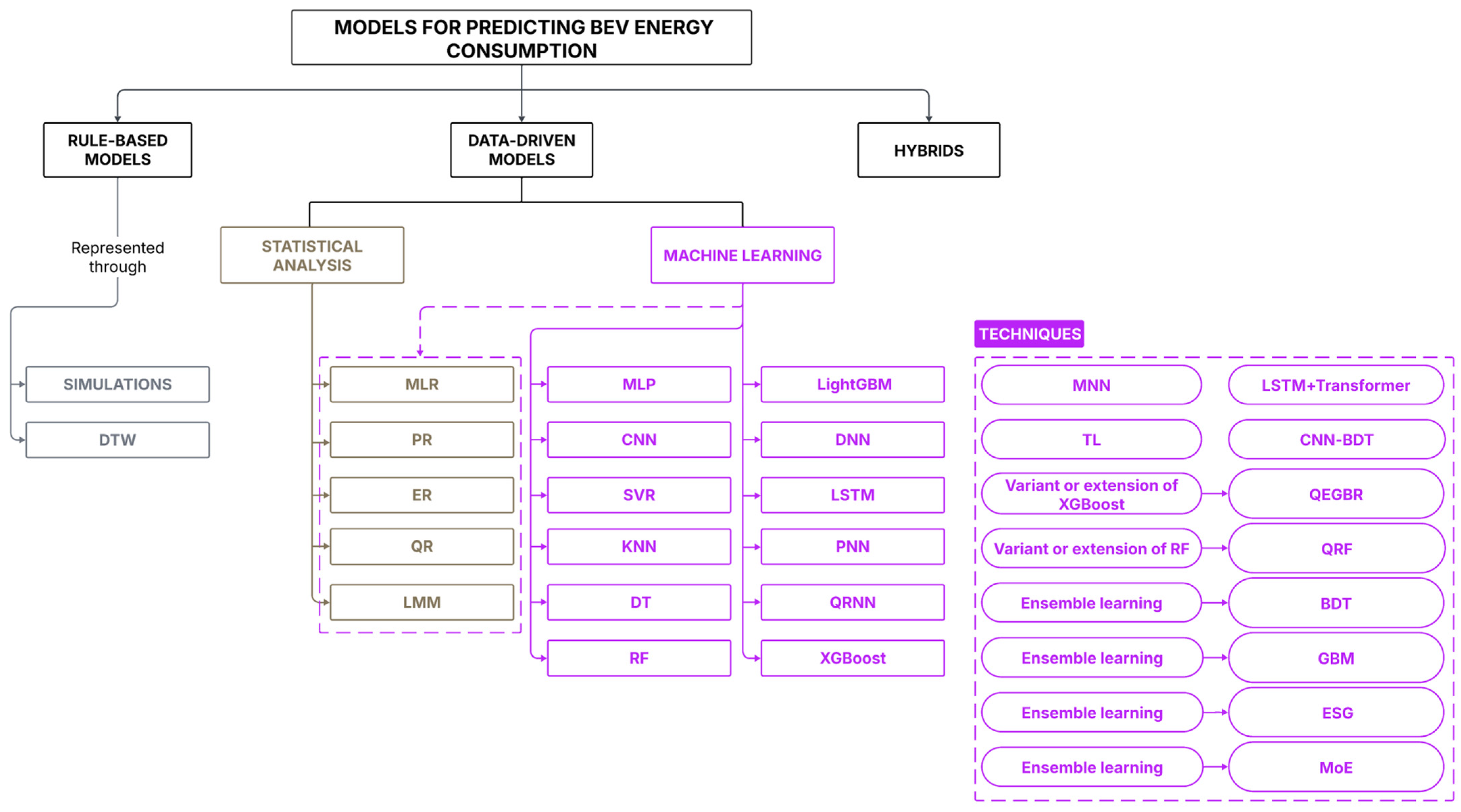

Figure 6. Classification of methodologies for predicting BEV energy consumption. The colours differentiate the models and techniques used within each modelling approach.

Table 7 presents the computational tools and evaluation metrics used in the different articles reviewed. In contrast, Figure 7 shows that Matlab and Python are the most predominant computational tools. Moreover, it is important to note that most authors who develop rule-based models employ Matlab, while those who design data-driven models tend to prefer Python. With respect to the category “evaluation metrics”, the most frequently used are MAPE, RMSE, and R². As observed, some studies employ more than one metric to evaluate the accuracy of the proposed models. Such is the case of [115], which used MAE, MAPE, RMSE, and R² as evaluation metrics for their predictive models.

Table 7. Articles on computational tools and evaluation metrics used to predict BEV energy consumption.

Categories 2 and 3. Computational Tools and Evaluation Metrics Used for Predicting BEV Energy Consumption				Number of Articles
A: Computational tools	A1	Matlab	[25,34,81,82,83,84,86,88,119,121,124]	11
	A2	FASTSim	[33]	1
	A3	SPSS	[41,78,110,120]	4
	A4	Python	[39,94,99,101,102,105,106,112,117,119]	10
	A5	SUMO	[93,104,114]	3
	A6	Cruise	[92]	1
	A7	GT-Suite	[93]	1
	A8	R	[44,108]	2
B: Evaluation metrics	B1	RMSE (Root Mean Square Error)	[13,33,39,98,100,102,103,105,106,109,111,113,114,115,116,117,118,119,121,123]	20
	B2	MAE (Mean Absolute Error)	[33,39,85,93,100,103,105,106,109,111,115,116,117,118,119,123]	16
	B3	r (Pearson Correlation Coefficient)	[25,33,91,119]	4
	B4	MAPE (Mean Absolute Percentage Error)	[13,25,34,36,78,79,84,87,88,89,90,102,105,111,112,113,114,115,117,118,120,124]	22
	B5	Relative error	[41,92,93,97,107,108]	6
	B6	R2 (Coefficient of Determination)	[13,25,39,41,96,99,100,101,105,106,108,109,110,115,120,121,122]	17
	B7	MSE (Mean Squared Error)	[39,101,105,116,117,122]	6
	B8	Variable correlation matrix	[105]	1
	B9	MASE (Mean Absolute Scaled Error)	[44]	1
	B10	AIC (Akaike Information Criterion)	[122]	1
	B11	SMAPE (Symmetric Mean Absolute Percentage Error)	[95,96]	2
	B12	EVS (Explained Variance Score)	[104,117]	2
	B13	Percent error	[82]	1
	B14	MPE (Mean Percentage Error)	[32]	1

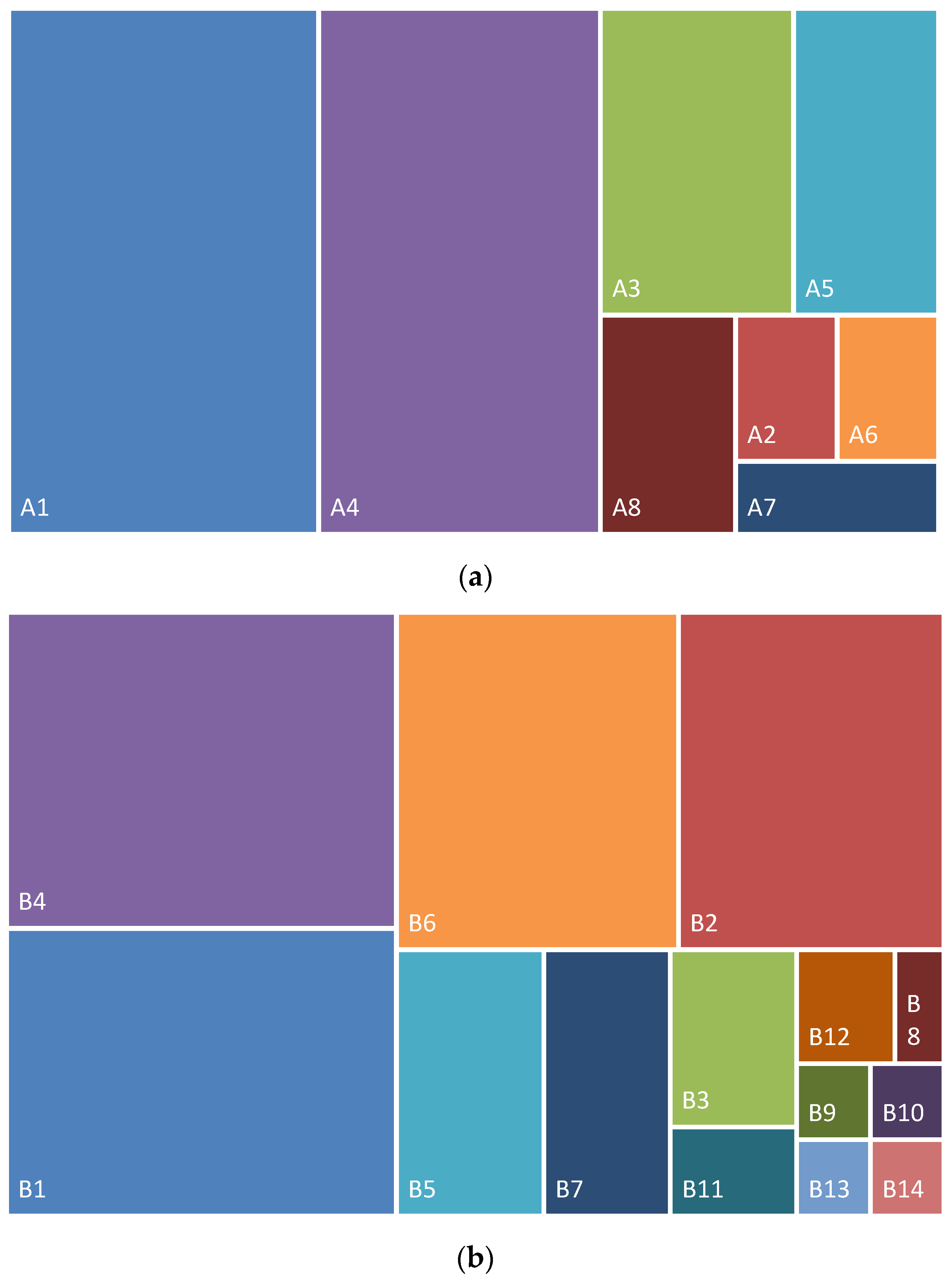

Figure 7. Distribution of the number of articles according to (a) computational tools and (b) evaluation metrics.

4.4. Axis of Analysis 2—Variables Used

In BEV energy consumption, a series of external factors, such as road topology, traffic, driving style, ambient temperature, etc., play a predominant role [130]. In contrast to what was mentioned, Table 8 and Figure 8 show that driving style-related variables are the most frequently used in predictive studies of energy consumption, with 52 records. On the other hand, vehicle-intrinsic variables have been classified into two subgroups. The first subgroup corresponds to variables related to vehicle dynamics, used in 49 scientific articles, involving the parameters that form part of the calculation of the power required at the wheels to move the vehicle against resistive forces. The second subgroup refers to variables related to vehicle components, appearing in 44 documents, with the efficiency of powertrain components and the use of auxiliary devices standing out, where the HVAC system is considered the most relevant factor; its use and impact on BEV energy consumption are largely determined by the local environment and the driver’s thermal comfort preferences [131]. Other auxiliary devices include lighting, electric power steering, infotainment system, etc., which are powered by the BEV’s low-voltage battery; the overall impact of these components on BEV energy consumption is smaller compared with the HVAC system [121].

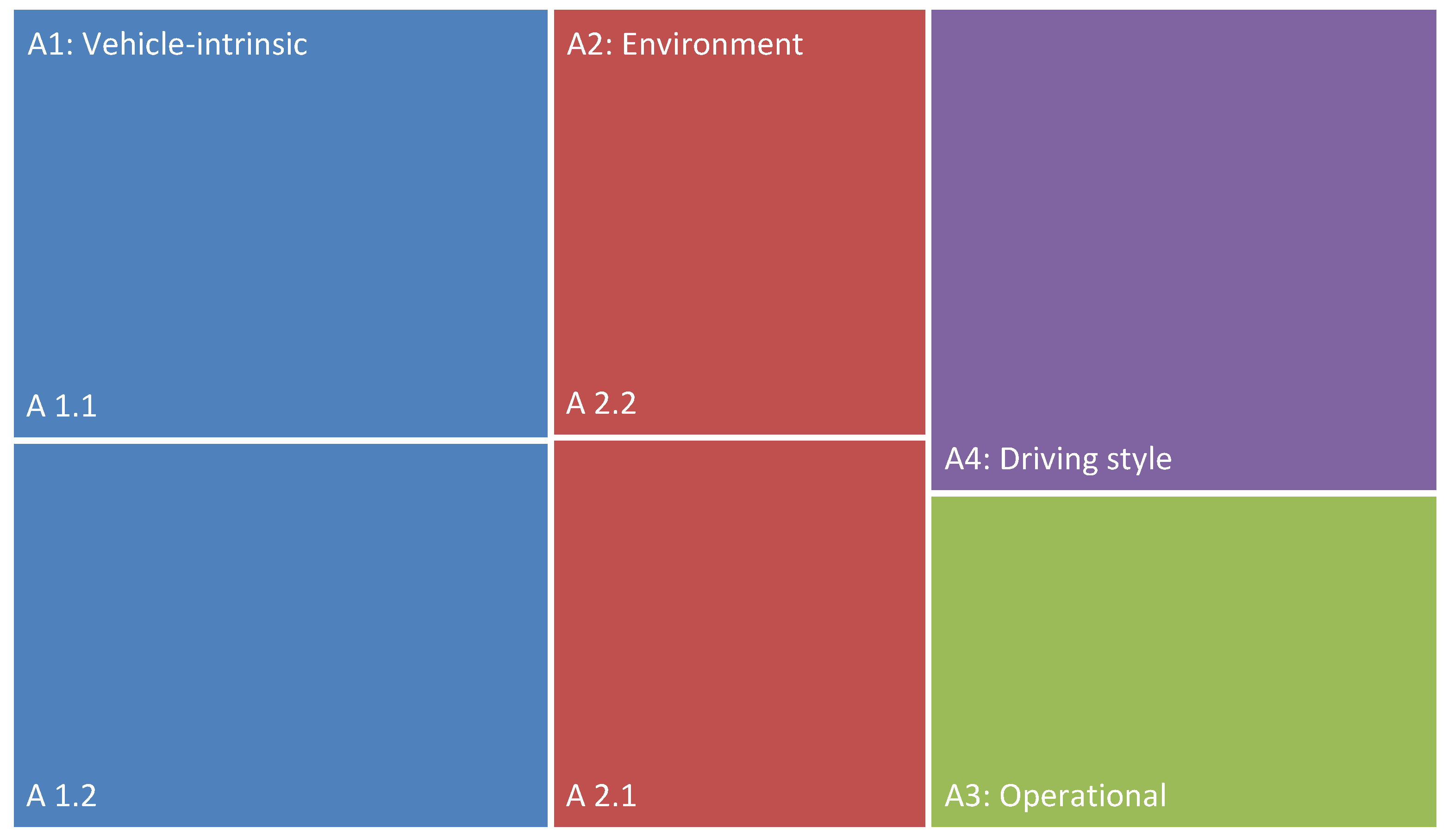

Table 8. Articles on the topology of variables used to predict BEV energy consumption.

Category 1. Topology of Variables Used for Predicting BEV Energy Consumption				Number of Articles
A: Variable topology	A1 Vehicle-intrinsic	A1.1 Related to BEV dynamics	[13,25,32,33,34,36,39,41,44,78,79,81,82,83,84,85,86,87,88,89,90,91,92,93,95,96,97,98,99,100,101,102,103,107,108,109,110,111,113,114,115,117,118,119,120,121,122,123,124]	49
		A1.2 Related to BEV components	[13,25,32,34,36,39,41,44,79,82,83,84,85,86,87,88,90,91,92,93,94,95,96,99,100,101,102,105,106,107,108,109,110,111,113,115,116,118,119,120,121,122,123,124]	44
	A2 Environment	A2.1 Ambient conditions	[25,39,83,84,86,87,88,90,91,93,94,98,99,100,101,102,103,104,105,107,109,110,111,112,113,117,118,119,121,122,124]	31
		A2.2 Road characteristics	[13,25,33,34,39,41,44,79,84,85,86,87,88,90,91,95,96,97,98,100,102,103,105,106,107,108,112,117,118,119,120,121,122,124]	34
	A3 Operational		[13,25,34,36,39,41,84,87,93,94,95,96,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,117,118,119,122,123,124]	36
	A4 Driving style		[13,25,32,33,34,36,39,41,44,78,79,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,106,107,108,109,110,111,112,113,114,115,117,118,119,120,121,122,123,124]	52

Figure 8. Distribution of the number of articles according to the topology of variables used to predict BEV energy consumption.

Operational or trip-intrinsic variables are reported in 36 scientific articles. Finally, environment variables have been divided into two subgroups: road characteristics with 34 records and ambient conditions with 31 documents reporting their use.

Table 9 shows the breakdown of variables reported in the scientific articles, classified according to their topology. It is noteworthy that, within the group of operational variables, traffic and signalisation index are more frequently considered in articles employing data-driven models, since they are highly customised according to trip-intrinsic variables [44], where road segments or road networks are studied in detail. In contrast, articles that apply rule-based models use a greater number of vehicle-intrinsic variables, as they require a large amount of BEV-related parameters to explain the interaction of its systems and their contribution to energy consumption [115].

Table 9. Breakdown of variables used to predict BEV energy consumption according to their topology.

A1 Vehicle-Intrinsic		A2 Environment		A3 Operational	A4 Driving Style
A1.1 Related to BEV Dynamics	A1.2 Related to BEV Components	A2.1 Ambient Conditions	A2.2 Road Characteristics
Rolling resistance coefficient Aerodynamic drag coefficient Speed Acceleration Frontal área Vehicle mass Dynamic radius Longitudinal slip ratio Wheel angular speed	Battery capacity Electric motor efficiency Transmission efficiency Inverter efficiency SoC Range Regenerative braking factor Regeneration power HVAC system power Battery current, voltage, resistance, and power Electric motor voltage and current Accelerator pedal opening percentage Battery temperature Cabin temperature Auxiliary loads power: infotainment RPM Recharging time Gear ratio Mass factor Battery specific heat capacity Battery mass Battery emissivity	Temperature Wind speed Wind direction Precipitation Humidity Air density Visibility	Road gradient Elevation Road length Road curvature Road night-time lighting Number of route turns Pavement type (asphalt, concrete, dirt, etc.)	Traffic index Travelled distance (odometer) Driving time (peak/off-peak hours, day or night) Travel time Position (geographical coordinates) Speed limit Traffic signalisation Number of stops Day of the week Road type (urban, highway, primary, residential, or secondary)	Speed Acceleration Traction torque Braking torque PKE NKE

The monitoring and collection frequency of variables is subject to the research objectives and the nature of the experiment. Through data acquisition cards connected to the BEV’s OBDII port, data can be obtained at a frequency of 1 Hz, or even at higher frequencies. When, in the analysis of BEV energy consumption prediction, the same temporal or spatial interval of the variables monitored during the collection phase is used, they are referred to as disaggregated variables [29]. For example, in [32] the instantaneous energy consumption of a BEV was calculated using the original frequency of speed, acceleration, and road gradient data, monitored second by second. Similarly, in [120], from a physical and statistical perspective, the authors developed a systematic approach to estimating BEV energy consumption using the same frequency of monitored data on certain real driving conditions (speed, acceleration, and SoC), collected second by second on urban travel routes and considering other powertrain characteristics.

On the other hand, if the variables used in the predictive model are at a time interval different from that sampled during the collection phase, they are referred to as aggregated data or aggregated variables. For instance, Ref. [113] collected data from fifty-five electric taxis under real driving conditions with a sampling frequency of 1 Hz in Beijing during 2017 and 2018. Then, for energy consumption estimation, aggregated data covering ten minutes of driving were used, including time, vehicle speed and position, battery and motor current and voltage, SoC, and accumulated range. In addition, hourly temperature data were obtained from a weather website and combined with the driving data according to temporal alignment. The approach proposed in [119] used seven input variables monitored at a frequency of 10 Hz: vehicle speed and acceleration, ambient temperature, wind speed, auxiliary loads, road elevation, and initial battery SoC. Prior to performing BEV energy consumption estimation using CNN, the seven input variables were resampled to a frequency of 1 Hz.

Table 10 shows the scientific articles classified according to the sampling frequency of variables as well as the analysis period. In correspondence with Figure 9, it is evident that there is a predominance of studies that chose to monitor the variables of interest at a frequency of 1 Hz. Likewise, the analysis period (data acquisition) involved durations of less than one year in most of the reported studies.

Table 10. Sampling frequency and analysis period of variables used to predict BEV energy consumption.

Categories 2 and 3. Sampling Frequency and Analysis Period of Variables Used for Predicting BEV Energy Consumption				Number of Articles
A: Sampling frequency	A1	<1 s	[33,97,115,118,119]	5
	A2	1 s	[13,25,32,34,36,41,44,78,79,81,82,83,84,85,86,90,91,92,93,95,96,101,102,103,108,109,112,113,114,120,121,123,124]	33
	A3	>1 s and ≤1 min	[100,105,111,122]	4
	A4	>1 min	[94,99,104]	3
B: Analysis period	B1	<1 year	[13,25,36,39,41,44,84,85,91,95,96,101,110,118,120,123,124]	17
	B2	1 year	[94,100,105,111,113,115,117,122]	8
	B3	>1 year	[88,103,108,109]	4

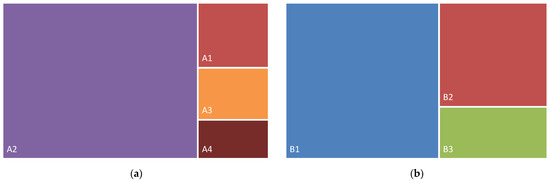

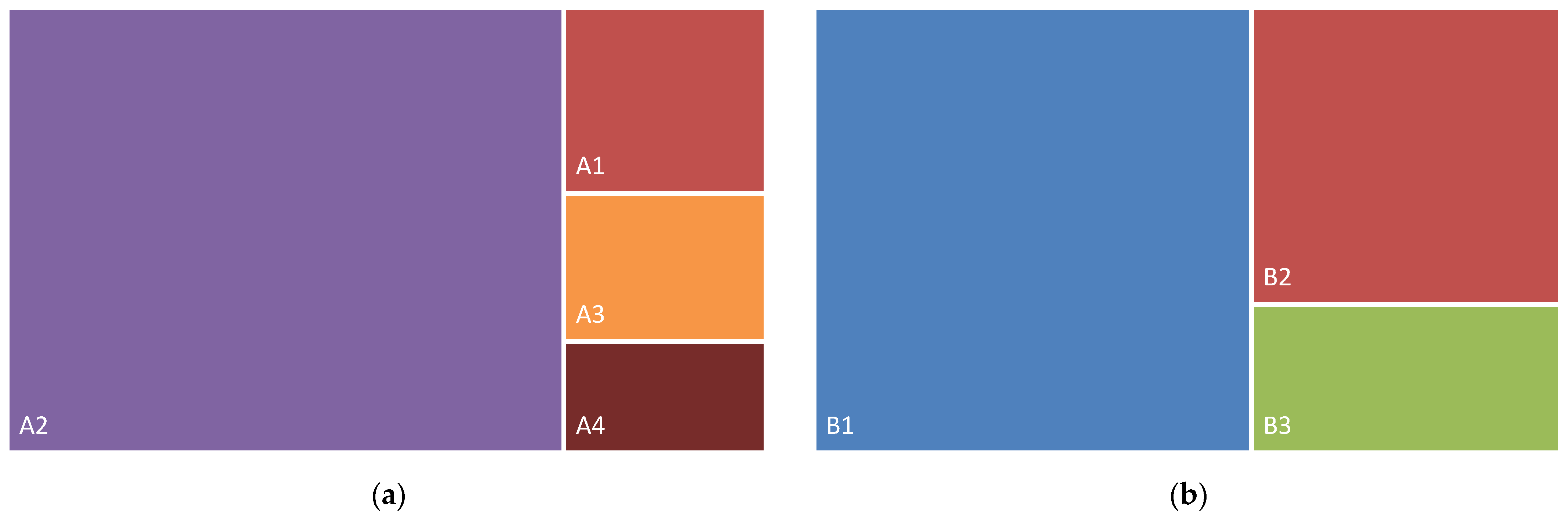

Figure 9. Distribution of the number of articles according to (a) variable sampling frequency and (b) data analysis period.

4.5. Axis of Analysis 3—Modelling Scale

Researchers have proposed several methodologies to estimate BEV energy consumption by applying a defined modelling scale, namely: macroscopic, mesoscopic, and microscopic, according to their level of temporal and spatial granularity. Macroscopic-scale models can provide an estimation of the total energy consumption for the entire trip, including multiple connecting paths or the road network of a geographical area. Mesoscopic-scale models can allocate energy consumption to each path in a road network, with the possibility of subsequently defining the optimal driving route to the final destination [118]. Finally, microscopic models are more detailed and estimate instantaneous energy consumption (second by second), generally used in high-fidelity transport applications with detailed vehicle models and driving cycles [132]. Mesoscopic-scale energy consumption models represent a compromise between the imprecision of macroscopic-scale models and the amount of information required for microscopic-scale models [41]. According to Table 11 and Figure 10, there is a higher frequency of studies using microscopic-scale modelling, with 27 records, followed by macroscopic-scale modelling, considered in 19 documents.

Table 11. Modelling scale of the articles in predicting BEV energy consumption.

Modelling Scales Used for Predicting BEV Energy Consumption				Number of Articles
A: Modelling scale	A1	Microscopic	[25,32,33,34,44,78,79,81,82,83,84,85,86,88,89,91,92,93,97,101,111,118,119,120,121,123,124]	27
	A2	Mesoscopic	[36,39,41,95,96,98,102,107,114]	9
	A3	Macroscopic	[13,87,90,94,99,100,103,104,105,106,108,109,110,112,113,115,116,117,122]	19

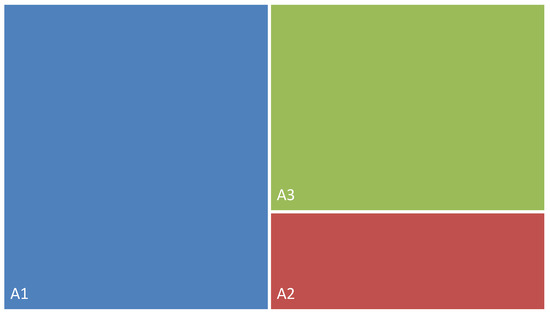

Figure 10. Distribution of the number of articles according to the modelling scale.

4.6. Axis of Analysis 4—Data Source

It is important to recommend an appropriate model for predicting BEV energy consumption by considering the various intrinsic and extrinsic vehicle factors based on real-world driving data. This can significantly reduce users’ range anxiety, facilitating route planning and effective travel decisions [105]. The benefit of using real-world measurements lies in achieving a more realistic estimation of vehicle energy consumption [108]. Some BEV energy consumption estimation models are established on data collected from chassis dynamometer tests, which do not reflect the real characteristics of BEV energy consumption during operation, particularly regenerative braking in deceleration mode [41]. For example, the model in [93] uses data based on the New European Driving Cycle (NEDC) and mentions the limitation of the study in not considering road gradient, driving habits, and, therefore, real driving cycles. In [86], the developed model was tested on a standard FTP75 driving cycle [133] and on a test driving cycle obtained for a realistic route. In [89], a simplified BEV energy consumption model based on vehicle-specific power (VSP) was presented and evaluated on standardised driving cycles. According to Table 12 and Figure 11, there is a predominance of studies using real-world data in their models.

Table 12. Data source of the articles in predicting BEV energy consumption.

Data Source of the Models Used For Predicting BEV Energy Consumption				Number of Articles
A: Data source	A1	Real-world data	[13,25,34,36,39,41,44,79,84,85,87,88,90,91,92,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,120,121,122,123,124]	45
	A2	Simulated data	[32,33,36,78,81,82,83,86,89,91,93,96,101,119,121]	15

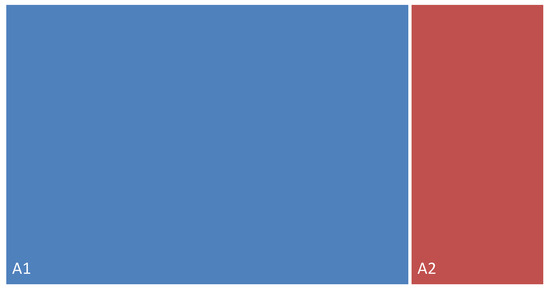

Figure 11. Distribution of the number of articles according to the data source of the models.

Appendix A (Table A1) summarises the key attributes of the studies included in the SLR.

4.7. Methodological Quality Assessment of the Included Studies

The methodological quality of the included studies was assessed using an instrument, or checklist, derived from the guidelines proposed in [134] and the subsequent work of [135], which provides practical criteria for evaluating the robustness of empirical studies in engineering research.

The instrument (QA-12) evaluates twelve methodological dimensions to judge the rigour of a study, including: clarity of objectives (QA1); adequacy of the methodological design (QA2), which involves a coherent description of the adopted approach; adequate description of the dataset (QA3), including location, vehicle, route, sensors, sampling frequency, and testing or simulation conditions; quality of measurement procedures (QA4), addressing sensor accuracy, filtering or calibration methods, sources of error, and error reduction strategies; appropriateness of explanatory variables (QA5), based on a reasoned selection; justification of model assumptions (QA6), including the rationale for the use of specific equations or model architectures; adequacy and reporting of performance metrics (QA7); model validation procedures (QA8), such as the use of separate training and testing datasets, cross-validation, or similar strategies ensuring validation rigour; uncertainty analysis (QA9), including the discussion of errors and sensitivity; reproducibility (QA10), referring to the availability of sufficient detail to allow replication of parameters, experiments, and models; coherence of conclusions (QA11) with respect to the results, methodology, and stated objectives; and an explicit declaration of study limitations (QA12), addressing shortcomings or issues related to model generalisation.

Each item, dimension, or criterion was scored using a three-level scale: 1 = fully meets the criterion; 0.5 = partially meets the criterion; and 0 = does not meet the criterion or does not provide the required information. For each study, an overall mean score across the 12 items (QA_mean) was calculated, allowing the methodological quality to be classified into three groups, following common standards in engineering systematic reviews:

-

High quality: QA_mean ≥ 0.80

-

Moderate quality: 0.50 ≤ QA_mean < 0.80

-

Low quality: QA_mean < 0.50

The use of these thresholds facilitates transparent comparison of methodological strengths and weaknesses across studies, providing a coherent framework for interpreting heterogeneity in the BEV energy consumption prediction models and results reported in the literature. The results of the methodological quality assessment for each study are presented in Appendix B (Table A2). The findings indicate that, out of the 55 included studies, 31 were classified as high quality, 23 as moderate quality, and one study as low quality, reflecting an overall gradient of confidence in the reported results.

Figure 12 illustrates the proportion of methodological quality scores for each dimension across all included studies. It is noteworthy that 100% of the articles demonstrate clarity of objectives (QA1), followed by criterion QA7, where 96% of the studies report performance metrics. Conversely, all studies were judged to have moderate methodological quality with respect to QA12, which concerns the explicit declaration of study limitations. Criterion QA9, related to uncertainty analysis, error discussion, and sensitivity analysis, exhibited the weakest performance, with 89% of the studies classified as having moderate methodological quality and the remaining 11% classified as low quality.

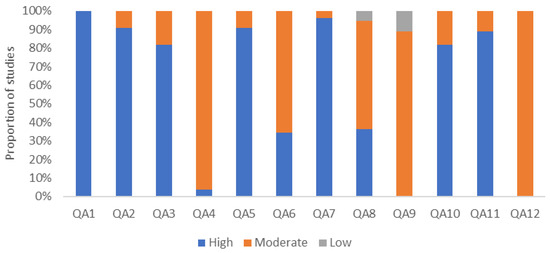

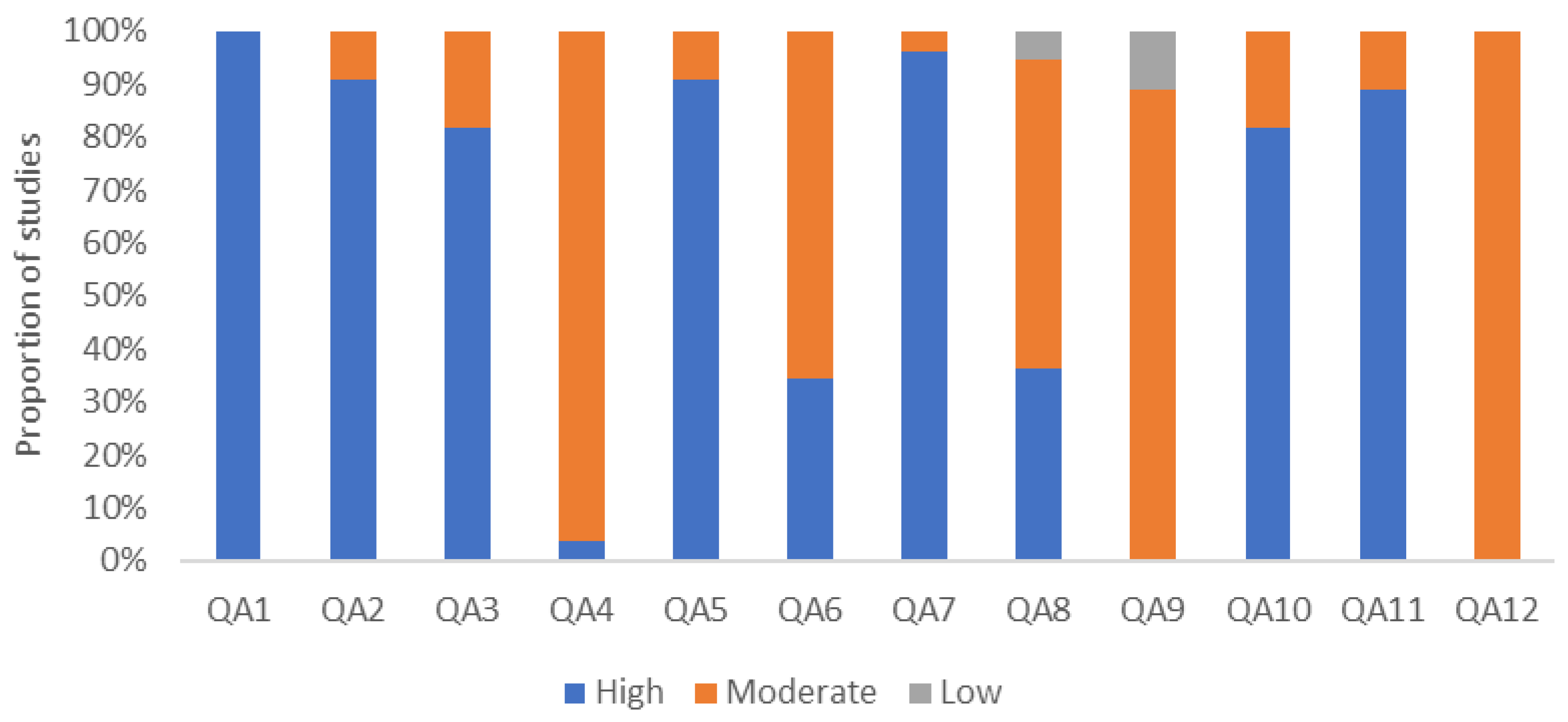

Figure 12. Proportion of methodological quality for each dimension across all included studies.

4.8. Risk-of-Bias Assessment of the Included Studies

To complement the methodological quality assessment, a structured evaluation of potential sources of bias in the included studies was conducted. As there is no universally adopted tool for assessing risk of bias in empirical modelling and simulation research in engineering, the evaluation framework used in this review—through the RoB-10 instrument—was developed by adapting principles from the software engineering research literature. Seminal works such as those by [136,137,138,139] provide consolidated guidance on identifying threats to validity, rigorous reporting, and evidence synthesis in engineering research. These sources informed both the structure and interpretation of the instrument proposed in this SLR. The instrument examines ten relevant domains as applied to studies on BEV energy consumption prediction: data selection bias (RoB1), which assesses dataset representativeness in terms of climate, traffic conditions, and drivers; measurement bias (RoB2), which evaluates the accuracy of the measurement of the variables of interest, that is, including the use of appropriate measurement equipment and reported calibration procedures; data processing or variable treatment bias (RoB3); model bias (RoB4), which addresses issues such as overfitting or lack of proper validation; model simplification bias (RoB5), which examines whether relevant real-world variables—such as auxiliary loads or wind effects—are omitted; regionality bias (RoB6), which evaluates whether the study is restricted to a single city or region; vehicle variation bias (RoB7), which assesses dependence on a specific BEV model; reporting or selective reporting bias (RoB8), where only positive results are reported without explicitly addressing errors; metric inconsistency bias (RoB9), which evaluates the use of heterogeneous units for evaluation metrics (e.g., RMSE, MAE, MSE) that hinder cross-study comparability; and bias related to the availability of real-world data and real driving conditions (RoB10).

Each domain was rated as low risk, moderate risk, or high risk for each study. According to the guidelines of the ROBINS-I and RoB 2.0 tools, a lack of information in a given domain is considered an indicator of “some concerns” rather than an “unclear” assessment. Consequently, domains with insufficient information were classified as presenting a moderate risk of bias. In line with established principles of bias assessment, the overall risk of bias for each study was determined by the highest level of risk identified across all domains. This means that the most severe risk detected in any domain defines the overall judgement. This approach is widely recommended, as a single major source of bias—such as a non-representative dataset or inadequate model validation—can compromise the entire set of findings and should not be averaged out by strengths in other domains. Therefore, the RoB-10 assessment provides a robust basis for interpreting the reliability and generalisability of the included studies.

The results of the risk-of-bias assessment for each included study are presented in Appendix C (Table A3), based on the authors’ judgement in the present SLR. In addition, Figure 13 illustrates the percentage distribution of risk of bias across each domain for all included studies. It is evident that a large proportion of articles exhibit a moderate risk of bias across most evaluated domains. Regionality bias (RoB6), characterised by studies being limited to a single city or region, shows the highest frequency of high risk (39 articles), followed by vehicle variation bias (RoB7), with 17 studies relying on a single BEV model. In contrast, RoB10 presents the lowest risk of bias, with 21 studies using real-world driving data in their models. Regarding RoB8, this domain shows the highest frequency of moderate risk, with 53 studies reporting only positive results without explicitly disclosing errors.

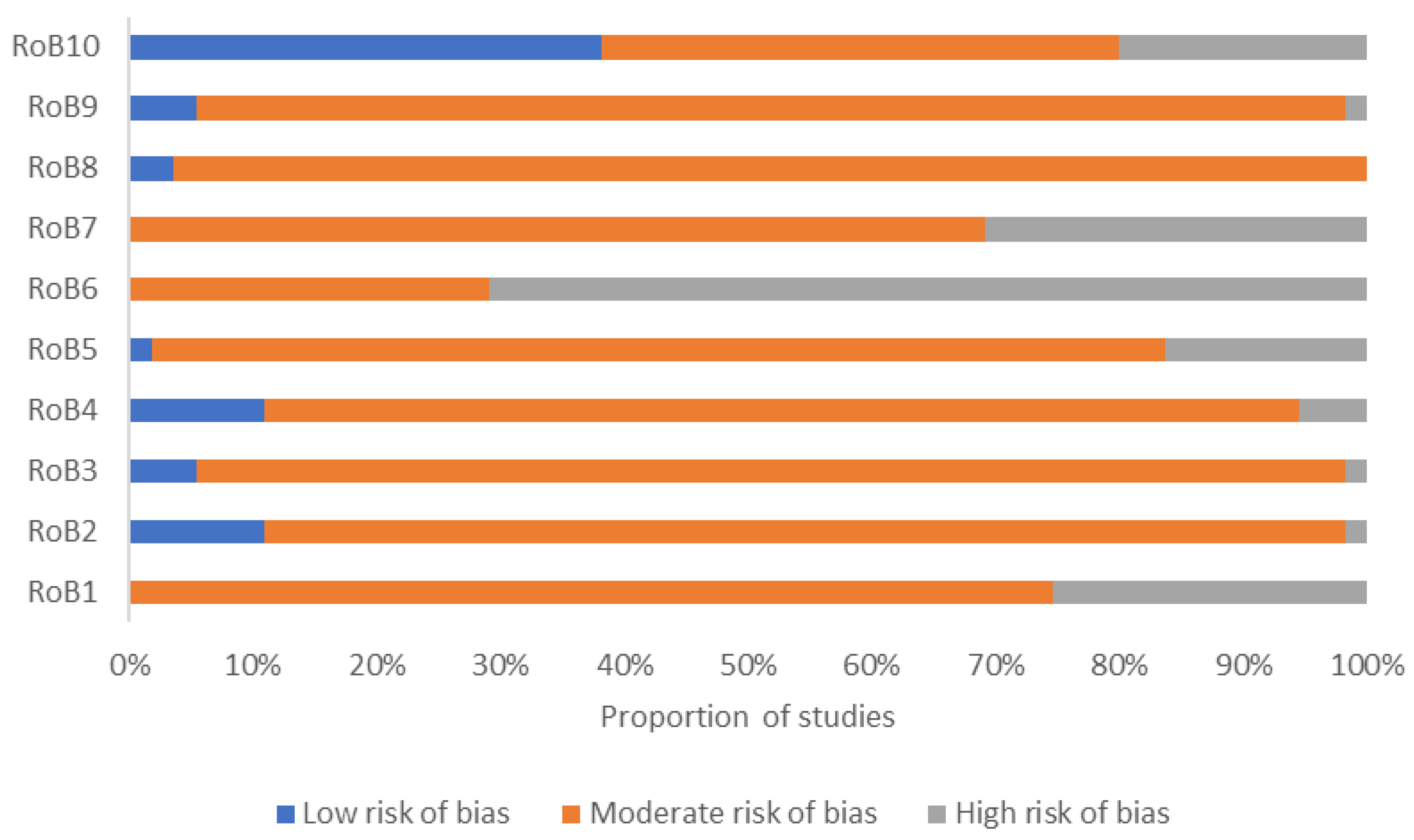

Figure 13. Percentage of risk of bias for each domain across all included studies.

5. Discussion, Limitations, and Suggestions for Future Work

BEVs have a limited driving range compared with conventional vehicles, causing drivers to fear running out of energy while driving. To overcome this problem and increase the daily usability of these vehicles, more accurate range estimation techniques are being investigated. Nevertheless, an accurate BEV energy consumption model is crucial to obtain more reliable estimators of the remaining range, which, to date, are still not sufficiently precise [82]. Since accurate range estimation critically depends on modelling the actual energy consumption of BEVs [98], it must be considered that this is not a trivial task, as it is influenced by a series of factors: vehicle-intrinsic, environment-related, trip-operational, and driving-style related. In this regard, accurate BEV energy consumption estimation requires precise models that take all these factors into account and seek to reduce uncertainties in the estimation [140]. In fact, there is a scarcity of studies that combine multiple internal and external BEV factors to predict their consumption; therefore, if prediction results are to be improved, the influence of an increasingly significant number of factors should be closely analysed and examined [100].

Rule-based BEV energy consumption estimation models usually consider the vehicle’s longitudinal dynamics to calculate the wheel power required to overcome motion resistances; in addition, they take into account the impact of auxiliary devices, numerous parameters, and powertrain component efficiencies [36]. Nevertheless, the efficiency map, for example, of the electric motor, is not always available [32,85], and reducing certain model parameters—such as component efficiencies—to predetermined constants increases the uncertainty of the results. Another point to consider in these models is the energy resulting from the regenerative braking system, which is often modelled as a linear function of vehicle speed or as a function of deceleration. Furthermore, these models require detailed speed profiles or properly defined driving cycles as input variables for estimation [87,141]. Each driving cycle is constructed to describe the characteristics of a vehicle in a specific context—road, driver behaviour, and traffic flow—with the aim of evaluating, for example, energy consumption, range, and equivalent emissions of a BEV [121]. Although high-frequency driving cycles (approximately 1 Hz) are fundamental for determining energy consumption at high resolution, it is not practical to collect such driving cycles along with numerous vehicle parameters under real driving conditions, since external hardware and monitoring equipment would have to be installed in each vehicle [142]. That is, the application of these energy consumption prediction models becomes particularly complicated when dealing with a large number of vehicle models and large-scale fleets [113], making their use more suitable for specific vehicle models and particular routes, where the path and BEV applicability are known in advance. In the same direction, although this rule-based model proves to be more accurate than data-driven models [82,130,143], it involves costly calculations, allowing integration into more complex frameworks and often depending on laboratory-derived parameters [120]. Nevertheless, its accuracy is subject to the level of detail of the model, which may be too generic—leading to significant estimation errors—or overly complex [44,91].

On the other hand, in the context where it is difficult to incorporate the multiple influencing factors and quantitatively analyse their respective effects on BEV energy consumption from the perspective of the vehicle’s underlying mechanisms, data-driven energy consumption prediction models emerge as an alternative option [113]. These models are usually based on statistics or ML in order to derive linear or non-linear relationships between different factors or input variables and the vehicle’s energy consumption. Unlike statistical models, ML models are more powerful and offer self-adaptive behaviour that improves the desired results [144] through empirical learning and iterative optimisation [113]. Nevertheless, in many studies related to data-driven models, the energy consumption due to auxiliary devices—which can significantly reduce BEV efficiency and range—is not considered [82]. Another point to consider is that these models require more computational effort than rule-based models due to the large volume of data they handle. In fact, the trend in these models is to employ an increasingly larger amount of big data to improve prediction accuracy [114]. Likewise, these models differ in the extent to which they can engage with the underlying physical principles and vehicle speed profiles [108]; that is, the physical meaning of selected variables and the interpretation of such models are not justifiable, since they operate with a black-box approach [44]. Narrowing down this point, these models often neglect vehicle dynamics, which play an important role in energy consumption [86]. On the other hand, data-driven models consider a greater number of trip-operational and environment-related variables compared with rule-based models, which rely more on vehicle-intrinsic and driving-style variables. Moreover, these models can be satisfactory for specific conditions, since they are tailored to their particular characteristics (training dataset and specific scenario); however, their applicability or extensibility to another situation is questionable [44]. In other words, they only work for those road network segments that have already been driven and for specific vehicle models that have already been monitored, reducing their flexibility [132].

It is important to recommend an appropriate model for predicting BEV energy consumption by considering the diversification of factors based on real-world trip data, with extremely detailed information collected on vehicle operation along the route [122]. The benefit of using real-world measurements is a more realistic estimation of vehicle energy consumption [108]. In fact, the use of monitored on-road data, as opposed to synthetic data from simulations or from standardised driving cycles on chassis dynamometers, provides more realistic BEV energy consumption values [145]. On the other hand, model granularity plays a predominant role, where microscopic models, unlike mesoscopic and macroscopic ones, are more accurate, since they estimate energy consumption instantaneously, second by second, and are therefore useful for high-fidelity simulations with BEV models and detailed driving cycles [132]. For example, the authors in [122] reported that data monitored at low frequency (once per minute) generate uncertainty regarding the variation in vehicle energy consumption within these time intervals. Similarly, in [111], data sampled at a low frequency, 0.05 Hz, were used, highlighting the limitation of model performance and generalisation capacity. Analogously, in macroscopic- and mesoscopic-scale models, due to the high degree of temporal and spatial aggregation, it is difficult to represent subtle changes in vehicle energy consumption during driving [40]. In this regard, the microscopic approach allows for capturing variations in energy consumption more accurately than considering the average of an entire trip [13]. In light of the above, the challenge in BEV routing problems is that they require the precision of microscopic models to predict energy consumption, but the detailed driving cycle is not known beforehand and must be defined [132]. Conclusively, modelling BEV instantaneous energy consumption under real-world conditions poses a major challenge due to variability and uncertainty, even for the same vehicle under identical driving conditions [36]. Likewise, it is advisable to analyse the impact of traffic, as one of the trip-operational conditions, on BEV energy consumption at the microscopic level [114], especially as it causes wide divergences in driver behaviour or driving style [146]. Concomitantly, accurately assessing the influence of such parameters on vehicle energy consumption can be complex and costly; however, in the absence of measured data on traffic information and locally distributed congestion levels, vehicle speed and acceleration patterns implicitly capture the effects of stochastic traffic conditions on BEV on-road energy consumption [115].

Based on the methodological quality assessment of studies on BEV energy consumption estimation, the reviewed literature can be considered to have reached an acceptable level of maturity, with most studies classified as having high or moderate quality. The majority of articles clearly define their objectives and report quantitative performance metrics, reflecting a generally consolidated focus on predictive accuracy and model evaluation. However, the quality assessment also reveals systematic weaknesses, particularly in the treatment of uncertainty, sensitivity analysis, and external validation, which limit the robustness and transferability of the reported results. One of the most critical findings relates to the heterogeneity and coverage of the datasets employed. Although the use of real-world driving data is increasing, most studies rely on datasets collected from a single city, region, or fleet, often under specific climatic and traffic conditions. This limited scope directly affects the generalizability of energy consumption prediction models and explains the prevalence of regionality bias identified in the risk-of-bias assessment. Consequently, high predictive performance within a local dataset does not necessarily imply reliable performance when models are transferred to different geographical or operational contexts.

Validation practices further exacerbate this limitation. While internal validation using training–testing splits or cross-validation is common, external validation across different routes, vehicles, or climates remains scarce. As a result, many models exhibit high internal consistency but uncertain external validity. This pattern suggests that the reported errors may underestimate performance degradation under real-world conditions when domain shifts occur, such as changes in road topology, ambient temperature, or vehicle specifications.

Beyond the modelling methodologies identified for predicting BEV energy consumption, several cross-cutting methodological patterns emerge. Rule-based models tend to be more interpretable and robust when physical parameters are well characterised, but they are sensitive to simplifying assumptions and often require detailed data that are not always available. In contrast, data-driven approaches, particularly machine learning models, achieve high accuracy within the training domain but are more susceptible to overfitting and loss of interpretability, especially when uncertainty and sensitivity analyses are not explicitly addressed. The reviewed literature indicates that hybrid modelling approaches can offer relevant advantages by combining the physical interpretability of rule-based models with the flexibility of data-driven techniques. In several studies, hybrid models were reported to achieve improved predictive accuracy compared with purely physics-based approaches, particularly under real-world or heterogeneous operating conditions where simplified physical assumptions may be insufficient. At the same time, these approaches retain a degree of physical insight that is typically lost in purely black-box machine learning models, which may support better generalisation and model transparency. However, the reviewed studies also highlight important implementation challenges, including increased model complexity, higher integration and calibration effort, and sensitivity to the interaction between physical assumptions and data-driven components, which can limit scalability and practical deployment if not carefully addressed.

The risk-of-bias assessment highlights additional structural issues. The tendency to emphasise models with higher performance while providing limited discussion of negative results or uncertainty ranges suggests the presence of publication and reporting bias. Moreover, inconsistencies in the definitions and units of energy consumption hinder cross-study comparison, even when similar metrics such as RMSE or MAE are reported. Finally, the predominance of single-vehicle studies conducted in specific localities introduces vehicle-model and regionality biases, respectively, thereby limiting the applicability of the findings to broader, more heterogeneous BEV fleets operating across different latitudes.

Overall, the results indicate that the literature provides reliable insights within well-defined contexts, but broader generalisation is constrained by dataset representativeness, validation scope, and reporting practices. Therefore, the combined QA-12 and RoB-10 analyses support a cautious interpretation of model performance claims and underscore the importance of contextual synthesis rather than direct numerical comparison across studies.

By identifying strengths and weaknesses, the combined methodological quality and risk-of-bias analysis points to several implications for future research on BEV energy consumption modelling and prediction:

-

Greater dataset diversity and transparency: Future studies should prioritise multi-city, multi-climate, and multi-vehicle datasets, or clearly justify the limits of their applicability. Detailed reporting of data collection procedures and variable preprocessing steps would substantially reduce selection and reporting bias.

-

More robust validation strategies: External validation across routes, operational conditions, vehicles, and environmental contexts should become standard practice. Benchmarking models using independent datasets would increase confidence in reported performance and facilitate meaningful comparisons across approaches.

-

Explicit uncertainty and sensitivity analysis: Given the strong influence of driving conditions, climate, and aggregation level on energy consumption, future models should quantify uncertainty and assess sensitivity to key variables, thereby improving both interpretability and applicability.

-

Harmonisation of energy consumption metrics: Greater consistency in target variable definitions (e.g., Wh/km vs. kWh/100 km, instantaneous vs. trip-level metrics) and reporting protocols would enhance comparability across studies and reduce metric-related bias.

-

Context-aware model selection: Rather than seeking universally optimal models, future work should focus on adapting modelling approaches to implementation conditions, considering data availability, operational context, and the required level of interpretability.

Overall, these guidelines directly address the methodological limitations and bias patterns identified in this review and provide a roadmap for improving the robustness, transparency, and generalisability of future research in this field.

6. Conclusions

This systematic review examined the current state of research on BEV energy consumption prediction, with particular emphasis on methodologies and modelling approaches, the variables employed, modelling scale, and data sources. Beyond synthesising modelling trends, the review incorporated a structured assessment of methodological quality and risk of bias, providing deeper insight into the reliability and generalisability of the reported findings. The main conclusions can be summarised as follows:

Data-driven approaches, particularly machine learning (ML)–based models, currently dominate the literature, largely due to their ability to capture complex and nonlinear relationships in high-dimensional datasets and to achieve low prediction errors within the training domain. However, the quality and bias assessments indicate that these models often rely on geographically limited datasets and vehicle fleets corresponding to a single BEV model. As a result, their superior predictive accuracy depends strongly on the availability of large and homogeneous datasets and may not be directly transferable to new routes, climates, or vehicle configurations. Moreover, the strong emphasis on predictive performance often comes at the expense of interpretability and physical understanding of energy flow and powertrain behaviour.

Rule-based models remain highly relevant, particularly when the objective is to understand the contribution of individual powertrain components and vehicle dynamics to overall energy consumption. These models can achieve high accuracy when detailed vehicle parameters and driving profiles are available; however, their performance is sensitive to modelling assumptions and parameter uncertainty. The review also shows that increased model fidelity is often associated with higher complexity and a greater level of detail, which may limit scalability and practical implementation. Digital twin–based implementations, in contrast to offline simulations, enable real-time interaction with physical systems and dynamic optimisation, but their effectiveness still depends strongly on data quality and calibration.

Hybrid modelling approaches represent a promising direction, combining the interpretability of physics-based formulations with the flexibility of data-driven techniques. In most hybrid frameworks, vehicle dynamics, powertrain behaviour, or regenerative braking are first modelled using rule-based formulations, after which statistical or ML models are applied to appropriately selected input variables to capture residual effects and contextual factors. While hybrid models often achieve competitive performance, their success depends critically on appropriate feature selection, data representativeness, and validation strategies, as reflected by the moderate risk of bias observed in many of these studies.

BEV energy consumption is inherently dynamic and multifactorial, influenced by intrinsic vehicle variables (related to vehicle dynamics, components, and systems), environmental variables (environmental conditions and road characteristics), operational variables, and driving style variables. The review confirms that models incorporating a broader set of these variables generally outperform simpler formulations. Notably, the quality assessment highlights that real-world driving data provide more reliable and transferable estimates than synthetic or laboratory datasets, particularly for applications involving route planning and range estimation. Nevertheless, the limited availability and restricted geographical coverage of many real-world datasets remain a key barrier to generalisation.

Microscopic-scale models tend to provide the highest accuracy, as they capture instantaneous energy consumption dynamics with fine temporal and spatial resolution. However, this advantage comes at the cost of detailed vehicle modelling, high-resolution driving cycle data, and extensive instrumentation with high-frequency monitoring equipment. Mesoscopic and macroscopic models, although less precise, may be more suitable for large-scale planning applications where data availability and computational efficiency are more critical than detailed accuracy.

Finally, the combined QA-12 and RoB-10 analyses reveal systematic methodological limitations in the literature, including inconsistent validation practices, limited external validation, heterogeneous energy consumption metrics, and a moderate degree of publication and reporting bias. These factors complicate cross-study comparisons and suggest that reported performance metrics should be interpreted with caution. Overall, the findings indicate that current BEV energy consumption prediction models are generally reliable within well-defined and constrained contexts, but their broader applicability is conditioned by dataset representativeness, validation scope, and reporting transparency.
