Energies 2019, 12(5), 937; https://doi.org/10.3390/en12050937

Research on Distribution and Shielding of Spatial Magnetic Field of a DC Air Core Smoothing Reactor

1
School of Electrical Engineering, Shandong University, Jinan 250061, China
2
Shandong University Library, Shandong University, Jinan 250061, China
3
Shandong Electrician Electric Group Co., Ltd., Jinan 250022, China
4
State Grid Shandong Electric Power Maintenance Company, Jinan 250118, China
*
Author to whom correspondence should be addressed.
Received: 31 January 2019 / Revised: 25 February 2019 / Accepted: 27 February 2019 / Published: 11 March 2019
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [6735 KB, uploaded 11 March 2019]   |

Abstract

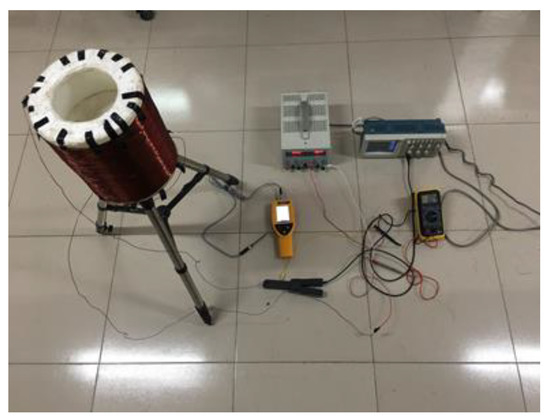

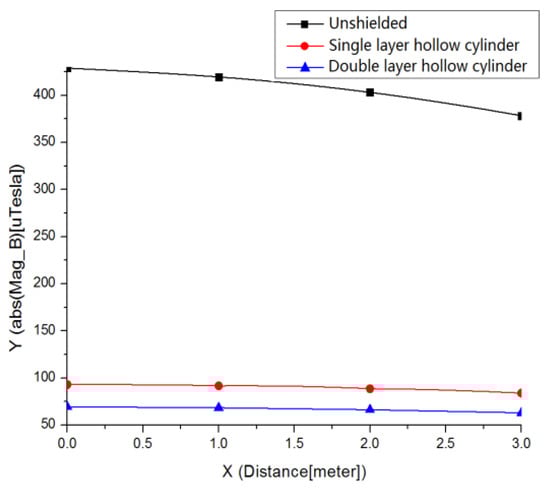

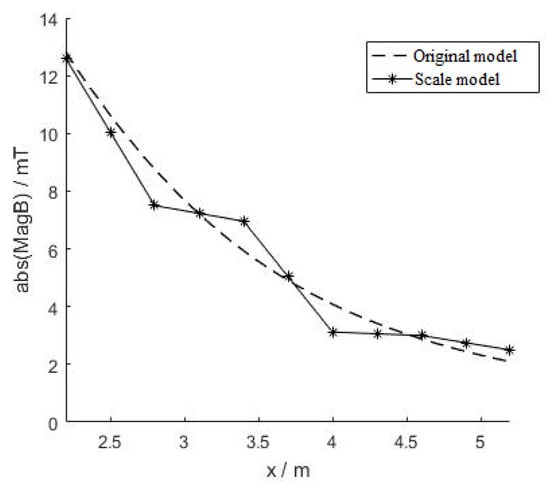

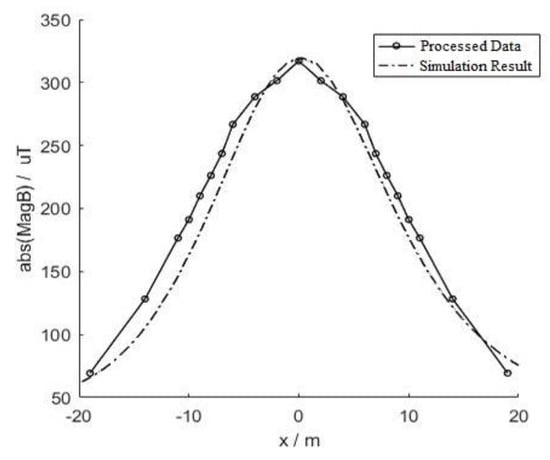

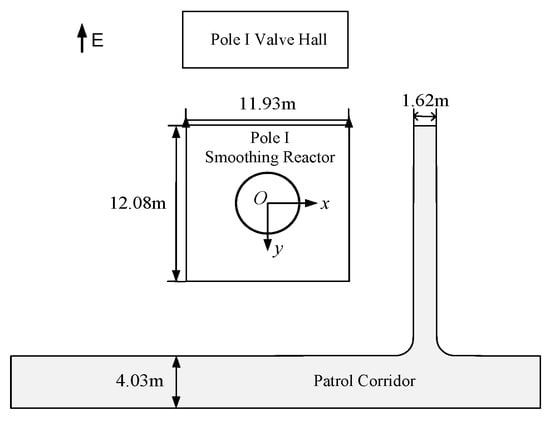

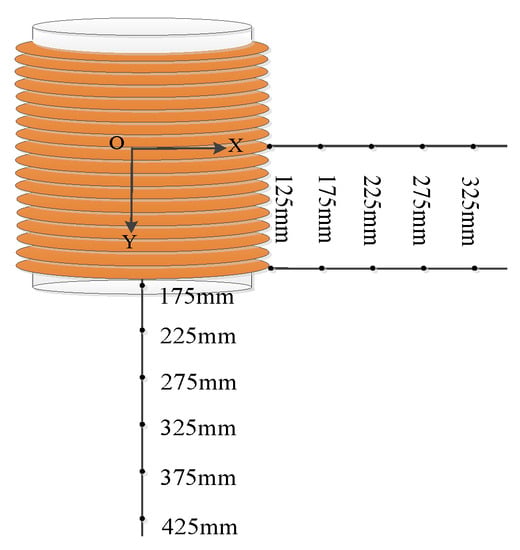

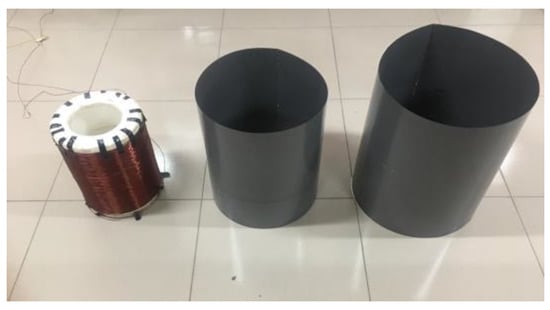

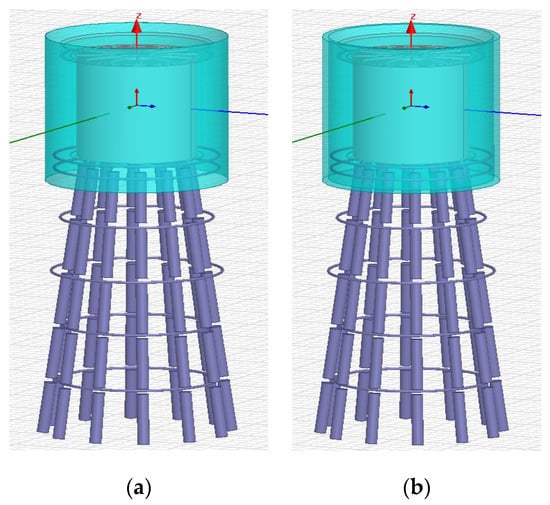

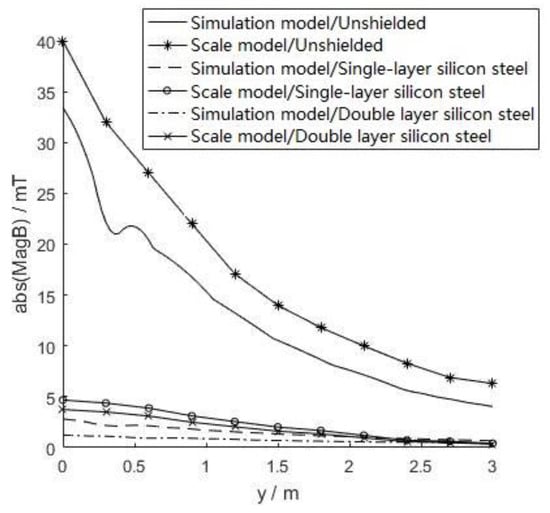

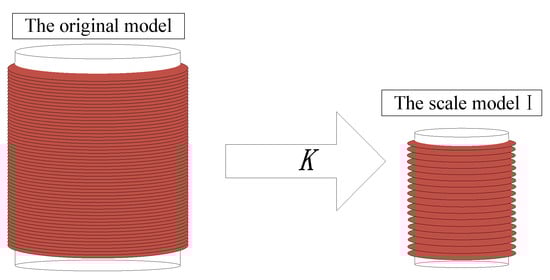

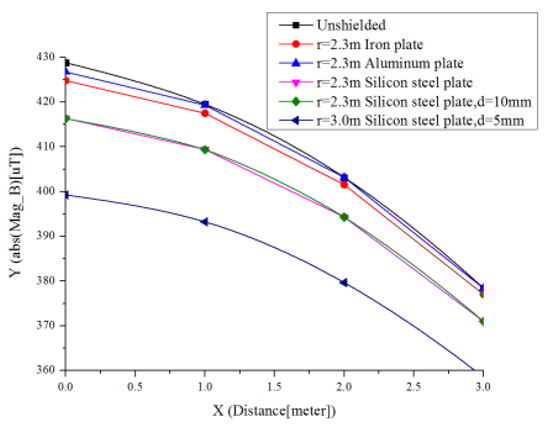

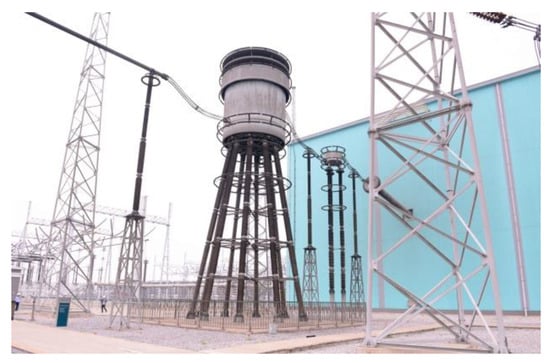

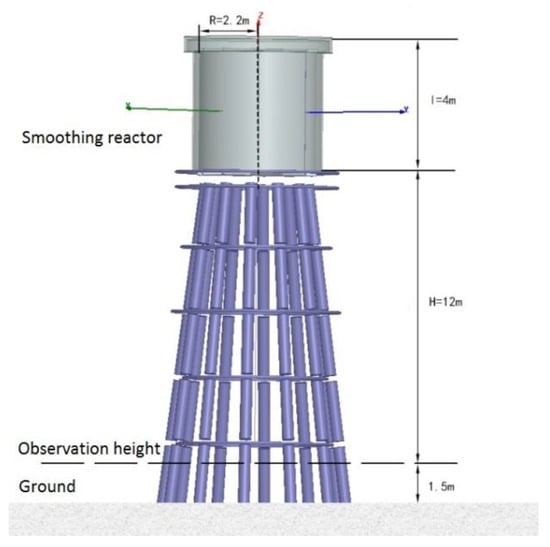

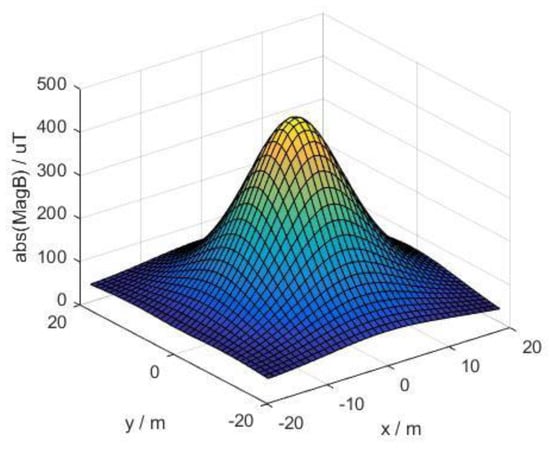

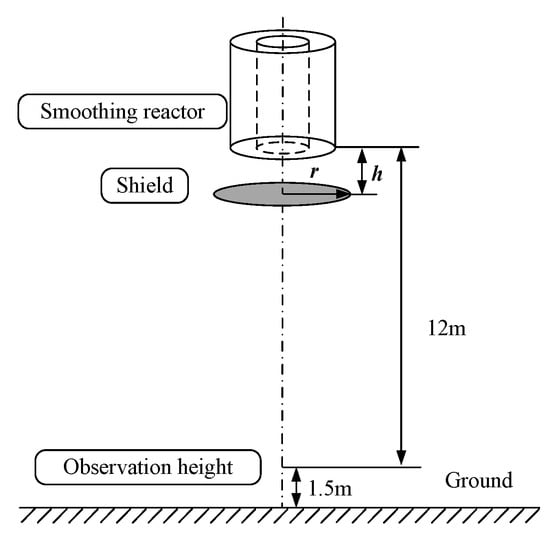

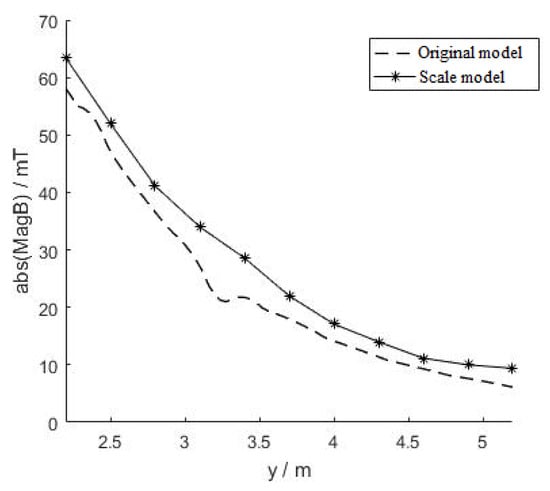

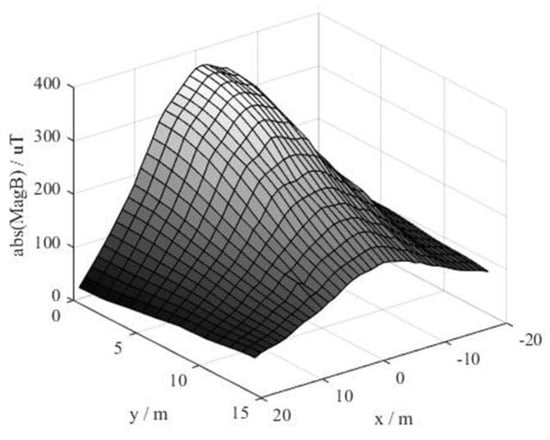

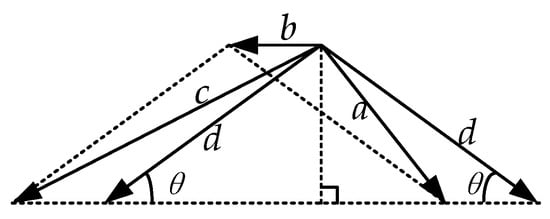

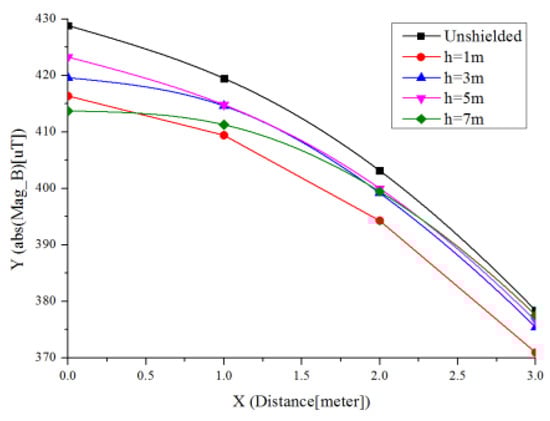

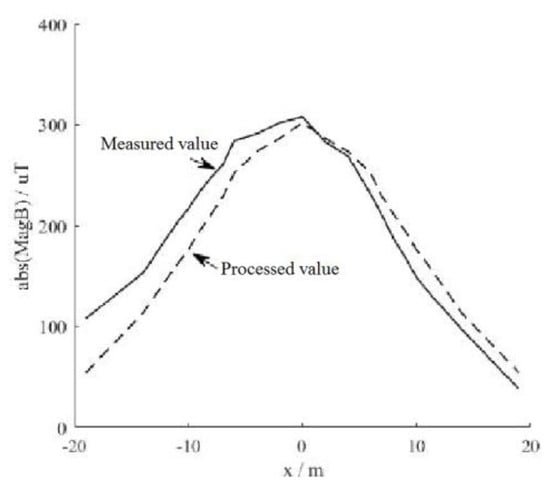

With the rapid development of ultra-high-voltage direct current (UHVDC) transmission, air core smoothing reactors have become the main source of electromagnetic contamination in converter substations. The actual magnetic field distribution was obtained by measuring the magnetic induction intensity of the polar busbar smoothing reactor under full load operation condition of the Jiaodong ±660 kV converter substation. A method combined with the measured data to eliminate the influence of the geomagnetic field is proposed. The magnetic field distribution model of the smoothing reactor is established and the rationality and validity of the model for magnetic field distribution is verified. Some magnetic shielding measures are proposed and their effectiveness is verified by simulation and small-scale experiments. View Full-Text
Keywords: smoothing reactor; magnetic field distribution; finite element; small-scale experiment; magnetic field measurement; magnetic shielding smoothing reactor; magnetic field distribution; finite element; small-scale experiment; magnetic field measurement; magnetic shielding
Figures

Figure 1
