Abstract

The conservation of architectural heritage poses significant challenges in buildings characterised by complex construction sequences, cumulative transformations and fragmented documentation, where traditional methods are insufficient to coherently integrate geometry, historical information and stratigraphic analysis. This study proposes and applies a multitemporal Heritage Building Information Modeling (HBIM) workflow aimed at reconstructing and managing the historical evolution of architecture, using the Church of La Sang in Llíria (València, Spain) as a case study characterised by the superposition of Islamic, Gothic and contemporary phases. The methodology combines documentary and archaeological analysis, in situ stratigraphic observation and high-resolution terrestrial laser scanning as the geometric basis of the HBIM model. Historical phases are integrated as structural components of the information model, with explicit documentation of interpretative hypotheses and associated levels of reliability. The results show that the proposed approach enables the identification and reinterpretation of spatial and constructive relationships not previously described, the critical assessment of existing historical hypotheses, and the generation of coherent three-dimensional reconstructions even in contexts with incomplete information. The resulting documentary archive facilitates diachronic comparison of phases, ensures traceability of constructive elements and supports the production of reliable graphic and analytical documentation, establishing itself as a valuable tool for historical research, heritage management and the planning of future conservation interventions.

1. Introduction

The conservation of architectural heritage poses significant challenges in documentation and management processes, particularly in historic buildings characterised by complex construction sequences, cumulative transformations and varying degrees of deterioration. The specialised literature emphasises the need for methodologies capable of integrating accurate geometry, heterogeneous historical information and rigorous stratigraphic analyses in order to interpret the material evolution of the building in a coherent manner [1,2]. In this context, traditional recording methods prove insufficient to reflect the inherent complexity of historic monuments.

The incorporation of three-dimensional data acquisition technologies, such as terrestrial laser scanning and digital photogrammetry, has enabled the generation of accurate point clouds that constitute the basis for advanced digital models [3,4]. Building upon this foundation, Heritage Building Information Modeling (HBIM) has become established as a structured environment for the integration and management of multidisciplinary information related to architectural heritage [5,6,7]. Nevertheless, the recent literature highlights significant limitations in its application, particularly with regard to the standardisation of levels of representation, the modeling [8] of irregular geometries, interoperability, and the management of multitemporality [9,10]. These shortcomings are especially critical in buildings with complex chronologies, where the digital reconstruction of historical phases is essential for their proper understanding [11,12].

Within this framework, the Church of La Sang in Llíria (València, Spain), characterised by an Islamic, Gothic and Modern construction sequence, constitutes an ideal case study for the development of a multitemporal HBIM workflow that combines three-dimensional data capture, documentary analysis and stratigraphic reading, aimed both at scientific interpretation and at the future management of the monument.

Background to the Research

The HBIM methodology was developed as a specific framework for structuring and managing architectural information in heritage contexts, overcoming the limitations of traditional graphic documentation systems. Its early developments were based on the integration of accurate geometry, historical documentation and construction data through reverse-engineering processes applied to point clouds [2,13] and were consolidated with the systematic incorporation of terrestrial laser scanning and photogrammetry as the geometric basis of the model [8,14].

However, several studies have pointed out that the adoption of HBIM in conservation projects has been limited, mainly due to the difficulty of operationally integrating the historical values of the asset and to the absence of specific methodological protocols [15,16]. These limitations encouraged the incorporation of criteria derived from architectural archaeology, which provide stratigraphic tools to organise the material and temporal information of the building within the digital model [17].

Despite these advances, the digital reconstruction of earlier historical phases remains relatively uncommon. “While difficulties in establishing reliable chronologies and the high cost of absolute dating methods have played a role, the limited development of multitemporal HBIM models has mainly been constrained by the difficulty of operationally implementing historical phases as structured, traceable and semantically consistent components within HBIM environments. As a result, until recently, reconstructions were largely based on non-parametric 2D (two-dimensional) or 3D (three-dimensional) representations [13], oriented towards visualisation and lacking informational traceability [18].” In this context, the comprehensive laser scanning of Notre-Dame carried out by Tallon [19] marked a turning point by demonstrating the potential of reality-based geometry as a support for rigorous evolutionary analyses.

In parallel, the literature has highlighted the need to adapt levels of representation to the built heritage, introducing concepts such as the Level of Accuracy (LOA) and the Level of Information (LOI) to complement traditional BIM (Building Information Modeling) levels, which were originally conceived for new construction [20]. Likewise, the integration of HBIM with GIS (Geographic Information Systems) and HGIS (Historical Geographic Information Systems) has enabled the extension of analysis to urban and territorial scales, although interoperability issues persist, particularly in IFC–SHP (Industry Foundation Classes—Shapefile) conversion processes [21,22,23]. Recent research has demonstrated the potential of the HBIM–HGIS approach to articulate architectural and territorial information within a shared framework [23], as well as its evolution towards advanced monitoring models characteristic of early heritage digital twins [7].

The foundations of HBIM lie in the structured integration and management of the full construction history of a building, enabling the explicit modelling and visualisation of specific historical states within a coherent temporal framework. This entails integrating all relevant information into the model, including archival records, graphic and written sources, oral testimonies and even 3D survey data, in order to reliably reconstruct the interventions and transformations that have occurred over time.

Although HBIM is presented as a powerful tool for the management, documentation and conservation of heritage assets, its application has not yet been fully transferred to the domain of rigorous historical reconstruction, which poses challenges beyond the mere representation of time, particularly with regard to disappeared or poorly documented construction phases. This reveals a dissonance between the theoretical potential of HBIM and its actual practical application.

Adapting BIM to historical contexts requires a conceptual transformation that has not yet been fully achieved in either professional practice or academic research. There exists a fundamental knowledge limitation: even if HBIM can integrate large volumes of information, the reliability of reconstructions ultimately depends on the quality and precision of the input data. HBIM, in itself, does not resolve historical uncertainty; it can only organise it. Moreover, the methodology runs the risk of conveying an appearance of accuracy due to its parametric and geometrically precise nature, while the historical basis may in fact be incomplete or hypothetical.

This situation reveals a disciplinary gap: while digital humanities tend to produce visual reconstructions, HBIM specialists usually work on the existing building. There is no genuine integration between these two practices. At the same time, a methodological tension emerges: historical heritage requires working with hypotheses, yet HBIM has not been designed to manage them in a natural or explicit manner.

As a result, a lack of a methodological framework for historical phases becomes evident. There is no clear protocol for developing evolutionary HBIM models capable of incorporating different construction phases of a building, representing uncertainty, handling date ranges, justifying hypotheses through links to sources, or differentiating between measured data and inferred data [24].

This calls for a conceptual evolution of HBIM itself, which should move from being a system for documenting the present to a historical–temporal management system capable of incorporating the complexity of the past. This approach aligns with current research trends on HBIM applied to heritage [25], which emphasise the need for traceable, replicable workflows capable of synthesising heterogeneous information within a single digital environment. Ultimately, there is a clear opportunity, but also a methodological gap that must be addressed before HBIM can become a reliable tool for simulating past architectural phases.

In recent years, several research projects and studies have addressed the integration of temporal dimensions within HBIM environments. Among them, the European project INCEPTION (Inclusive Cultural Heritage in Europe through 3D semantic modelling) represents a relevant milestone, as it introduced the concept of a “time machine” applied to heritage assets and promoted the semantic aggregation of heterogeneous information, historical, archival, archaeological and restoration-related, within parametric digital models [5,26,27].

Despite these advances, the operational integration of historical phases as structured, traceable and semantically enriched components of HBIM models at the architectural scale remains limited. Existing approaches frequently rely on visual stratification or non-parametric reconstructions, with reduced capacity to manage interpretative hypotheses and semantic consistency across phases. Related research on multitemporal BIM has been more extensively developed at the urban scale, focusing on diachronic representation and historical transformation processes [28,29].

Within this context lies the main objective of this work: starting from a conventional workflow in HBIM project management, to propose a modeling methodology based on historical phases that enables the reliable and traceable simulation of previous architectural configurations of the building. This methodological proposal is applied to the case of the Church of La Sang in Llíria, with the aim of addressing its evolutionary reconstruction and coherently integrating geometric, documentary, material and chronological information within a single digital repository.

To this end, the following specific objectives are defined: (i) to establish a reasoned dating of the different construction phases through the combination of stratigraphic evidence, historical sources and three-dimensional analysis; (ii) to generate historical simulations that allow comparison between past configurations and the current state of the building; (iii) to contrast these hypotheses with the results of previously available traditional architectural survey methods; and (iv) to assess the effectiveness of the HBIM approach as a tool for the visualisation, understanding and management of architectural transformation over time.

2. Materials and Methods

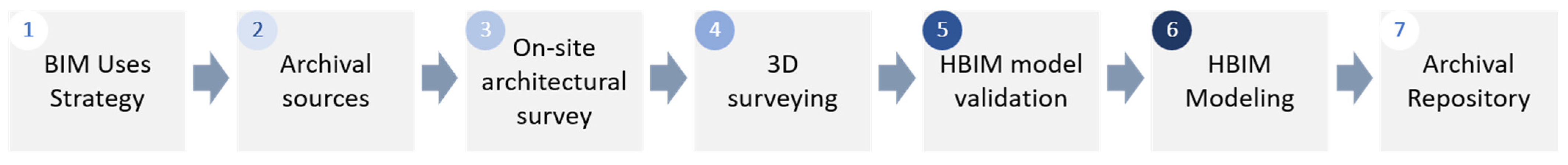

The proposed methodology is structured into four main blocks, developed in a sequential and complementary manner, which define an HBIM workflow oriented towards the multitemporal historical reconstruction of the building Figure 1.

It should be noted that, within a broader professional context, this workflow could be extended through the incorporation of additional phases depending on the scope of the project, such as restoration, maintenance, management or dissemination. However, the present study focuses exclusively on the methodological blocks required for historical research and for the generation of evolutionary HBIM models, in accordance with the scientific objectives of the research.

2.1. BIM Uses Strategy

Within the framework of information management in accordance with ISO 19650 [30] (International Organization for Standardization), the owner defines their expectations and information requirements through the Exchange Information Requirements (EIR) document. The technical team establishes the strategy and procedures to comply with these requirements through the BIM Execution Plan (BEP), agreed upon and accepted by all parties involved [5].

To achieve this, the definition of a BIM Uses strategy based on the taxonomy defined by the University of Pennsylvania [31] and selectively applied within an HBIM approach is fundamental to guarantee information consistency, version control and temporal traceability in accordance with the requirements of the ISO 19650 standard.

In this context, the priority HBIM uses are the following. For the simulation of historical construction phases and the digital recreation of the construction sequence, the uses 3D/4D Planning, 3D Control and Planning, and Construction Design are essential, as they respectively allow the assignment of a temporal dimension to the model, the spatial organization of each stage, and the modeling of solutions corresponding to each period, enabling a clear and progressive reconstruction of the original evolution. In the traceable management of information associated with each construction period, that is, preserving and structuring data by phases, the prominent uses are Record Model, Asset Management, and Maintenance Scheduling, because they document each state of the building, link changes with operational consequences, and project that traceability toward conservation, turning the model into a historical repository. Finally, for the generation of comparative documentation between different evolutionary states, allowing physical changes over time to be analyzed, Design Authoring, Design Review, and 3D Coordination are the priority uses, as they enable the production of consistent documentation, the evaluation of spatial variations, and the overlay of models to identify differences, consolidating HBIM as a tool for historical and technical analysis.

2.2. Documentary Sources, In Situ Analysis and Geometric Data Acquisition

This methodological block aims to provide the documentary, material, and geometric basis required for the multitemporal historical reconstruction of the building and for the subsequent generation of the different phases of the HBIM model.

The process begins with an exhaustive review of all available documentary sources, including historical archives, graphic sources, and written documentation, to establish a preliminary framework of the building’s constructive evolution. This analysis makes it possible to identify documented interventions, potential construction phases, and relevant periods of transformation, which are subsequently contrasted with material and geometric evidence.

In parallel, an in situ architectural survey is carried out, aimed at verifying and complementing the information derived from documentary sources through direct observation of the building. This analysis includes the identification of building fabrics, materials, reused elements, construction traces and regularizations, as well as any other evidence relevant to stratigraphic interpretation. In order to facilitate subsequent verification and modeling tasks, this work is supported by a systematic and georeferenced photographic record.

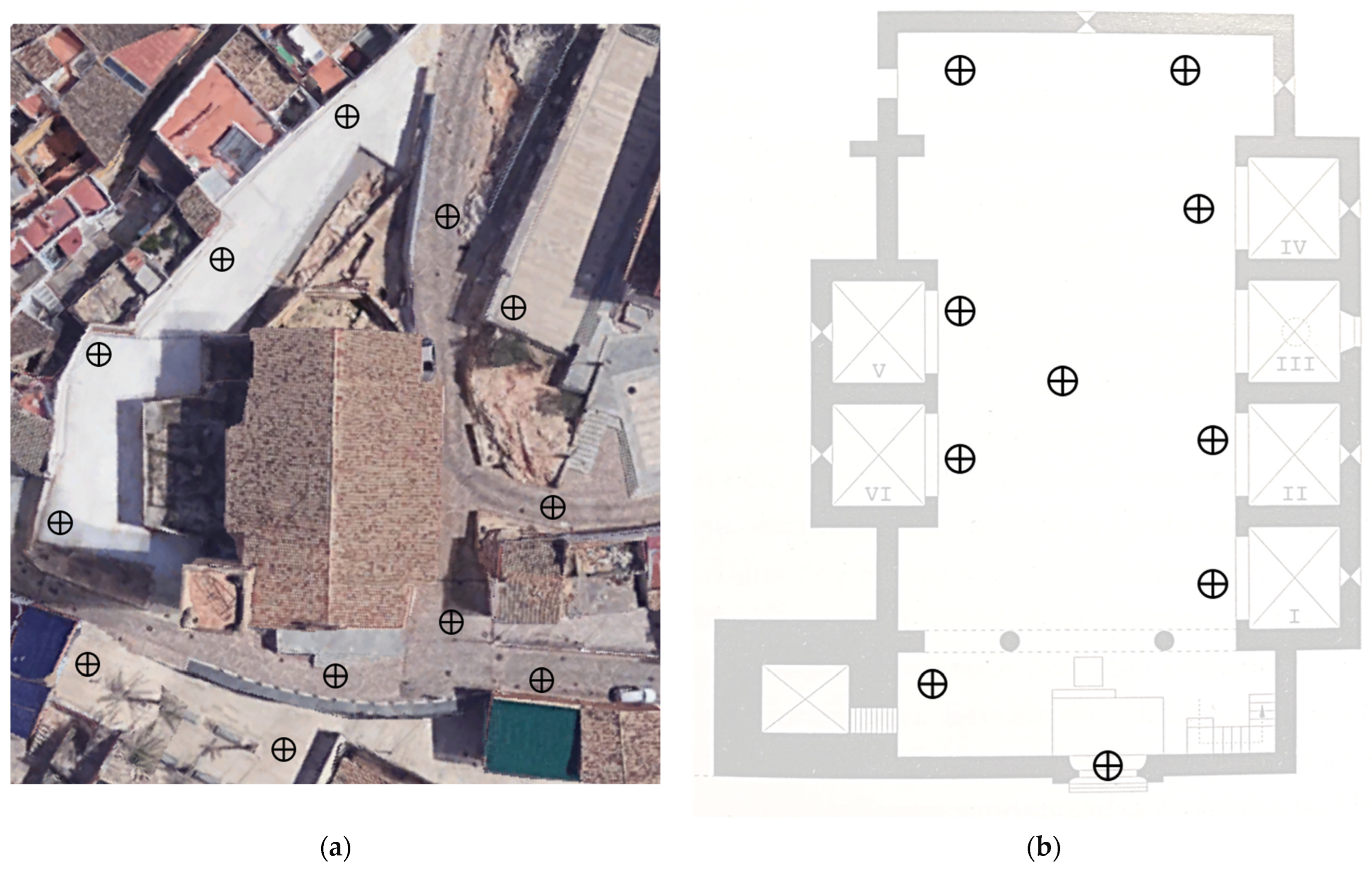

The geometric data acquisition was carried out through a terrestrial laser scanning (TLS) survey designed according to architectural surveying criteria. Scan positions were planned to ensure full coverage of the building, minimise occlusions and accurately capture the geometric complexity of both interior and exterior spaces.

The registration of the individual scans was performed using reference targets and a controlled alignment process, subsequently optimised using Cyclone Register 360 (2022.1.0) software. The quality of the registration was assessed through the analysis of residual errors between overlapping scans, allowing the verification of the overall geometric consistency of the point cloud. The resulting dataset therefore provides a reliable geometric basis for subsequent HBIM modelling and for local dimensional verification, in accordance with the objectives of representation and analysis of the study [32].

The set of documentary, material and geometric information obtained at this stage constitutes the empirical basis upon which the HBIM modeling of the current state and the subsequent reconstruction of the historical configurations of the building are articulated, as described in the following section.

2.3. HBIM Modeling, Chronological Integration and Generation of Historical Phases

HBIM modeling is conceived as an evolutionary and information-driven process, in which the model progressively incorporates geometric, historical and chronological data according to the objectives of the research. This approach is consistent with international information management frameworks such as ISO 19650 [30] and the Royal Institute of British Architects (RIBA) Plan of Work [33], which promote a structured and progressive development of information throughout the life cycle of the asset. In heritage contexts, however, this process necessarily requires the explicit definition of how constructive elements are structured within the model and how temporal and historical information is associated with them.

Within this framework, the HBIM environment is not limited to the geometric reconstruction of different historical states, but functions as a parametric information system capable of organising, relating and managing heterogeneous data across multiple construction phases. The model is structured through a hierarchy of parametric objects corresponding to the main constructive elements of the building, such as walls, slabs, structural components and relevant construction systems. These elements are modelled as individualised objects with simplified but metrically coherent geometries, allowing their identification and analysis at an architectural scale.

Each parametric object is associated with a set of non-geometric attributes that constitute the HBIM database, including information related to construction phases, material characteristics, construction techniques, state of conservation and documentary sources. Historical and chronological information is therefore integrated through object attributes rather than through independent graphic states, ensuring traceability of interpretative decisions and enabling diachronic analysis within a single digital environment.

Stratigraphic analysis is integrated into the HBIM model in accordance with the scale and objectives of the research. Rather than modelling individual stratigraphic units at a micro-scale, the stratigraphic reading is synthesised at the level of macro-constructive elements, such as walls, structural systems and significant building assemblies. These elements are associated with specific construction phases defined through the correlation of material evidence, documentary sources and in situ observation. Stratigraphic information is thus incorporated as semantic attributes linked to each object, indicating its chronological attribution and phase interpretation, rather than as explicit geometric subdivisions.

Based on this conceptual and informational structure, the modeling process begins with the initial configuration of the BIM project, including the management of units, geographical location, levels, and phase definition, explicitly incorporating the identified historical phases. Using the processed point cloud as the primary metric reference, the HBIM model of the current state is developed through parametric modeling that integrates architectural and structural elements, materials, construction properties and spatial relationships. This contemporary model constitutes the basis upon which both the subsequent phases inherent to an intervention project and the different historical phases analysed in the present study are articulated.

The reconstruction of past configurations is carried out through the critical integration of documentary evidence, stratigraphic analysis, photographic records, and geometric interpretation of the point cloud. Changes in masonry patterns, traces of disappeared interventions, regularisations and embedded elements are identified, allowing the inference of earlier construction phases. Where documentation is fragmentary or contradictory, reasoned hypotheses are formulated, supported by typological parallels and comparisons with buildings of similar typology or chronology. Reconstruction is therefore not based on isolated hypothetical modeling, but on the systematic correlation between material evidence, documentary sources, and geometric analysis.

All interpretative decisions are explicitly recorded within the HBIM model itself. From an operational perspective, this is implemented through phase-related parameters and custom non-geometric attributes assigned to each parametric object within the HBIM authoring environment, allowing the explicit association of chronological attribution, documentary sources and reliability levels. Interpretative decisions, therefore, differentiate levels of reliability according to the nature of the available evidence and document the adopted hypotheses, in accordance with the principles of transparency and traceability advocated in the recent literature on digital heritage reconstruction [34,35]. The result is a multitemporal HBIM model, structured through phase parameters that allow the activation and deactivation of the different historical configurations of the building. This approach facilitates direct comparison between stages, automated generation of graphic documentation, and the coherent integration of geometric, historical and analytical information within a single repository, aligned with conceptual frameworks of digital twins applied to heritage [36,37].

In this context, and in order to facilitate operational understanding, methodological transparency, and reproducibility, the HBIM model incorporates a structured set of non-geometric object-level parameters with predefined and controlled values. Each constructive element includes a Historical Phase parameter (enumerated type), whose allowed values correspond to the main evolutionary stages identified in the building: Main Mosque, 13th-century Christian Church, and Current State. This parameter enables chronological classification and, in cases of documented constructive reuse, allows a single element to maintain reference to its original construction phase while being functionally associated with subsequent phases through a complementary reuse attribution field.

In parallel, a Confidence Level parameter (enumerated type) explicitly defines the epistemic status of each element, with controlled values: Direct Material/Documentary Evidence, Stratigraphic Inference, and Typological Hypothesis. This parameter is systematically assigned during modelling to ensure transparency in the distinction between evidence-based and interpretative reconstruction.

Additional object-level attributes include: (i) Type of Supporting Evidence (survey data, archival documentation, stratigraphic analysis, comparative study), and (ii) Interpretative Status (existing, reconstructed, or hypothetical). All parameters are implemented as shared project parameters to enable filtering, scheduling, multitemporal visualization, and structured data extraction.

This semantic framework not only structures the multitemporal information embedded in the model but also ensures traceability of historical attributions, controlled management of uncertainty, and replicability of the proposed HBIM workflow in heritage contexts characterised by complex constructive stratification.

2.4. Geometric, Semantic, Chronological and Functional Review of the HBIM Model

The review of the HBIM model is conceived as a phase of methodological control, aimed at verifying the coherence of the resulting model from geometric, informational, chronological and functional perspectives, without introducing additional interpretations beyond those generated during the modeling process [38].

Firstly, geometric verification is carried out by comparing the model with the cleaned point cloud, assessing morphological correspondence, and the absence of significant deviations beyond the tolerance defined in relation to the objectives of the model, the adopted Level of Development (LOD) and the architectural scale of representation.

Secondly, an informational and semantic review is conducted, consisting of checking the correct assignment of materials, construction typologies, historical phases and documentary references to the modelled elements, ensuring source traceability and internal coherence of the associated information [37].

Chronological coherence is then verified by contrasting the reconstructed historical phases with the stratigraphic analysis and the available historical documentation, explicitly documenting the hypotheses adopted in cases where the evidence is incomplete or interpretative in nature [34,35].

Finally, the functionality of the model is analysed, that is, its capacity to generate documentation, manage multitemporal information, interoperate with other environments and operate as a digital repository for heritage research and conservation, in line with digital twin approaches applied to the built heritage [38].

In this context, the HBIM model can be understood as an information-rich digital representation of the physical asset, approaching some principles associated with the concept of a digital twin. However, it does not establish a continuous bidirectional exchange with the physical building, as it focuses on the structured integration of historical, constructive and interpretative information for documentation, analysis and heritage management rather than real-time monitoring.

This review process ensures that the multitemporal HBIM model functions as a structured, traceable and replicable repository for the analysis and management of architectural heritage, without seeking to establish validation metrics beyond the methodological scope of the study.

3. Case Study: La Sang Church and Multitemporal HBIM

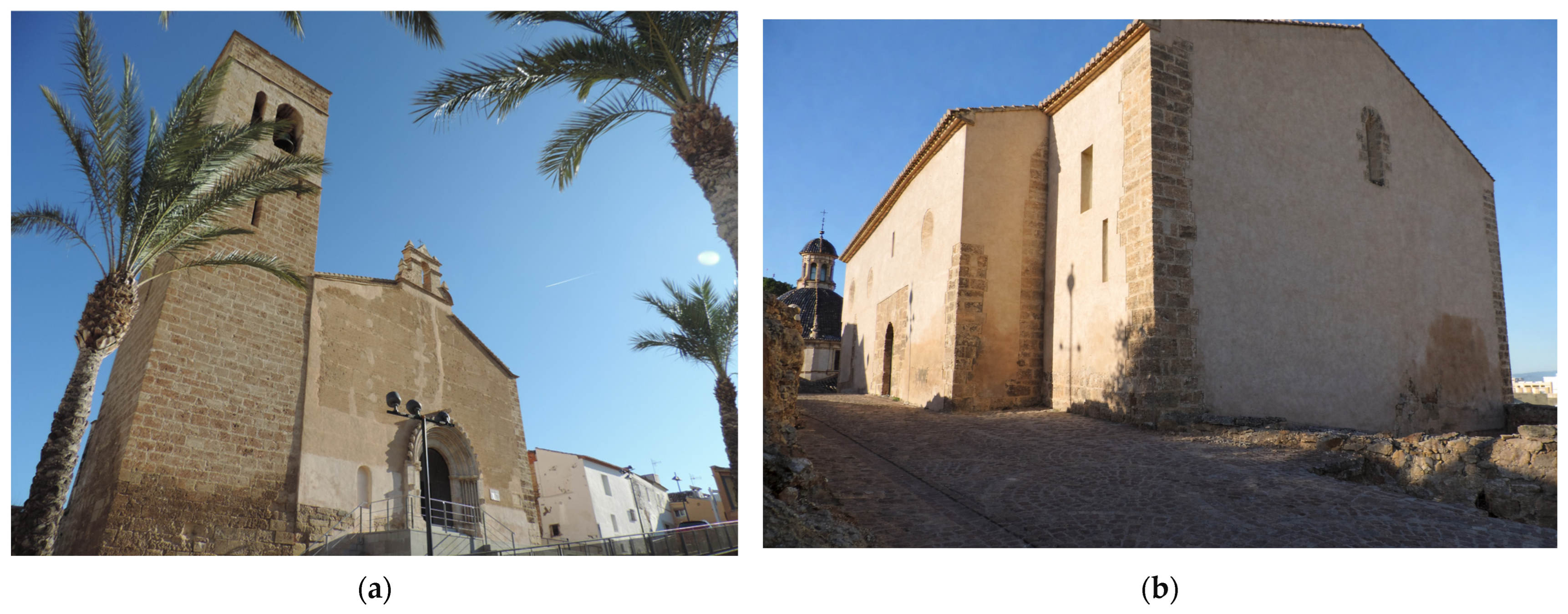

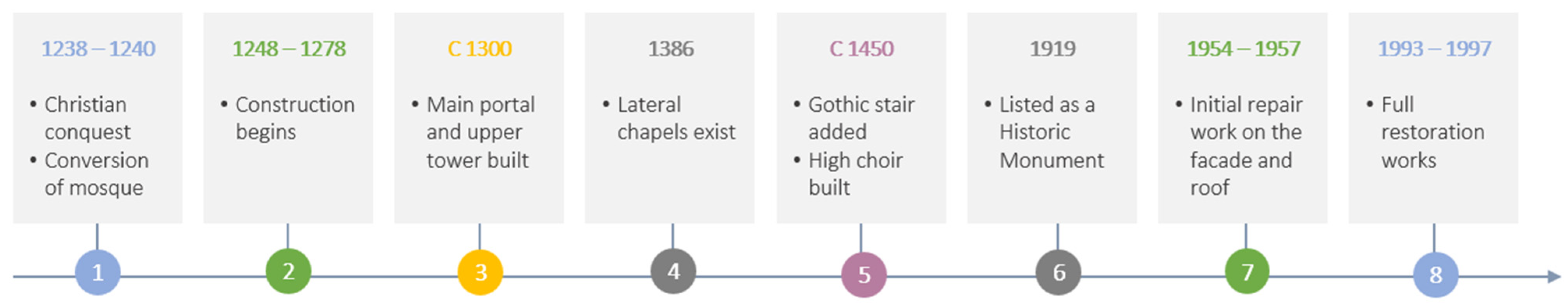

The Church of Santa María, also known as La Sang (Figure 2), is located in Llíria (València, Spain), an area characterised by continuous occupation since the Bronze Age. The church stands on a site that, during the Andalusí period, housed a fortified enclosure and the main mosque of Lyria, which was possibly built over Roman remains that have not yet been confirmed. Following the Christian conquest in the 13th century, the Islamic building was adapted and transformed, giving rise to the present Gothic church. Figure 3 summarises constructive and spatial transformations of the church, highlighting the key historical phases that affected its architectural configuration. The timeline focuses on structural and volumetric interventions relevant to the multitemporal HBIM modelling, and does not include minor liturgical, ornamental or movable alterations that did not modify the overall spatial or constructive organisation of the building.

The result of these transformations was the configuration of a conquest church, an early typology of Mediterranean Gothic that is clearly identifiable in La Sang due to the good preservation of its constructive stratigraphy. The building is currently organised as a single-nave structure with lateral chapels inserted between the buttresses, a differentiated presbytery at the north, and a high choir located at the south above the main entrance. A tower is integrated into the original fabric, and the church presents a clear longitudinal spatial arrangement that has remained largely unaltered since the late medieval period, despite later additions and restoration works. Its significance has been institutionally recognised: it was declared a National Monument in 1919, the first religious building in the Valencian Community to receive this designation and was subsequently listed as a Bien de Interés Cultural, the highest level of heritage protection under Spanish law.

The coexistence of elements of Islamic and Christian origin, together with the clarity of its evolutionary phases, makes La Sang an ideal case for the application of HBIM methodologies, enabling the digital reconstruction of its historical stages and the precise analysis of the spatial and structural evolution of the complex. The historical evolution of the church, documented through archival sources and previous studies, provides the chronological framework for the definition of the different construction phases addressed in the following sections.

Detailed, constructive and material analyses are beyond the scope of the present study and would require specific diagnostic investigations not addressed in this work.

3.1. HBIM Modeling of Historical Phases

After the study of documentary sources and the on-site architectural analysis, the data acquisition phase begins through laser scanning. To this end, a scanning plan is developed defining the number and location of scanner positions, the areas to be covered, the minimization of shadowed zones, and the balance between scanning quality and acquisition time. This plan is graphically represented in Figure 4, which illustrates the distribution of the scanning stations and the overall data capture strategy.

Data acquisition using a Leica^® RTC 360 scanner is carried out within a single working day. An exterior and interior circular scanning sequence is performed in a counterclockwise direction, starting from the main façade. A scanning position is placed at the main gate, enabling proper alignment and connection between the exterior and interior point clouds.

The resulting point clouds are processed using Cyclone^® Register 360 software, where they are registered and optimised, and finally exported in the open-standard E57 format. The dataset is then imported into Archicad^®, allowing the modelling phase to begin.

3.1.1. Initial Configuration of the HBIM Environment

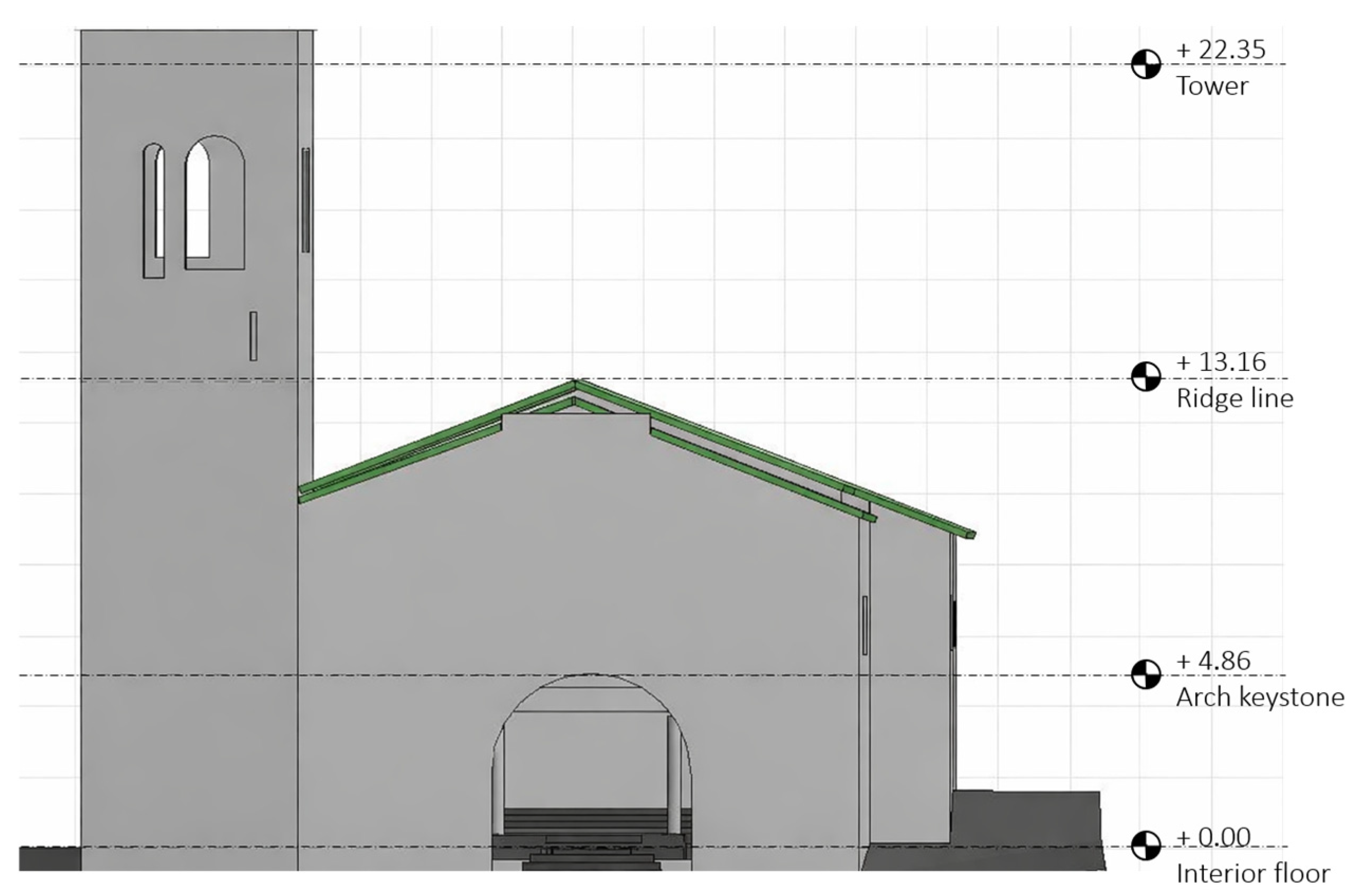

The first step in the modeling process is the introduction of the project information. The next step is the definition of the project levels, Figure 5, based on the previously exported point cloud:

Next, the project phases are defined, which correspond to three relevant historical phases of the church:

• Phase 01: Current state, 21st century.
• Phase 02: Original church, 13th century.
• Phase 03: Main Mosque, 12th century.

The numerical ordering of the phases reflects the sequence of the modelling process rather than their chronological order, as the HBIM workflow starts from the current state of the building and progressively reconstructs earlier historical configurations.

3.1.2. Modeling of the Current Phase: La Sang in the 21st Century

As this is an existing building, the modeling of the current state is based on a high-resolution terrestrial laser scanning survey, which provides the geometric reference for defining the overall volumetry and spatial configuration of the asset. The processing and registration of the point cloud were carried out using Cyclone Register 360 software, resulting in a mean registration error of 0.002 m, as reported by the registration quality report generated after the alignment and optimisation of the different scanning stations.

This value corresponds to the mean registration error of the point cloud and expresses the overall quality of the alignment between the individual scans, rather than a homogeneous metric resolution or a geometric accuracy directly applied to all elements of the HBIM model. Based on this geometric reference, the modeling of the current state was initially developed at a Level of Development (LOD) 200, suitable for defining the general geometry and the main spatial relationships of the building.

Subsequently, the model is progressively refined to higher Levels of Development through the incorporation of additional geometric and constructive information, while the point cloud acts as a reference for the local geometric verification of the correspondence between the modeled geometry and the survey data. The overall level of detail and precision of the HBIM model is therefore defined in coherence with an architectural-scale representation, suitable for documentation, analysis and heritage research purposes.

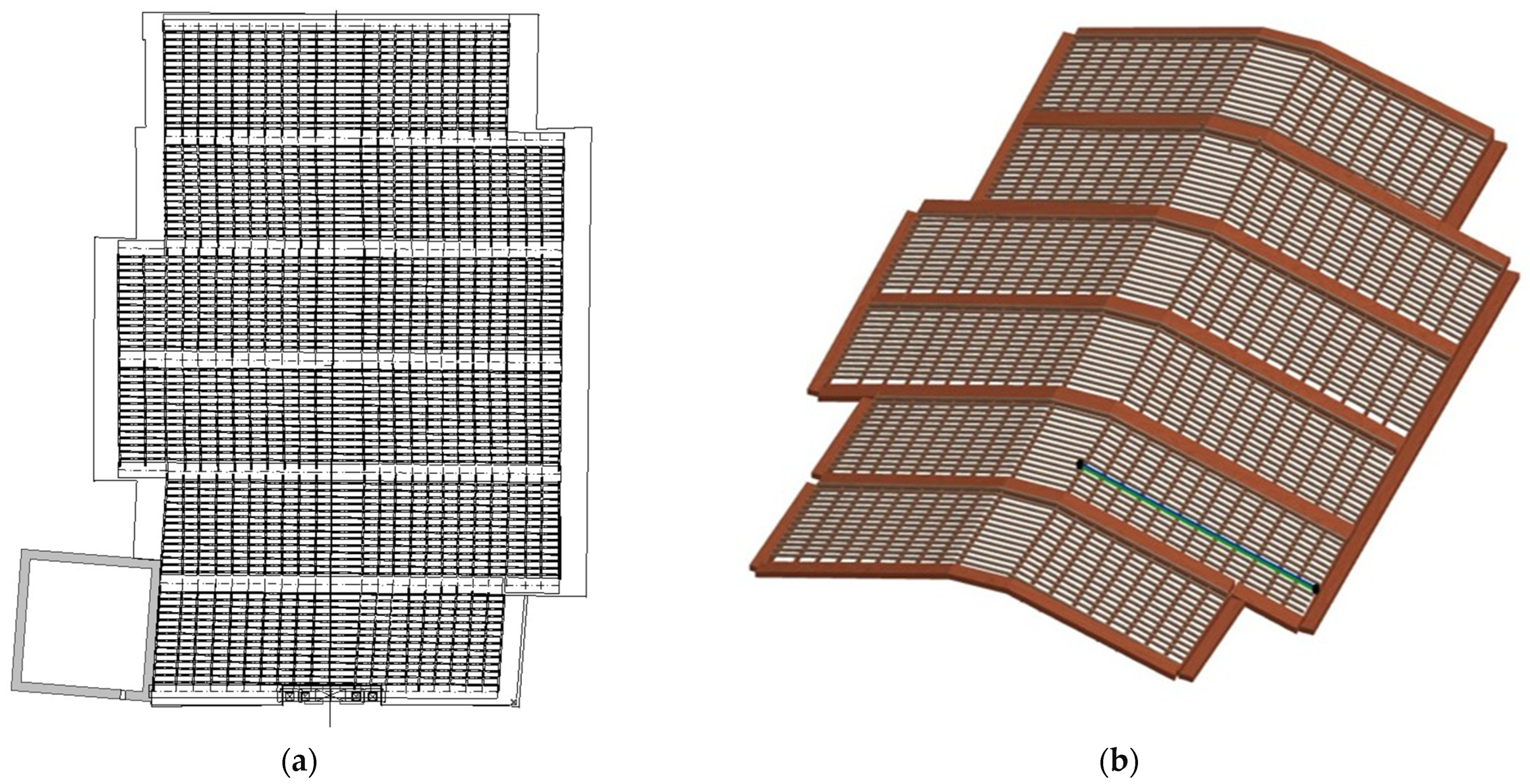

To achieve a LOD 300, the remains, vestiges, and elements from other historical phases are modeled as structural and load-bearing components, including pillar moldings, arch and vault profiles, decorative moldings of the altarpiece, carpentry details, terrain details, and remnants in walls that persist in the present day (Figure 6). All these elements together define the current state and, as they will be visible across the different visualizations of historical phases, they will subsequently allow for a more accurate modeling of earlier phases, for which less information is available than for the current state.

The modeling of Phase 01 is not completed until interferences are detected and resolved using Archicad’s “Solid Element Operations” (SEO) tool, reaching a LOD 350 suitable for obtaining reliable measurements for future restoration works. At this stage, materials have been defined by adjusting their appearance and incorporating physical properties, reinforcing the fact that the model manages detailed information beyond its purely visual representation.

3.1.3. Modeling of the Original Phase: La Sang in the 13th Century

The modeling of the original church in the 13th century, immediately after the complete construction of its plan, is developed based on the knowledge obtained through the collection and synthesis of information and the vestiges modeled in the previous phase. The three-dimensional model of the 13th century (Figure 7) represents the reconstructed configuration of the building at this phase; the following points highlight the main differences with respect to the current state, including later additions that are not represented in this model:

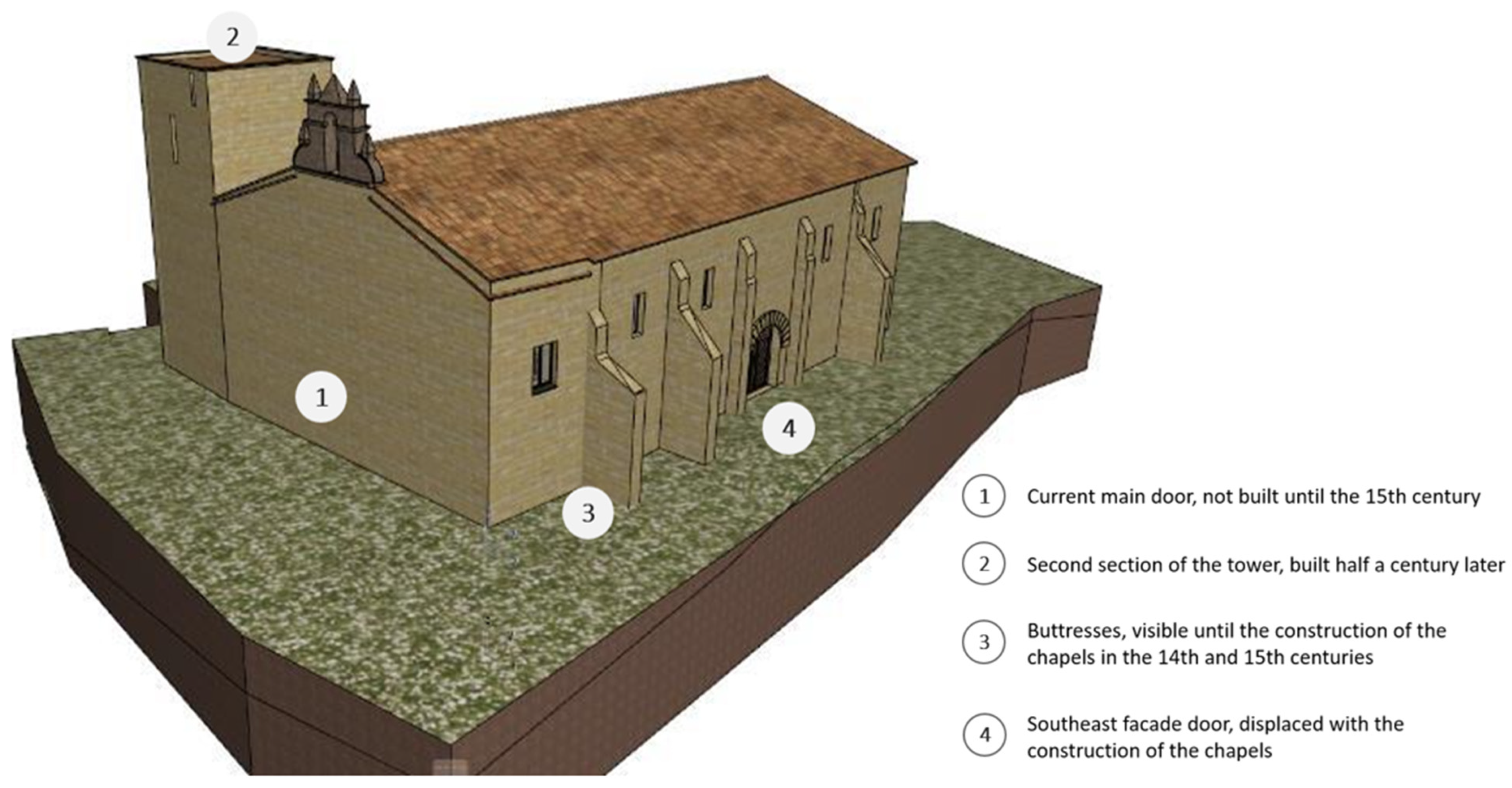

• The second body of the tower was built at least a century after the church.
• The chapels were expanded on both sides of the nave between the 14th and 15th centuries.
• The doorway on the southeast façade, originally the main access, was relocated following the construction of the chapels.
• The current main entrance was built in the 15th century.
• The buttresses visible in the 13th century became integrated into the structure after the expansion of the chapels.

3.1.4. Modeling of the Previous Phase: The Main Mosque Before the 12th Century

From the Main Mosque, after its demolition in the 12th century, several structural elements were reused at the time to initiate the construction of the church plan. Its modeling is undoubtedly the most complex historical phase, due to the scarcity of documentary information about the building. With regard to physical remains, only the mosque’s cistern and the well are currently preserved, allowing an approximation of its ground plan. Two columns that today support the choir of La Sang are also preserved; these provide information about the height of the building and make it possible to formulate hypotheses regarding its original elevation. Likewise, remains of the mosque integrated into the walls of La Sang are preserved, especially on the northwest façade, which likely corresponds to the transitional wall between the sahn, courtyard for purification, and the hypostyle prayer hall.

To complete the model of this early phase, it is necessary to rely on the theories proposed by municipal archaeologists regarding the layout of the plan, on historical research on hypostyle mosques in Spain, and on an informed interpretation of the possible relationships between the construction elements shared by both buildings throughout history. Figure 8 shows the different representative elements of the proposed interpretation of the mosque. It should be noted that the minaret, or mosque tower, was not modeled due to the lack of reliable data to establish its exact location or even to confirm its existence.

In order to reinforce methodological transparency, the decisions adopted in the reconstruction of the Islamic phase are articulated through a clear distinction between measured evidence, documentary sources, and reasoned hypotheses. Preserved elements, such as the cistern, the well, and selected components reused within the later church fabric, constitute the most reliable basis for defining the general layout and scale of the building, while the stratigraphic reading of embedded masonry supports the proposal of functional relationships compatible with a hypostyle mosque scheme.

Where direct evidence is incomplete, spatial and volumetric configurations are derived from typological inferences tested against coeval architectural examples and assessed for overall geometric coherence, with their interpretative nature explicitly acknowledged. Conversely, architectural elements lacking sufficient material or documentary support have not been incorporated into the model, in accordance with a deliberately conservative methodological approach.

Reconstruction reliability is managed through the explicit differentiation of confidence levels, integrated within the HBIM model itself, allowing a clear distinction between components supported by direct evidence and those of a more hypothetical nature. In this way, uncertainty is not suppressed but documented and incorporated as an inherent part of the historical interpretative process. Although the application of probabilistic methods or confidence intervals would be conceptually relevant, their implementation requires independent and quantifiable datasets that are not available for the present case study; consequently, such approaches are identified as a line of future methodological development.

3.1.5. HBIM Model Review

The review of the developed HBIM model is conceived as a process aimed at ensuring the reliability of the multitemporal dataset generated across the four defined levels. This review phase is conceived as a methodological coherence assessment rather than as an external archaeological or statistical validation, which would require independent datasets not available for the present case study. The levels are:

(a)

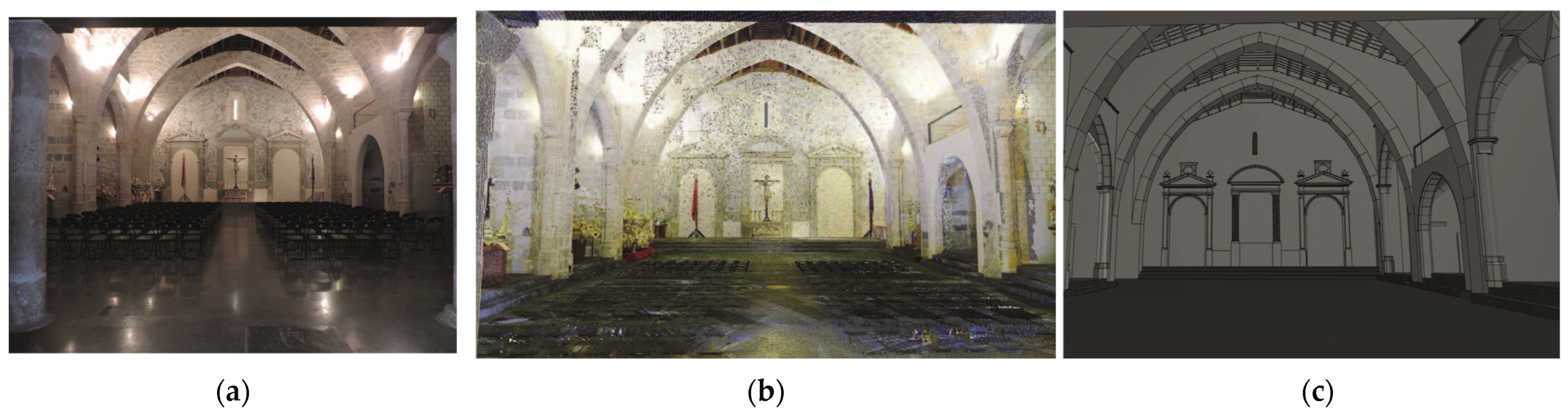

The metric accuracy of the current-state model is verified through direct comparison with the original point cloud, assessing deviations and adjusting elements where necessary. Detected differences are maintained when they correspond to real deformations of the building, thereby preserving the material and spatial authenticity of the monument.

(b)

The review of the architectural and constructive consistency of each phase involves verifying that the proposed geometry corresponds to plausible solutions for each period, such as the modulation of arches and vaults in the Gothic church or the relationship between both layouts at points of structural continuity, among others.

(c)

The review of historical coherence focuses on the 13th-century phase and the Islamic period. As the mosque represents the most hypothetical phase, the review relied especially on stratigraphic analysis, on the compatibility of its ground plan with the elements reused in the medieval church, and on architectural parallels with hypostyle mosques.

(d)

Overall, the review process confirmed that the HBIM model provides a geometrically consistent representation of the current state, based on its correspondence with the registered point cloud, and supports historically grounded reconstructions derived from documented sources and interpretative assessment. The model further enables the extraction of structured information in multiple formats for research and heritage documentation purposes.

3.1.6. Generation of the Documentary File

Once the modeling is completed, the result is a document that contains the information about the asset. Within this document, the information can be consulted in different ways:

a.

2D views. Traditional drawings, dimensionable and measurable. The elements shown in the drawings are logically linked to the elements of the model; therefore, any modification of elements in the model will directly affect the views. The fact that the starting point of the modeling process was a point cloud makes it possible to obtain 2D views that are fully consistent with the real geometric dimensions of the asset, Figure 9a.

b.

3D views. Within the 3D views, it is possible to navigate in order to access visualizations that would not be possible otherwise. The correct definition of the historical phases and the elements belonging to each of them makes it possible to switch between the different defined states of the asset, as shown in the comparison in Figure 9b.

c.

Data tables. These allow the direct and detailed visualization and management of the model information, facilitating the quantification of elements and the calculation of unit totals. Each element has its own ID (identifier), which enables its identification in the tables and ensures traceability throughout the project, as long as the element is not deleted.

d.

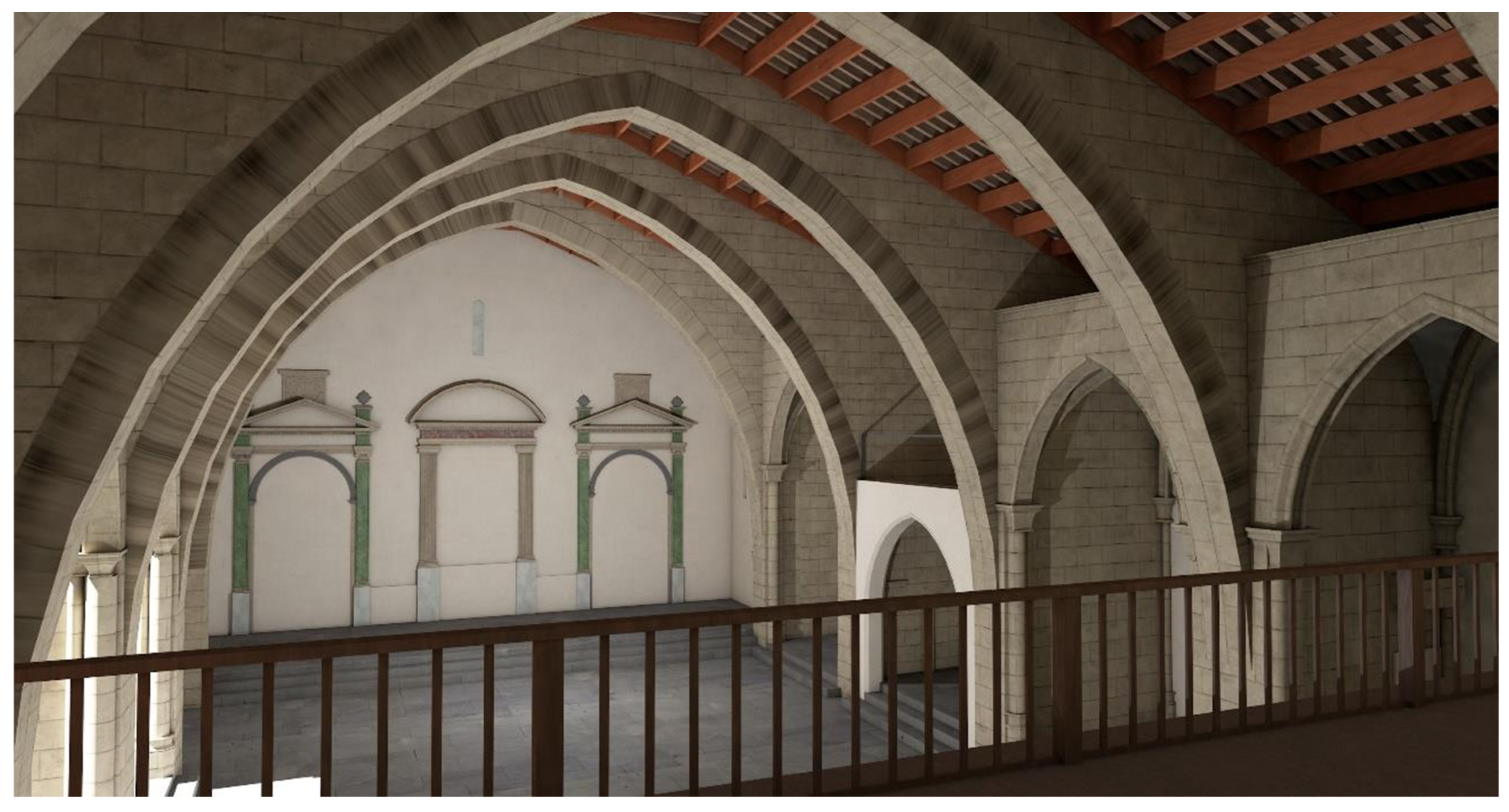

Realistic infographics. Although they are not strictly a type of BIM view within the documentary file, infographics provide non-vector images from a specific project perspective. This facilitates the visualization of the elements in a realistic and easily interpretable manner for any type of audience, professional or non-professional, as shown in Figure 10.

Finally, it should be added that the resulting documentary file constitutes a “living” document, capable of incorporating new information throughout the entire life cycle of the building, both from future phases with physical and geometric characteristics different from the current ones, and from past phases, should new archaeological surveys be carried out that provide additional information about the asset.

4. Results

4.1. Dating of Historical Phases

The results obtained from the HBIM model generally confirm consistency with the existing historical documentation on the church of La Sang, including a rectangular plan, an open interior space, thick walls and the presence of buttresses, although the detailed geometric analysis reveals significant deviations that had not been previously described. In particular, the comparison between the model and archival drawings highlights the lack of orthogonality in the plan, with the main deviations concentrated in the first and second nave bays (Figure 11). Likewise, a rotation of 4.59° is identified between the main façade and the frontal plane of the tower, revealing a relevant geometric discrepancy in the configuration of the building.

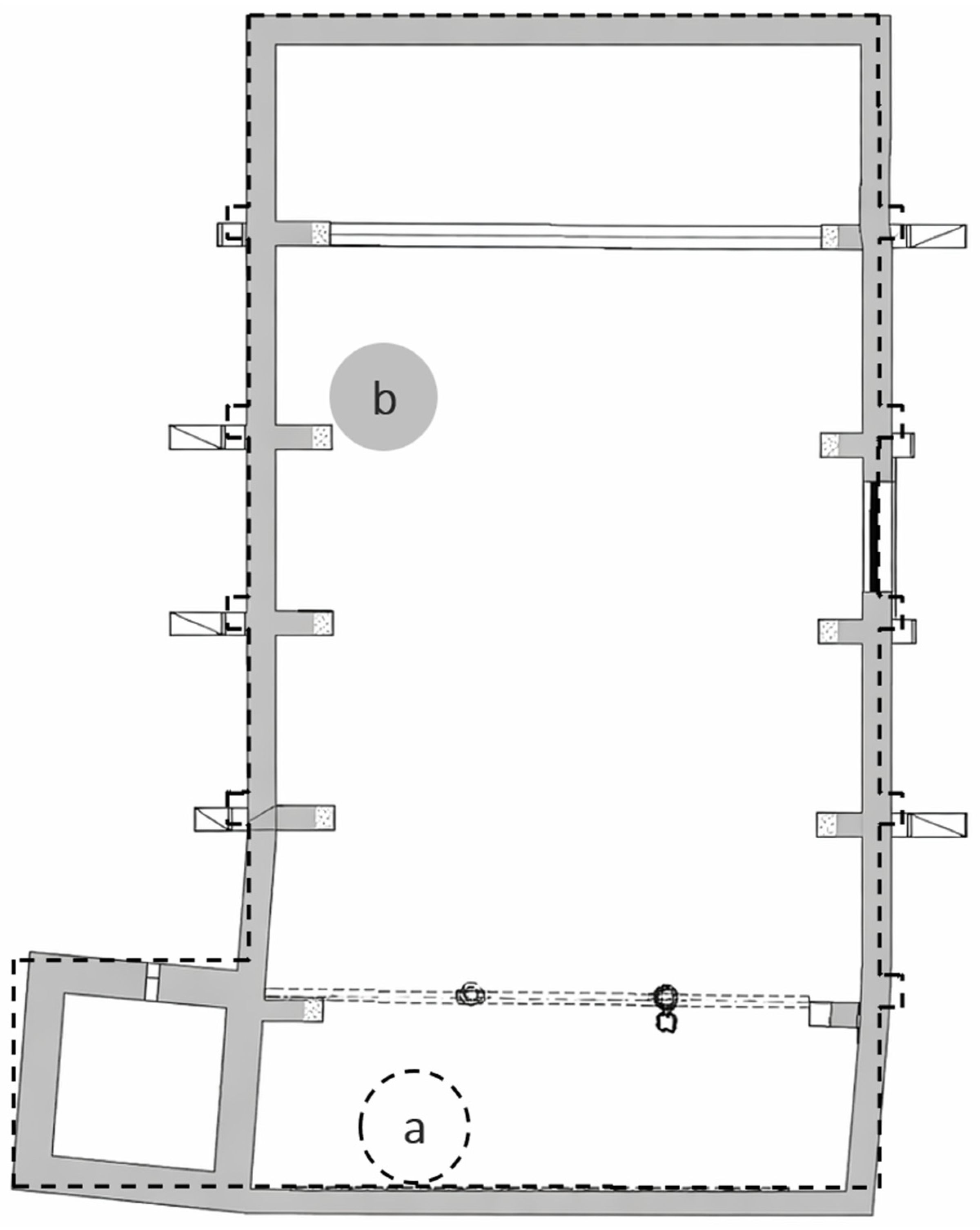

The analysis of the buttresses suggests their placement between bays, structurally associated with the diaphragm arches. However, the lack of precise information regarding their original dimensions has led to the formulation of different volumetric hypotheses, modeling alternatives that consider both freestanding buttresses and larger volumes, very likely absorbed in later phases through the addition of lateral chapels.

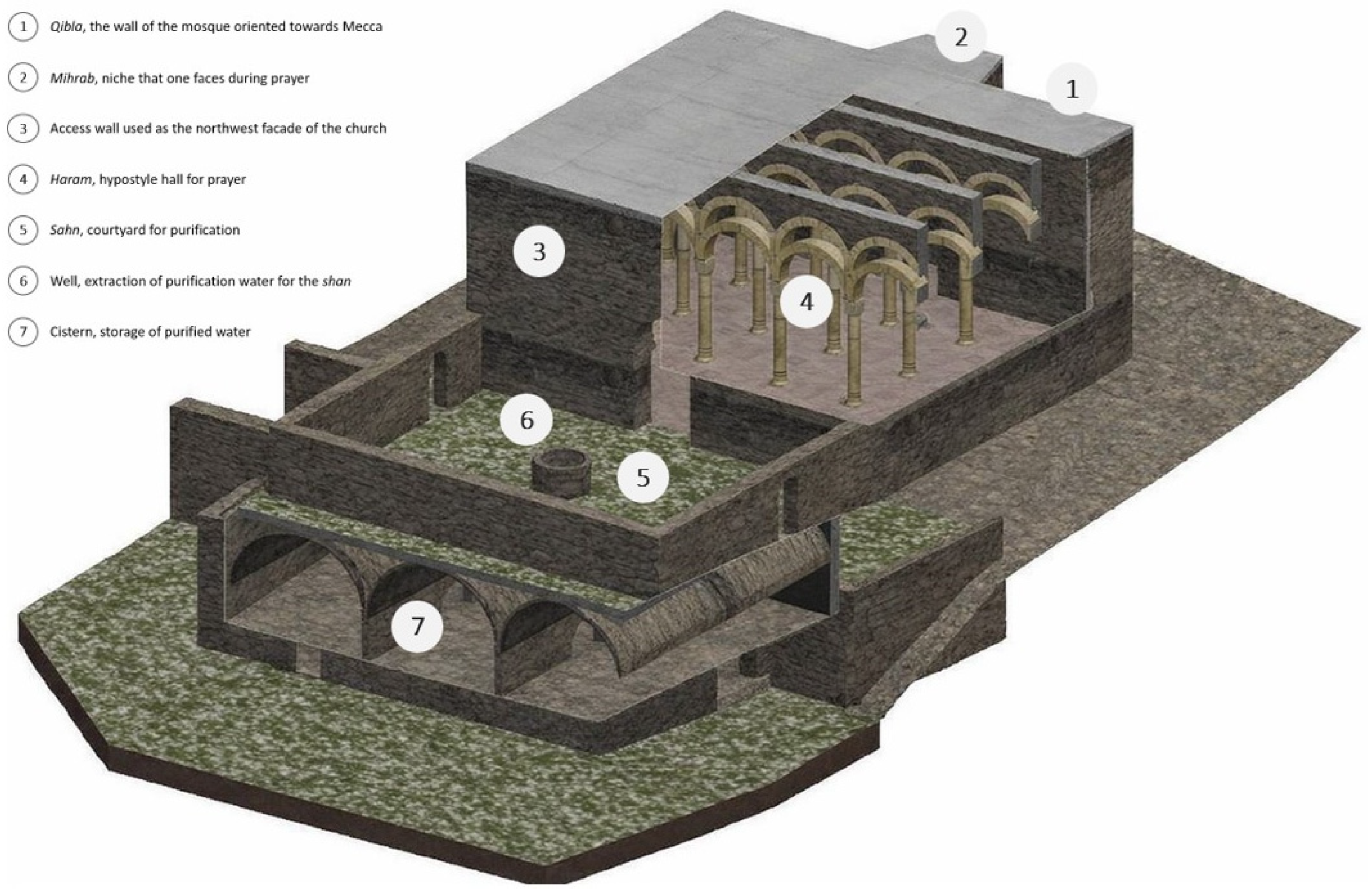

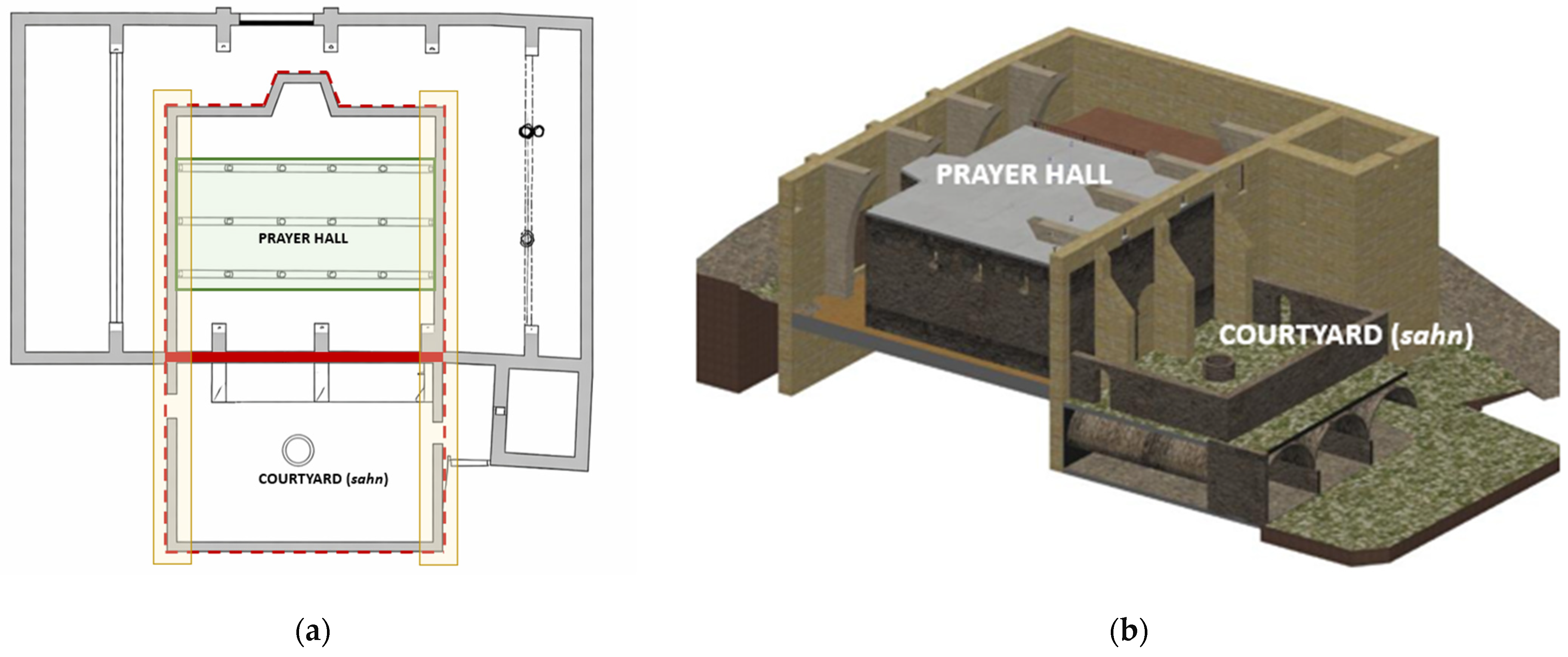

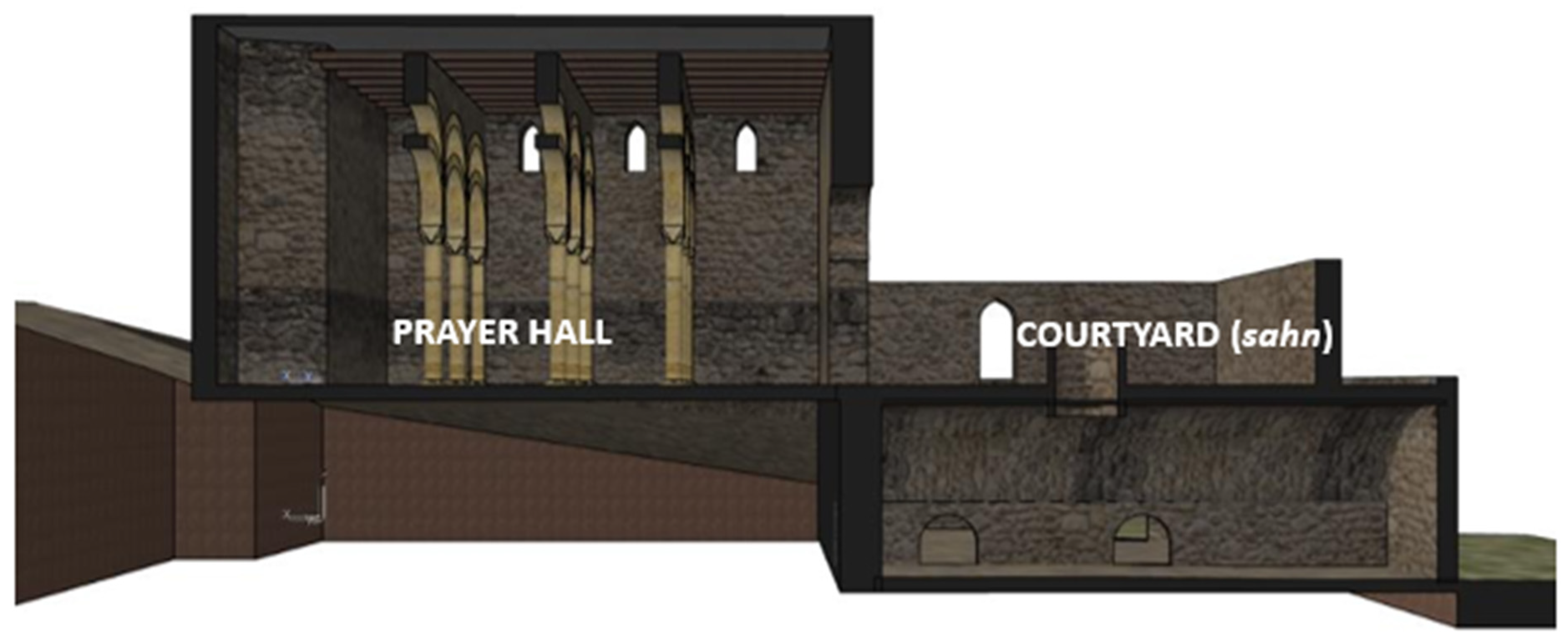

The hypothetical modeling of the Main Mosque of Llíria, based on the preserved vestiges and on typological studies of hypostyle mosques in the Iberian Peninsula, has made it possible to approximate the dimensions of the courtyard (ṣaḥn), the hypostyle prayer hall and the probable height of the complex based on the two surviving columns. The identification of Islamic remains integrated into the current walls, especially on the northwest façade, reinforces the hypothesis that this wall corresponded to the boundary between the ablution courtyard and the prayer hall (Figure 12).

Although both the plan and the volumetry of the mosque constitute a hypothetical reconstruction, its three-dimensional representation, nonexistent until now, provides a solid interpretative framework for understanding the historical evolution of the complex and the process of constructive reuse following the Christian conquest. Once the different historical phases have been defined and dated, the HBIM model allows their simultaneous activation, facilitating comparative visualization and the analysis of spatial relationships between phases. The superposition of the Islamic phase and the original construction of La Sang after the demolition of the mosque demonstrates, for example, the direct reuse of the mosque façade as the northwest façade of the Christian church. In Figure 13, the perimeter of the former mosque is identified by a dashed red outline, while the wall shared by both the Islamic phase and the original construction of La Sang is highlighted with a solid red shading, making explicit the continuity and reuse of this structural element. When constructive reuse is documented, the same wall is modelled as a single HBIM object associated with multiple historical phases through semantic parameters, rather than being duplicated geometrically. Within this interpretative framework, additional hypothetical elements are explicitly identified. The column layout of the prayer hall, represented in green, is proposed on the basis of the standard typological configuration of hypostyle mosques and the presence of two columns preserved in situ. Likewise, the lateral walls of the former mosque prayer hall, shown in yellow, are interpreted as a hypothesis derived from the continuity of the courtyard (ṣaḥn) walls and from stratigraphic analysis of the existing building fabric. These elements are therefore presented as reasoned hypotheses, clearly differentiated from documented remains within the multitemporal HBIM model.

4.2. Application of the Documentary Archive

The generated documentary archive constitutes the main result of the HBIM methodological process and the fundamental added value of the study, being configured as a comprehensive deliverable for the management of the heritage asset by the local administration. This digital repository coherently integrates geometric, historical, material and chronological information and enables multiple fields of application.

From an educational and cultural perspective, the archive facilitates interactive visualization of the church across different historical phases and their comparison, offering a high degree of accessibility for both specialists and the public. The hypothetical 3D representations of the Main Mosque of Llíria, for example, can be used in museographic or exhibition contexts, contributing to the dissemination of the city’s Islamic past and to the enhancement of the monument.

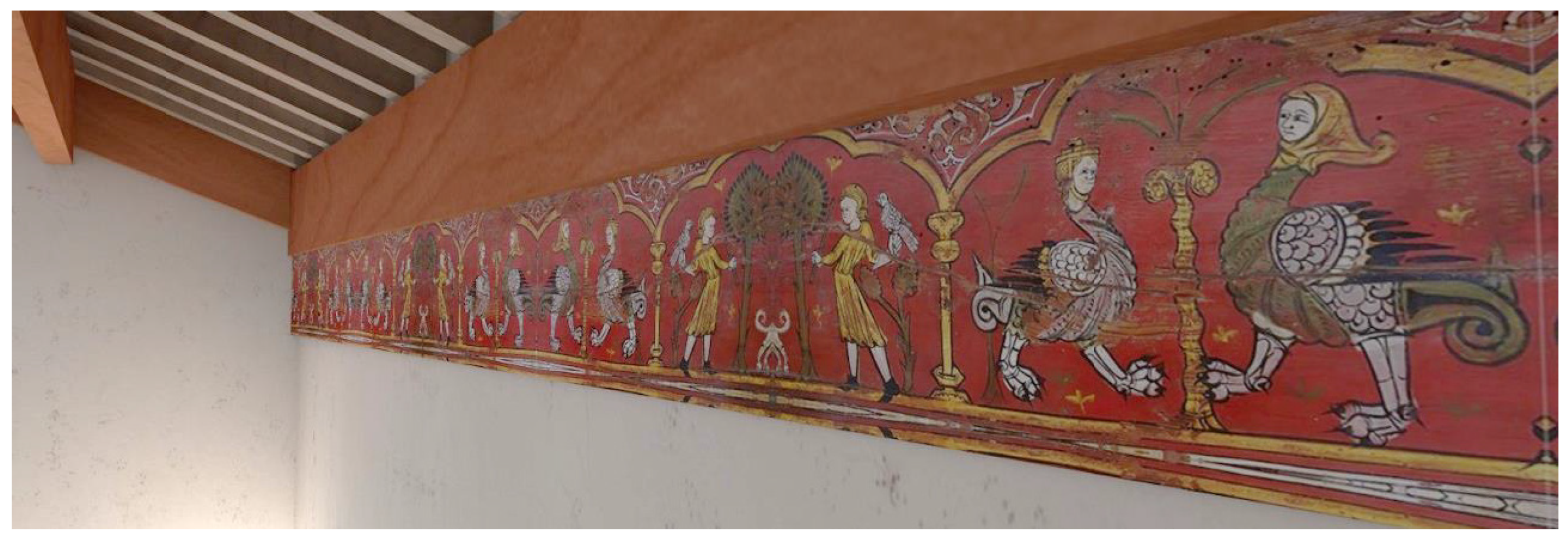

The model also enables virtual access to elements that are difficult to observe directly, such as interior ornaments or the polychrome roof structure, through selective layer management and isolated visualization of specific components. This functionality is particularly relevant for both cultural dissemination and the planning of conservation and restoration interventions (Figure 14).

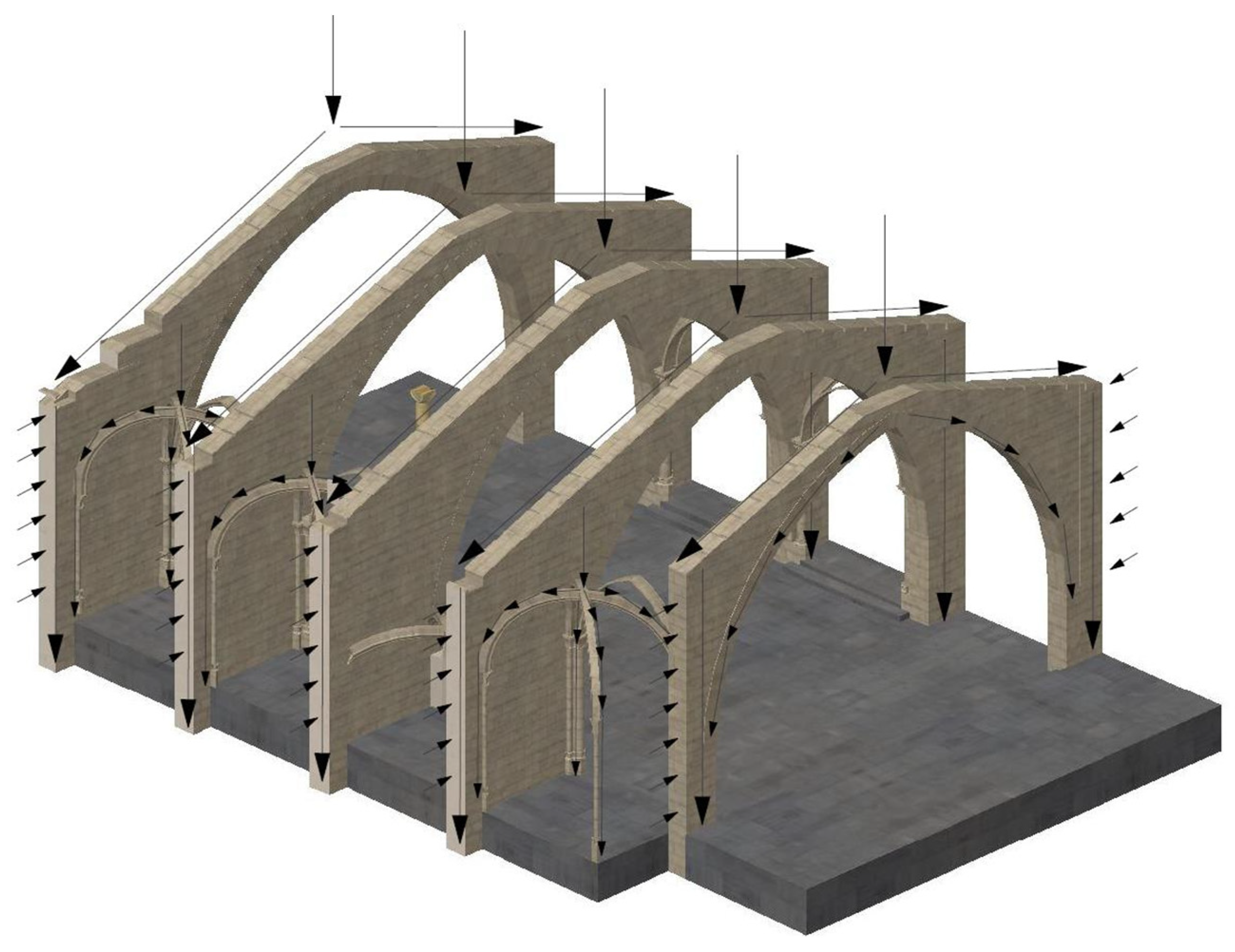

In the technical field, the archive allows the isolation of specific construction systems, such as the load-bearing structure, for the generation of basic schemes of structural behavior as well as the identification, cataloguing and traceability of singular elements through a unique ID (Identifier) (Figure 15). This traceability is key in dismantling, restoration and replacement operations, ensuring consistency between 2D and 3D documentation.

Furthermore, the model enables accurate two-dimensional and three-dimensional measurements to be taken directly within the digital environment or on the point cloud, opening the door to long-term comparative analyses, such as monitoring structural deformations, displacements, deflections or the evolution of cracks.

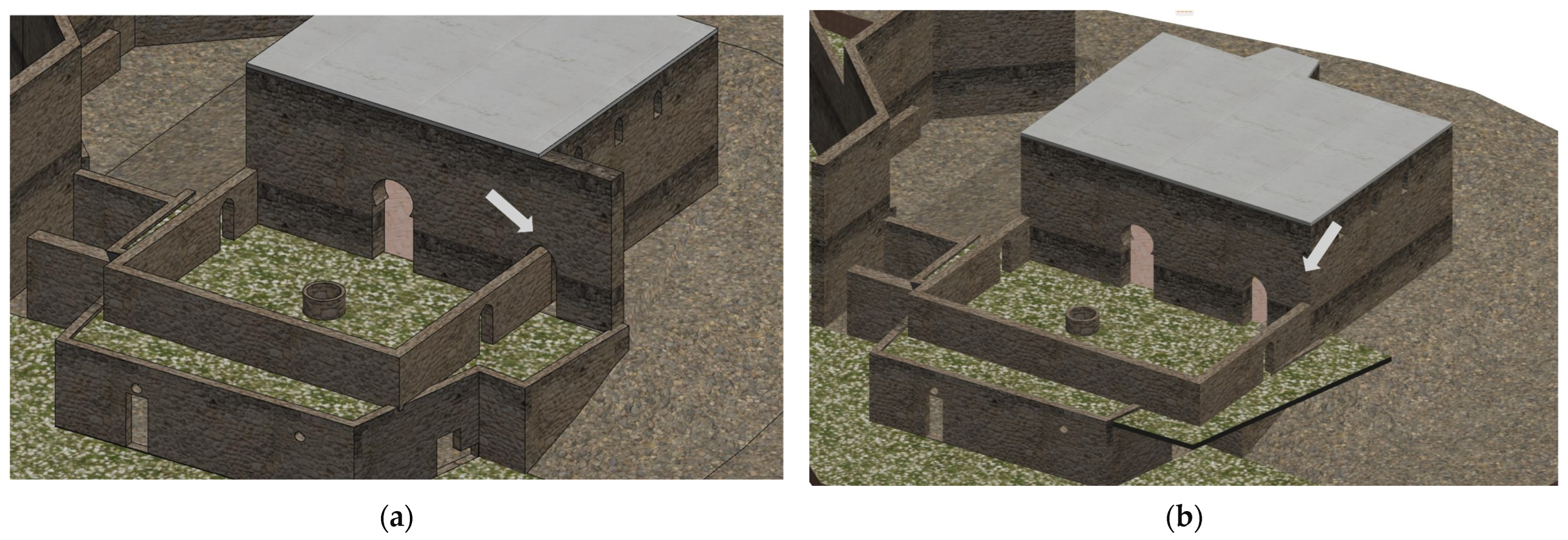

Finally, the scanning and modeling process has revealed inconsistencies with previous historical interpretations, especially regarding the position of the passage arcade between the courtyard and the hypostyle prayer hall of the mosque. The comparison between the point cloud and traditional representations suggests new hypotheses about the extent of the mosque (Figure 16) or the possible existence of a minaret associated with that arcade. As these hypotheses require further archaeological research and specialized studies, the generated documentary archive is established as the fundamental basis for future historical revisions and for a critical reassessment of the pre-existing buildings on the site of La Sang.

The visualisation of the different historical configurations presented in this section is supported by the multitemporal structure of the HBIM model, which allows the selective display of elements associated with specific construction phases. Documentary and archival sources are linked to the model through object-based associations, enabling contextual access to the related information in direct relation to both geometry and the corresponding historical phase. This approach facilitates the interpretation of the building’s diachronic evolution and the coherent consultation of geometric and documentary data within a single digital environment.

5. Discussion

The results obtained through the application of a multitemporal HBIM workflow to the Church of La Sang confirm the potential of this approach as a solid methodological framework for the historical–evolutionary interpretation of heritage buildings characterised by complex construction sequences. Beyond the specific findings related to the Islamic and Gothic phases of the monument, this study contributes to the current debate on the need for HBIM to evolve from a tool primarily oriented towards documenting the present state into a system capable of structuring, managing and interpreting the temporal dimension of the built heritage.

Recent literature has repeatedly pointed out that, although HBIM enables the integration of geometric, material and documentary information within a single digital environment, its practical application remains largely focused on the representation of the building’s current condition, with a limited incorporation of history as an operative variable of the model [35,37,39]. In contrast, the main methodological contribution of this study lies in the consideration of historical phases as structural components of the information model. These phases are not conceived as independent graphic states, but as informational entities explicitly linked to material evidence, documentary sources and reasoned interpretative decisions, allowing a coherent, verifiable and traceable management of the architectural evolution of the building.

Within this framework, geometry derived from terrestrial laser scanning plays a fundamental role not only as a metric reference but also as an active tool for historical analysis. The systematic comparison between the point cloud and the HBIM model made it possible to identify significant geometric irregularities, such as deviations from orthogonality, rotations between construction axes, or volumetric mismatches between phases, that had not been precisely described in previous studies. These geometric evidences proved decisive for reinterpreting the construction sequence of the building and for supporting hypotheses related to the reuse and adaptation of Islamic structures during the configuration of the Gothic church, reinforcing the stratigraphic reading of the ensemble [26].

The explicit integration of criteria derived from building archaeology within the HBIM environment emerges, in this sense, as one of the core elements of the proposed approach. As highlighted by several authors, the incorporation of stratigraphic tools into digital models makes it possible to overcome the traditional separation between historical analysis and graphic representation, fostering a critical reading of the building based on the correlation between materiality, chronology and transformation [26,40]. This approach positions the present study in an intermediate methodological space between HBIM and building archaeology, enabling the model to function simultaneously as an instrument for historical analysis and as a structured repository of heritage information.

The modeling of the earliest phases of the complex also highlights one of the main methodological challenges of HBIM applied to historical reconstruction: the management of uncertainty. Recent literature has warned about the risk that parametric models may convey a false sense of historical accuracy when the available evidence is partial or indirect [35]. In this study, HBIM is not conceived as a tool to resolve historical uncertainty, but rather as a system to make it explicit, document it and manage it in a structured manner. The differentiation between measured, inferred and comparative data, together with the assignment of reliability levels and the documentation of adopted hypotheses, reinforces the scientific, critical and revisable nature of the model, in line with the principles of transparency and paradata advocated in the field of digital heritage [41]. For this reason, while uncertainty is primarily managed and documented at the semantic level of the HBIM model, a simplified graphic code is also provided in key reconstruction figures to support immediate visual comprehension of evidence-based versus interpretative components.

From a methodological perspective, the use of historical phases as operative parameters within the HBIM model offers clear advantages over conventional representations based on layers or non-parametric models. The possibility of activating, comparing and superimposing different chronological states within a single digital repository facilitates a diachronic reading of the building and allows the direct analysis of spatial, constructive and functional relationships between phases. This approach is consistent with recent research exploring HBIM–GIS integration and the development of advanced temporal models for the analysis of the built heritage [42,43].

The results further demonstrate that the proposed workflow goes beyond the scope of historical interpretation and provides solid support for the future management of the heritage asset. The generated documentary archive is configured as an evolutionary or “living” model, capable of incorporating new information derived from archaeological research, conservation interventions or monitoring processes over time. This capability aligns with current trends that envisage the evolution of HBIM towards integrated heritage management systems and digital twins, oriented towards preventive conservation and informed decision-making [39,41].

In this sense, the future life of the HBIM model should be understood in terms of institutional stewardship rather than mere authorship. Although developed within an academic research context, the model is conceived to be transferable to heritage authorities or public institutions responsible for the conservation and management of the asset. Its long-term maintenance and updating would require specialised technical expertise for model editing and data integration, while non-specialised users could interact with the model through extracted views, drawings or visual outputs for analytical, educational or dissemination purposes. This distinction between expert management and mediated access reinforces the applicability of the proposed workflow beyond research, without compromising its scientific rigor.

Despite these contributions, certain limitations inherent to the study must be acknowledged. The reconstruction of the Islamic phase relies on comparative typological analyses and reasoned hypotheses, constrained by the absence of extensive archaeological excavations. Although the HBIM model provides a coherent and rigorously documented interpretative framework, future research may refine or reformulate some of the proposed hypotheses. This circumstance reinforces the need to understand HBIM not as a closed representation of the past, but as an open interpretative platform capable of evolving as new evidence is incorporated [37,40].

Overall, the discussion confirms that the main contribution of this work lies in the formulation of a replicable and transparent methodological framework for multitemporal HBIM modeling applied to complex heritage buildings. By explicitly integrating stratigraphic reasoning, documentary analysis, reality-based geometry and uncertainty management, the proposed approach contributes to narrowing the gap between digital modeling practices and rigorous historical research. In doing so, HBIM is consolidated not merely as a tool for documenting or managing the built heritage, but as a methodological framework capable of articulating historical analysis, stratigraphic reasoning and temporal simulation, fostering a critical, dynamic and scientifically grounded understanding of historical architecture.

Beyond the specific case study, the proposed workflow highlights the potential of multitemporal HBIM modelling as an interpretative framework for complex heritage buildings characterised by stratification and successive transformations. Rather than treating historical phases as static attributes, the approach structures them as an integral dimension of the model, enabling the coherent correlation of geometry, documentary sources and interpretative assessments. This perspective extends conventional HBIM practices by emphasising diachronic analysis and supporting the management of historical complexity within a single, structured digital environment.

At the same time, the proposed workflow presents a number of methodological constraints that must be acknowledged. Its effectiveness is strongly dependent on the availability and quality of documentary, stratigraphic and geometric data, and its application becomes more speculative in data-scarce or highly hypothetical contexts, such as early or poorly preserved construction phases. While the approach shows clear potential for supporting heritage monitoring, comparative analysis and virtual restoration scenarios, its scalability to large and highly complex heritage ensembles requires careful management of information density, modelling effort and interoperability. These limitations highlight current technical bottlenecks, particularly regarding uncertainty management and the integration of independent archaeological and diagnostic data, which constitute key directions for future methodological development.

6. Conclusions

This study has demonstrated the capacity of HBIM to function as an effective methodological framework for reconstructing and managing the historical evolution of heritage buildings characterised by complex construction sequences. Through the case study of the Church of La Sang in Llíria, it has been shown that the integration of reality-based geometry, documentary analysis and stratigraphic reading enables the temporal dimension of the built heritage to be structured coherently within a single digital environment.

The main contribution of the research lies in the proposal of a multitemporal HBIM workflow in which historical phases are incorporated as structural components of the information model and associated, within the HBIM environment, with material evidence, documentary sources and interpretative hypotheses. This approach enhances traceability, transparency and critical review of historical reconstructions, addressing one of the principal limitations identified in the recent literature on HBIM applied to heritage.

The results confirm that geometry derived from terrestrial laser scanning not only ensures the metric accuracy of the model but also supports historical analysis by revealing geometric irregularities relevant to the interpretation of construction sequences and architectural reuse processes. Likewise, the integration of building archaeology criteria within the HBIM environment reinforces the analytical nature of the model and its ability to address phases with different degrees of certainty.

The generated documentary archive is configured as an evolutionary or “living” model, with the potential to incorporate new information derived from archaeological investigations, conservation interventions or monitoring processes over time. In this sense, the proposed approach goes beyond the visualisation of the past and provides an operative support for the future management of the heritage asset and for informed decision-making in conservation and restoration contexts.

Regarding future research directions, the study opens several promising avenues. First, the proposed methodology could be expanded through the incorporation of data derived from systematic archaeological excavations, archaeometric analyses or absolute dating techniques, allowing the refinement of chronological hypotheses and increasing the reliability of the earliest phases of the model. Second, the integration of multitemporal HBIM with GIS or HGIS environments would facilitate the analysis of the building in relation to its urban and territorial context, enabling the study of transformation processes at a broader spatial scale.

Further research could also explore the integration of structural and environmental monitoring systems within the HBIM model, advancing towards heritage digital twin configurations oriented to preventive conservation and long-term performance assessment. Another relevant line of work would involve the development of standardised protocols for the explicit representation of uncertainty, chronological ranges and reliability levels in historical HBIM models, contributing to the consolidation of shared methodological standards in the field of digital heritage.

This research demonstrates how a multitemporal HBIM approach can support the documentation, interpretation and management of complex historic buildings through the structured integration of geometric, historical and interpretative information. Applied to the Church of La Sang, the workflow enables the reconstruction and comparison of different historical phases while maintaining geometric consistency and transparency of sources. Although the proposed methodology does not aim to provide exhaustive constructive or material analyses, it offers a replicable framework for addressing the diachronic dimension of heritage assets and contributes to ongoing discussions on the role of HBIM in heritage knowledge management.
