Effect of Wood Fiber Surface Treatment on the Properties of Recycled HDPE/Maple Fiber Composites

Abstract

This work reports on the production and characterization of recycled high density polyethylene (R-HDPE) composites reinforced with maple fibers. The composites were produced by a simple dry-blending technique followed by compression molding. Furthermore, a fiber surface treatment was performed using a coupling agent (maleated polyethylene, MAPE) in solution. FTIR, TGA/DTG, and density analyses were performed to confirm any changes in the functional groups on the fiber surface, which was confirmed by SEM-EDS. As expected, the composites based on treated fiber (TC) showed improved properties compared to composites based on untreated fiber (UC). In particular, MAPE was shown to substantially improve the polymer–fiber interface quality, thus leading to better mechanical properties in terms of tensile modulus (23%), flexural modulus (54%), tensile strength (26%), and flexural strength (46%) as compared to the neat matrix. The impact resistance also increased by up to 87% for TC as compared to UC. In addition, the maximum fiber content to produce good parts increased from 15 to 75 wt% when treated fiber was used. These composites can be seen as sustainable materials and possible alternatives for the development of low-cost building/construction/furniture applications.

1. Introduction

Plastic waste is one of the major solid residues today. More than 300 million tons of plastics are produced annually, of which 50% are single-use plastics (SUP) [1]. In 2010, about 275 million tons of plastic waste were generated, which increased to 5 billion tons in 2015 [2]. Today, it is estimated that this value will increase by 9–13% by the year 2025 [3]. Unfortunately, most of these plastic wastes are still landfilled, lost in the environment (like ocean plastics), or burned [4]. As our consumption is still rising, there is a greater need to recycle these materials and/or find ways to reduce their use. Therefore, plastic recycling has received considerable attention in recent years [3,5,6,7].

Plastic recycling has the potential of partially replacing the use of virgin plastics as a source of raw materials in the production of several products. For this reason, it is one of the most common methods for plastic waste management and a good option to better control these wastes [8]. However, the use of 100% recycled materials is still difficult due to various technical difficulties; in general, there is no exact knowledge of the composition and properties of the materials because they do not come from the same source, which implies that they have differences in molecular weights, transition temperatures, particle sizes, melt index, and even the type of additives or impurities they contain [3,5]. Even so, the formulation of composite materials is an interesting option, and the scientific community is focused on the use of virgin [9,10,11,12,13] and recycled [14,15,16,17,18,19,20] polymers as matrices for the production of natural fiber/plastic composites (NFPC) in order to reduce the polymer content and find added-value applications for these wastes (plastics and natural fibers) that can lead to more sustainable solutions. This combination offers several advantages such as better management of natural resources and a suitable way to eliminate plastic waste. Furthermore, the possibility of using recycled materials in the development of composites is very attractive, especially concerning the large amount of natural fiber/plastic waste that is generated daily [21].

The use of natural fibers (agave, kenaf, henequen, jute, coconut, pine, maple, etc.) in the production of NFPC is considered one of the main sustainable alternatives to composite materials based on synthetic fibers (glass, aramid, carbon, etc.). This is due to natural fibers offering important advantages such as availability, low cost, easier processing, less damage to the processing equipment, lower CO₂ emissions, reduction of the energy used during production (up to 80%), better recyclability, and environmental safety [18,22,23]. Currently, around 30 million tons of natural fibers are used in the production of NFPC for automotive parts, packaging, sports equipment, and most importantly, for building and construction as well as structural applications [10,24,25].

But natural fibers reinforcing polymer matrices also have disadvantages such as high moisture absorption and a weak adhesion between the fibers and the matrix combined with difficult dispersion. Due to their chemical nature, natural fibers are polar and hydrophilic (active water absorption sites), while most polymers are non-polar and hydrophobic. This causes incompatibility between both components that leads to low mechanical properties. Nevertheless, mechanical/physical properties can be improved by using a suitable compatibilizer/coupling agent and/or by performing fiber surface treatment (chemical, mechanical, physical, or thermal) [23]. This modification can improve both the fiber adhesion and dispersion, leading to better NFPC performances [22,26].

In a recent publication, it was shown that the use of maleated polyethylene (MAPE) in solution improves fiber–matrix interactions, mainly in terms of the adhesion and dispersion of maple fiber in linear low-density polyethylene (LLDPE) composites [23]. For example, Cisneros-López et al. [26] showed that by adding MAPE in solution, the mechanical properties of agave fiber/LLDPE—tensile modulus (70%), flexural modulus (164%), tensile strength (29%), and flexural strength (121%)—were improved as compared to the neat matrix.

The possible amount of fiber in the NFPC was increased up to 80%, leading to higher tensile modulus (101%), flexural modulus (129%), and tensile strength (50%) compared to samples without MAPE. Raharjo et al. [27] also reported improved interfacial adhesion, resistance to shear, and thermal stability by using chemical treatments (alkali, silane) on agave cantala fibers with recycled high-density polyethylene (R-HDPE). Lei et al. [19] obtained similar results in NFPC produced by extrusion, followed by compression molding using sugar cane bagasse and pine fibers with R-HDPE and subsequently adding MAPE as a compatibilizer, which improved the interaction between both components that led to better tensile modulus, tensile strength, and impact resistance as compared to the NFPC without MAPE. In another study, Sataphaty developed NFPC from industrial and post-consumer waste: R-HDPE and jute fiber with MAPE [28]. It was observed that the tensile strength and modulus, the flexural strength and modulus, as well as the hardness significantly increased with 20 wt% of fiber. In addition, the author suggested that these materials have a high potential for roofing and furniture applications.

Due to the limited amount of information on the use of recycled polymers as matrices, the main objective of this work is to produce and characterize NFPC based on a post-consumer recycled matrix. To do so, recycled high-density polyethylene (R-HDPE) composites reinforced with a hardwood residue (maple fiber) with different concentrations (0, 15, 30, 45, 60, and 75 wt%) were produced with and without MAPE. To limit polymer degradation and reduce processing time, a simple dry-blending technique was followed by compression molding to develop a low-cost and added-value NFPC from more environmentally sustainable materials. Additionally, a sample based on 100% treated fibers is presented for comparison and to open the door for future optimization.

2. Materials and Methods

2.1. Materials

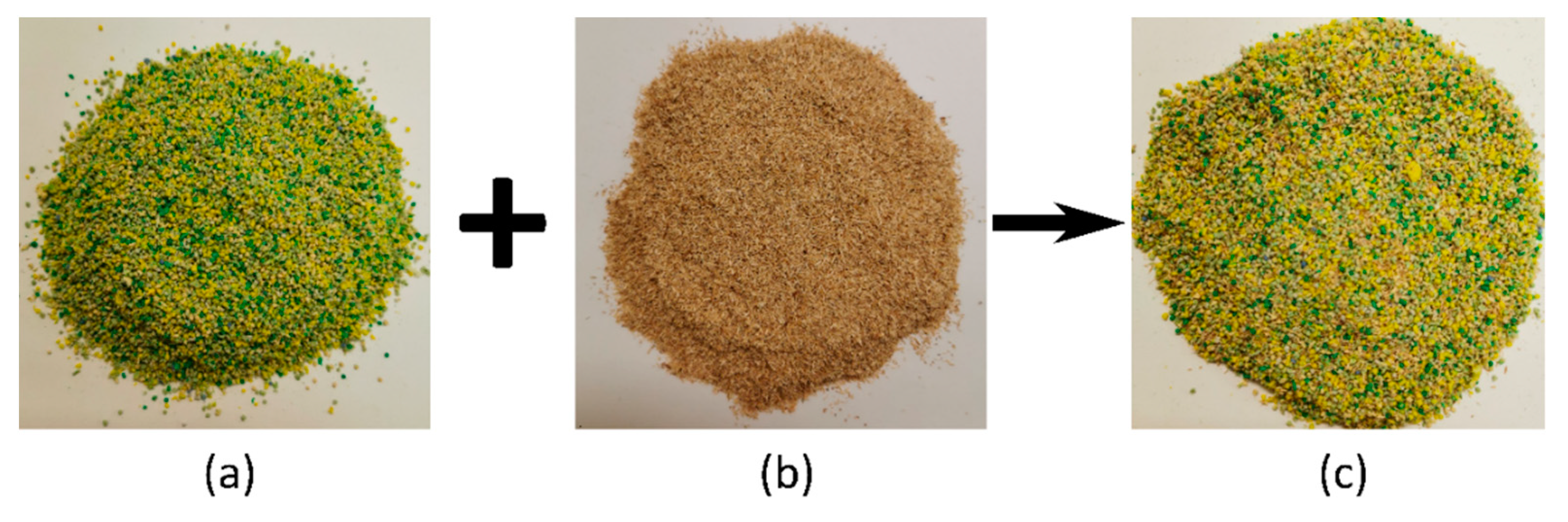

In this work, recycled high-density polyethylene (R-HDPE) was used as the matrix and supplied by Service de Consultation Sinclair (Drummondville QC J2C 6A2, Canada) in flakes that came from recycled solid HDPE bottles. R-HDPE was first pulverized with a Lab Mill model PKA-18 (Powder King, Phoenix, AZ, USA) and then sieved to keep a size between 1 and 3 mm (Figure 1a). Then, the R-HDPE powder was characterized to obtain its melt flow index (6.7 g/10 min at 2.16 kg, 190 °C) and melting temperature (123 °C) [29]. As reinforcement, maple wood fibers from PWI Industries (St-Hyacinthe, QC, Canada) were sieved to keep only fibers between 355 and 500 µm (Figure 1b). This is the average fiber size that produces the best dispersion, distribution, and mechanical performance, according to previous studies [13,30].

For the fiber surface treatment, xylene (laboratory purity grade) from Fisher Chemicals (Pittsburgh, PA, USA) and maleic anhydride grafted polyethylene (MAPE) Epolene C-26 from Westlake Chemicals (Houston, TX, USA) were used as received.

2.2. Fiber Surface Treatment and Composite Preparation

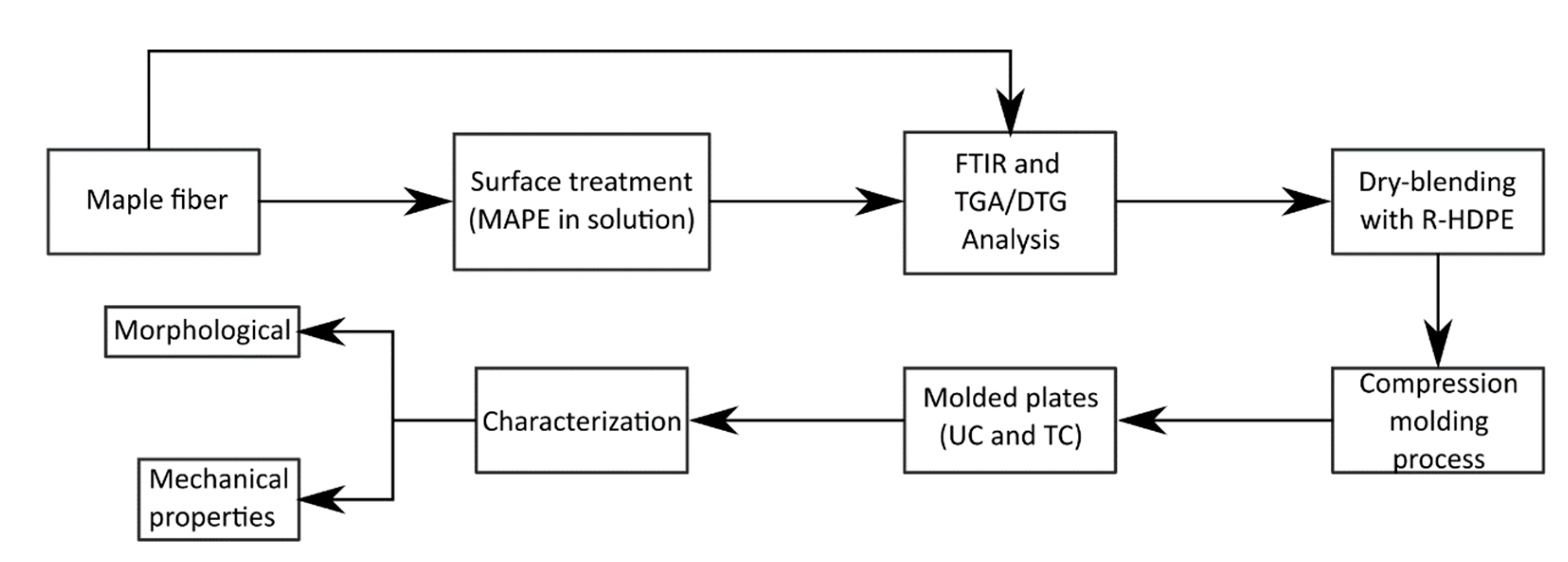

For surface treatment, 1 wt% of MAPE was dissolved in xylene at 90 °C under stirring. Then, 10 wt% of maple fibers were added to the solution. The treatment was performed for 30 min at 90 °C under high intensity mixing. Finally, the fibers were recovered by filtration and dried at 80 °C in an oven to remove the solvent. More information can be found in Cisneros-López et al. [26]. The composites were prepared by dry blending of untreated (UF) or treated (TF) maple fibers and R-HDPE (Figure 1c). Different fiber contents were used between 0 and 75 wt% in order to study the effect of this parameter on the quality and properties of the composites. Before processing, the UF and TF were dried overnight at 80 °C to remove moisture. To get a homogeneous blend, each formulation was mixed with the use of a simple dry-blending technique using a Toastmaster TM-61MC (Smithville, Atlantic County, NJ, USA) blender for 3 min, with a power of 35 W. Finally, 29 g of each formulation based on untreated fiber (UC) and treated fiber (TC) were placed in a picture frame stainless steel mold with dimensions of 115 × 115 × 3 mm³. Compression molding was performed on a laboratory scale press (Carver Inc., Wabash, IN, USA) using the following sequence: preheating for 3 min at 150 °C, pressing for 5 min under a load of 3 tons, and cooling down under pressure to 60 °C using circulating water. The plates were later cut into different geometries for mechanical characterization, as described below. Figure 2 presents a general overview of the NFPC production steps.

2.3. Characterization

2.3.1. Fourier Transform Infrared Spectroscopy (FTIR)

To confirm any change in functional groups over the fiber surface from the MAPE solution treatment, Fourier transform infrared spectroscopy (FTIR) spectra were recorded using a Nicolet iS50 FTIR spectrometer from Thermo Scientific (Waltham, MA, USA), equipped with a liquid nitrogen-cooled narrowband MCT detector using Golden Gate (diamond IRE), with an attenuated total reflectance (ATR) accessory from Specac Ltd. (Orpington, UK). Each spectrum was obtained from 128 scans at a resolution of 4 cm⁻¹ from 4000 to 650 cm⁻¹, using Happ–Genzel apodization. All spectral operations were performed using the GRAMS/AI 8.0 software Thermo Galactic (Waltham, MA, USA).

2.3.2. Thermogravimetric Analysis (TGA)

Thermogravimetric analysis (TGA) and their derivatives (DTG) were analyzed to evaluate the thermal stability of the neat materials (UF, TF, R-HDPE, MAPE). The tests were performed using a TGA analyzer Q5000IR from TA Instruments (New Castle, DE, USA). Samples between 10 and 20 mg were heated at 10 °C/min, from 50 to 800 °C, under a nitrogen atmosphere.

2.3.3. Morphology

The composites (UC and TC) were cryogenically fractured (liquid nitrogen) and their exposed cross-sections were coated with Au/Pd under vacuum. Then, micrographs were taken using a scanning electron microscope (SEM) FEI Inspect (Hillsboro, OR, USA) model F50 at different magnifications to observe the microstructure of samples as well as the state of fiber adhesion/dispersion in the matrix and fiber surfaces. Images of the neat materials were also taken. Additionally, untreated and treated maple fibers were also observed by energy dispersive spectroscopy (EDS) using the same device to verify the surface treatment performed.

2.3.4. Density/Hardness

Density was measured with a gas pycnometer, ULTRA-PYC 1200e (Quantachrome Instruments, Boyton Beach, FL, USA), using nitrogen. The results reported are the average of three measurements. Hardness was determined with a durometer, PTC (Los Angeles, CA, USA) model 307L, according to the Shore D scale (thermoplastics), following ASTM D2240. The data reported are the average of a minimum of ten measurements.

2.3.5. Mechanical Properties

Tensile and flexural properties were measured on a universal testing machine, Instron 5565 (Instron, Norwood, MA, USA), with a 500 N load cell. For tension, type V dog-bone samples were cut from the molded parts, according to ASTM D638. The tests were performed at room temperature and a crosshead speed of 5 mm/min. The modulus, strength, and elongation at break were reported based on the average of five samples. For flexion, three-point bending tests were performed, according to ASTM D790 at room temperature, using a crosshead speed of 2 mm/min and a span length of 60 mm. Five rectangular bars with dimensions of 80 × 12.7 × 3 mm³ were tested to report the average and standard deviation for modulus and strength.

Charpy impact strength was determined via a Tinius Olsen (Horsham, PA, USA), model 104 impact tester, with a pendulum of 242 g (1.22 J). Samples with dimensions of 80 × 12.7 × 3 mm³ were used. All the samples were notched in the center of the longitudinal side by an automatic sample notcher, model ASN (Dynisco, Franklin, MA, USA), according to ASTM D6110. The values reported represent the average of ten repetitions.

3. Results and Discussion

3.1. Fourier Transform Infrared Spectroscopy (FTIR)

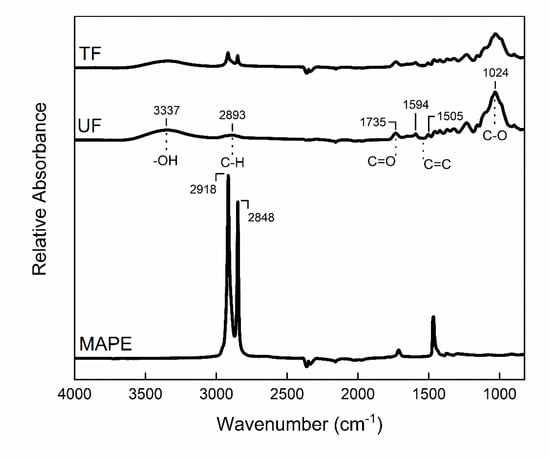

Figure 3 presents the FTIR spectra of the untreated (UF) and treated (TF) fibers, as well as MAPE. The UF spectrum shows the typical signals of lignocellulosic fibers: an absorption band associated with hydroxyl groups (-OH) at 3337 cm⁻¹ and a peak at 2893 cm⁻¹, typical of C–H bonds, both associated with cellulose and hemicellulose. The peak at 1735 cm⁻¹ corresponds to carbonyl groups (-C=O) of lignin, hemicellulose, waxes, and pectins. In addition, the peaks at 1594 and 1505 cm⁻¹ are associated with the aromatic structure (-C=C-) of lignin, while the -C-O bonds of cellulose and lignin are observed at around 1024 cm⁻¹ [31]. In the TF spectrum, a decrease in the band associated with the hydroxyl group was observed, while a slight decrease also occurred at the 1024 cm⁻¹ peak (-C-O). Similarly, a decrease in the peaks is observed at 1594 and 1505 cm⁻¹, indicating the elimination of waxes and pectins during the solution treatment [13]. Finally, two peaks between 2918 and 2848 cm⁻¹, which are characteristics of the alkane groups of the polyethylene chains in MAPE [23], clearly increased. This indicates that MAPE was successfully grafted onto the TF surface. The presence of MAPE chains on the fiber surface is expected to improve the R-HDPE/maple fiber interfacial interaction in the composites. This can be clearly seen in the mechanical properties and the maximum amount of fiber that can be incorporated into a sample, as shown in the next sections.

3.2. Thermogravimetric Analysis (TGA)

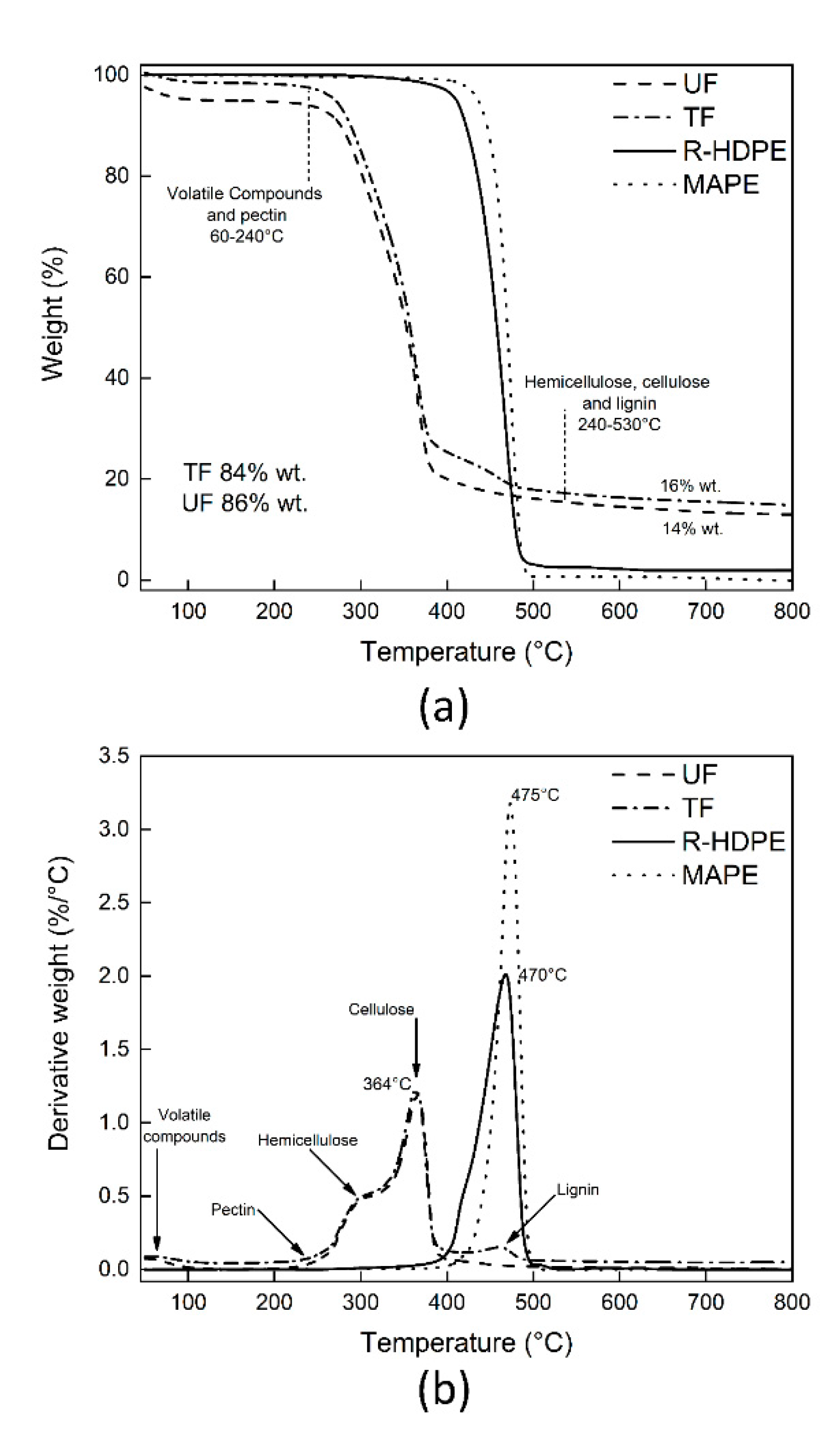

Thermogravimetric analysis (TGA) was performed to follow the weight curves and their derivatives (DTG) for the neat materials; the results under nitrogen are presented in Figure 4. The weight loss of R-HDPE started at around 390 °C, and nearly 100 wt% decomposition occurred by 480 °C. In the case of neat MAPE, the thermal behavior is very similar to R-HDPE. On the other hand, the UF and TF curves are different. About 5% of initial weight loss corresponds to water and other volatile compounds (dehydration) [32]. Subsequently, the main weight loss in the 230–390 °C range corresponds to the thermal degradation of the fibers [33]. This weight loss is 86 and 84 wt% for UF and TF, respectively. This indicates higher thermal stability for TF due to the MAPE coating. These results also indicate that the materials have good thermal stability for the range of processing conditions selected. The DTG curves show that for each material, several peaks are present and located at similar temperatures. However, their intensities and total weight loss are different. To obtain more information about the surface treatment performed, the amount of MAPE grafted on the fiber surface was determined. For this purpose, the method proposed by Chimeni et al. [30] was used. Firstly, the maximum weight loss Δm of the MAPE (between 400 °C and 500 °C) can be determined with the following formula:

$$m_{MAPE}=\mathrm{\Delta }{m}_{TF}-\mathrm{\Delta }{m}_{UF}$$

(1)

With Δm = (m_{2 −} m₁), where m₁ and m₂ are the mass of maple fiber (TF or UF) at 400 °C and 500 °C, respectively (Figure 4). Then, the amount MAPE grafted (T_GR) is determined as:

$$T_{GR}=\left(m_{MAPE}\ast 100\right)/m_1$$

(2)

where T_GR = 19%. Finally, according to the literature [17,34], Figure 4 shows that it is possible to identify the fibers’ main components.

3.3. Morphology

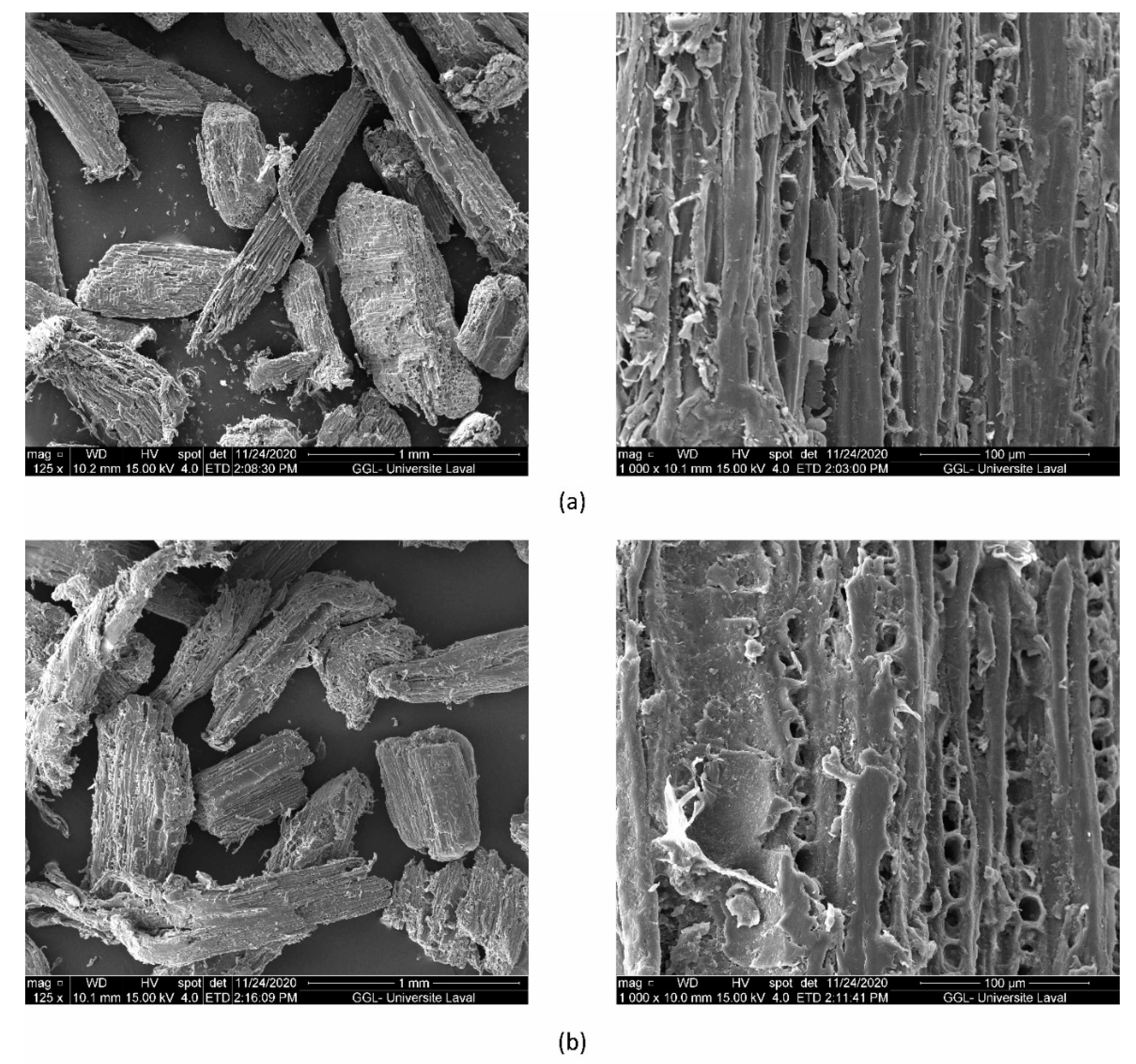

Morphological analysis is presented in Figure 5, Figure 6, Figure 7 and Figure 8. Figure 5 shows the micrographs of the surface of untreated (UF) and treated (TF) fibers. The micrographs show significant differences between treated (Figure 5a) and untreated (Figure 5b) fibers. It can be observed that the surface of UF is rougher with sharp edges as compared to the surface of the treated fiber, which has a more uniform/smooth texture due to a thin MAPE layer. These observations confirm that the fiber surface treatment was successful.

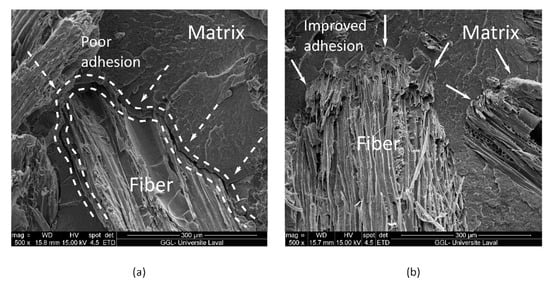

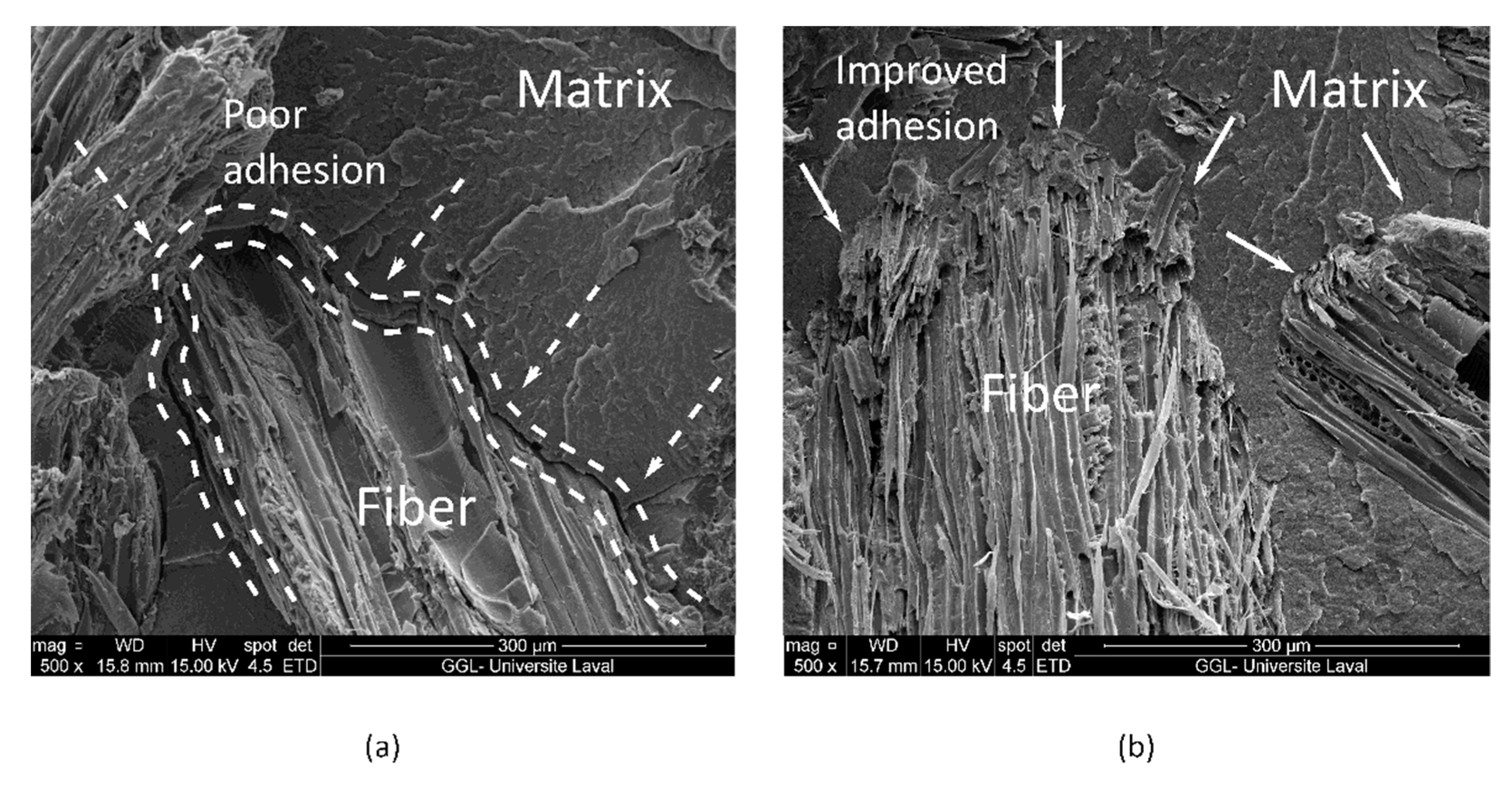

The interfacial adhesion between the fiber and the matrix plays an important role in determining the mechanical properties of composites. This means that improved interfacial adhesion between both component leads to improved properties. Figure 6 shows the interfacial interaction between R-HDPE and untreated (a) and treated (b) maple fibers. The effect of the coupling agent can be observed since TC fibers are well-embedded inside the matrix, while voids and defects around them are not observed. This is not the case for UC, showing clear evidence of poor interfacial adhesion that leads to voids or defects, which are the main factors that decrease the mechanical properties of the composites.

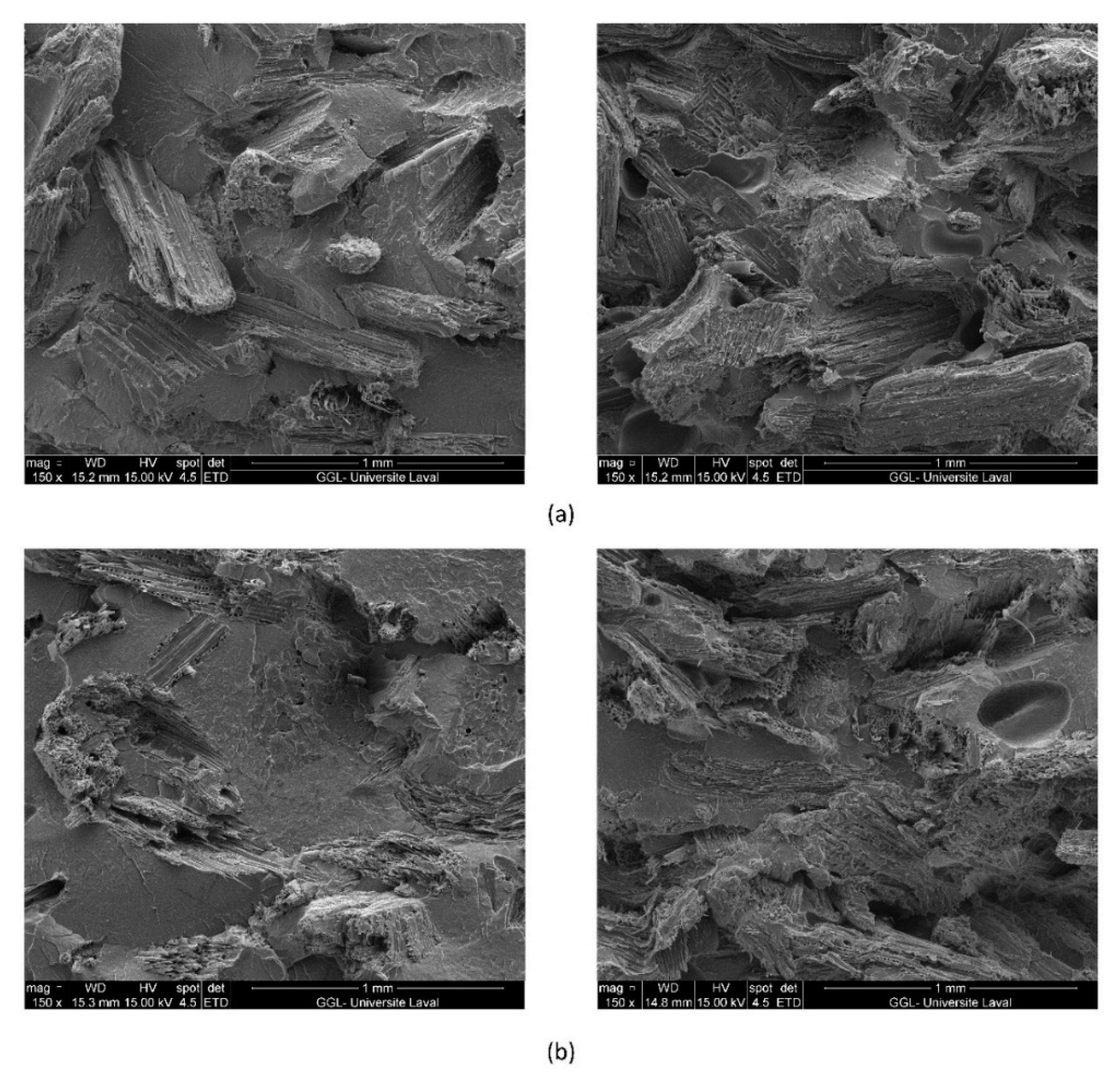

Due to the processing method used, it is possible to observe that the fibers are well-distributed, with a random orientation; Figure 7 shows typical micrographs for UC and TC samples. For UC, a lower interfacial adhesion between both components is observed and the number of defects increases with increasing fiber content [17]. In addition, fiber agglomeration can be seen as well as the presence of holes associated with fiber pull-out. These defects are known to have a negative effect on the mechanical properties (especially strength and impact) of the composites [35]. On the contrary, a more homogenous structure can be seen in TC, which indicates an improved adhesion between the materials. The fiber surface with MAPE improved adhesion/dispersion, which led to a significant decrease in the number of voids and pull-outs. There was also less fiber agglomeration.

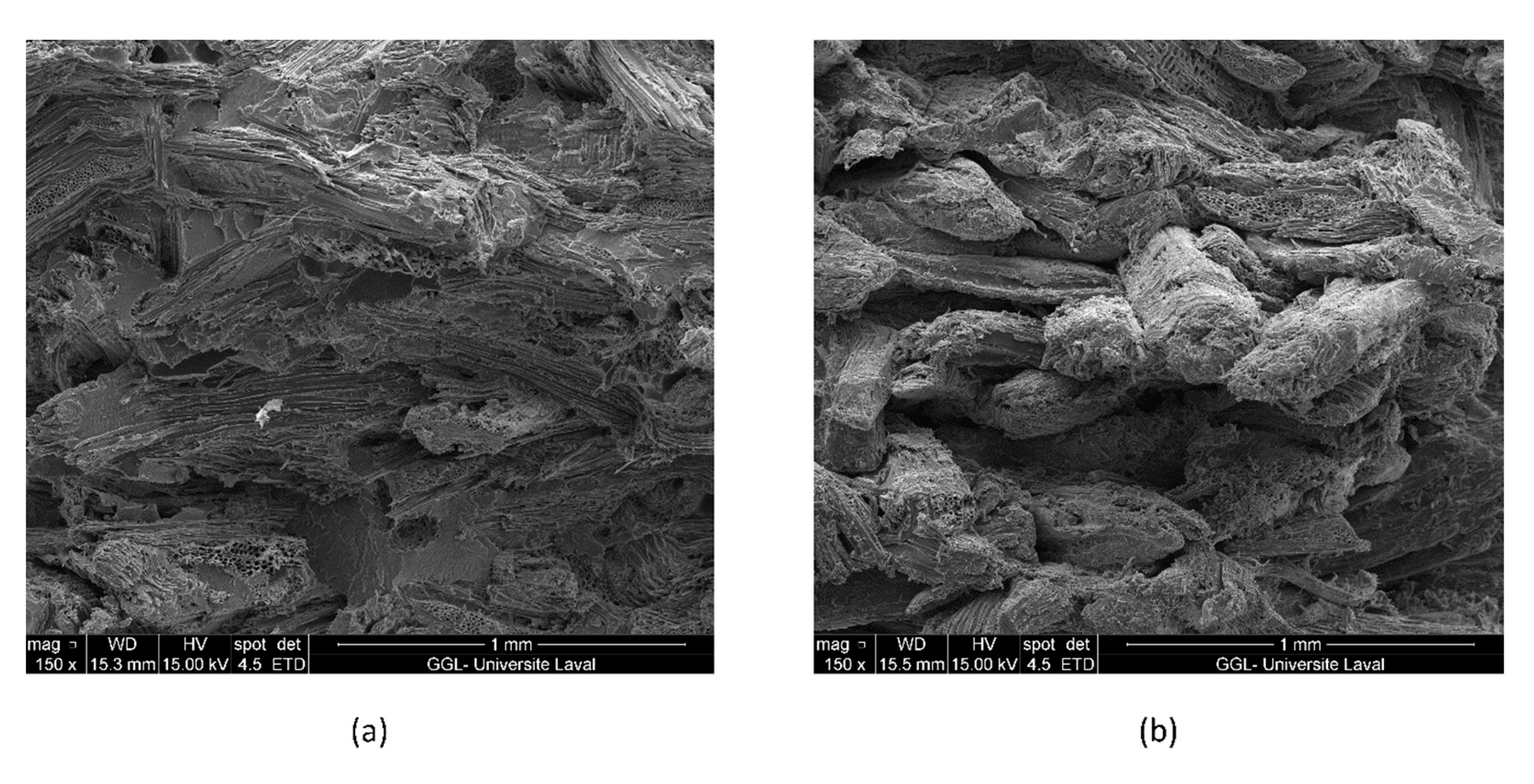

It is important to highlight that it was not possible to obtain composites above 70 wt% with UF, while samples of up to 75 wt% was possible for TF (Figure 8a). This confirms that the surface treatment not only improves dispersion and adhesion between the maple fibers and R-HDPE, but also provides the possibility of using much higher fiber contents, improving not only the physico-chemical properties, but also other properties such as sustainability and cost. Additionally, it was possible to obtain a sample based on treated fibers alone (Figure 8b), which is a clear indication of the efficiency of the treatment performed.

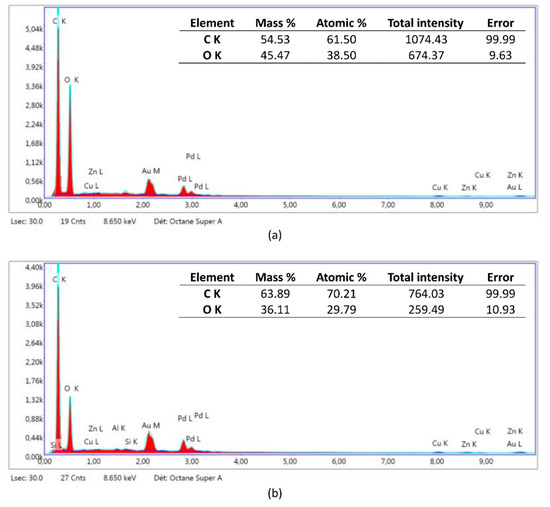

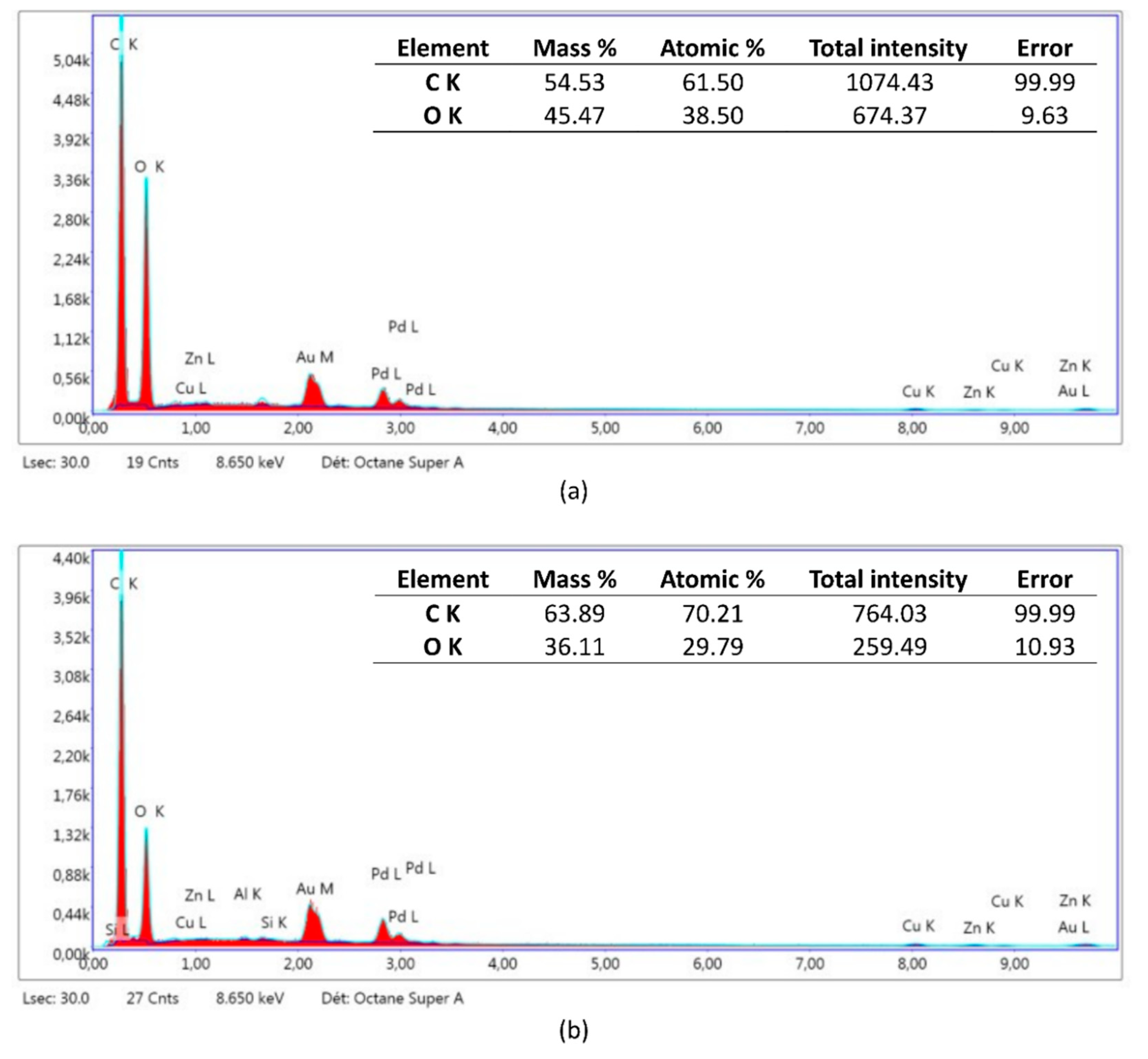

Figure 9 presents the EDS spectra of UF and TF, showing again that the treatment performed on the fibers’ surface was successful. In particular, the C/O ratio on the surface of treated fibers is much higher (2.35) as compared to the value (1.59) for untreated fibers; this is due to the presence of hydrocarbon chains of MAPE covering the hydroxyl groups of cellulose.

3.4. Density/Hardness

The density of the samples produced is summarized in

Table 1. Density of the samples produced (+/−1 kg/m³).

Fiber Content ( wt%)	Untreated	Treated
0	946
15	1009	969
30	1033	990
45	1092	1024
60	1146	1129
70	1168	1147
75	-	1158

Neat material density: Recycled high density polyethylene = 943 kg/m³, untreated = 1420 kg/m³, and treated = 1340 kg/m³ maple fibers.

. As expected, composite density increased with fiber content. This is mainly related to the fiber density (1420 kg/m³ for UF and 1340 kg/m³ for TF) being much higher than the neat matrix (943 kg/m³). Due to the surface treatment performed, the composites based on treated fiber (TC) have lower density than those based on untreated ones (UC), which confirms once again that the structure of the fiber was modified, as seen in Figure 3. Since the properties of the fibers were modified, which increased (cellulose, lignin) or decreased (extractives, pectin, polysaccharides, waxes) the content of the main components of the fiber (Figure 3), this also decreased the apparent fiber density. In addition, the presence of a layer of a less dense polymer (MAPE = 923 kg/m³) on the fiber surface also contributed to density reduction [26].

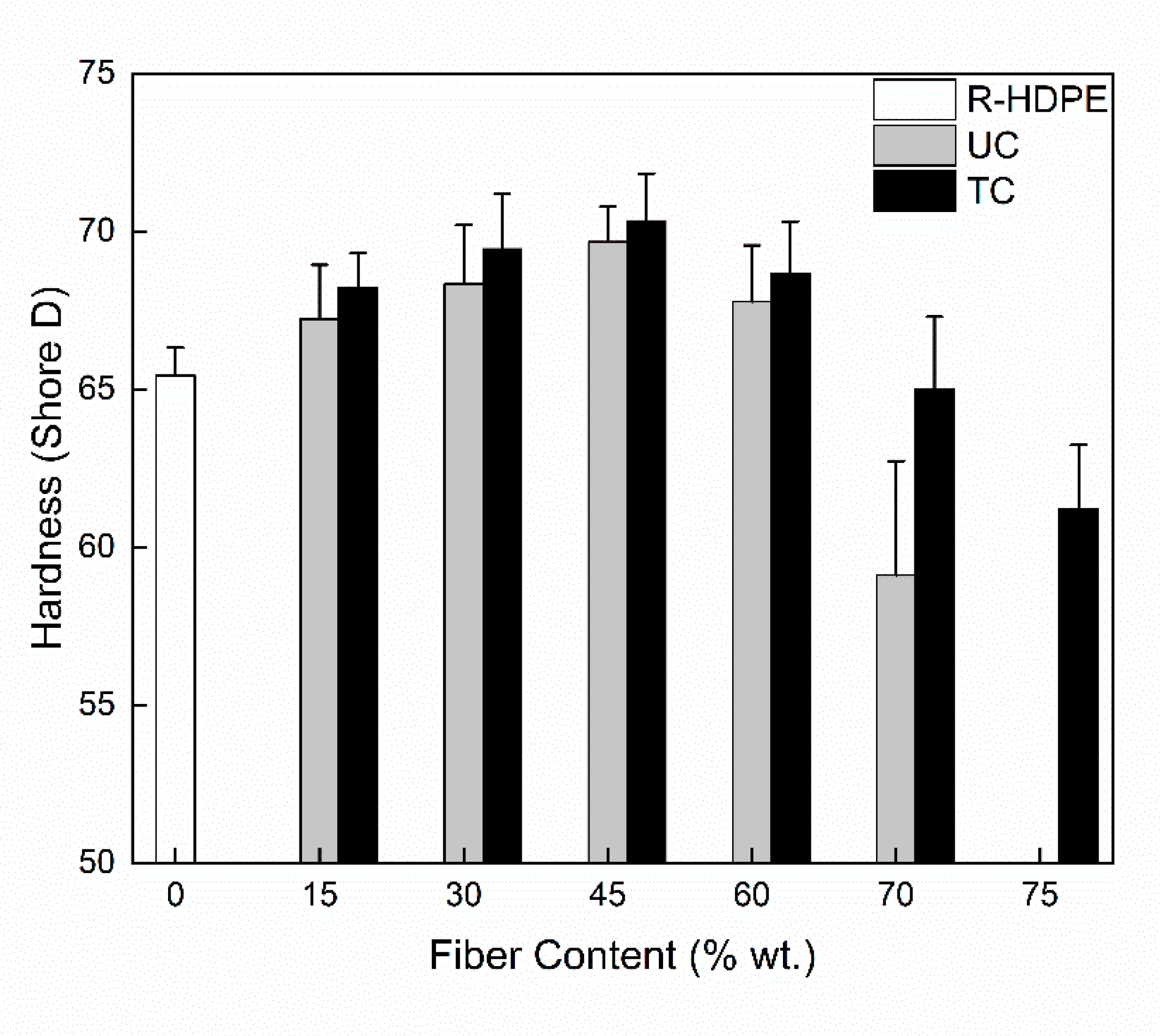

Figure 10 presents the hardness values (Shore D) for the composites. Due to the reinforcing effect provided by the fibers (indentation resistance), the hardness tends to increase with fiber content [12]. The results showed a slight increase in Shore D hardness in UC (67.2 at 15 wt%) with respect to the neat R-HDPE (65.4) and a maximum at 45 wt% fiber content (69.6). Similarly, in the case of TC at 45 wt%, the maximum hardness value (70.3) was observed with respect to R-HDPE (5 Shore D units). Independently of the fiber content, an increase in hardness was observed in all TC with respect to UC, with increases of up to 10%. This is mainly related to the surface treatment performed, which improved the fiber–matrix interactions by reducing porosity, thus leading to fewer defects and voids in the composites [9].

3.5. Mechanical Properties

3.5.1. Tensile

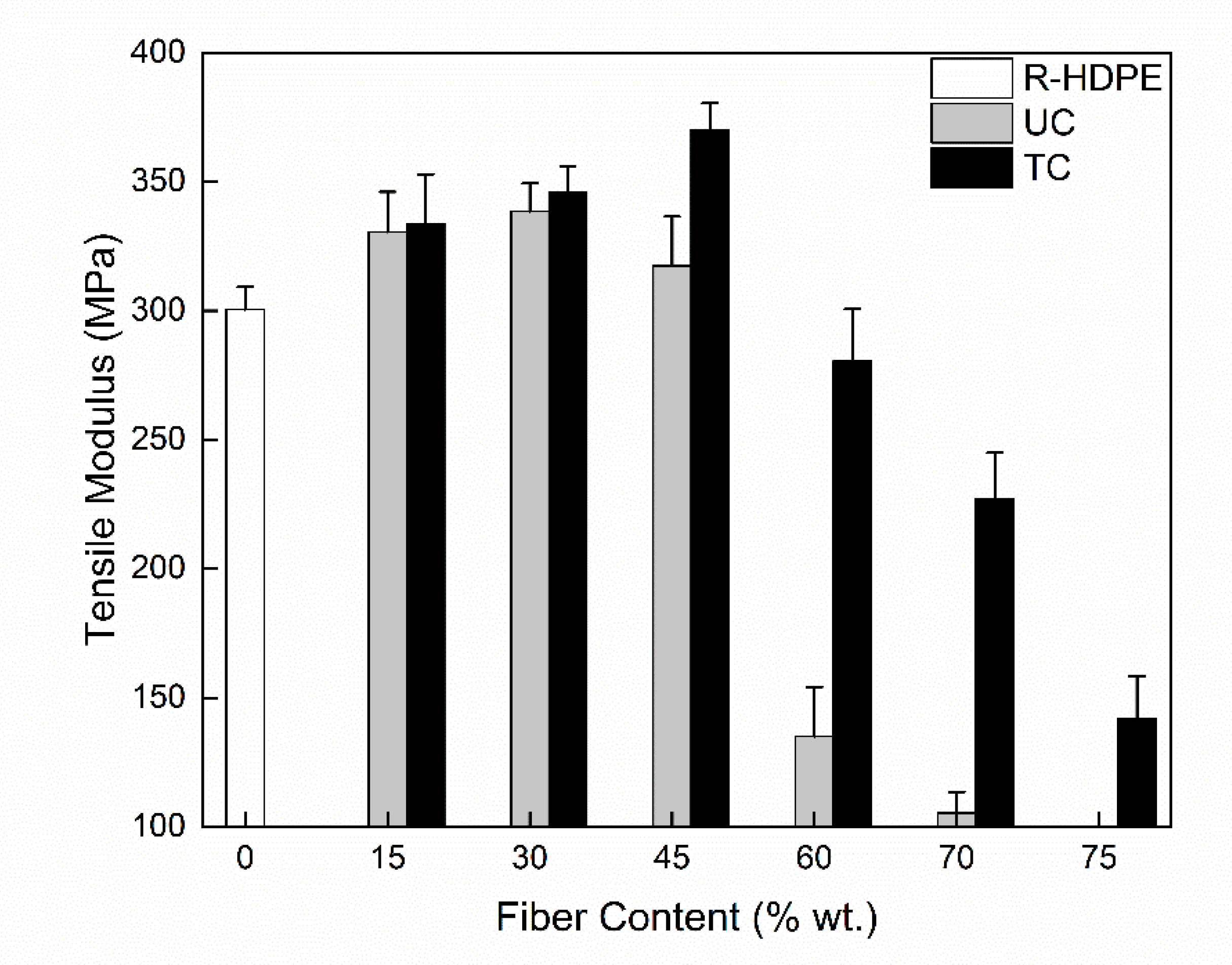

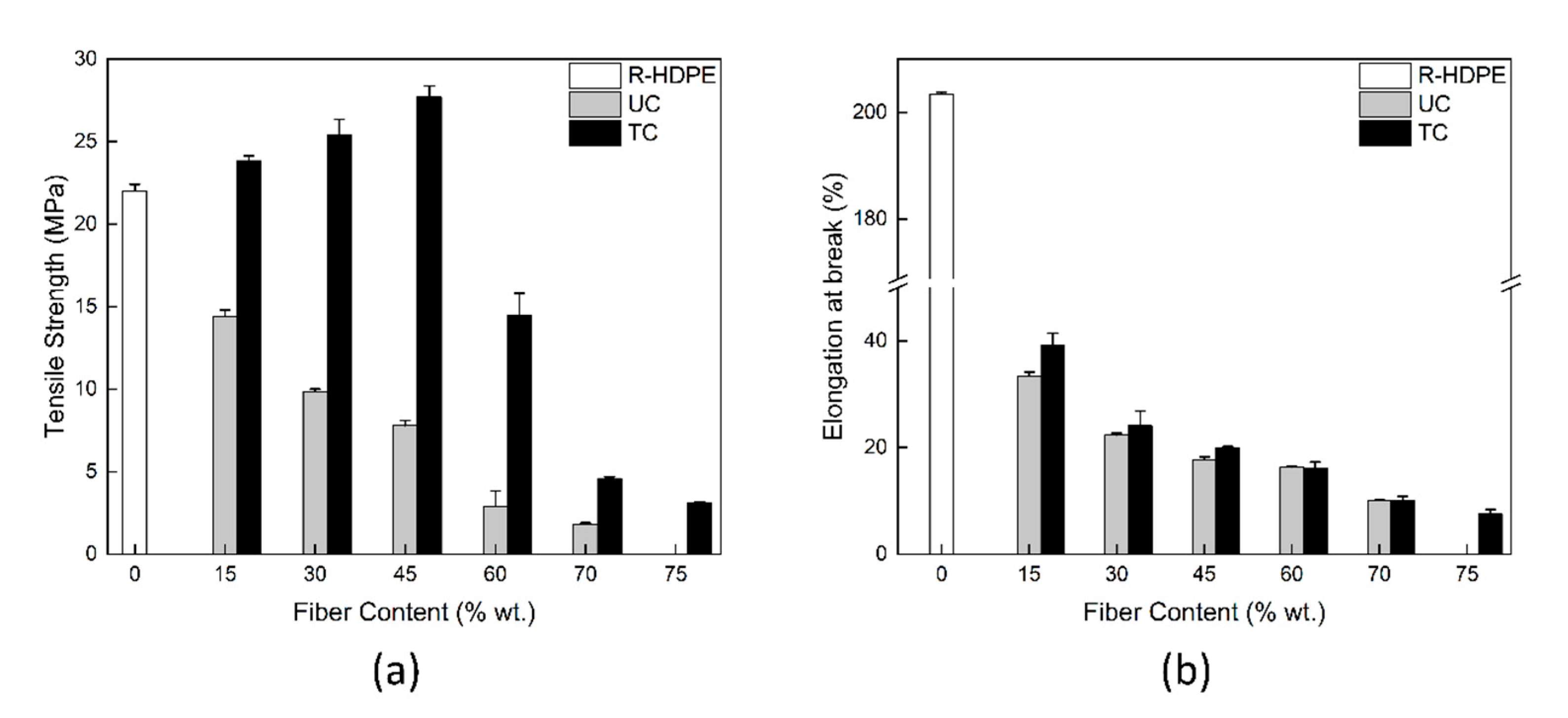

Tensile properties are presented in Figure 11 and Figure 12. Figure 11 shows that the fiber content in UC increases the tensile modulus by 5% at 30 wt% fiber content as compared to the neat R-HDPE. However, the tensile strength (Figure 12a) decreased from 22 to 2 MPa, mainly due to poor fiber–matrix interfacial adhesion (Figure 6 and Figure 7). Furthermore, the literature reports that the stress distribution in composites is concentrated around the fibers [14,16]. Consequently, if the interactions between the fiber and the matrix are weak (presence of voids and exposed fibers), there is discontinuity (Figure 6a) and poor stress transfer. On the other hand, TCs have higher tensile modulus and tensile strength as compared to neat R-HDPE. The optimal values are observed at 45 wt% of fiber content for tensile modulus (23%) and tensile strength (26%). This indicates that the surface treatment improves interfacial stress transfer producing better interactions between both phases (Figure 6b) and improving all the properties, especially at a higher fiber content (above 45 wt%). Similar trends have been reported in the literature [15,19,32]. For the elongation at break (Figure 11), similar trends for UC and TC were observed: a decrease from 34% to 10% for the former, and from 39% to 8% for the latter. But TC values are always slightly higher for UC using the same fiber content. This loss of elongation is mainly due to the low elasticity of the fibers imposing some limitations on the mobility of the matrix chains [36].

3.5.2. Flexural

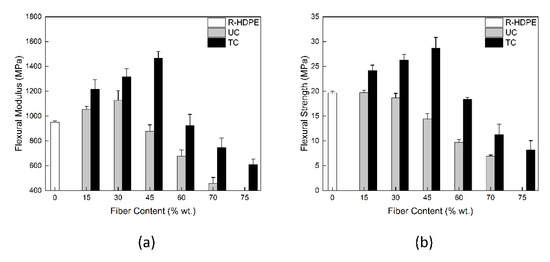

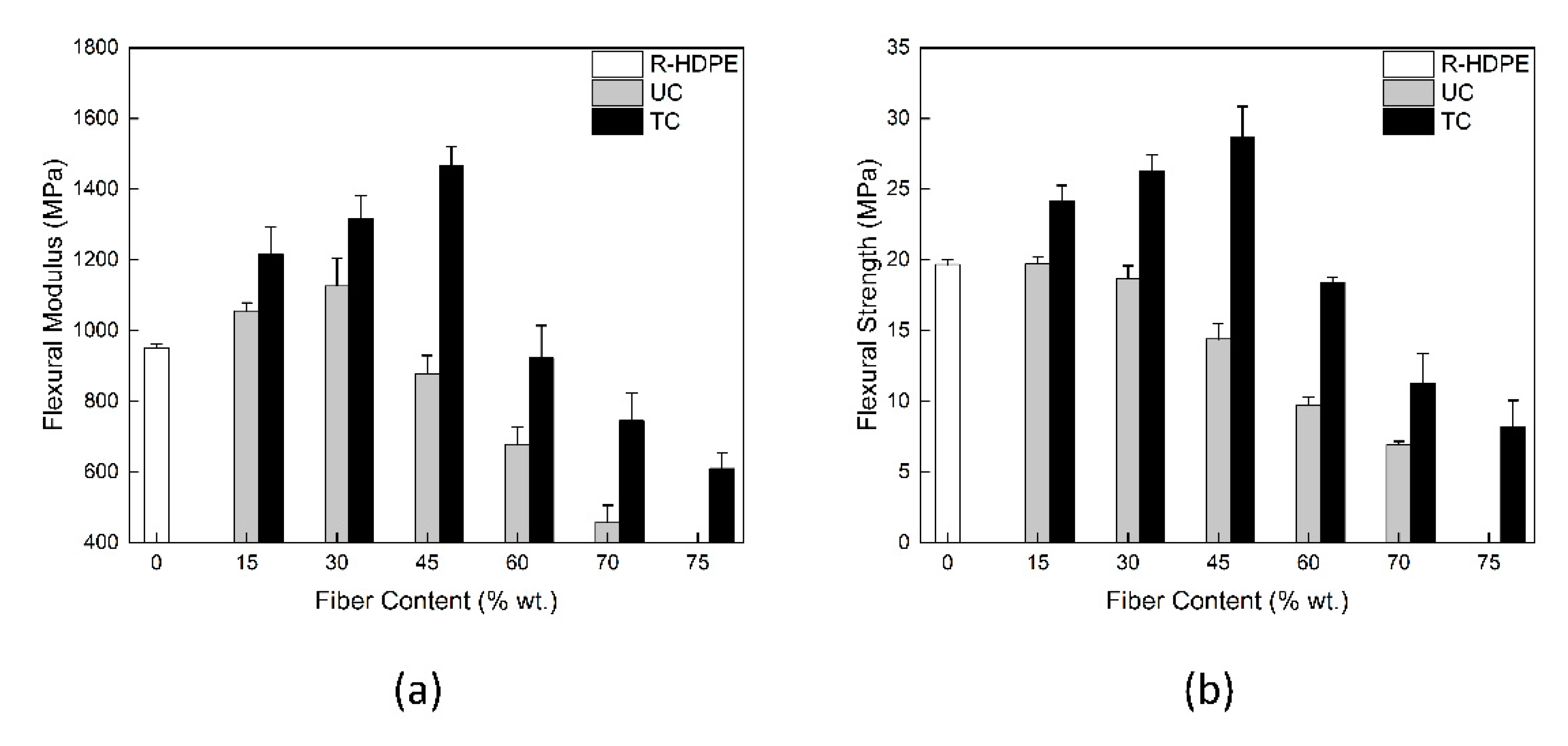

Flexural modulus and flexural strength are reported in Figure 13. For both properties, a trend similar to that of the tensile properties is observed: the flexural modulus (Figure 13a) increases with fiber content until an optimal value. The improvement in the flexural properties of composites can be attributed to the high modulus and strength of lignocellulosic fibers. Again, the modulus and strength are higher for TC than for UC. This is due to better interfacial adhesion between the matrix and the fibers, leading to a more uniform distribution of the applied stress, which requires more energy for fiber pull-out since they are better embedded in the matrix [37]. This significantly improved the flexural properties as the flexural modulus reached a maximum value (19%) at 30 wt% UF compared to neat R-HDPE. Conversely, an improvement of up to 54% was achieved at 45 wt% TF. Favaro et al. [14] reported similar results for recycled HDPE composites reinforced with sisal fiber and produced by injection molding.

The flexural strength (Figure 13b) in UC decreased as the fiber content increased, which is again an indication of poor interfacial adhesion. On the contrary, an improvement of up to 46% was obtained for 45 wt% TF as compared to neat R-HDPE. Similar results were reported by Cisneros et al. [26] in composites based on virgin LLDPE/agave fibers, as well as by Sood et al. [16] for R-HDPE/sisal fibers.

3.5.3. Charpy impact

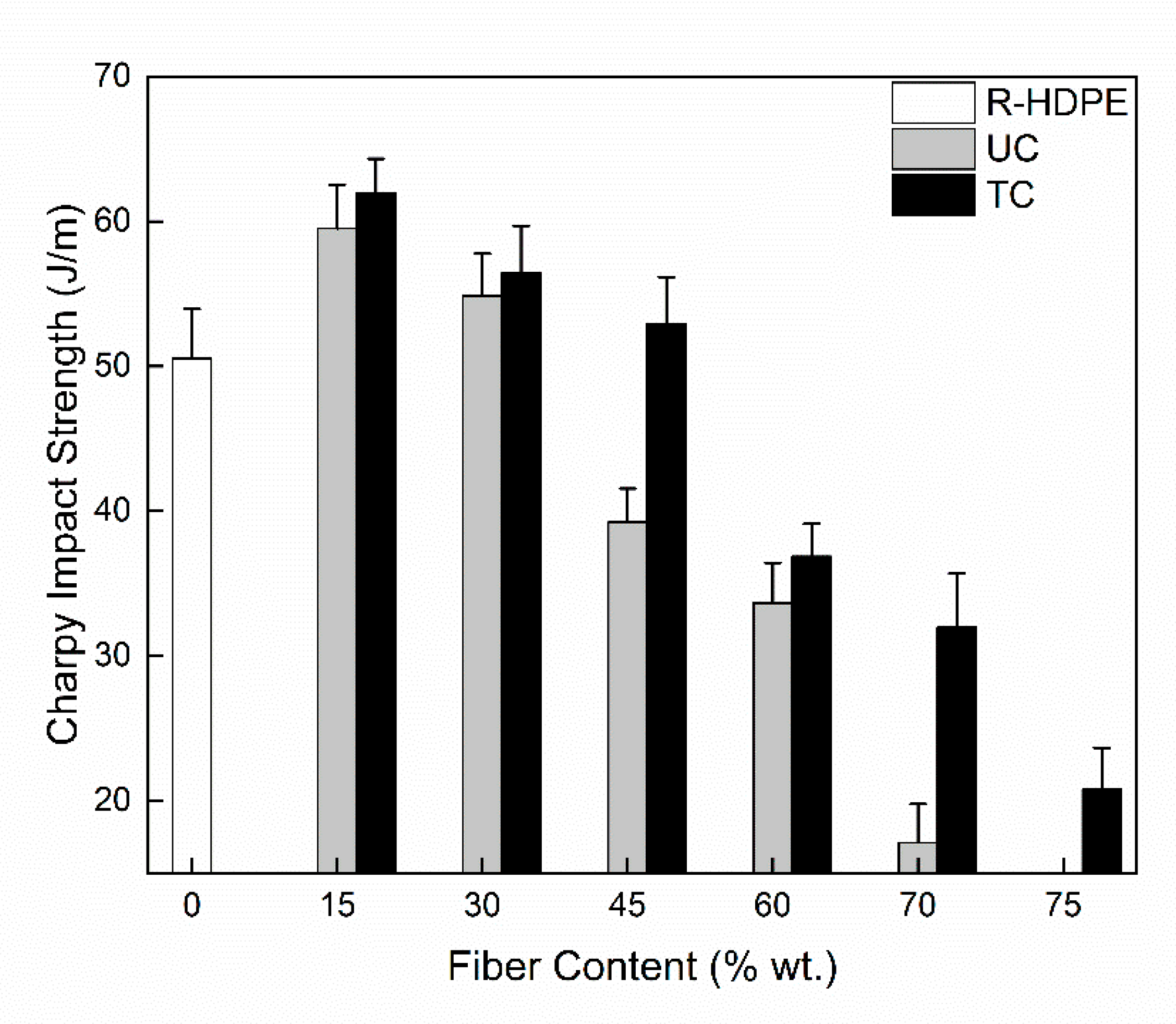

Charpy impact strength results are shown in Figure 14. In UC, the impact resistance slightly increased (18% and 9%) with 15% and 30% of fiber, respectively, as compared to the neat R-HDPE, but the resistance decreased with higher fiber content. As demonstrated in Figure 6a and Figure 7a, the number of defects increases with fiber concentration, which leads to poor interfacial interaction between the fiber and matrix, thus creating poor stress transfer between both phases and resulting in poor interfacial strength, increased fiber pull-out, and increased stress concentration points for easy crack initiation and growth. Another factor that decreases the impact strength with higher fiber content is the higher number of fiber–fiber contact, which has a direct effect on failure. But this effect is less important in treated fibers because a large amount of energy is consumed/dissipated in separating the fibers from the matrix. For TC, the higher the fiber content, the higher the strength as compared to UC due to the better distribution and adhesion of the fibers inside the matrix (Figure 6b and Figure 7b). The impact resistance increased by 23%, 12%, and 5% with 15, 30, and 45 wt% of fiber, respectively, as compared to neat R-HDPE. In the same way, as in UC, the resistance tends to decrease with higher fiber content. Nevertheless, an increase of up to 87% was observed in the impact resistance of TC as compared to UC. These results are in agreement with Lei et al. [19] on pine fiber and bagasse composites (with and without MAPE) using R-HDPE as the matrix, as well as with Samariha et al. [38] on composites based on virgin polypropylene (PP) and bagasse flour.

Finally, as mentioned above, it was possible to obtain samples based on 100% treated fibers. The density and hardness (shore D) for these were 1360 kg/m³ and 60, respectively.

Table 2. Mechanical properties of a sample based on 100% of treated fiber.

Tensile			Flexural		Charpy Impact
Modulus (MPa)	Strength (MPa)	Elongation at Break (%)	Modulus (MPa)	Strength (MPa)	Strength (J/m)
506 ± 26	5.7 ± 0.2	1.4 ± 0.2	1168 ± 75	9.4 ± 0.9	16.8 ± 1.5

shows the results of the mechanical properties of these samples. This is additional evidence that the treatment was effective.

4. Conclusions

In this work, composites based on recycled high-density polyethylene (R-HDPE) and maple fibers with and without surface treatment (maleated polyethylene, MAPE in solution) were prepared in a wide range of concentrations (up to 75 wt%) using a simple dry-blending technique, followed by compression molding.

The FTIR and TGA analyses confirmed that the fiber surface treatment was successful and produced surface changes. This was also verified by visual observation via SEM, chemical composition via EDS, and density changes.

For the composites, the treated fibers showed a clear reduction of voids, defects, and exposed fibers improving interfacial compatibility, fiber dispersion, and fiber/matrix adhesion (interactions). This modification was shown to improve the mechanical properties in terms of tensile (23%) and flexural (54%) modulus, as well as the tensile (26%) and flexural (46%) strengths with respect to the neat R-HDPE matrix. Likewise, the impact resistance of the samples produced with treated fibers showed higher values (87%) compared with untreated fibers.

In addition, treated fibers enabled the introduction of a much higher fiber content to produce good parts. In our case, it was possible to produce composites with up to 75% of treated maple fibers as compared to only 70% for the untreated fibers. Furthermore, a sample with 100 wt% of treated fiber was produced. Although the properties were not very high, further optimization on the treatment and processing conditions (molding) could lead to better results. This part is still under investigation.

Finally, the results obtained showed that simple methods (solution treatment, dry blending, and compression molding) can be used to produce low-cost composites based on natural fibers combined with recycled thermoplastics. These materials can be considered as good alternatives for the efficient recycling and reuse of these wastes in order to achieve sustainable products.
