Ultra-Compact Inverse-Designed Integrated Photonic Matrix Compute Core

,
,
,
,
,
,
,
and
1
School of Electrical and Information Engineering, Tianjin University, Tianjin 300072, China
2
Tianjin Key Laboratory of Brain-Inspired Intelligence Technology, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Recent Progress in Integrated Photonics

Abstract

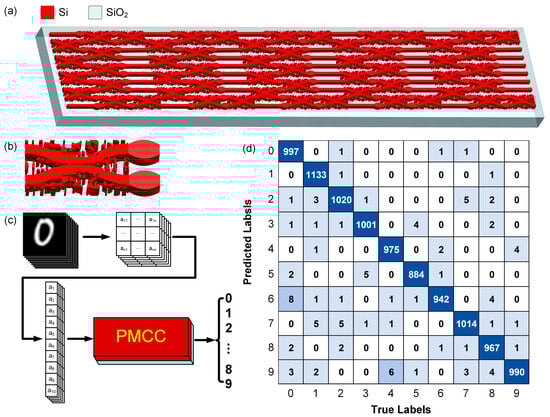

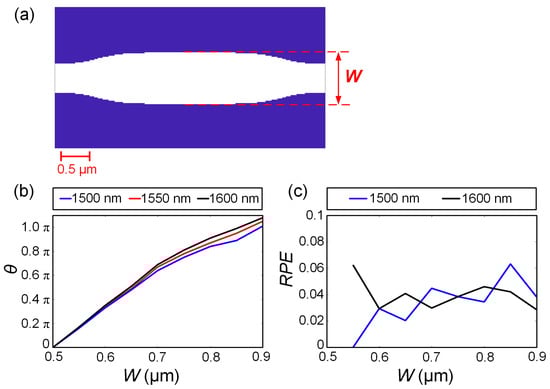

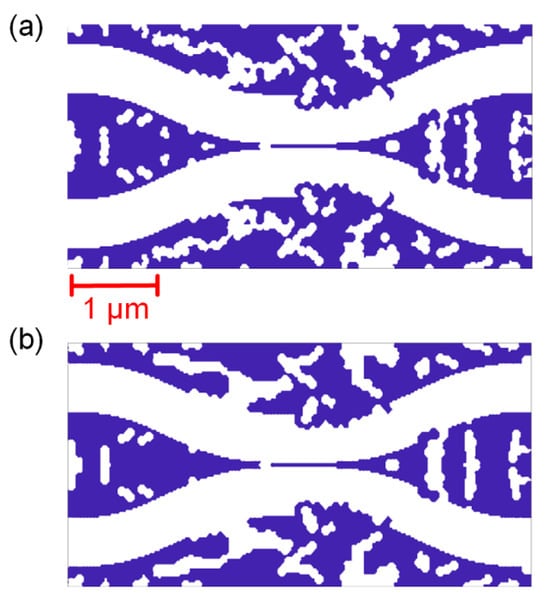

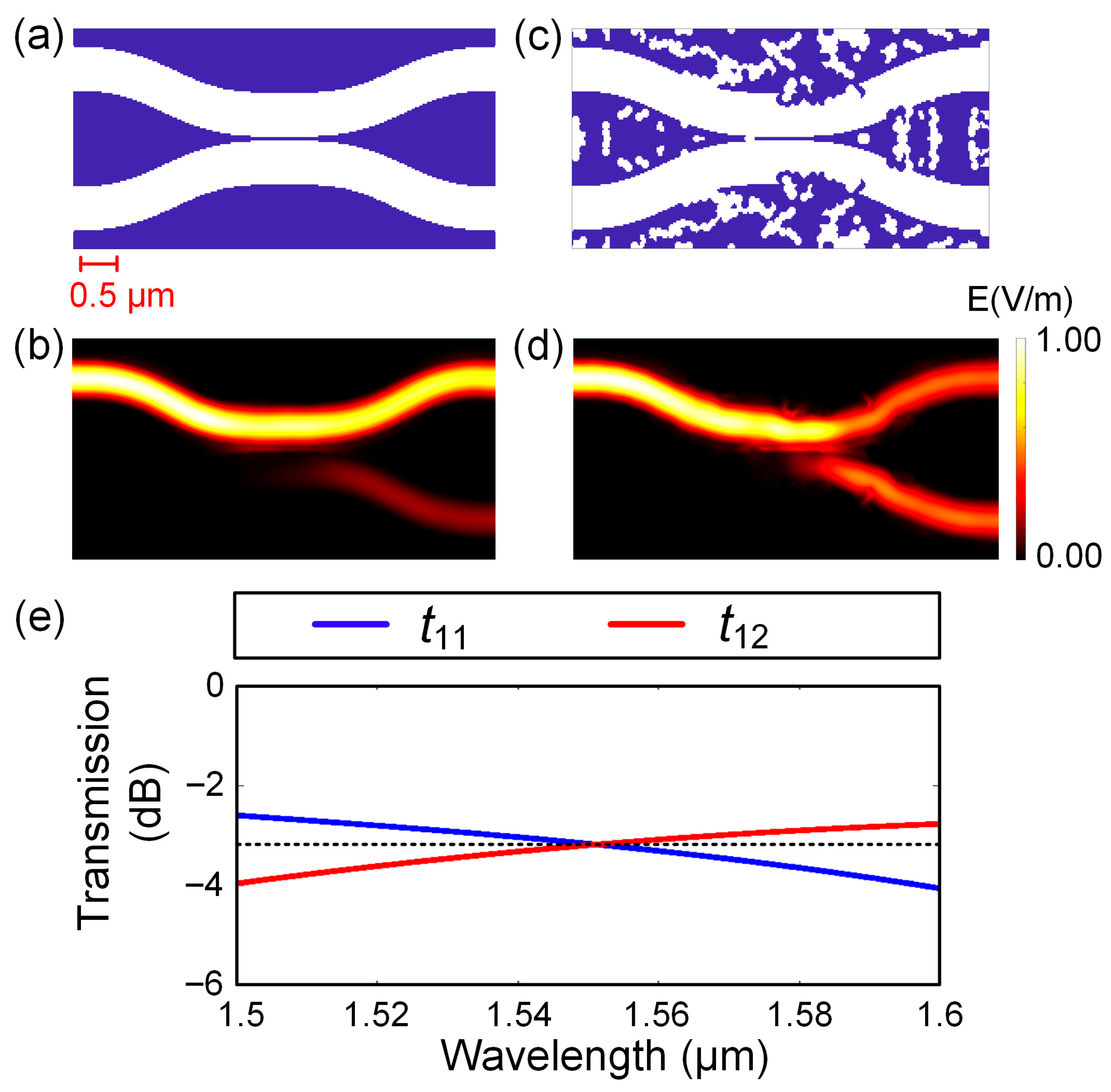

Leveraging our developed Global–Local Integrated Topology inverse design algorithm, we designed an efficient, compact, and symmetrical power splitter on a silicon-on-insulator platform. This device achieves a low insertion loss of 0.18 dB and a power imbalance of <0.0002 dB between its output ports within an ultra-compact footprint of 5.5 µm × 2.5 µm. The splitter, combined with an ultra-compact 0–π phase shifter measuring only 4.5 µm × 0.9 µm on the silicon-on-insulator platform, forms an ultra-compact inverse-designed integrated photonic matrix compute core, thus enabling the function of matrix operations in optical neural networks. Through a networked cascade of power splitters and phase shifters, this silicon-based photonic matrix compute core achieves an integration density of ~26,000 computational units/mm2. Moreover, it attained 99.05% accuracy in handwritten digit recognition (0–9) and exhibited strong robustness against fabrication errors, maintaining >80% accuracy with >0.9 probability under simulated random fabrication errors.
