Dual-Band and Multi-State Polarization Conversion Using aTerahertz Symmetry-Breaking Metadevice

,
,
,
,
,
,
and
1
Key Laboratory of Terahertz Optoelectronics, Ministry of Education, and Beijing Advanced Innovation Center for Imaging Theory and Technology, Department of Physics, Capital Normal University, Beijing 100048, China
2
Shandong Provincial Engineering and Technical Center of Light Manipulations & Shandong Provincial Key Laboratory of Optics and Photonic Device, School of Physics and Electronics, Shandong Normal University, Jinan 250358, China
*
Author to whom correspondence should be addressed.

Abstract

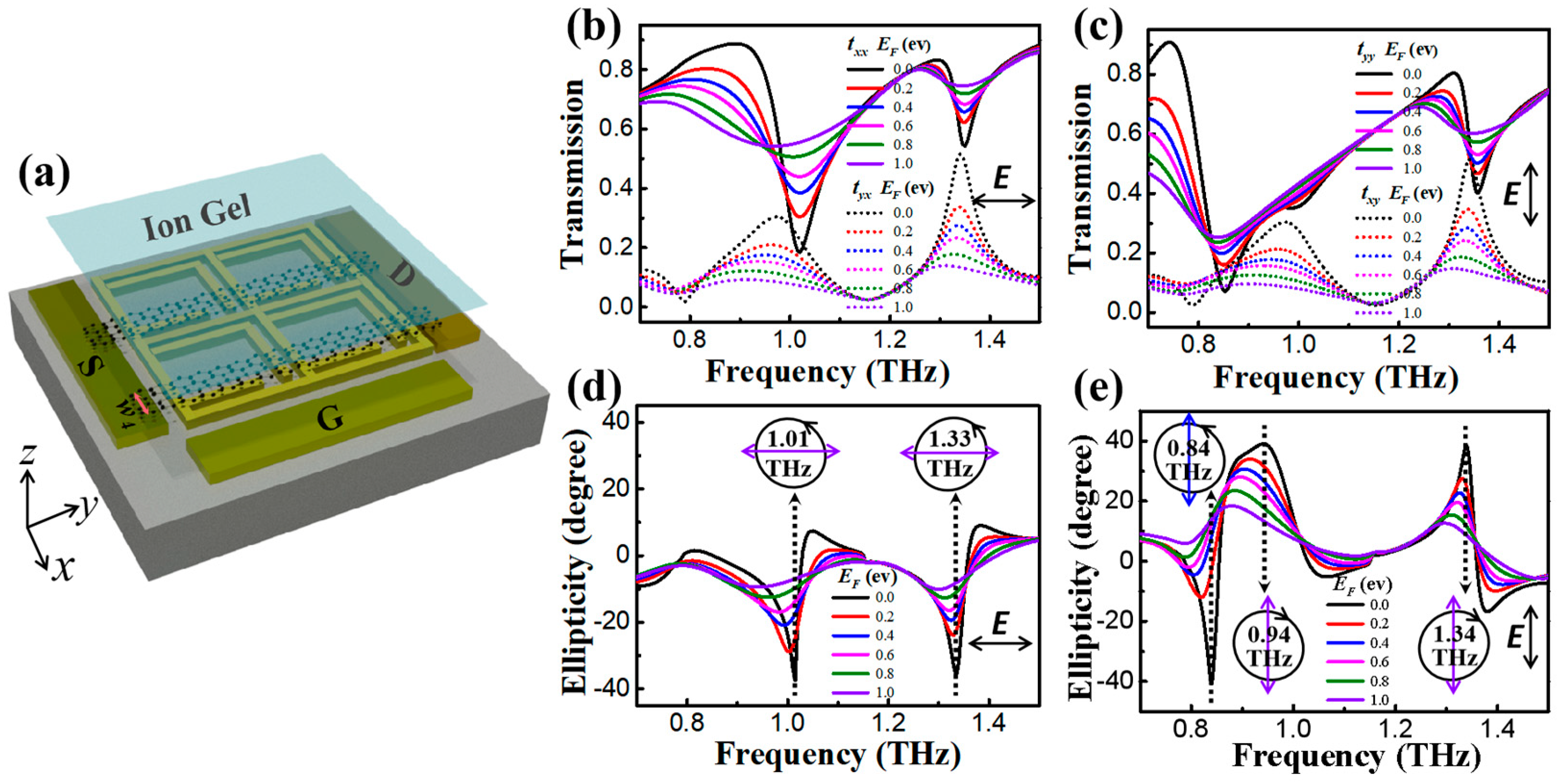

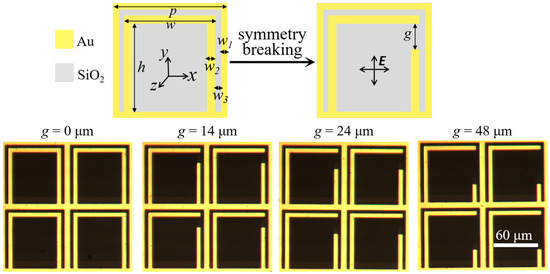

We numerically and experimentally demonstrate a terahertz metadevice consisting of split-ring resonators (SRRs) present within square metallic rings. This device can function as a dual-band polarization converter by breaking the symmetry of SRRs. Under x-polarized incidence, the metastructure is able to convert linearly polarized (LP) light into a left-hand circular-polarized (LCP) wave. Intriguingly, under y-polarized incidence, frequency-dependent conversion from LP to LCP and right-hand circular-polarized (RCP) states can be achieved at different frequencies. Furthermore, reconfigurable LCP-to-LP and RCP-to-LP switching can be simulated by integrating the device with patterned graphene and changing its Fermi energy. This dual-band and multi-state polarization control provides an alternative solution to developing compact and multifunctional components in the terahertz regime.
