Thermodynamic and Experimental Studies on Al Addition of 253MA Steel

,
,
and
1
Key Laboratory of Extraordinary Bond Engineering and Advanced Materials Technology, Yangtze Normal University, Chongqing 408000, China
2
School of Metallurgy and Environment, Central South University, Changsha 410083, China
3
Key Laboratory of Ecological Utilization of Multi-Metallic Mineral of Education Ministry, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Refining and Casting of Steel

Abstract

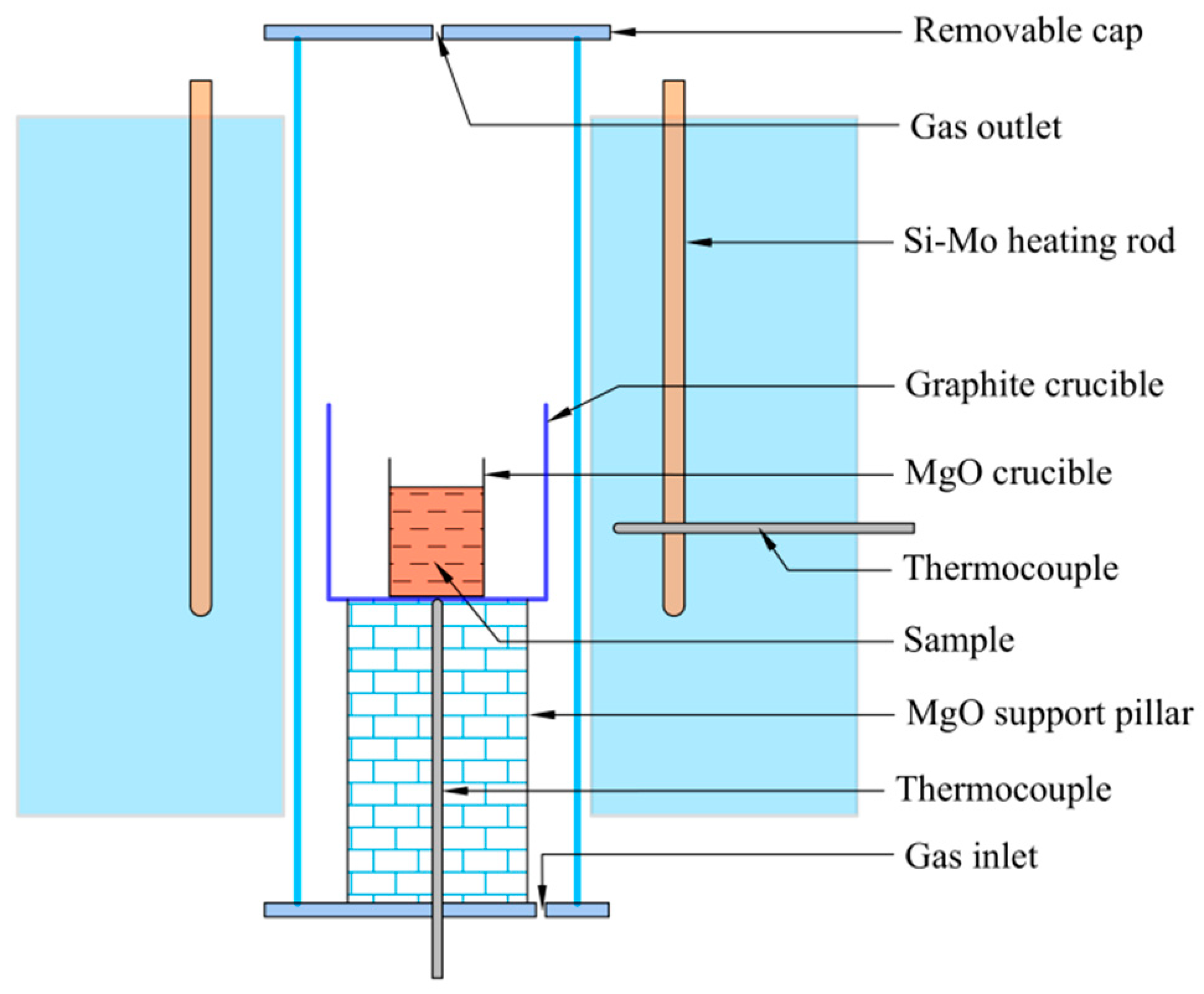

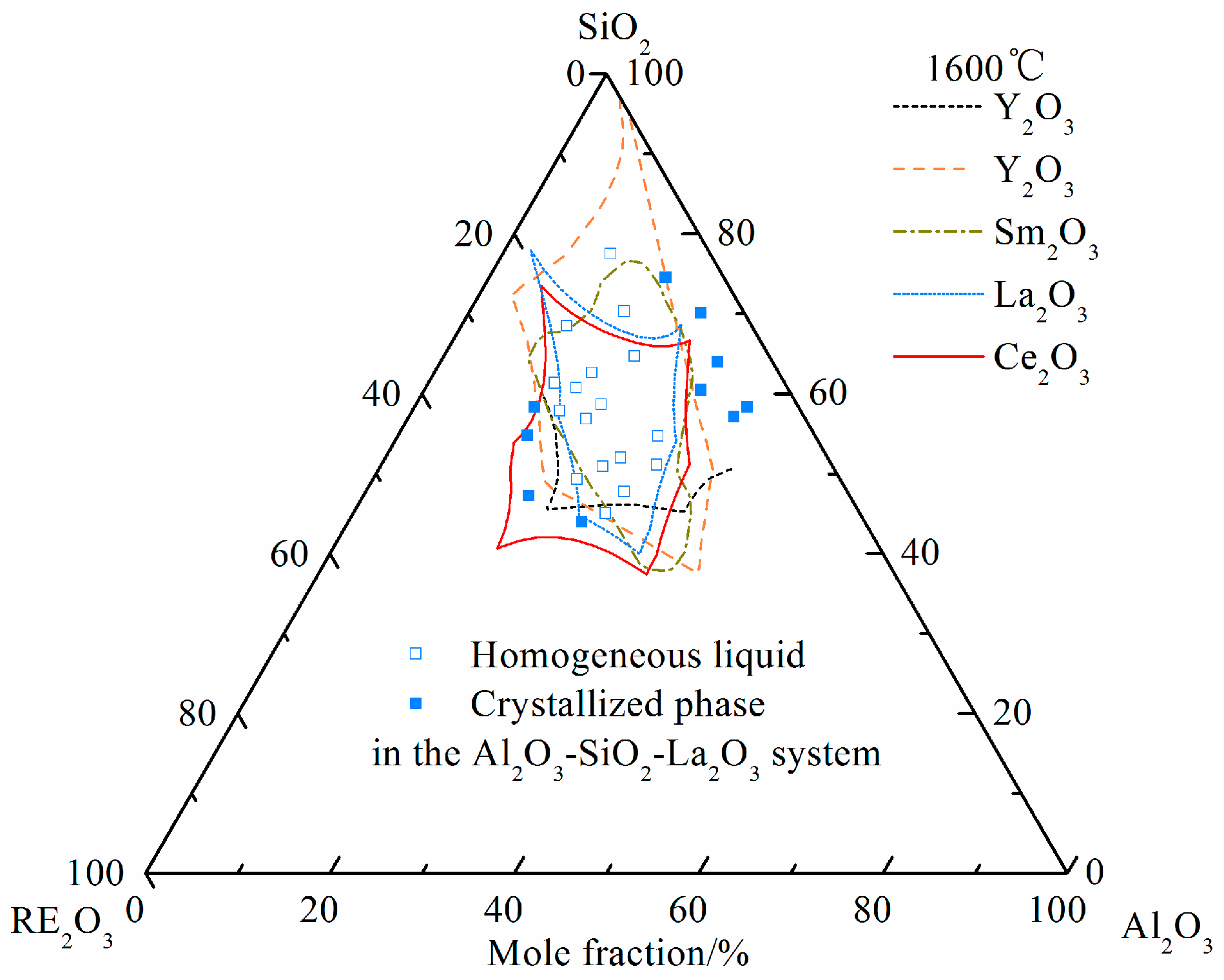

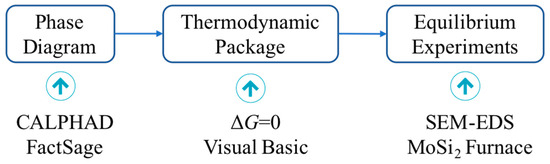

To solve the nozzle clogging issue in the continuous casting process of 253MA steel, a method of modifying solid inclusions to liquid phases is proposed. The CALPHAD technique was employed to predict the liquid region of the Al2O3-SiO2-Ce2O3 system. Then a thermodynamic package based on the extracted data during the phase diagram optimization process was developed. This package was then used to compute the appropriate aluminum addition, which was 0.01% in 253MA steel. The Si-Al alloy was chosen as the deoxidant according to the thermodynamic analysis. The solid inclusions were ultimately modified to liquid phases at 1500 °C when cerium was added through the equilibrium experiments in a MoSi2 tube furnace.
