30 March 2019

10 Pages

The Effect of Titanium Carbonitride on the Viscosity of High-Titanium-Type Blast Furnace Slag

,
,
,
and
1
College of Materials Science and Engineering, Chongqing University, Chongqing 400045, China
2
State Key Laboratory of Vanadium and Titanium Resources Comprehensive Utilization, Pangang Group Research Institute Co., Ltd., Panzhihua 617000, China
3
Chongqing Key Laboratory of Vanadium-Titanium Metallurgy and Advanced Materials, Chongqing University, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Advances in Pyrometallurgy

Abstract

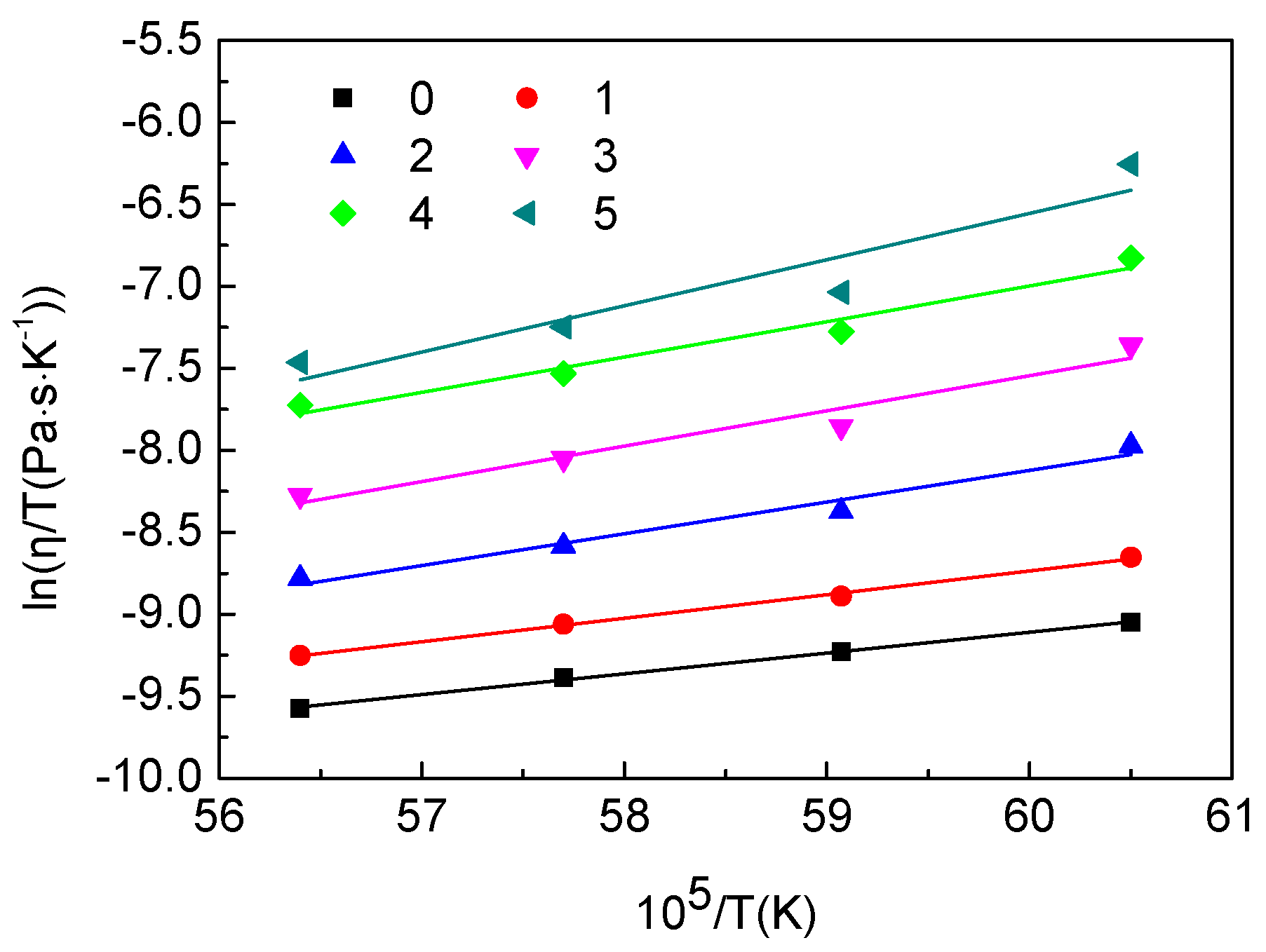

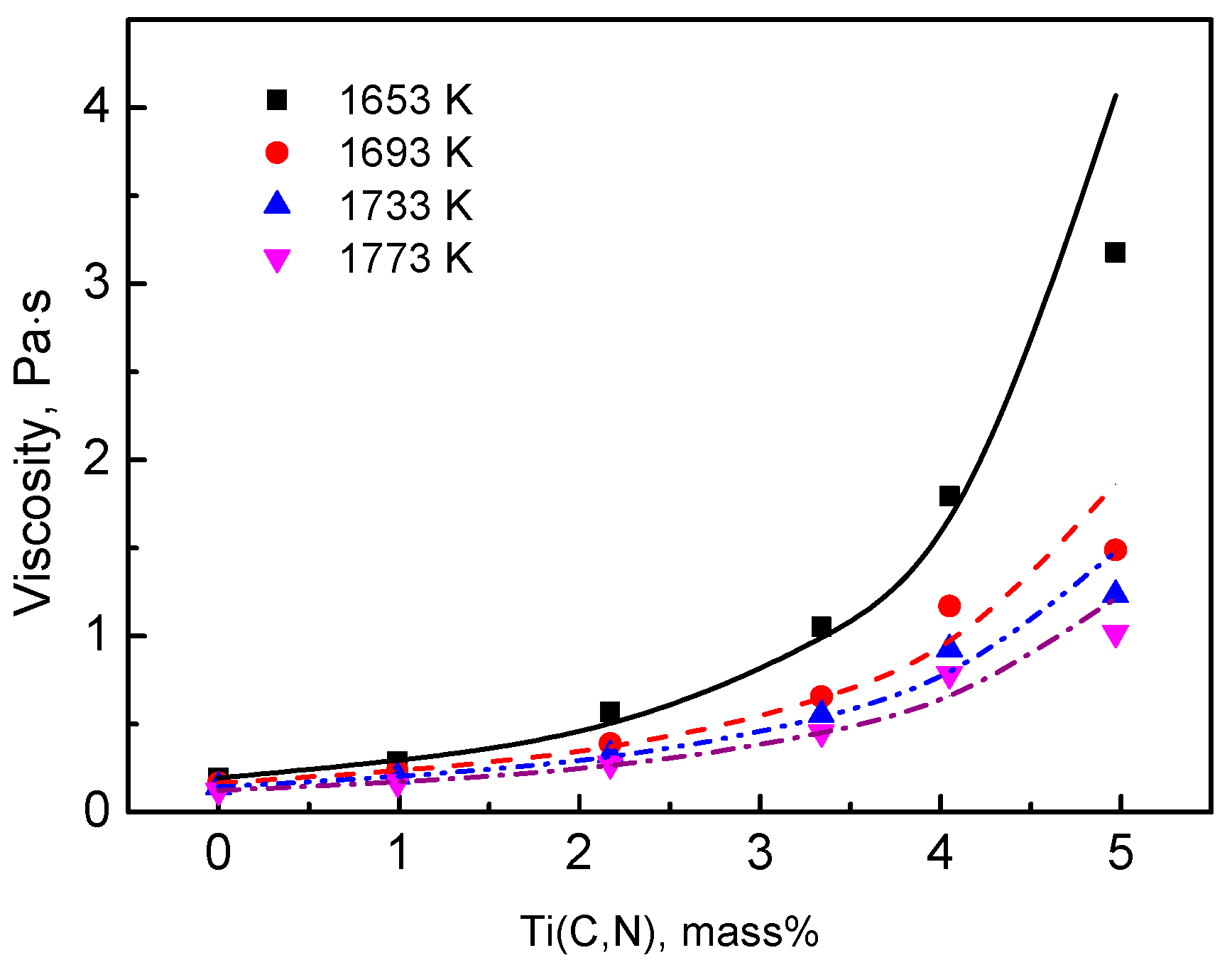

In this paper, the effect of titanium carbonitride (Ti(C,N)) on the viscosity of high-titanium-type blast furnace slags was investigated. The different Ti(C,N) contents were achieved by adjusting the reduction degree of TiO2 to reflect the real characteristics of the high-titanium slag. The results show that the viscosity of the slag increased with the increasing Ti(C,N) content and decreased with the rising temperature. A deviation between the measured and the fitted viscosity appeared as the content of the Ti(C,N) was beyond 4 wt%. Furthermore, the apparent viscous flow activation energy of the slag ranged from 106.13 kJ/mol to 235.46 kJ/mol by varying the Ti(C,N) contents from 0 wt% to 4.97 wt%, which was evidently different from the results of previous studies. The optical microscope and energy dispersive X-ray spectroscopy (EDS) analysis show that numerous bubble cavities were embedded in the slags and the Ti(C,N) particles agglomerated in the solidified samples. This phenomenon further indicates that the high-titanium slag is a polyphase dispersion system, which consists of liquid slag, solid Ti(C,N) particles and bubbles.
