Enhancement of Leaching Copper from Printed Circuit Boards of Discarded Mobile Phones Using Ultrasound–Ozone Integrated Approach

,
,
,
,
,
,
,
and
1
Faculty of Chemistry, TNU-University of Sciences, Thai Nguyen City 25000, Vietnam
2
Faculty of Chemical and Environmental Technology, Hung Yen University of Technology and Education, Khoai Chau District, Hung Yen 17817, Vietnam
3
Faculty of Basic Sciences, TNU-University of Medicine and Pharmacy, Thai Nguyen City 25000, Vietnam
4
NTT Institute of Applied Technology and Sustainable Development, Nguyen Tat Thanh University, Ho Chi Minh City 70000, Vietnam

Abstract

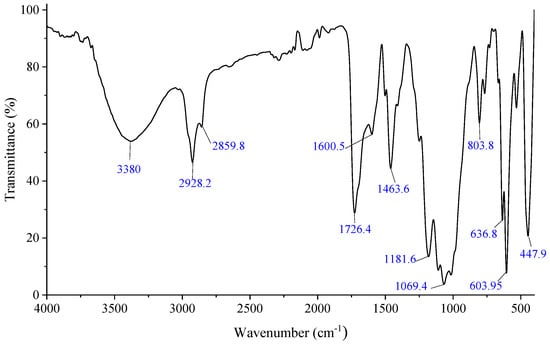

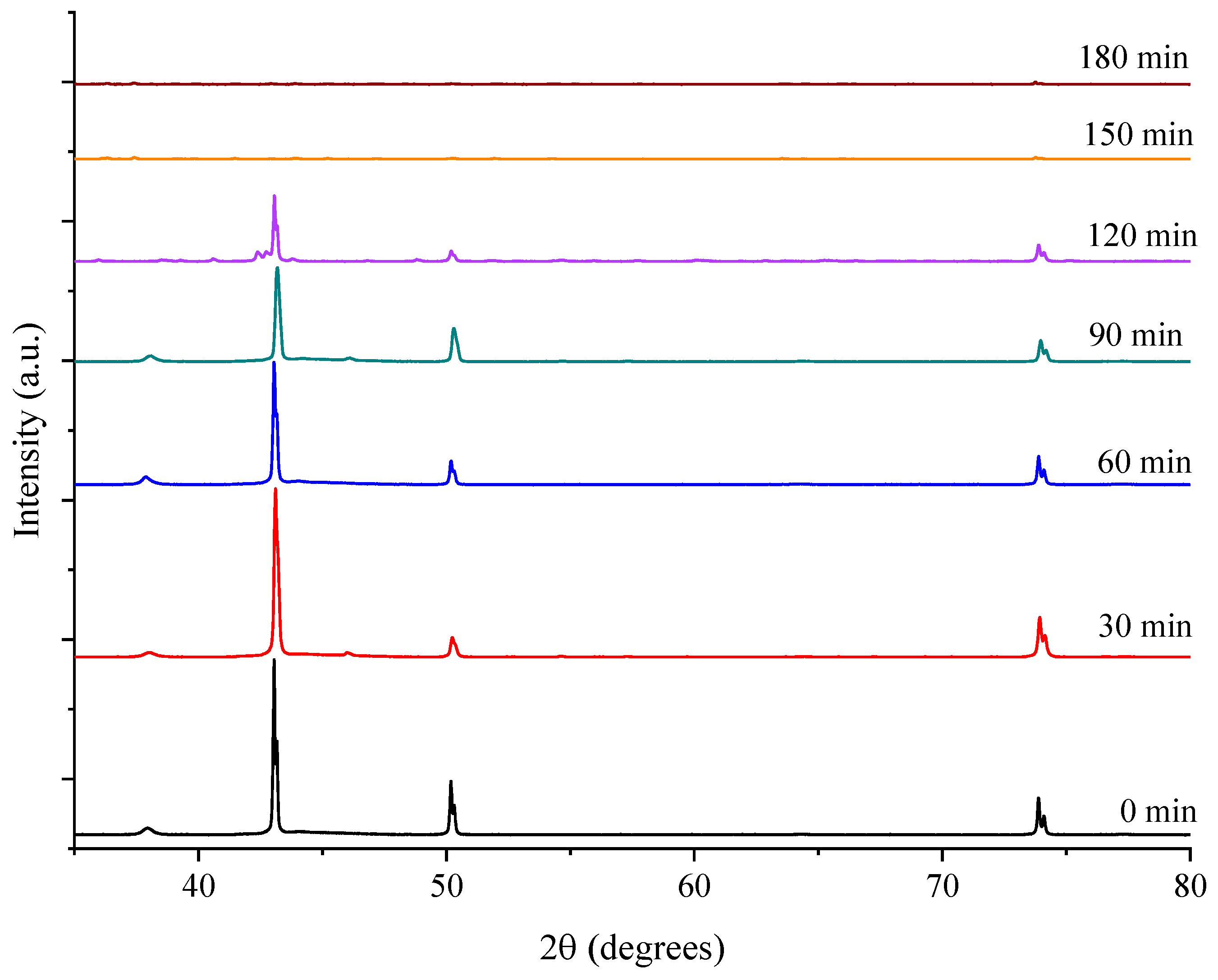

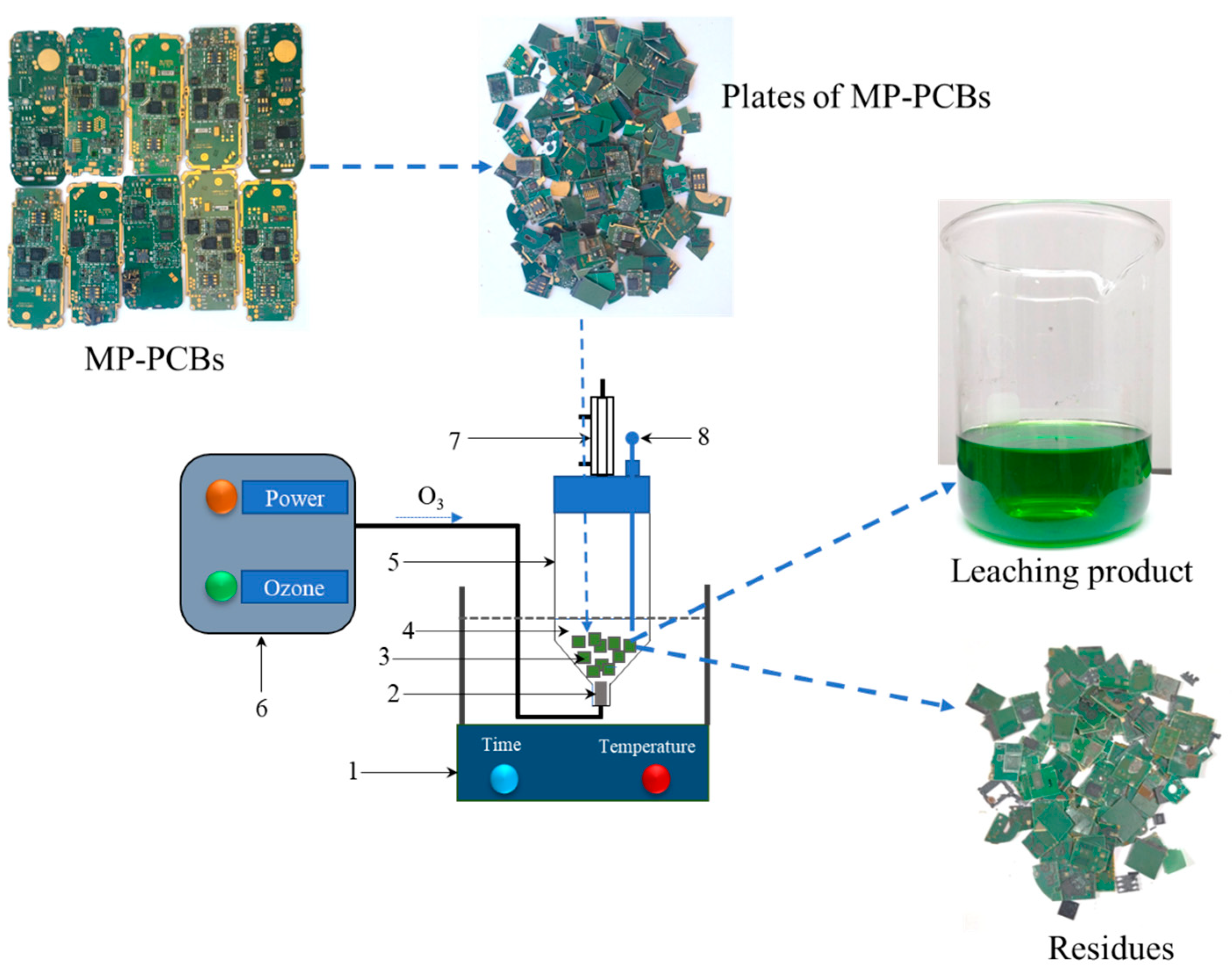

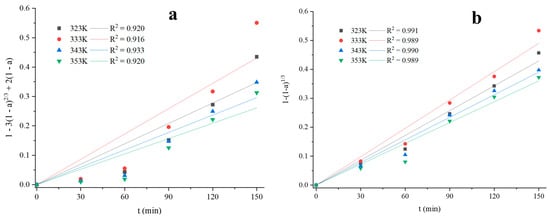

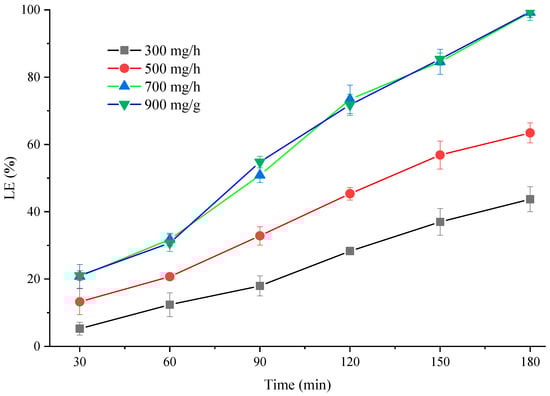

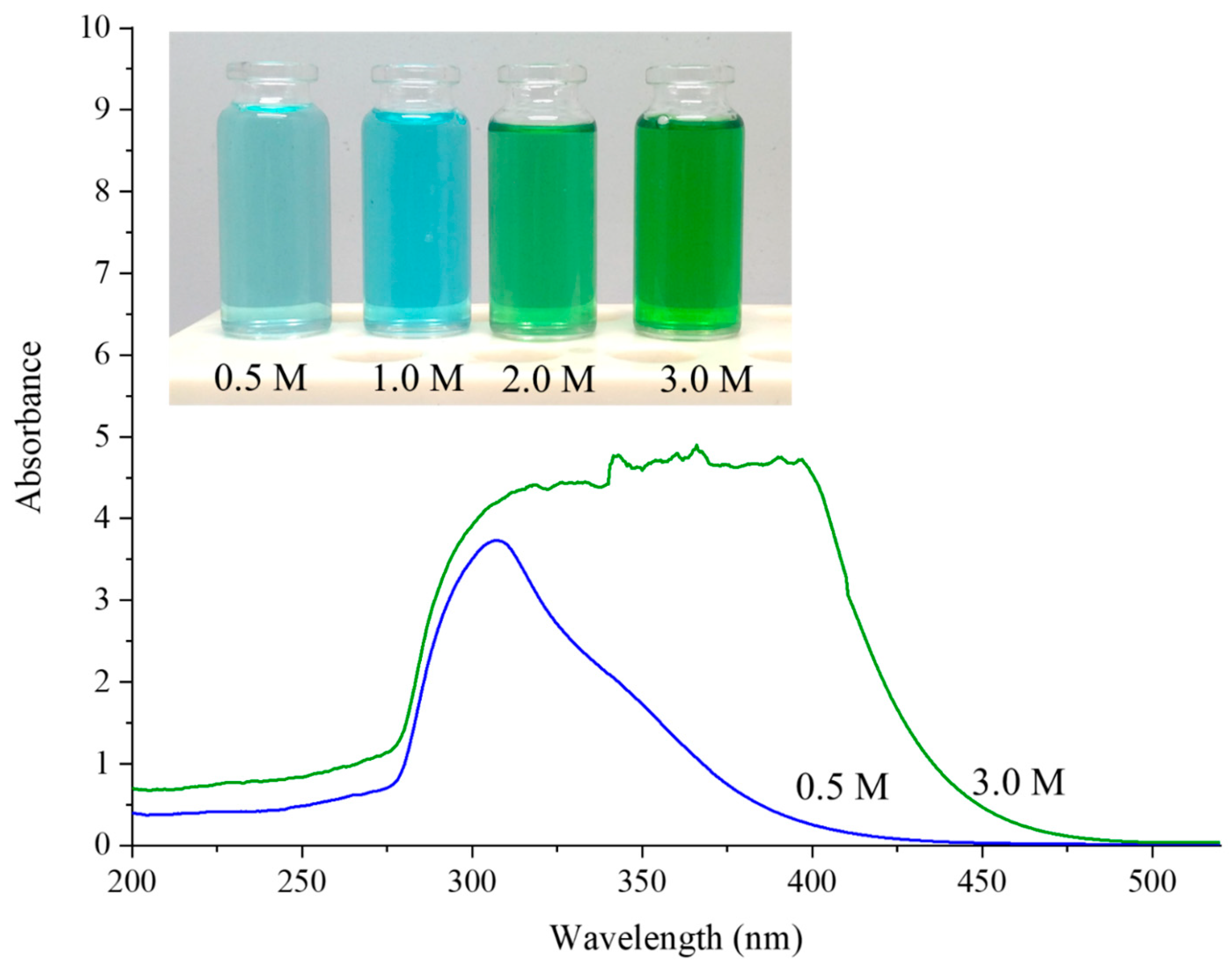

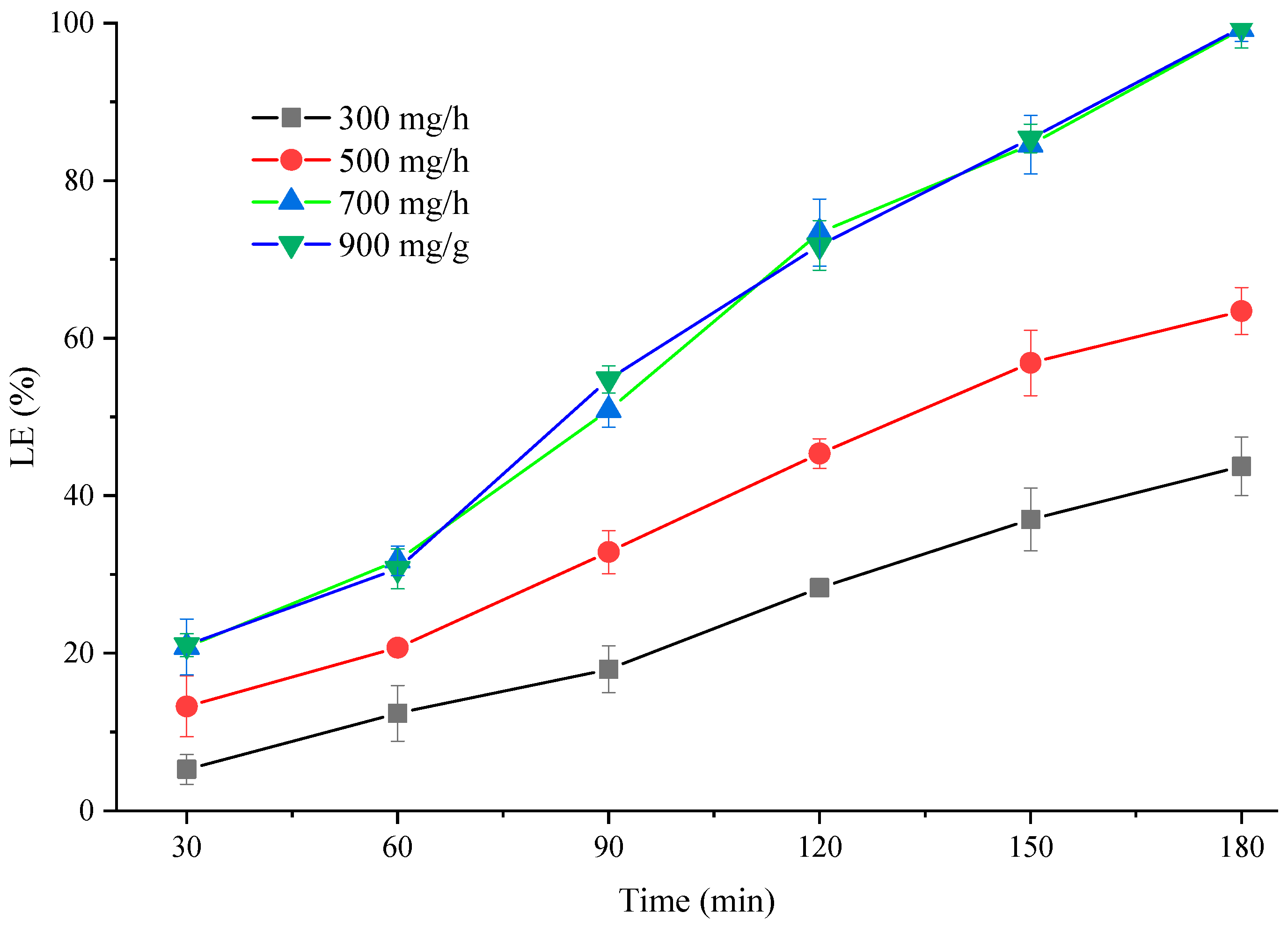

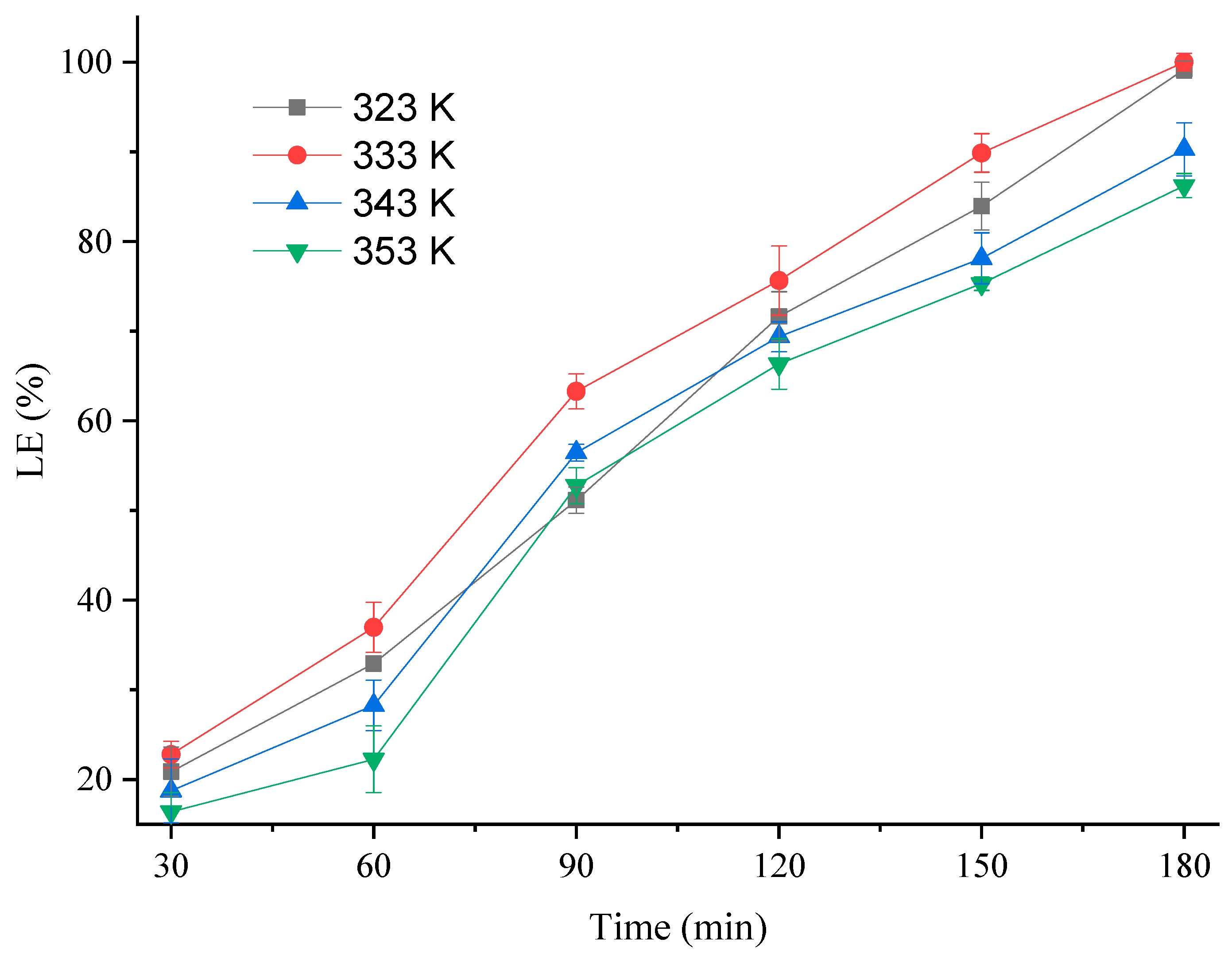

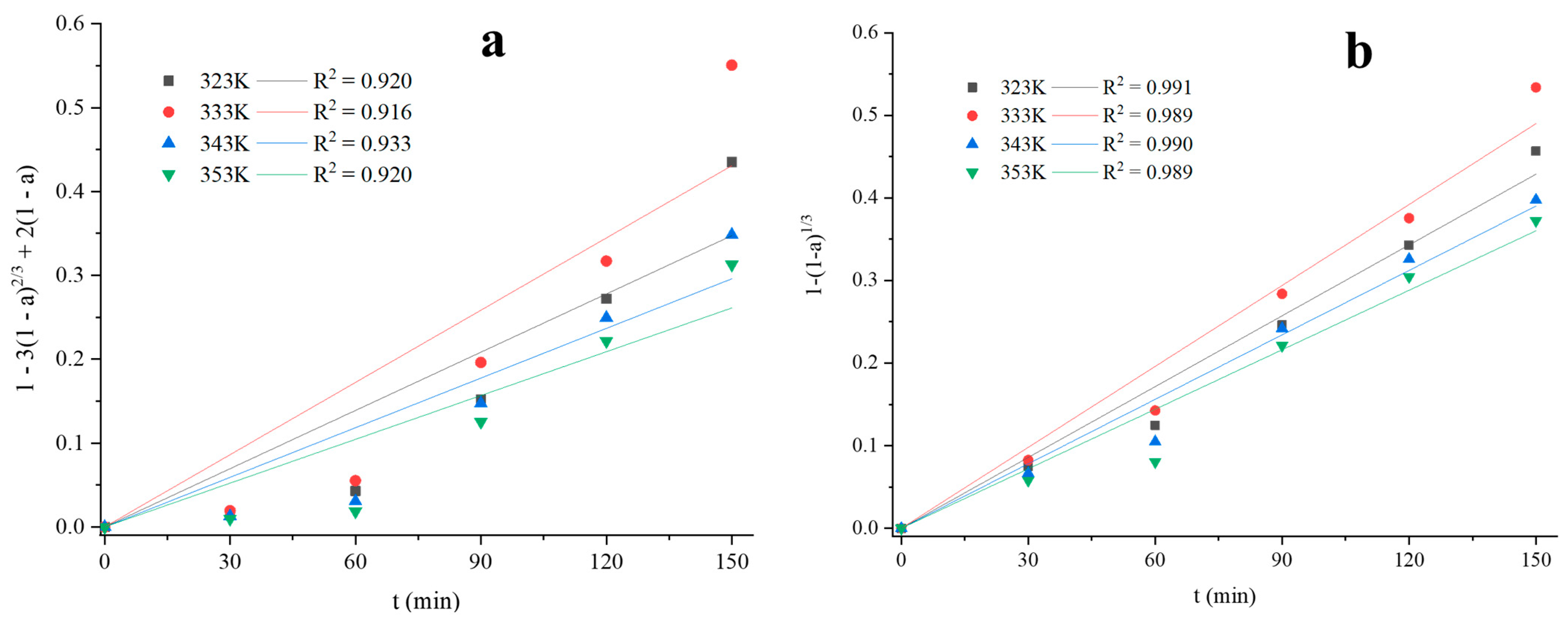

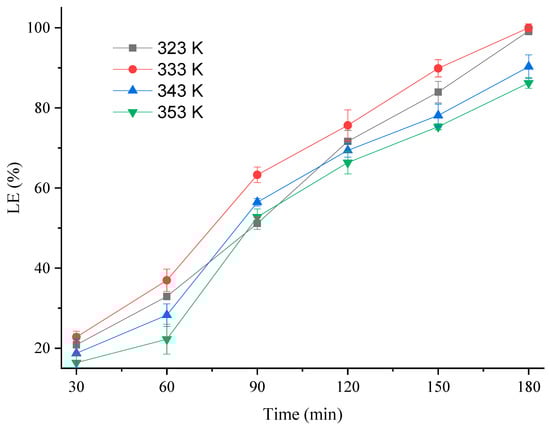

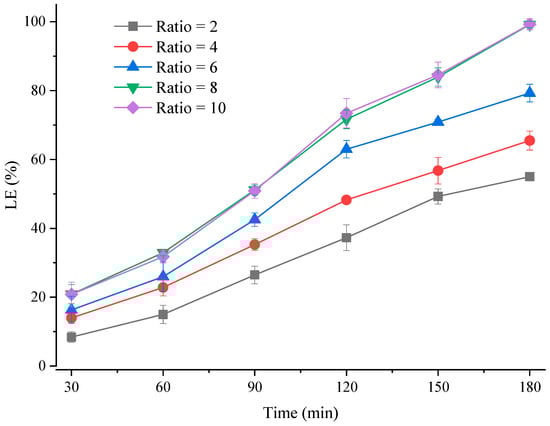

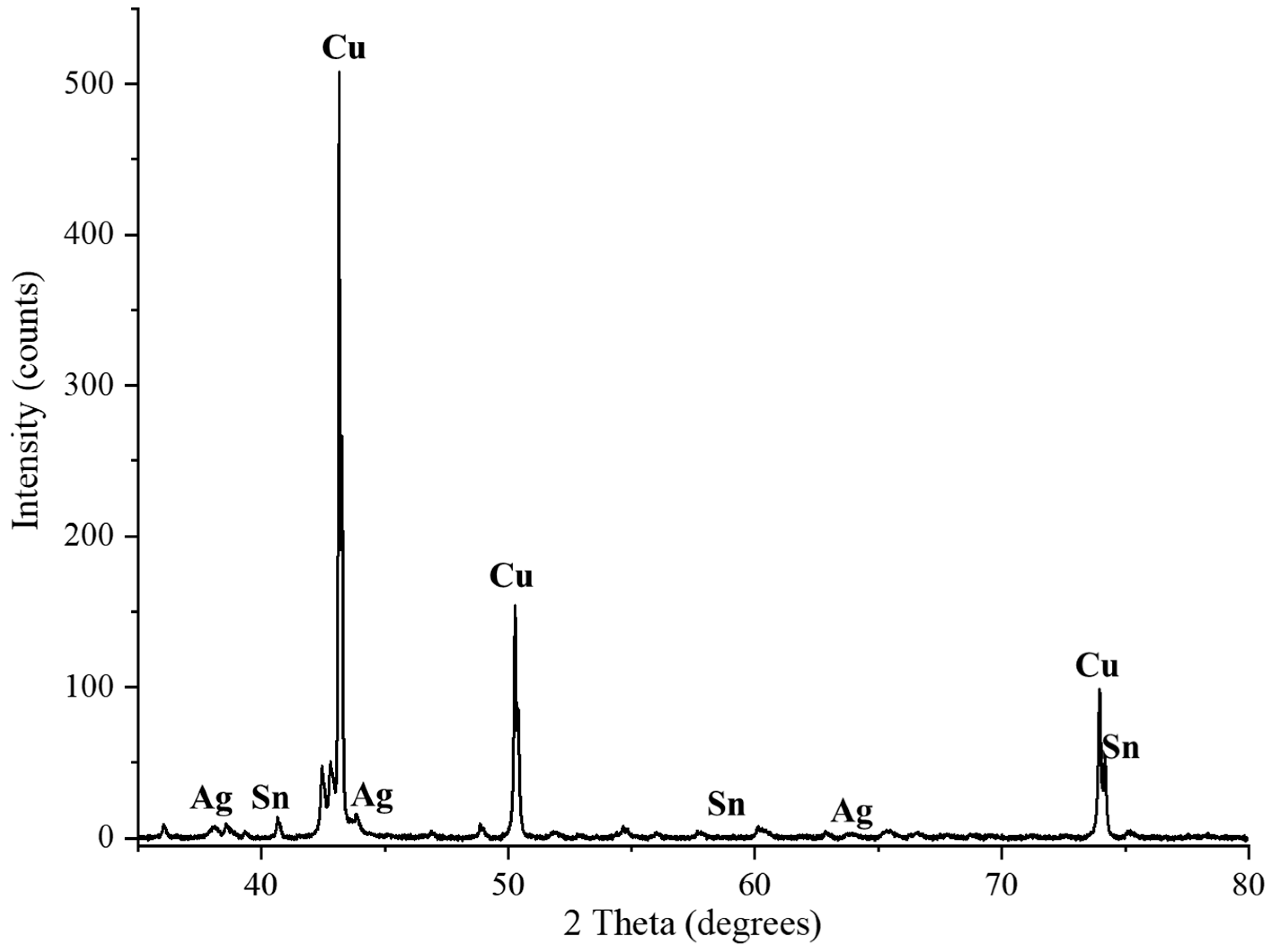

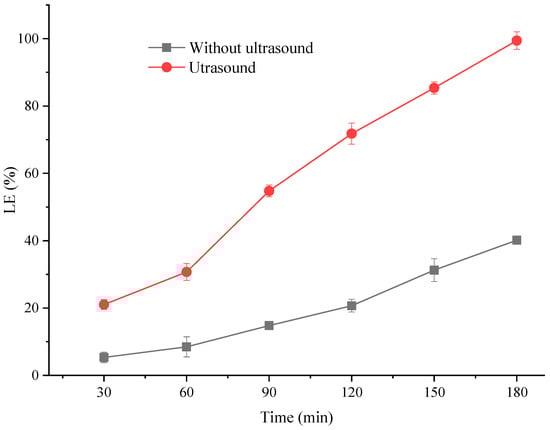

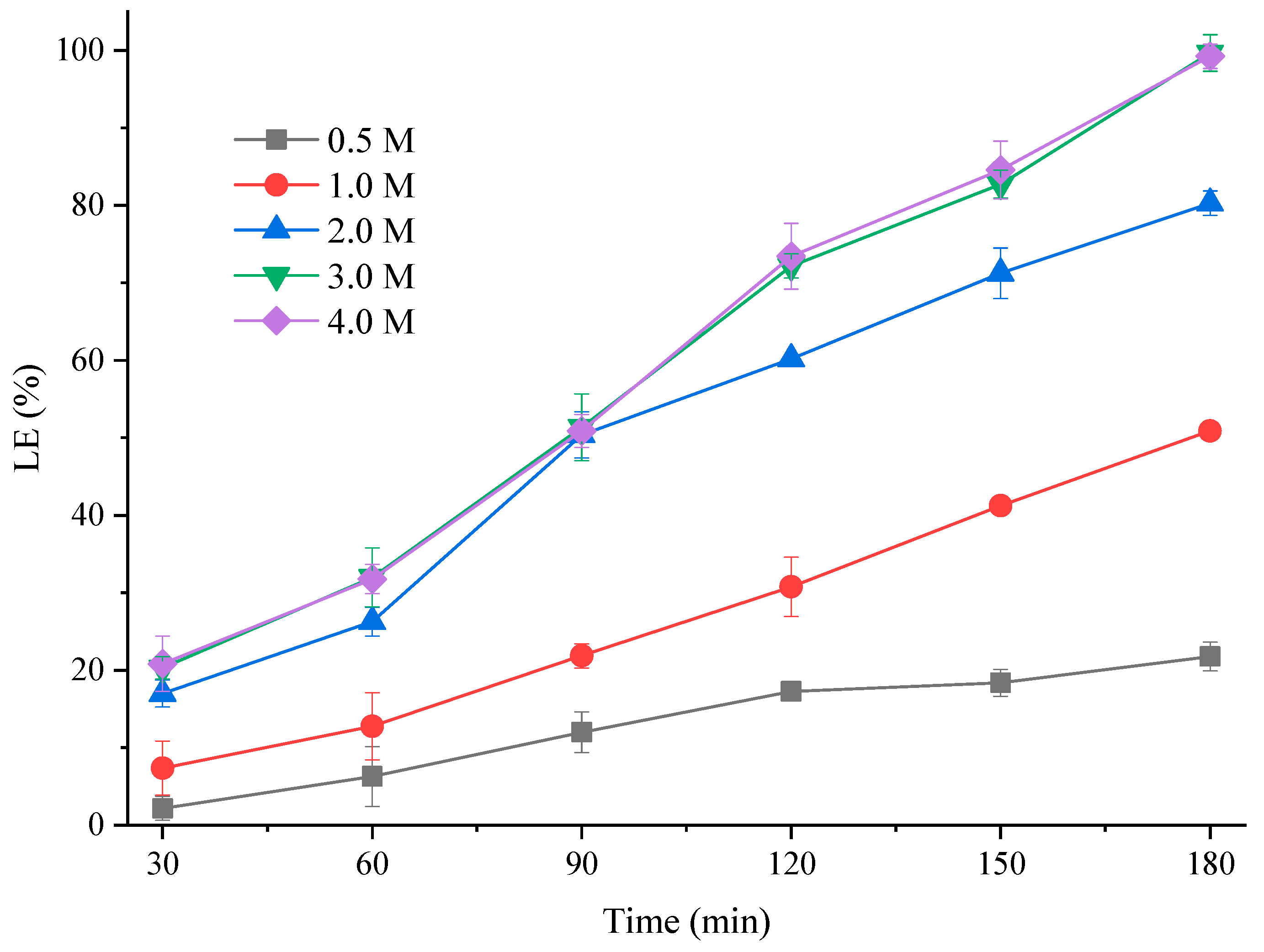

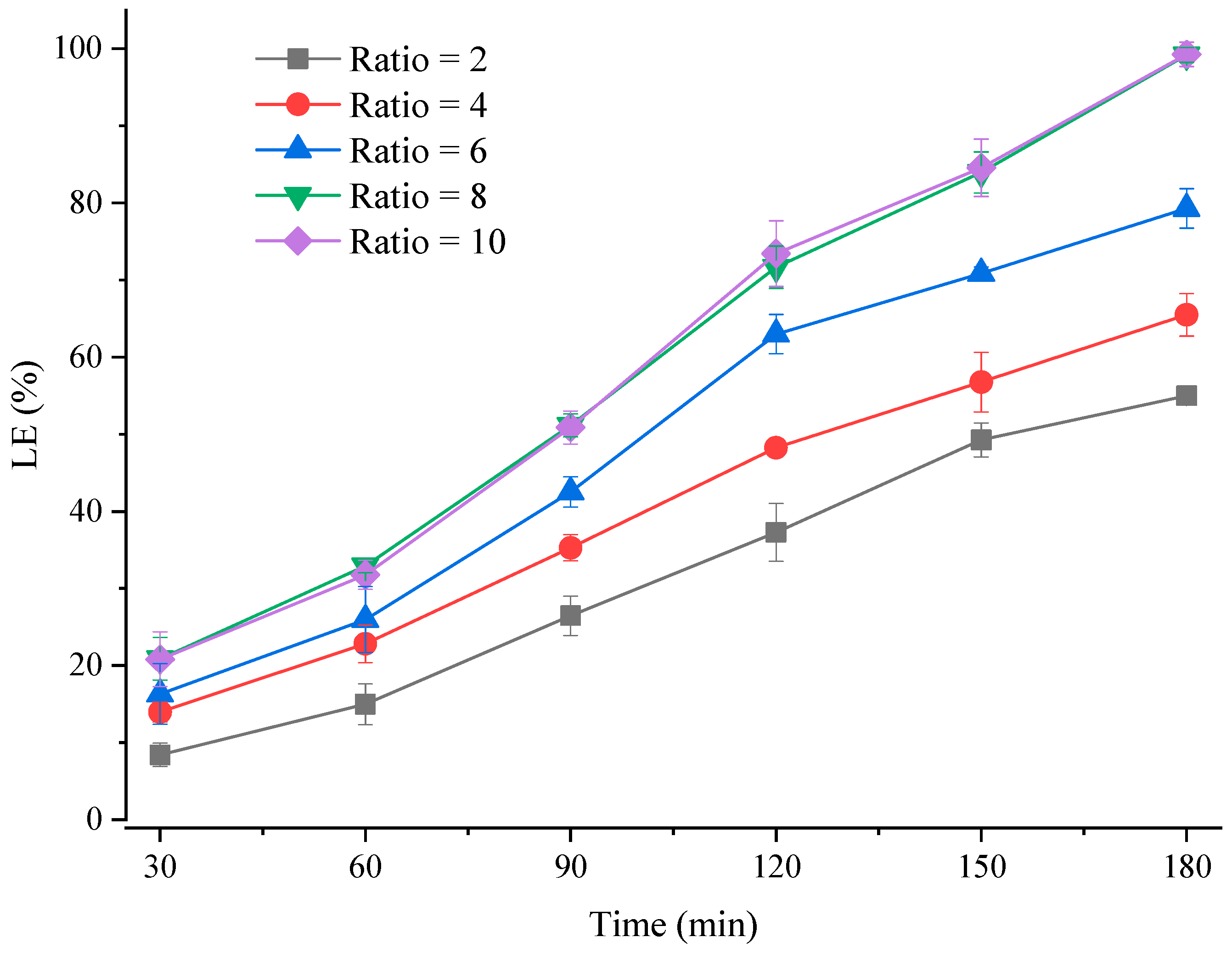

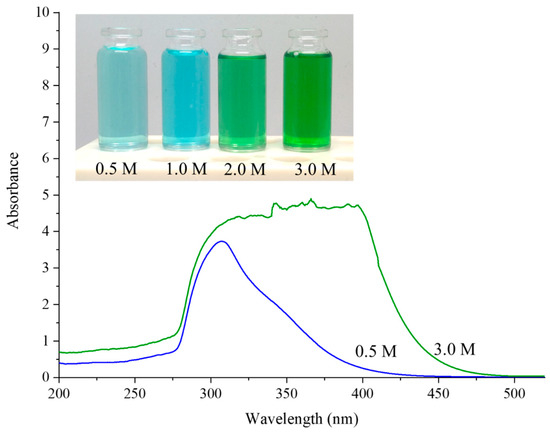

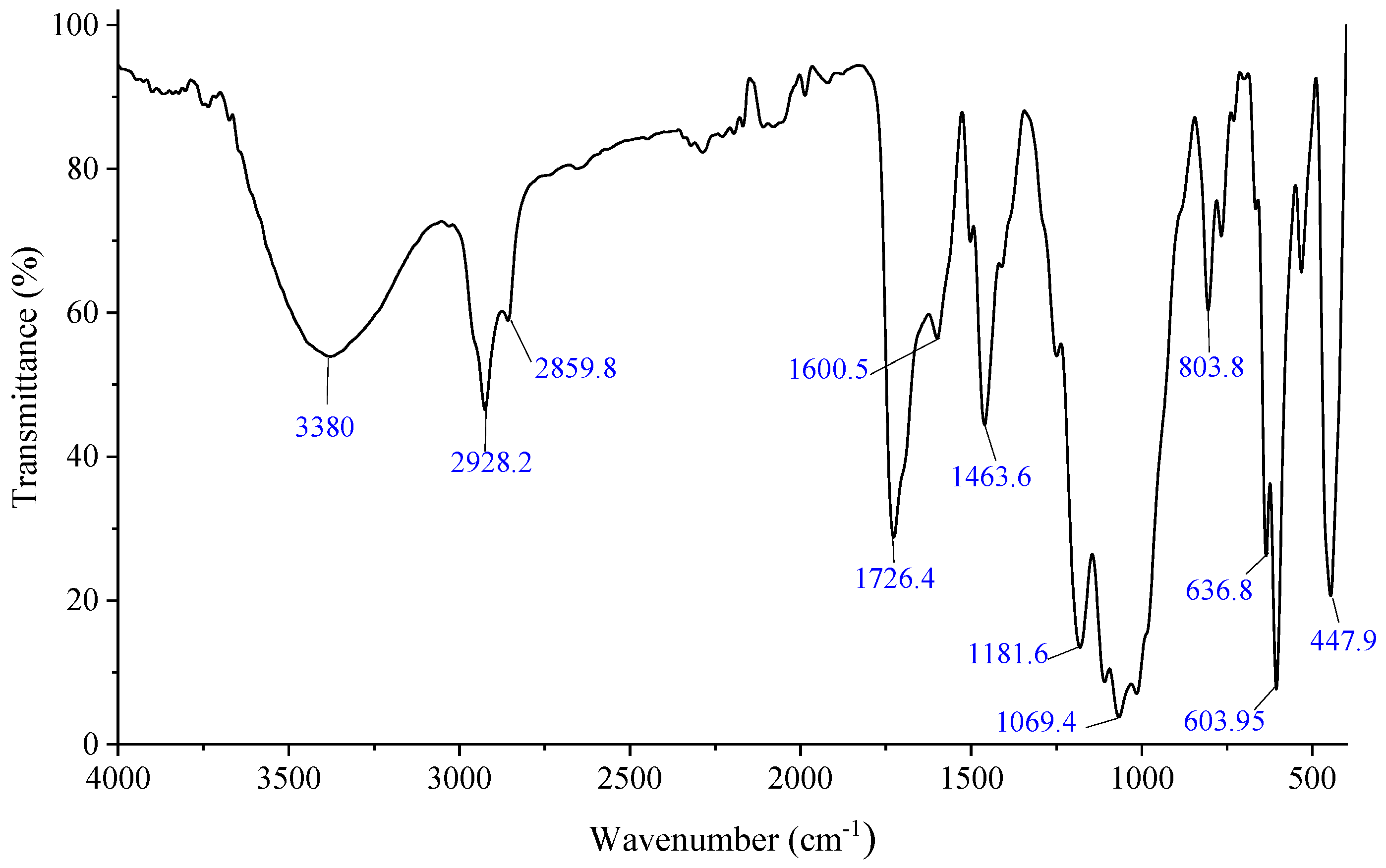

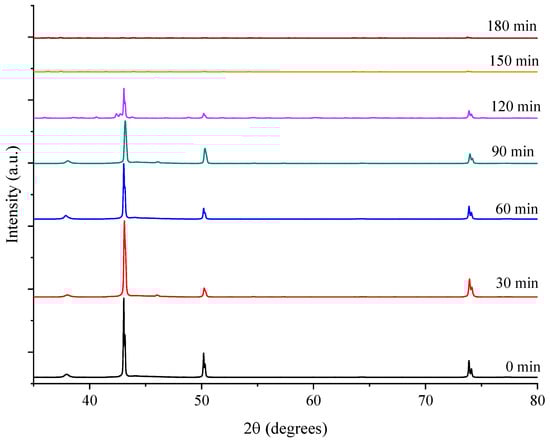

The recovery of metals from discarded mobile phones has been of interest due to its environmental and economic benefits. This work presents a simple and effective approach for leaching copper (Cu) from the printed circuit boards of discarded mobile phones by combining ultrasound and ozone approaches. The X-ray diffraction (XRD) technique and Fourier-transform infrared spectroscopy (FT-IR) were used to characterize the solid phases, and inductively coupled plasma optical emission spectrometry (ICP-OES) was utilized to determine the concentration of metals in the liquid phases. The effects of several influential parameters, including ultrasound, ozone dose, HCl concentration, liquid/solid ratio, temperature, and reaction time on the leaching efficiency were investigated. The results showed that the optimal conditions for Cu leaching included an ozone dose of 700 mg/h, HCl concentration of 3.0 M, liquid/solid ratio of 8, and temperature of 333 K. Under optimal conditions, about 99% of Cu was leached after 180 min. The shrinking core model was used to analyze the kinetics of the Cu leaching process, and the results showed that the surface chemical reaction governs this process. The activation energy of the leaching reaction, calculated using Two-Point form of the Arrhenius equation, was 10.852 kJ mol−1.
