# A Numerical Approach to Characterize the Efficiency of Cyclone Separator

^{1}

^{2}

^{*}

## Abstract

**:**

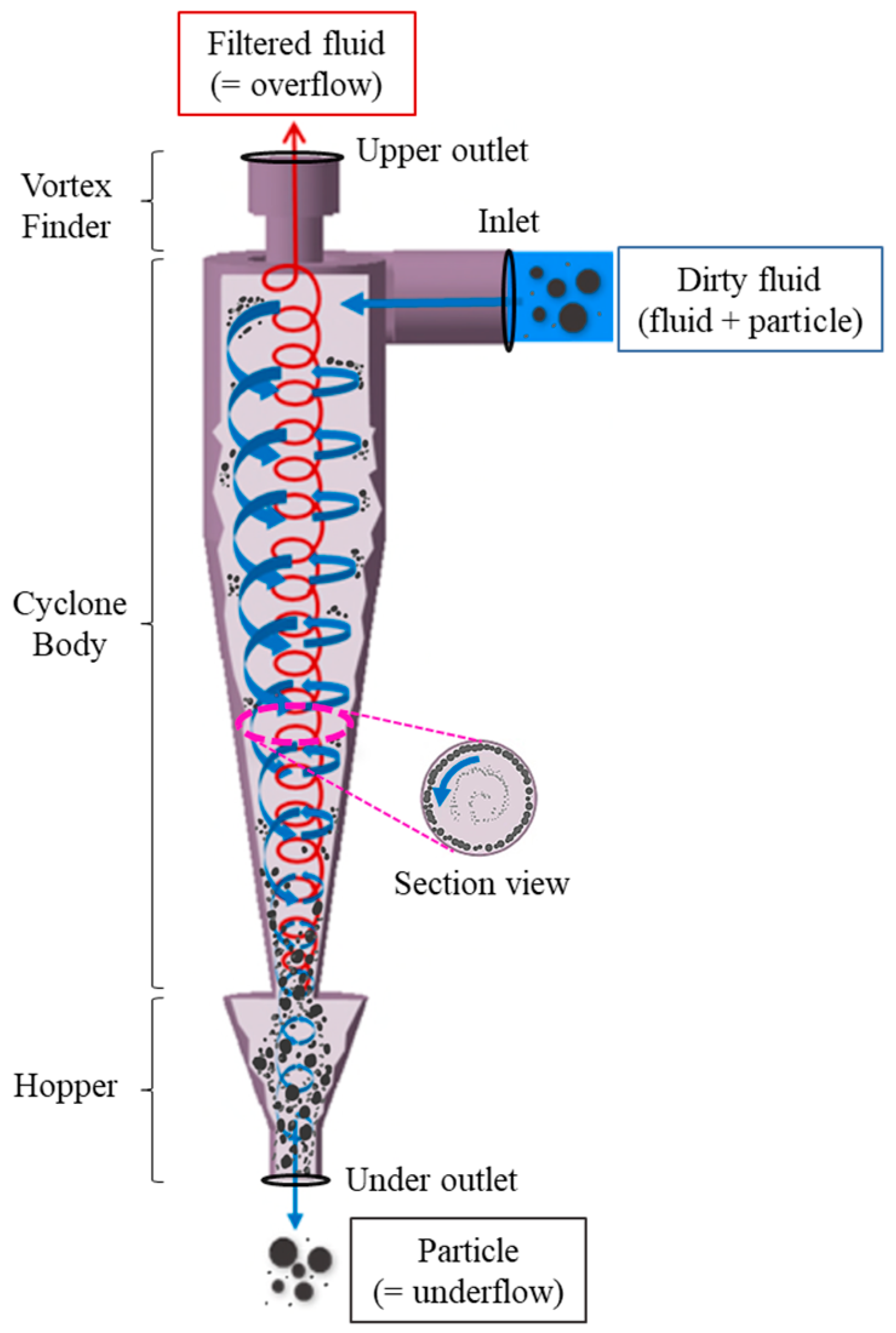

## 1. Introduction

## 2. Governing Equations of the Multiphase CFD Model

#### 2.1. Navier Stokes Equation

#### 2.2. Turbulence Model

#### 2.3. Discrete Phase Model

## 3. Numerical Approach to Multiphase Flow Cyclone

#### 3.1. Cyclone CFD Model

#### 3.2. Grid Generation

#### 3.3. Boundary Conditions and Numerical Settings

^{3}) was used as the injection fluid (density: 998.2 kg/m

^{3}, viscosity: 2.7 cSt). For the boundary conditions, the inlet velocity of the fluid was 2.15 m/s and the outlet pressure in the atmospheric conditions was 1 atm, which was applied equally to each model. The Reynolds number of the continuous phase used in the simulation was 5.9 × 10

^{4}. To confirm the performance of the cyclone filter according to particle size, particles of various sizes (10, 15, 20, and 25 µm) were mixed and then injected. The volume fraction of the dispersed phase was considered to be 5% (case 1), and 0.5% (case 2) of the total. Case 1 verified the numerical method of the liquid–solid cyclones and Case 2 compared the cyclone performance according to the change in shape. As the wall roughness directly influences the filter efficiency, an equal value of 3.2 µm was used in the experiment. Table 3 lists the boundary conditions used for the analysis.

^{−3}and the main variables (inlet pressure and outlet flow rate) had a constant value for a period of time. While solving, as the first step, the initial conditions were considered only for the fluid flow. As the second step, particle tracking of various sizes was performed based on the fluid flow.

## 4. Results and Validation

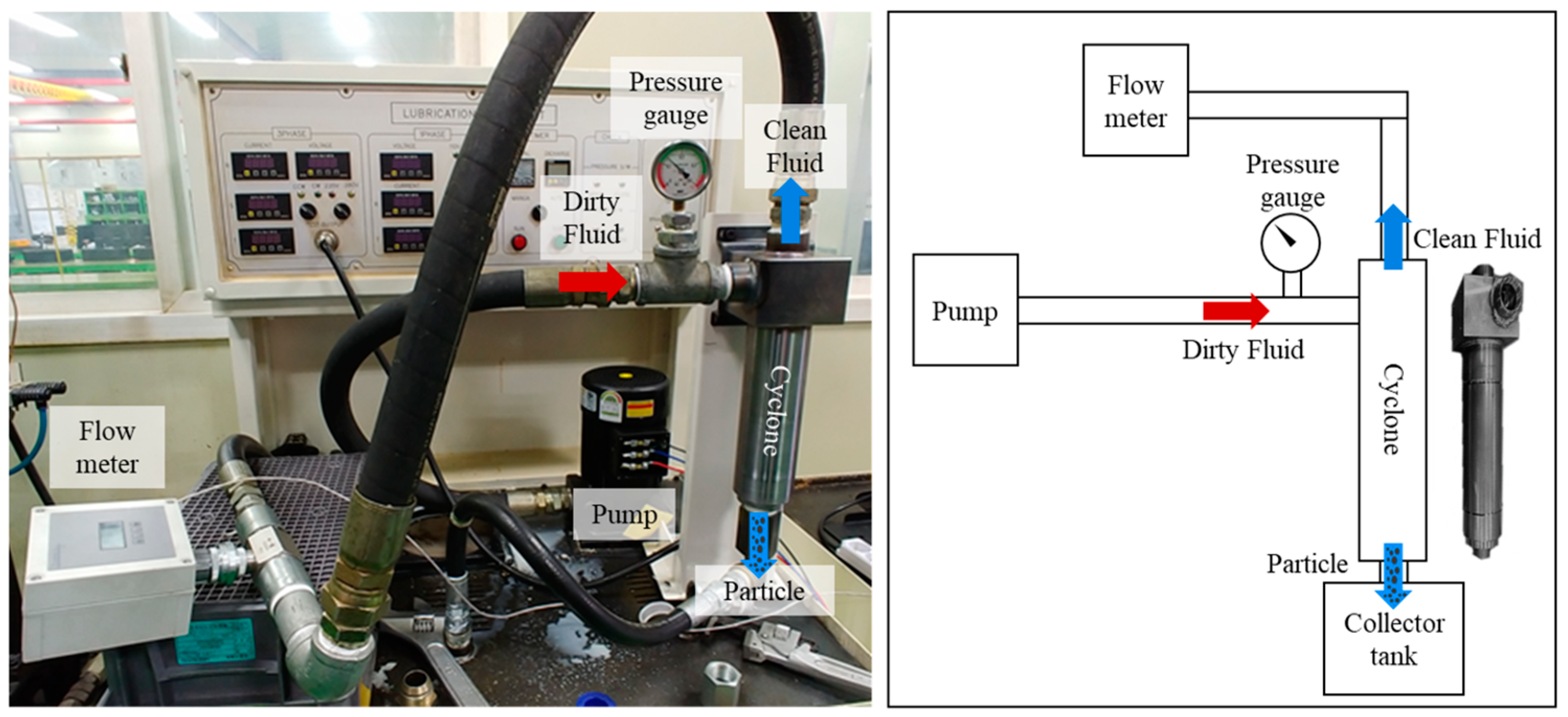

#### 4.1. Experiment Set Up

#### 4.2. Simulation Results and Discussion

#### 4.3. Comparison of CFD and Experiment

## 5. Analysis of Comparative Study Results

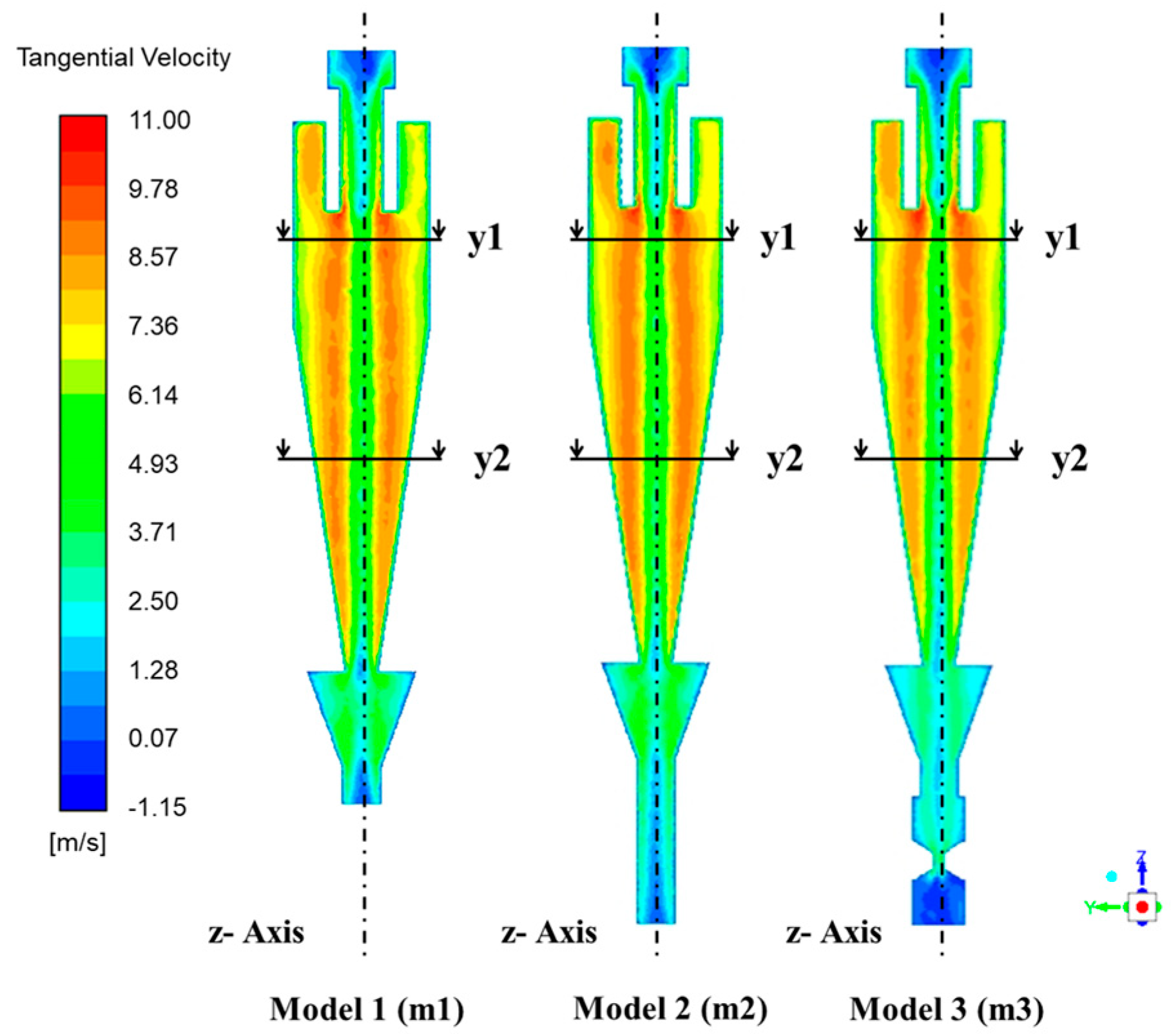

#### 5.1. Tangential Velocity

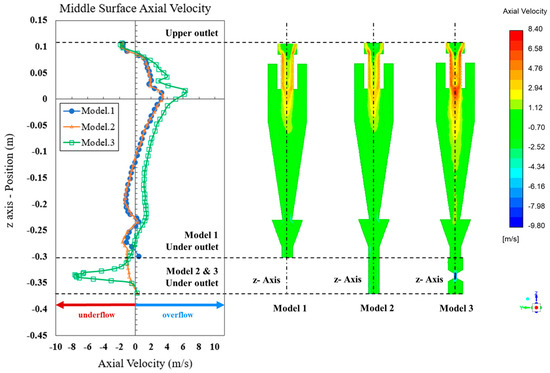

#### 5.2. Axial Velocity

#### 5.3. Cyclone Performance

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

$u$ | Instantaneous velocity of fluid. |

$\stackrel{-}{{u}_{i}}$ | Average velocity of fluid. |

${{u}_{i}}^{\prime}$ | Fluctuating component of velocity. |

${x}_{i}$ | Spatial position. |

$\stackrel{-}{p}$ | Average pressure of fluid. |

$\rho $ | Fluid density. |

$\mu $ | Fluid absolute dynamic viscosity. |

$-\rho \stackrel{-}{{{u}_{i}}^{\prime}}\stackrel{-}{{{u}_{j}}^{\prime}}$ | Reynolds stress tensor. |

${D}_{T,ij}$ | Turbulence diffusion. |

${P}_{ij}$ | Stress production. |

${\varphi}_{ij}$ | Pressure strain. |

${\epsilon}_{ij}$ | Dissipation term. |

${F}_{ij}$ | Rotation production. |

${u}_{p}$ | Velocity of particles. |

${F}_{D}$ | Drag force. |

${\rho}_{p}$ | Density of particles. |

${g}_{i}$ | Gravitational acceleration |

${F}_{s}$ | Corresponds to the additional forces. |

## References

- Park, D.; Go, J.S. Design of Cyclone Separator Critical Diameter Model Based on Machine Learning and CFD. Processes
**2020**, 8, 1521. [Google Scholar] [CrossRef] - Shukla, S.K.; Shukla, P.; Ghosh, P. The effect of modeling of velocity fluctuations on prediction of collection efficiency of cyclone separators. Appl. Math. Model.
**2013**, 37, 5774–5789. [Google Scholar] [CrossRef] - Karr, C.L.; Stanley, D.A.; McWhorter, B. Optimization of hydrocyclone operation using a geno-fuzzy algorithm. Comput. Methods Appl. Mech. Eng.
**2000**, 186, 517–530. [Google Scholar] [CrossRef] - Pishbin, S.I.; Moghiman, M. Optimization of Cyclone Separators Genetic Algorithm. Int. Rev. Chem. Eng. (I.RE.CH.E.)
**2010**, 2, 683–691. [Google Scholar] [CrossRef] [Green Version] - Karagoz, I.; Avci, A. Modelling of the Pressure Drop in Tangential Inlet Cyclone Separators. Aerosol Sci. Technol.
**2005**, 39, 857–865. [Google Scholar] [CrossRef] - Azadi, M.; Azadi, M.; Mohebbi, A. A CFD study of the effect of cyclone size on its performance parameters. J. Hazard. Mater.
**2010**, 182, 835–841. [Google Scholar] [CrossRef] [PubMed] - Singh, P.; Couckuyt, I.; Elsayed, K.; Deschrijver, D. Shape optimization of a cyclone separator using multi-objective surrogate-based optimization. Appl. Math. Model.
**2016**, 40, 4248–4259. [Google Scholar] [CrossRef] - Safikhani, H.; Esmaeili, F.; Salehfard, S. Numerical Study of Flow Field in New Design Dynamic Cyclone Separators. IJE TRANSACTIONS B Appl.
**2020**, 33, 357–365. [Google Scholar] - Hreiz, R.; Lainé, R.; Wu, J.; Lemaitre, C.; Gentric, C.; Fünfschilling, D. On the effect of the nozzle design on the performances of gas–liquid cylindrical cyclone separators. Int. J. Multiph. Flow
**2014**, 58, 15–26. [Google Scholar] [CrossRef] - Movafaghian, S.; Jaua-Marturet, J.A.; Mohan, R.S.; Shoham, O.; Kouba, G.E. The effects of geometry, fluid properties and pressure on the hydrodynamics of gas–liquid cylindrical cyclone separators. Int. J. Multiph. Flow
**2000**, 26, 999–1018. [Google Scholar] [CrossRef] - Izadi, M.; Makvand, A.M.; Assareh, E.; Parvaz, F. Optimizing the design and performance of solid–liquid separators. Int. J. Thermofluids
**2020**, 5–6, 100033. [Google Scholar] [CrossRef] - Ci, H.; Sun, G. Effects of Wall Roughness on the Flow Field and Vortex Length of Cyclone. Procedia Eng.
**2015**, 102, 1316–1325. [Google Scholar] [CrossRef] [Green Version] - Elasyed, K.; Lacor, C. The effect of cyclone inlet dimensions on the flow pattern and performance. Appl. Math. Model.
**2011**, 35, 1952–1968. [Google Scholar] [CrossRef] [Green Version] - Zhang, P.; Duan, J.; Chen, G.; Wang, W. Numerical Investigation on Gas-solid Flow in a Circumfluent Cyclone Separator. Aerosol Air Qual. Res.
**2019**, 19, 971–980. [Google Scholar] [CrossRef] - Pandey, S.; Saha, I.; Prakash, O.; Mukherjee, T.; Iqbal, J.; Roy, A.K.; Wasilewski, M.; Brar, L.S. CFD Investigations of Cyclone Separators with Different Cone Heights and Shapes. Appl. Sci.
**2022**, 12, 4904. [Google Scholar] [CrossRef] - Elasyed, K.; Lacor, C. The effect of cyclone vortex finder dimensions on the flow pattern and performance using LES. Comput. Fluids
**2012**, 71, 224–239. [Google Scholar] [CrossRef] - Slack, M.D.; Prasad, R.O.; Bakker, A.; Boysan, F. Advances in Cyclone Modelling Using Unstructured Grids. TransIChemE
**2000**, 78, 1098–1104. [Google Scholar] [CrossRef] - Brar, L.; Sharma, R. Corrigendum to Effect of Varying Diameter on the Performance of Industrial Scale Gas Cyclone Dust Separators. Mater. Today Proc.
**2015**, 2, 3230–3237. [Google Scholar] [CrossRef] - Elasyed, K.; Lacor, C. The effect of the dust outlet geometry on the performance and hydrodynamics of gas cyclones. Comput. Fluids
**2012**, 68, 134–147. [Google Scholar] [CrossRef] - Durango-Cogollo, M.; Garcia-Bravo, J.; Newell, B.; Gonzalez-Mancera, A. CFD Modeling of Hydrocyclones—A Study of Efficiency of Hydrodynamic Reservoirs. Fluids
**2020**, 5, 118. [Google Scholar] [CrossRef] - Nor, M.A.M.; Kamaruddin, S.; Lemma, T.A. Numerical investigation of API 31 cyclone separator for mechanical seal piping plan for rotating machineries. Alex. Eng. J.
**2022**, 61, 1597–1606. [Google Scholar] [CrossRef] - El-Batch, H.M. Improving cyclone performance by proper selection of the exit pipe. Appl. Math. Model.
**2013**, 37, 5286–5303. [Google Scholar] [CrossRef] - Chu, K.W.; Wang, B.; Xu, D.L.; Chen, Y.X.; Yu, A.B. CFD–DEM simulation of the gas–solid flow in a cyclone separator. Chem. Eng. Sci.
**2011**, 66, 834–847. [Google Scholar] [CrossRef] - Elasyed, K.; Lacor, C. Numerical modeling of the flow field and performance in cyclones of different cone-tip diameters. Comput. Fluids
**2011**, 51, 48–59. [Google Scholar] [CrossRef] - Wójtowicz, R.; Wolak, P.; Wójtowicz-Wróbel, A. Numerical and Experimental Analysis of Flow Pattern, Pressure Drop and Collection Efficiency in a Cyclone with a Square Inlet and Different Dimensions of a Vortex Finder. Energies
**2020**, 14, 111. [Google Scholar] [CrossRef] - Zabala-Quintero, C.; Ramirez-Pastran, J.; Torres, M. Performance Characterization of a New Model for a Cyclone Separator of Particles Using Computational Fluid Dynamics. Appl. Sci.
**2021**, 11, 5342. [Google Scholar] [CrossRef] - Wang, B.; Xu, D.L.; Chu, K.W.; Yu, A.B. Numerical study of gas–solid flow in a cyclone separator. Appl. Math. Model.
**2006**, 30, 1326–1342. [Google Scholar] [CrossRef] [Green Version] - Baroiu, N.; Moroșanu, G.A. Constructive-Functional Analysis and Sizing of Hydraulic Filters. Ann. ”Dunarea de Jos” Univ. Galati, Fascicle V, Technol. Mach. Build.
**2021**, 39, 5–10. [Google Scholar] [CrossRef] - Azimian, M.; Bart, H.J. Numerical analysis of hydroabrasion in a hydrocyclone. Pet. Sci.
**2016**, 13, 304–319. [Google Scholar] [CrossRef] [Green Version] - Gong, G.; Yang, Z.; Zhu, S. Numerical investigation of the effect of helix angle and leaf margin on the flow pattern and the performance of the axial flow cyclone separator. Appl. Math. Model.
**2012**, 36, 3916–3930. [Google Scholar] [CrossRef] - Hamdy, O.; Bassily, M.A.; El-Batsh, H.M.; Mekhail, T.A. Numerical study of the effect of changing the cyclone cone length on the gas flow field. Appl. Math. Model.
**2017**, 46, 81–97. [Google Scholar] [CrossRef]

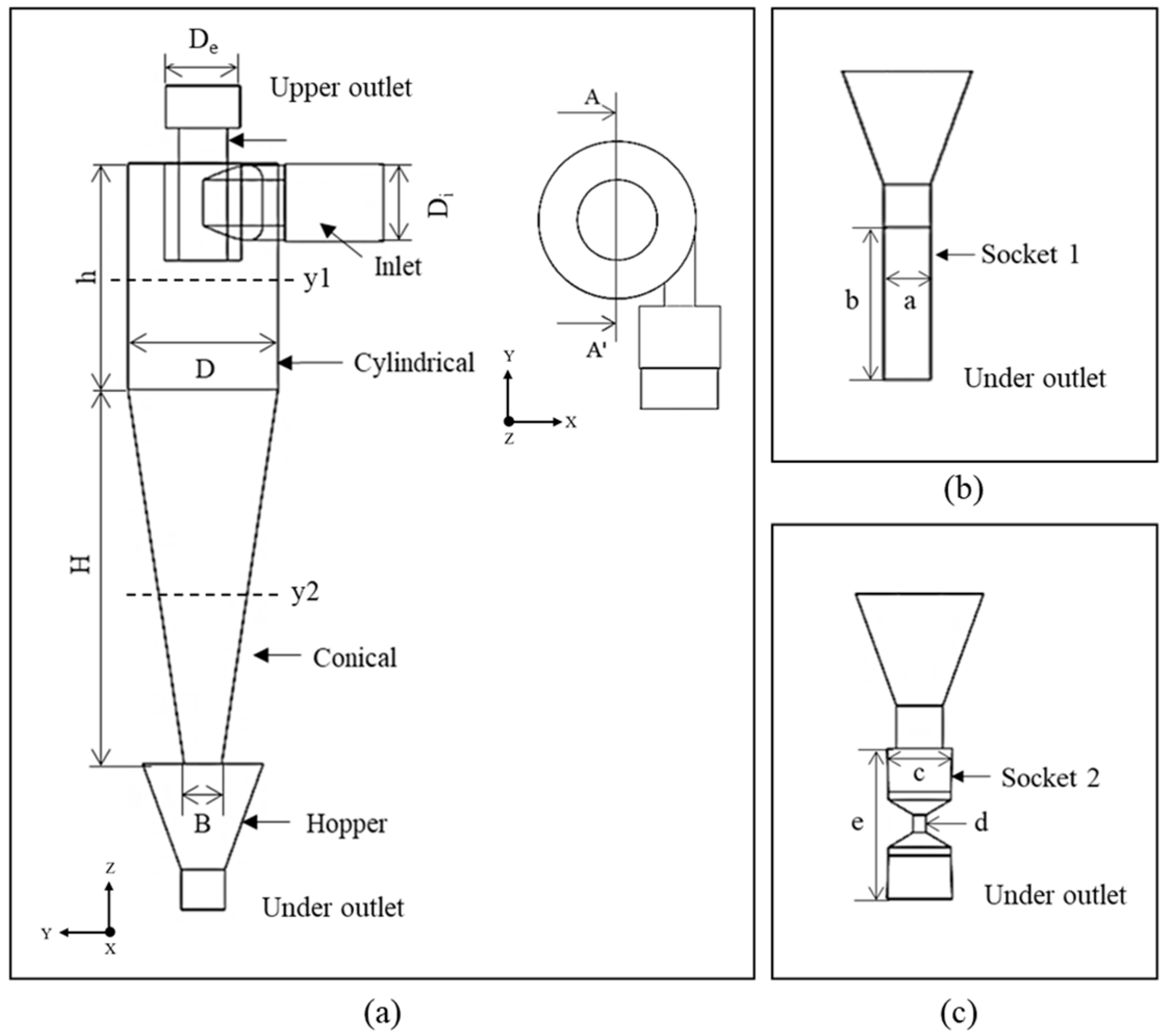

**Figure 2.**Schematic diagram of cyclone models; (

**a**) Model 1 (basic), (

**b**) Model 2 (added socket 1), and (

**c**) Model 3 (added socket 2).

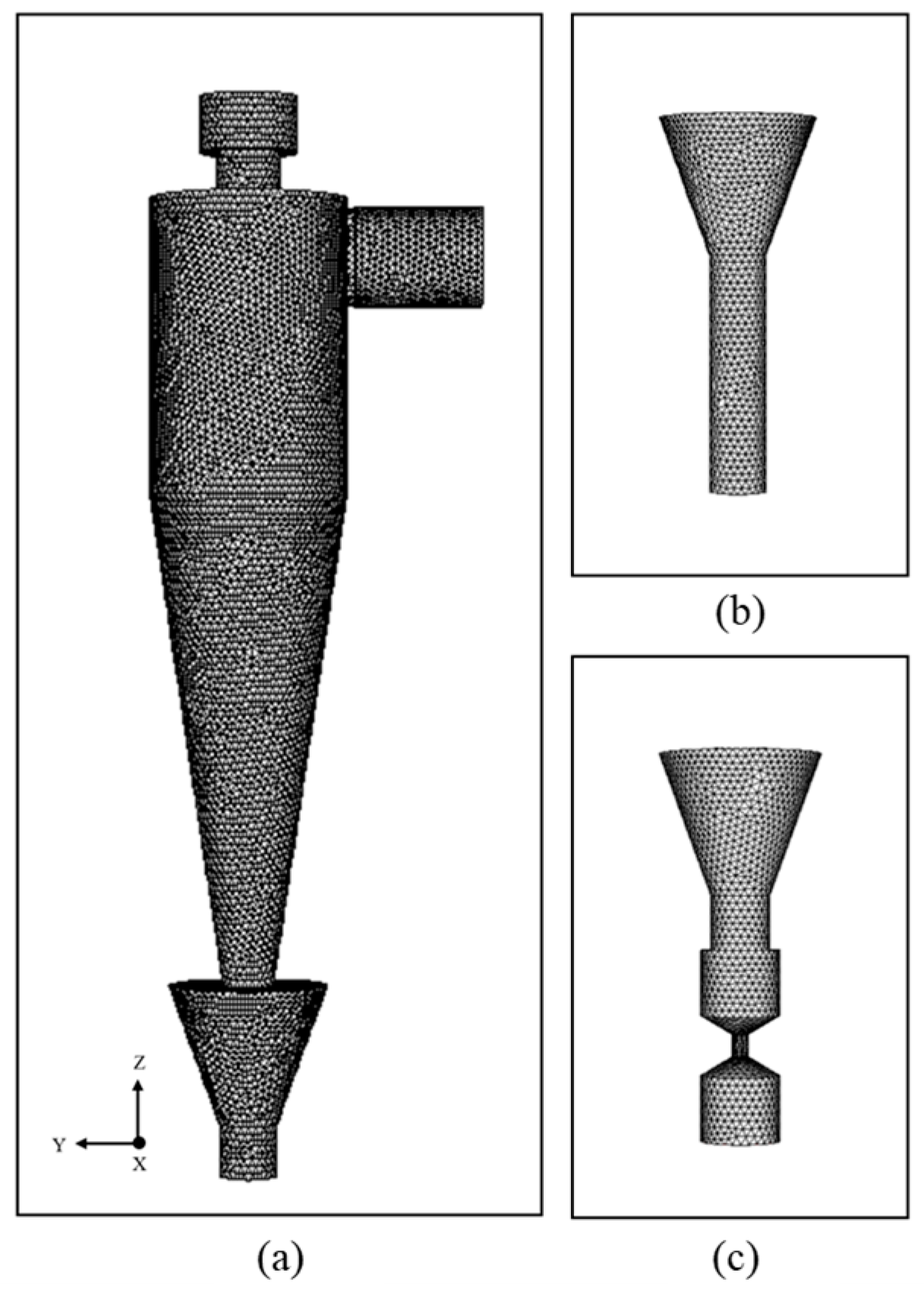

**Figure 3.**Meshing of the cyclone models; (

**a**) Model 1 (basic), (

**b**) Model 2 (added socket 1), and (

**c**) Model 3 (added socket 2).

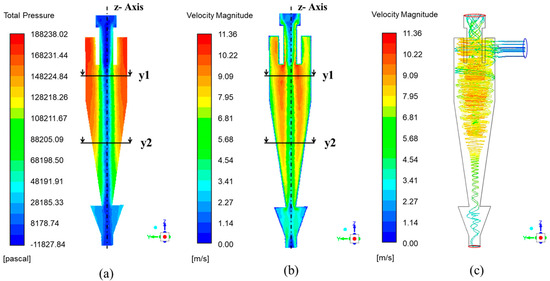

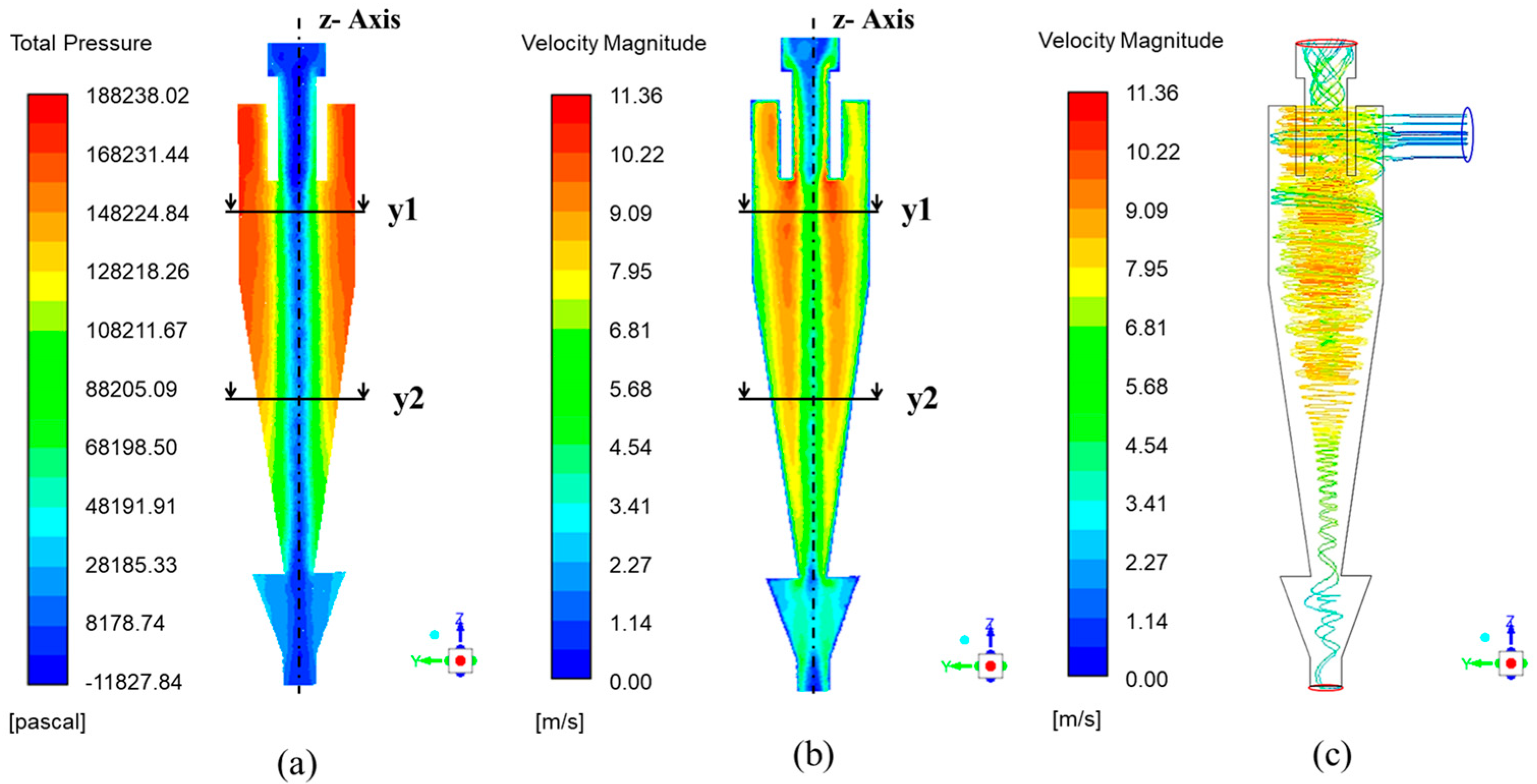

**Figure 5.**Contour of Model 1 injected with 5 percent particles; (

**a**) Total pressure, (

**b**) Velocity magnitude, and (

**c**) Vortices distribution.

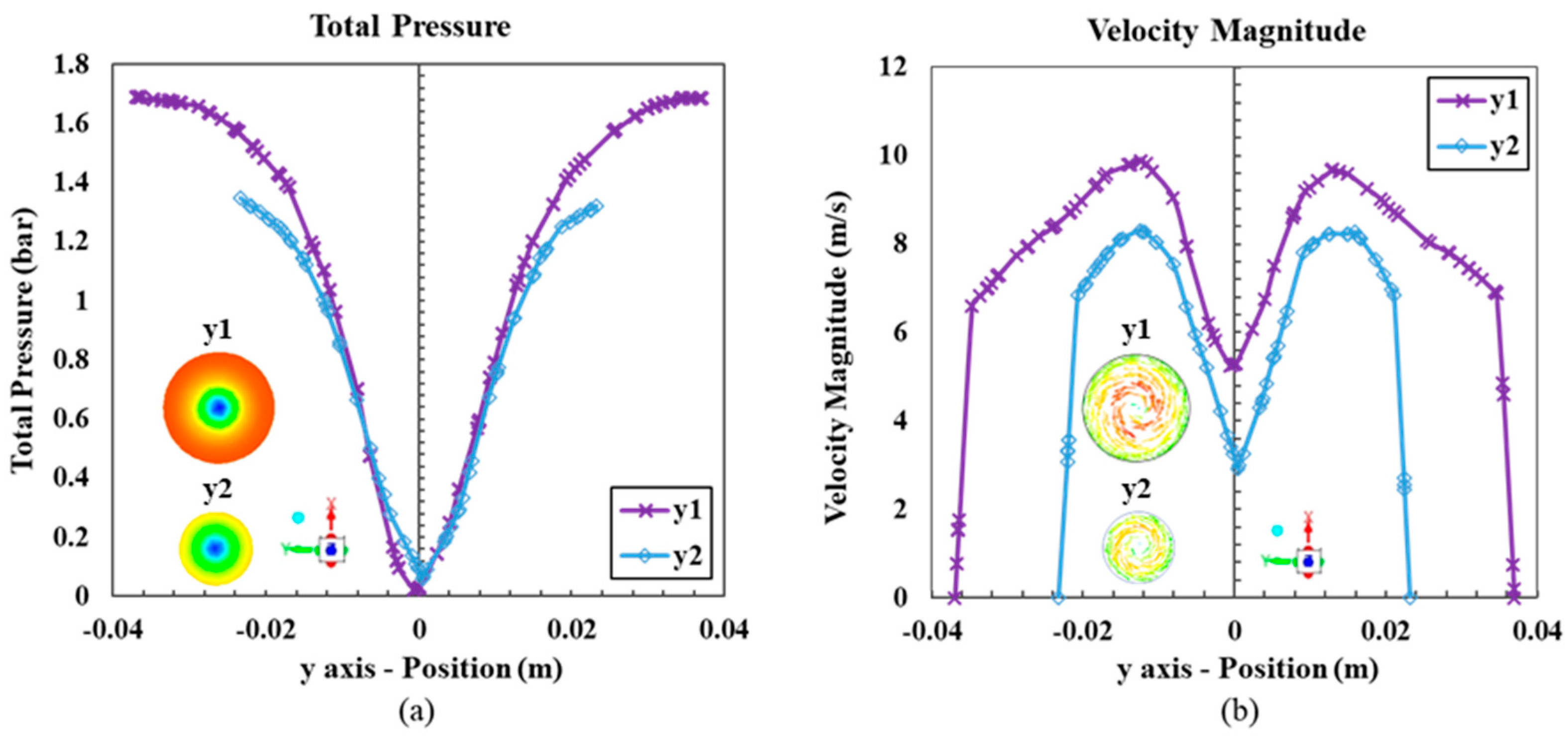

**Figure 6.**Distribution profile of Model 1 injected with 5 percent particles; (

**a**) Total pressure and (

**b**) Velocity magnitude.

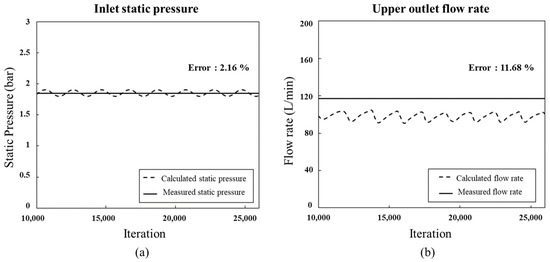

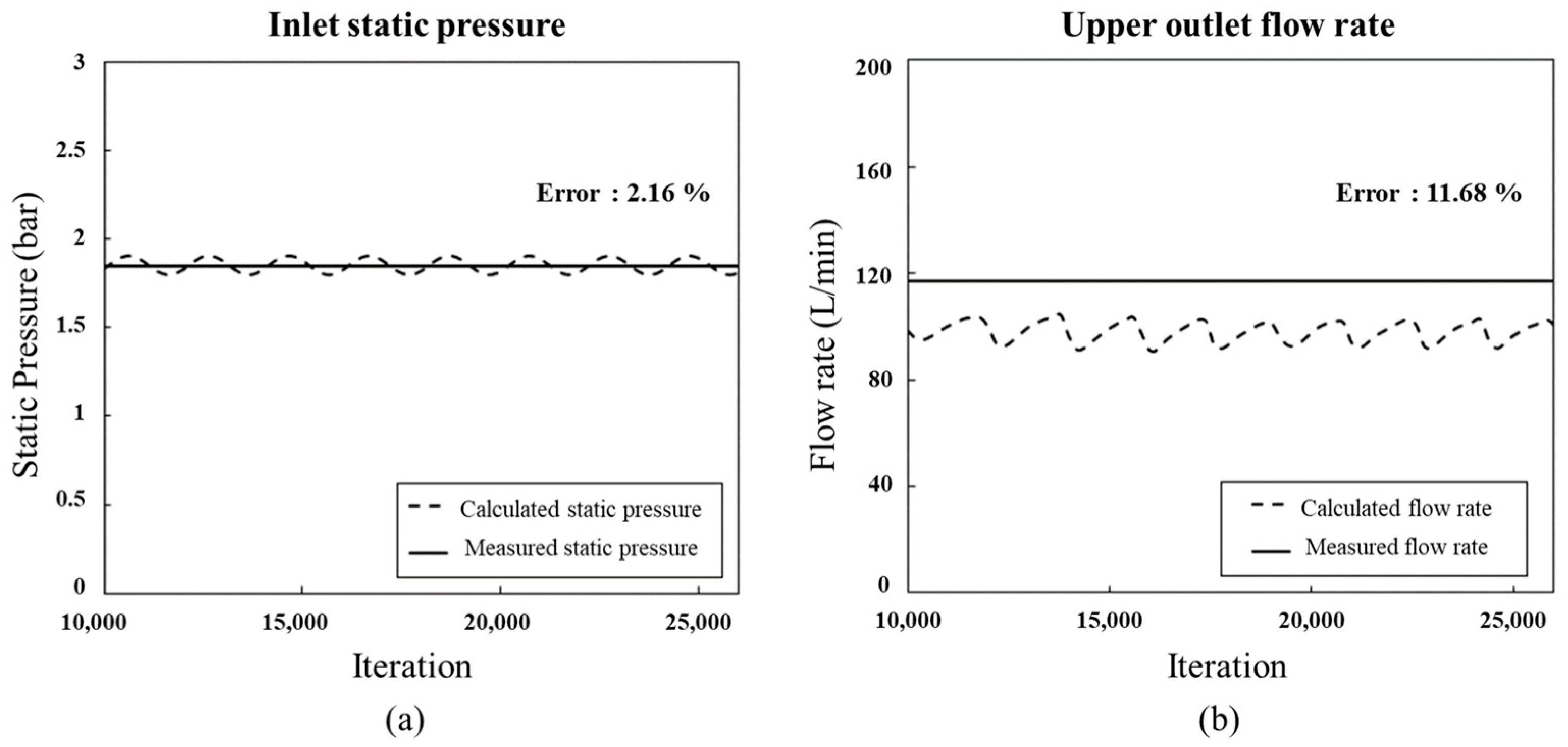

**Figure 7.**Comparison of calculated and measured results; (

**a**) inlet static pressure and (

**b**) upper outlet flow rate.

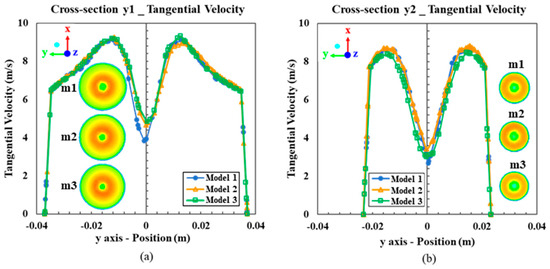

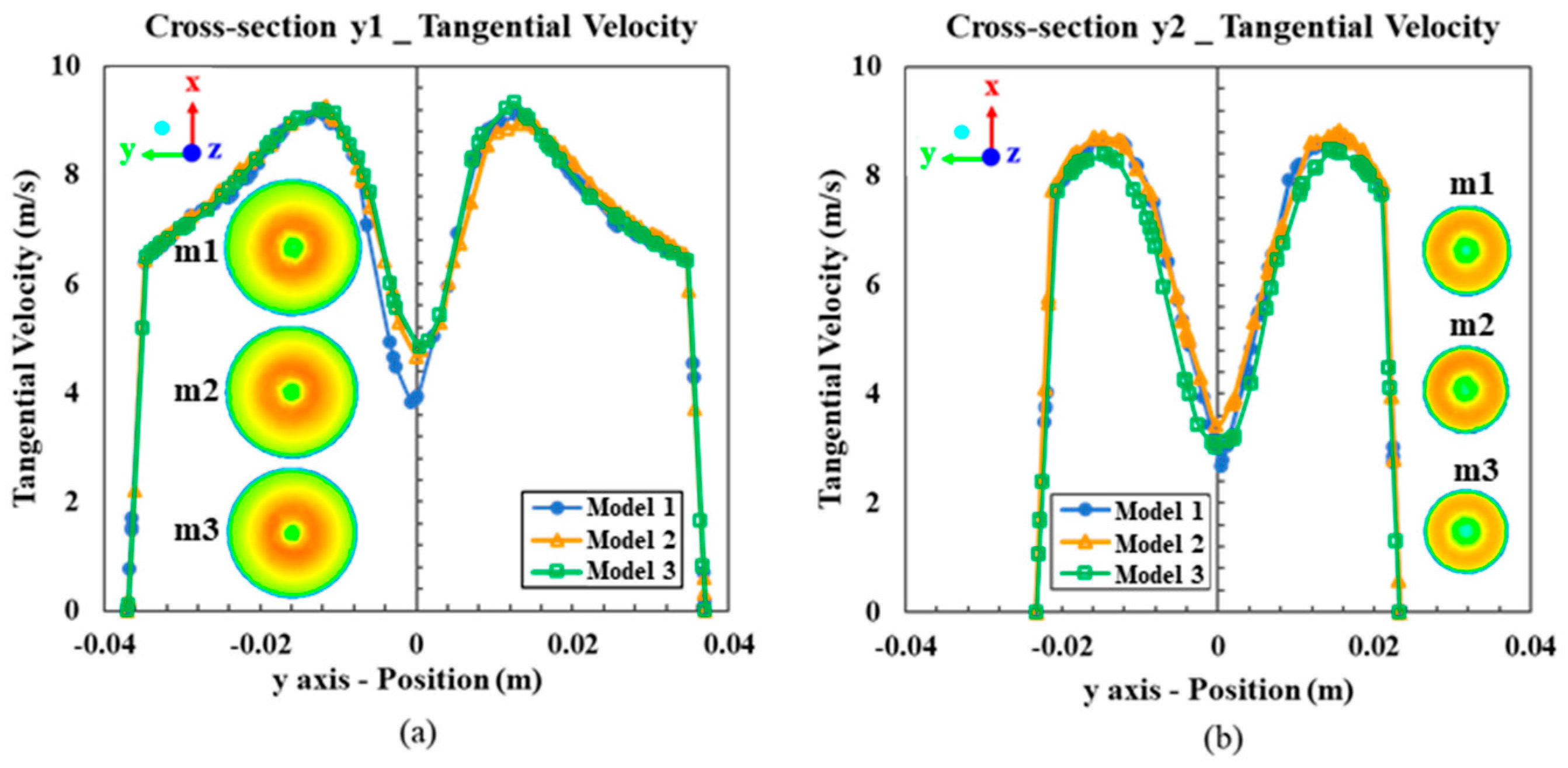

**Figure 9.**Tangential velocity profile y1 (cylindrical center) and y2 (conical center); (

**a**) Tangential velocity at y1 and (

**b**) Tangential velocity at y2.

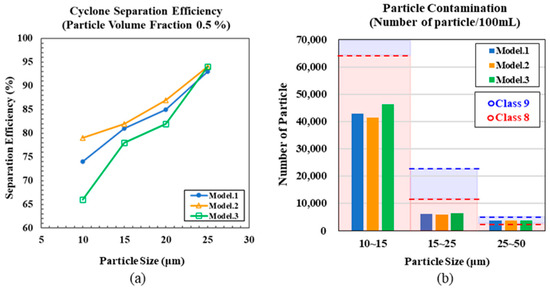

**Figure 11.**Comparison of cyclone filter performance; (

**a**) Separation efficiency and (

**b**) Number of particles contained in discharge fluid (100 mL).

Geometry | Symbol | Dimensions (mm) | ||
---|---|---|---|---|

Model 1 | Model 2 | Model 3 | ||

Cylindrical length | $\mathrm{h}$ | 112 | ||

Conical length | $\mathrm{H}$ | 187 | ||

Inlet diameter | ${\mathrm{D}}_{\mathrm{i}}$ | $\varphi $ 38.5 | ||

Cylindrical diameter | $\mathrm{D}$ | $\varphi $ 74 | ||

Vortex finder diameter | ${\mathrm{D}}_{\mathrm{e}}$ | $\varphi $ 36.75 | ||

Conical under diameter | $\mathrm{B}$ | $\varphi $ 18.5 | ||

Socket 1 diameter | $\mathrm{a}$ | - | $\varphi $ 21.5 | - |

Socket 1 length | $\mathrm{b}$ | - | 70 | - |

Socket 2 diameter | $\mathrm{c}$ | - | - | $\varphi $ 30.26 |

Socket 2 middle diameter | $\mathrm{d}$ | - | - | $\varphi $ 6 |

Socket 2 diameter | $\mathrm{e}$ | - | - | 70 |

Cyclone models | Model 1 | Model 2 | Model 3 | ||||||
---|---|---|---|---|---|---|---|---|---|

Number of Elements | 178,578 | 189,306 | 205,476 | ||||||

Mesh quality | AR | OQ | S | AR | OQ | S | AR | OQ | S |

9.75 | 0.99 | 0.81 | 14.88 | 0.99 | 0.85 | 12.49 | 0.99 | 0.82 |

Section | Boundary Conditions | |
---|---|---|

Category | DPM | |

Inlet | Velocity inlet | Reflect |

Upper outlet | Pressure outlet | Escape |

Under outlet | Pressure outlet | Trapped |

Wall | - | Reflect |

Comparison | Inlet Static Pressure (bar) | Upper Outlet Flow Rate (L/min) |
---|---|---|

Measured | 1.85 (±0.5) | 111.27 (±6.18) |

Calculated | 1.89 (±0.08) | 98.27 (±3.74) |

Comparison | Upper Outlet Flow Rate (L/min) | (Inlet/Upper Outlet) × 100 (%) |
---|---|---|

Model 1 | 100.93 | 67.29 |

Model 2 | 101.30 | 67.53 |

Model 3 | 137.93 | 91.95 |
