# Application of Machine Learning Techniques for the Estimation of the Safety Factor in Slope Stability Analysis

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

_{d}), cohesion (c), and internal friction angle (φ), which were estimated for 70 slopes in the South Pars region (southwest of Iran), were considered to predict the FS properly. To prepare the training and testing data sets from the main database, the primary set was randomly divided and applied to all predictive models. The predicted FS results were obtained for testing (30% of the primary data set) and training (70% of the primary data set) for all MLP, SVM, k-NN, DT, and RF models. The models were verified by using a confusion matrix and errors table to conclude the accuracy evaluation indexes (i.e., accuracy, precision, recall, and f1-score), mean squared error (MSE), mean absolute error (MAE), and root mean square error (RMSE). According to the results of this study, the MLP model had the highest evaluation with a precision of 0.938 and an accuracy of 0.90. In addition, the estimated error rate for the MLP model was MAE = 0.103367, MSE = 0.102566, and RMSE = 0.098470.

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Geotechnical Database

_{d}), cohesion (c), and internal friction angle (φ). These five features that were used to prepare the primary database reflect the basic geometrical and mechanical aspects of the slope condition. The samples were taken in summer in dry conditions, and the ratio of the pore water pressure was not applied in the assessments. It should be noted that the pore water pressure is one of the most important factors in stability assessments and has to be considered in the FS calculations. Although this factor was not included in the present study due to the lack of pore water pressure, machine learning models can consider this factor as an input parameter if it is available and use it during prediction processes. In general, changes in the input parameters can affect the final results of predictive models, but it does not have much impact on the forecasting process. Nevertheless, the pore water pressure ratio (if it is applicable) has to be considered in evaluations.

#### 2.2. Data Acquisition

_{min}, which represents the probable sliding surface by LEMs. This classification was used in the predictive models to describe the slope conditions. The FS was estimated based on the relationship between the slope stability factor (which represents the slope durability condition) and the geo-engineering characteristics, which were established through the training process by different machine learning classifiers. Regarding the slope stability analysis methods, the FS can be calculated based on the polyhedral force vector closure or incurring moments in an equilibrium state at an assumed slip surface for two-dimensional and three-dimensional spaces, which is responsible for static failure, with the moveable mass weight and geometry as the geotechnical characteristics (Table 1) of the slope, as defined in this equation.

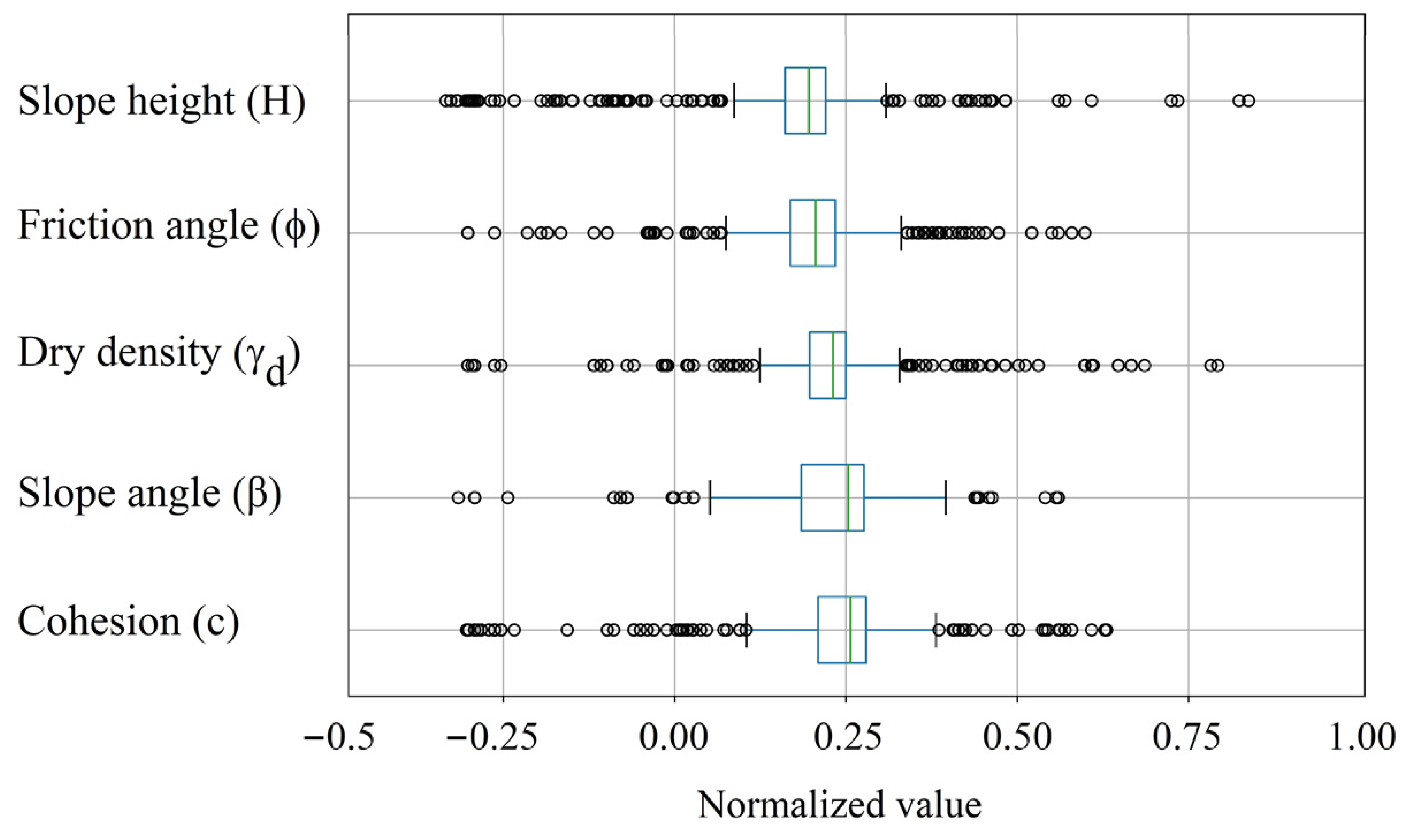

_{d}values is more concentrated for slopes.

_{d}. Using this correlation can help in estimating the certain overlap between the geo-engineering characteristics and the FS specified. The off-diagonal plots that are presented in Figure 2 are related to stable and unstable slopes and indicate that the stable and unstable zones were concentrated in different regions. Thus, each feature has to be considered as having an independent role in evaluating the slope stability.

#### 2.3. Predictive Model Implementations and Adjustment

#### 2.4. Model Performance Evaluations

_{i}and the predicted value is y

_{i}. The application of these indicators shows that the algorithms perform better when there is less computational error. The performance of the predictive model was assessed in this study using a confusion matrix and errors table.

## 3. Results and Discussion

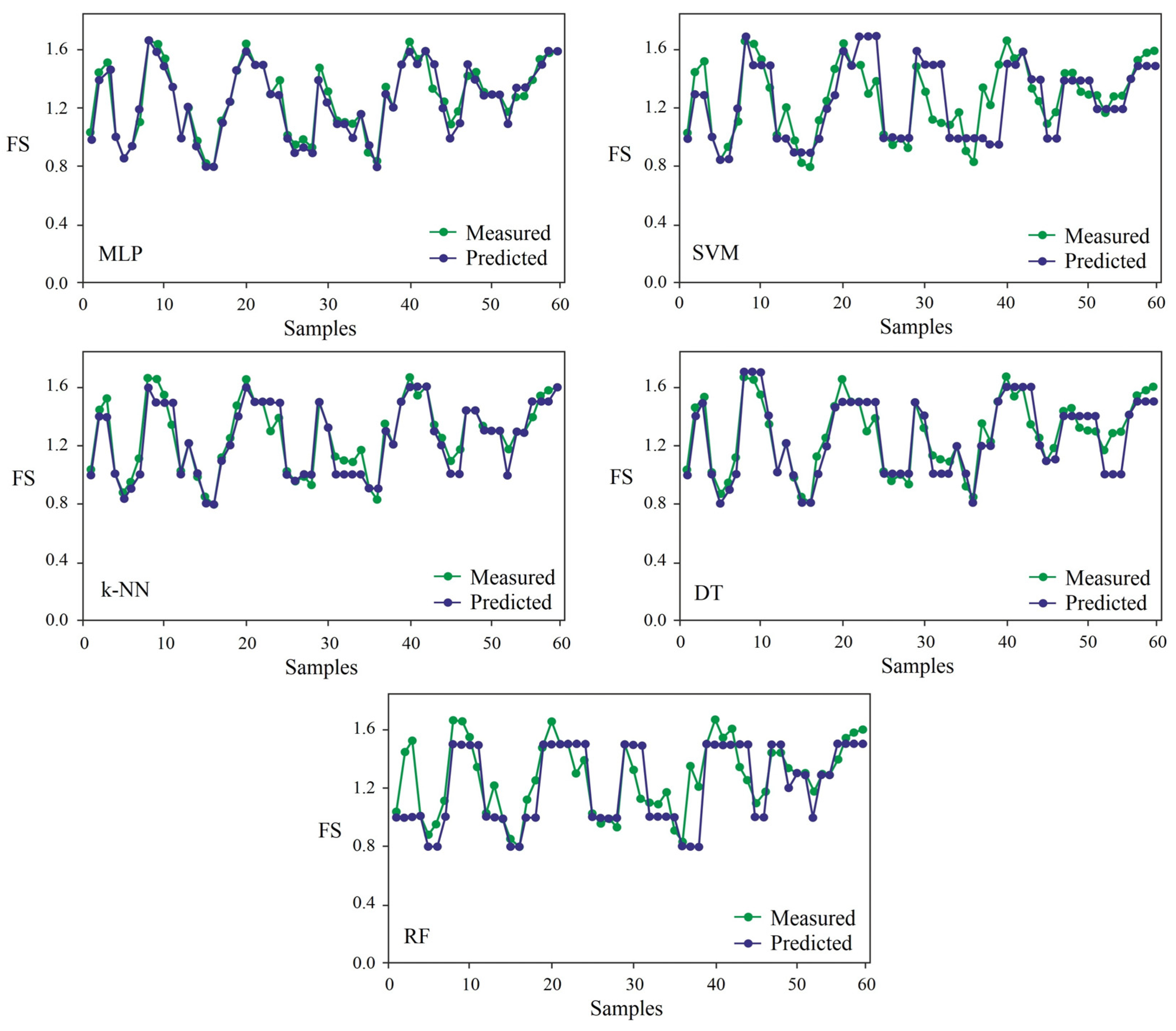

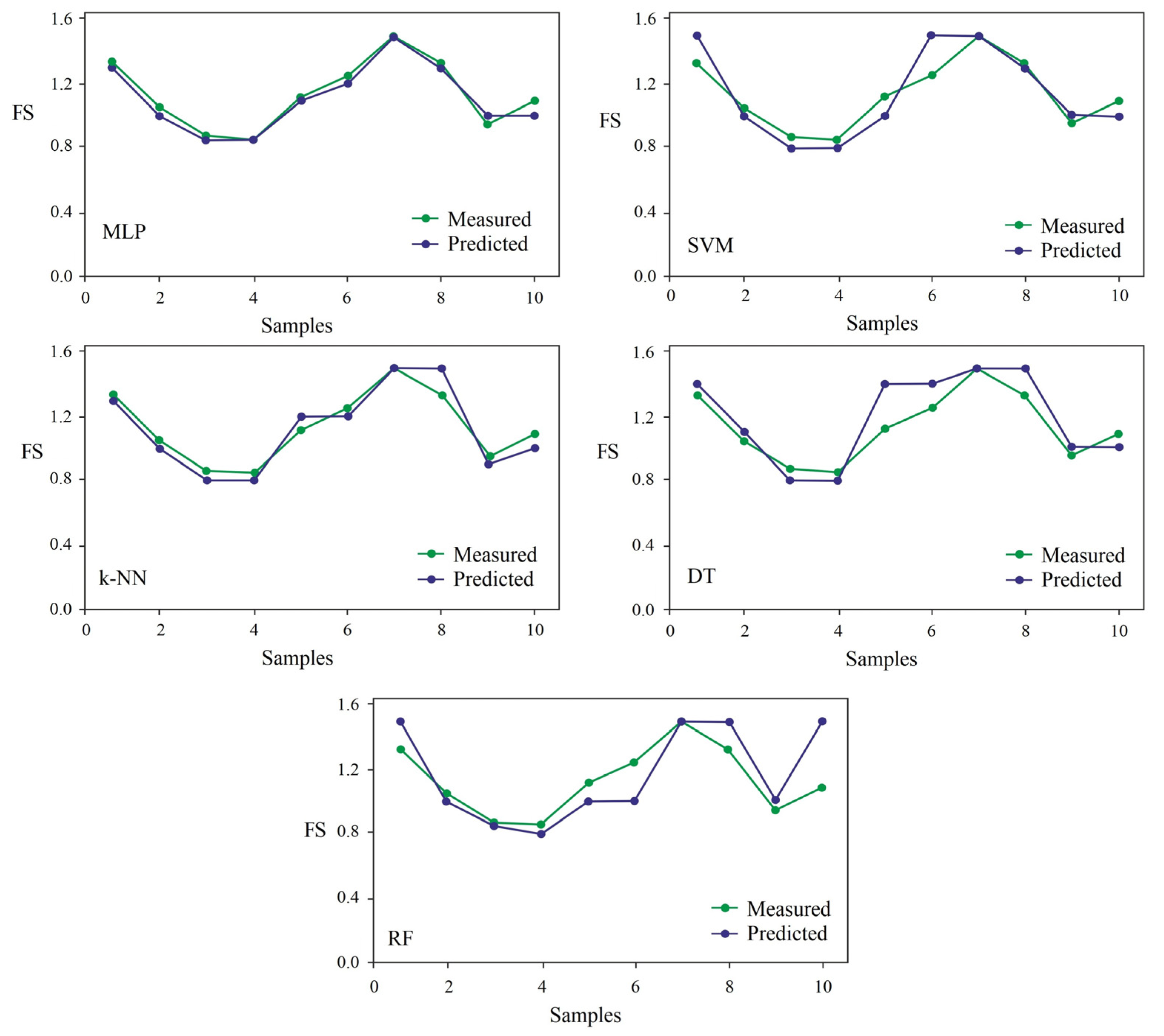

_{min}of the specific factors presented in Table 1 were estimated from the field via labeled data (supervised). The rotation estimation (cross-validation) procedure was used to predict how well a predictive model would perform in practice. The rotation estimation is a resampling method that tests and trains a model on different iterations using different portions of the data [33]. The equal-fold cross-validation method was used in this study to create equal-sized subsets (1:6|1 for reserved and 6 for training). Figure 3 and Figure 4 show the prediction results for the various classifiers in the training and testing sets. According to the results presented in these figures, the predicted values of the FS in the MLP training set were close to the actual (estimated) values. The K-NN and DT correctly predicted the FS, but the SVM and RF differed from the actual values in the other predictive models. Meanwhile, the predictive models’ predicted the FS values from the testing set follow the same pattern as the training set. During the training stage, the predictive models were trained regarding the stability evaluation based on the labeled geotechnical properties and the estimated FS (supervised) and then tested in a testing set that was responsible for the performance and precision of the applied models. The prediction and capability of the forecasting for both the training and testing sets are shown in Figure 4 and Figure 5. In these figures, the prediction target is the FS value.

Classifier | Parameter | Assessment Score | Accuracy | ||
---|---|---|---|---|---|

Precision | Recall | F1-Score | |||

MLP | Stable | 0.90 | 0.88 | 0.90 | 0.938 |

Unstable | 0.90 | 0.90 | 0.89 | ||

SVM | Stable | 0.73 | 0.73 | 0.74 | 0.756 |

Unstable | 0.77 | 0.75 | 0.75 | ||

k-NN | Stable | 0.85 | 0.84 | 0.84 | 0.849 |

Unstable | 0.85 | 0.80 | 0.85 | ||

DT | Stable | 0.83 | 0.85 | 0.83 | 0.808 |

Unstable | 0.80 | 0.80 | 0.80 | ||

RF | Stable | 0.70 | 0.67 | 0.70 | 0.700 |

Unstable | 0.65 | 0.70 | 0.65 |

Classifier | MAE | MSE | RMSE |
---|---|---|---|

MLP | 0.103367 | 0.102566 | 0.098470 |

SVM | 0.145631 | 0.130764 | 0.128836 |

k-NN | 0.125682 | 0.123009 | 0.120957 |

DT | 0.125369 | 0.121942 | 0.120454 |

RF | 0.138980 | 0.135124 | 0.126821 |

Aim | Applied Models | Target Model | Accuracy | Precision | Reference |
---|---|---|---|---|---|

FS calculation | LR, DT, RF, GBM, SVM, MLP | MLP | 0.84 | - | [17] |

RF, DT, SVM, k-NN, GBDT, AdaBoost, Bagging, MLP | MLP | 0.88 | - | [18] | |

AdaBoost, GBM, Bagging, ET, RF, MLP | MLP | 0.84 | - | [34] | |

MLP, GPR, MLR, SVM, SLR | SVM | - | - | [35] | |

MLP, RBFR, MLR, SVM, k-NN, RF, RT | MLP | 0.50 | - | [22] | |

BR, LR, ENR, ABR, SVM, GBR, ETR, DTR, KNR, Bagging | SVM | 0.86 | - | [36] | |

MLP, SVM, k-NN, DT, RF | MLP | 0.938 | 0.90 | This study |

## 4. Conclusions

_{d}) were picked as input data. The implementation of the models was carried out in the Python high-level programming language. The results were reported for each stage and utilized to calculate the predictive models’ performances. A confusion matrix and errors table were used for the model performance evaluations. According to the results of the modeling, they indicated that the MLP model reached the highest values of accuracy (0.938) and precision (0.90). The k-NN and DT, with 0.849 and 0.808 accuracy, respectively, were followed by the MLP. The RF obtained the lowest rate of prediction for the FS in the database, with 0.700. On the other hand, according to the results of the errors table, the MLP model, with MAE = 0.103367, MSE = 0.102566, and RMSE = 0.098470, reached the lowest errors among all of the classifiers. Regarding the mentioned results, the MLP showed a difference with other classifiers, but it had a slight discrepancy with the k-NN. Therefore, it can be stated that after MLP, k-NN can provide reliably predicted FS values.

## Author Contributions

## Funding

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

FS | Factor of safety | MLP | Multilayer perceptron |

H | Slope height | SVM | Support vector machines |

β | Slope angle | k-NN | k-nearest neighbors |

γ_{d} | Dry density | DT | Decision tree |

c | Cohesion | RF | Random forest |

ϕ | Internal friction angle | TP | True positive |

S_{u} | Total cohesion | TN | True negative |

C_{u} | Undrained cohesion | FP | False positive |

Gs | Specific gravity | FN | False negative |

R | Forces resultant vector | MSE | Mean squared error |

W | Movable mass weight | MAE | Mean absolute error |

c′ | Effective cohesion | RMSE | Root mean square error |

ϕ′ | Effective friction angle |

## References

- Azarafza, M.; Akgün, H.; Ghazifard, A.; Asghari-Kaljahi, E.; Rahnamarad, J.; Derakhshani, R. Discontinuous rock slope stability analysis by limit equilibrium approaches—A review. Int. J. Digit. Earth
**2021**, 14, 1918–1941. [Google Scholar] [CrossRef] - Azarafza, M.; Hajialilue Bonab, M.; Derakhshani, R. A novel empirical classification method for weak rock slope stability analysis. Sci. Rep.
**2022**, 12, 14744. [Google Scholar] [CrossRef] - Huang, Y.H. Slope Stability Analysis by the Limit Equilibrium Method; ASCE Publications: Reston, VA, USA, 2014. [Google Scholar]
- Abramson, L.W.; Lee, T.S.; Sharma, S.; Boyce, G.M. Slope Stability Concepts: Slope Stabilisation and Stabilisation Methods, 2nd ed.; Wiley-Interscience: Millburn, NJ, USA, 2001. [Google Scholar]
- Azarafza, M.; Nikoobakht, S.; Asghari-Kaljahi, E.; Moshrefy-Far, M.R. Stability analysis of jointed rock slopes using block theory (case study: Gas flare site in phase 7 of South Pars Gas Complex). In Proceedings of the 32th National & 1st International Geosciences Congress of Iran, Tehran, Iran, 3–4 February 2014. [Google Scholar]
- Agam, M.W.; Hashim, M.H.M.; Murad, M.I.; Zabidi, H. Slope Sensitivity Analysis Using Spencer’s Method in Comparison with General Limit Equilibrium Method. Procedia Chem.
**2016**, 19, 651–658. [Google Scholar] [CrossRef][Green Version] - Alejano, L.; Ferrero, A.M.; Ramírez-Oyanguren, P.; Álvarez Fernández, M.I. Comparison of Limit-Equilibrium, Numerical and Physical Models of Wall Slope Stability. Int. J. Rock Mech. Min. Sci.
**2011**, 48, 16–26. [Google Scholar] [CrossRef] - Chakraborty, A.; Goswami, D. State of the art: Three dimensional (3D) slope-stability analysis. Int. J. Geotech. Eng.
**2016**, 10, 493–498. [Google Scholar] [CrossRef] - Bromhead, E. The Stability of Slopes; Spon Press: New York, NY, USA, 1992. [Google Scholar]
- Mafi, R.; Javankhoshdel, S.; Cami, B.; Jamshidi Chenari, R.; Gandomi, A.H. Surface altering optimisation in slope stability analysis with non-circular failure for random limit equilibrium method. Georisk Ass. Manag. Risk Eng. Sys. Geohaz.
**2021**, 15, 260–286. [Google Scholar] [CrossRef] - Chen, Z.; Mi, H.; Zhang, F.; Wang, F. A Simplified Method for 3D Slope Stability Analysis. Can. Geotech. J.
**2003**, 40, 675–683. [Google Scholar] [CrossRef] - Correia, R.M. A limit equilibrium method of slope stability analysis. In Proceedings of the 5th International Symposium on Landslides, Lausanne, Switzerland, 10–15 July 1988. [Google Scholar]
- Deng, D. Limit Equilibrium Solution for the Rock Slope Stability under the Coupling Effect of the Shear Dilatancy and Strain Softening. Int. J. Rock Mech. Min. Sci.
**2020**, 134, 104421. [Google Scholar] [CrossRef] - Biniyaz, A.; Azmoon, B.; Liu, Z. Coupled transient saturated–unsaturated seepage and limit equilibrium analysis for slopes: Influence of rapid water level changes. Acta Geotech.
**2022**, 17, 2139–2156. [Google Scholar] [CrossRef] - Zhou, J.; Li, E.; Yang, S.; Wang, M.; Shi, X.; Yao, S.; Mitri, H.S. Slope Stability Prediction for Circular Mode Failure Using Gradient Boosting Machine Approach Based on an Updated Database of Case Histories. Saf. Sci.
**2019**, 118, 505–518. [Google Scholar] [CrossRef] - Wei, W.; Li, X.; Liu, J.; Zhou, Y.; Li, L.; Zhou, J. Performance Evaluation of HybridWoa-Svr and Hho-Svr Models with Various Kernels to Predict Factor of Safety for Circular Failure Slope. Appl. Sci.
**2021**, 11, 1922. [Google Scholar] [CrossRef] - Qi, C.; Tang, X. Slope stability prediction using integrated metaheuristic and machine learning approaches: A comparative study. Comput. Ind. Eng.
**2018**, 118, 112–122. [Google Scholar] [CrossRef] - Bai, G.; Hou, Y.; Wan, B.; An, N.; Yan, Y.; Tang, Z.; Yan, M.; Zhang, Y.; Sun, D. Performance Evaluation and Engineering Verification of Machine Learning Based Prediction Models for Slope Stability. Appl. Sci.
**2022**, 12, 7890. [Google Scholar] [CrossRef] - Zhang, Y.; Dai, M.; Ju, Z. Preliminary discussion regarding SVM kernel function selection in the twofold rock slope prediction model. J. Comput. Civ. Eng.
**2015**, 30, 04015031. [Google Scholar] [CrossRef] - Chakraborty, A.; Goswami, D. Prediction of slope stability using multiple linear regression (MLR) and artificial neural network (ANN). Arab. J. Geosci.
**2017**, 10, 11. [Google Scholar] [CrossRef] - Jagan, J.; Meghana, G.; Samui, P. Determination of stability number of layered slope using ANFIS, GPR, RVM and ELM. Int. J. Comput. Res.
**2016**, 23, 371. [Google Scholar] - Bui, D.T.; Moayedi, H.; Gör, M.; Jaafari, A.; Foong, L.K. Predicting slope stability failure through machine learning paradigms. ISPRS Int. J. Geo-Inform.
**2019**, 8, 395. [Google Scholar] [CrossRef][Green Version] - Bardhan, A.; Samui, P. Probabilistic slope stability analysis of Heavy-haul freight corridor using a hybrid machine learning paradigm. Transport. Geotech.
**2022**, 37, 100815. [Google Scholar] [CrossRef] - Karir, D.; Ray, A.; Bharati, A.K.; Chaturvedi, U.; Rai, R.; Khandelwal, M. Stability prediction of a natural and man-made slope using various machine learning algorithms. Transport. Geotech.
**2022**, 34, 100745. [Google Scholar] [CrossRef] - Omar, M.; Che Mamat, R.; Abdul Rasam, A.R.; Ramli, A.; Samad, A. Artificial intelligence application for predicting slope stability on soft ground: A comparative study. Int. J. Adv. Technol. Eng. Explor.
**2021**, 8, 362–370. [Google Scholar] [CrossRef] - ASTM D2166; Standard Test Method for Unconfined Compressive Strength of Cohesive Soil. ASTM International: West Conshohocken, PA, USA, 2006.
- ASTM D3080; Standard Test Method for Direct Shear Test of Soils under Consolidated Drained Conditions. ASTM International: West Conshohocken, PA, USA, 2004.
- Zhou, J.; Qin, C. A Novel Procedure for 3D Slope Stability Analysis: Lower Bound Limit Analysis Coupled with Block Element Method. Bull. Eng. Geol. Environ.
**2020**, 79, 1815–1829. [Google Scholar] [CrossRef] - Azarafza, M.; Asghari-Kaljahi, E.; Akgün, H. Assessment of Discontinuous Rock Slope Stability with Block Theory and Numerical Modeling: A Case Study for the South Pars Gas Complex, Assalouyeh, Iran. Environ. Earth Sci.
**2017**, 76, 397. [Google Scholar] [CrossRef] - Zhu, D.Y.; Lee, C.F.; Jiang, H.D. Generalised Framework of Limit Equilibrium Methods for Slope Stability Analysis. Geotechnique
**2003**, 53, 377–395. [Google Scholar] [CrossRef] - Lam, L.; Fredlund, L. A General Limit Equilibrium Model for Three-Dimensional Slope Stability Analysis. Can. Geotech. J.
**1993**, 30, 905–919. [Google Scholar] [CrossRef] - Müller, A.C.; Guido, S. Introduction to Machine Learning with Python: A Guide for Data Scientists; O’Reilly Media: Sebastopol, CA, USA, 2016. [Google Scholar]
- Aggarwal, C.C. Neural Networks and Deep Learning: A Textbook; Springer: Berlin/Heidelberg, Germany, 2018. [Google Scholar]
- Lin, S.; Zheng, H.; Han, B.; Li, Y.; Han, C.; Li, W. Comparative performance of eight ensemble learning approaches for the development of models of slope stability prediction. Acta Geotech.
**2022**, 17, 1477–1502. [Google Scholar] [CrossRef] - Moayedi, H.; Bui, D.T.; Kalantar, B.; Kok Foong, L. Machine-learning-based classification approaches toward recognizing slope stability failure. Appl. Sci.
**2019**, 9, 4638. [Google Scholar] [CrossRef][Green Version] - Lin, S.; Zheng, H.; Han, C.; Han, B.; Li, W. Evaluation and prediction of slope stability using machine learning approaches. Front. Struct. Civ. Eng.
**2021**, 15, 821–833. [Google Scholar] [CrossRef] - Rocscience Inc. Slide Geotechnical Software. Available online: https://www.rocscience.com/software/slide2 (accessed on 1 August 2022).

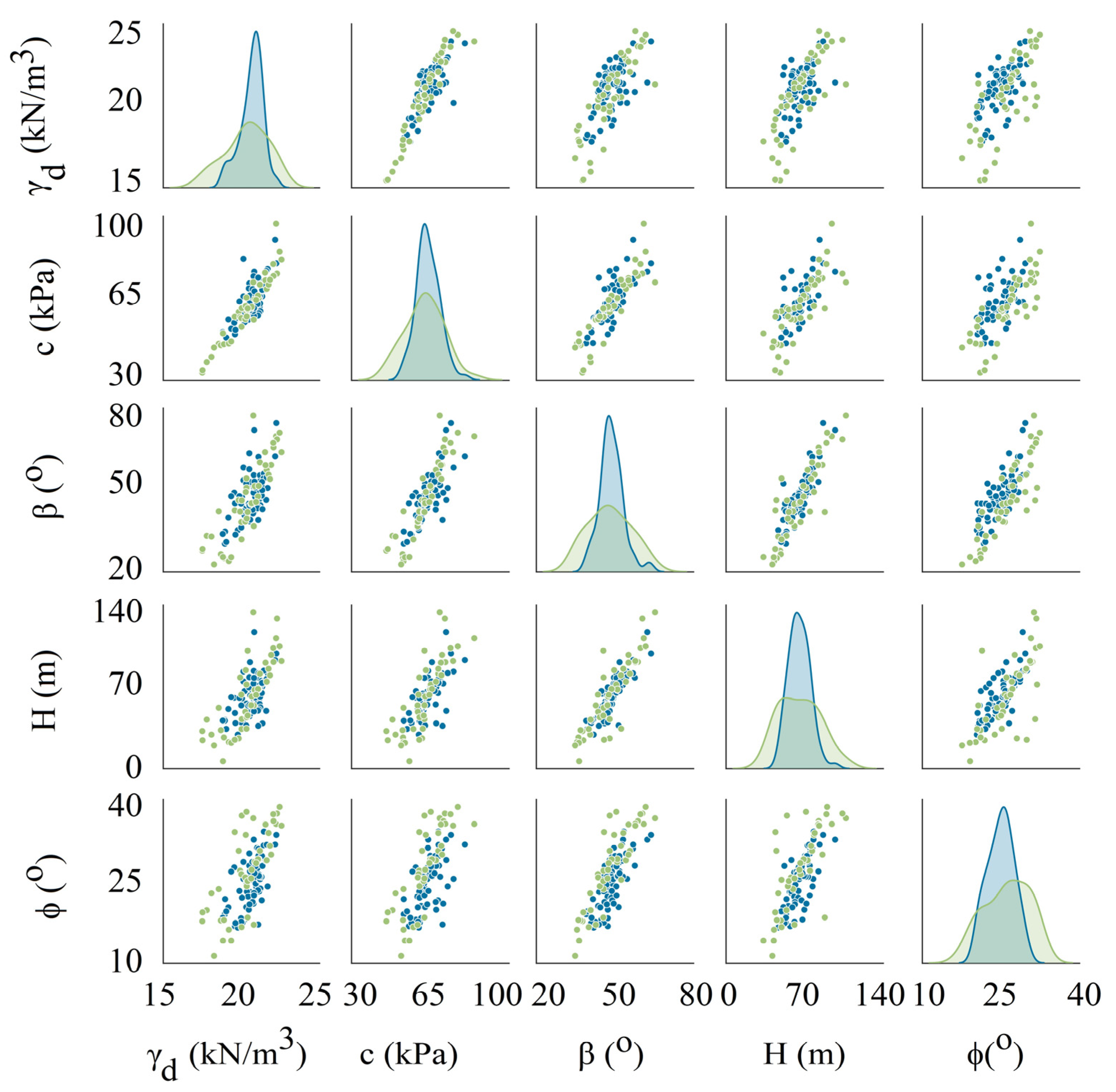

**Figure 2.**Results of the correlation analysis of the index parameters (green: stable; blue: unstable).

Parameter | Unit | Maximum | Minimum | Mean | SD |
---|---|---|---|---|---|

Water content | % | 6.22 | 1.73 | 3.97 | 2.24 |

Specific gravity (G_{s}) | - | 2.85 | 2.49 | 2.67 | 0.16 |

γ_{d} | kN/m^{3} | 18.99 | 18.69 | 18.84 | 0.18 |

Slope height | m | 135 | 12 | 73.5 | 50.21 |

Slope angle | Degree | 77 | 43 | 60 | 13.88 |

Cohesion (c) | kPa | 97 | 39 | 68 | 23.9 |

Friction (φ) | Degree | 35 | 20 | 27.5 | 7.51 |

Classifier | Hyperparameters | Elements |
---|---|---|

Multilayer perceptron (MLP) | Hidden layers’ size Learning rate Optimization | Activation = ‘relu’; Optimization = ‘rmsprop’; Loss_function = ‘mse’; Metrics = ‘mae’ |

Support vector machines (SVM) | Kernels C value | Kernel = ‘poly’; Degree = 2 C = 100; Epsilon = 0.1 |

K-nearest neighbors (k-NN) | Number of neighbors | n_Neighbors = 3 |

Decision tree (DT) | Max depth Random state | Criterion = ‘Gini’; Max_depth = 5 Ccp_alpha = 0.0; Min_samples_leaf = 1 Random_state = 100 |

Random forest (RF) | Number of estimators Max depth | Criterion = ‘entropy’; N_estimators = 10; Max_depth = 5; Min_samples_leaf = 1; Min_sanmples_split = 2 |

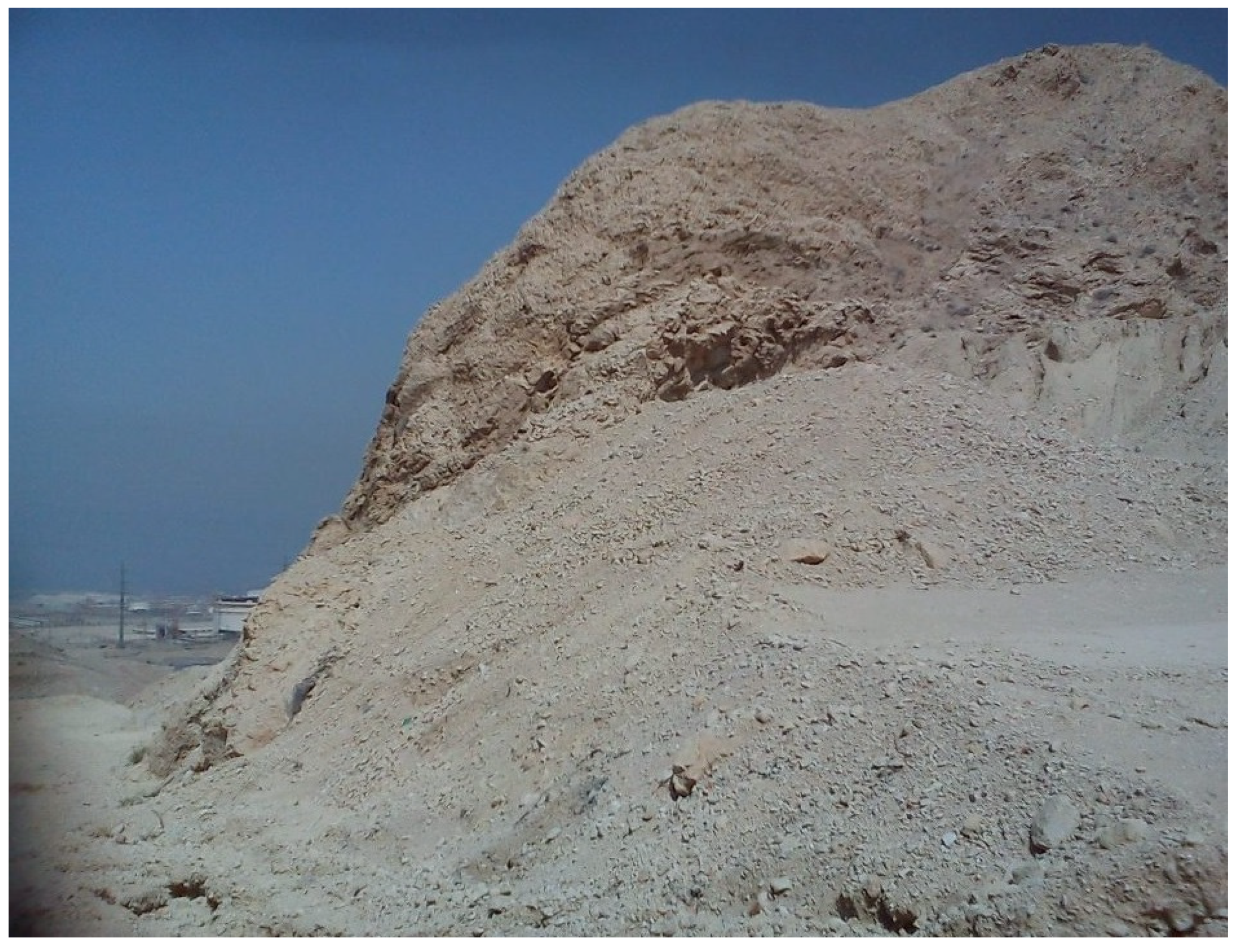

Parameter | Unit | Value |
---|---|---|

Specific gravity (G_{s}) | - | 2.63 |

γ_{d} | kN/m^{3} | 20.00 |

Slope height (H) | m | 14.5 |

Slope angle (β) | Degree | 65 |

Cohesion (c) | kPa | 125 |

Friction (φ) | Degree | 35 |

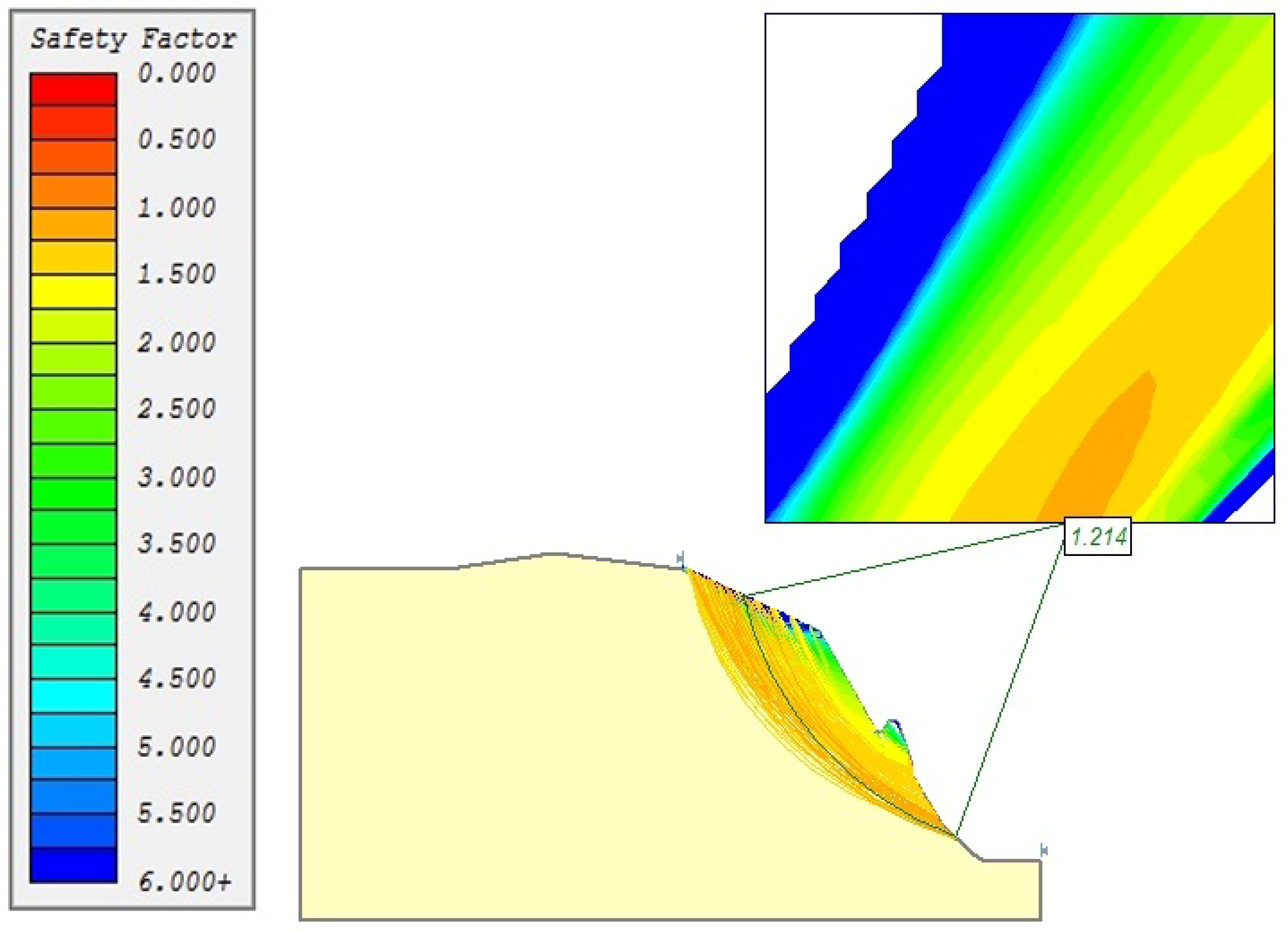

No. | Analysis Method | Estimated FS |
---|---|---|

1 | MLP | 1.18 |

2 | SVM | 1.1 |

3 | DT | 1.1 |

4 | RF | 1.4 |

5 | SLIDE | 1.21 |
