Article

Heat Transfer Enhancement of Diamond Rib Mounted in Periodic Merging Chambers of Micro Channel Heat Sink

by
Xin Lu
1,2,
Lu Wang
1,2,
Liangbi Wang
1,2,* and
Yao Hu
1
1
School of Mechanical and Electrical Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2
Key Laboratory of Railway Vehicle Thermal Engineering Ministry of Education, Lanzhou Jiaotong University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
Micromachines 2025, 16(5), 533; https://doi.org/10.3390/mi16050533
Submission received: 28 March 2025 / Revised: 22 April 2025 / Accepted: 27 April 2025 / Published: 29 April 2025
(This article belongs to the Section E: Engineering and Technology)
Browse Figures
Versions Notes

Abstract

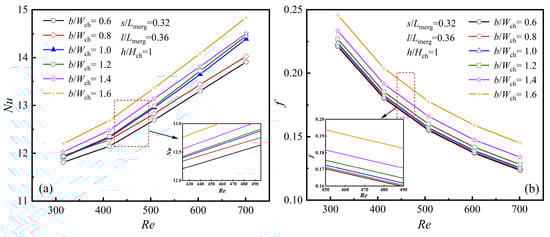

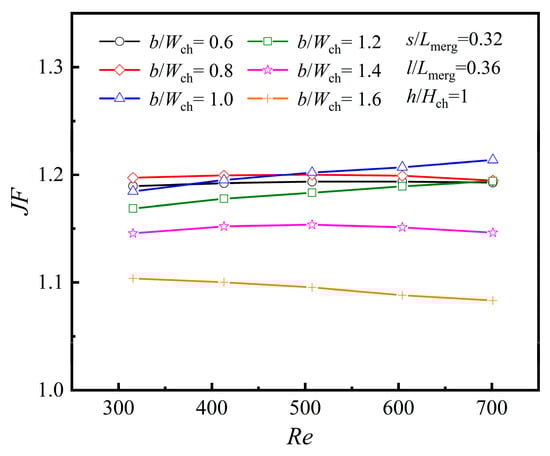

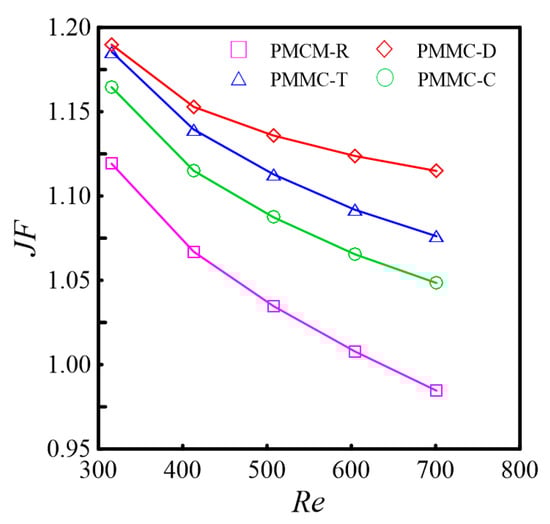

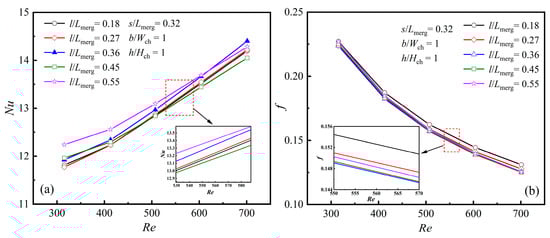

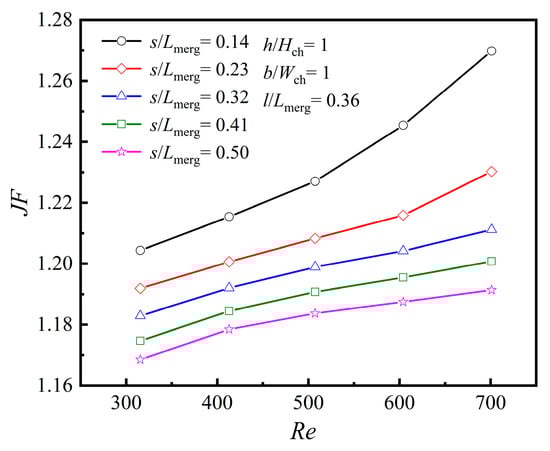

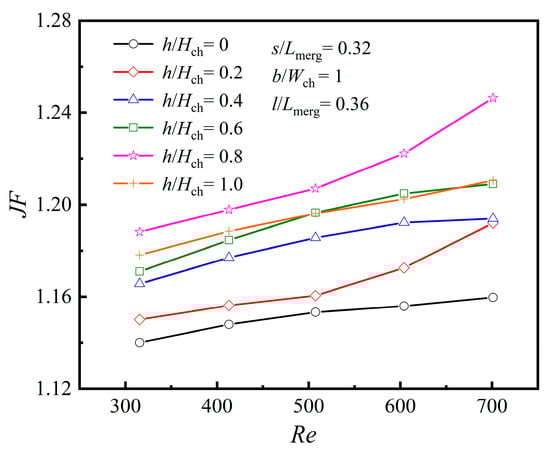

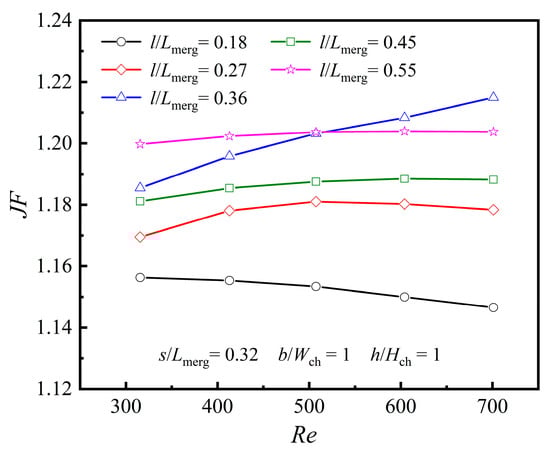

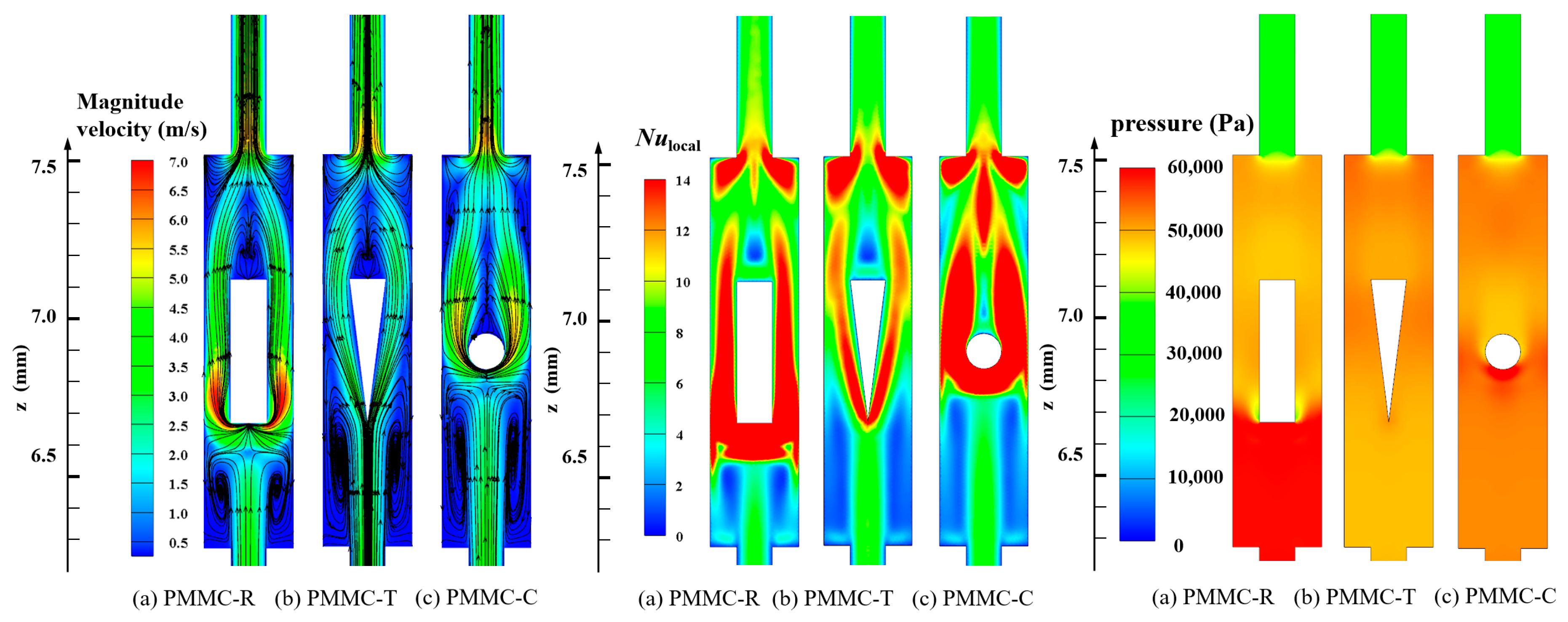

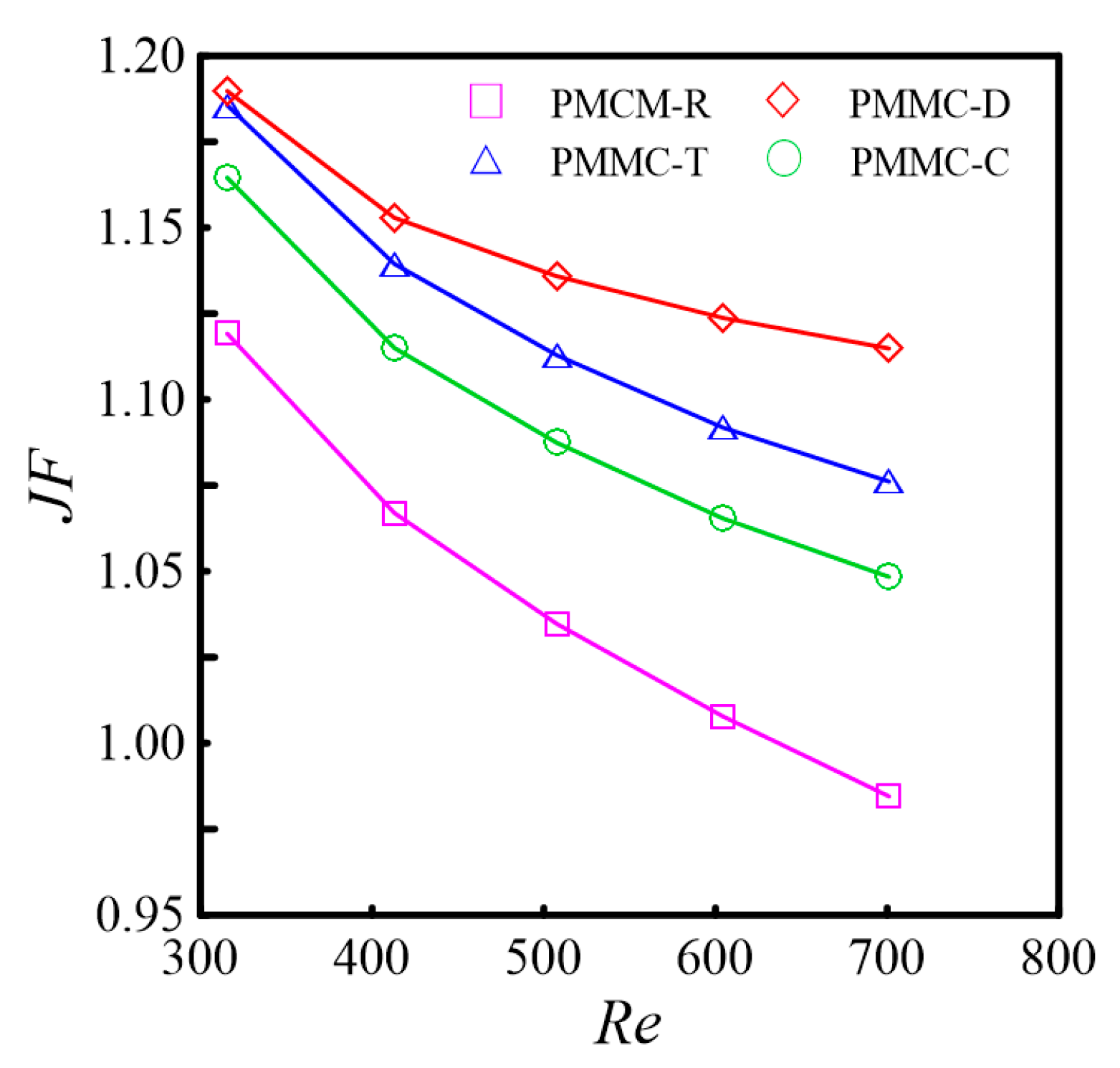

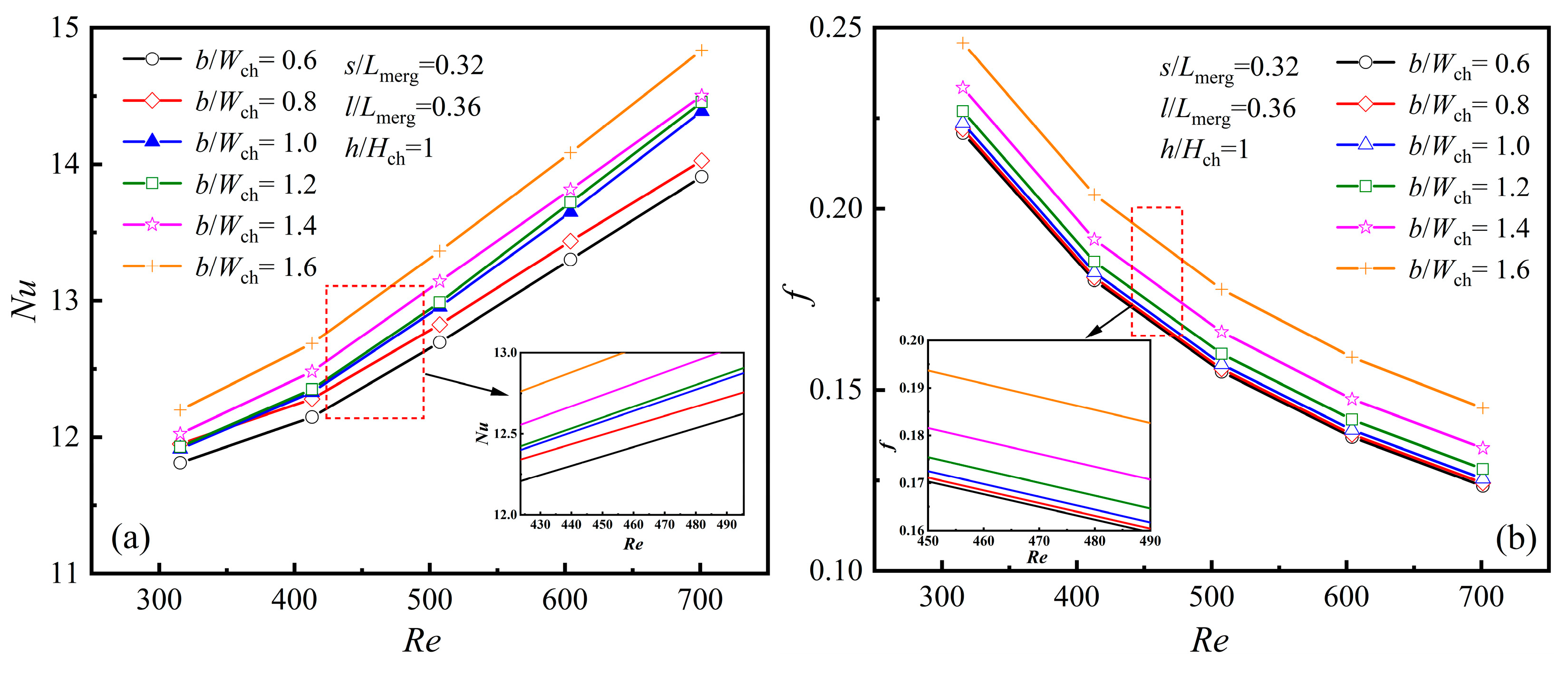

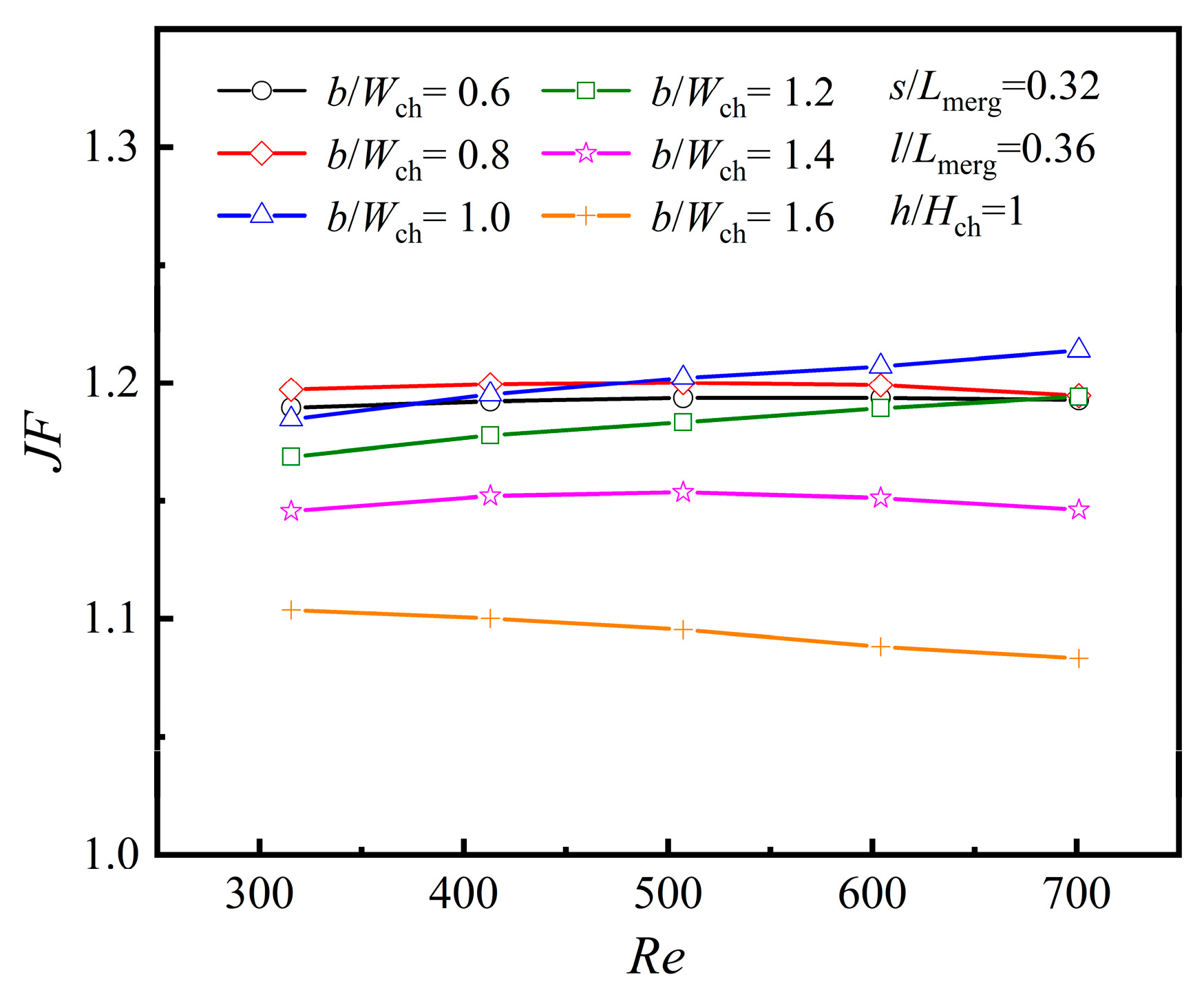

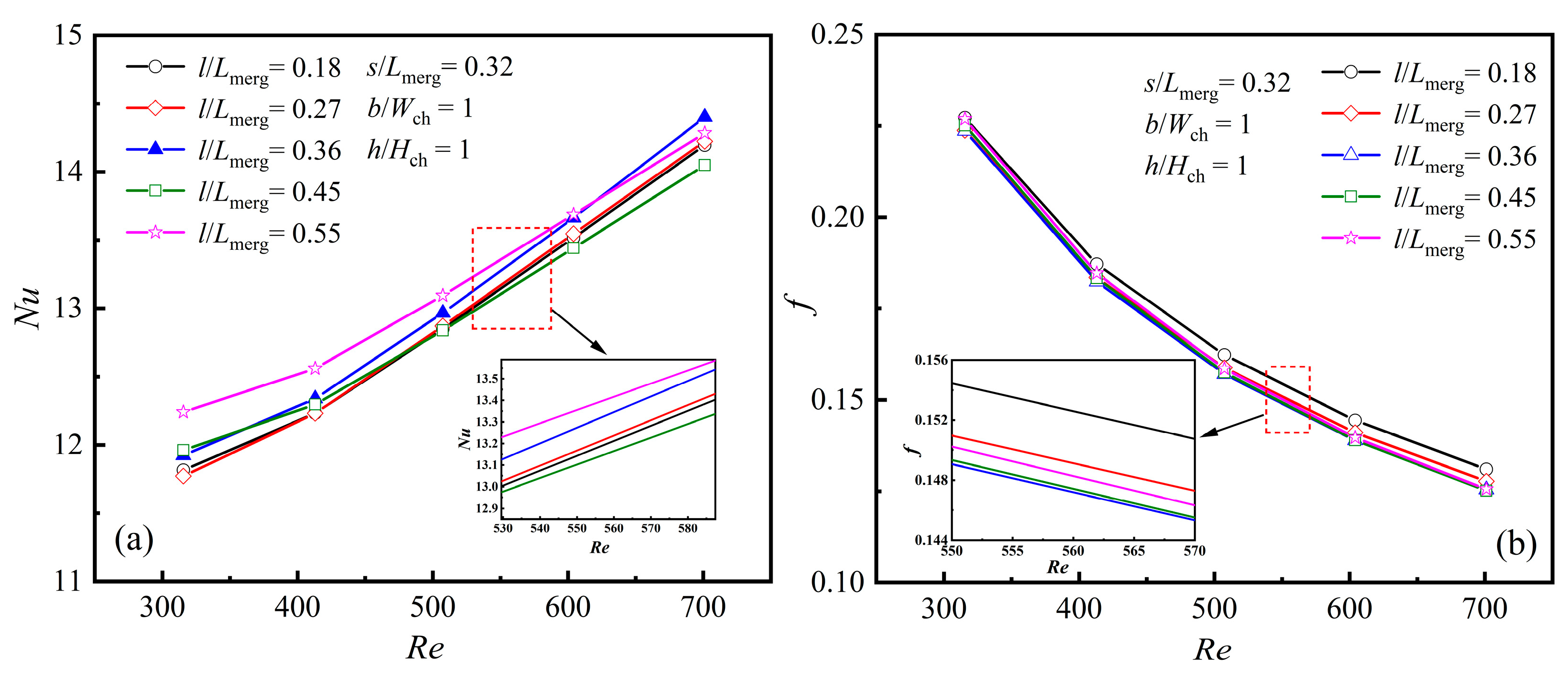

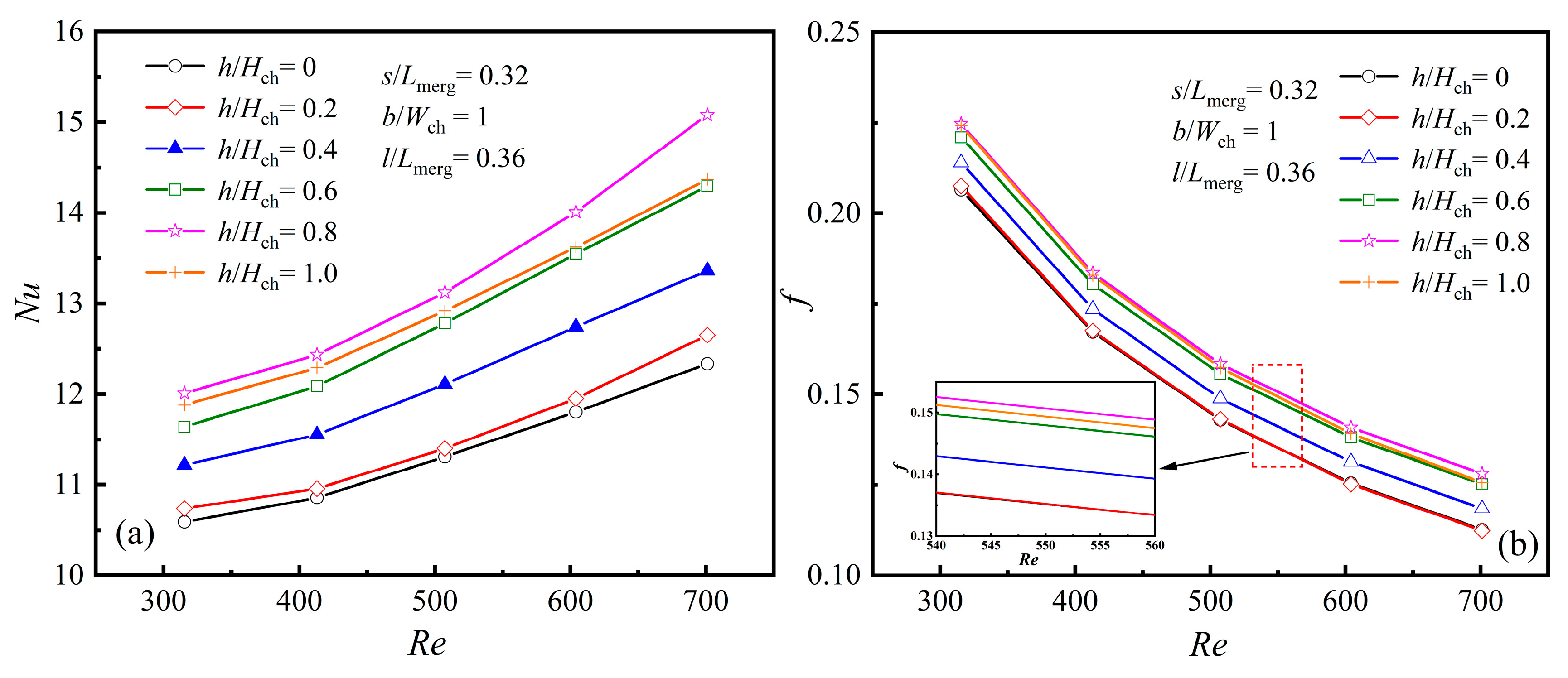

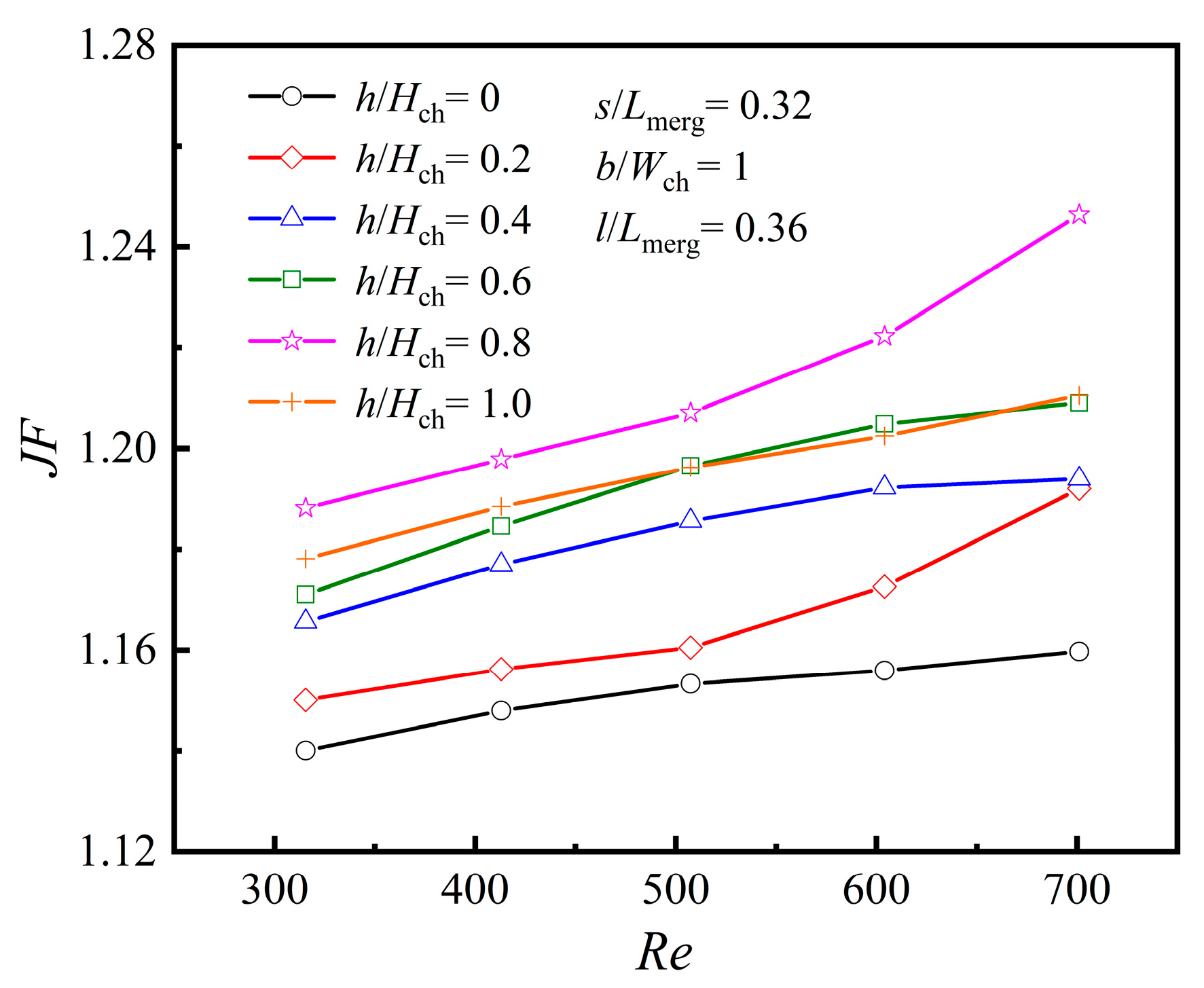

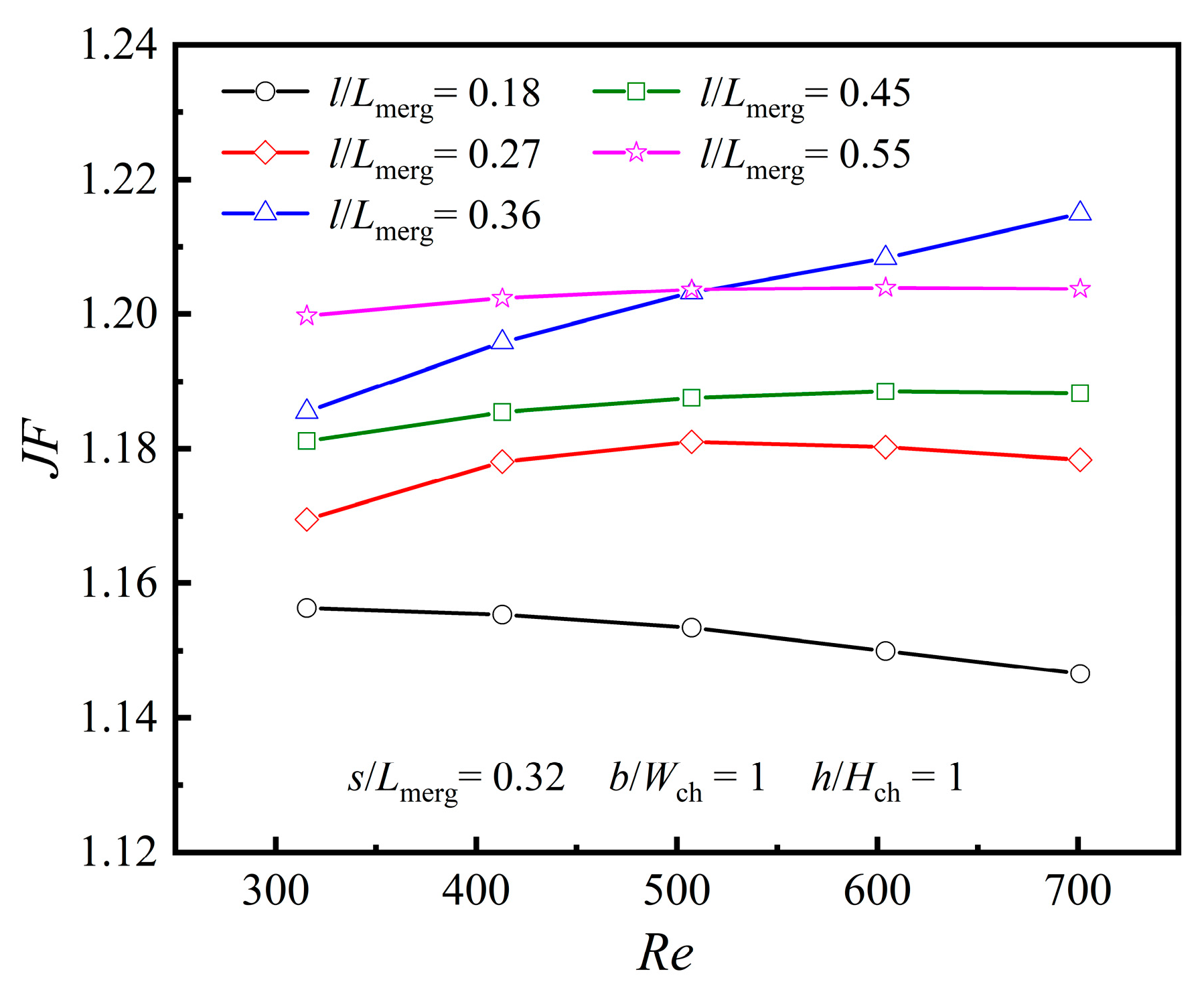

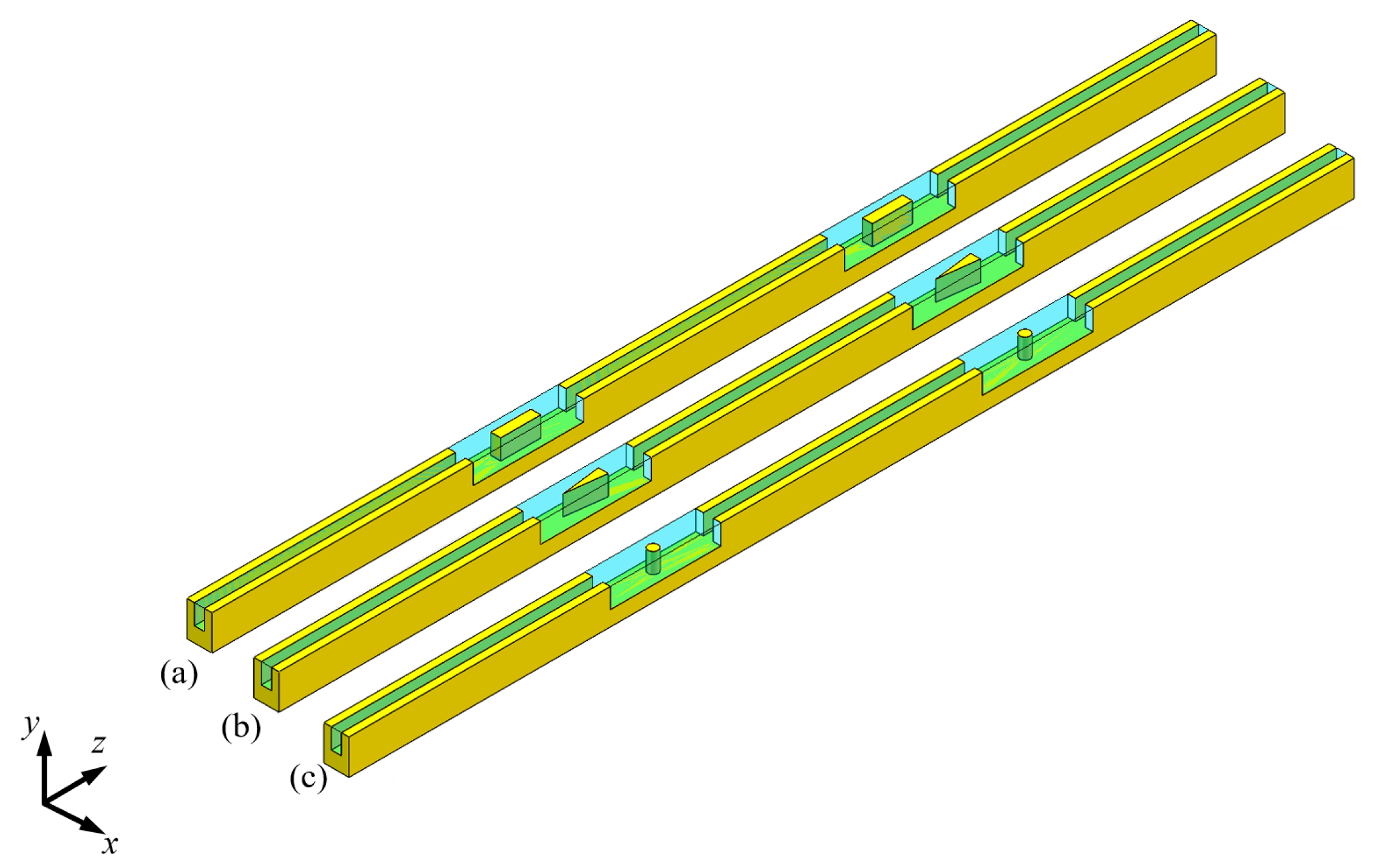

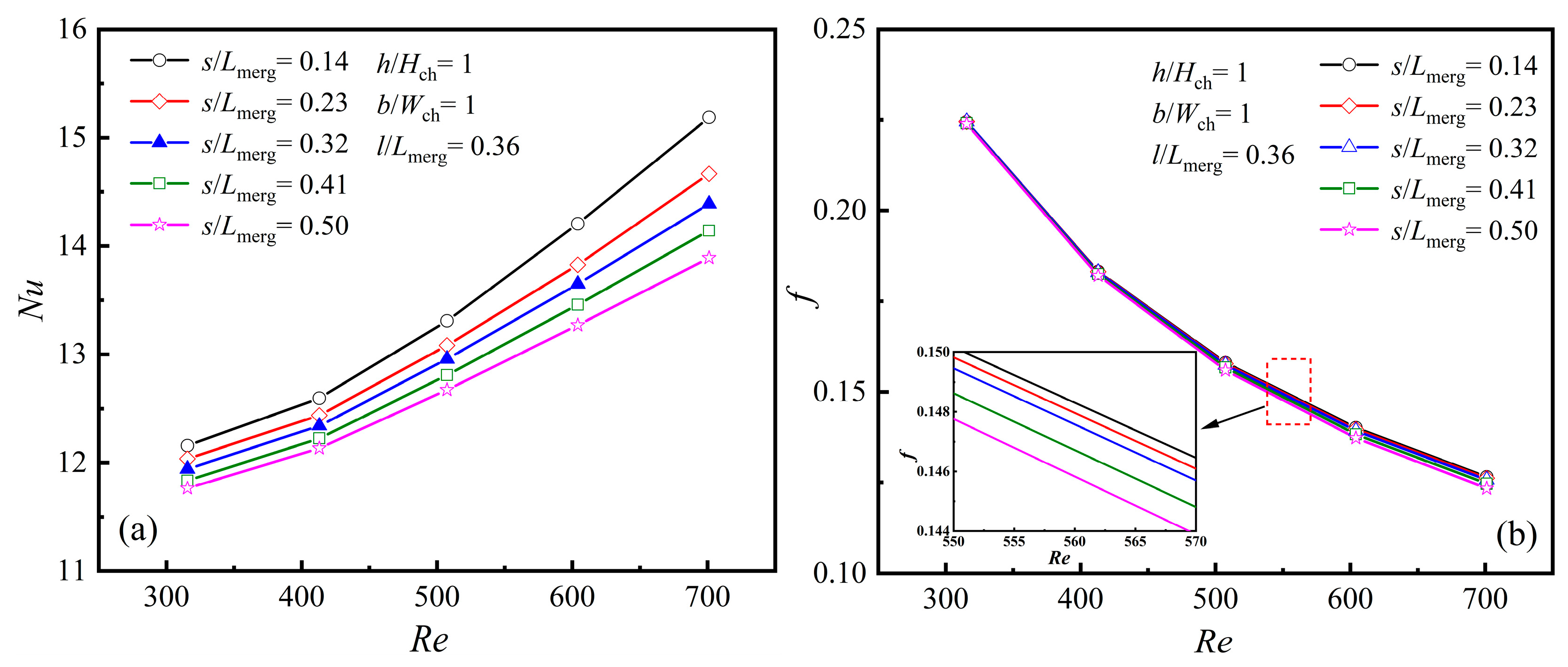

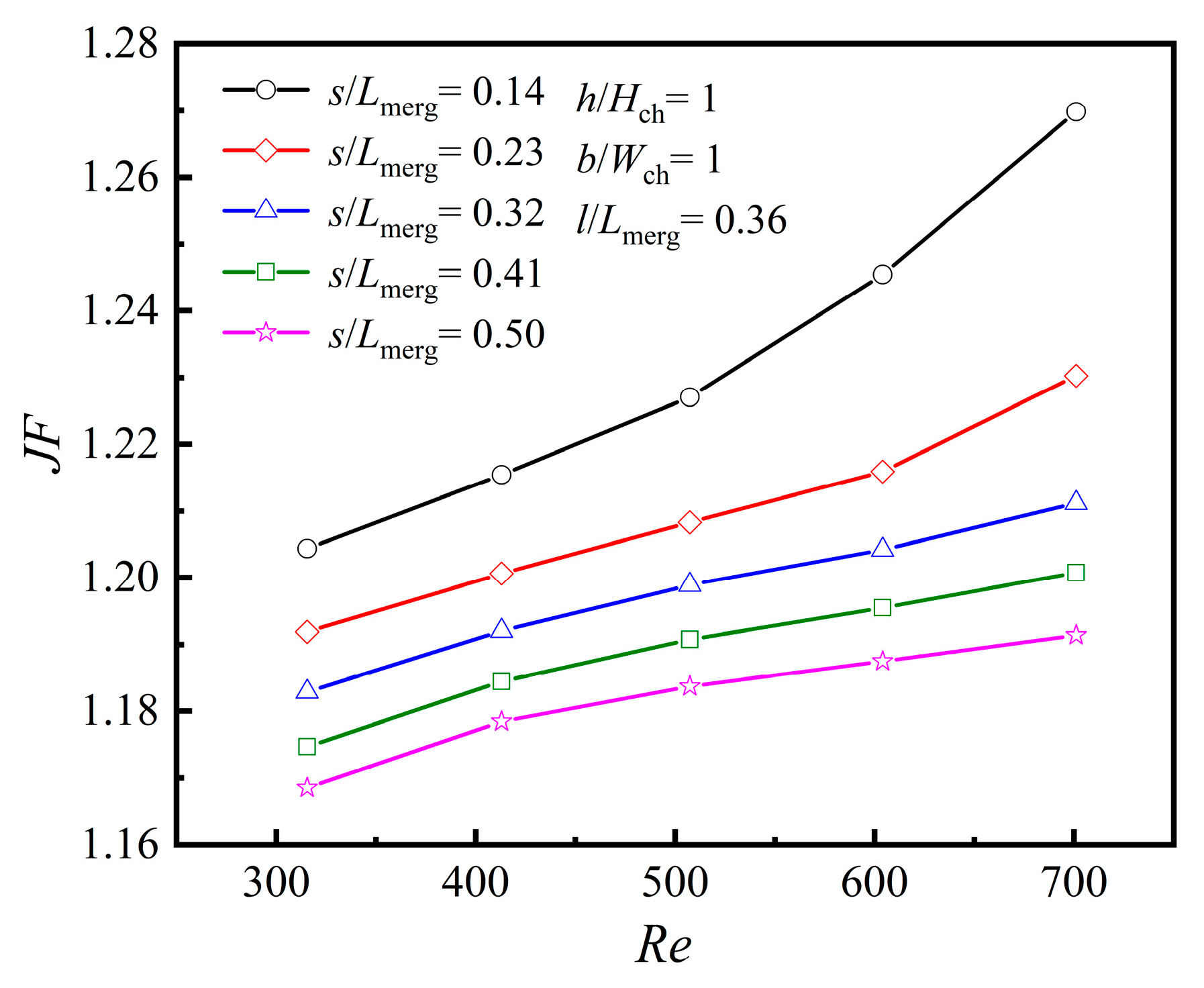

The heat transfer enhancement of diamond-shaped ribs mounted in the periodic merging chambers of microchannel (MC) heat sinks is investigated using a numerical method for Reynolds number in the region of 300–700. Compared to triangular, rectangular, and cylindrical ribs, diamond-shaped ribs achieve 3.59%, 13.24%, and 6.34% higher enhancement effects, respectively, under the same mass flow rate. Further analysis of geometric parameters (length, width, and height) and rib positioning reveals that a rib height of h/Hch = 0.8 provides optimal heat dissipation performance. For Re < 500, the optimal configuration is a rib length of l/Lmerg = 0.55 and a width of b/Wch = 0.8, while for 500 < Re < 700, it shifts to l/Lmerg = 0.36 and b/Wch = 1.6. For s/Lmerg, the smaller it is, the shorter the main flow separation time, thereby improving heat transfer efficiency.
Keywords: micro channel heat sink; merging chambers; ribs; geometric parameter; heat transfer micro channel heat sink; merging chambers; ribs; geometric parameter; heat transfer
