Genetic Diversity of Potassium Ion Channel Proteins Encoded by Chloroviruses That Infect Chlorella heliozoae

by
Carter R. Murry
1,2,
Irina V. Agarkova
2,3,
Jayadri S. Ghosh
2,3,
Fiona C. Fitzgerald
4,
Roger M. Carlson
2,
Brigitte Hertel
5,
Kerri Kukovetz
5,
Oliver Rauh
5,
Gerhard Thiel
5 and
James L. Van Etten
2,3,*
1
School of Biological Sciences—Microbiology Program, University of Nebraska-Lincoln, Lincoln, NE 68588-0118, USA
2
Nebraska Center for Virology, University of Nebraska-Lincoln, Lincoln, NE 68583-0900, USA
3
Department of Plant Pathology, University of Nebraska-Lincoln, Lincoln, NE 68583-0833, USA
4
Department of Chemistry and Biochemistry, Benedictine College, Atchison, KS 66002, USA
5
Membrane Biophysics, Department of Biology, Technische Universitat, 64287 Darmstadt, Germany
*
Author to whom correspondence should be addressed.
Viruses 2020, 12(6), 678; https://doi.org/10.3390/v12060678
Submission received: 3 June 2020 / Revised: 18 June 2020 / Accepted: 19 June 2020 / Published: 23 June 2020
(This article belongs to the Section Viruses of Plants, Fungi and Protozoa)
Browse Figures
Versions Notes

Abstract

:
Chloroviruses are large, plaque-forming, dsDNA viruses that infect chlorella-like green algae that live in a symbiotic relationship with protists. Chloroviruses have genomes from 290 to 370 kb, and they encode as many as 400 proteins. One interesting feature of chloroviruses is that they encode a potassium ion (K+) channel protein named Kcv. The Kcv protein encoded by SAG chlorovirus ATCV-1 is one of the smallest known functional K+ channel proteins consisting of 82 amino acids. The KcvATCV-1 protein has similarities to the family of two transmembrane domain K+ channel proteins; it consists of two transmembrane α-helixes with a pore region in the middle, making it an ideal model for studying K+ channels. To assess their genetic diversity, kcv genes were sequenced from 103 geographically distinct SAG chlorovirus isolates. Of the 103 kcv genes, there were 42 unique DNA sequences that translated into 26 new Kcv channels. The new predicted Kcv proteins differed from KcvATCV-1 by 1 to 55 amino acids. The most conserved region of the Kcv protein was the filter, the turret and the pore helix were fairly well conserved, and the outer and the inner transmembrane domains of the protein were the most variable. Two of the new predicted channels were shown to be functional K+ channels.

1. Introduction

Chloroviruses (family Phycodnaviridae) are large, plaque-forming, dsDNA viruses that infect certain chlorella-like green algae that live in a symbiotic relationship with protists [1]. Chloroviruses have an internal membrane and they are icosahedral in shape with a spike structure at one of their vertices [2]. They have genomes that are 290 to 370 kb in size and are predicted to encode up to 400 proteins (CDSs) and 16 tRNAs. These viruses are ubiquitous in nature and have been isolated from freshwater ponds, lakes, and rivers across the globe. There are four groups of chloroviruses based on the host they infect: viruses that infect Chlorella variabilis NC64A (referred to as NC64A viruses), viruses that infect Chlorella variabilis Syngen 2-3 (referred to as Osy viruses), viruses that infect Chlorella heliozoae SAG 3.83 (referred to as SAG viruses), and viruses that infect Micratinium conductrix Pbi, (referred to as Pbi viruses). The most studied chlorovirus is the NC64A virus Paramecium bursaria chlorella virus 1 (PBCV-1); its host, C. variabilis NC64A, lives in symbiosis with Paramecium bursaria.
The PBCV-1 genome is ~331 kb and encodes 416 predicted CDSs and 11 tRNA genes. About half of the identified CDSs resemble proteins of known function, including some that are novel for a virus. One protein that PBCV-1, as well as most of the chloroviruses, encodes is a potassium ion (K+) channel protein (named Kcv) [3]. When the 94 amino acid KcvPBCV-1 was discovered, it was the smallest protein known to form a functional K+ channel. The KcvPBCV-1 protein consists of only the basic functional units that are present in all K+ channels in that it has a short slide helix, an outer transmembrane helix, a turret, a pore helix, a filter, and an inner transmembrane helix (Figure 1); four of these proteins form a functional K+ channel.
KcvPBCV-1 is hypothesized to play an important role during infection of its host. After the virus attaches to the host cell wall and degrades the wall at the point of attachment, the PBCV-1 internal membrane fuses with the host’s plasma membrane [4]. The Kcv channel is located in the virus’s internal membrane [5], and once the two membranes are fused, the Kcv channel becomes part of the host membrane. This allows Kcv to participate in the rapid depolarization of the host cell membrane [6,7] and the release of K+ from the cell [8].
The rapid loss of K+ from the host and associated water fluxes significantly reduce the host turgor pressure, which aids ejection of viral DNA and virion-associated proteins into the host [9]. Host membrane depolarization also inhibits many host secondary transporters [10] and prevents infection by a second virus [11]. Because of the small size of Kcv, it has served as an excellent model for studying K+ channels and there are over 60 research publications on Kcv channels.
Since the discovery of KcvPBCV-1, even smaller chlorovirus-encoded K+ channel proteins have been described including an 82 amino acid protein from SAG chlorovirus, ATCV-1, referred to as KcvATCV-1 (Figure 1). Expression studies established that KcvATCV-1 makes a functional, K+ selective channel in Xenopus laevis oocytes and in yeast [12]. The objective of this study was to isolate and analyze the sequence diversity of the kcv gene from 103 SAG chloroviruses that come from freshwater collected throughout the world. Ultimately, one can anticipate some physiological differences among the Kcv channels from the SAG viruses.

2. Materials and Methods

2.1. Cultures

Water samples were collected from lakes, ponds, and rivers from around the United States, Canada, Guatemala, Brazil, Chile, Germany, and Greenland (Table A1 (Appendix A)). The samples were passed through a 0.45 µm filter (PES filters, Sartorius, Gottingen, Germany). Chloroviruses were isolated from the filtered water samples using a plaque assay on a C. heliozoae SAG 3.83 lawn. For the plaque assay, plates were made using Modified Bold’s Basal Medium (MBBM) 1.5% agar with tetracycline added at 10 µg/mL [13]. Each plate was filled with about 20 mL of MBBM agar and allowed to solidify. In a tube, 2.5 mL of 0.75% MBBM agar was combined with 1 mL of the filtered water sample and 300 µL of C. heliozoae cells (~1.5 × 108 cells/mL). The tube was mixed and poured over the solidified 1.5% MBBM agar plate. Once the top agar layer solidified, the plates were inverted and kept under constant light at 25 °C for a few days. If SAG chloroviruses were present in the water sample, plaques formed on the plates. Two to three unique plaques (e.g., different size and sometimes different shape plaques) were picked from each plate with a sterile toothpick and placed in a 1.5 mL tube filled with C. heliozoae cells. These samples were then placed on a spinning wheel for 1 day to propagate the virus. The resulting lysates were serially diluted to 10−6 in virus suspension buffer (VSB, 50 mM Tris HCl, 10 mM MgCl2, pH 7.8) and 100 µL of the resultant dilution was plaqued. Each virus sample was plaque-purified two or three times to ensure that one had a single virus. For the PCR DNA template preparation, 100 µL of viral lysate was boiled in deionized sterile water for 5–10 min.

2.2. Primer Selection

DNA sequences 450 to 500 bp upstream and 230 to 350 bp downstream from the kcv gene from 13 previously sequenced SAG chloroviruses [14] were used to identify conserved regions for designing degenerate primers. Conserved regions were identified inside the aligned sequences, and four forward primers and five reverse primers (Table 1) were made and tested using known SAG virus DNAs (ATCV-1, BRO604, Can0610, Canal1, GM0701, MN0810, MO0605, NEJV2, NTS1, OR0704, TN603, WI0606). The primers that identified all of the kcv genes were forward primer Kcv8 Frw and reverse primer Kcv6 Rvs as well as forward primer Kcv9 Frw and reverse primer Kcv6 Rvs. As a result, the primer set Kcv9/Kcv6 was selected to amplify the kcv genes.

2.3. Polymerase Chain Reactions (PCR)

The conditions for the PCR reactions followed the recommendations of New England Biolab’s (Beverly, MA, USA) Phusion High Fidelity DNA Polymerase kit. The 50 µL PCR reactions contained 10 µL of 5x Phusion High Fidelity buffer, 1 U Phusion DNA polymerase, and 1 µL of DNA template. The final concentration of dNTPs in the PCR reaction was 0.2 mM and the primer final concentration was 0.5 µM forward primer and 0.5 µM reverse primer. The reactions were run for 5 min at 94 °C, followed by 35 cycles of 1 min at 94 °C, 30 s at 56 °C, 1 min at 72 °C, and at the end the final extension 15 min at 72 °C. Deionized water was used as a negative control.
The PCR products were gel-purified by mixing 20 µL of an amplified sample with a small amount of Ficoll gel loading buffer and loaded on a 1% agarose gel. The New England Biolabs log-2 ladder was used as a molecular weight marker. The gel was run at 5 V/cm for 1 h, then imaged by exposing the gel to ultraviolet light. Amplified kcv genes were excised from the gel and the DNA extracted using the QIAquick Gel Extraction Kit following the manufacturer’s instruction (QIAGEN Hilden, Germany). The purified DNAs were sequenced using Sanger sequencing by a commercial provider. The accession numbers for the kcv sequences in GenBank are MT560092-MT560194.

2.4. Phylogenetic Analysis

The kcv gene DNA sequences were translated into amino acid sequences, and all of the unique Kcv proteins were aligned. Geneious 11.0.5 software (Biomatters Ltd., Auckland, New Zealand, https://www.geneious.com) was used for the DNA and protein sequence alignment (Geneious Alignment with the default settings) and the phylogenetic tree was constructed with PhyML (version 3.3.20180621), which is Maximum likelihood, using the default settings.

2.5. Functional Reconstitution of kcv Genes in Planar Lipid Bilayers

K+ channel proteins were translated in vitro into nanodiscs (NDs) with the MembraneMax HN Protein Expression Kit (Invitrogen, Carlsbad, CA, USA) as described previously [15]. A His-tag attached to the scaffold protein of the NDs allowed purification of channel/ND-complexes via metal chelate affinity chromatography. To eliminate unspecific binders, the column was washed three times with 400 μL of a 20 mM imidazole solution. Finally, the His-tagged NDs were eluted in three fractions with 200 μL of a 250 mM imidazole solution. All centrifugation steps were performed at 700 g for 2 min.
Single-channel recordings were done with a vertical bilayer set up (IonoVation, Osnabrück, Germany) as described previously [16]. The experimental solution contained 100 mM KCl and was buffered to pH 7.0 with 10 mM HEPES/KOH. As a lipid, we used 1,2-diphythanoyl-sn-glycero-3-phosphocholine (DPhPC) (Avanti Polar Lipids, Alabaster, AL, USA) at a concentration of 15 mg/mL in n-pentane (MERCK KGaA, Darmstadt, Germany).

3. Results

3.1. kcv Genes Selected for Analysis

In total, kcv genes from 83 SAG chloroviruses were obtained from the PCR experiments. In addition, the kcv genes from the 13 SAG chloroviruses that had been sequenced previously [14] and kcv genes from 7 recently sequenced SAG chloroviruses (not yet in the database) were included in the analysis. Thus, in total we compared kcv genes from 103 SAG chloroviruses (Table A1). Overall, these viruses were from three continents and seven countries.

3.2. Diversity of kcv Genes

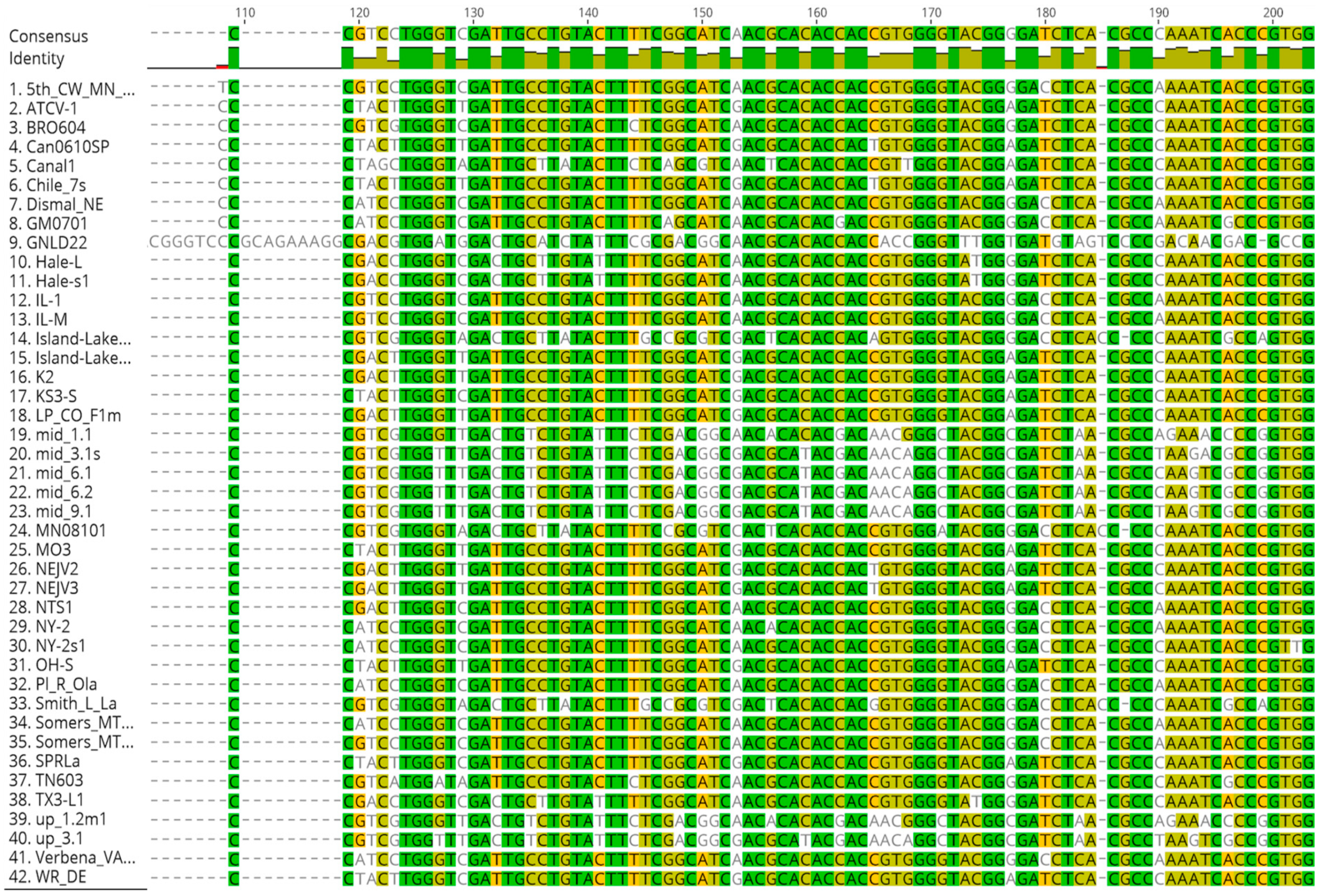

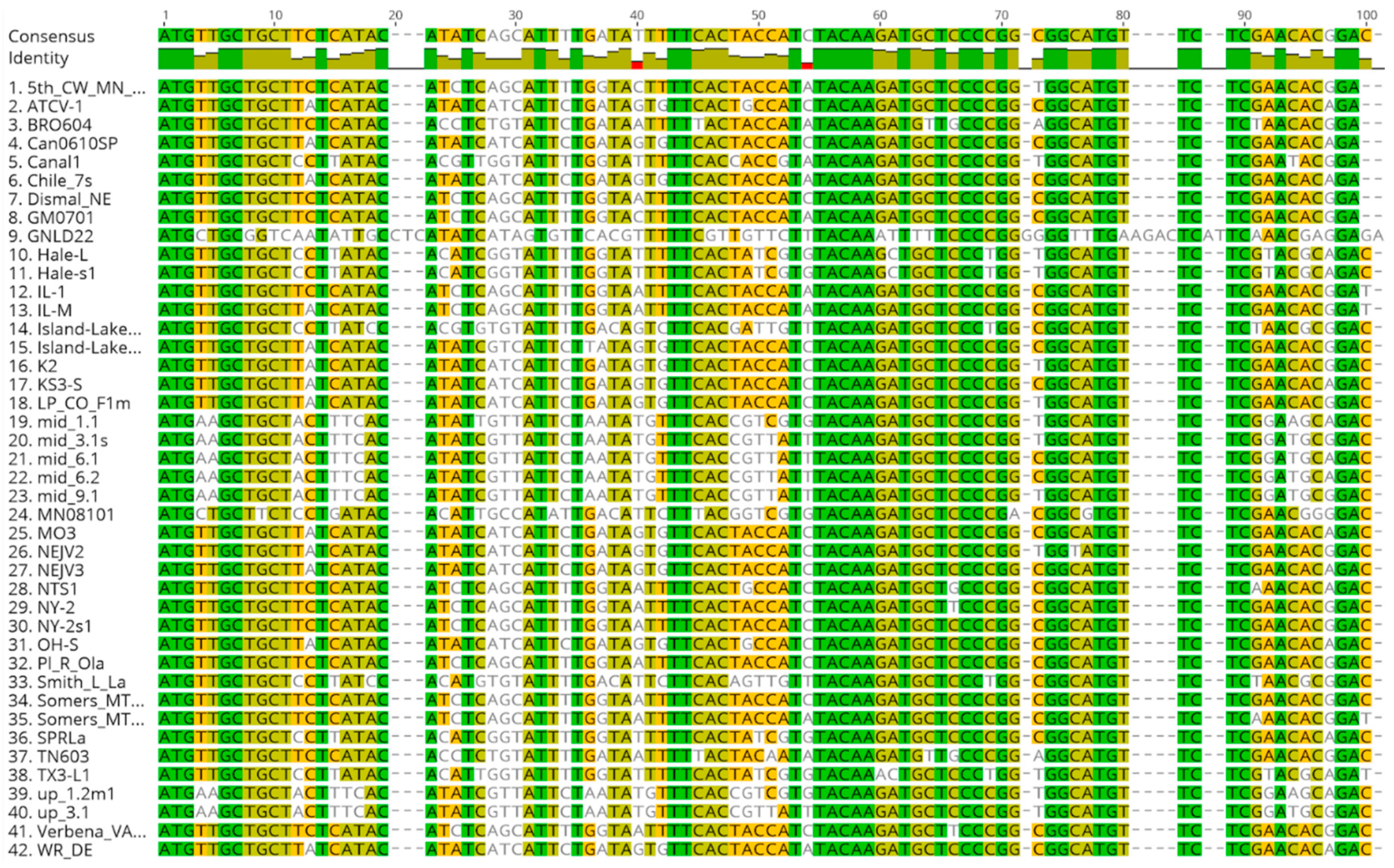

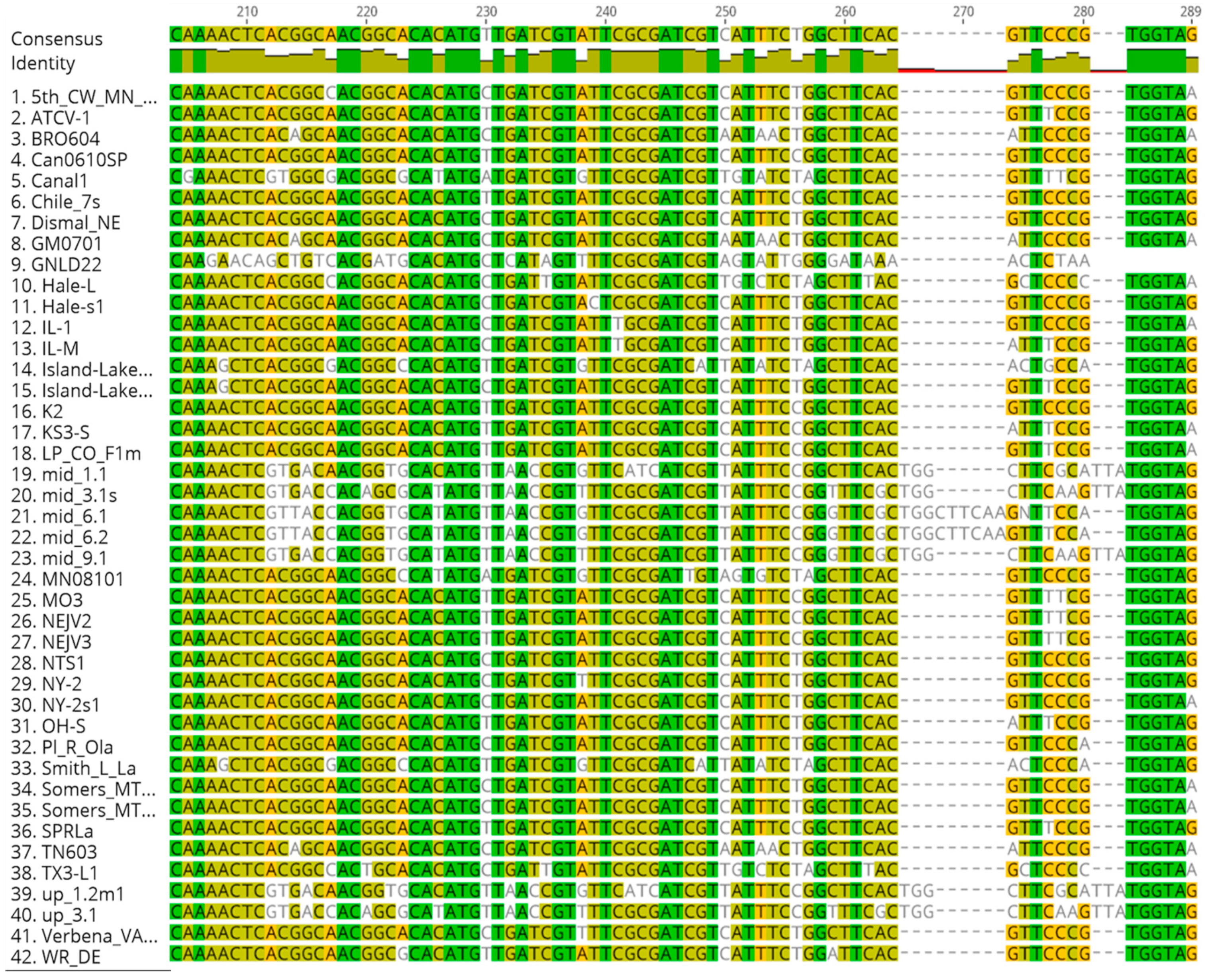

Alignment of the nucleotide sequences indicated that the 103 kcv genes had substitutions in 125 of the 249 nucleotides (~50%) (assuming that all the proteins were 82 amino acids long (but see below)) producing 42 unique DNA sequences (Figure A1 (Appendix B)). Nine of the viruses with identical kcv DNA sequences included a virus isolated in Germany in 2002 and viruses isolated in various parts of the United States of America 4 to 16 years later. Twenty of the virus isolates with identical kcv DNA sequences were from ponds near Hohenheim, Germany that were collected on the same day in 2017. It is important to note that the type SAG virus, ATCV-1, was isolated from one of these ponds in 2002. The sequences of the newly isolated viruses differed from ATCV-1 virus by 18–21 amino acids. In these same recent German collections, there were viruses with three additional kcv DNA sequences. The kcv DNA sequence from 18 of the 103 viruses was only found one time.

3.3. Diversity of the Kcv Proteins

The 42 unique kcv DNA sequences produced 26 unique proteins (Figure 2). Of the 26 unique protein sequences, 18 of them were 82 amino acids long, 4 were 84 amino acids, 2 were 85 amino acids, 1 was 87 amino acids, and 1 was 89 amino acids. The proteins with 84 and 85 amino acids had either 2 or 3 extra amino acids at their C-terminal ends. The 87 amino acid Kcv protein from a virus isolate from New York state had 5 amino acids added to the N-terminus of the protein. However, this protein has an internal Met that would create an 82 amino acid protein and so we suspect that this internal AUG is the actual translation start site. The 89 amino acid protein from a virus, GLND22, isolated in Greenland has 8 extra amino acids in the turret region between the outer transmembrane domain and the pore region. This turret region also has extra amino acids in the slightly larger Kcv proteins from the NC64A viruses (Figure 1) and the Pbi viruses [17].
The KcvCan0610SP only differed from KcvATCV-1 by one amino acid. The Kcvs from viruses collected from Germany in 2017 differed from KcvATCV-1, which originally came from Germany, by 18 to 21 amino acids. The KcvGNLD22 differed the most from KcvATCV-1 with 55 amino acid differences or 56% of the amino acids. The remaining virus Kcvs differed from KcvATCV-1 by 2 to 13 amino acids.

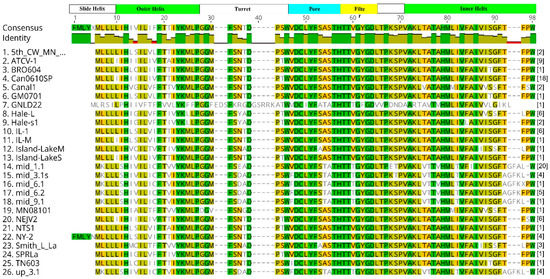

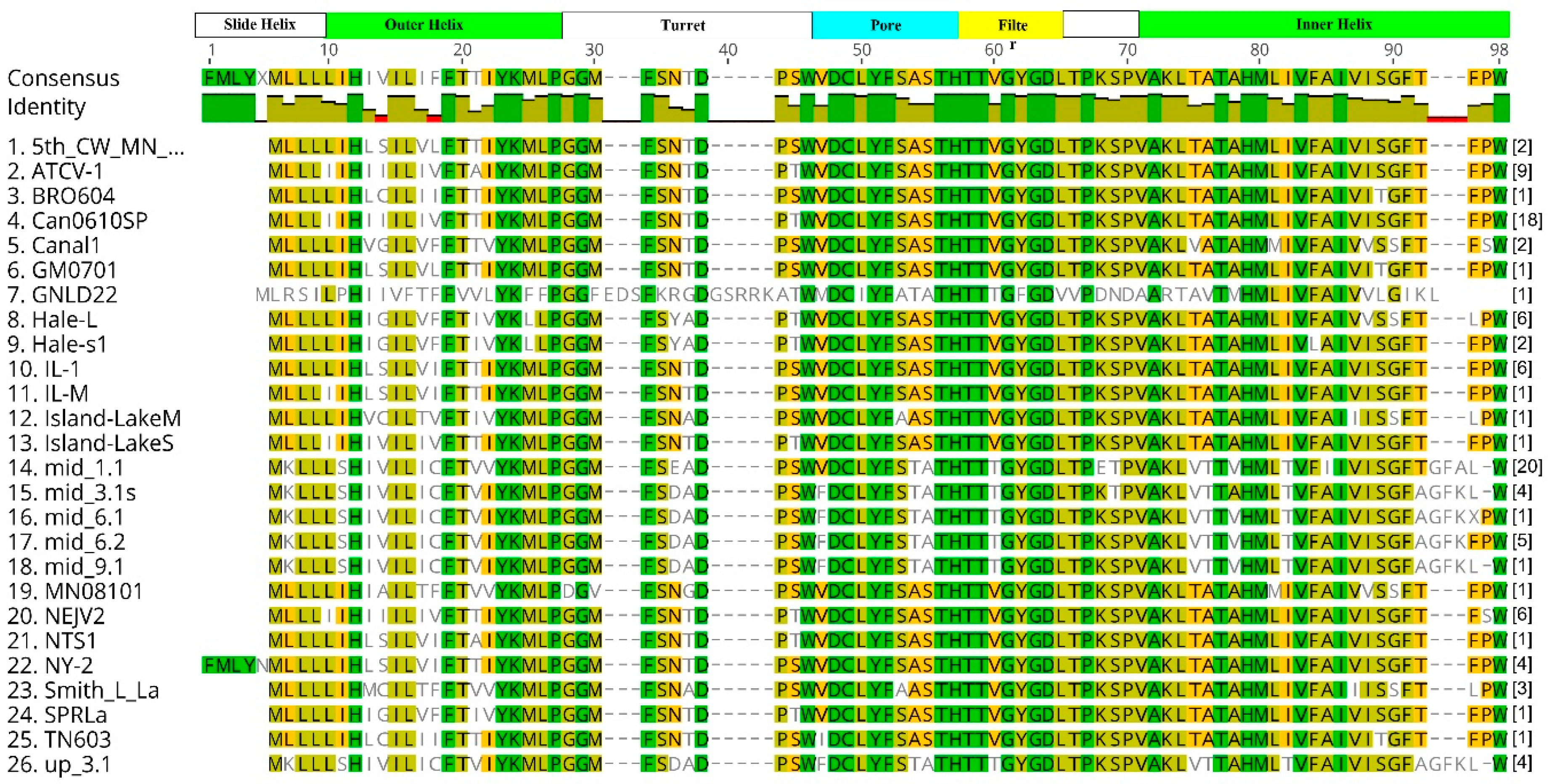

Alignment of the 26 unique proteins revealed that some areas of the Kcv protein were more conserved than others. The filter domain is typically the most highly conserved domain in K+ channel proteins and 20 of the 26 proteins had a TTVGYGDL sequence. Five of the remaining six Kcvs had a TTTGYGDL sequence and the remaining Kcv, KcvGLND22 from Greenland, had a TTTGFGDV sequence (Figure 2). All the SAG chlorovirus Kcvs essentially lack an N-terminal slide helix domain (Figure 1).

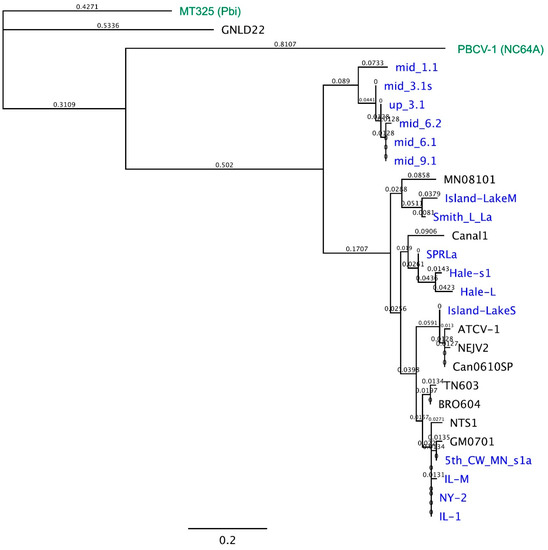

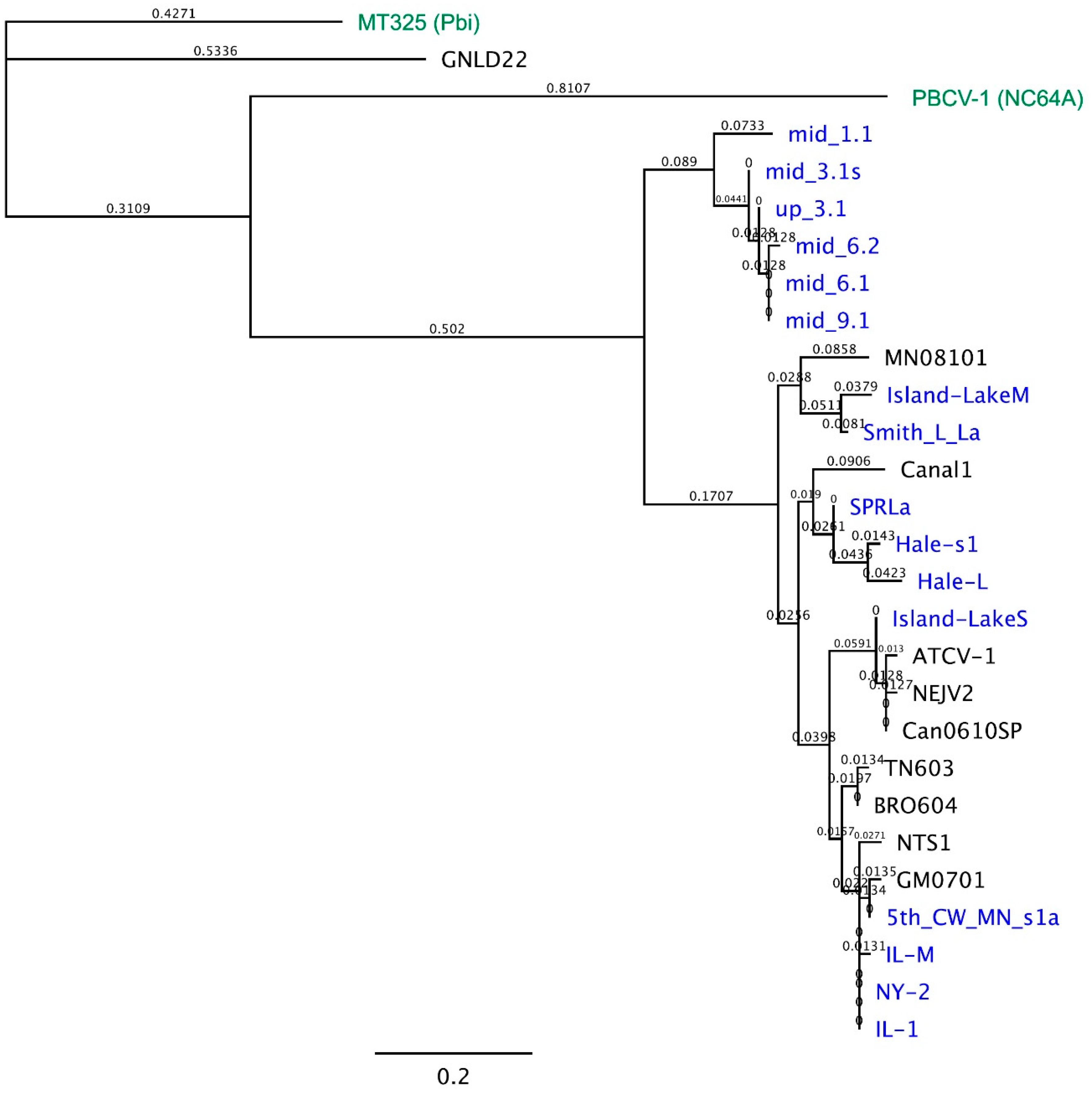

A phylogenetic tree of the 26 Kcv proteins resulted in 3 major clades (Figure 3). The largest clade had 19 Kcv proteins from viruses primarily collected across the United States but also included viruses isolated in Canada, Guatemala, and Brazil, and one from Germany. Kcv proteins isolated from the recent German water samples formed a separate cluster with a distance of 0.4925 substitutions from the rest of the SAG Kcvs (Figure 3). The KcvGNDL22 from Greenland also formed a distinct clade with a distance of 1.518 substitutions from the German samples and a distance of 1.6675 substitutions from all the rest. Interestingly, KcvGNDL22 had more similarity to a Kcv from a Pbi virus MT325 than it did to the other SAG viruses (Figure 3). Virus GNDL22 is also interesting because about 15% of its CDSs are more similar to the MT325 Pbi virus and the other 85% are most similar to SAG viruses. Thus, GNDL22 appears to be some type of hybrid virus.

3.4. Functional Reconstitution of Two New Kcv Channels in Planar Lipid Bilayers

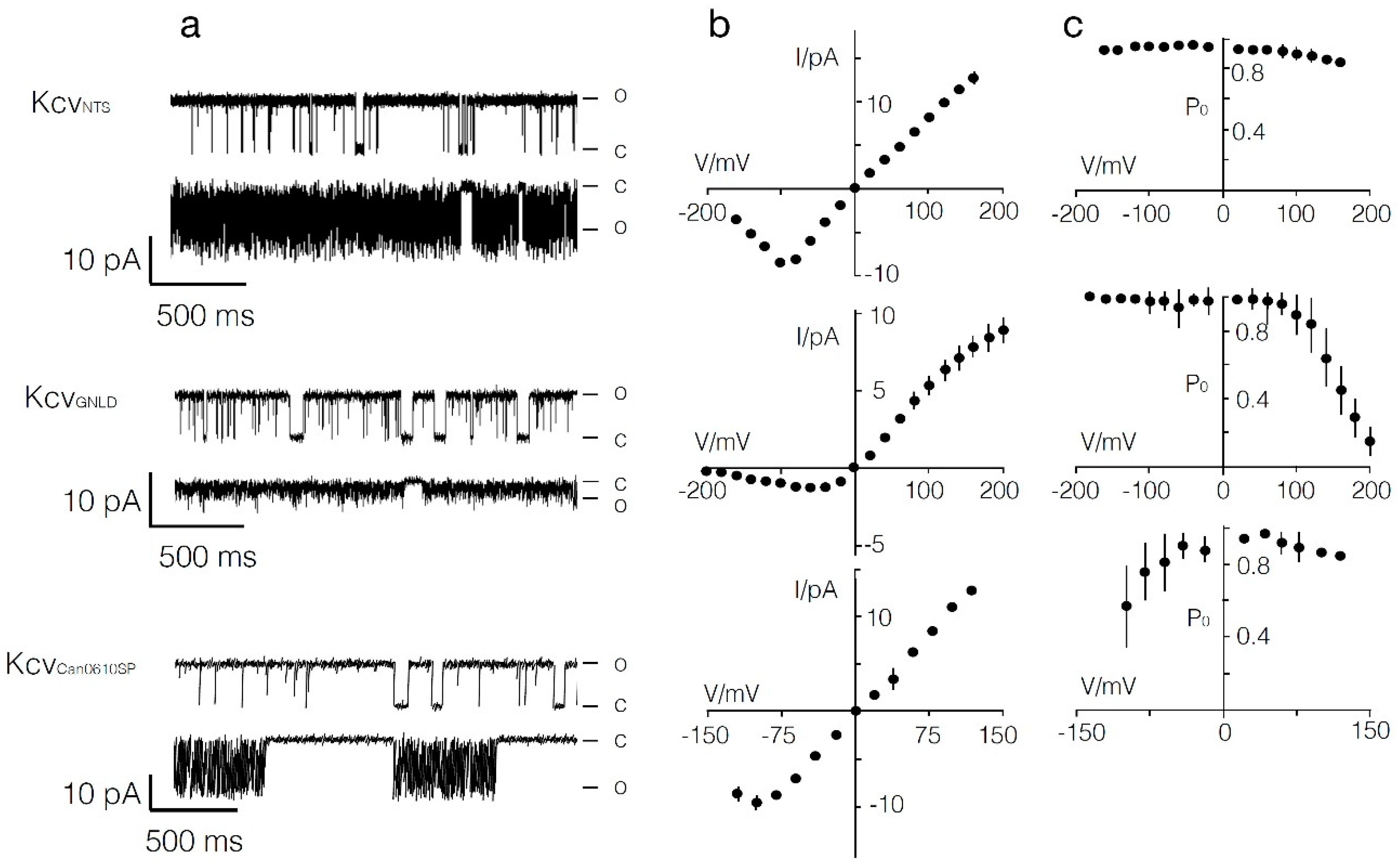

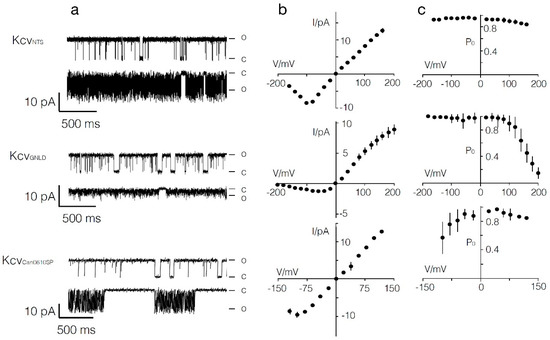

To test whether the newly discovered genes were coding for functional K+ channels, we selected two representatives for functional testing. The putative channel proteins KcvGNLD22 and KcvCan0610SP were translated in vitro into nanodiscs and after purification reconstituted in planar lipid bilayers. The electrical recordings in Figure 4 show that the two proteins generated typical single-channel fluctuations at positive and negative voltages in the presence of 100 mM KCl on both sides of the membrane. These experiments established that the two genes code for functional ion channels. The overall properties of the two new channels were similar to those of KcvNTS (Figure 4), a well-studied representative of the K+ channels from SAG viruses [18]; KcvNTS differed from the reference channel KcvATCV-1 by four amino acids. KcvGNLD22 and KcvCan0610SP were selected because of their large (55 amino acids) and small (1 amino acid) deviation from the reference channel KcvATCV-1. All three channels exhibited a hallmark of the chlorovirus K+ channels with well-resolved channel openings at positive voltages and flicker type gating at negative voltages. This flicker type gating resulted from very fast open/close transitions at negative voltages, which cannot be fully resolved by the recording equipment. As a consequence, the unitary channel conductance exhibited an apparent decrease at negative voltages [19,20]. However, it is interesting to note that this fast gating was already apparent in KcvGNLD22 at voltages negative of 0 mV while the negative slope in the two other channels only occurred at voltages more negative than about -100 mV. A closer scrutiny of the single-channel data also showed additional differences between the three channels. Comparison of the unitary channel conductance showed that this value in KcvGNLD22 (45 ± 3 pS, n = 7) was only half as big as in KcvNTS (87 ± 1.4 pS, n = 9) and KcvCan0610SP (110 ± 3, n = 9). Another striking feature of KcvGNLD22 was a strong voltage-dependent decrease in open probability at positive voltages, which was not seen in the other two. A peculiar feature of KcvCan0610SP was long-lived closed states at negative voltages, which explains a voltage-dependent decrease in open probability at negative voltages. These long closures were absent in the two other channels; in KcvGNLD22 it was even difficult to observe any distinct closure at negative voltages.

4. Discussion

This manuscript demonstrated that the kcv gene is ubiquitous among the 103 chloroviruses that infect C. heliozoae SAG 3.83, which resulted in 42 unique kcv DNA sequences. The 42 unique kcv DNA sequences produced 26 unique proteins or 26 new Kcv channels. Using the KcvATCV-1 channel as representative of the SAG viruses, the KcvATCV-1 differed from the KcvGNLD22 channel from Greenland by 55 amino acids or 56% of their amino acids. Other channels differ from the KcvATCV-1 channel by 1 to 21 amino acids.
Due to the role K+ channels play in chlorovirus infection and reproduction by depolarizing the host cell membrane, it is not surprising that kcv genes were found in all of the samples [19]. Therefore, we predict that all of the amino acid substitutions in the channels from the SAG viruses will produce functional channels; in fact, the two channels that were tested were functional (Figure 4). Furthermore, we predict that the SAG Kcv channels may have some different biophysical properties, especially the Kcv coded by the GNDL22 virus. This prediction is confirmed by scrutiny of the functional properties of the two new channels and a comparison with the well-studied SAG-type channel KcvNTS [18]. The mutual comparisons identified differences in the unitary conductance and gating between the different channels. The apparent impact of a few amino acid exchanges between the proteins on functional properties is in good agreement with previous investigations in which we found that mutation of the common Gly at the end of the second transmembrane domain in KcvNTS to Ser introduces one distinct gate with a long-lived close time [18]. Several of the new channels have the same critical Ser in the same position (90 in Figure 2). Thus, a functional analysis of these channels will be interesting.
The data are also in line with a previous study where the kcv gene was sequenced from 41 NC64A viruses, including the prototype chlorovirus PBCV-1. Sixteen of the 94 amino acids in the NC64A Kcv protein differed resulting in six new Kcv channels [20]. The six Kcv-like channels, which differed from KcvPBCV-1 by 4 to 12 amino acids, produced K+ selective currents in Xenopus laevis oocytes with altered biophysical properties, including current kinetics, voltage dependency, and inhibition by Cs+ [20,21]. The amino acid changes together with the different properties observed in the six Kcv-like channels were used to guide site-directed mutations, either singularly or in combination, to identify key amino acids that confer specific properties to Kcv [20,21].
While we assume that the chloroviruses require Kcv activity to replicate, we do have to mention that out of the more than 150 chloroviruses that have been examined for a kcv gene, two NC64A viruses either lack a kcv gene or have a truncated form [1]. We would like to disrupt the kcv gene in some of the chloroviruses to see what effect this has on virus replication, however, currently the technology to do this experiment is not available.

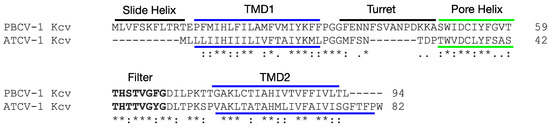

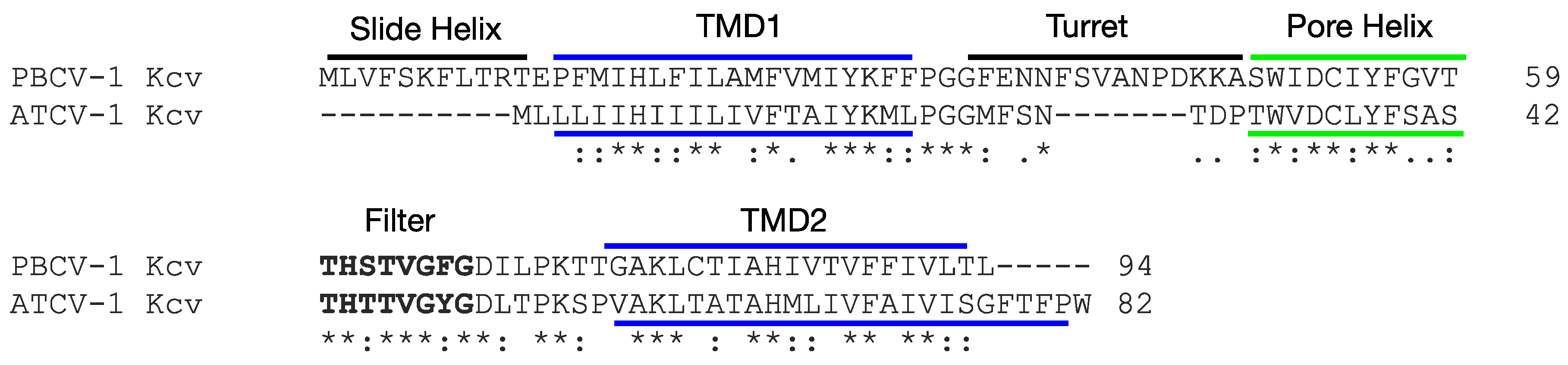

Compared with the larger KcvPBCV-1, the 82 amino acid KcvATCV-1 lacks a cytoplasmic N-terminus, that is, the slide helix region and a number of charged amino acids in its turret domain (Figure 1) [12]. The only known K+ channel proteins smaller than KcvATCV-1 are two channels that are encoded by viruses that infect small marine algae in the Micromonas genus [22]. The channel Kmbv1 is 79 amino acids long and Kmpv12T is 78 amino acids long. Expression of Kmbv1 in HEK293 cells results in currents. However, expression of Kmpv12T in the same cells does not produce a current, but it does produce a current in a planar lipid bilayer [22]. All of these virus-encoded channels have a long evolutionary history and probably have a common evolutionary ancestor.
In summary, kcv genes from 103 geographically distinct SAG viruses were sequenced to assess their genetic diversity. Of the 103 kcv genes, there were 42 unique DNA sequences that translated into 26 new Kcv proteins, which we predict will have some different biophysical properties. The amino acid changes together with the expected different properties will be used to guide site-directed mutations to identify key amino acids that confer specific properties to Kcv.

Author Contributions

Conceptualization, J.L.V.E. and G.T.; methodology, C.R.M. and I.V.A.; software, C.R.M. and I.V.A.; validation, C.R.M., J.L.V.E., I.V.A., J.S.G., R.M.C., G.T., and B.H.; formal analysis, C.R.M. and G.T.; investigation, C.R.M., F.C.F., K.K., O.R., and B.H.; resources, C.R.M., I.V.A., F.C.F., J.S.G., R.M.C., and G.T.; data curation, C.R.M. and G.T.; writing—original draft preparation, C.R.M. and J.L.V.E.; writing—review and editing, C.R.M., J.L.V.E., I.V.A., R.C.C., F.C.F., J.S.G., G.T., B.H.; visualization, C.R.M., I.V.A., G.T.; supervision, J.L.V.E. and G.T.; project administration, J.L.V.E.; funding acquisition, J.L.V.E. and G.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded in part by the University of Nebraska-Lincoln’s Undergraduate Creative Activities and Research Experience (UCARE) grant (C.R.M.), funding from the National Science Foundation under grant No. 1736030, (J.L.V.E.), and the European Research Council (ERC; 2015 Advanced Grant 495 (AdG) n. 695078 noMAGIC (G.T.).

Conflicts of Interest

The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table
Table A1. Source and sequence of SAG chlorovirus encoded potassium ion channel (Kcv) genes 1.
Table A1. Source and sequence of SAG chlorovirus encoded potassium ion channel (Kcv) genes 1.
Sample IDDNA SequenceLocation collectedDate collectedDNA GroupAmino Acid Group
5th_CW_MN_s1a (2) [2]ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTACTTTTCACTACCATATACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGATCCGTCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCCACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAA5th Crow Wing Lake; Nevis, Minnesota5/4/20175th_CW_MN_s1a5th_CW_MN_s1a
5th_CW_MN_L4ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTACTTTTCACTACCATATACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGATCCGTCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCCACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAA5th Crow Wing Lake; Nevis, Minnesota5/4/20175th_CW_MN_s1a5th_CW_MN_s1a
ATCV-1 (8) [9]ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGGermany2002ATCV-1ATCV-1
MO0605SPHATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGMissouri2006ATCV-1ATCV-1
WI0606ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGMadison, Wisconsin2006ATCV-1ATCV-1
DrexelATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGDrexel, MissouriJun-17ATCV-1ATCV-1
NPRLbATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGNorth Platte River; Highway 27, Nebraska10/23/2017ATCV-1ATCV-1
SPRmaATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGSouth Platte River; Big Spring, Nebraska10/23/2017ATCV-1ATCV-1
SPRsbATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGSouth Platte River; Big Spring, Nebraska10/23/2017ATCV-1ATCV-1
Smith-Lake_Large-PlaqueATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGSmith Lake, Western Nebraska2018ATCV-1ATCV-1
OH-S (1)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTGCCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCTGGCTTCACATTTCCGTGGTAGOhioJul-17OH-SATCV-1
BRO604 (1) [1]ATGTTGCTGCTTCTCATACACCTCTGTATTCTGATAATTTTTACTACCATATACAAGATGTTGCCCGGAGGCATGTTCTCTAACACGGACCCGTCGTGGGTCGATTGCCTGTACTTCTCGGCATCAACGCACACCACCGTGGGGTACGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACAGCAACGGCACACATGCTGATCGTATTCGCGATCGTAATAACTGGCTTCACATTCCCGTGGTAABrazil2006BRO604BRO604
Can0610SP (2) [18]ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGBritish Columbia, Canada2006Can0610SPCan0610SP
Or0704ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGWillamette River; Corvallis, OregonJul-07Can0610SPCan0610SP
Chile_7s (1)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGChileJan-19Chile_7sCan0610SP
K2 (5)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGMissouri River; Atchison, Kansas5/31/2017K2Can0610SP
K2sATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGMissouri River; Atchison, Kansas5/31/2017K2Can0610SP
NPRmaATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGNorth Platte River; Highway 27, Nebraska10/23/2017K2Can0610SP
NPRsbATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGNorth Platte River; Highway 27, Nebraska10/23/2017K2Can0610SP
Pl_R_LmaATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTCCCGTGGTAGPlatte River; Louisville, Nebraska10/26/2017K2Can0610SP
KS3-S (1)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTCGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACATTTCCGTGGTAADelaware River; Valley Fall, KansasJun-17KS3-SCan0610SP
LP_CO_F1m (7)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado5/29/2017LP_CO_F1mCan0610SP
LP_CO_F2LATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado5/30/2017LP_CO_F1mCan0610SP
LP_CO_F2mATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado5/31/2017LP_CO_F1mCan0610SP
LP_CO_F2sATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado6/1/2017LP_CO_F1mCan0610SP
LP_CO_F3LATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado6/2/2017LP_CO_F1mCan0610SP
LP_CO_F3mATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado6/3/2017LP_CO_F1mCan0610SP
LP_CO_F4sATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAACache la Poudre River, Colorado6/4/2017LP_CO_F1mCan0610SP
WR_DE (2)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTCGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCGCACATGTTGATCGTATTCGCGATCGTCATTTCTGGATTCACGTTCCCGTGGTAGWilson Run: Winterhur, DelawareJul-17WR_DECan0610SP
WR_DE_s2cr2ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTCGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCGCACATGTTGATCGTATTCGCGATCGTCATTTCTGGATTCACGTTCCCGTGGTAGWilson Run, Winterthur; DelawareJul-17WR_DECan0610SP
Canal1 (2) [2]ATGTTGCTGCTCCTTATACACGTTGGTATTTTGGTATTTTTCACCACCGTATACAAGATGCTCCCCGGTGGCATGTTCTCGAATACGGACCCTAGCTGGGTAGATTGCTTATACTTCTCAGCGTCAACTCACACCACCGTTGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCGAAACTCGTGGCGACGGCGCATATGATGATCGTGTTCGCGATCGTTGTATCTAGCTTCACGTTTTCGTGGTAGCanal exiting Smith Lake, Nebraska2008Canal1Canal1
Smith-Lake_Small-PlaqueATGTTGCTGCTCCTTATACACGTTGGTATTTTGGTATTTTTCACCACCGTATACAAGATGCTCCCCGGTGGCATGTTCTCGAATACGGACCCTAGCTGGGTAGATTGCTTATACTTCTCAGCGTCAACTCACACCACCGTTGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCGAAACTCGTGGCGACGGCGCATATGATGATCGTGTTCGCGATCGTTGTATCTAGCTTCACGTTTTCGTGGTAGSmith Lake, Western Nebraska2018Canal1Canal1
GM0701 (1) [1]ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTACTTTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCAGCATCAACGCACACGACCGTGGGGTACGGGGACCTCACGCCAAAATCGCCCGTGGCAAAACTCACAGCAACGGCACACATGCTGATCGTATTCGCGATCGTAATAACTGGCTTCACATTCCCGTGGTAAGuatemala2007GM0701GM0701
GNLD22 (1) [1]ATGCTGCGGTCAATATTGCCTCATATCATAGTGTTCACGTTTTTCGTTGTTCTTTACAAATTTTTCCCCGGGGGGTTTGAAGACTCATTCAAACGAGGAGACGGGTCCCGCAGAAAGGCGACGTGGATGGACTGCATCTATTTCGCGACGGCAACGCACACCACCACCGGGTTTGGTGATGTAGTCCCCGACAACGACGCCGCAAGAACAGCTGTCACGATGCACATGCTCATAGTTTTCGCGATCGTAGTATTGGGGATAAAACTCTAALake Sisimiut, Greenland2012GNLD22GNLD22
Hale-L (2) [6]ATGTTGCTGCTCCTTATACACATCGGTATTTTGGTATTTTTCACTATCGTGTACAAGCTGCTCCCTGGTGGCATGTTCTCGTACGCAGACCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACGGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAANorth branch of Elk Creek; Hale, Wisconsin7/4/2017Hale-LHale-L
Hale_WI_m4ATGTTGCTGCTCCTTATACACATCGGTATTTTGGTATTTTTCACTATCGTGTACAAGCTGCTCCCTGGTGGCATGTTCTCGTACGCAGACCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACGGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAANorth branch of Elk Creek; Hale, Wisconsin7/4/2017Hale-LHale-L
TX3-L1 (4)ATGTTGCTGCTCCTTATACACATTGGTATTTTGGTATTTTTCACTATCGTGTACAAACTGCTCCCTGGTGGCATGTTCTCGTACGCAGATCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACTGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAAColorado River Pond; Austin, TexasJul-17TX3-L1Hale-L
TX3-L2ATGTTGCTGCTCCTTATACACATTGGTATTTTGGTATTTTTCACTATCGTGTACAAACTGCTCCCTGGTGGCATGTTCTCGTACGCAGATCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACTGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAAColorado River Pond, Austin, TexasJul-17TX3-L1Hale-L
TX3mATGTTGCTGCTCCTTATACACATTGGTATTTTGGTATTTTTCACTATCGTGTACAAACTGCTCCCTGGTGGCATGTTCTCGTACGCAGATCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACTGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAAColorado River Pond; Austin, TexasJul-17TX3-L1Hale-L
TX3sATGTTGCTGCTCCTTATACACATTGGTATTTTGGTATTTTTCACTATCGTGTACAAACTGCTCCCTGGTGGCATGTTCTCGTACGCAGATCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCCACTGCACACATGCTGATTGTATTCGCGATCGTTGTCTCTAGCTTTACGCTCCCCTGGTAAColorado River Pond; Austin, TexasJul-17TX3-L1Hale-L
Hale-s1 (2) [2]ATGTTGCTGCTCCTTATACACATCGGTATTTTGGTATTTTTCACTATCGTGTACAAGCTGCTCCCTGGTGGCATGTTCTCGTACGCAGACCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTACTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGNorth branch of Elk Creek; Hale, Wisconsin7/4/2017Hale-s1Hale-s1
Hale-s2ATGTTGCTGCTCCTTATACACATCGGTATTTTGGTATTTTTCACTATCGTGTACAAGCTGCTCCCTGGTGGCATGTTCTCGTACGCAGACCCGACCTGGGTCGACTGCTTGTATTTTTCGGCATCAACGCACACCACCGTGGGGTATGGGGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTACTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGNorth branch of Elk Creek; Hale, Wisconsin7/4/2017Hale-s1Hale-s1
IL-1 (1) [6]ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGATCCGTCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTTGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAALake Zurich, Illinois6/27/2017IL-1IL-1
Dismal_NE (1)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGDismal River, Nebraska5/26/2017Dismal_NEIL-1
NY2s1 (2)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCCAAATCACCCGTTGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAAMoodna Creek; Washingtonville, New York6/21/2017NY-2s1IL-1
NY-2s2ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCCAAATCACCCGTTGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAAMoodna Creek; Washingtonville, New York6/21/2017NY-2s1IL-1
Pl_R_OLa (1)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCATGGTAGPlatte River; Odessa, Nebraska10/23/2017Pl_R_OlaIL-1
Somers_MT_m1 (1)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCAAACACGGATCCGTCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAAFlathead Lake; Somers, Montana6/27/2017Somers_MT_m1IL-1
IL-M (1) [1]ATGTTGCTGCTTATCATACATCTCAGCATTTTGGTAATTTTCACTACCATATACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGATCCGTCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTTGCGATCGTCATTTCTGGCTTCACATTTCCGTGGTAGLake Zurich, Illinois6/27/2017IL-MIL-M
Island-Lake_Medium (1) [1]ATGTTGCTGCTCCTTATCCACGTGTGTATTTTGACAGTCTTCACGATTGTTTACAAGATGCTCCCTGGCGGCATGTTCTCTAACGCGGACCCGTCGTGGGTAGACTGCTTATACTTTGCCGCGTCGACTCACACCACAGTGGGGTACGGGGACCTCACCCCCAAATCGCCAGTGGCAAAGCTCACGGCGACGGCCCACATGTTGATCGTGTTCGCGATCATTATATCTAGCTTCACACTGCCATGGTAGIsland Lake, Western Nebraska2018Island-Lake_MediumIsland-Lake_Medium
Island-Lake_Small (1) [1]ATGTTGCTGCTTATCATACATATCGTCATTCTTATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAGCTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTTCCGTGGTAGIsland Lake, Western Nebraska2018Island-Lake_SmallIsland-Lake_Small
mid_1.1 (1) [20]ATGAAGCTGCTACTTTCACATATTGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17mid_1.1mid_1.1
up_1.2m1 (19)ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_1.2mATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_1.2s2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_10.1LATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_10.1s1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_10.1s2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_11.1mATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_13.1L1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_13.1L2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_13.1s1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_5.1L1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_5.1L2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_5.1s1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_7.2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
up_1.2m2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
up_4.1L1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
up_4.2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
up_7.2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
up_8.1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTCGTGTACAAGATGCTCCCCGGTGGCATGTTCTCGGAAGCAGACCCGTCGTGGGTTGACTGTCTGTATTTCTCGACGGCAACACACACGACAACGGGCTACGGCGATCTAACGCCAGAAACCCCGGTGGCAAAACTCGTGACAACGGTGCACATGTTAACCGTGTTCATCATCGTTATTTCCGGCTTCACTGGCTTCGCATTATGGTAGGermanyOct-17up_1.2m1mid_1.1
mid_3.1s (4) [4]ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGACGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17mid_3.1smid_3.1s
mid_14.1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGACGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17mid_3.1smid_3.1s
mid_14.2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGACGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17mid_3.1smid_3.1s
mid_14.3ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGACGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17mid_3.1smid_3.1s
mid_6.1 (1) [1]ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGNTTCCATGGTAGGermanyOct-17mid_6.1mid_6.1
mid_6.2 (5) [5]ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTTCCATGGTAGGermanyOct-17mid_6.2mid_6.2
mid_12.1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTTCCATGGTAGGermanyOct-17mid_6.2mid_6.2
mid_12.3LATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTTCCATGGTAGGermanyOct-17mid_6.2mid_6.2
mid_12.3sATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTTCCATGGTAGGermanyOct-17mid_6.2mid_6.2
mid_8.1ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGCGGCATGTTCTCGGATGCAGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCCAAGTCGCCGGTGGCAAAACTCGTTACCACGGTGCATATGTTAACCGTGTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTTCCATGGTAGGermanyOct-17mid_6.2mid_6.2
mid_9.1 (1) [1]ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGTCGCCGGTGGCAAAACTCGTGACCACGGTGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGGTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17mid_9.1mid_9.1
MN08101 (1) [1]ATGCTGCTTCTCCTGATACACATTGCCATATTGACATTCTTTACGGTCGTGTACAAGATGCTCCCCGACGGCGTGTTCTCGAACGGGGACCCGTCGTGGGTAGACTGCTTATACTTTTCCGCGTCCACTCACACCACCGTGGGATACGGGGACCTCACCCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCCCATATGATGATCGTGTTCGCGATTGTAGTGTCTAGCTTCACGTTCCCGTGGTAGMinnesota2008MN08101MN08101
NEJV2 (2) [6]ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGTATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGRowe Bird Sanctuary; Gibbon, Nebraska2008NEJV2NEJV2
Dismal_NE_s3ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGTGGTATGTTCTCGAACACGGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGDismal River, Nebraska5/26/2017NEJV2NEJV2
NEJV3 (1)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCGACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACTGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGGudmundsen Ranch, NE2008NEJV3NEJV2
MO3 (3)ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGLake Lotawana, Missouri5/31/2017MO3NEJV2
NY2mATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGMoodna Creek; Washingtonville, New York6/21/2017MO3NEJV2
Verbena_VA_s3ATGTTGCTGCTTATCATACATATCATCATTCTGATAGTGTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTTGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTTCGTGGTAGSouth fork of the Shenandoah River; Verbena, Virginia7/1/2017MO3NEJV2
NTS1 (1) [1]ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTGCCATCTACAAGATGCTGCCCGGCGGCATGTTCTCAAACACAGACCCGACTTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGNext to Smith Lake, Western Nebraska2008NTS1NTS1
NY-2 (1) [4]ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTTCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACACACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTTTTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGMoodna Creek; Washingtonville, New York6/21/2017NY-2NY-2
Somers_MT_L3 (1)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTATTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAAFlathead Lake; Somers, Montana6/27/2017Somers_MT_L3NY-2
Verbena_VA_L4 (2)ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTTCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTTTTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGSouth fork of the Shenandoah River; Verbena, Virginia7/1/2017Verbena_VA_L4NY-2
Verbena_VA_m1ATGTTGCTGCTTCTCATACATCTCAGCATTTTGGTAATTTTCACTACCATCTACAAGATGCTTCCCGGCGGCATGTTCTCGAACACGGACCCATCCTGGGTCGATTGCCTGTACTTTTCGGCATCAACGCACACCACCGTGGGGTACGGGGACCTCACGCCAAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGCTGATCGTTTTCGCGATCGTCATTTCTGGCTTCACGTTCCCGTGGTAGSouth fork of the Shenandoah River; Verbena, Virginia7/1/2017Verbena_VA_L4NY-2
Smith_L_La (3) [3]ATGTTGCTGCTCCTTATCCACATGTGTATTTTGACATTCTTCACAGTTGTTTACAAGATGCTCCCTGGCGGCATGTTCTCTAACGCGGACCCGTCGTGGGTAGACTGCTTATACTTTGCCGCGTCGACTCACACCACGGTGGGGTACGGGGACCTCACCCCCAAATCGCCAGTGGCAAAGCTCACGGCGACGGCCCACATGTTGATCGTGTTCGCGATCATTATATCTAGCTTCACACTCCCATGGTAGSmith Lake, Western Nebraska10/22/2017Smith_L_LaSmith_L_La
Smith-Lake_Medium-PlaqueATGTTGCTGCTCCTTATCCACATGTGTATTTTGACATTCTTCACAGTTGTTTACAAGATGCTCCCTGGCGGCATGTTCTCTAACGCGGACCCGTCGTGGGTAGACTGCTTATACTTTGCCGCGTCGACTCACACCACGGTGGGGTACGGGGACCTCACCCCCAAATCGCCAGTGGCAAAGCTCACGGCGACGGCCCACATGTTGATCGTGTTCGCGATCATTATATCTAGCTTCACACTCCCATGGTAGSmith Lake, Western Nebraska2018Smith_L_LaSmith_L_La
Island-Lake_Large-PlaqueATGTTGCTGCTCCTTATCCACATGTGTATTTTGACATTCTTCACAGTTGTTTACAAGATGCTCCCTGGCGGCATGTTCTCTAACGCGGACCCGTCGTGGGTAGACTGCTTATACTTTGCCGCGTCGACTCACACCACGGTGGGGTACGGGGACCTCACCCCCAAATCGCCAGTGGCAAAGCTCACGGCGACGGCCCACATGTTGATCGTGTTCGCGATCATTATATCTAGCTTCACACTCCCATGGTAGIsland Lake, Western Nebraska2018Smith_L_LaSmith_L_La
SPRLa (1) [1]ATGTTGCTGCTCCTTATACACATCGGTATTTTGGTATTTTTCACTATCGTGTACAAGATGCTCCCCGGCGGCATGTTCTCGAACACAGACCCTACTTGGGTCGATTGCCTGTACTTTTCGGCATCGACGCACACCACCGTGGGGTACGGAGATCTCACGCCCAAATCACCCGTGGCAAAACTCACGGCAACGGCACACATGTTGATCGTATTCGCGATCGTCATTTCCGGCTTCACGTTTCCGTGGTAGSouth Platte River; Big Spring, Nebraska10/23/2017SPRLaSPRLa
TN603 (1) [1]ATGTTGCTGCTTCTCATACACCTCTGTATTTTGATAATTTTTACTACAATATACAAGATGTTGCCCGGAGGCATGTTCTCGAACACGGACCCGTCATGGATAGATTGCCTGTACTTCTCGGCATCAACGCACACCACCGTGGGGTACGGGGATCTCACGCCCAAATCGCCCGTGGCAAAACTCACAGCAACGGCACACATGCTGATCGTATTCGCGATCGTAATAACTGGCTTCACATTCCCGTGGTAATennessee2006TN603TN603
up_3.1 (4) [4]ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGTCGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17up_3.1up_3.1
up_5.2LATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGTCGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17up_3.1up_3.1
up_5.3mATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGTCGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17up_3.1up_3.1
up_5.3s2ATGAAGCTGCTACTTTCACATATCGTTATTCTAATATGTTTCACCGTTATTTACAAGATGCTCCCCGGTGGCATGTTCTCGGATGCGGACCCGTCGTGGTTTGACTGTCTGTATTTCTCGACGGCGACGCATACGACAACAGGCTACGGCGATCTAACGCCTAAGTCGCCGGTGGCAAAACTCGTGACCACAGCGCATATGTTAACCGTTTTCGCGATCGTTATTTCCGGTTTCGCTGGCTTCAAGTTATGGTAGGermanyOct-17up_3.1up_3.1
1 Sequences submitted to the GenBank. The accession numbers for the kcv sequences in GenBank are MT560092–MT560194.

Appendix B

Viruses 12 00678 g0a1a 550Viruses 12 00678 g0a1b 550Viruses 12 00678 g0a1c 550
Figure A1. DNA sequence alignment of unique SAG chlorovirus kcv genes. DNA sequences were aligned using the Geneious Alignment algorithm from Geneious 11.0.5 software. Green color indicates identical nucletides among all sequenced strains. Different shades from olive to orange denote different degrees of conservation with olive color being the most conserved.
Figure A1. DNA sequence alignment of unique SAG chlorovirus kcv genes. DNA sequences were aligned using the Geneious Alignment algorithm from Geneious 11.0.5 software. Green color indicates identical nucletides among all sequenced strains. Different shades from olive to orange denote different degrees of conservation with olive color being the most conserved.
Viruses 12 00678 g0a1aViruses 12 00678 g0a1bViruses 12 00678 g0a1c

References

  1. Van Etten, J.L.; Agarkova, I.V.; Dunigan, D.D. Chloroviruses. Viruses 2020, 12, 20. [Google Scholar] [CrossRef] [Green Version]
  2. Cherrier, M.V.; Kostyuchenko, V.A.; Xiao, C.; Bowman, V.D.; Battisti, A.J.; Yan, X.; Chipman, P.R.; Baker, T.S.; Van Etten, J.L.; Rossmann, M.G. An icosahedral algal virus has a complex unique vertex decorated by a spike. Proc. Natl. Acad. Sci. USA 2009, 106, 11085–11089. [Google Scholar] [CrossRef] [Green Version]
  3. Plugge, B.; Gazzarrini, S.; Nelson, M.; Cerana, R.; Van Etten, J.L.; Derst, C.; DiFrancesco, D.; Moroni, A.; Thiel, G. A potassium channel protein encoded by chlorella virus PBCV-1. Science 2000, 287, 1641–1644. [Google Scholar] [CrossRef] [Green Version]
  4. Milrot, E.; Shimoni, E.; Dadosh, T.; Rechav, K.; Unger, T.; Van Etten, J.L.; Minsky, A. Structural studies demonstrating a bacteriophage-like replication cycle of the eukaryote-infecting Paramecium bursaria chlorella virus-1. PLoS Pathog. 2017, 13, e1006562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Romani, G.; Piotrowski, A.; Hillmer, S.; Gurnon, J.; Van Etten, J.L.; Moroni, A.; Thiel, G.; Hertel, B. A virus-encoded potassium ion channel is a structural protein in the chlorovirus Paramecium bursaria chlorella virus 1 virion. J. Gen. Virol. 2013, 94, 2549–2556. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Frohns, F.; Käsmann, A.; Kramer, D.; Schäfer, B.; Mehmel, M.; Kang, M.; Van Etten, J.L.; Gazzarrini, S.; Moroni, A.; Thiel, G. Potassium ion channels of chlorella viruses cause rapid depolarization of host cells during infection. J. Virol. 2006, 80, 2437–2444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Lee, S.-W.; Lee, E.-H.; Thiel, G.; Van Etten, J.L.; Saraf, R.F. Noninvasive measurement of electrical events associated with a single chlorovirus infection of a microalgal cell. ACS Nano 2016, 10, 5123–5130. [Google Scholar] [CrossRef]
  8. Neupärtl, M.; Meyer, C.; Woll, I.; Frohns, F.; Kang, M.; Van Etten, J.L.; Kramer, D.; Hertel, B.; Moroni, A.; Thiel, G. Chlorella viruses evoke a rapid release of K+ from host cells during early phase of infection. Virology 2008, 372, 340–348. [Google Scholar] [CrossRef] [Green Version]
  9. Thiel, G.; Moroni, A.; Dunigan, D.; Van Etten, J.L. Initial events associated with virus PBCV-1 infection of Chlorella NC64A. Prog. Bot. 2010, 71, 169–183. [Google Scholar]
  10. Agarkova, I.; Dunigan, D.; Gurnon, J.; Greiner, T.; Barres, J.; Thiel, G.; Van Etten, J. Chlorovirus-mediated membrane depolarization of Chlorella alters secondary active transport of solutes. J. Virol. 2008, 82, 12181–12190. [Google Scholar] [CrossRef] [Green Version]
  11. Chase, T.E.; Nelson, J.A.; Burbank, D.E.; Van Etten, J.L. Mutual exclusion occurs in a Chlorella-like green alga inoculated with two viruses. J. Gen. Virol. 1989, 70, 1829–1836. [Google Scholar] [CrossRef] [PubMed]
  12. Gazzarrini, S.; Kang, M.; Abenavoli, A.; Romani, G.; Olivari, C.; Gaslini, D.; Ferrara, G.; Van Etten, J.L.; Kreim, M.; Kast, S.M.; et al. Chlorella virus ATCV-1 encodes a functional potassium channel of 82 amino acids. Biochem. J. 2009, 420, 295–303. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Van Etten, J.L.; Burbank, D.E.; Kuczmarski, D.; Meints, R.H. Virus infection of culturable chlorella-like algae and development of a plaque assay. Science 1983, 219, 994–996. [Google Scholar] [CrossRef] [PubMed]
  14. Jeanniard, A.; Dunigan, D.D.; Gurnon, J.R.; Agarkova, I.V.; Kang, M.; Vitek, J.; Duncan, G.; McClung, O.W.; Larsen, M.; Claverie, J.-M.; et al. Towards defining the chloroviruses: A genomic journey through a genus of large DNA viruses. BMC Genom. 2013, 14, 1–14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Winterstein, L.M.; Kukovetz, K.; Rauh, O.; Turman, D.L.; Braun, C.; Moroni, A.; Schroeder, I.; Thiel, G. Reconstitution and functional characterization of ion channels from nanodiscs in lipid bilayers. J. Gen. Physiol. 2018, 150, 637–646. [Google Scholar] [CrossRef] [Green Version]
  16. Braun, C.J.; Lachnit, C.; Becker, P.; Henkes, L.M.; Arrigoni, C.; Kast, S.M.; Moroni, A.; Thiel, G.; Schroeder, I. Viral potassium channels as a robust model sysem for studies of membrane-protein interaction. Biochim. Biophys. Acta 2014, 1838, 1096–1103. [Google Scholar] [CrossRef] [Green Version]
  17. Gazzarrini, S.; Kang, M.; Epimashko, S.; Van Etten, J.L.; Dainty, J.; Thiel, G.; Moroni, A. Chlorella virus MT325 encodes water and potassium channels that interact synergistically. Proc. Natl. Acad. Sci. USA 2006, 103, 5355–5360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Rauh, O.; Urban, M.; Henkes, L.M.; Winterstein, T.; Greiner, T.; Van Etten, J.L.; Moroni, A.; Kast, S.M.; Thiel, G.; Schroeder, I. Sequence specific distortions of a transmembrane helix generate a gate in a K+ channel with a long lived closed state. J. Am. Chem. Soc. 2017, 139, 7494–7503. [Google Scholar] [CrossRef] [Green Version]
  19. Mehmel, M.; Rothermel, M.; Meckel, T.; Van Etten, J.L.; Moroni, A.; Thiel, G. Possible function for virus encoded K+ channel Kcv in the replication of chlorella virus PBCV-1. FEBS Lett. 2003, 552, 7–11. [Google Scholar] [CrossRef] [Green Version]
  20. Kang, M.; Moroni, A.; Gazzarrini, S.; DiFrancesco, D.; Thiel, G.; Severino, M.; Van Etten, J.L. Small potassium ion channel proteins encoded by chlorella viruses. Proc. Natl. Acad. Sci. USA 2004, 101, 5318–5324. [Google Scholar] [CrossRef] [Green Version]
  21. Gazzarrini, S.; Kang, M.; Van Etten, J.L.; Tayefeh, S.; Kast, S.M.; DiFrancesco, D.; Thiel, G.; Moroni, A. Long distance interactions within the potassium channel pore are revealed by molecular diversity of viral proteins. J. Biol. Chem. 2004, 279, 28443–28449. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Siotto, F.; Martin, C.; Rauh, O.; Van Etten, J.L.; Schoeder, I.; Moroni, A.; Thiel, G. Viruses infecting marine picoplancton encode function potassium ion channels. Virology 2014, 466, 103–111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Viruses 12 00678 g001 550
Figure 1. KcvATCV-1 sequence alignment with the sequence of the prototype chlorovirus K+ channel KcvPBCV-1 by ClustalW. The slide helix, outer transmembrane (TMD1) turret, pore helix, selectivity filter, and inner transmembrane (TMD2) of the KcvPBCV-1 are highlighted by the horizontal lines. Asterisks indicate positions which have a fully conserved residue. A colon indicates conservation between amino acids with strongly similar properties. A period indicates conservation between amino acids with less similar properties.
Figure 1. KcvATCV-1 sequence alignment with the sequence of the prototype chlorovirus K+ channel KcvPBCV-1 by ClustalW. The slide helix, outer transmembrane (TMD1) turret, pore helix, selectivity filter, and inner transmembrane (TMD2) of the KcvPBCV-1 are highlighted by the horizontal lines. Asterisks indicate positions which have a fully conserved residue. A colon indicates conservation between amino acids with strongly similar properties. A period indicates conservation between amino acids with less similar properties.
Viruses 12 00678 g001
Viruses 12 00678 g002 550
Figure 2. Amino acid alignment of SAG chlorovirus unique Kcv proteins using Geneious 11.0.5 software. The number in brackets at the end of each protein is the number of times that the protein had an identical sequence of the 103 viruses examined. Score matrix is Identity. Green color denotes identical amino acids. Other shades of amino acids indicate a level of conservation from olive color as being the most conserved to white color not conserved.
Figure 2. Amino acid alignment of SAG chlorovirus unique Kcv proteins using Geneious 11.0.5 software. The number in brackets at the end of each protein is the number of times that the protein had an identical sequence of the 103 viruses examined. Score matrix is Identity. Green color denotes identical amino acids. Other shades of amino acids indicate a level of conservation from olive color as being the most conserved to white color not conserved.
Viruses 12 00678 g002
Viruses 12 00678 g003 550
Figure 3. Phylogenetic tree of Kcv proteins from 26 SAG chloroviruses. PhyML, which is Maximum likelihood, with the default settings was used to construct the tree. The branch length shows dissimilarity between strains and the values on the branches are the number of changes. The viruses in blue represent the new Kcv proteins reported in this manuscript. Viruses MT325 representing a Pbi virus and PBCV-1 representing an NC64A virus are in green. Additional information on each of the Kcv proteins from the SAG viruses, including where they were isolated and the number of times that protein sequence appeared, is included in Table A1.
Figure 3. Phylogenetic tree of Kcv proteins from 26 SAG chloroviruses. PhyML, which is Maximum likelihood, with the default settings was used to construct the tree. The branch length shows dissimilarity between strains and the values on the branches are the number of changes. The viruses in blue represent the new Kcv proteins reported in this manuscript. Viruses MT325 representing a Pbi virus and PBCV-1 representing an NC64A virus are in green. Additional information on each of the Kcv proteins from the SAG viruses, including where they were isolated and the number of times that protein sequence appeared, is included in Table A1.
Viruses 12 00678 g003
Viruses 12 00678 g004 550
Figure 4. Two of the newly discovered K+ channels are active. Characteristic single-channel fluctuations (a), mean single-channel I/V relations (b), and mean open probabilities (c) of KcvNTS (top row), KcvGNLD22 (middle row), and KcvCan0610SP (bottom row) at ±120 mV. The closed (c) and open (o) levels are indicated along the current traces. Data are means ±s.d. from ≥ 3 independent recordings of channels in the same row. Data were recorded in a DPhPC bilayer with symmetrical 100 mM KCl, 10 mM HEPES, pH 7 in cis and trans chamber.
Figure 4. Two of the newly discovered K+ channels are active. Characteristic single-channel fluctuations (a), mean single-channel I/V relations (b), and mean open probabilities (c) of KcvNTS (top row), KcvGNLD22 (middle row), and KcvCan0610SP (bottom row) at ±120 mV. The closed (c) and open (o) levels are indicated along the current traces. Data are means ±s.d. from ≥ 3 independent recordings of channels in the same row. Data were recorded in a DPhPC bilayer with symmetrical 100 mM KCl, 10 mM HEPES, pH 7 in cis and trans chamber.
Viruses 12 00678 g004
Table
Table 1. Primers tested to isolate the kcv genes.
Table 1. Primers tested to isolate the kcv genes.
NameSequencePositionGC Content (%)Tm (°C)
Forward PrimersKcv6 FrwCTT TAG YYT TYY TCK GVC−3663449
Kcv7 FrwCTT TAG YYT TYY TCK GVC G−3663854
Kcv8 FrwGAA GCA GGY ACC ACT TTA G−3794753
Kcv9 FrwGCA GGY ACC ACT TTA G−3765047
Reverse PrimersKcv6 RvsCRC RGM ATR TRT CAT TTG WCC C+2564864
Kcv7 RvsCTT ACR CRG MAT RTR TCA TTT G+2593956
Kcv8 RvsCTT ACR CRG MAT RTR TC+2644444
Kcv9 RvsHKB YMC GAT CTT ATA CAC+2923945
Kcv10 RvsCAT TTC TTA CRC RGM ATR TRT C+2643955

Share and Cite

MDPI and ACS Style

Murry, C.R.; Agarkova, I.V.; Ghosh, J.S.; Fitzgerald, F.C.; Carlson, R.M.; Hertel, B.; Kukovetz, K.; Rauh, O.; Thiel, G.; Van Etten, J.L. Genetic Diversity of Potassium Ion Channel Proteins Encoded by Chloroviruses That Infect Chlorella heliozoae. Viruses 2020, 12, 678. https://doi.org/10.3390/v12060678

AMA Style

Murry CR, Agarkova IV, Ghosh JS, Fitzgerald FC, Carlson RM, Hertel B, Kukovetz K, Rauh O, Thiel G, Van Etten JL. Genetic Diversity of Potassium Ion Channel Proteins Encoded by Chloroviruses That Infect Chlorella heliozoae. Viruses. 2020; 12(6):678. https://doi.org/10.3390/v12060678

Chicago/Turabian Style

Murry, Carter R., Irina V. Agarkova, Jayadri S. Ghosh, Fiona C. Fitzgerald, Roger M. Carlson, Brigitte Hertel, Kerri Kukovetz, Oliver Rauh, Gerhard Thiel, and James L. Van Etten. 2020. "Genetic Diversity of Potassium Ion Channel Proteins Encoded by Chloroviruses That Infect Chlorella heliozoae" Viruses 12, no. 6: 678. https://doi.org/10.3390/v12060678

APA Style

Murry, C. R., Agarkova, I. V., Ghosh, J. S., Fitzgerald, F. C., Carlson, R. M., Hertel, B., Kukovetz, K., Rauh, O., Thiel, G., & Van Etten, J. L. (2020). Genetic Diversity of Potassium Ion Channel Proteins Encoded by Chloroviruses That Infect Chlorella heliozoae. Viruses, 12(6), 678. https://doi.org/10.3390/v12060678

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
