Design of CNS-Li2SiO3 Permeable Protective Coatings and Effects on Mortar Matrix
1
Department of Civil Engineering, Shanghai University, Shanghai 200444, China
2
Ningbo Institute of Technology, Zhejiang University, Ningbo 315100, China
3
Zhejiang YASHA Decoration Co., Ltd, Hangzhou 310008, China
4
School of Water Resources and Hydropower Engineering, Wuhan University, Wuhan 430000, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(7), 1733; https://doi.org/10.3390/ma13071733
Received: 15 March 2020
/
Revised: 1 April 2020
/
Accepted: 1 April 2020
/
Published: 8 April 2020
(This article belongs to the Section Construction and Building Materials)

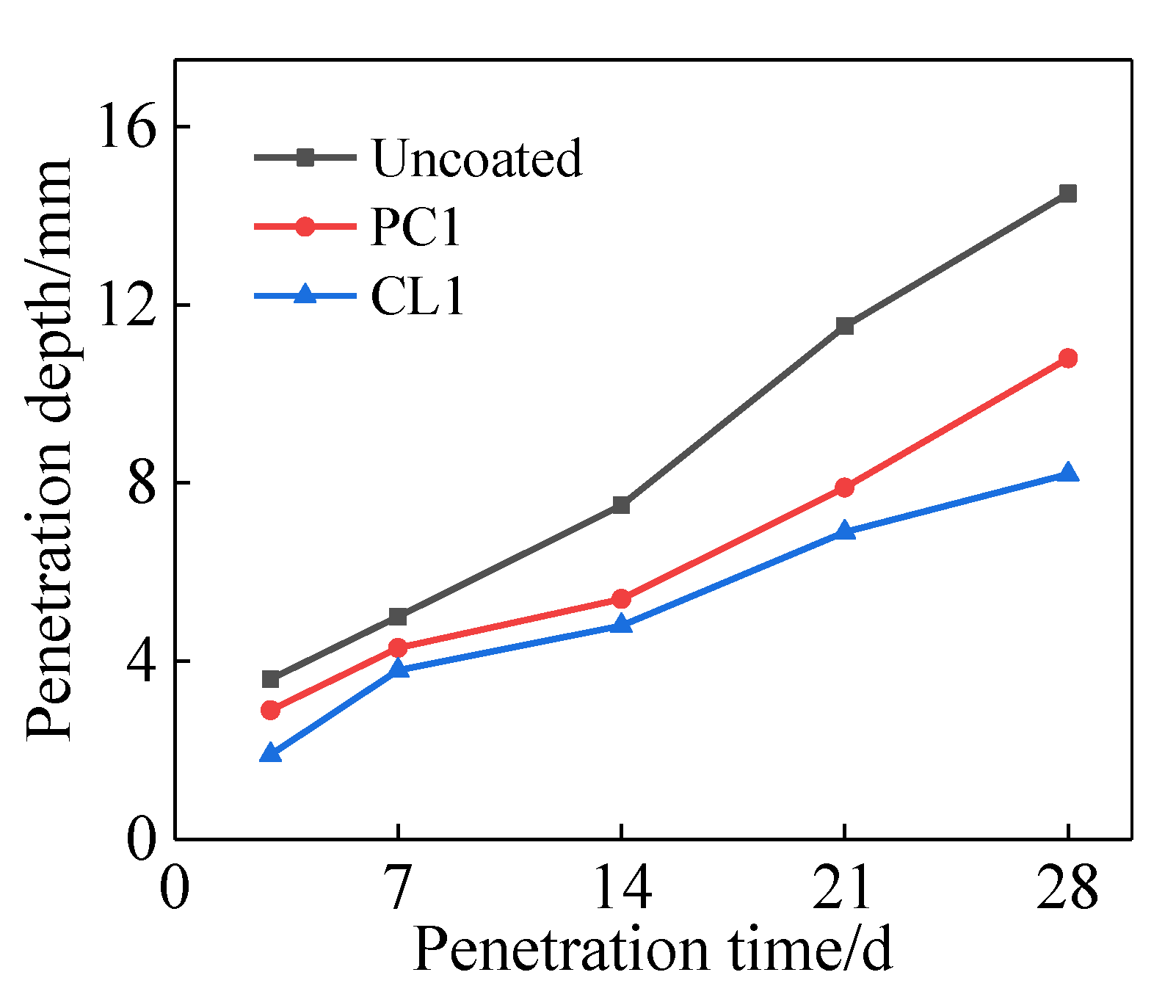

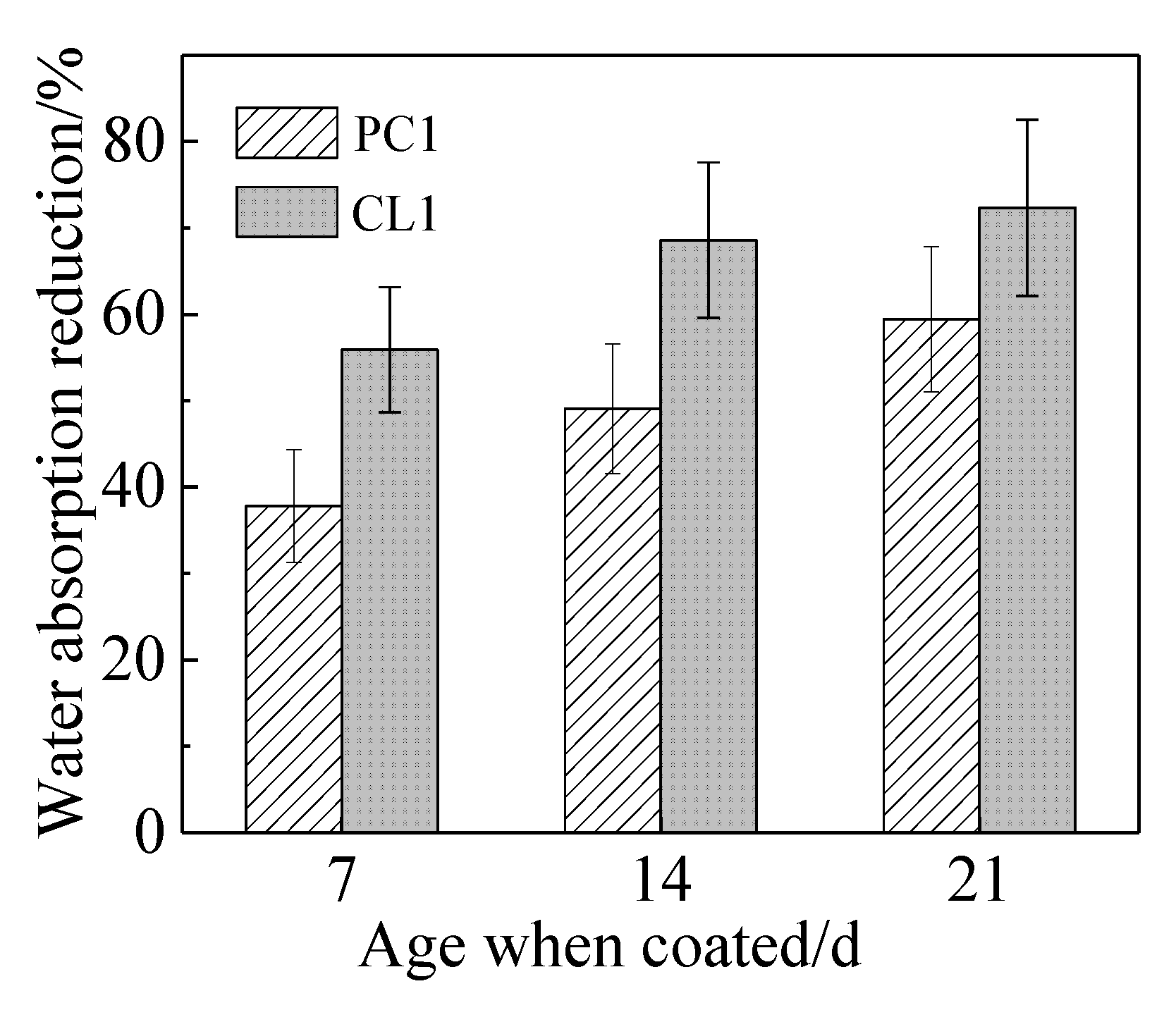

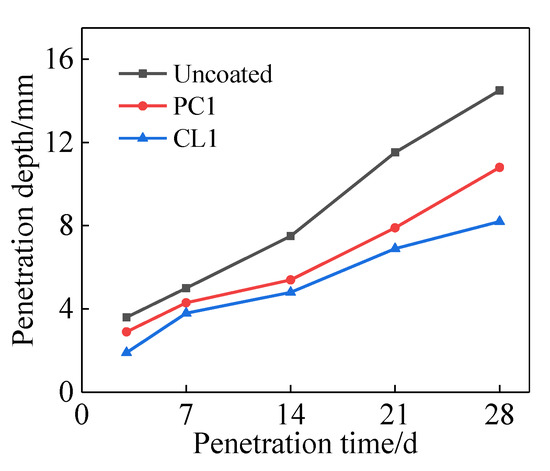

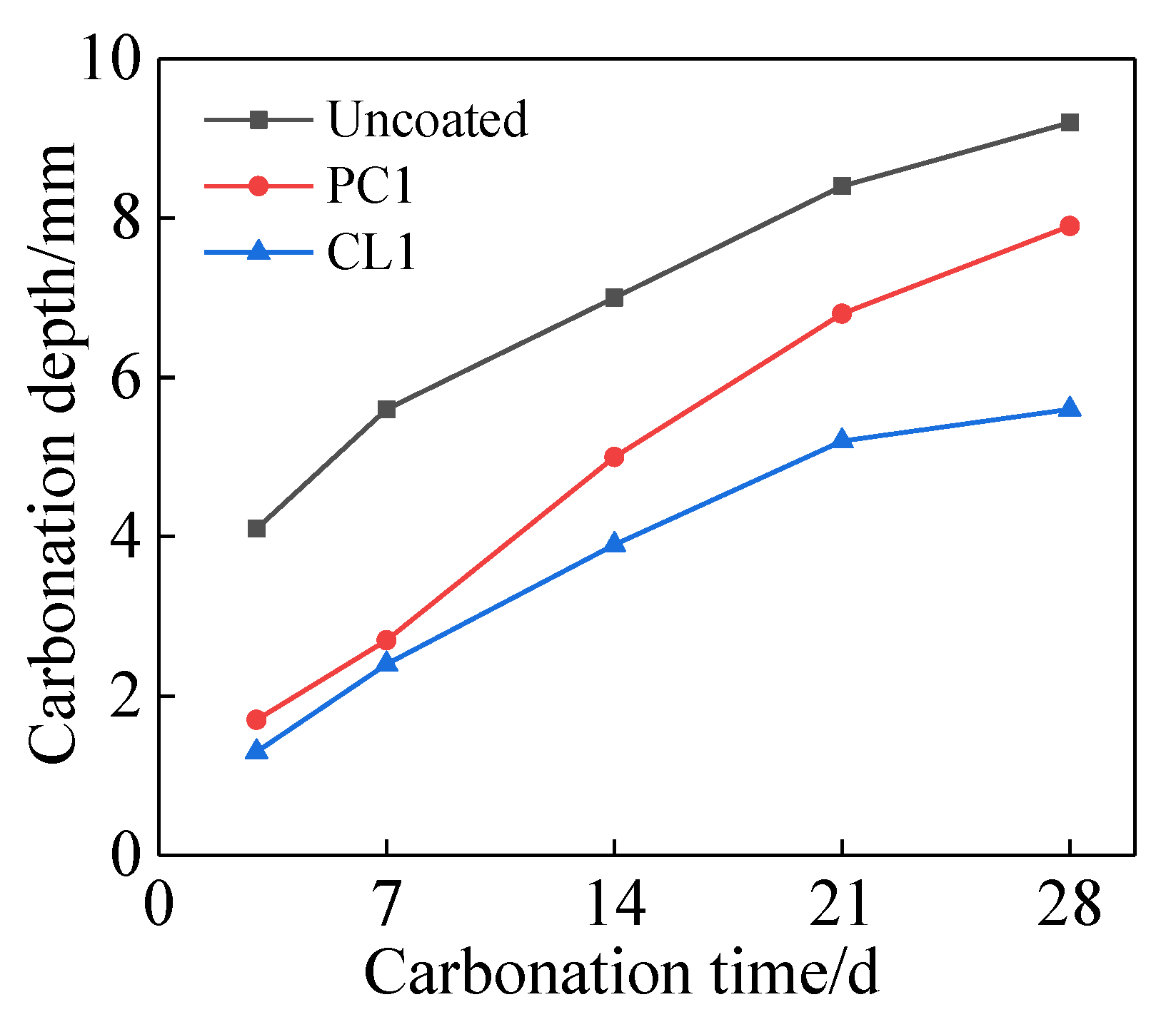

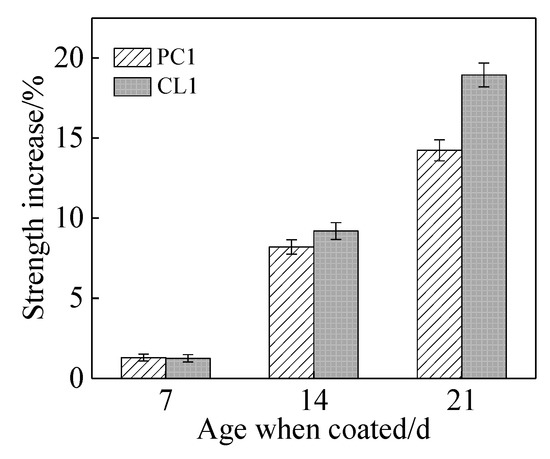

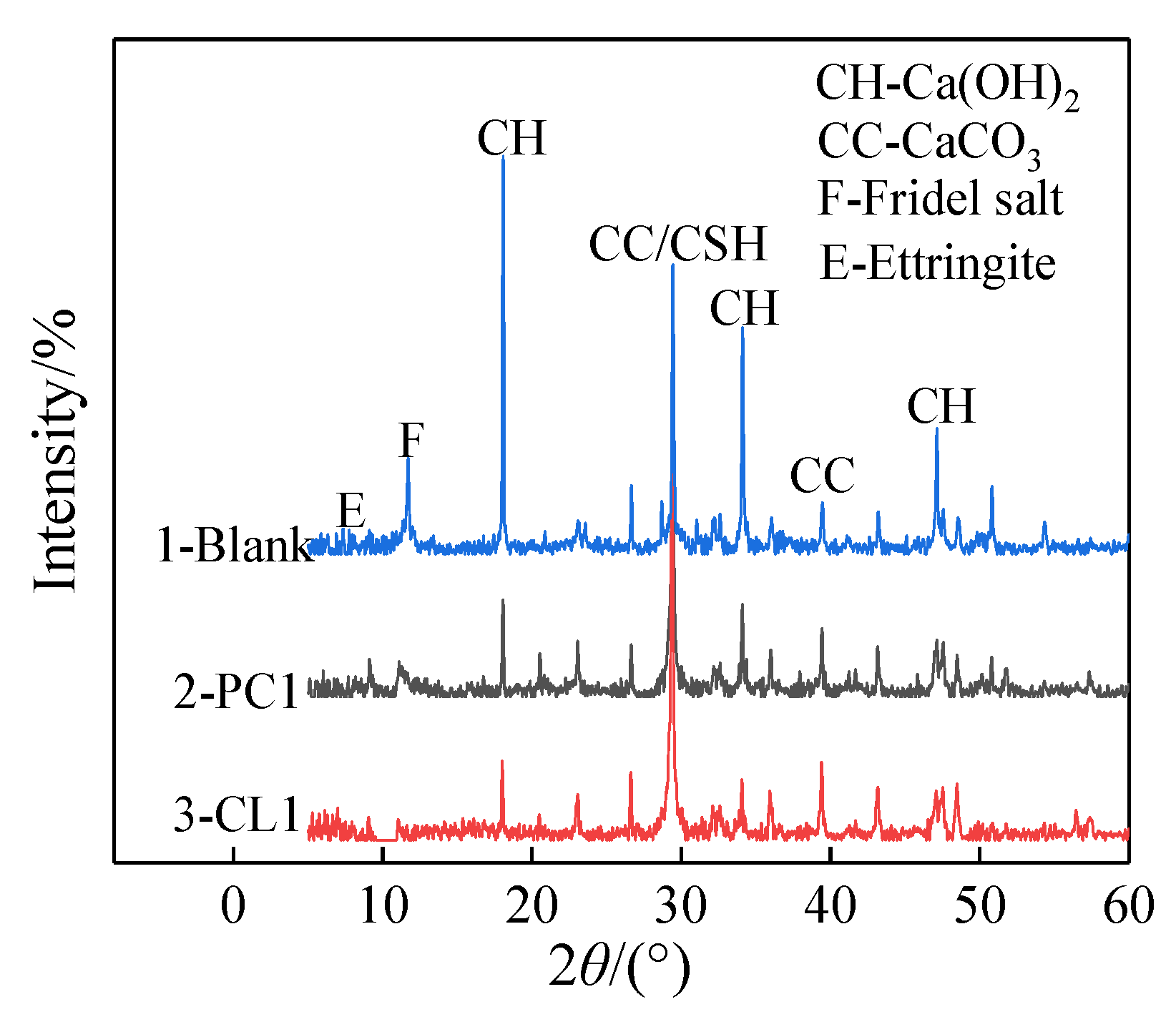

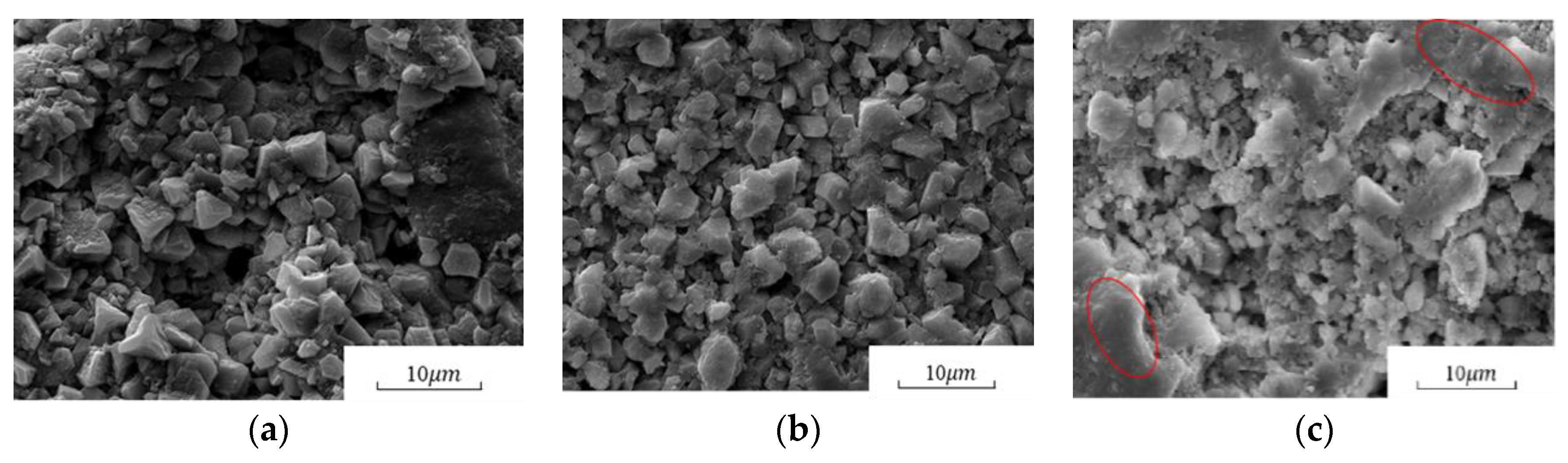

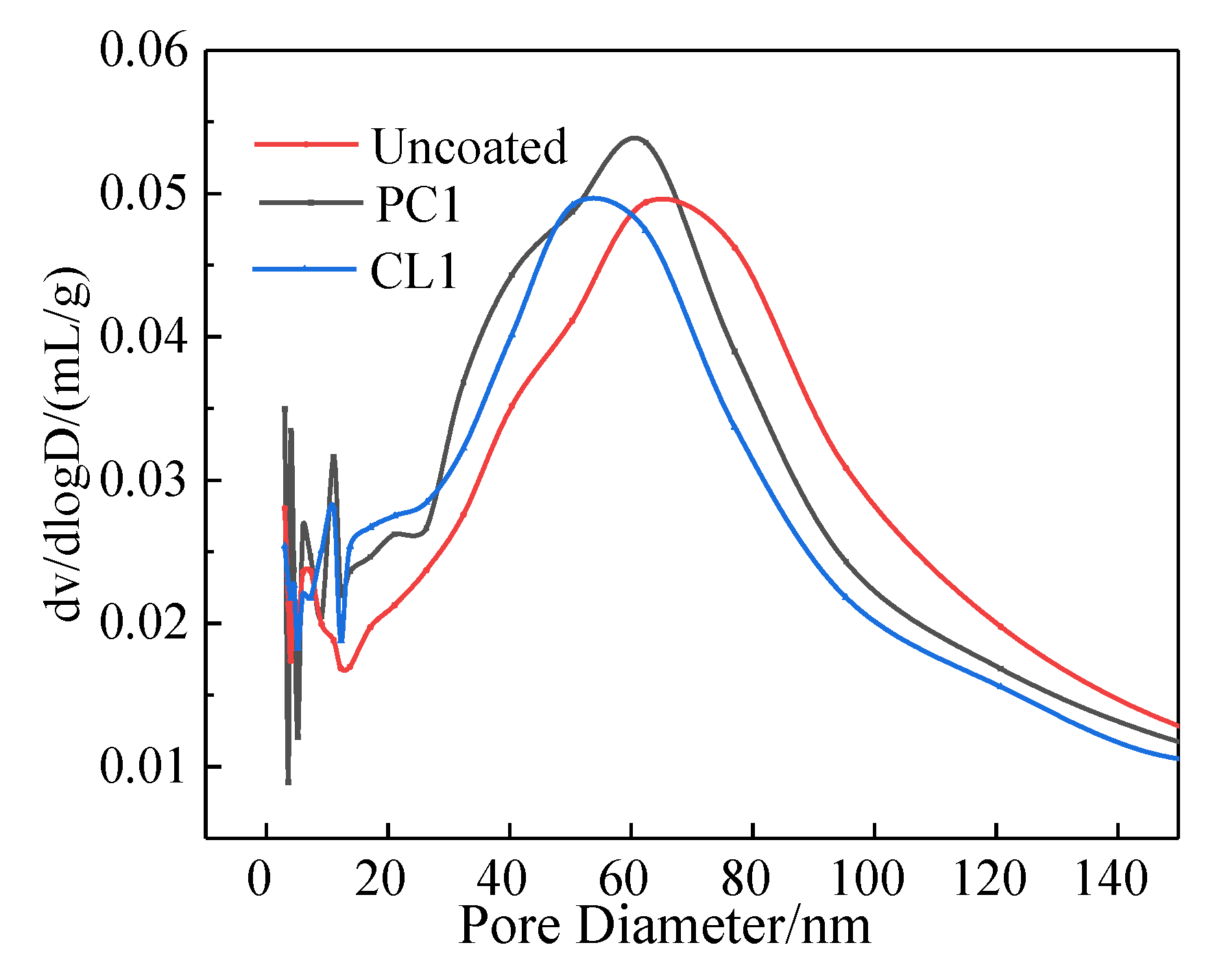

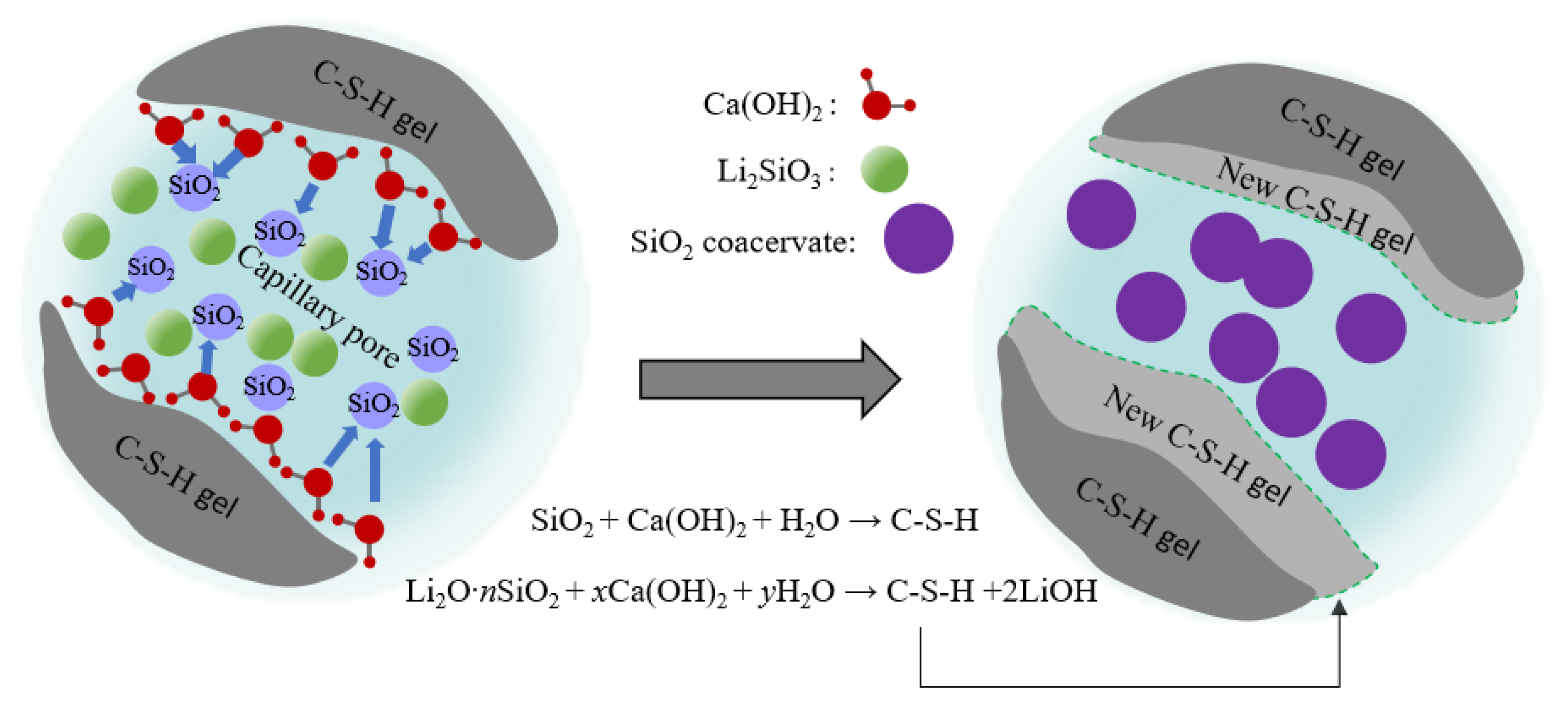

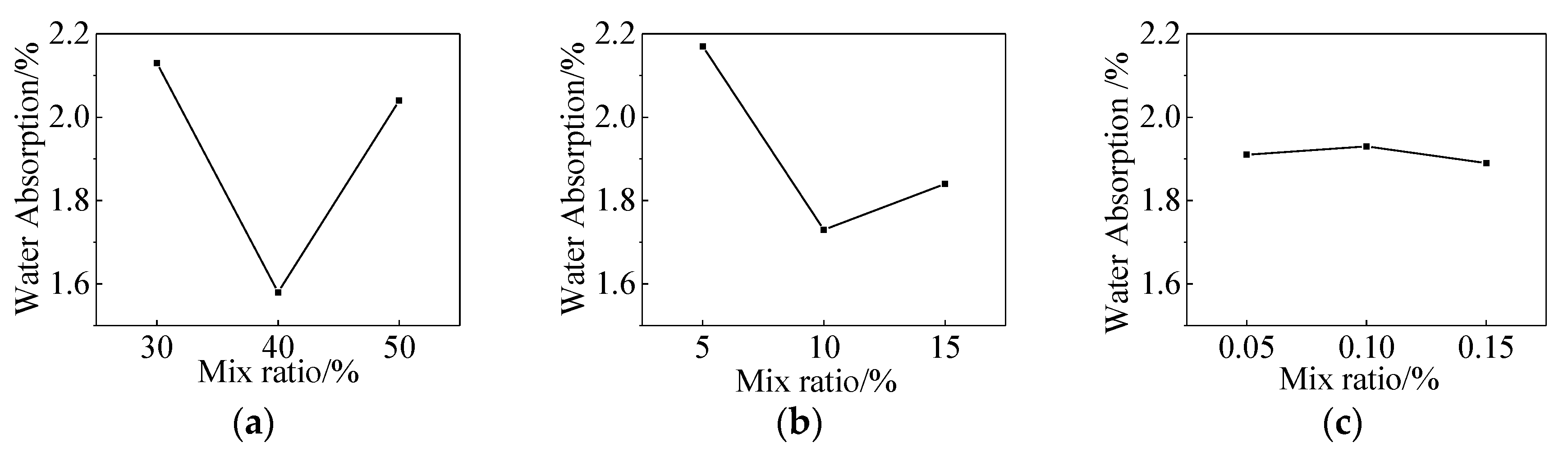

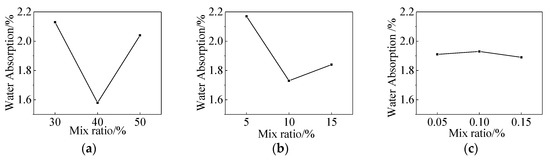

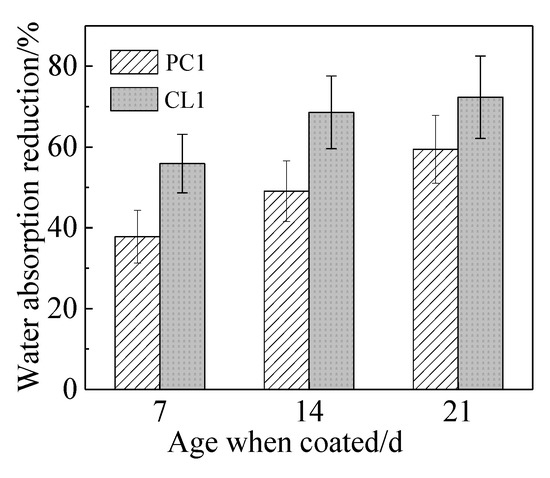

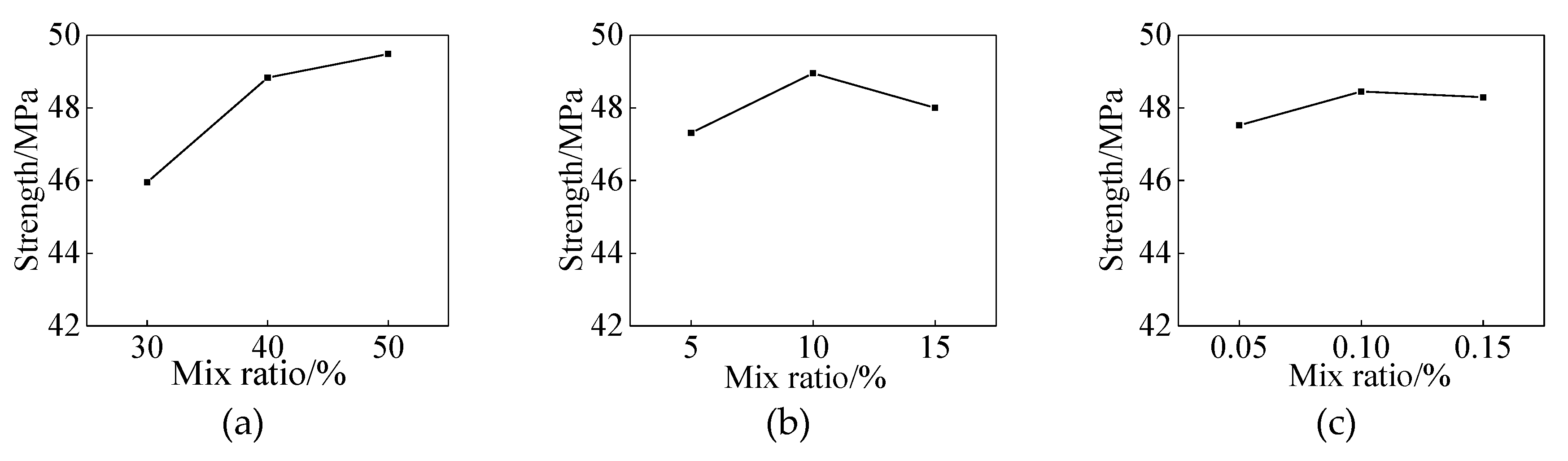

In this paper, we prepared permeable protective coatings composed of lithium silicate (Li2SiO3), where the coating was modified by colloidal nano-silica (CNS). Three levels of lithium silicate (i.e., 30 wt. %; 40 wt. %; 50 wt. %), sodium silicate (i.e., 5 wt. %; 10 wt. %; 15 wt. %), and surfactant (i.e., 0.05 wt. %; 0.1 wt. %; 0.15 wt. %) were involved in this study. An orthogonal experiment design selected the optimal proportion basedon thestrength and water absorption requirements of mortar. The effects of CNS-Li2SiO3 coating on the resistance to permeability of chloride ions and carbonation of specimens were also studied. The outcomes were interpreted using scanning electron microscopy (SEM), X-ray diffraction (XRD), and mercury intrusion porosimetry (MIP) techniques. The results showed that the optimum mix formulation consisted of 40 wt. % of lithium silicate, 10 wt. % of sodium silicate and 0.1 wt. % of surfactant within the mixtures investigated. Meanwhile, compared tothe control group, after the specimens were coated at 21 days curing age of mortar, the strength development, 48-h water absorption, resistance to chloride ions penetration, and carbonation of CNS-Li2SiO3 coated specimenswere improved. This could be attributed to the second hydration, leading to a reduction of the content of Ca(OH)2 and an increase of the amount of C–S–H gel within specimens. Thus, the microstructure of mortar matrix was improved after coated with CNS-Li2SiO3 permeable protective coatings.
View Full-Text
▼
Show Figures
Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Li, X.; Pan, C.; Li, D.; Geng, J.; Chen, N.; He, J.; Liu, S. Design of CNS-Li2SiO3 Permeable Protective Coatings and Effects on Mortar Matrix. Materials 2020, 13, 1733. https://doi.org/10.3390/ma13071733
AMA Style
Li X, Pan C, Li D, Geng J, Chen N, He J, Liu S. Design of CNS-Li2SiO3 Permeable Protective Coatings and Effects on Mortar Matrix. Materials. 2020; 13(7):1733. https://doi.org/10.3390/ma13071733
Chicago/Turabian StyleLi, Xu, Chonggen Pan, Dong Li, Jian Geng, Na Chen, Jingzi He, and Shuhua Liu. 2020. "Design of CNS-Li2SiO3 Permeable Protective Coatings and Effects on Mortar Matrix" Materials 13, no. 7: 1733. https://doi.org/10.3390/ma13071733
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
