Next Article in Journal
Human Respiratory Monitoring Based on Schottky Resistance Humidity Sensors
Previous Article in Journal
Development of the Measuring Techniques for Estimating the Air Void System Parameters in Concrete Using 2D Analysis Method
Previous Article in Special Issue
Characterization of Corrosion Behavior of CLF-1 in Liquid Lithium Using Calibration-Free Laser-Induced Breakdown Spectroscopy in Depth Profile Analysis
Open AccessArticle

Effect of Residual CaSO4 in Clinker on Properties of High Belite Sulfoaluminate Cement Based on Solid Wastes

1
School of Civil Engineering, Qingdao University of Technology, Qingdao 266033, China
2
School of Architectural Engineering, Qingdao Agricultural University, Qingdao 266109, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(2), 429; https://doi.org/10.3390/ma13020429
Received: 6 November 2019 / Revised: 25 December 2019 / Accepted: 13 January 2020 / Published: 16 January 2020
(This article belongs to the Special Issue Advanced Materials for Energy and Environmental Applications)

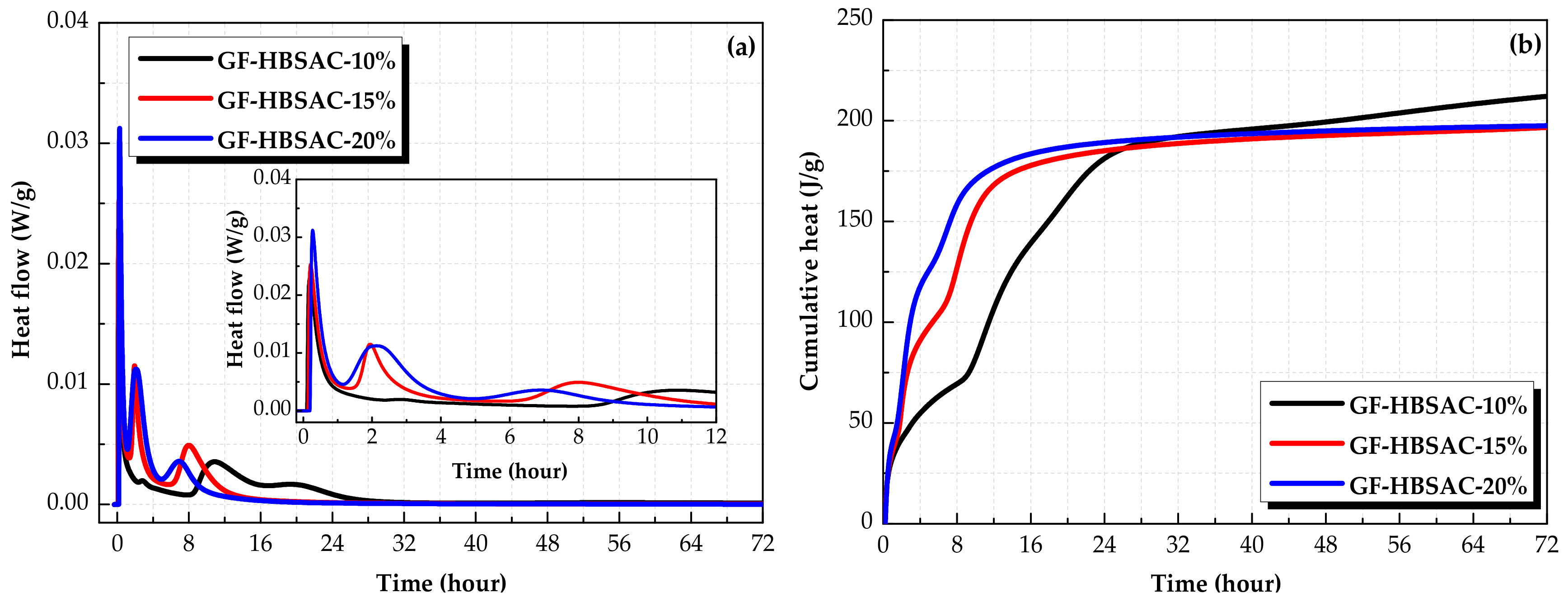

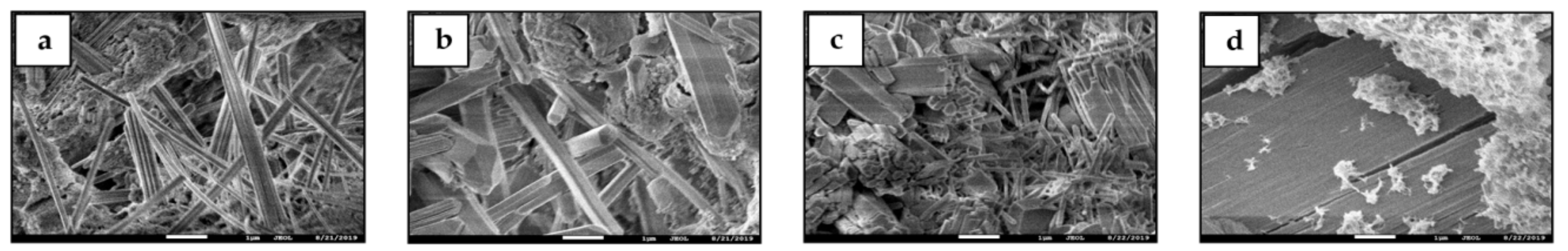

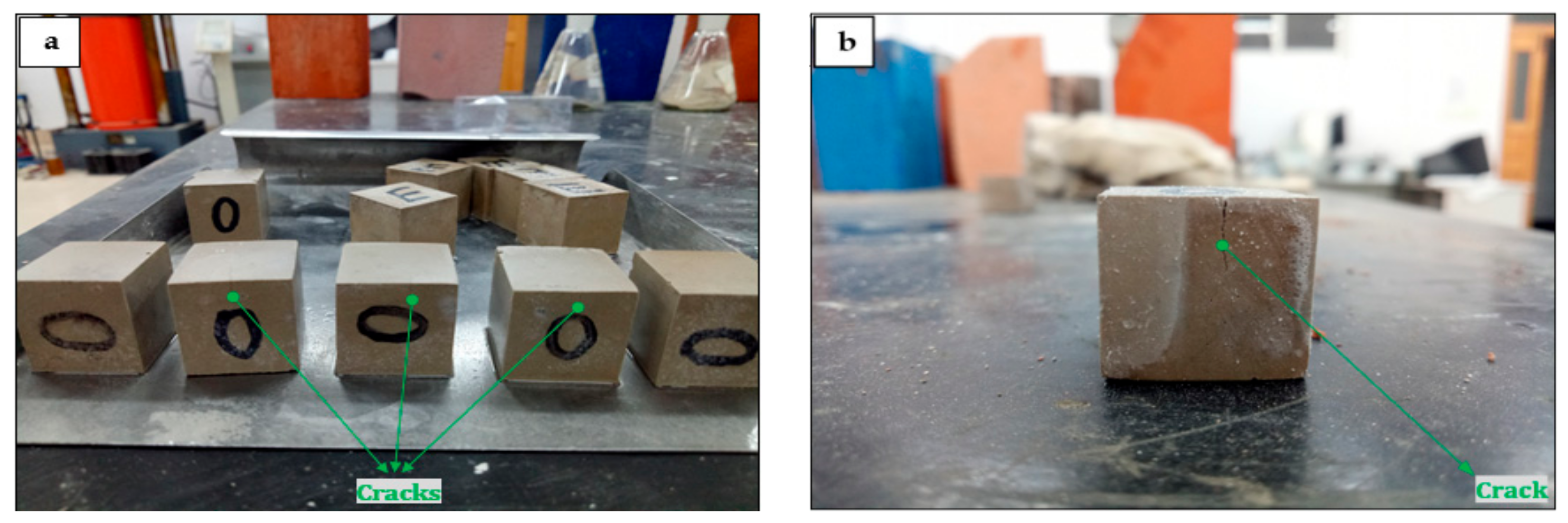

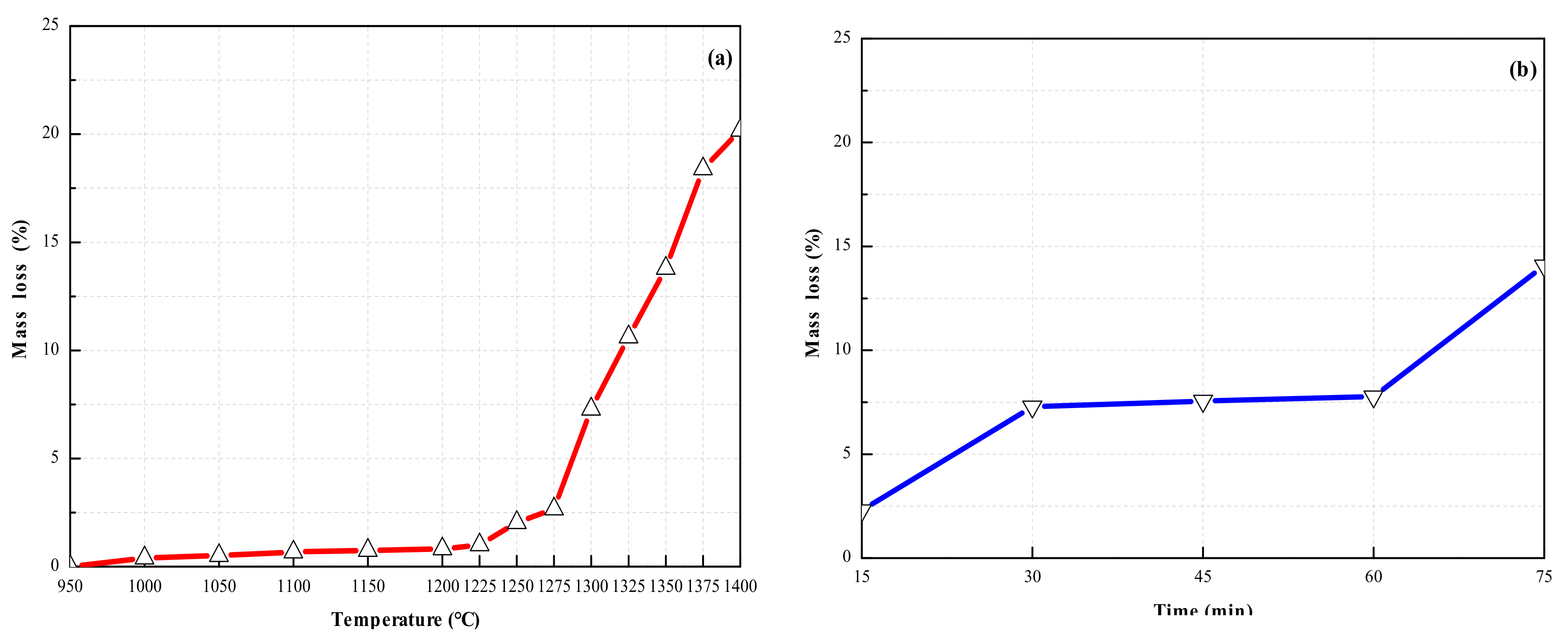

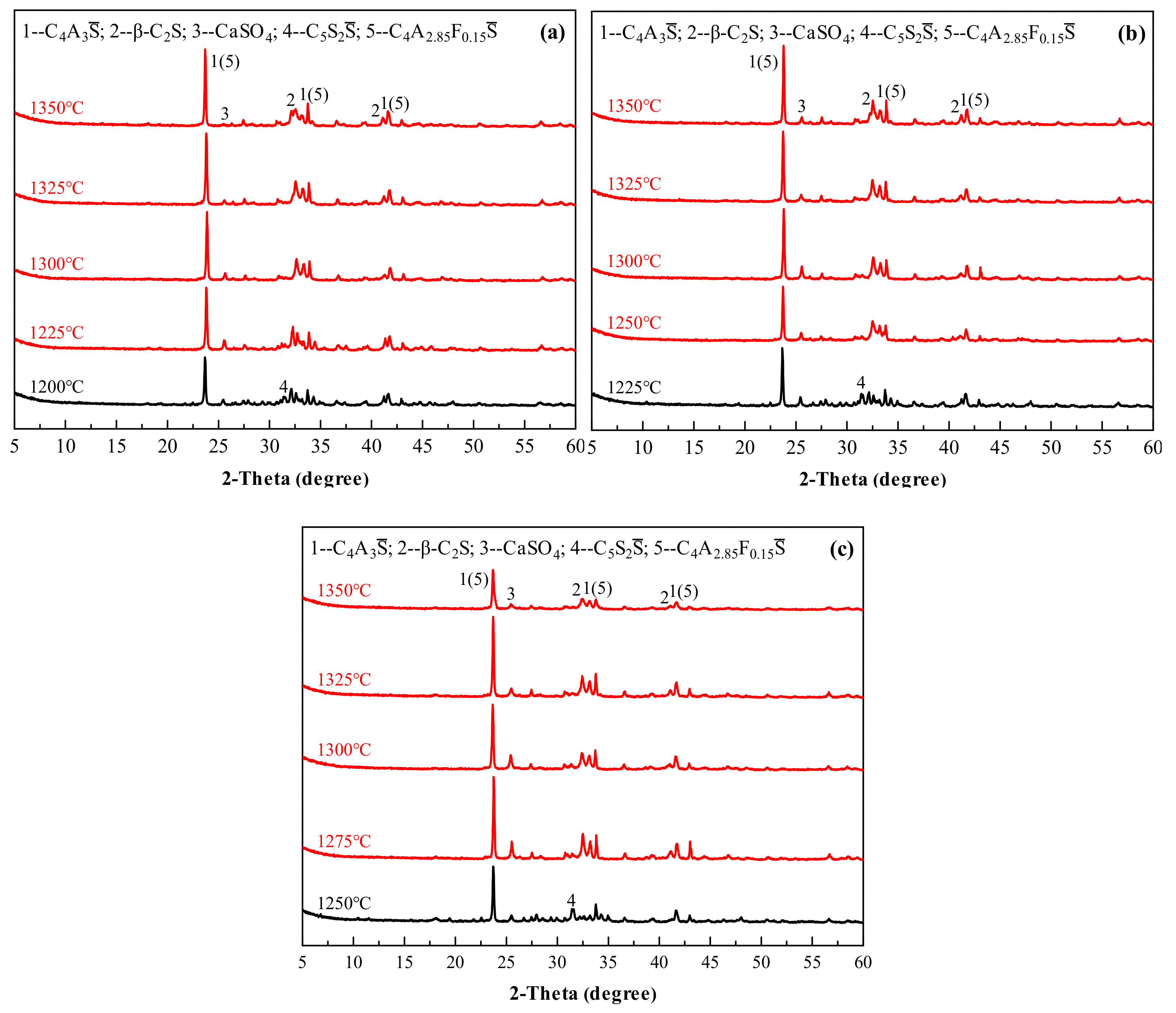

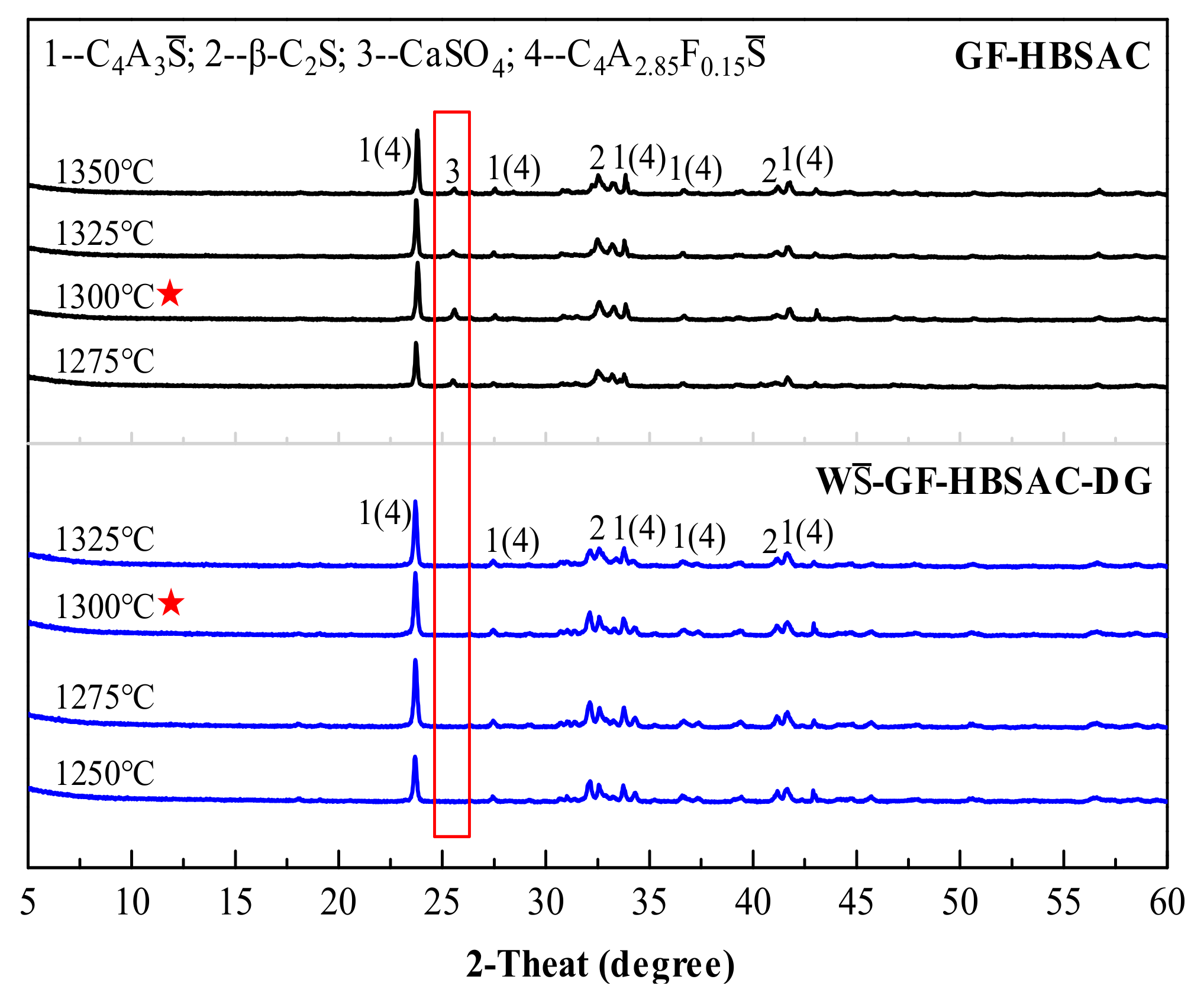

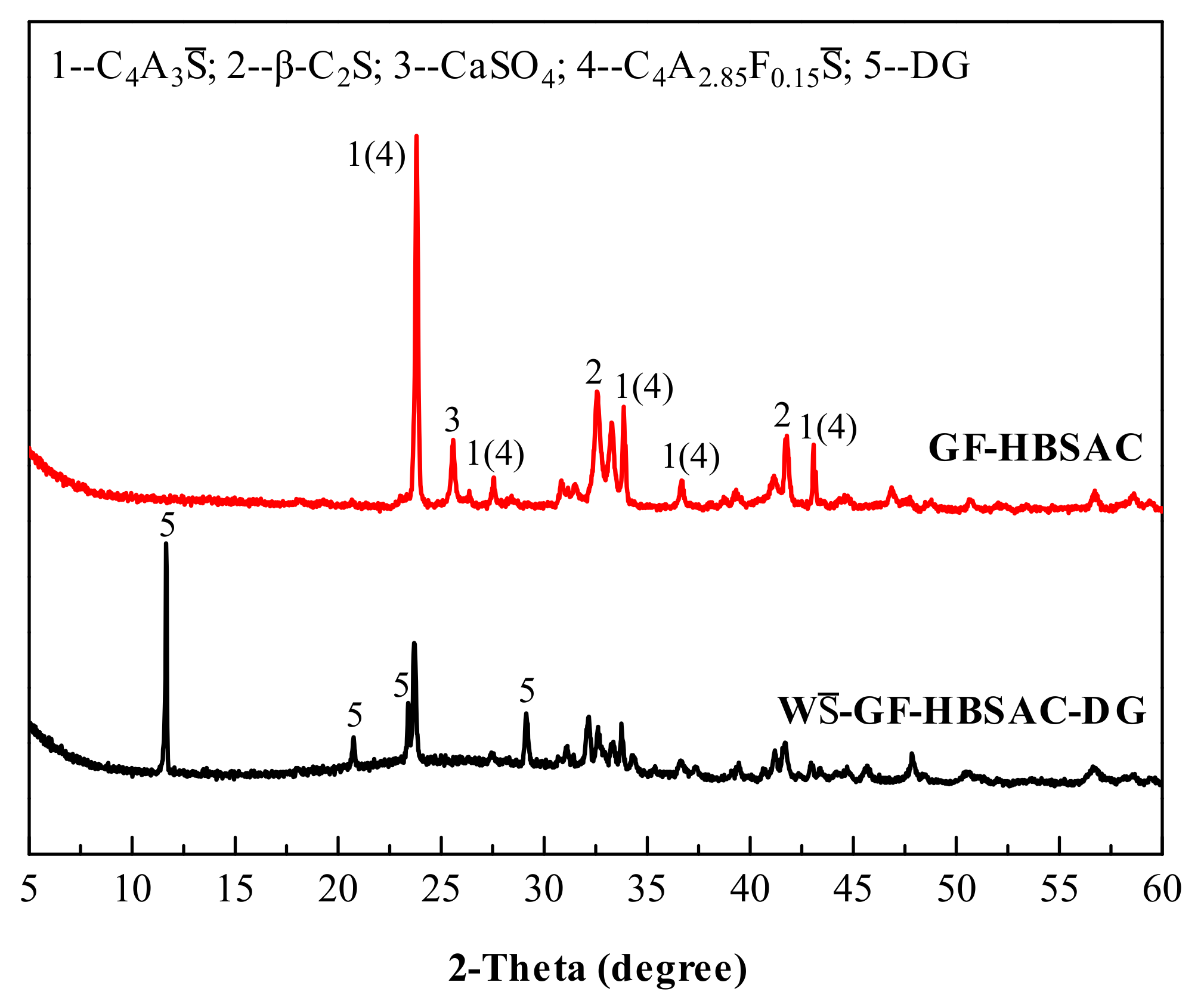

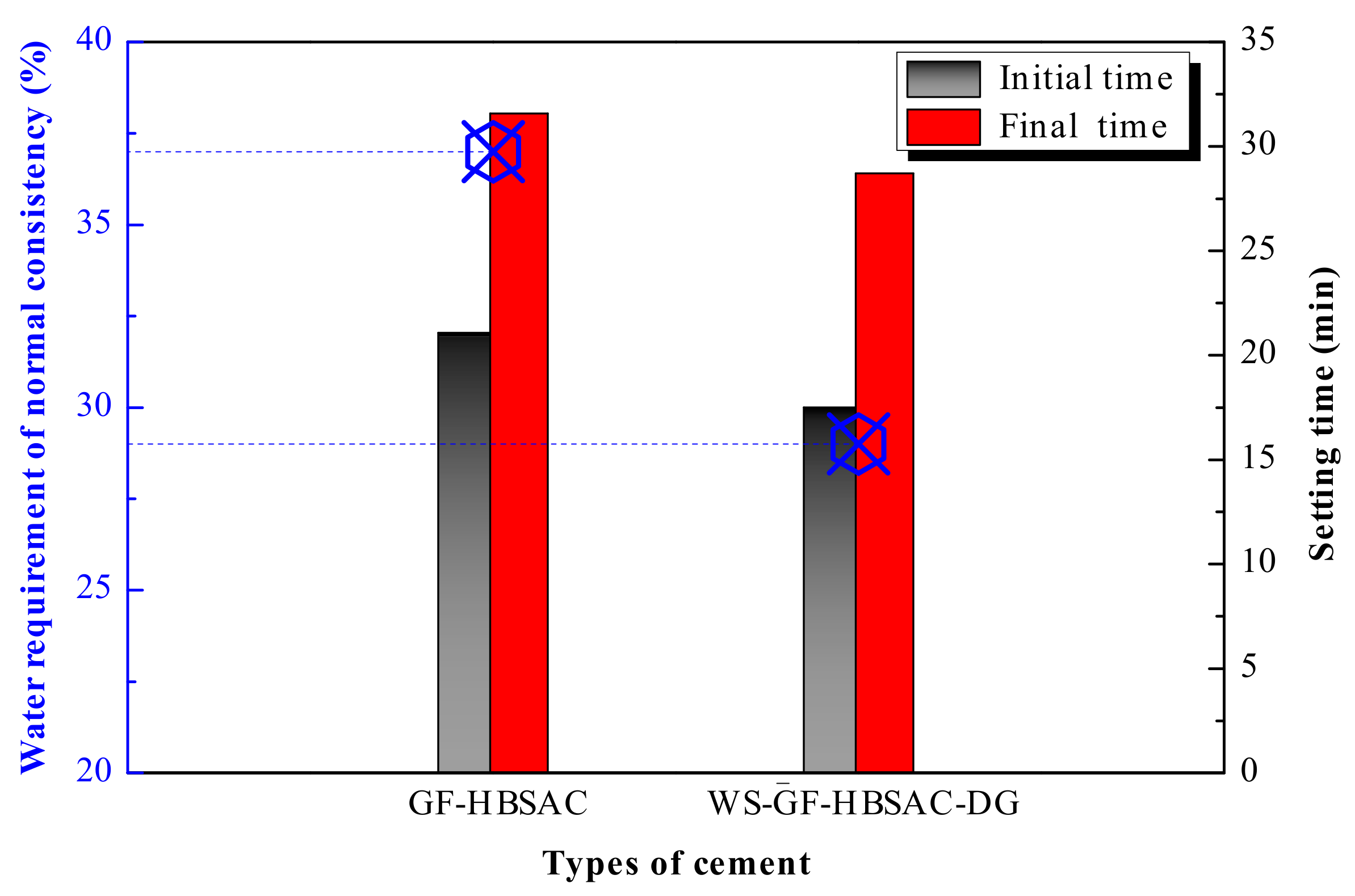

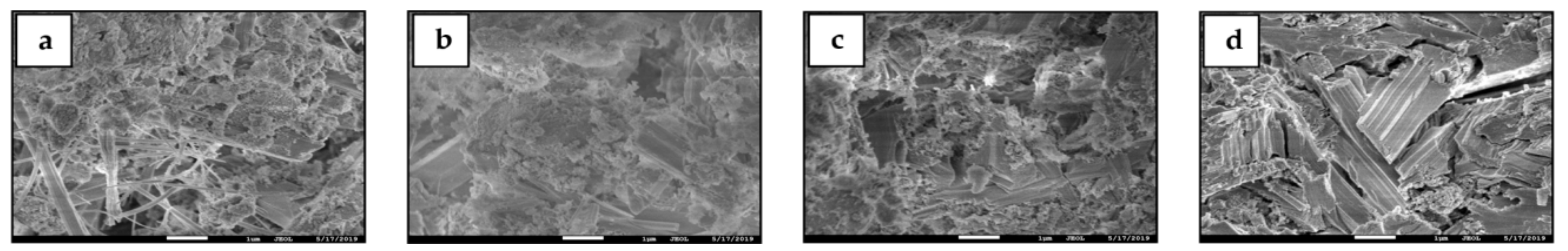

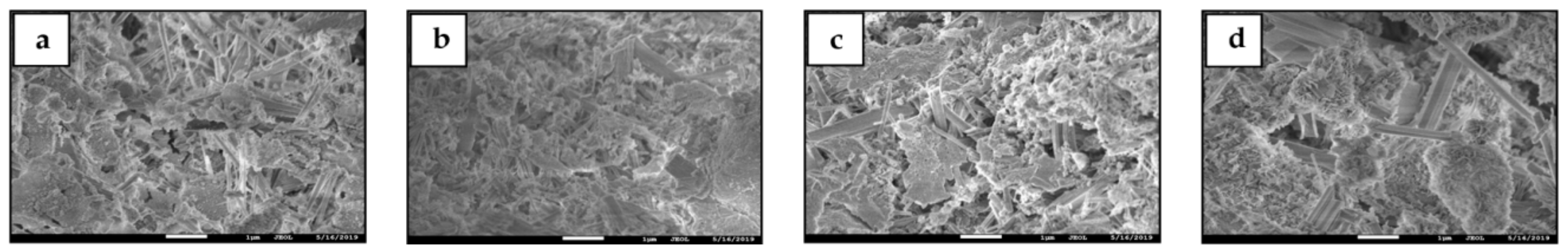

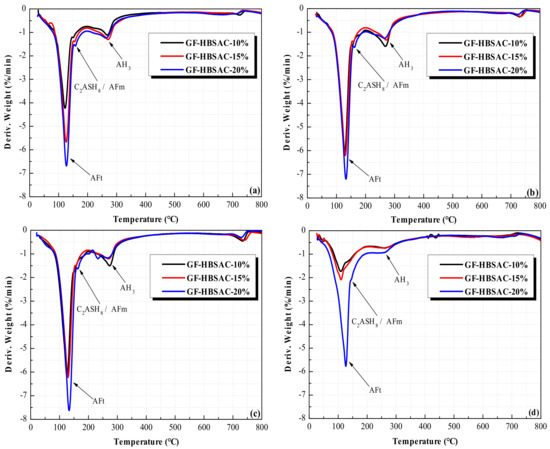

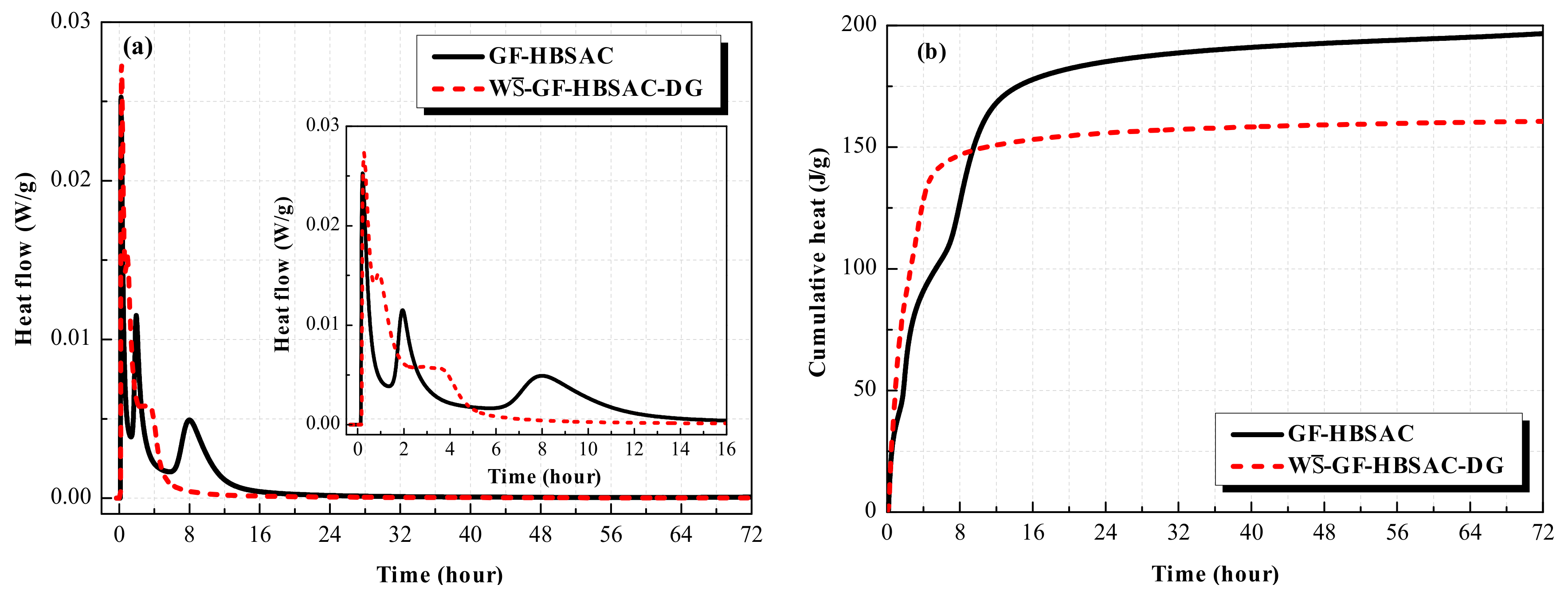

The high belite sulfoaluminate cement (HBSAC) containing CaSO4, and without CaSO4, based on solid wastes were successfully prepared from petroleum coke desulfurization slag (PCDS), fly ash (FA), carbide slag (CS), and bauxite (BX). The mineral composition of clinkers after different calcination history were investigated by X-ray fluorescence (XRF), X-ray diffraction (XRD)/Quantitative X-ray diffraction (QXRD), and scanning electron microscopy (SEM), so as to determine the calcination temperatures. The difference between residual CaSO4 and dihydrate gypsum (DG) and the optimal content of residual CaSO4 were discussed by studying the properties of HBSAC. The results revealed that the residual CaSO4 in clinker could replace DG to participate in hydration, and showed some advantages in strength and early hydration heat, but meanwhile increased the water requirement of normal consistency and hydration heat at 72 h, and prolonged the setting time. With the increase of residual CaSO4 content in clinker, the lower limit temperature of clinker formation gradually increased, and the crystal size of clinker minerals became finer and the boundary between crystals became more blurred. However, the optimal calcination temperature (1300 °C) of HBSAC clinker did not change. Considering the effect of residual CaSO4 content on the water requirement of normal consistency, setting time, hydration heat, strength, and hydration products, the optimal design content of residual CaSO4 in HBSAC clinker based on solid wastes, such as PCDS and FA, was 15%. View Full-Text
Keywords: residual CaSO4; solid wastes; high belite sulfoaluminate cement; petroleum coke desulfurization slag; CaSO4 type; CaSO4 content; cement properties residual CaSO4; solid wastes; high belite sulfoaluminate cement; petroleum coke desulfurization slag; CaSO4 type; CaSO4 content; cement properties

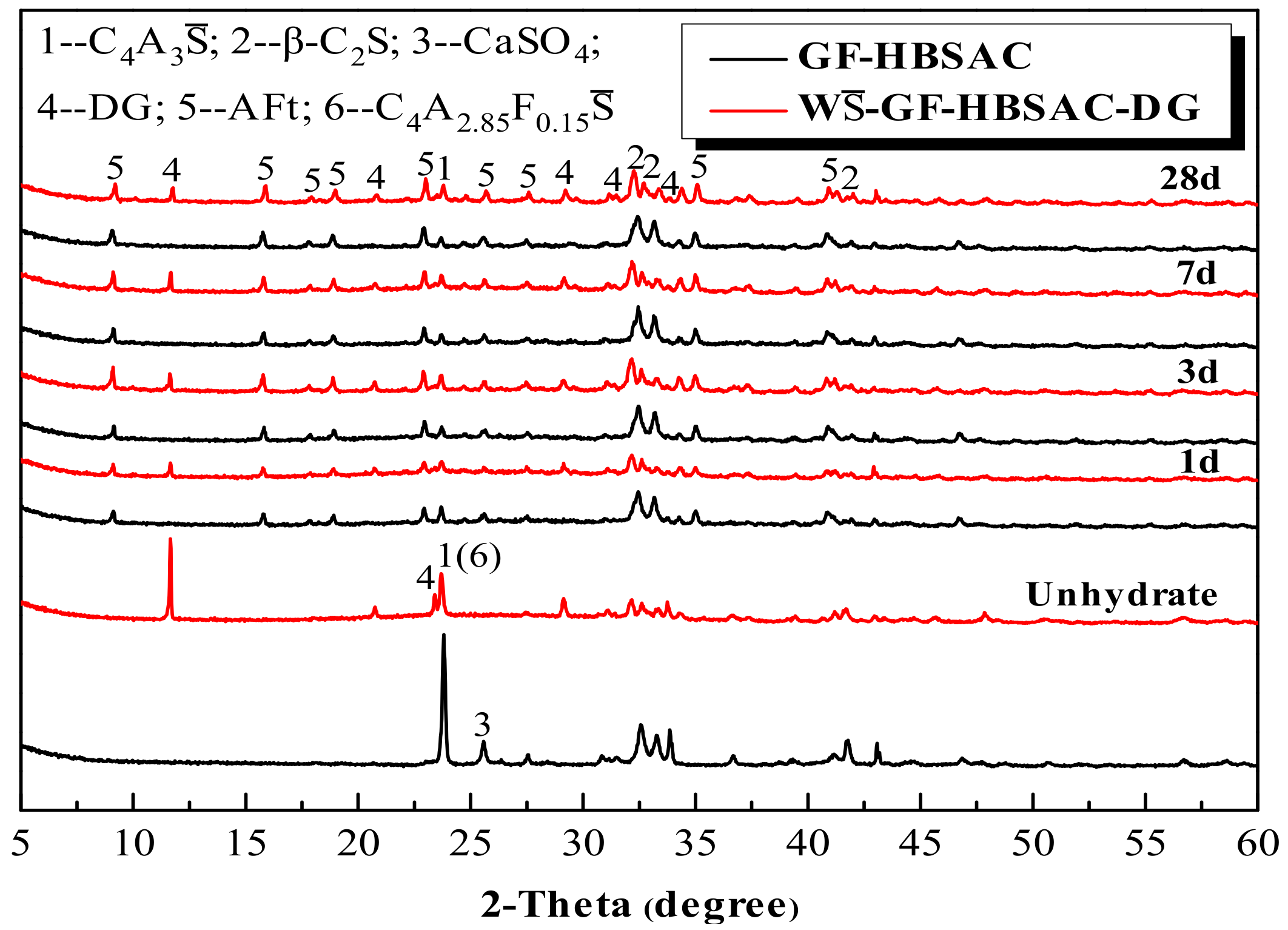

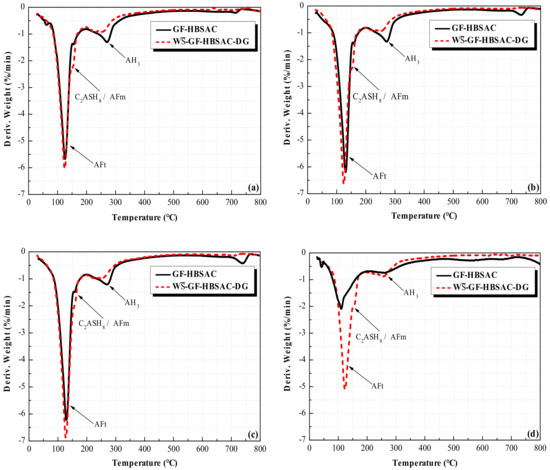

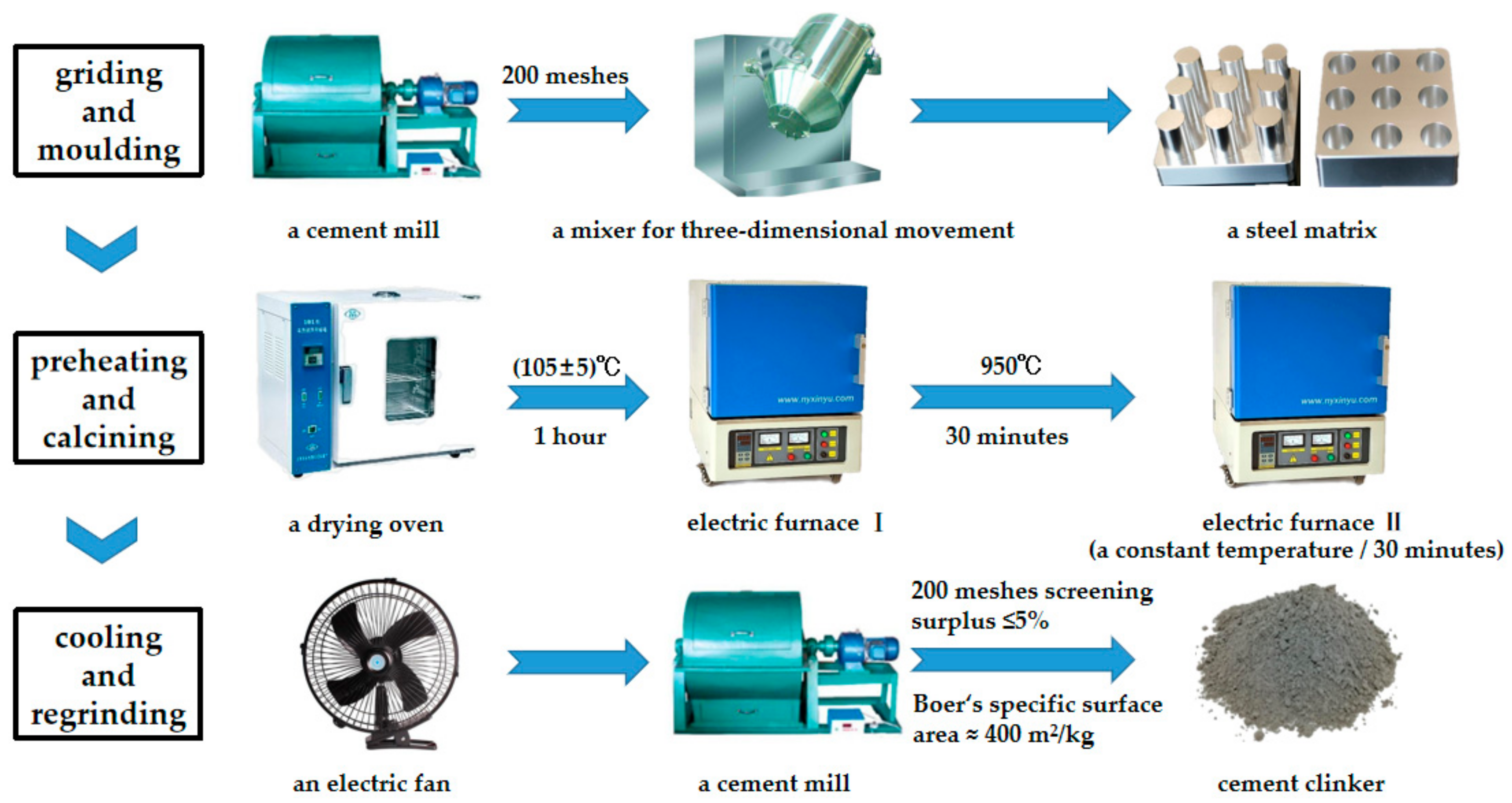

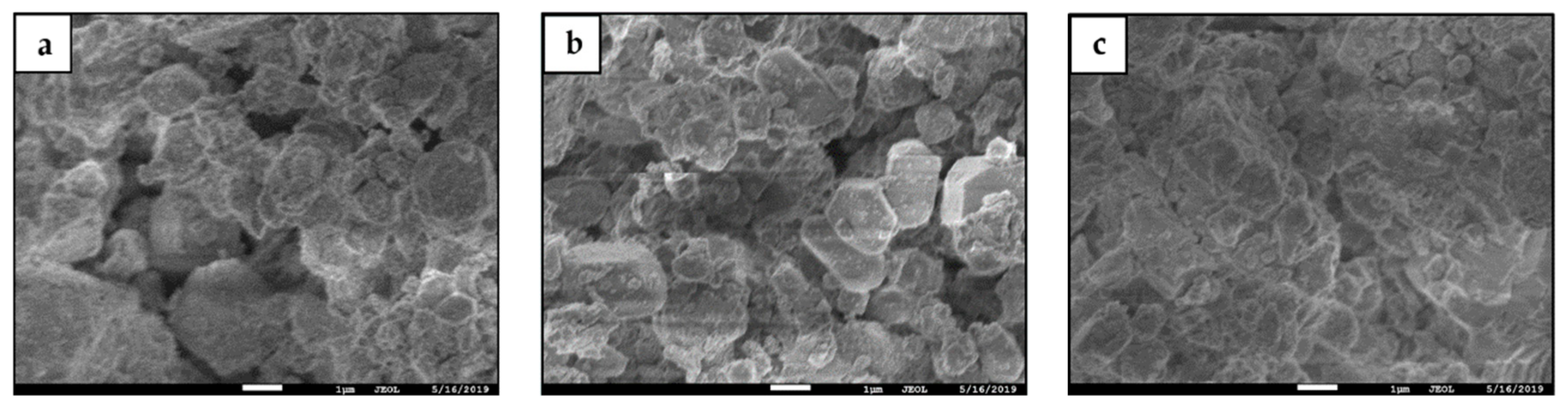

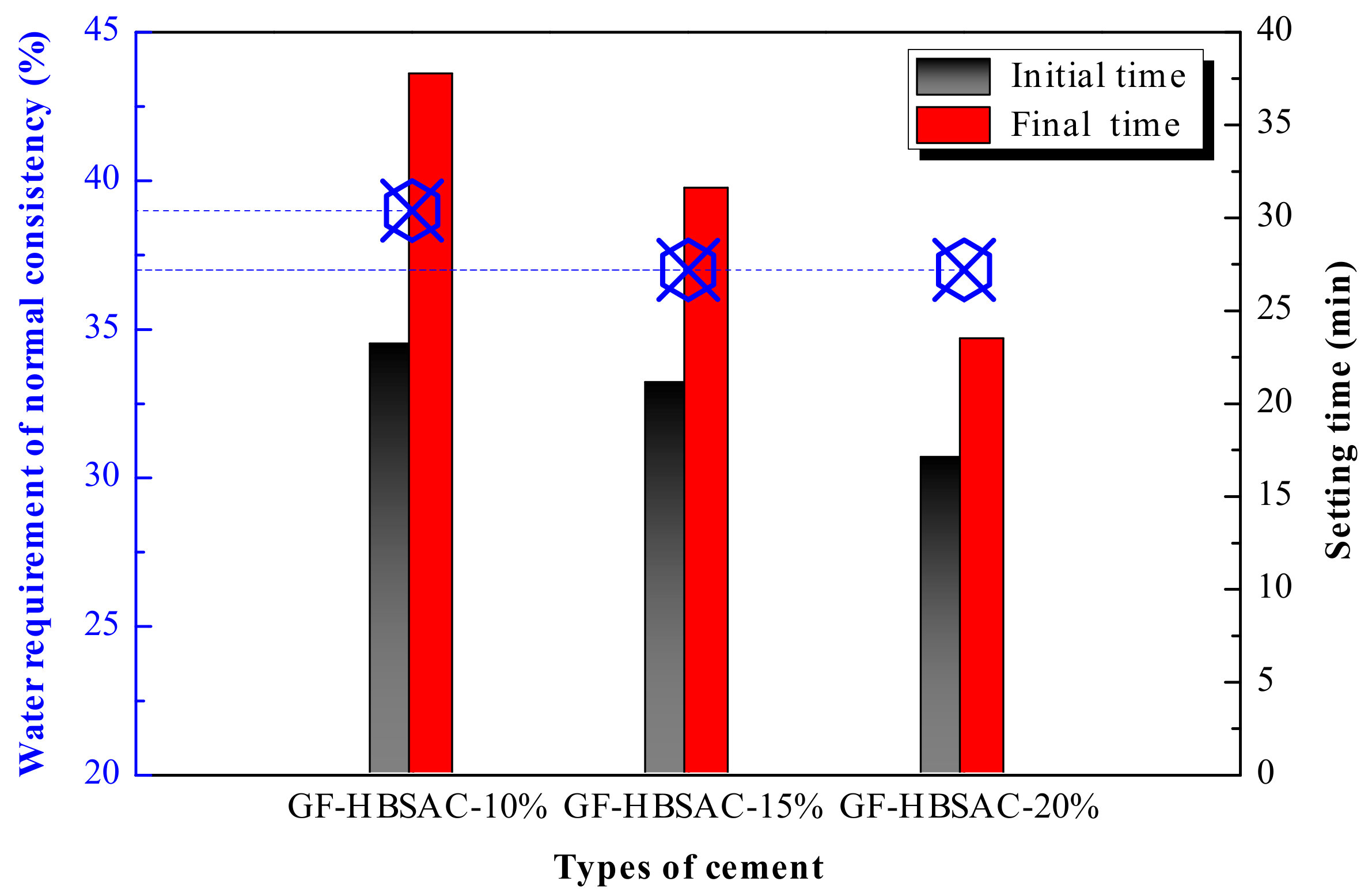

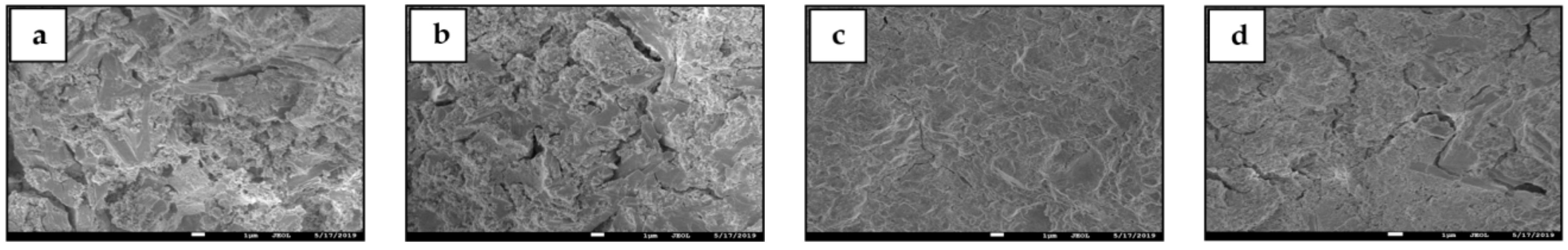

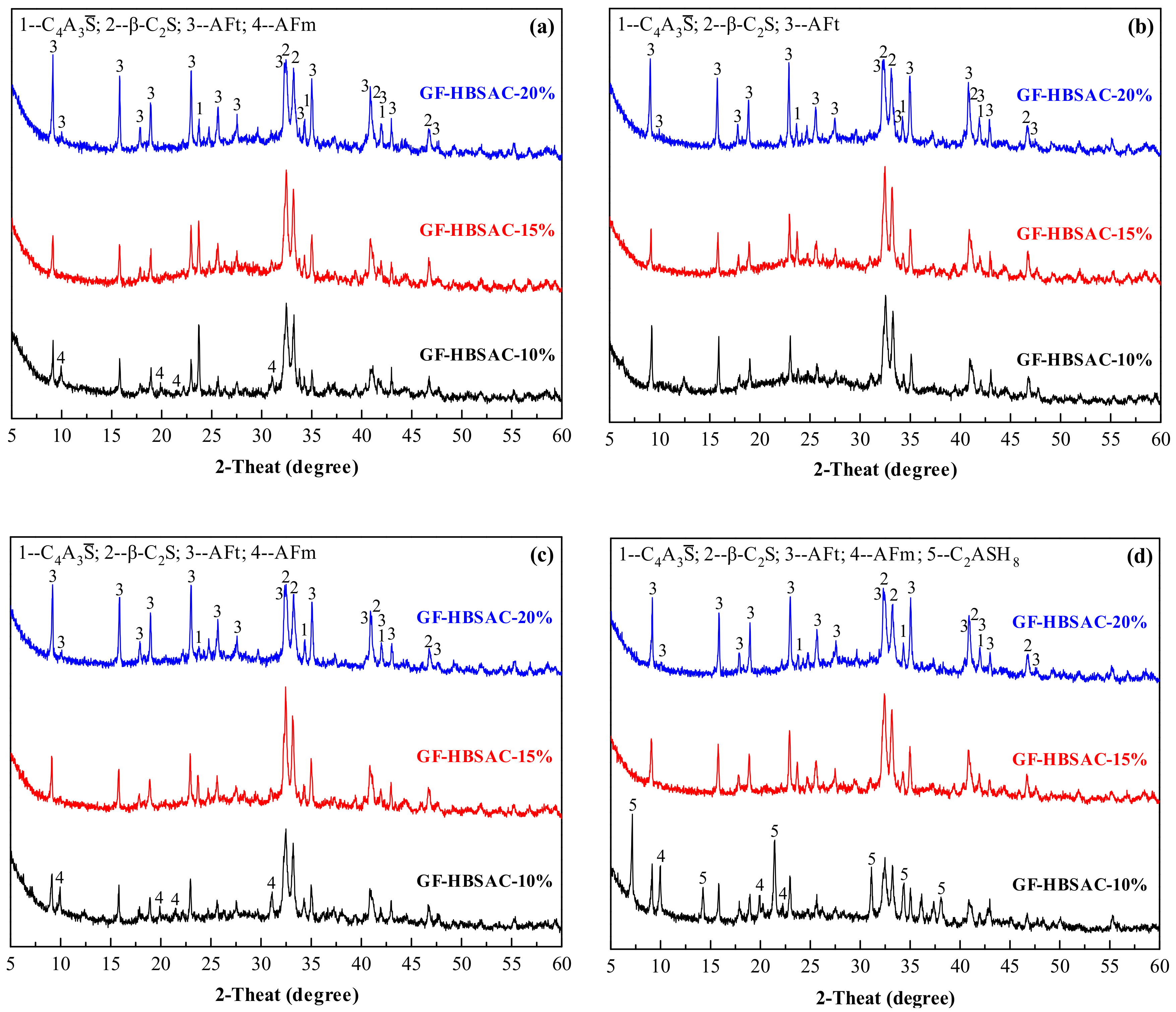

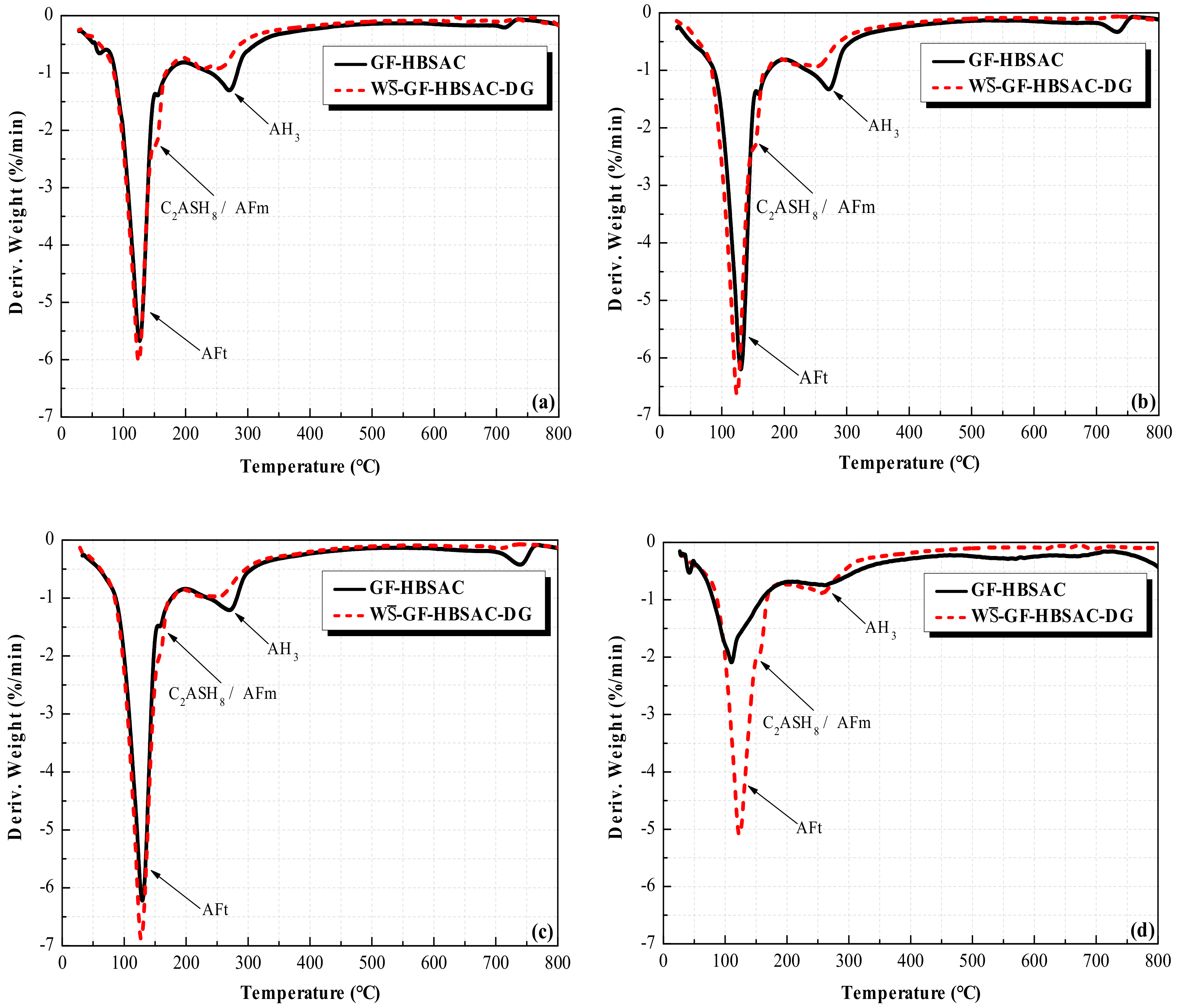

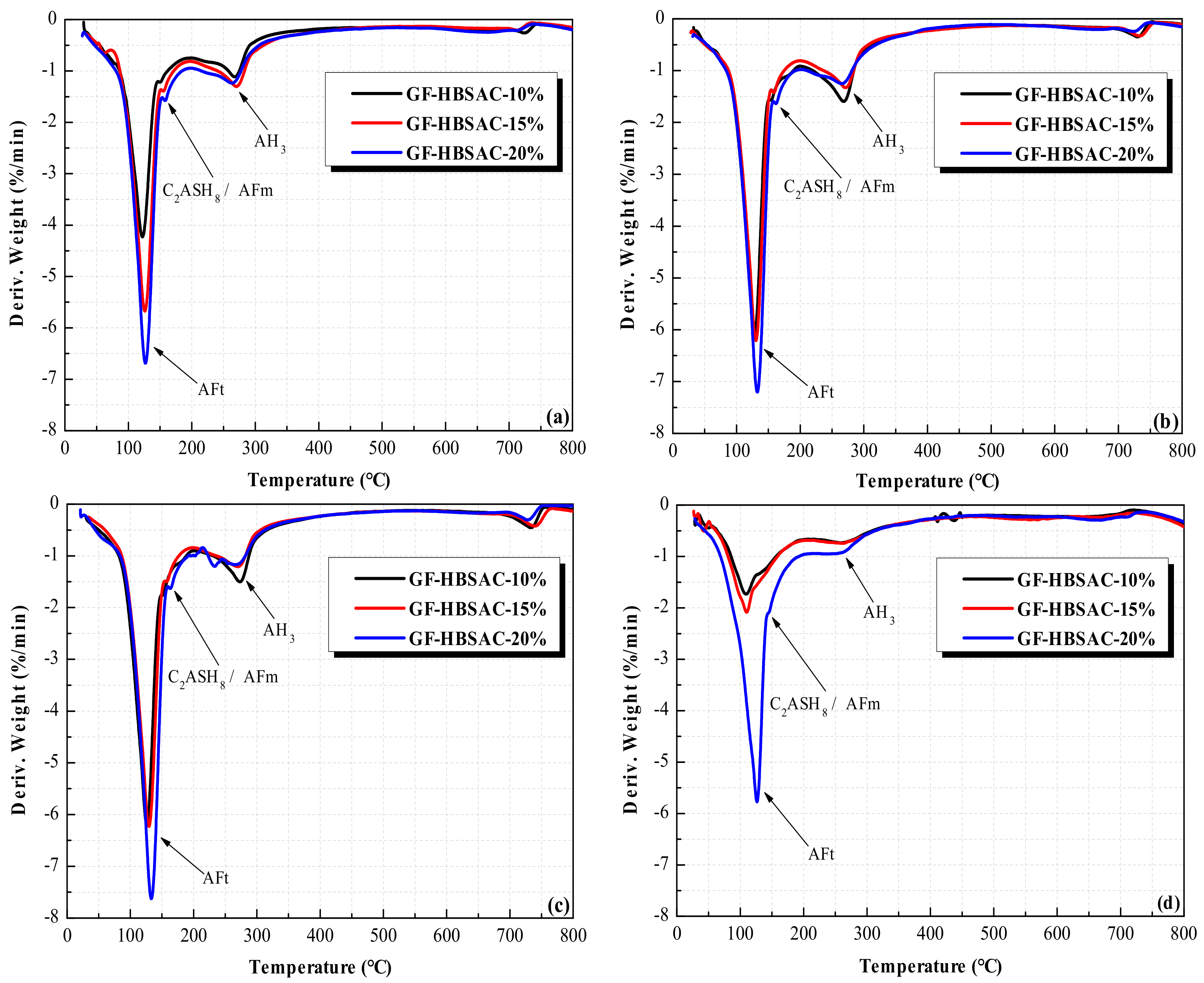

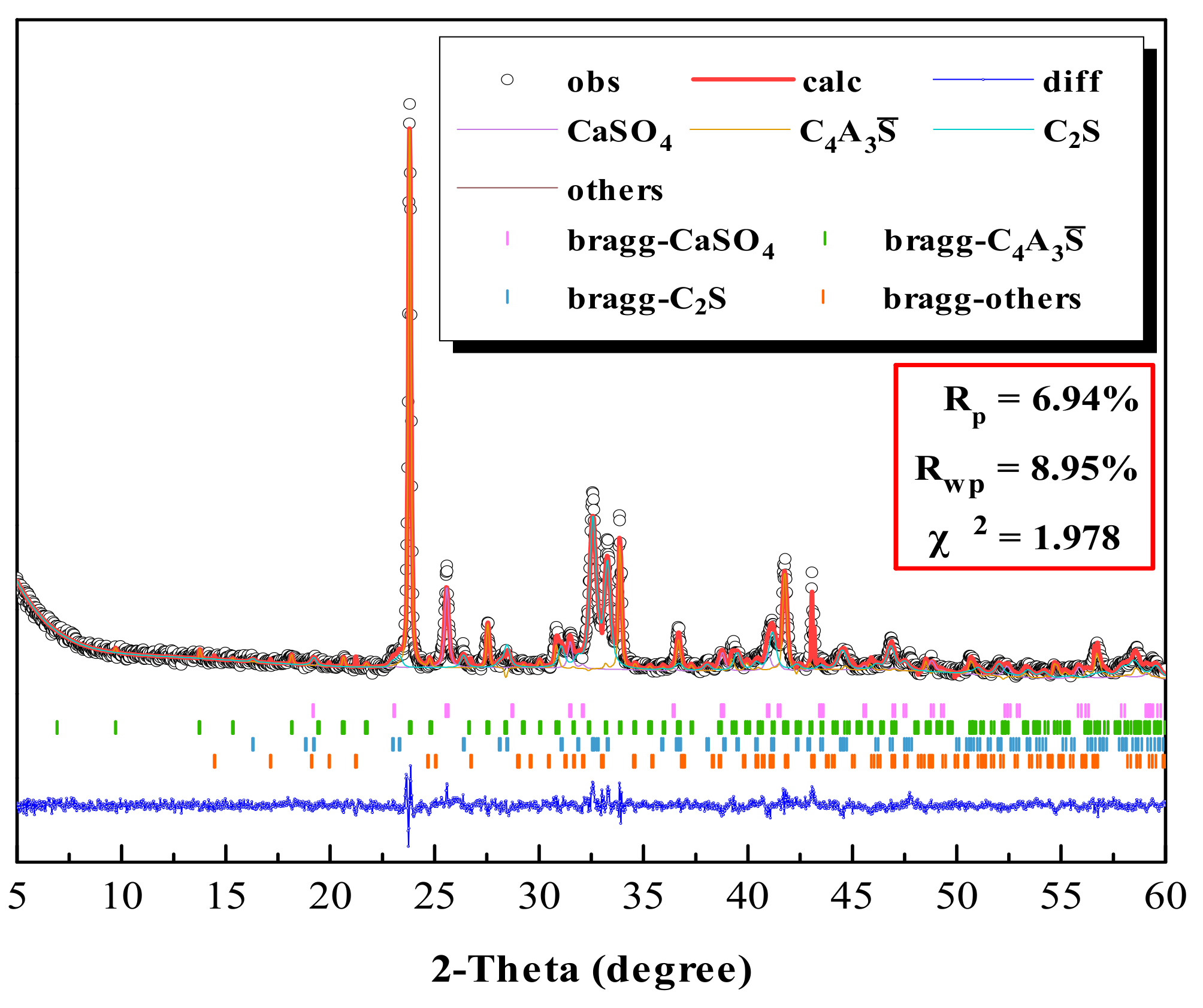

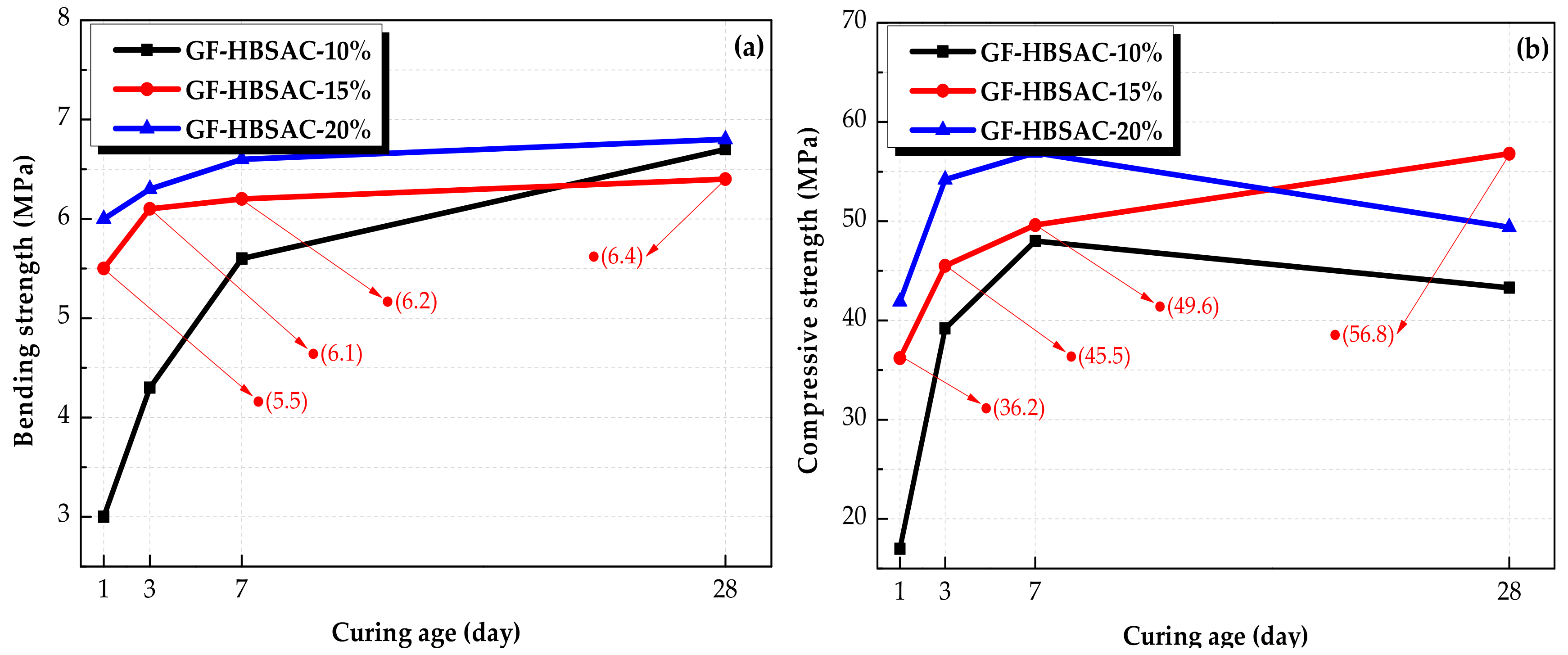

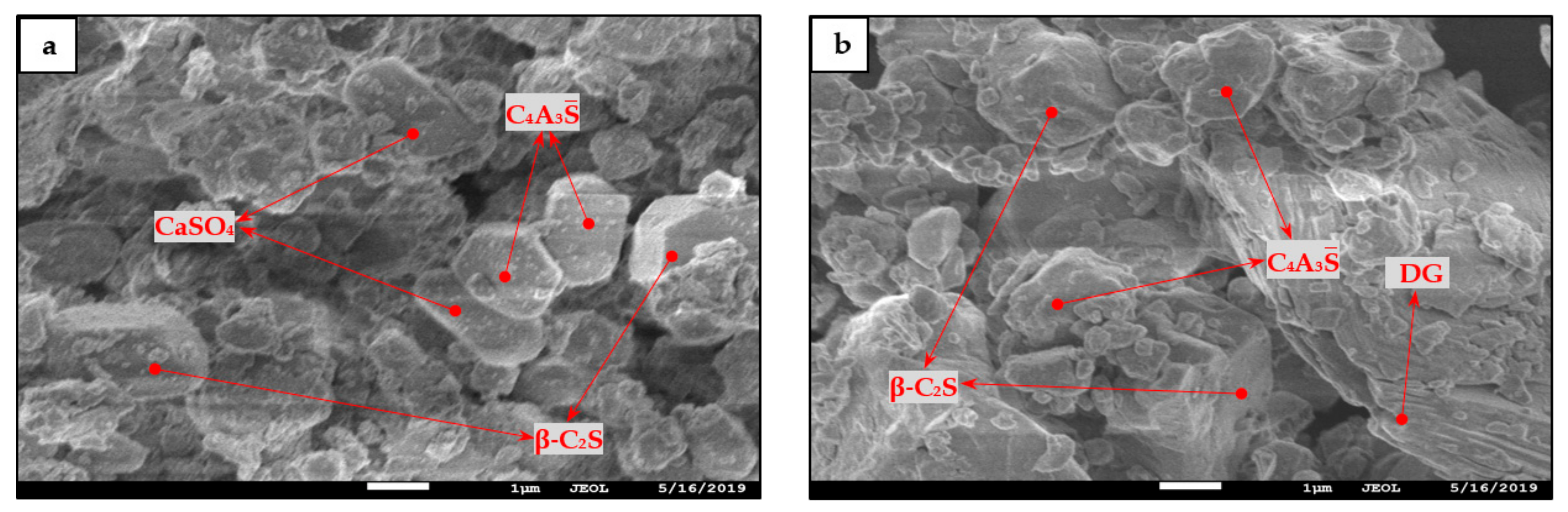

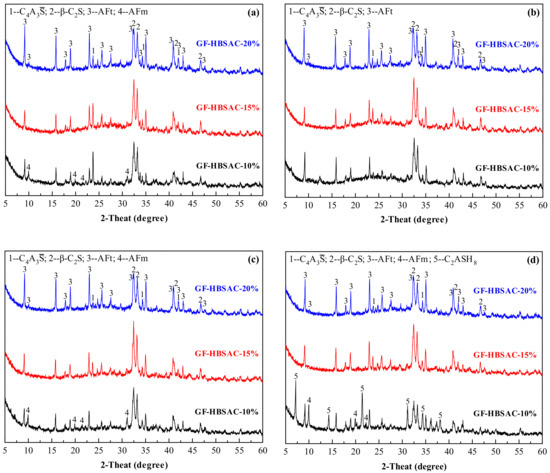

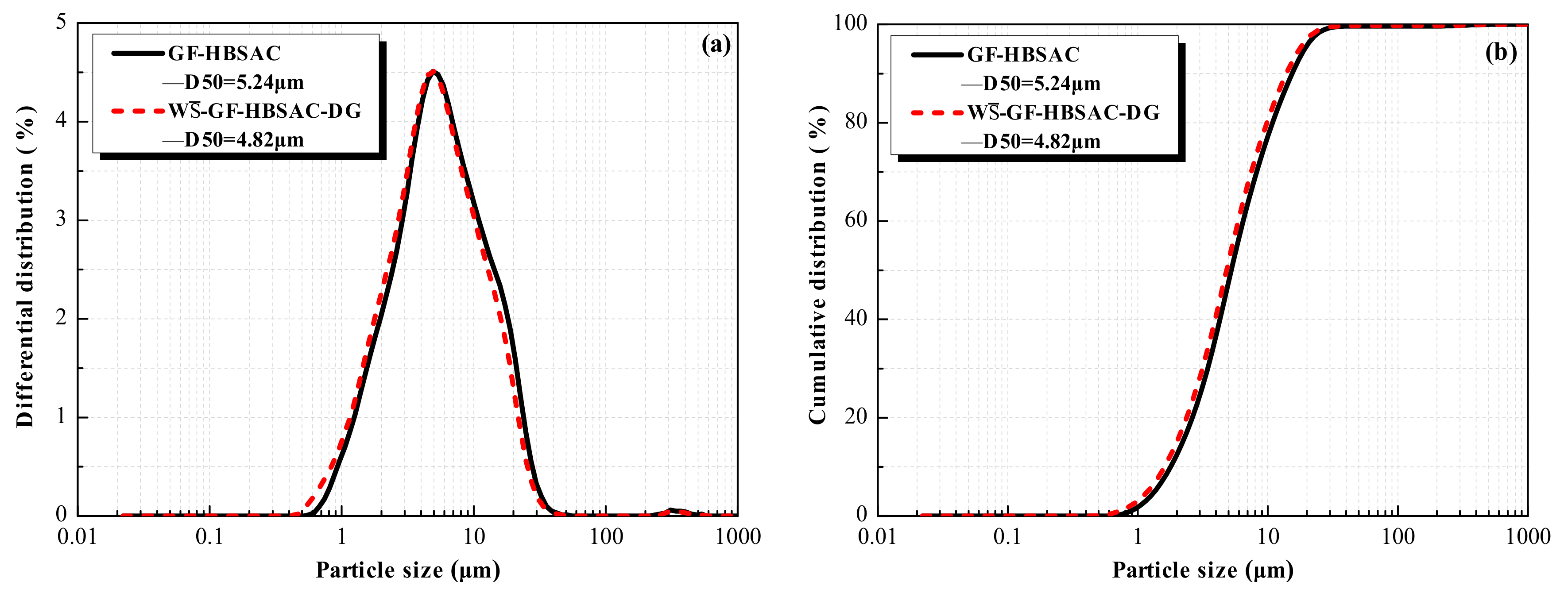

Show Figures

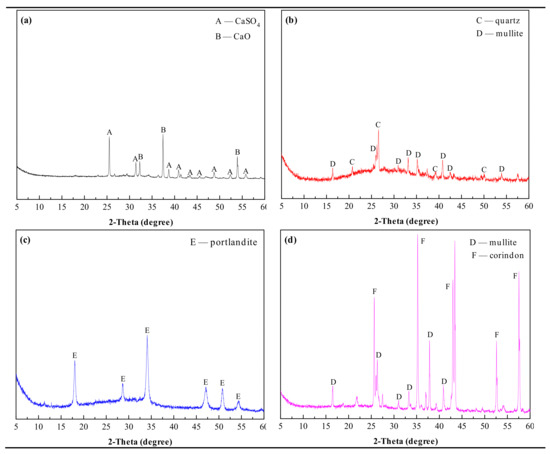

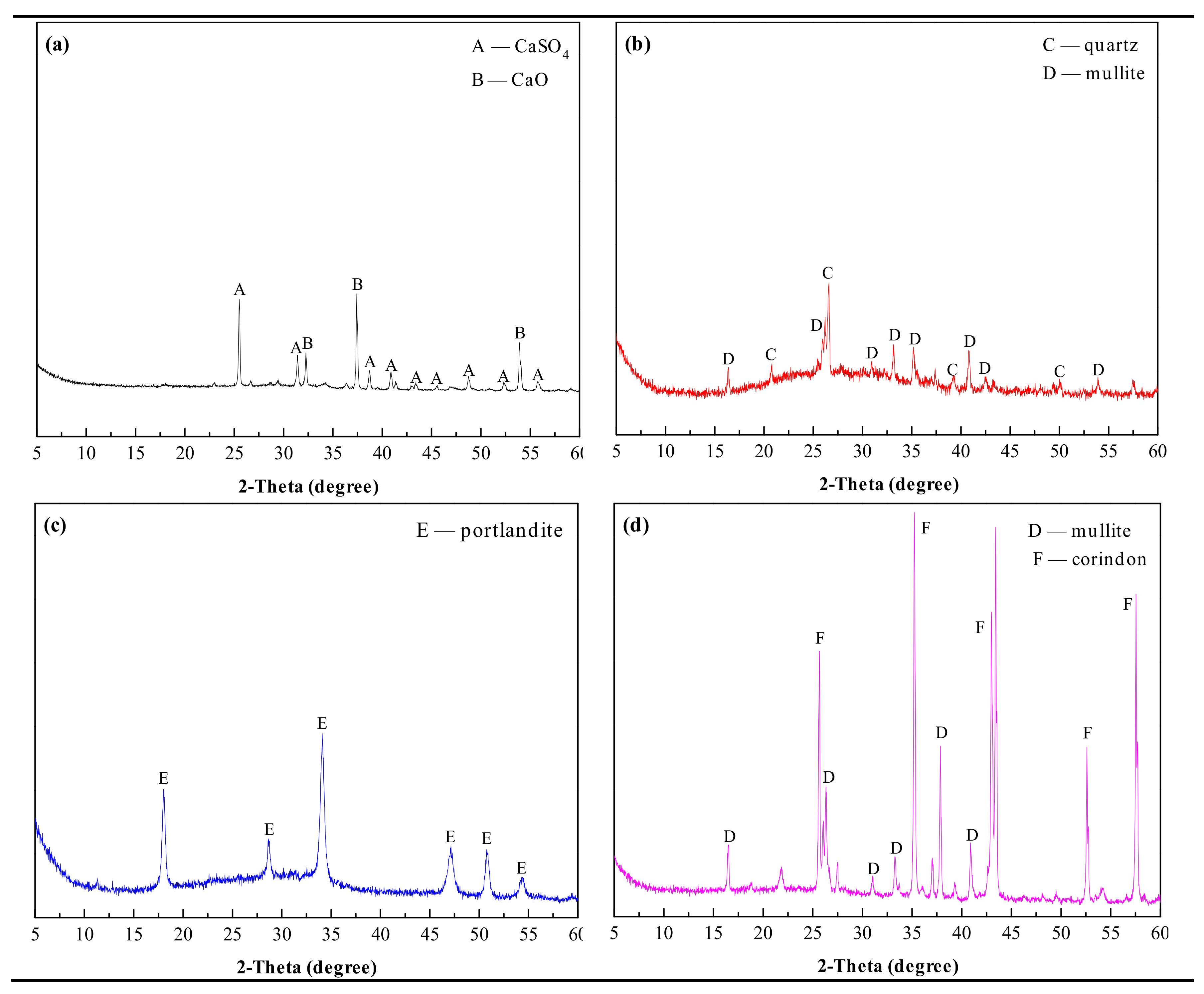

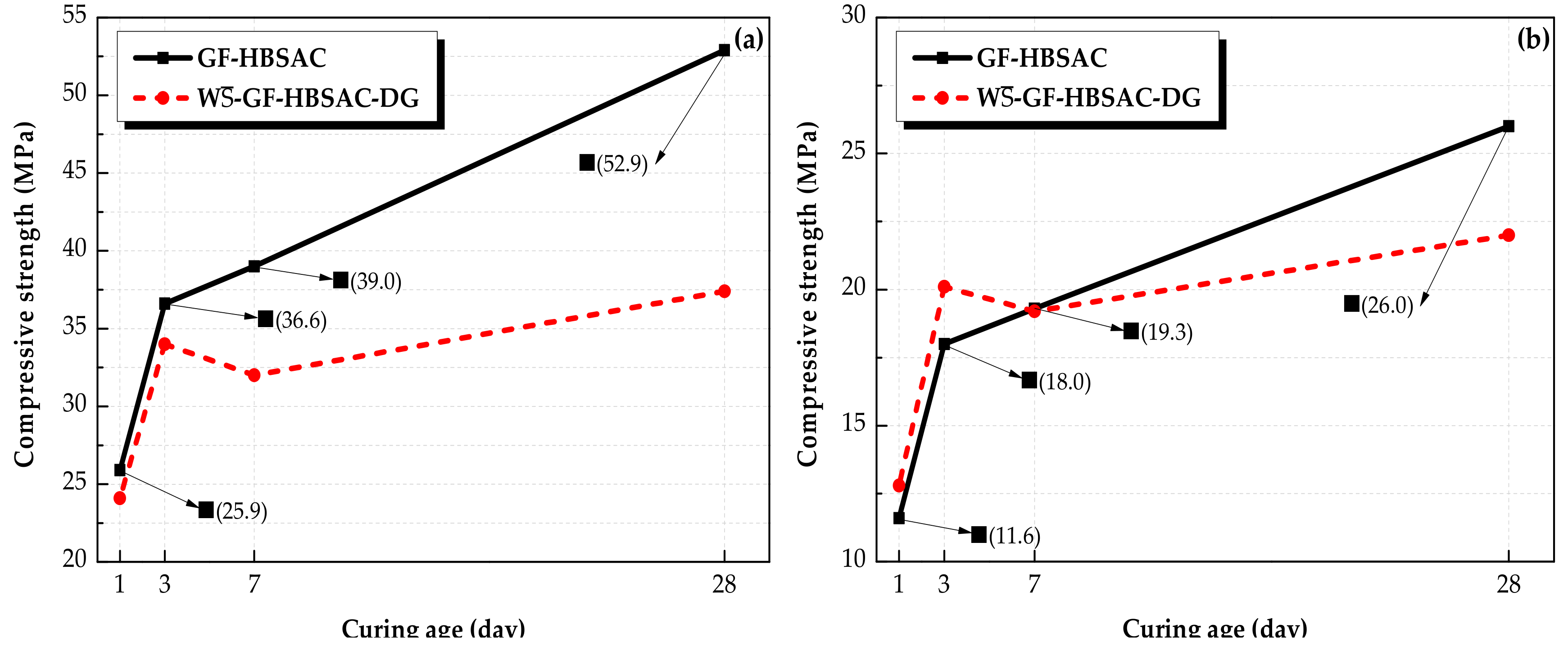

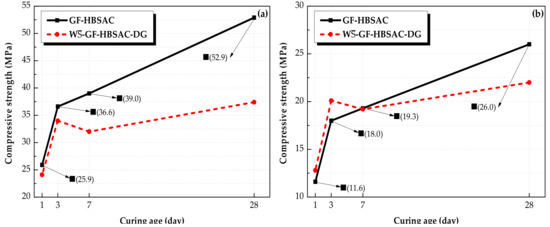

Figure 1

MDPI and ACS Style

Su, D.; Li, Q.; Guo, Y.; Yue, G.; Wang, L. Effect of Residual CaSO4 in Clinker on Properties of High Belite Sulfoaluminate Cement Based on Solid Wastes. Materials 2020, 13, 429.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
