Open AccessFeature PaperArticle
Materials 2019, 12(2), 232; https://doi.org/10.3390/ma12020232

Asymptotic Homogenization Applied to Flexoelectric Rods

1
Department of Mathematics, University of Central Florida, 4393 Andromeda Loop N, Orlando, FL 32816, USA
2
Departamento de Mecánica de los Medios Continuos y T. Estructuras, E.T.S. de Caminos, Canales y Puertos, Universidad Politécnica de Madrid, C.P. 28040 Madrid, Spain
3
Departamento de Matemática, Universidad de La Habana, San Lazaro y L, La Habana 10400, Cuba
4
Instituto de Investigaciones en Matemáticas Aplicadas y en Sistemas, Universidad Nacional Autónoma de México, Alcaldía Álvaro Obregón, Apartado Postal 20-126, CDMX Mexico 01000, Mexico
*
Author to whom correspondence should be addressed.
Received: 6 December 2018 / Revised: 26 December 2018 / Accepted: 7 January 2019 / Published: 11 January 2019
Full-Text   |   PDF [494 KB, uploaded 11 January 2019]   |
  |   Review Reports

Abstract

In this manuscript, the equilibrium problem for a flexoelectric one-dimensional composite material is studied. The two-scales asymptotic homogenization method is used to derive the homogenized formulation of this problem. The manuscript offers a step-by-step methodology to derive effective coefficients and to solve local problems. As an illustrative example, results reported in the literature for piezoelectric composites are obtained as a particular case of the formulation derived here. Finally, three flexoelectric/piezoelectric composites are studied to illustrate the influence of the flexoelectric property on the effective coefficients and the global behavior of the structure. View Full-Text
Keywords: composite; flexoelectric; homogenization method composite; flexoelectric; homogenization method
Figures

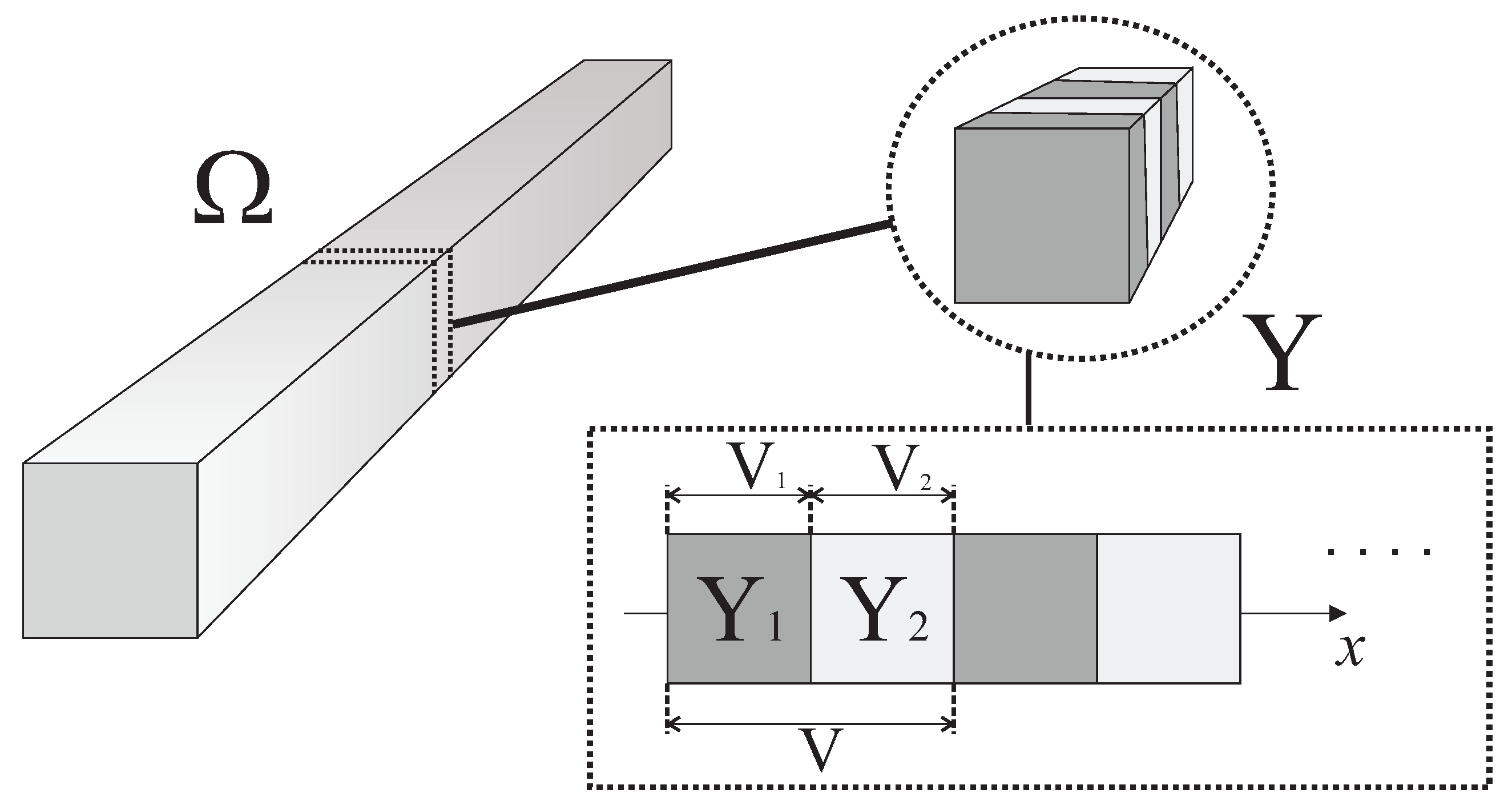

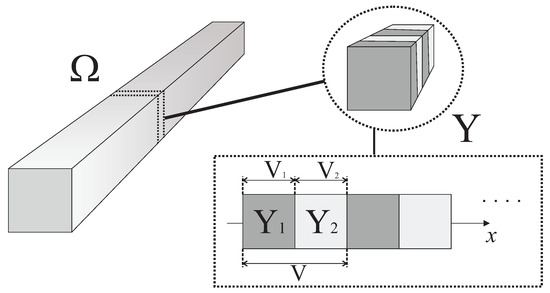

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Guinovart-Sanjuán, D.; Merodio, J.; López-Realpozo, J.C.; Vajravelu, K.; Rodríguez-Ramos, R.; Guinovart-Díaz, R.; Bravo-Castillero, J.; Sabina, F.J. Asymptotic Homogenization Applied to Flexoelectric Rods. Materials 2019, 12, 232.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
