Investigation and Improvement of Test Methods for Capacitance and DCESR of EDLC Cells

,
,
and
1
School of Chemistry and Chemical Engineering, Chongqing University, Chongqing 400044, China
2
Chongqing CAS Supercap Technology Co., Ltd., Chongqing 401329, China
3
School of Chemistry and Chemical Engineering, Chongqing University of Technology, Chongqing 400054, China
4
Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
This article belongs to the Section Industrial Sensors

Abstract

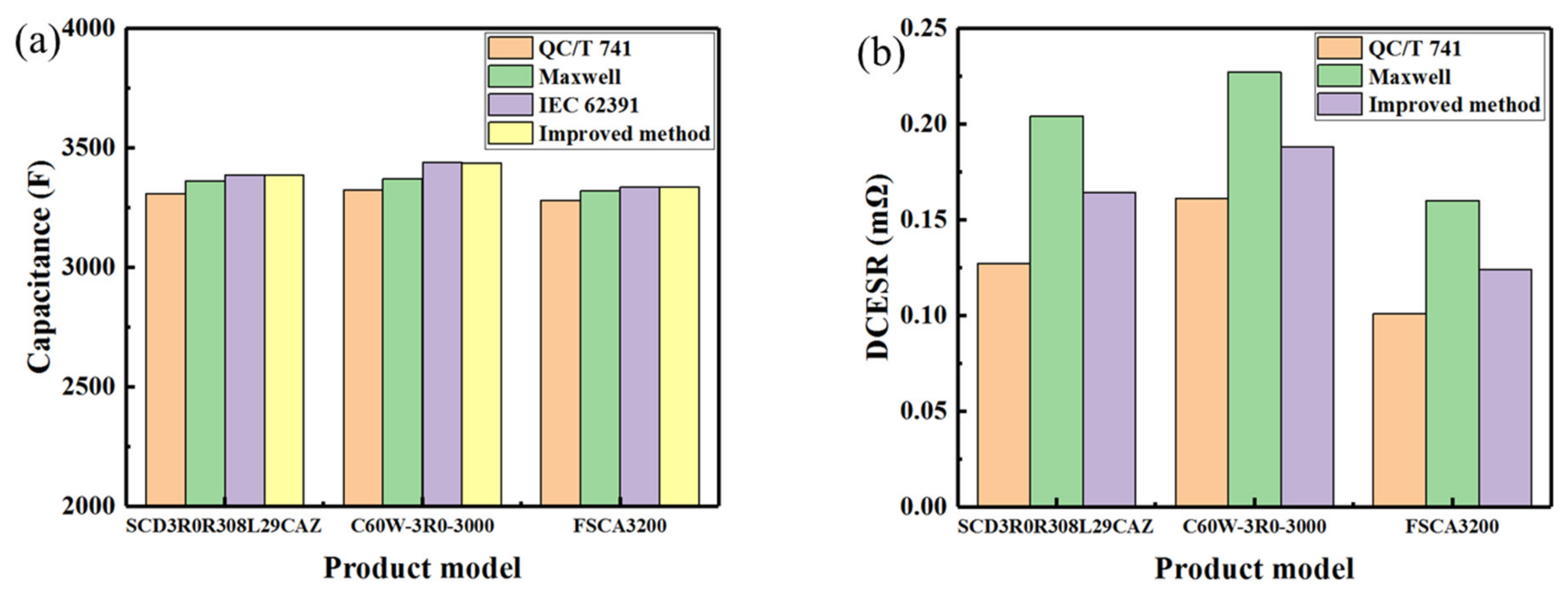

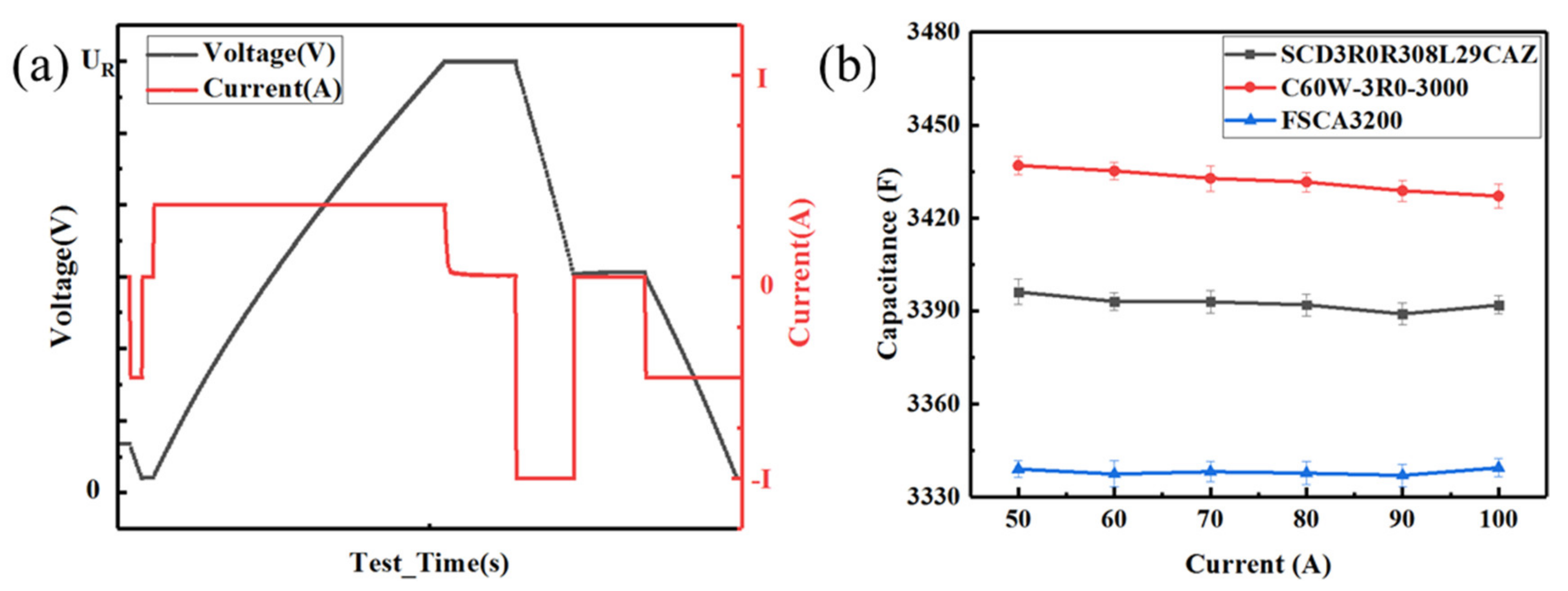

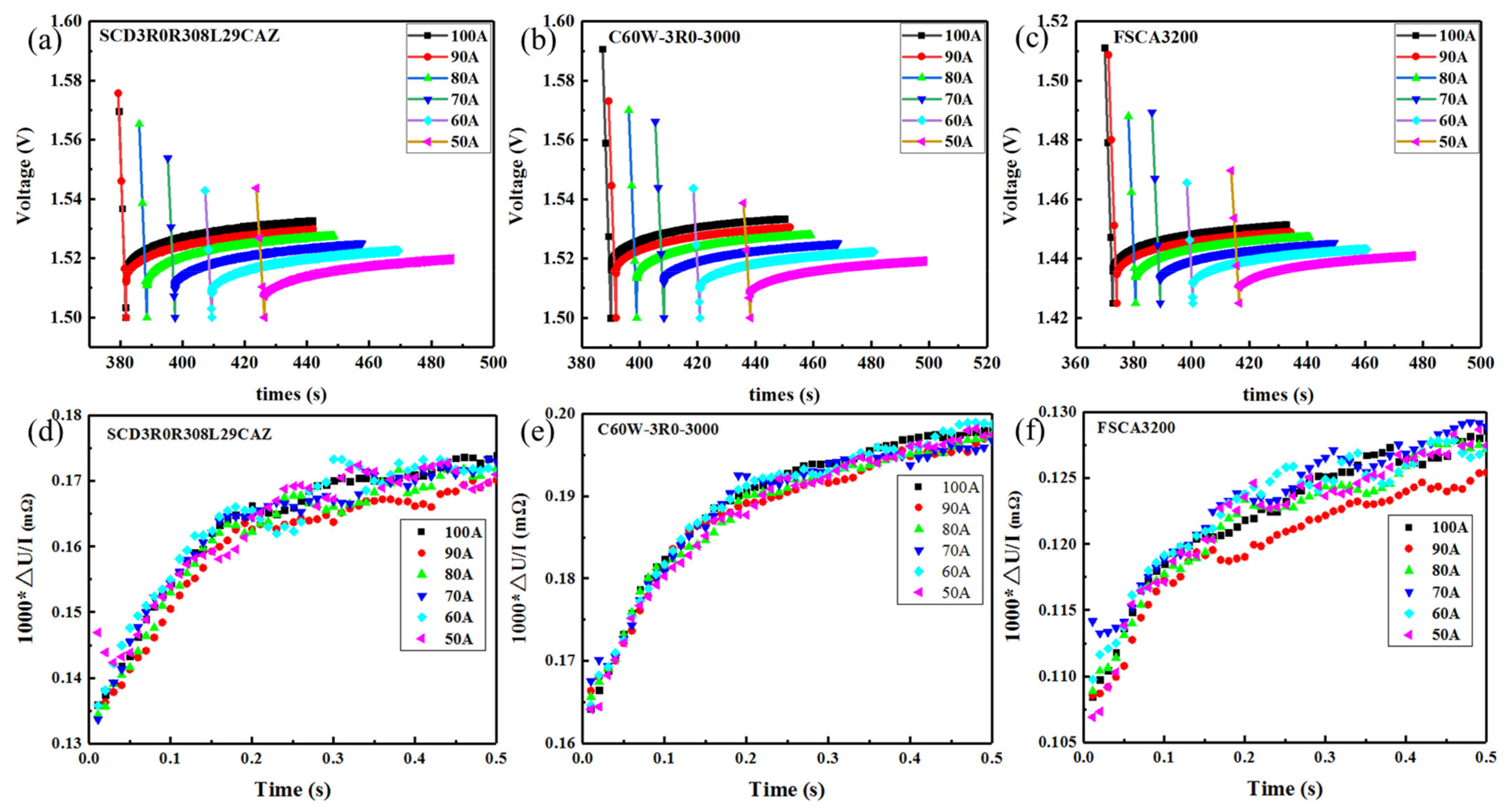

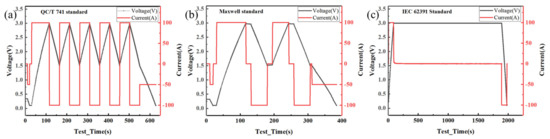

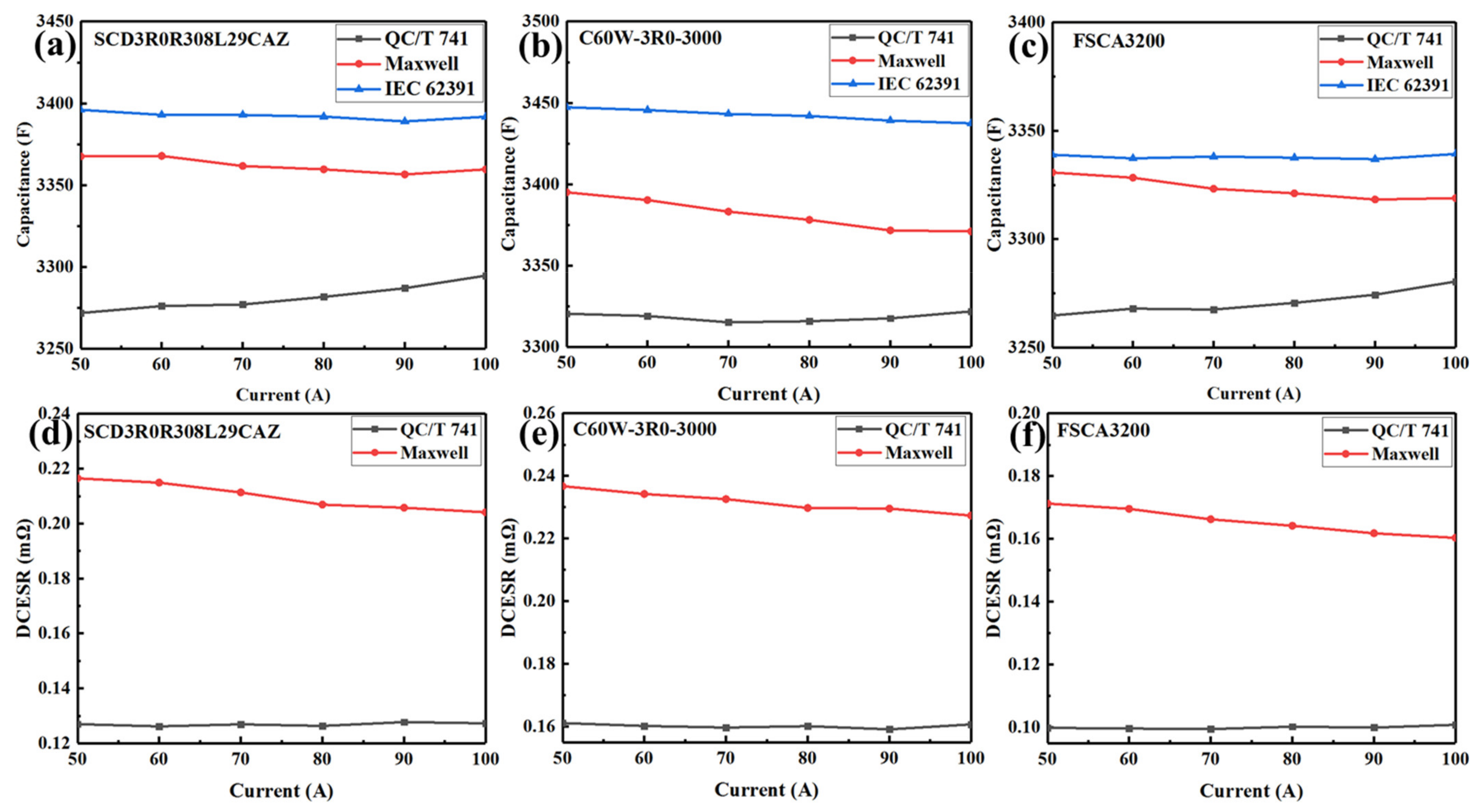

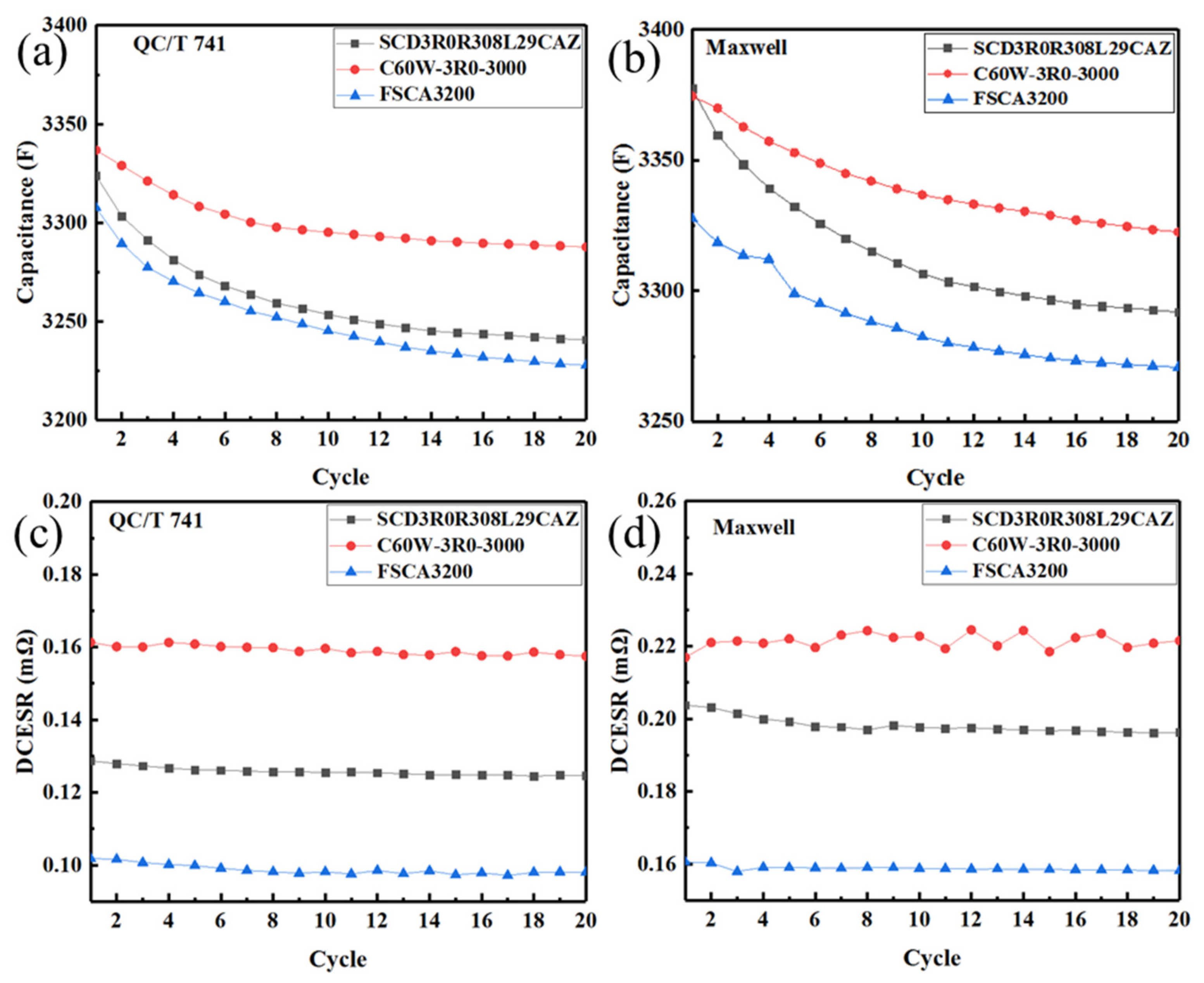

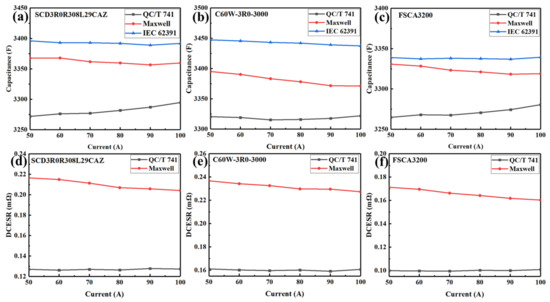

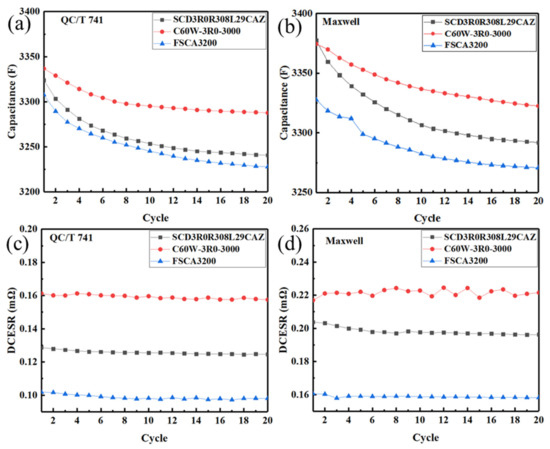

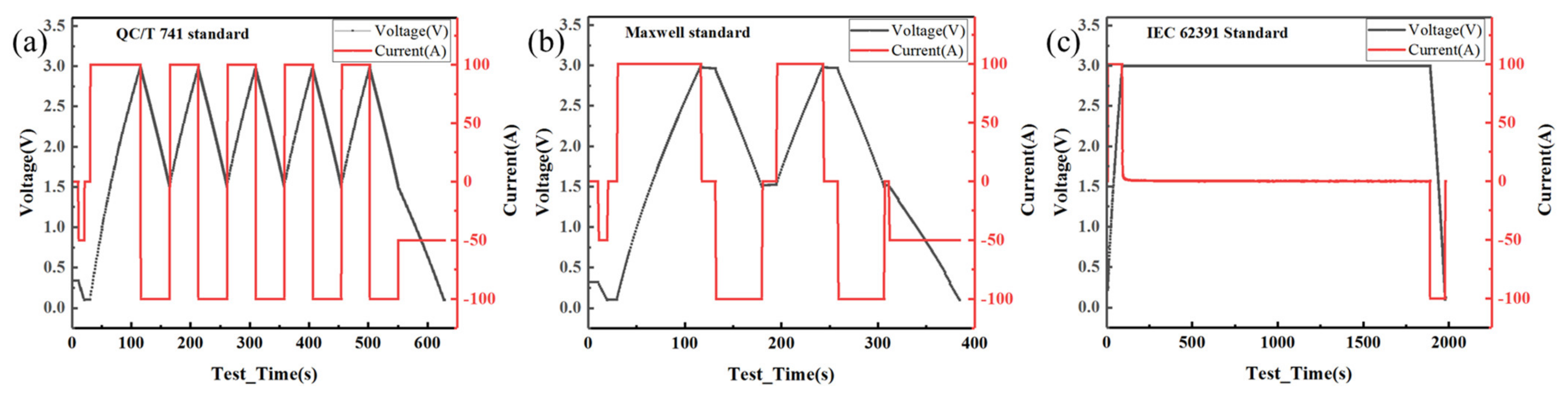

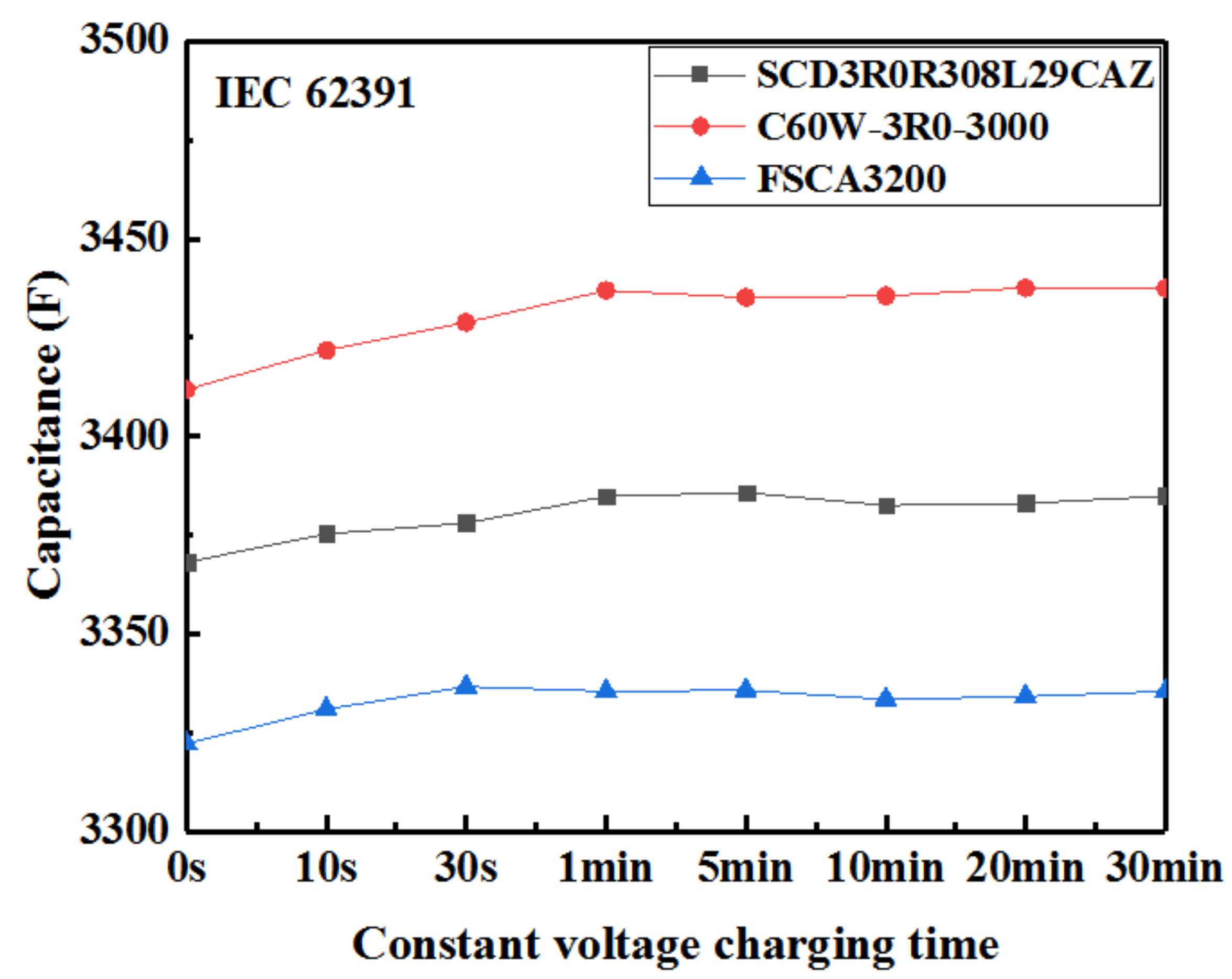

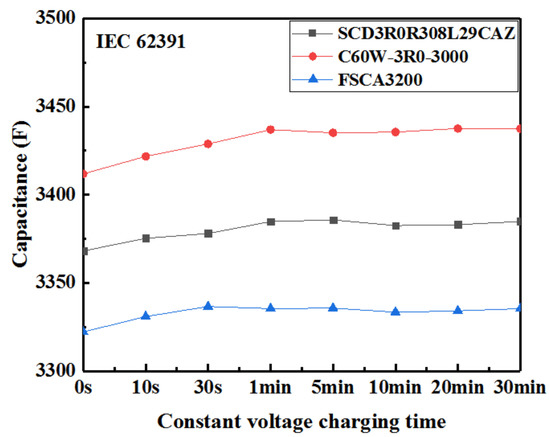

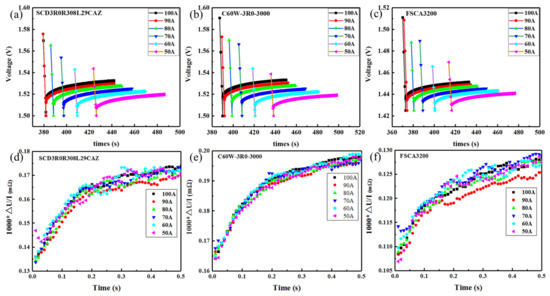

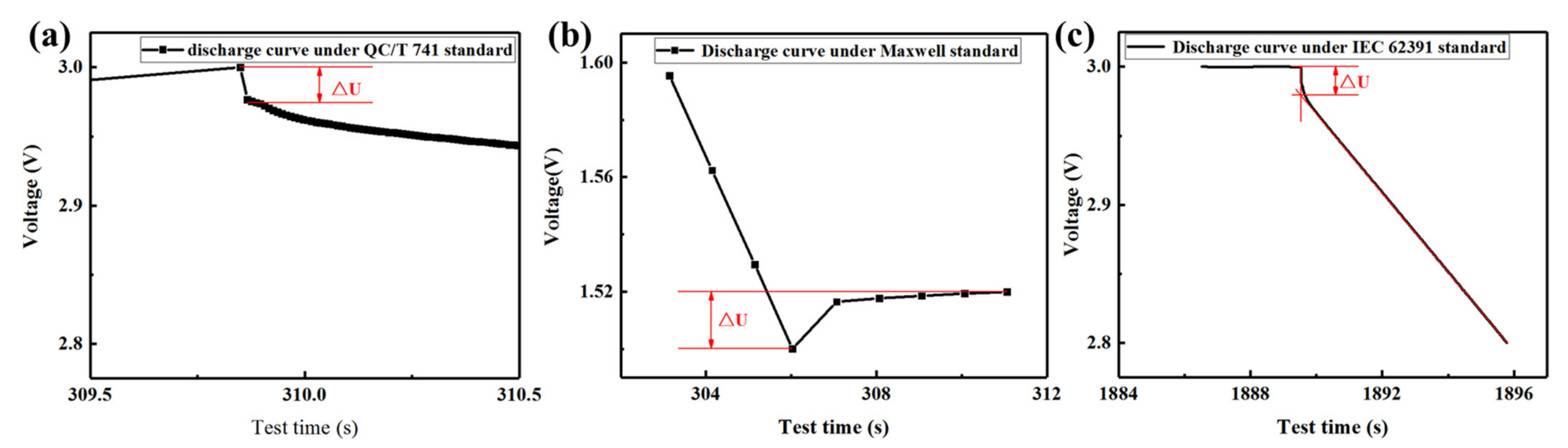

The quick and accurate characterization of commercial electrochemical double-layer capacitor (EDLC) cells, especially their capacitance and direct-current equivalent series internal resistance (DCESR), is of great significance for the design, maintenance, and monitoring of EDLCs used in areas of energy, sensors, electric power, construction machinery, rail transit, automobile transportation, and military. In this study, the capacitance and DCESR of three commercial EDLC cells with similar performance were determined and compared by following the three commonly-used standards of IEC 62391, Maxwell, and QC/T741-2014, which are significantly different in test procedures and calculation methods. The analysis of the test procedures and results demonstrated that the IEC 62391 standard has the disadvantages of a large testing current, long testing time, and a complex and inaccurate DCESR calculation, whereas the Maxwell standard has the disadvantages of a large testing current, a small capacitance, and large DCESR testing results, and furthermore the QC/T 741 standard has the disadvantages of a high resolution requirement for the equipment and small DCESR results. Therefore, an improved method was proposed to determine the capacitance and DCESR of EDLC cells by short-time constant voltage charging and discharging interruption methods, respectively, with the advantages of high accuracy, low equipment requirements, short testing time, and the easy calculation of DCESR over the original three standards.
