Uplink NOMA-MIMO Systems with Rayleigh Power Distribution

,
,
,
and
Moscow Technical University of Communications and Informatics (MTUCI), Moscow 111024, Russia
*
Author to whom correspondence should be addressed.

Abstract

The article is devoted to multiple-input multiple-output antenna systems, also called MIMO systems, which are widely used in wireless communication systems. In this article we consider a case when the MIMO system works in overloaded mode. In this mode MIMO systems can be considered as a system with non-orthogonal multiple access NOMA. The main goal of this article is to analyze this interesting case using statistical computer simulation. Based on the analysis of the capacity of a discrete-continuous multiuser MIMO uplink channel, the possibility of such systems functioning in overload mode is proved.

1. Introduction

Non-Orthogonal Multiple Access (NOMA) is a key technology for future wireless systems including 6G mobile networks [1,2,3,4,5,6]. Compared with orthogonal multiple access technologies, NOMA have a new parameter of communication system–load factor.
The load factor is a ratio between the number of subscribers (or the total number of data streams distributed using resources) with the number of orthogonal resources used. For systems with orthogonal access, it does not exceed 1 (<100%). For NOMA systems in full load mode, it must be greater than 1 (>100%). Therefore, for NOMA systems, this indicator is more often referred to as the overload coefficient of the communication system.
MIMO (Multiple-Input Multiple-Output) is another known and efficient technology widely used in modern mobile communication systems [4,5,6,7,8,9,10,11]. MIMO technology improves energy and spectral efficiency and allows an increase in the capacity and bandwidth of wireless systems and the data rate of each user.
The load factor also can be used for the analysis single-user mode MIMO (Single User MIMO-SU-MIMO) and for multiuser mode MIMO (Multiuser MIMO-MU-MIMO) systems as well as for NOMA systems [12]. It is shown in [8] that MIMO channel can be represented as a combination of orthogonal channels, i.e., orthogonal resources, with different characteristics.
The number of such orthogonal resources is determined by the minimum number min ( N t x , Σ ,   N r x , Σ ) , where N t x , Σ ,   N r x , Σ is the total number of transmitting and receiving antennas in the MIMO system, respectively. In the single-user mode, overloading means that the number of streams distributed over the transmitting antennas is greater than the number of receiving antennas. In the multiuser mode, overloading occurs when the total number of distributed streams across all transmitting antennas is greater than the number of receiving antennas N t x , Σ at the base station.
Theoretical analysis of the MIMO channel has shown that the best results are obtained when the number of receiving antennas at the base station N r x is greater or equal to the total number of multiplexed data streams of all users, which is usually equal to the total number of transmitting antennas of all users N t x , Σ [6,11,12,13,14,15,16]. This conclusion has been originally obtained for a single user system [8], where it is shown that when the condition N r x ≥ N t x is met, the system bandwidth increases linearly from the number of transmitting antennas. Therefore, we have a conclusion that MIMO systems, where N t x , Σ > N r x , are ineffective.
Let us consider a case when N t x , Σ = N r x corresponds to 100% of the MIMO system load. Then the case N t x , Σ > N r x can be considered as the operation of the system in overload mode. In this case, the MU-MIMO system becomes a NOMA system. Moreover, this case can be considered as a NOMA system with power division (Power Domain NOMA-PD-NOMA) [6]. In this article it will be shown that MU-MIMO systems with independent Rayleigh fading in an uplink channel can work quite efficiently in overload mode because in this case NOMA technology is implemented with a natural separation of signals in the power domain.

2. System Model

Let us consider a multiuser system with a MIMO channel, in which every u-th user has N t x , u transmitting antennas. The base station has N r x receiving antennas. Each user uses spatial multiplexing with the maximum use of the number of transmitting antennas, i.e., the number of multiplexed streams of each user is equal to the number of transmitting antennas. In this case, the system model is described by the following equation:
Y = ∑ u = 1 U P u N t x , u H u X u ( Θ u ) + η
where U -number of users; P u , N t x , u -power and number of transmitting antennas of u-th user; Y -complex vector of received signal dimension of N r x ; H u -matrix of u-th user MIMO channel dimension of ( N r x × N t x , u ) ; X u ( Θ u ) = [ x 1 , u ( θ 1 , u ) x 2 , u ( θ 2 , u ) … x N t x , u , u ( θ N t x , u , u ) ] T -vector of QAM symbols of u-th user dimension of N t x , u , where each element is a function x i , u ( θ i , u ) of discrete parameter θ i , u ∈ Ω i , u , Ω i , u -set of values of i-th discrete parameter of u-th user, i = 1 , N t x , u ¯ ,       u = 1 , U ¯ ; Θ u = [ θ 1 , u … θ N t x , u , u ] T -vector of random discrete values dimension of N t x , u ; η ∼ ℂ ℕ ( 0 , 2 σ η 2 I N r x ) -complex vector of additive white Gaussian noise in channel dimension of N r x . Functional dependencies x i , u ( · ) describing the constellations of used QAM symbols can be either the same for all i and u or different. The discrete parameter θ i , u is a function of binary symbols vector (information bits). The dimension of the set Ω i , u is determined by the number of bits k b , i , u transmitted by the i-th symbol of u-th user and is equal to 2 k b , i , u .
For future simplification, we assume that the number of transmitting antennas for each user is the same N t x , u = N t x , in addition, all users use the same power of the emitted signals and the same constellations, i.e., P u = P , x i , u ( θ i , u ) = x ( θ i , u ) , k b , i , u = k b , Ω i , u = Ω .
Using this simplification, Equation (1) can be rewritten as follows:
Y = P N t x H X ( Θ ) + η
where H ≜ [ H 1 … H U ] -extended matrix of uplink multiuser MIMO channel, X ( Θ ) ≜ [ x ( θ 1 , 1 ) … x ( θ N t x , 1 ) x ( θ 1 , 2 ) … x ( θ N t x , 2 ) … x ( θ 1 , U ) … x ( θ N t x , U ) ] T -extended vector of QAM symbols of all users dimension of N t x , Σ = U N t x . The number of possible vector states X ( Θ ) ∈ Ω N t x , Σ is equal to the number of states of the total vector of discrete values, which is equal to M = 2 N t x , Σ k b = 2 N t x k b U .
Capacity of MIMO channel obtained in [7,8] is determined by the mutual information of the continuous channel:
C = max p ( X ) I ( X ; Y )
where p ( X ) -a priori distribution of continuous vector X ; I ( X ; Y ) -mutual information between the input vector X and output vector of MIMO-channel Y , which is defined as:
I ( X , Y ) = ∫ Y ∫ X p ( Y | X ) p ( X ) log ( p ( Y | X ) p ( Y ) ) d Y d X
Maximization in Equation (3) is implemented over all possible a priori distributions. As is known, the maximum of this expression is observed with a Gaussian a priori distribution. As a result, for model (2), the capacity of continuous channel will be determined by the following equation:
C = log det ( I N r x + P 2 σ η 2 N t x H H ′ )
Capacity of MIMO channel is a function of the channel matrix, i.e., C ( H ) which consists of random elements that depend on the type of fading and their correlation. Therefore, to analyze the average capacity (ergodic capacity) of the system with the MIMO channel, an averaging procedure is used for the distribution of random channel multipliers:
C E = E H { log det ( I N r x + P 2 σ η 2 N t x H H ′ ) }
Expression (6) can be written in another form, known as the multiple access capacity [14,15,17]:
C E = E H { log det ( I N r x + P 2 σ η 2 N t x ∑ u = 1 U H u H u ′ ) }
Figure 1 shows the capacity dependencies on the SNR ratio for a different number of users (Figure 1a) and on the number of users for different values of the SNR ratio (Figure 1b). Figures are obtained for values N r x = 4 and N t x = 2 .
Figure 1. Dependencies of the MU-MIMO uplink channel capacity for continuous channel: (a) capacity dependencies on the SNR ratio for a different number of users, (b) capacity dependencies on the number of users for different values of the SNR ratio.
Figure 1 shows if N t x , Σ = U N t x > N r x the growth of capacity with an increase of number of users slows down and at high SNR ratios it becomes proportional to log U . These results are known, and from them, as a rule, it follows that the use of systems with an MIMO channel for the case is inefficient and is not advisable.

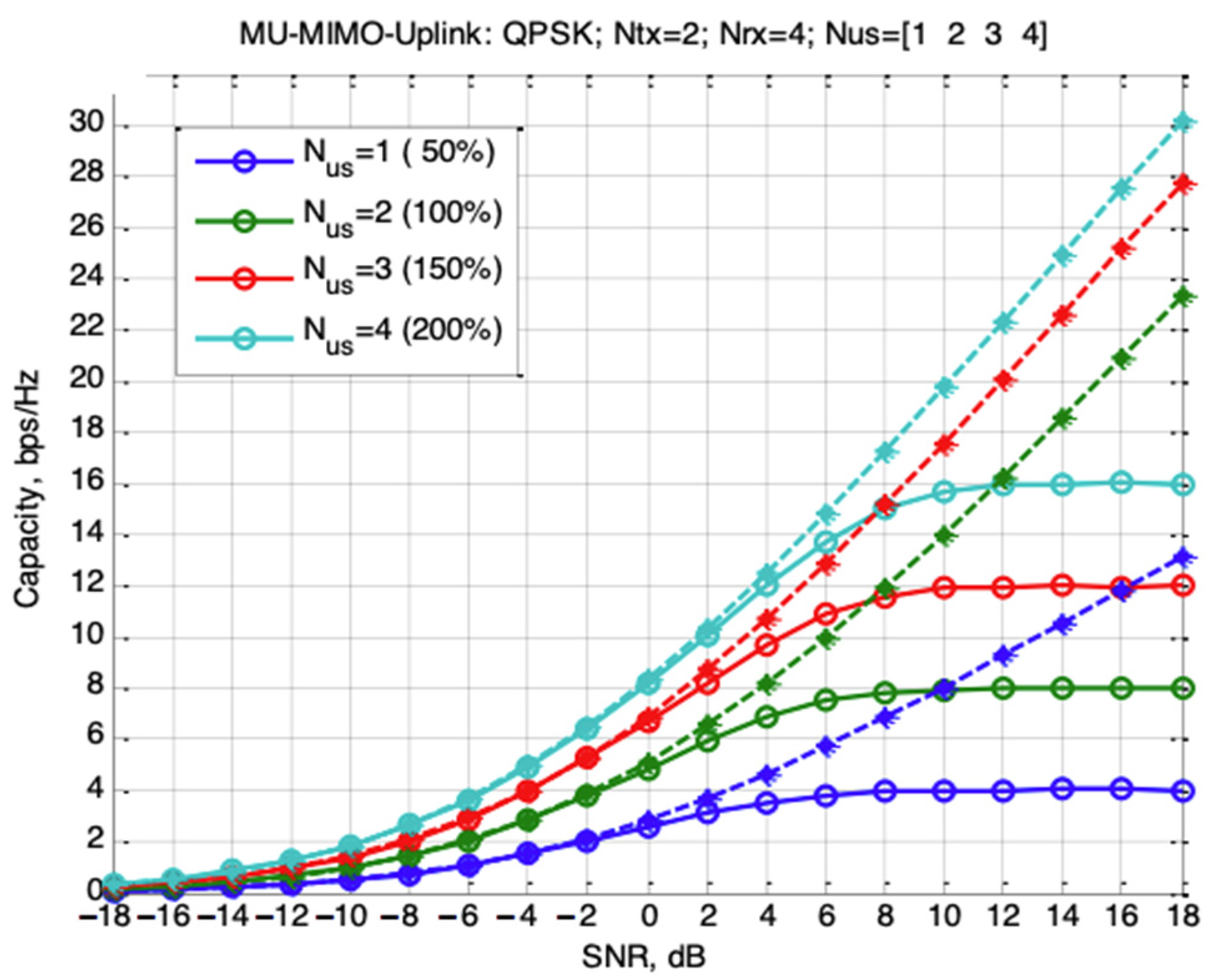

This conclusion is valid if we limit ourselves to considering the maximum capacity of a continuous channel as a criterion. In real systems, for information transmission, we use a discrete alphabet, i.e., the real channel is discrete–continuous. Therefore, it is interesting to analyze the capacity of the discrete–continuous channel.

5. Conclusions

In the article, based on the analysis of the capacity of a discrete–continuous MU-MIMO uplink channel, the possibility of such systems functioning in overload mode is proved. At the same time, multiuser systems with such a configuration can be considered as communication systems with NOMA technology with separation in power domain, and implemented naturally due to independent Rayleigh fading.

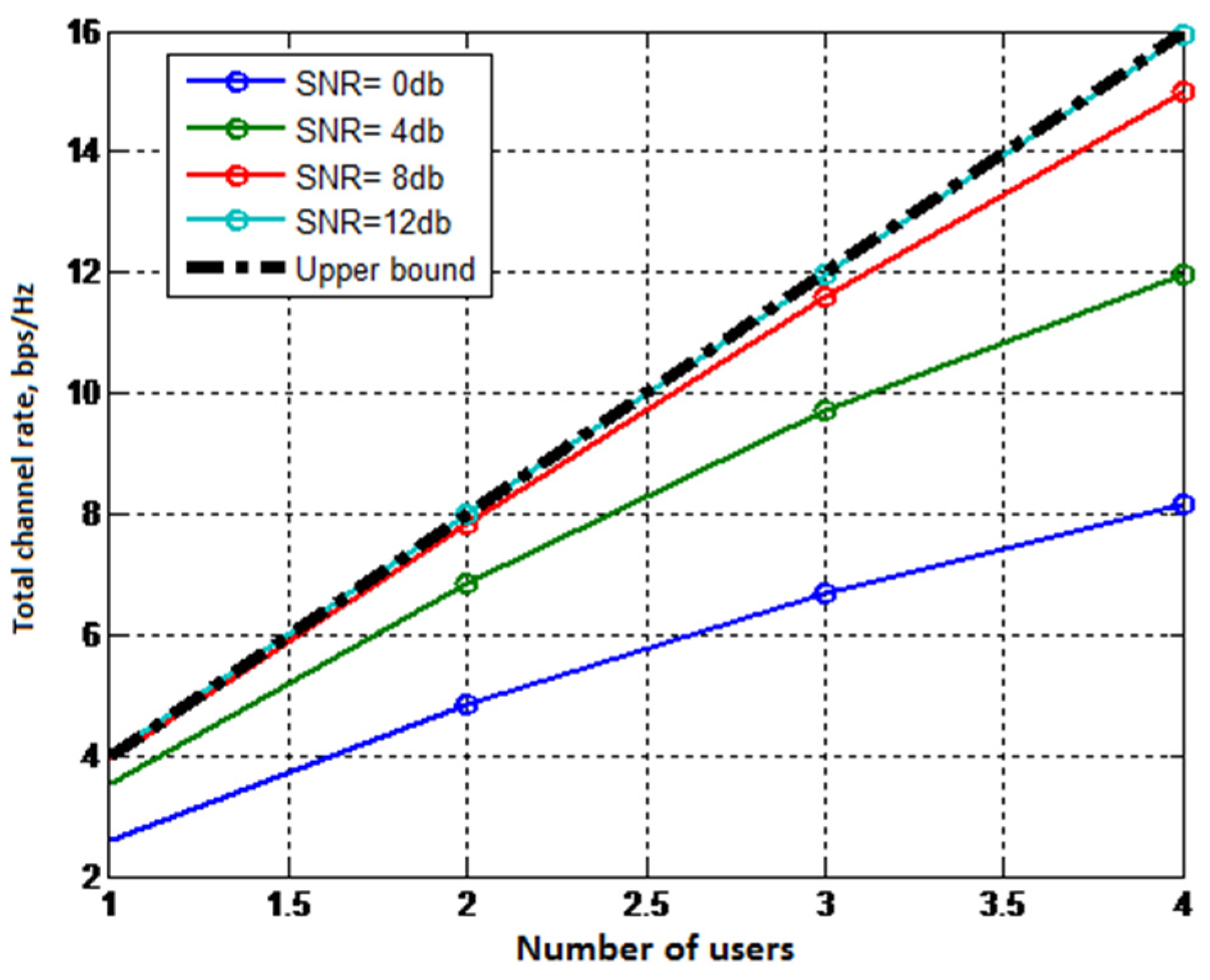

It is shown that at high SNR ratios, the total channel rate of such systems increases proportionally to the total number of transmitting antennas of all users in the system N t x , Σ , even if it is greater than the number of receiving antennas at the base station N t x , Σ > N r x , i.e., in overload mode. This conclusion is at odds with the well-established opinion, based on an analysis of the continuous channel capacity, that MIMO systems are inefficient under overload conditions.

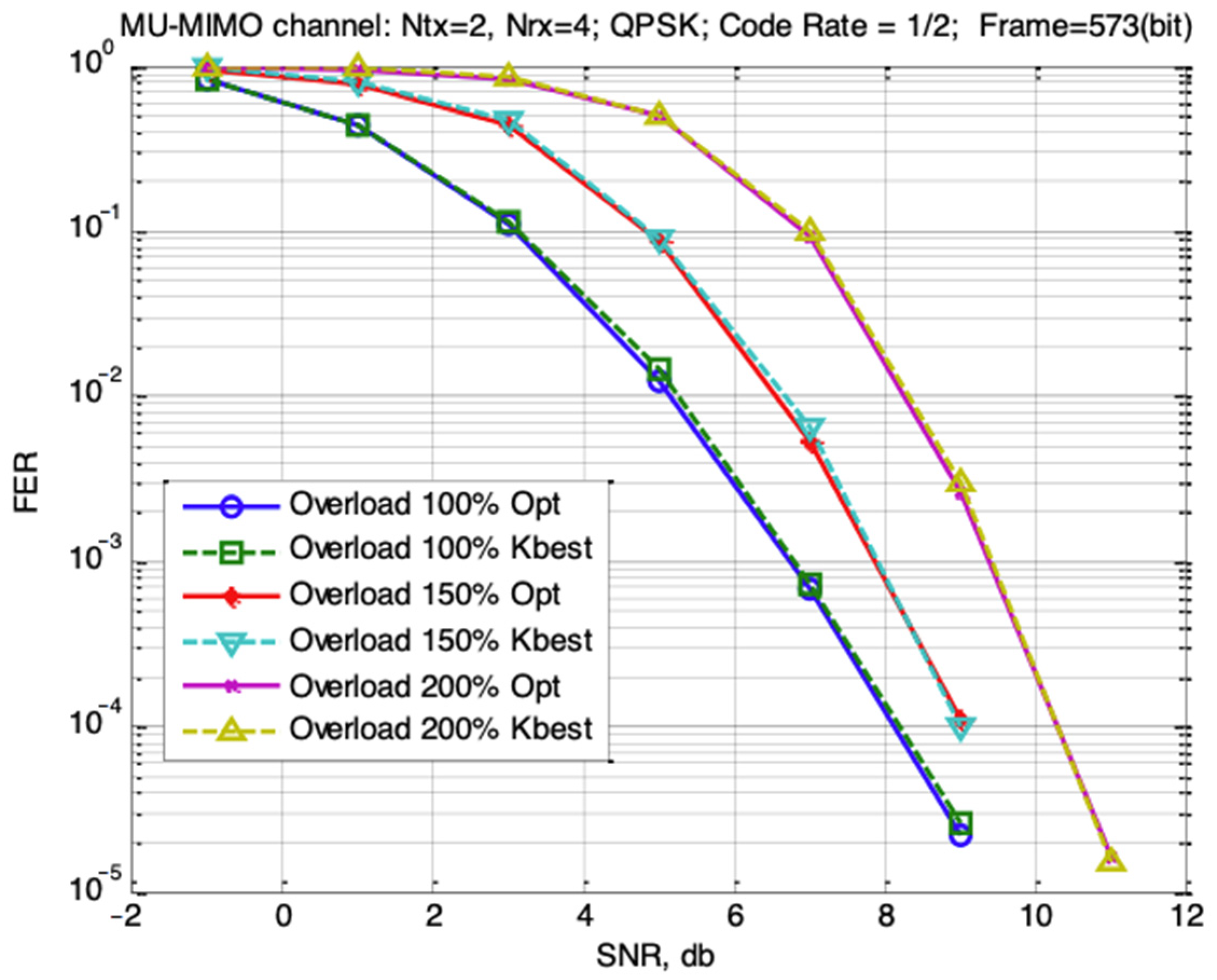

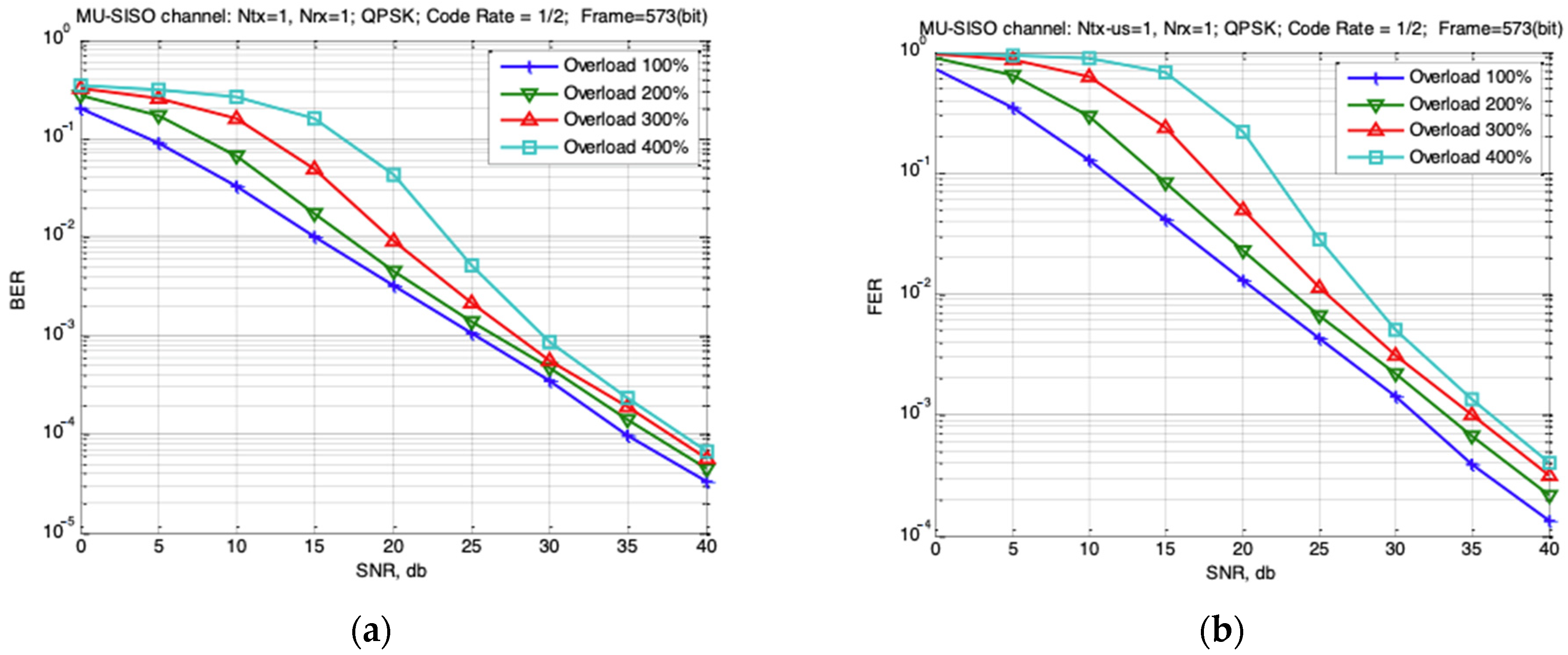

Conclusions on the possibility of functioning MU-MIMO uplink systems under overload conditions are confirmed by the simulation results.

Author Contributions

Conceptualization, V.K. and M.B.; methodology, V.K. and M.B.; software, T.B.R. and A.S.; formal analysis, D.P.; investigation, D.P.; writing—original draft preparation, T.B.R. and A.S.; writing—review and editing, D.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Institutional review board statement is not relevant for MTUCI university.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
