Next Article in Journal
Suspended Airborne Microplastics Across Urban Roadside Environments in Cagayan de Oro City, Philippines: Compositional Variation and Implications for Urban Air Quality
Next Article in Special Issue
Determination of the Best Digestion and Extraction Methods for the Quantification of Microplastics in Landfill Leachate
Previous Article in Journal
Microplastic Ingestion in Three Deep-Sea Fish Species: First Ecological Insights from Stable Isotope Analysis
Previous Article in Special Issue
UV Weathering of Microplastics: Linking Surface Oxidation, Bulk Molecular and Mechanical Degradation, and Fragmentation Metrics Within a QA/QC Framework for Biomonitoring


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Microplastics
Volume 5
Issue 2
10.3390/microplastics5020115
microplastics-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Accelerated Oxidative Aging of Microplastics and Its Effect on Copper Sorption Behavior

by
Taiwo Ayorinde
,
Amanda K. Charlton-Sevcik
,
William C. Hockaday
and
Christie M. Sayes
*
School of Earth and Environmental Sciences, Baylor University, Waco, TX 76798-7266, USA
*
Author to whom correspondence should be addressed.
Microplastics 2026, 5(2), 115; https://doi.org/10.3390/microplastics5020115
Submission received: 14 April 2026 / Revised: 28 May 2026 / Accepted: 3 June 2026 / Published: 6 June 2026
(This article belongs to the Special Issue Advances in Identification and characterization of Degraded Microplastics)
Browse Figures
Versions Notes

Abstract

Microplastics (MPs) in wastewater treatment plants are exposed to oxidative conditions during disinfection and advanced oxidation processes (AOPs), which can alter morphology and surface chemistry and influence interactions with coexisting contaminants. Here, accelerated chemical oxidation was simulated using heat-activated potassium persulfate (K2S2O8) and sodium hypochlorite (NaOCl) to examine the oxidative aging of MPs made from polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP). Changes in particle morphology and surface chemistry before and after oxidant treatment were characterized using scanning electron microscopy (SEM) for morphological analysis and attenuated total reflectance-Fourier transform infrared (ATR-FTIR) spectroscopy for chemical characterization. Carbonyl formation, an indicator of polymer oxidation, was evaluated using the carbonyl index (CI). Both oxidants induced surface morphological defects and carbonyl functional groups in the MPs, with CI increasing with degradation time. The CI trends suggest that MP oxidation varies with polymer type and oxidant. The effect of oxidative aging on MP sorption capacity was also investigated using copper ions as a model inorganic constituent. Although oxidative aging introduced oxygen-containing functional groups, no statistically significant differences in copper sorption were observed between pristine and oxidized MPs, indicating that MPs can act as vectors for copper regardless of their degree of surface oxidation.

1. Introduction

Microplastics (MPs) are increasingly recognized as one of the most persistent and ubiquitous sources of contamination in aquatic ecosystems [1]. They are found in rivers [2], lakes [3], oceans [4], and drinking water systems [5]. Among the various sources of MPs, wastewater treatment plants (WWTPs) are major pathways for plastic particles into natural waters [6]. During wastewater treatment, plastic particles undergo physical, chemical, and biological processes that can modify their physicochemical properties [7]. However, it remains unclear how these treatment processes transform MPs and influence their interactions with other pollutants.
Polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP) are among the most detected MPs within WWTPs [8,9]. These polymeric particles differ in molecular structure, surface chemistry, and oxidation resistance [10,11], resulting in varied responses under wastewater treatment conditions. In modern WWTPs, persulfate-based advanced oxidation processes (AOPs) have been explored to degrade recalcitrant organic pollutants, while chlorination, a common disinfection process, is used to kill harmful pathogens. Both persulfate-based AOP and chlorination generate strong oxidants, particularly at elevated temperatures, that can attack polymer chains and modify their chemical structures [12,13]. Recent studies have also investigated MP transformation under advanced oxidation processes, highlighting the role of strong oxidants such as persulfate and chlorine in altering polymer surface chemistry and degradation pathways [14,15,16].
Heat-activated K2S2O8 is widely used in AOPs because it generates sulfate radicals (SO4•−) and hydroxyl radicals (•OH), both strong oxidants, with SO4•− being the dominant species at neutral pH [17]. These radicals can break polymer chains, introduce oxygen-containing functional groups, and cause surface defects [18]. Similarly, thermal chlorination with aqueous sodium hypochlorite (NaOCl) generates strong oxidants, such as hypochlorous acid (HOCl), at pH 3–6, which can oxidize polymer surfaces [19,20]. While these processes are effective for water treatment, they may inadvertently accelerate the aging of MPs, thereby increasing their reactivity and susceptibility to further degradation [21]. Understanding how oxidative aging alters the chemical structure of MPs is important because surface chemistry affects their interactions with other pollutants [22].
Copper is widely used in industrial processes, as an antifouling agent, in plumbing materials, and as an antimicrobial additive [23,24]. As a result, copper is usually discharged into wastewater streams, where it may interact with MPs [25,26]. Despite growing concern about MP pollution, a critical gap remains in understanding how wastewater treatment processes influence both the chemical degradation of MPs and their interactions with coexisting contaminants, such as copper. Most studies have examined either MP aging or MP sorption independently, with little work directly examining how oxidative-induced chemical changes in MPs influence sorption behavior.
This study addresses these gaps by investigating the accelerated aging of PE, PET, and PP MPs under heat-activated persulfate and chlorination conditions and by evaluating the impact of chemical oxidation on their sorption capacity. Chemical changes associated with the formation of oxygen-containing functional groups in the oxidized MPs were monitored by attenuated total reflectance Fourier transform infrared (ATR-FTIR) spectroscopy, and polymer degradation was quantified using the carbonyl index (CI). Changes in particle surface morphology were examined using scanning electron microscopy (SEM). By linking oxidative degradation to sorption behavior, this work provides insight into the fate of MPs in WWTPs and supports improved risk assessment of MP pollution.

2. Materials and Methods

Chemicals and reagents. Potassium persulfate (K2S2O8) and nitric acid (trace metal grade) were purchased from Fisher Scientific (Waltham, MA, USA). Sodium hypochlorite (NaOCl) solution (reagent grade, available chlorine 4.00–4.99%) was supplied by Sigma-Aldrich (St. Louis, MO, USA). An internal standard mix for inductively coupled plasma-mass spectrometry (ICP-MS) systems (P/N: 5188-6525) was purchased from Agilent Technologies (Santa Clara, CA, USA). A certified copper reference standard was purchased from Millipore Sigma (Darmstadt, Germany), and ultrapure water was produced using a Milli-Q water purification system (Millipore, Bedford, MA, USA).
Model microplastic samples. Polypropylene (PP) polyballs and granular polyethylene terephthalate (PET) were supplied by Polysciences (Warrington, PA, USA) and Sigma-Aldrich (St. Louis, MO, USA), respectively. Polyethylene (PE) pellets were purchased from a local store in Waco (TX, USA). All MP samples were thoroughly rinsed with ultrapure water before use.
Surface morphology characterization. The surface features of the MPs (PE, PET, and PP) before and after treatments with the oxidants (NaOCl and K2S2O8) were examined using a FEI Versa 3D scanning electron microscope (SEM, FEI, Hillsboro, OR, USA). Prior to imaging, MP samples were mounted on aluminum stubs using carbon tape and sputter-coated with iridium (EM ACE 600, Leica Microsystems, Wetzlar, Germany). For each polymer type and treatment condition, multiple MP particles (n = 3) were analyzed. For each particle, several regions of the surface were imaged to account for surface heterogeneity. The images presented are representative of the observed surface features across the analyzed particles.
Spectroscopic analysis of microplastic samples. Polymer identities were verified by comparison with reference spectra from the Thermo ScientificTM Hummel Polymer and Additives FTIR Spectral Library (Thermo Fisher Scientific, Waltham, MA, USA). Chemical changes in the polymers were evaluated by comparing spectra of pristine and treated samples using a Nicolet iS50R FTIR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) equipped with an ATR diamond crystal. Spectra were collected over 4000 − 400 cm−1 at a resolution of 4 cm−1 with 32 scans. Additionally, chemical oxidation was assessed by monitoring the appearance of oxygen-containing functional groups (carbonyl (C=O), carboxyl (C–O), and hydroxyl (O–H)). The carbonyl index (CI) was calculated from the FTIR spectra to quantify oxidative aging of the MPs.
Quality control (QC). Quality control samples were included in the oxidative aging experiments. For each polymer type, water served as the control, and samples were prepared and incubated under the same conditions as the oxidant treatments. These controls allowed attribution of chemical changes to temperature, mixing, and contact with water in the absence of an oxidant. FTIR spectra of the oxidant solutions (Figure S1A,B) and the solid form of K2S2O8 (Figure S1C) were collected to verify that the appearance of C=O, C–O, and O–H in the aged MPs originated from polymer oxidation rather than spectral contributions from the oxidants.
All glassware and tools used for aging and sorption experiments were acid-washed and rinsed with ultrapure water before use. To confirm that the MPs did not contain measurable copper before the sorption experiments, procedural blanks and a solution containing only MPs were prepared and analyzed. No copper was detected above the limit of detection in the control samples, indicating that the MPs used in the study were copper-free before the sorption experiment.
Oxidative aging of microplastics. Oxidative aging of PE, PET, and PP MPs was conducted using K2S2O8 and NaOCl as oxidants. Experiments were performed in an incubator shaker set to 60 °C and 180 rpm (MaxQ 5000, Thermo Fisher Scientific, Waltham, MA, USA). Separate volumetric flasks made of glass were used for each polymer type and oxidant.
K2S2O8 oxidation experiments. Oxidation using K2S2O8 was conducted in 50 mL glass volumetric flasks. Seven intact MP pieces of each polymer type were all introduced into a 30 mL solution of 100 mM K2S2O8, with the oxidant concentration selected based on conditions reported in a previously published oxidative aging study [27]. Samples were agitated in an incubator shaker at 60 °C for 7 days. Oxidant solutions were replaced every 12 h, and one piece was removed at each sampling time point (24, 48, 72, 96, 120, 144, and 168 h). After the experiment, all samples were rinsed multiple times with ultrapure water using an analog vortex mixer (VWR, Radnor, PA, USA) and air-dried before ATR-FTIR characterization. All experiments were conducted in triplicate using separate glass volumetric flasks for each MP type.
NaOCl oxidation experiments. Oxidative aging with NaOCl was conducted in 50 mL glass volumetric flasks in an incubator shaker at 60 °C and 180 rpm for 7 days, following the sampling design described above, in which seven intact MP pieces were introduced into each flask and one piece removed at each sampling time point. Prior to the experiment, 30 mL of chlorine water containing 5000 ppm free chlorine at pH 6.5, adjusted with 0.1 M HNO3, was added to each flask before the MP particles were introduced. The free chlorine concentration and pH conditions were selected based on a previously published study investigating the accelerated aging of polymeric materials via chlorination [28]. Oxidant solutions were replenished every 12 h, and MP particles were removed at different time intervals (24, 48, 72, 96, 120, 144, and 168 h). After the experiment, all MP samples were rinsed multiple times with ultrapure water and air dried before ATR-FTIR characterization.
Sorption experiment. The sorption capacities of pristine and oxidized MPs were compared for each polymer type. Oxidized MPs used in the sorption experiments were obtained from the K2S2O8 oxidation experiments. In 50 mL glass volumetric flasks, 100 mg of MPs and 20 mL of 20 µg/L copper ion solution, prepared by diluting a 1 mg/L copper standard solution with ultrapure water, were mixed in an incubator shaker at room temperature and 180 rpm. The initial pH of the copper solution was 2.56, and no pH adjustment or monitoring was performed during the sorption experiment; significant pH changes were not expected. The acidic pH conditions ensure that copper remains predominantly in its soluble ionic form, allowing for consistent comparison of sorption behavior across polymer types. After 5 days, all MP particles were removed prior to analysis of the final copper concentration. Preliminary experiments indicated that sorption equilibrium was reached before 5 days. Sorption experiments were conducted in triplicate for each polymer type.
Copper quantification by mass spectrometry. The initial and final concentrations of copper ions before and after the sorption experiments were quantified using the 63Cu isotope. All MP particles were removed before analysis, and the solutions were acidified and analyzed using an Agilent 7900 ICP-MS (Agilent Technologies, Santa Clara, CA, USA) operated in helium collision mode. Matrix-matched calibration standards prepared in 1% (v/v) HNO3 were used to quantify copper ions in the solution. Scandium was used as the internal standard to correct for matrix effects and instrumental drift.
Copper ions sorbed to the MPs were calculated using Equation (1), where ΔCu represents the copper ions sorbed to the MPs; Cui is the initial concentration of copper ions before interaction with the MPs; and Cuf is the final concentration of copper ions after interaction with the MPs.
ΔCu = Cui − Cuf
Carbonyl index (CI) analysis. Carbonyl group formation in MPs during oxidative aging was evaluated using CI values calculated from FTIR spectra. The CI is calculated as the ratio of the integrated area of the C=O band to that of a specific reference band of the polymer [29]. The reference bands used for normalization were selected from values reported in the literature because they remain relatively unchanged during oxidation [30,31,32]. The integration ranges used for the carbonyl and reference bands for each polymer are summarized in Table 1. The carbonyl bands were identified based on characteristic carbonyl wavenumbers in the FTIR spectra of the treated MPs. The CI was calculated using these polymer-specific integration ranges. The CI was plotted against degradation time to compare the extent of oxidation between the two oxidants. For each polymer type and time point, three individual MP particles were analyzed to account for potential surface heterogeneity. For each particle, three ATR-FTIR measurements were collected at different locations on the particle surface, and the average value was used for CI calculation. The reported CI values represent the mean of the measurements obtained from the three particles.
Statistical analysis. Statistical analysis was performed using OriginPro 2025 (OriginLab, Northampton, MA, USA) and Microsoft Excel 2025 (Microsoft, Redmond, WA, USA). Differences in sorption capacity between pristine and oxidized MPs across the three polymer types were evaluated using the Kruskal–Wallis test, with statistical significance set at p < 0.05. When applicable, Dunn’s post hoc test with Bonferroni correction was used for pairwise comparisons.

3. Results and Discussion

3.1. Oxidative Aging and Carbonyl Formation in Microplastics

Chemical oxidative changes in the MPs were first identified using an ATR-FTIR spectrometer by comparing spectra obtained before and after exposure to the oxidants. The formation of oxygen-containing functional groups, particularly C=O groups, is widely used as an indicator of oxidative aging in MPs [33].
A common limitation of using the carbonyl region to assess MP aging is the potential for spectral interference from oxidants or residual water, as carbonyl stretching bands generally occur between 1650 and 1800 cm−1, depending on the functional group’s chemical environment [34]. The H–O–H bending mode of water occurs near 1650 cm−1 [35,36], overlapping the lower carbonyl region of polymers and potentially contributing to spectral interference.
The oxidant solution-only spectra (Figure S1A,B) show a band at 1640 cm−1 corresponding to the H–O–H bending mode of water. Because this water bending mode is typically accompanied by a broad O–H stretching band at 3350 cm−1 [37], the absence of the broad O–H stretching band in the treated MP spectra (Figure 1A,C, Figure 2A,C and Figure 3A,C) indicates negligible contribution from residual oxidant or water. Therefore, the peaks observed in the expanded carbonyl regions of PE (Figure 1B,D), PET (Figure 2B,D), and PP (Figure 3B,D) MPs are attributed to polymer oxidation under the experimental conditions rather than to spectral artifacts. Unlike PE and PP, PET contains inherent carbonyl groups in its chemical structure [38]; therefore, changes in the carbonyl band area after treatment may indicate additional oxidation [39].
Changes in carbonyl formation were assessed using CI to track oxidative degradation trends, which increased with degradation time (0–168 h) for all three polymer types under both persulfate and chlorination treatments (Figure 4A,C). In contrast, pristine MPs (control) showed no observable changes in CI over the same aging period. Differences in CI trends as a function of degradation time among the three polymer types reflect polymer-specific susceptibility to oxidative degradation, which is consistent with previous studies reporting polymer-dependent chemical alterations during chlorination [40].
Furthermore, the different CI trends observed under K2S2O8 and NaOCl treatments likely reflect differences in oxidant chemistry. Heat-activated persulfate produces reactive radical species, including sulfate radicals (SO4•−), which have a high oxidation potential (E° = 2.60–3.1 V versus NHE), although their oxidation pathways can be more selective depending on the substrate [41,42]. In contrast, NaOCl in aqueous solution produces hypochlorous acid (HOCl) as the dominant oxidizing species at near-neutral pH, which has a lower standard electrode potential (E° = 1.49 V versus NHE) compared to the highly oxidizing sulfate radicals generated from persulfate activation. These redox potentials are reported from the literature and are used here to provide a general context for differences in oxidant behavior. NaOCl has been reported to have selective oxidation behavior, with reactivity often limited to specific functional groups or reactive sites, including amines, reduced sulfur moieties, and activated aromatic sites [43,44]. While redox potential alone does not determine oxidative aging behavior, differences in oxidant selectivity may contribute to the polymer-dependent CI trends.
In Figure 4A, CI increased with degradation time for PE MPs, with a more pronounced increase observed in chlorinated samples than in persulfate-aged samples. The gradual increase in CI observed for PE MPs during NaOCl treatment is consistent with previous chlorination studies reporting increased carbonyl formation in PE with increasing chlorine exposure and contact time [45], although the chlorine concentration used in that study differed from that in the present study. In addition to carbonyl formation, chlorinated PE MPs showed the emergence of new bands at 1078 cm−1 (Figure 1C). These new bands are consistent with the formation of C–O species during chlorination-induced oxidative aging [29].
PET MPs also showed an increase in CI with degradation time for both oxidants after an initial decrease (Figure 4B). The initial decrease in CI observed for PET may reflect early-stage ester bond cleavage and changes in the relative contribution of carbonyl species within the analyzed region [46]. PP MPs showed modest changes in CI over the aging period for both oxidants (Figure 4C). Minor fluctuations in CI at intermediate time points were observed for PET and PP MPs, which may be caused by the surface heterogeneity of the particles. While these results provide insight into oxidation behavior under controlled conditions, it is important to note that the oxidant concentrations and temperatures used represent accelerated aging conditions and may not directly reflect typical WWTP environments. The elevated oxidant concentrations and temperatures were selected to accelerate chemical aging within a practical experimental timeframe and to enable comparison of relative trends among polymer types. Therefore, the results should be interpreted as providing insight into underlying processes rather than direct representations of environmental conditions.

3.2. Surface Morphology Analysis

Figure 5 shows the surface morphology of pristine (Figure 5A–C) and oxidized MPs (Figure 5D–I). The three pristine polymer types have relatively smooth surfaces with only minor surface irregularities, likely originating from manufacturing artifacts [47], consistent with the appearance of virgin plastic pellets [48,49]. After treatment with NaOCl, the three polymers showed surface alterations: PE and PP had rougher surfaces, whereas PET exhibited a bumpy, cracked surface (Figure 5D–F). These features indicate oxidative degradation and loss of structural integrity [50]. K2S2O8 treatment also caused surface defects (Figure 5G–I), with PE and PET exhibiting more cracks and surface depressions, while PP displayed heterogeneous roughness. Overall, the oxidized particles show evidence of oxidative surface modification.

3.3. Copper Interaction with Pristine and Oxidized Microplastics

Given the selective nature of K2S2O8 and the inherent differences in functional groups among the three polymer types, comparisons were primarily made between pristine and oxidized MPs within each polymer type to evaluate the effect of chemical oxidation on MP interactions with copper ions. The Kruskal–Wallis analysis indicated no statistically significant differences in copper sorption between pristine and oxidized MPs across all polymer types (p > 0.05; Figure 6), though measurable sorption occurred under all conditions. This observation is consistent with previous work reporting adsorption to both pristine and aged MPs [51]. Oxidative aging introduced oxygen-containing functional groups; however, these changes did not lead to increased Cu2+ sorption. This may be due to the relatively low density or limited accessibility of the newly formed functional groups. Although pristine PE and PP are nonpolar and hydrophobic, the observed sorption of Cu2+ to pristine MP surfaces may be attributed to non-uniform surface properties and possible trace surface functionalities introduced during polymer processing [52].
Chemical oxidation introduces carbonyl-containing groups that can increase surface polarity and potentially enhance sorption via surface complexation and electrostatic interactions. Overall, these findings indicate that MPs can act as vectors for copper ions regardless of their degree of surface oxidation. It should be noted that the experiments were conducted in simplified aqueous systems that do not fully represent the complexity of real wastewater. In WWTP environments, the presence of organic matter and competing ions (e.g., Ca2+, Mg2+) may influence both oxidative aging and metal interactions with MPs. Therefore, the role of MPs as vectors for copper ions under environmental conditions may be more limited or variable than observed under these accelerated conditions and should be interpreted with caution.

4. Conclusions

This study investigated the effects of chemical oxidation on the physicochemical properties of three MP types (PE, PP, and PET) and evaluated how surface alterations resulting from chemical oxidation influence MP interaction with copper ions. Thermal-assisted oxidative aging of MPs using NaOCl and K2S2O8 altered the surface morphology, as observed by SEM, and carbonyl formation was detected by ATR-FTIR. These results confirm that chemically driven oxidative processes relevant to engineered aquatic environments can alter the physicochemical properties of MP.
Sorption experiments demonstrated that both pristine and oxidized MPs could sorb copper ions across all three polymer types. Although oxidative aging altered surface chemistry, there were no statistically significant differences in copper sorption between pristine and oxidized MPs across all the investigated polymers. These findings indicate that MPs can interact with copper ions regardless of the MPs’ oxidation state.
From an environmental perspective, these results highlight that MPs may act as carriers of inorganic contaminants either in relatively unaged or minimally altered states. The observation that pristine MPs sorb copper underscores their potential to participate in metal transport soon after entering aquatic systems. Together, these findings emphasize the importance of considering both pristine and environmentally aged MPs when assessing the role of plastic particles as vectors for trace metals in aquatic environments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microplastics5020115/s1, Figure S1: Attenuated total reflectance-Fourier transform infrared (ATR-FTIR) spectra of the oxidants used in the chemical oxidation experiments, including (A) sodium hypochlorite (NaOCl) solution, (B) potassium persulfate (K2S2O8) solution, and (C) solid-phase potassium persulfate (K2S2O8) (dry salt). Spectra are included to document the characteristic infrared features of the oxidants and to confirm that the oxygen-containing functional groups observed in aged microplastics originate from polymer oxidation rather than spectral contributions from the oxidants..

Author Contributions

Conceptualization, T.A. and C.M.S.; methodology, T.A. and C.M.S.; validation, T.A., A.K.C.-S., W.C.H. and C.M.S.; formal analysis, T.A., W.C.H. and C.M.S.; investigation, T.A. and A.K.C.-S.; resources, C.M.S.; data curation, T.A. and C.M.S.; writing—original draft preparation, T.A. and C.M.S.; writing—review and editing, T.A., A.K.C.-S., W.C.H. and C.M.S.; visualization, T.A., A.K.C.-S. and C.M.S.; supervision, C.M.S.; project administration, C.M.S.; funding acquisition, C.M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Food and Chemical Safety Committee of the Institute for the Advancement of Food and Nutrition Sciences (IAFNS). IAFNS is a nonprofit science organization that pools funding from industry collaborators and advances science through the in-kind and financial contributions from public and private sector participants. We also thank the C. Gus Glasscock, Jr. Endowed Fund for Excellence in Environmental Science for partial financial support of this research.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Dataset available on request from the authors.

Acknowledgments

The authors thank the Department of Environmental Science at Baylor University for their support. The authors also thank the Center for Microscopy and Imaging (CMI), the Mass Spectrometry Center (MSC), and the Department of Chemistry at Baylor University for access to equipment and sample preparation.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
MPsMicroplastics
AOPsadvanced oxidation processes
PEpolyethylene
PETpolyethylene terephthalate
Ppolypropylene
CIcarbonyl index
WWTPswastewater treatment plants
ATR-FTIRattenuated total reflectance Fourier transform infrared
SEMscanning electron microscopy
ICP-MSinductively coupled plasma-mass spectrometry

References

  1. Ali, S.S.; Alsharbaty, M.H.M.; Al-Tohamy, R.; Schagerl, M.; Al-Zahrani, M.; Kornaros, M.; Sun, J. Microplastics as persistent and vectors of other threats in the marine environment: Toxicological impacts, management and strategical roadmap to end plastic pollution. Environ. Chem. Ecotoxicol. 2025, 7, 229–251. [Google Scholar] [CrossRef] [Scilit]
  2. Kunz, A.; Schneider, F.; Anthony, N.; Lin, H.-T. Microplastics in rivers along an urban-rural gradient in an urban agglomeration: Correlation with land use, potential sources and pathways. Environ. Pollut. 2023, 321, 121096. [Google Scholar] [CrossRef] [Scilit]
  3. Nava, V.; Chandra, S.; Aherne, J.; Alfonso, M.B.; Antão-Geraldes, A.M.; Attermeyer, K.; Bao, R.; Bartrons, M.; Berger, S.A.; Biernaczyk, M.; et al. Plastic debris in lakes and reservoirs. Nature 2023, 619, 317–322. [Google Scholar] [CrossRef] [Scilit]
  4. Zhao, S.; Kvale, K.F.; Zhu, L.; Zettler, E.R.; Egger, M.; Mincer, T.J.; Amaral-Zettler, L.A.; Lebreton, L.; Niemann, H.; Nakajima, R.; et al. The distribution of subsurface microplastics in the ocean. Nature 2025, 641, 51–61. [Google Scholar] [CrossRef] [Scilit]
  5. Zhou, G.; Wu, Q.; Wei, X.-F.; Chen, C.; Ma, J.; Crittenden, J.C.; Liu, B. Tracing microplastics in rural drinking water in Chongqing, China: Their presence and pathways from source to tap. J. Hazard. Mater. 2023, 459, 132206. [Google Scholar] [CrossRef] [Scilit]
  6. Conley, K.; Clum, A.; Deepe, J.; Lane, H.; Beckingham, B. Wastewater treatment plants as a source of microplastics to an urban estuary: Removal efficiencies and loading per capita over one year. Water Res. X 2019, 3, 100030. [Google Scholar] [CrossRef] [Scilit]
  7. Kelly, J.J.; London, M.G.; McCormick, A.R.; Rojas, M.; Scott, J.W.; Hoellein, T.J. Wastewater treatment alters microbial colonization of microplastics. PLoS ONE 2021, 16, e0244443. [Google Scholar] [CrossRef] [Scilit]
  8. Bodzek, M.; Pohl, A.; Rosik-Dulewska, C. Microplastics in Wastewater Treatment Plants: Characteristics, Occurrence and Removal Technologies. Water 2024, 16, 3574. [Google Scholar] [CrossRef] [Scilit]
  9. Yaseen, A.; Assad, I.; Sofi, M.S.; Hashmi, M.Z.; Bhat, S.U. A global review of microplastics in wastewater treatment plants: Understanding their occurrence, fate and impact. Environ. Res. 2022, 212, 113258. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  10. Di Giulio, T.; Malitesta, C.; Mazzotta, E. Surface Chemical Analysis of Plastic Materials by X-Ray Photoelectron Spectroscopy: Understanding Weathering, Fragmentation and Contaminant Uptake in Marine Environments. Macromol. Mater. Eng. 2025, 311, e00280. [Google Scholar] [CrossRef] [Scilit]
  11. Andrady, A.L.; Barnes, P.W.; Bornman, J.F.; Gouin, T.; Madronich, S.; White, C.C.; Zepp, R.G.; Jansen, M.A.K. Oxidation and fragmentation of plastics in a changing environment; from UV-radiation to biological degradation. Sci. Total Environ. 2022, 851, 158022. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Escobedo, E.; Cho, K.; Chang, Y.-S. Electrochemical activation of hydrogen peroxide, persulfate, and free chlorine using sacrificial iron anodes for decentralized wastewater treatment. J. Hazard. Mater. 2022, 423, 127068. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Barbosa, M.L.S.; Costa, R.; Silva, F.J.G.; Sousa, S.R.; Pinto, A.G.; Ferreira, B.O. Studying the Degradation of Three Polymers under Different Chlorine Concentrations and Exposure Times. Polymers 2023, 15, 3931. [Google Scholar] [CrossRef] [Scilit]
  14. Easton, T.; Maksymiuk, K.; Charlton, L.; Koutsos, V.; Chatzisymeon, E. Transformation of polyester fibre microplastics by sulfate based advanced oxidation processes. J. Environ. Chem. Eng. 2024, 12, 112988. [Google Scholar] [CrossRef] [Scilit]
  15. Dai, L.; Lei, Z.; Cao, Y.; Zhang, M.; Song, X.; Wang, G.; Ma, G.; Zhao, T.; Ren, J. Attapulgite-supported sulfidated nano Zero-Valent Iron activated persulfate advanced oxidation technology for degradation of polyethylene microplastics: Optimal design, change of particle size and degradation mechanisms. J. Environ. Chem. Eng. 2024, 12, 112261. [Google Scholar] [CrossRef] [Scilit]
  16. Yao, J.; Qian, H.; Yan, Z.; Zhao, X.; Gao, N.; Zhang, Z. Insight into the effect of UVC-based advanced oxidation processes on the interaction of typical microplastics and their derived disinfection byproducts during disinfection. J. Hazard. Mater. 2024, 472, 134597. [Google Scholar] [CrossRef] [Scilit]
  17. Liang, C.; Su, H.-W. Identification of Sulfate and Hydroxyl Radicals in Thermally Activated Persulfate. Ind. Eng. Chem. Res. 2009, 48, 5558–5562. [Google Scholar] [CrossRef] [Scilit]
  18. Zhang, X.; Peng, M.; Zhang, Q.; Ma, X.; Song, J.; Sun, M.; Du, E.; Xu, X. UV-photoaging behavior of polystyrene microplastics enhanced by thermally-activated persulfate. J. Environ. Chem. Eng. 2023, 11, 110508. [Google Scholar] [CrossRef] [Scilit]
  19. Sirbu, E.-E.; Tănase, M.; Diniță, A.; Călin, C.; Brănoiu, G.; Banu, I. Comprehensive Analysis of Chlorine-Induced Aging in High-Density Polyethylene: Insights into Structural, Thermal, and Mechanical Degradation Mechanisms. Polymers 2026, 18, 14. [Google Scholar] [CrossRef] [Scilit]
  20. Wang, L.; Bassiri, M.; Najafi, R.; Najafi, K.; Yang, J.; Khosrovi, B.; Hwong, W.; Barati, E.; Belisle, B.; Celeri, C.; et al. Hypochlorous acid as a potential wound care agent: Part I. Stabilized hypochlorous acid: A component of the inorganic armamentarium of innate immunity. J. Burn. Wounds 2007, 6, e5. [Google Scholar]
  21. Rim, T.; Xing, Y.; Kang, M.; Li, W.; Chen, Y.; Zhang, D.; Li, W.; Guo, Y.; Zhang, X.; Wang, S.; et al. Microplastic pollution remediation: A comprehensive review on electrochemical advanced oxidation processes (EAOPs) for degradation in wastewater. Environ. Sci. Water Res. Amp Technol. 2025, 11, 2881–2905. [Google Scholar] [CrossRef] [Scilit]
  22. Al Harraq, A.; Brahana, P.J.; Arcemont, O.; Zhang, D.; Valsaraj, K.T.; Bharti, B. Effects of Weathering on Microplastic Dispersibility and Pollutant Uptake Capacity. ACS Environ. Au 2022, 2, 549–555. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Gomes, I.B.; Simões, M.; Simões, L.C. Copper Surfaces in Biofilm Control. Nanomaterials 2020, 10, 2491. [Google Scholar] [CrossRef] [Scilit]
  24. Rubilar, O.; Rai, M.; Tortella, G.; Diez, M.C.; Seabra, A.B.; Durán, N. Biogenic nanoparticles: Copper, copper oxides, copper sulphides, complex copper nanostructures and their applications. Biotechnol. Lett. 2013, 35, 1365–1375. [Google Scholar] [CrossRef] [Scilit]
  25. Liu, Y.; Wang, H.; Cui, Y.; Chen, N. Removal of Copper Ions from Wastewater: A Review. Int. J. Environ. Res. Public Health 2023, 20, 3885. [Google Scholar] [CrossRef] [Scilit]
  26. Mesquita, D.P.; Quintelas, C.; Ferreira, E.C. Fate and occurrence of microplastics in wastewater treatment plants. Environ. Sci. Adv. 2023, 2, 1616–1628. [Google Scholar] [CrossRef] [Scilit]
  27. Liu, P.; Qian, L.; Wang, H.; Zhan, X.; Lu, K.; Gu, C.; Gao, S. New Insights into the Aging Behavior of Microplastics Accelerated by Advanced Oxidation Processes. Environ. Sci. Technol. 2019, 53, 3579–3588. [Google Scholar] [CrossRef] [Scilit]
  28. Hadiuzzaman, M.; Ladner, D.A.; Salehi, M. Impact of the surface aging of potable water plastic pipes on their lead deposition characteristics. Environ. Sci. Water Res. Technol. 2023, 9, 2501–2514. [Google Scholar] [CrossRef] [Scilit]
  29. Almond, J.; Sugumaar, P.; Wenzel, M.N.; Hill, G.; Wallis, C. Determination of the carbonyl index of polyethylene and polypropylene using specified area under band methodology with ATR-FTIR spectroscopy. e-Polymers 2020, 20, 369–381. [Google Scholar] [CrossRef] [Scilit]
  30. Zaki, M.F.; Elshaer, Y.H.; Taha, D.H. The alterations in high density polyethylene properties with gamma irradiation. Radiat. Phys. Chem. 2017, 139, 90–96. [Google Scholar] [CrossRef] [Scilit]
  31. Rajakumar, K.; Sarasvathy, V.; Chelvan, A.T.; Chitra, R.; Vijayakumar, C.T. Effect of iron carboxylates on the photodegradability of polypropylene. II. Artificial weathering studies. J. Appl. Polym. Sci. 2012, 123, 2968–2976. [Google Scholar] [CrossRef] [Scilit]
  32. Lee, Y.-E.; Park, S.; An, J.; Kim, I.T. Photo-weathering effects on pyrolysis-GC/MS quantification of microplastics: Surface oxidation correlations and correction strategies. Environ. Pollut. 2026, 390, 127525. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  33. Campanale, C.; Savino, I.; Massarelli, C.; Uricchio, V.F. Fourier Transform Infrared Spectroscopy to Assess the Degree of Alteration of Artificially Aged and Environmentally Weathered Microplastics. Polymers 2023, 15, 911. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Fuson, N.; Josien, M.-L.; Shelton, E.M. An infrared spectroscopic study of the carbonyl stretching frequency in some groups of ketones and quinones. J. Am. Chem. Soc. 1954, 76, 2526–2533. [Google Scholar] [CrossRef] [Scilit]
  35. Seki, T.; Chiang, K.-Y.; Yu, C.-C.; Yu, X.; Okuno, M.; Hunger, J.; Nagata, Y.; Bonn, M. The Bending Mode of Water: A Powerful Probe for Hydrogen Bond Structure of Aqueous Systems. J. Phys. Chem. Lett. 2020, 11, 8459–8469. [Google Scholar] [CrossRef] [Scilit]
  36. Liu, T.-H.; Okuno, M. TMAO perturbs intermolecular vibrational motions of water revealed by low-frequency modes. Phys. Chem. Chem. Phys. 2024, 26, 12397–12405. [Google Scholar] [CrossRef] [Scilit]
  37. Ninno, A.D.; Castellano, A.C.; Giudice, E.D. The supramolecular structure of liquid water and quantum coherent processes in biology. J. Phys. Conf. Ser. 2013, 442, 012031. [Google Scholar] [CrossRef] [Scilit]
  38. Rostampour, S.; Cook, R.; Jhang, S.S.; Li, Y.; Fan, C.; Sung, L.P. Changes in the Chemical Composition of Polyethylene Terephthalate under UV Radiation in Various Environmental Conditions. Polymers 2024, 16, 2249. [Google Scholar] [CrossRef] [Scilit]
  39. Celina, M.C.; Linde, E.; Martinez, E. Carbonyl Identification and Quantification Uncertainties for Oxidative Polymer Degradation. Polym. Degrad. Stab. 2021, 188, 109550. [Google Scholar] [CrossRef] [Scilit]
  40. Kelkar, V.P.; Rolsky, C.B.; Pant, A.; Green, M.D.; Tongay, S.; Halden, R.U. Chemical and physical changes of microplastics during sterilization by chlorination. Water Res. 2019, 163, 114871. [Google Scholar] [CrossRef] [Scilit]
  41. Oh, W.-D.; Dong, Z.; Lim, T.-T. Generation of sulfate radical through heterogeneous catalysis for organic contaminants removal: Current development, challenges and prospects. Appl. Catal. B Environ. 2016, 194, 169–201. [Google Scholar] [CrossRef] [Scilit]
  42. Lee, J.; von Gunten, U.; Kim, J.-H. Persulfate-Based Advanced Oxidation: Critical Assessment of Opportunities and Roadblocks. Environ. Sci. Technol. 2020, 54, 3064–3081. [Google Scholar] [CrossRef] [Scilit]
  43. Deborde, M.; von Gunten, U. Reactions of chlorine with inorganic and organic compounds during water treatment—Kinetics and mechanisms: A critical review. Water Res. 2008, 42, 13–51. [Google Scholar] [CrossRef] [Scilit]
  44. Copeland, A.; Lytle, D.A. Measuring the oxidation–reduction potential of important oxidants in drinking water. J. AWWA 2014, 106, E10–E20. [Google Scholar] [CrossRef] [Scilit]
  45. Zhang, X.; Feng, X.; Ma, Y.; Niu, Z.; Zhang, Y. Comparison of chlorination resistance of biodegradable microplastics and conventional microplastics during the disinfection process in water treatments. Sci. Total Environ. 2024, 908, 168229. [Google Scholar] [CrossRef] [Scilit]
  46. Chaciński, T.; Sutowski, P. Common defects in injection molding of plastic products and their influence on product quality. J. Mech. Energy Eng. 2021, 5, 7–14. [Google Scholar] [CrossRef] [Scilit]
  47. Fotopoulou, K.N.; Karapanagioti, H.K. Surface properties of beached plastic pellets. Mar. Environ. Res. 2012, 81, 70–77. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  48. Wang, S.; Al-Hasni, N.S.; Liu, Z.; Liu, A. Multifaceted Aquatic Environmental Differences between Nanoplastics and Microplastics: Behavior and Fate. Environ. Health 2024, 2, 688–701. [Google Scholar] [CrossRef] [Scilit]
  49. Zhao, M.; Zhang, T.; Yang, X.; Liu, X.; Zhu, D.; Chen, W. Sulfide induces physical damages and chemical transformation of microplastics via radical oxidation and sulfide addition. Water Res. 2021, 197, 117100. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  50. Chen, C.C.; Zhu, X.; Xu, H.; Chen, F.; Ma, J.; Pan, K. Copper Adsorption to Microplastics and Natural Particles in Seawater: A Comparison of Kinetics, Isotherms, and Bioavailability. Environ. Sci. Technol. 2021, 55, 13923–13931. [Google Scholar] [CrossRef] [Scilit]
  51. Chen, P.-W.; Hsiao, M.-N.; Xiao, L.-W.; Liu, Z.-S. Adsorption behavior of heavy metals onto microplastics derived from conventional and biodegradable commercial plastic products. Sci. Total Environ. 2024, 951, 175537. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  52. Wang, L.; Guo, C.; Qian, Q.; Lang, D.; Wu, R.; Abliz, S.; Wang, W.; Wang, J. Adsorption behavior of UV aged microplastics on the heavy metals Pb(II) and Cu(II) in aqueous solutions. Chemosphere 2023, 313, 137439. [Google Scholar] [CrossRef] [Scilit] [PubMed]
Microplastics 05 00115 g001

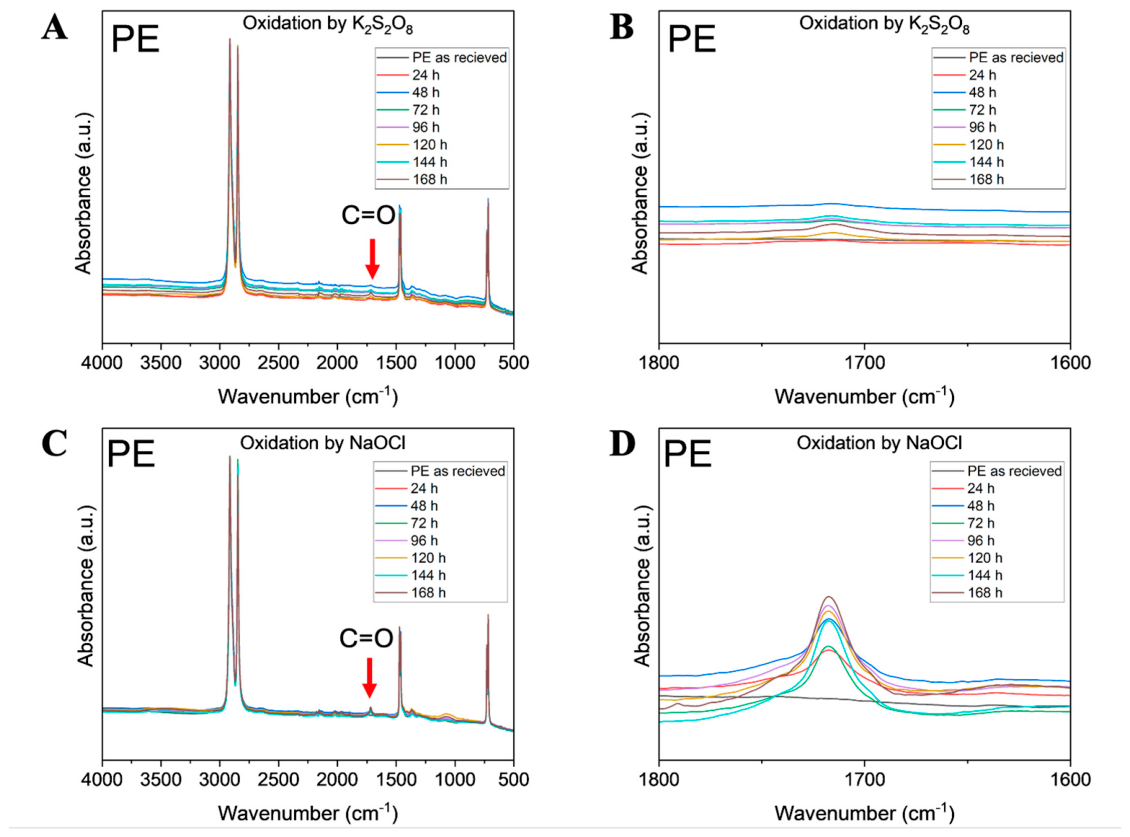

Figure 1. ATR-FTIR spectra of polyethylene microplastics (PE MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1716 cm−1), highlighting time-dependent spectral changes.
Figure 1. ATR-FTIR spectra of polyethylene microplastics (PE MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1716 cm−1), highlighting time-dependent spectral changes.
Microplastics 05 00115 g001
Microplastics 05 00115 g002

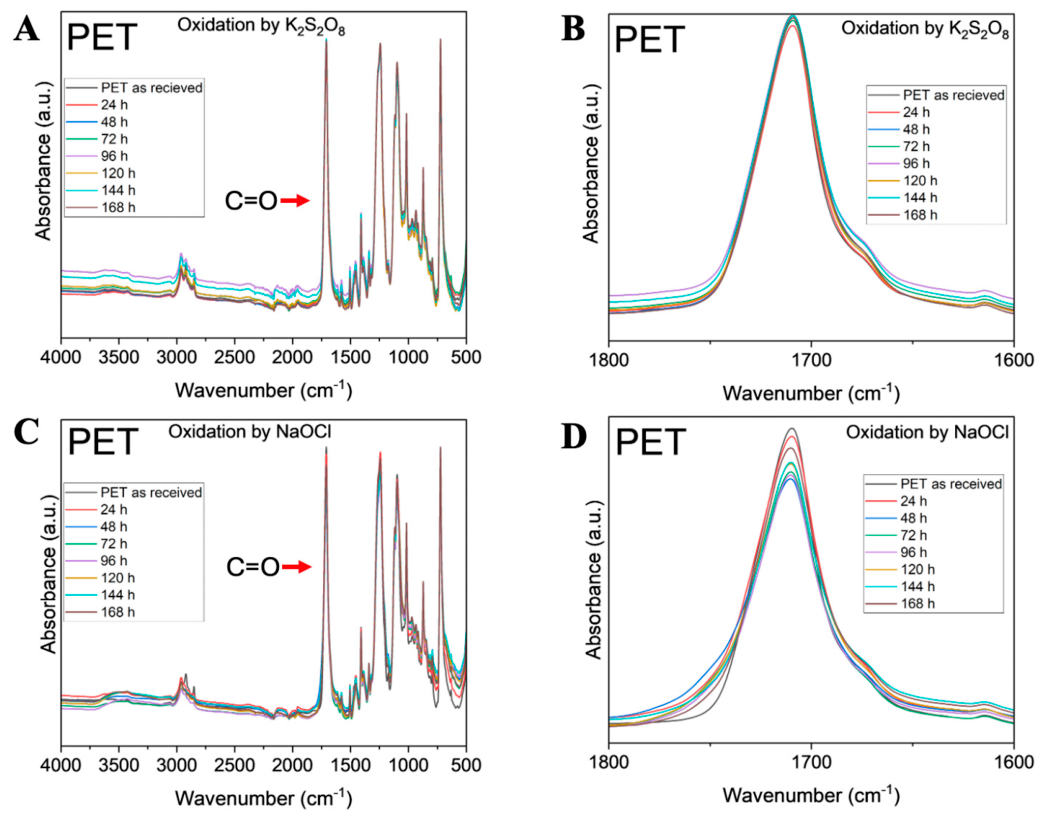

Figure 2. ATR-FTIR spectra of polyethylene terephthalate microplastics (PET MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1710 cm−1), highlighting time-dependent spectral changes.
Figure 2. ATR-FTIR spectra of polyethylene terephthalate microplastics (PET MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1710 cm−1), highlighting time-dependent spectral changes.
Microplastics 05 00115 g002
Microplastics 05 00115 g003

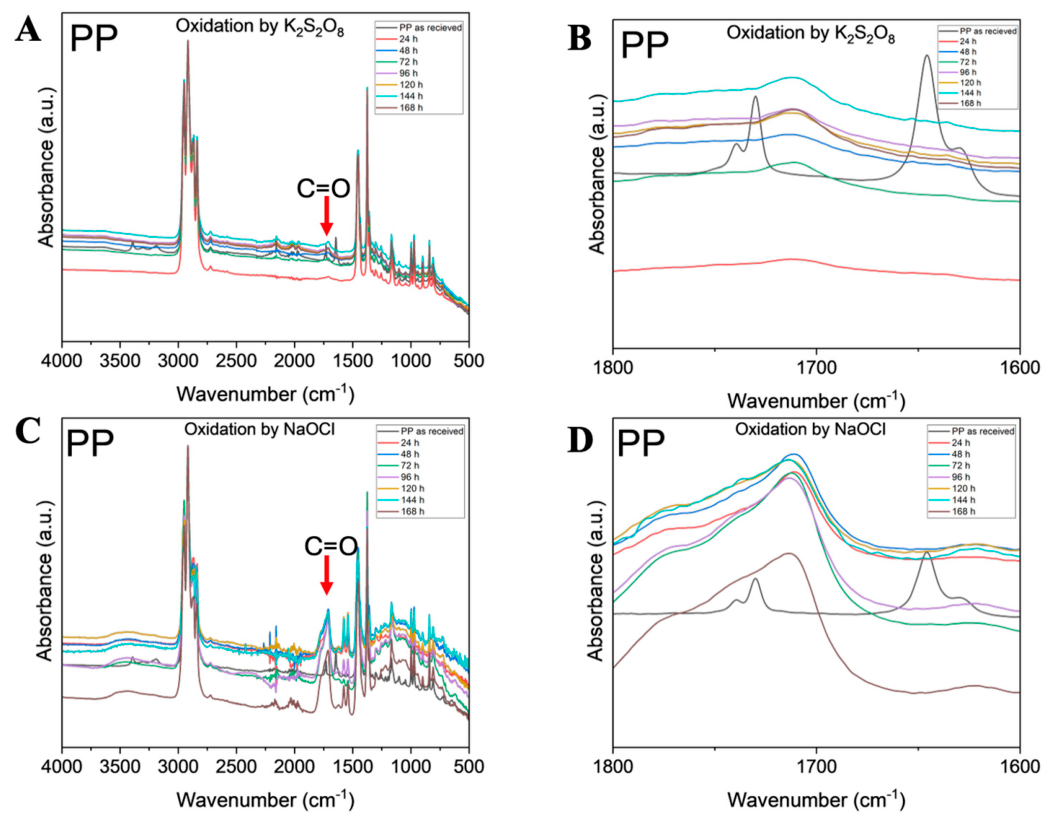

Figure 3. ATR-FTIR spectra of polypropylene microplastics (PP MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1712 cm−1), highlighting time-dependent spectral changes.
Figure 3. ATR-FTIR spectra of polypropylene microplastics (PP MPs) as received and after oxidative aging with (A,B) potassium persulfate (K2S2O8) and (C,D) sodium hypochlorite (NaOCl) at different degradation times (24–168 h). Panels (A,C) show the full spectral range, while panels (B,D) present magnified views of the carbonyl band (1712 cm−1), highlighting time-dependent spectral changes.
Microplastics 05 00115 g003
Microplastics 05 00115 g004

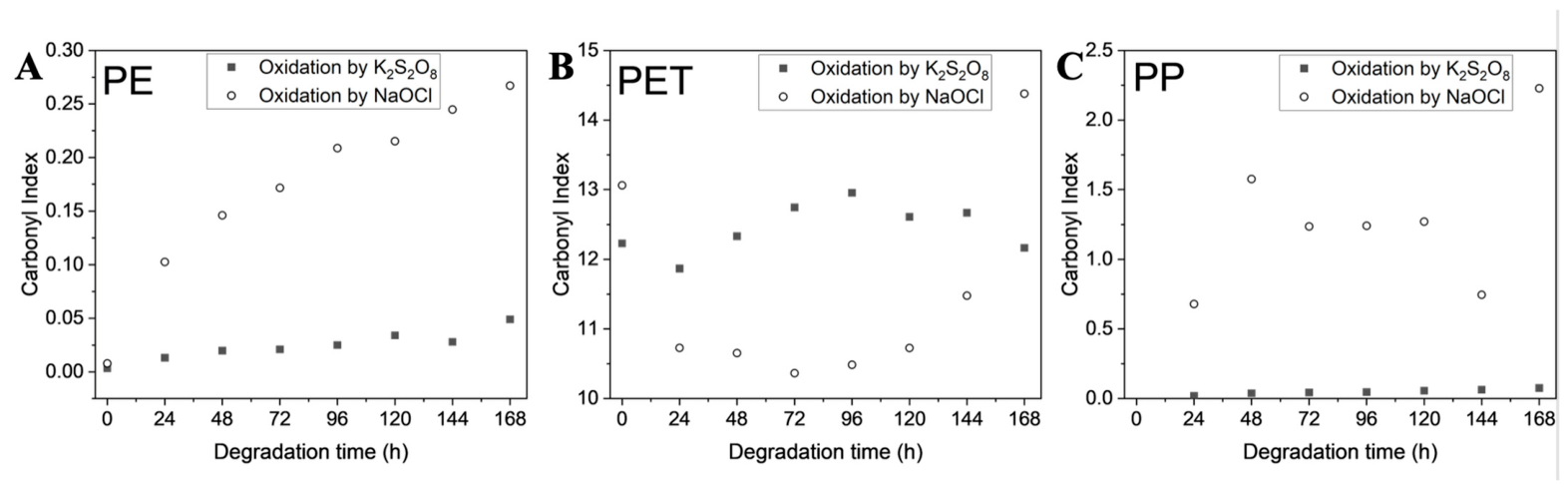

Figure 4. Changes in carbonyl index (CI) as a function of degradation time for (A) polyethylene (PE), (B) Polyethylene terephthalate (PET), and (C) Polypropylene (PP) microplastics (MPs) during oxidative aging. MPs were aged using potassium persulfate (K2S2O8, solid symbols) and sodium hypochlorite (NaOCl, open symbols) under elevated temperature conditions (60 °C). CI values were calculated from FTIR spectra using polymer-specific carbonyl and reference bands and are presented as relative indicators of oxidative aging over time.
Figure 4. Changes in carbonyl index (CI) as a function of degradation time for (A) polyethylene (PE), (B) Polyethylene terephthalate (PET), and (C) Polypropylene (PP) microplastics (MPs) during oxidative aging. MPs were aged using potassium persulfate (K2S2O8, solid symbols) and sodium hypochlorite (NaOCl, open symbols) under elevated temperature conditions (60 °C). CI values were calculated from FTIR spectra using polymer-specific carbonyl and reference bands and are presented as relative indicators of oxidative aging over time.
Microplastics 05 00115 g004
Microplastics 05 00115 g005

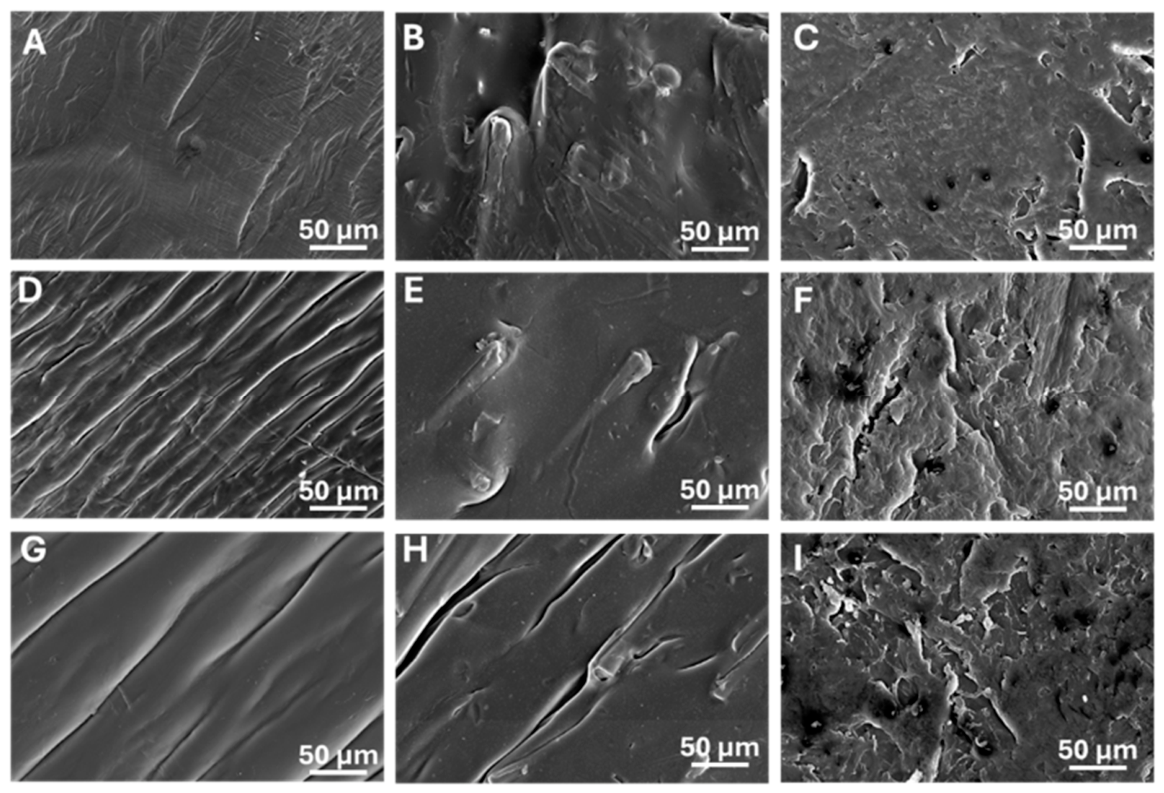

Figure 5. Scanning electron microscopy (SEM) images showing surface morphology of pristine and chemically oxidized microplastics (MPs). (A–C) Polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP) before treatment; (D–F) PE, PET, and PP after sodium hypochlorite (NaOCl) treatment; (G–I) PE, PET, and PP after potassium persulfate (K2S2O8) treatment.
Figure 5. Scanning electron microscopy (SEM) images showing surface morphology of pristine and chemically oxidized microplastics (MPs). (A–C) Polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP) before treatment; (D–F) PE, PET, and PP after sodium hypochlorite (NaOCl) treatment; (G–I) PE, PET, and PP after potassium persulfate (K2S2O8) treatment.
Microplastics 05 00115 g005
Microplastics 05 00115 g006

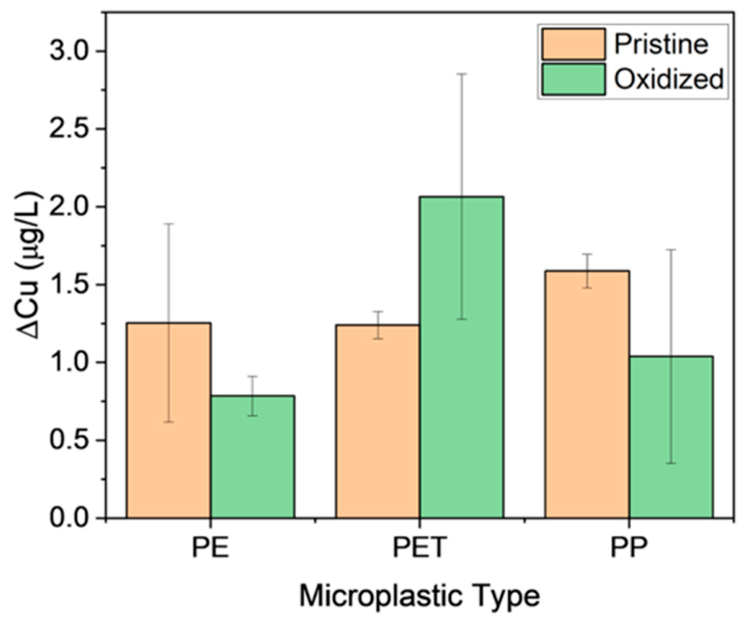

Figure 6. Copper (Cu) ions sorbed to pristine and K2S2O8-treated microplastics (MPs) for polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP) after 5 days of interaction. ∆Cu represents the amount of copper sorbed to the MPs. Bars represent mean values, and error bars indicate one standard deviation (n = 3). No statistically significant differences were observed between pristine and oxidized MPs (Kruskal–Wallis test, p > 0.05).
Figure 6. Copper (Cu) ions sorbed to pristine and K2S2O8-treated microplastics (MPs) for polyethylene (PE), polyethylene terephthalate (PET), and polypropylene (PP) after 5 days of interaction. ∆Cu represents the amount of copper sorbed to the MPs. Bars represent mean values, and error bars indicate one standard deviation (n = 3). No statistically significant differences were observed between pristine and oxidized MPs (Kruskal–Wallis test, p > 0.05).
Microplastics 05 00115 g006
Table 1. Peak integration ranges used for carbonyl index (CI) calculation.
Table 1. Peak integration ranges used for carbonyl index (CI) calculation.
PolymerCarbonyl Band Range (cm−1)Reference Band Range (cm−1)
PP1690–17301450–1460
PE1700–17401430–1480
PET1620–18001410–1470
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ayorinde, T.; Charlton-Sevcik, A.K.; Hockaday, W.C.; Sayes, C.M. Accelerated Oxidative Aging of Microplastics and Its Effect on Copper Sorption Behavior. Microplastics 2026, 5, 115. https://doi.org/10.3390/microplastics5020115

AMA Style

Ayorinde T, Charlton-Sevcik AK, Hockaday WC, Sayes CM. Accelerated Oxidative Aging of Microplastics and Its Effect on Copper Sorption Behavior. Microplastics. 2026; 5(2):115. https://doi.org/10.3390/microplastics5020115

Chicago/Turabian Style

Ayorinde, Taiwo, Amanda K. Charlton-Sevcik, William C. Hockaday, and Christie M. Sayes. 2026. "Accelerated Oxidative Aging of Microplastics and Its Effect on Copper Sorption Behavior" Microplastics 5, no. 2: 115. https://doi.org/10.3390/microplastics5020115

APA Style

Ayorinde, T., Charlton-Sevcik, A. K., Hockaday, W. C., & Sayes, C. M. (2026). Accelerated Oxidative Aging of Microplastics and Its Effect on Copper Sorption Behavior. Microplastics, 5(2), 115. https://doi.org/10.3390/microplastics5020115

Article Metrics

Back to TopTop
