A Smart Integrated Platform for Leakage Detection in the Water Supply Network of Aigio, Greece †
by
, , , and
Angelos Chasiotis
1,*
,
Dimitrios Piromalis
2
,
Panagiotis Papageorgas
2
,
Stefanos Chasiotis
1,
Maria Bousdeki
1,
Panagiotis T. Nastos
1
and
Elissavet Feloni
1,3
1
Laboratory of Climatology and Atmospheric Environment, Department of Geology and Geoenvironment, National and Kapodistrian University of Athens, 15784 Athens, Greece
2
Laboratory of Smart Technologies, Renewable Energy Sources & Quality, University of West Attica, Ag. Spiridonos Str., 12243 Athens, Greece
3
Department of Surveying & Geoinformatics Engineering, Egaleo Park Campus, University of West Attica, Ag. Spyridonos Str., 12243 Athens, Greece
*
Author to whom correspondence should be addressed.
†
Presented at the 16th International Conference on Meteorology, Climatology and Atmospheric Physics—COMECAP 2023, Athens, Greece, 25–29 September 2023.
Environ. Sci. Proc. 2023, 26(1), 184; https://doi.org/10.3390/environsciproc2023026184
Published: 7 September 2023
(This article belongs to the Proceedings of 16th International Conference on Meteorology, Climatology and Atmospheric Physics—COMECAP 2023)
Abstract
:Water leakages in urban water supply networks are a major cause of non-revenue water (NRW) and pose significant challenges for water management. To address this issue, the Municipal Enterprise for Water and Wastewater of Aigialeia (DEYA Aigialeias), the Institutionalized Research Laboratory of Smart Technologies, Renewable Energy Sources and Quality of UNIWA (STRESQ), and the Laboratory of Climatology and Atmospheric Environment (LACAE, NKUA) are collaborating on a project titled “Smart system for Leak Detection for water supply Network of Aigio”. By installing sensors and implementing a SCADA system with PLC controllers, critical parameters such as water supply, pressure, and quality will be monitored. This project aims to reduce water leakage, which currently accounts for approximately 48% of the town’s total water supply, ultimately saving around 600,000 m3 of water annually.
1. Introduction
Non-revenue water (NRW) is the volume of water participating in the urban water supply processes without generating revenue for the water utility company [1]. NRW includes both water losses and unbilled consumption [2]. Effective strategies such as pressure management, active leak control, efficient repairs, and asset management are being implemented to minimize these real losses [3]. Water leakages present a common and significant challenge in urban water supply networks [4]. The financial implications of these leakages are substantial, with an estimated annual cost of 39 billion USD [5]. Furthermore, the quality of potable water is adversely affected by these leakages [6].
In Aigio, Greece, water leakage is estimated to be approximately 48% of the total water supply, as reported by the Municipal Enterprise for Water and Wastewater of Aigialeia. To address this, the research project titled “Smart system for Leak Detection for water supply Network of Aigio” aims to develop an advanced monitoring system. Among the purposes of the project is the aim to save around 600,000 m3 of water per year within Aigio’s internal water distribution system. The integration of smart systems, including smart water metering devices and data analytics, presents new opportunities for real-time leakage detection, consumption monitoring, and optimized network management [7,8]. These technologies enable proactive leak detection, enhancing rapid response and timely repairs [9]. By implementing innovative technologies and proactive leak detection methods, the project strives to improve water resource management and enhance the overall efficiency of the water supply system in Aigio.
2. Study Area and Data
The system is designed for the town of Aigio, which is served by DEYA-Aigialeias. Aigio is the largest town in the Aigialeia Prefecture with a total population of 20.249 habitants. The region of Aigio is characterized by a temperate Mediterranean climate, while the air temperature ranges from −0.7 °C to 37.7 °C. Regarding water requirements in this area, there is a seasonal fluctuation due to tourism, with an increased demand during summer months, which is difficult to be fully met. Particularly, Table 1 presents the estimated daily water needs per capita, which correspond to an annual water supply from the DEYA-Aigialeias of around 2.5 hm3. Considering this situation and after taking into account the available data from the local system of operation and water supply infrastructures, DEYA-Aigialeias in collaboration with STRESQ and LACAE assessed the value of improving the operation of the water supply system. The first priority is the monitoring of qualitative and quantitative parameters, in combination with the development of a hydraulic model for the simulation of the operation of the local water supply network.
3. Concept Design
DEYA-Aigialeias will acquire a smart integrated platform for leakage detection in the water supply network, through utilizing modern digital telemetry, remote control and management, and through procuring the sensors required to record and monitor consumption. The main components of the system are described as follows.
3.1. IoT Sensors
As part of the comprehensive system implementation, the DEYA-Aigialeias in collaboration with STRESQ and LACAE will install IoT sensors in its internal water network. The project aims to enhance monitoring and management capabilities within four main areas that are already configured as closed loops. Electromagnetic Flowmeters will be used as the selected sensors, providing measurements every second. These sensors will be connected to programmable logic controllers (PLCs) for efficient data collection. Additionally, pressure sensors will be strategically placed in the closed loops to ensure precise monitoring of the entire closed district metered area (DMA), as illustrated in Figure 1. These pressure sensors will be connected to dataloggers equipped with internal modems, enabling the transmission of pressure data from the network at 15-min intervals. The operation will aim at gathering real-time data and achieving more accurate monitoring of the water distribution network.
3.2. Monitoring System
A monitoring system will be developed based on an online platform that holds significant potential for addressing the challenges associated with leakage detection and management in water distribution networks. By leveraging real-time data and advanced analytics, an online platform can provide a centralized hub for monitoring the performance of internal city water networks [11]. The implementation of an online platform enables seamless and continuous data collection from sensors deployed throughout the water network. These sensors, strategically positioned in key areas, provide valuable information on flow rates, pressure levels, and other critical parameters. The collected data is transmitted in real time to the online platform, ensuring up-to-date and accurate insights into the network’s performance.
The online platform leverages the power of machine learning algorithms and statistical techniques to process and analyze the collected data. These advanced analytical methods enable the identification of patterns, anomalies, and potential leakages within the water distribution network. By analyzing historical data and establishing baseline patterns, the platform can detect deviations and alert authorities to potential issues, allowing for prompt response and intervention. To enhance the overall functionality and effectiveness of leakage monitoring, the online platform can seamlessly integrate with other smart systems and technologies. Integration with smart water meters and IoT devices offers additional data points and insights into water consumption patterns, enabling a comprehensive understanding of the network’s dynamics. This integration fosters a holistic approach to water management, optimizing resource allocation and minimizing wastage.
3.3. Hydraulic Model
A hydraulic model will be developed based on EPANET [12] and incorporating the concept of a digital twin. By integrating EPANET with a digital twin framework, the hydraulic simulation can be enhanced by incorporating real-time data from the sensors and the monitoring system. Based on the hydraulic model several simulations will run in order for engineers and operators to gain valuable insights into the system’s performance in real time. They can monitor key hydraulic parameters, detect anomalies, and predict potential issues before they occur. This proactive approach facilitates timely decision-making and enables efficient management of the water distribution network. Additionally, the digital twin can be utilized for scenario analysis, allowing engineers to evaluate the impact of different operational strategies, infrastructure upgrades, or demand changes on the system’s behavior. Through this approach, decision-makers can assess the effectiveness of various interventions, optimize system performance, and plan for future contingencies. Integrating EPANET with a digital twin framework adds an extra layer of sophistication to the hydraulic simulations, enhancing their accuracy. By harnessing the power of real-time data and advanced analytics, this approach empowers water utility companies to make informed decisions, improve operational efficiency, reduce water losses, and ensure the reliable delivery of clean water to the town of Aigio.
4. Expected Results
The Municipal Enterprise for Water and Wastewater of Aigialeia supports the development of a smart system for the detection of leakages, in the frame of improving water management within Aigio’s internal network. The project aims to save approximately 600,000 m3 of water annually.
IoT sensors, including electromagnetic flowmeters and pressure sensors, will be deployed throughout the network to collect real-time data on flow rates and pressure levels. This data will be transmitted to an integrated platform for analysis using advanced algorithms and scenario simulations. The system will identify specific pipes and nodes where leakages are likely occurring, providing real-time alerts and suggesting targeted interventions. The project also includes the development of a comprehensive hydraulic model for the Municipal Enterprise, enabling better network management and maintenance planning.
The implementation of this smart system is expected to significantly reduce water losses, improve water balance convergence, and promote sustainable water resource utilization in Aigio.
Author Contributions
Conceptualization, A.C.; methodology, A.C. and S.C.; software, D.P. and P.P.; formal analysis, A.C.; investigation, M.B.; resources, A.C.; data curation, E.F.; writing—original draft preparation, A.C. and S.C.; writing—review and editing, D.P., P.P. and E.F.; visualization, A.C.; supervision, P.T.N.; project administration, A.C.; funding acquisition, A.C. All authors have read and agreed to the published version of the manuscript.
Funding
The research project titled “Smart system for Leak Detection for water supply Network of Aigio” is co-funded by the Program “Water management” of EEA Grants 2014-2021, with the contribution of Iceland, Liechtenstein, and Norway, and the Greek Public Investments Program.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Upon request.
Acknowledgments
The authors would like to thank the Municipal Enterprise for Water and Wastewater of Aigialeia for the provision of available data regarding water consumption.
Conflicts of Interest
The authors have no conflict of interest to declare.
References
- Janson, A. Non-revenue water: A cross-sectional analysis of its global economic and environmental impact. J. Environ. Manag. 2017, 200, 89–98. [Google Scholar]
- Frauendorfer, R.; Liemberger, R. The Issues and Challenges of Reducing Non-Revenue Water 2010. © Asian Development Bank. Available online: https://www.adb.org/publications/issues-and-challenges-reducing-non-revenue-water (accessed on 18 August 2023).
- Kingdom, B.; Liemberger, R.; Marin, P. The challenge of reducing non-revenue water (NRW) in developing countries: How the private sector can help. Water Sci. Technol. Water Supply 2006, 6, 1–8. [Google Scholar]
- Lechevallier, M. Drinking water distribution systems: Assessing and reducing risks. In Proceedings of the American Water Works Association (AWWA) Annual Conference and Exposition 2014, Boston, MA, USA, 8–12 June 2014. [Google Scholar]
- Liemberger, R.; Wyatt, A. Non-revenue water: The costs of leaks. Water Int. 2019, 44, 210–221. [Google Scholar]
- Patelis, A.; Kalavrouziotis, I.; Lekkas, D.F.; Andreadakis, A. Evaluation of water quality parameters and prediction of their performance using artificial neural networks. Environ. Monit. Assess. 2020, 192, 473. [Google Scholar]
- Mohd Yussof, N.A.; Ho, H.W. Review of Water Leak Detection Methods in Smart Building Applications. Buildings 2022, 12, 1535. [Google Scholar] [CrossRef]
- Rousso, B.Z.; Lambert, M.; Gong, J. Smart Water Networks: A Systematic Review of Applications Using High-Frequency Pressure and Acoustic Sensors in Real Water Distribution Systems. J. Clean. Prod. 2023, 410, 137193. [Google Scholar] [CrossRef]
- Chasiotis, A.; Tsitsifli, S.; Panytsidis, K.; Nilsen, V.; Mantas, N.; Theodorou, D.; Kyriakidis, T.; Chasiotis, S.; Bousdeki, M.; Feloni, E.; et al. Building a smart green system to control water leakage and monitor drinking water quality in the water supply system of Paramythia city, Greece: The case of SMASH project. In Proceedings of the EGU General Assembly 2023, Vienna, Austria, 24–28 April 2023. [Google Scholar] [CrossRef]
- DEYA.ARM. Water Safety Plan of Municipality of Argos. 2023. Available online: https://deyaar-m.gr/ (accessed on 18 August 2023).
- Joseph, K.; Sharma, A.K.; van Staden, R. Development of an Intelligent Urban Water Network System. Water 2022, 14, 1320. [Google Scholar] [CrossRef]
- Rossman, L.A. EPANET Users Manual: Project Summary; U.S. Environmental Protection Agency, Risk Reduction Engineering Laboratory: Cincinnati, OH, USA, 1994. [Google Scholar]

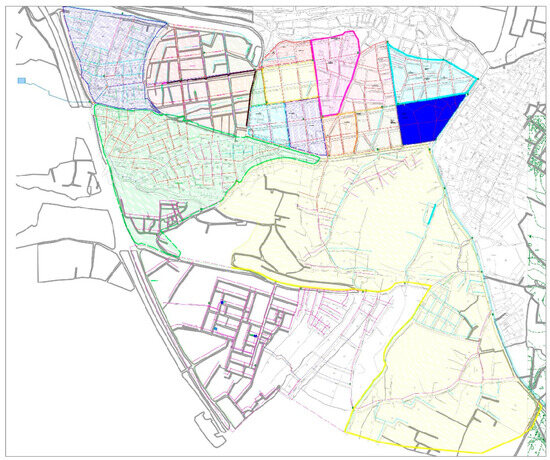

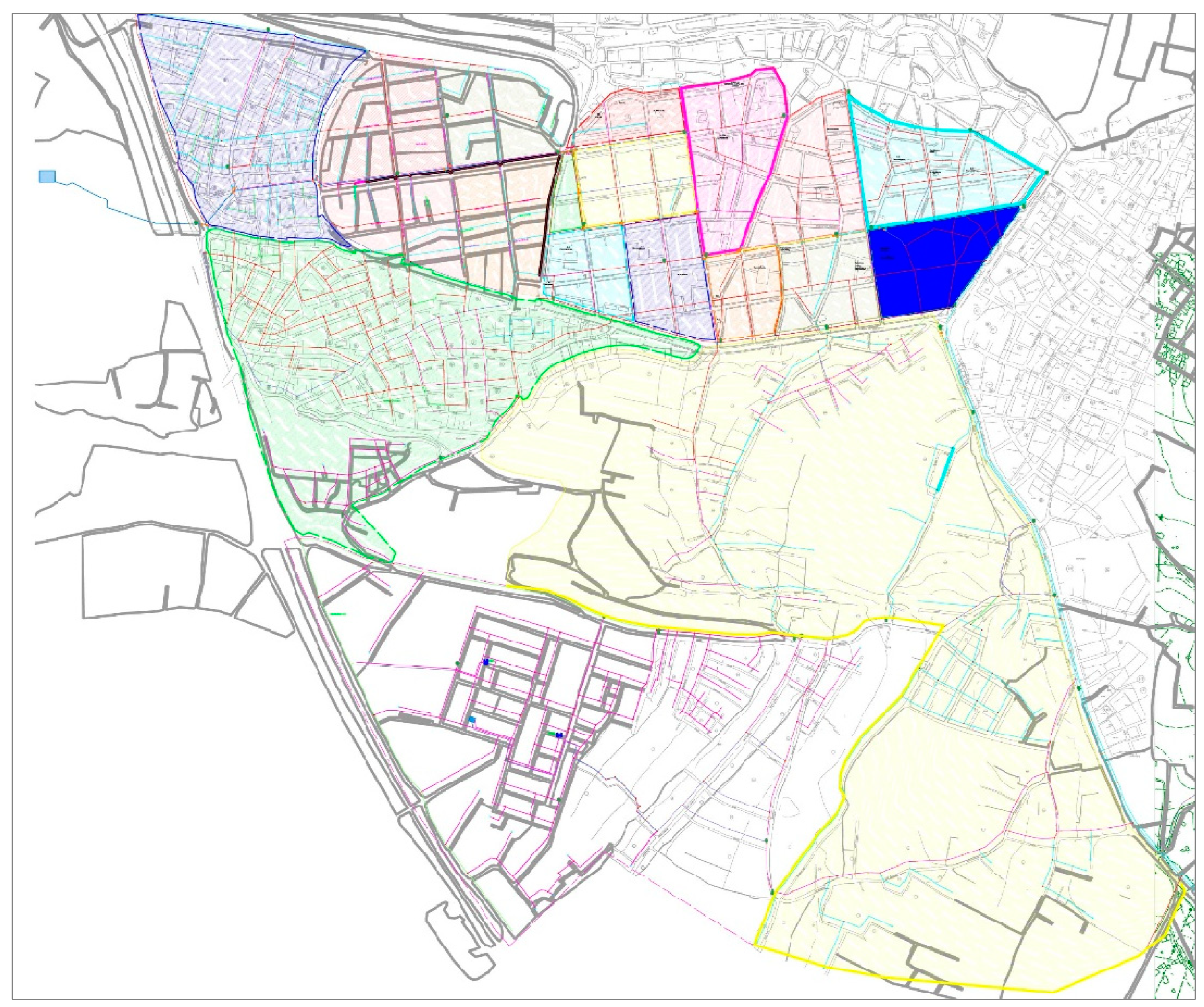

Figure 1.
District Metered Area of Aigio.
Table 1.
Average water requirements per capita per day (data source: [10]).
Table 1.
Average water requirements per capita per day (data source: [10]).
| Population Class | Water Needs (L/cap/d) |
|---|---|
| Permanent Population | 250 |
| Tourists | 400 |
| Residents in B’ residence | 250 |
