Abstract
We have previously obtained significant results in the cycloalumination of olefins with EtAlCl2 in the presence of magnesium and a Cp2ZrCl2 or Cp2TiCl2 catalyst. Here we report the development of an efficient one-pot catalytic method for the synthesis of tertiary alcohols from AlCl3, aryl olefins, and ketones under the action of Cp2TiCl2. The developed method for producing tertiary alcohols has a general character and allows the conversion of styrene and substituted styrenes (ortho-, para-methylstyrenes) into aryl-substituted tertiary alcohols with yields of up to 76% in the reaction with acetone or methyl ethyl ketone. We assume that the reaction proceeds through the formation of a titanacyclopropane intermediate.
1. Introduction
Tertiary alcohols are widely used in medicine and industry [1,2]. One of the best methods for the preparation of tertiary alcohols is the reaction of ketones with organomagnesium compounds [1,3,4]. We have previously obtained significant results in the cycloalumination of olefins with EtAlCl2 in the presence of magnesium and a Cp2ZrCl2 or Cp2TiCl2 catalyst [5,6,7]. Here we report the development of an efficient one-pot catalytic method for the synthesis of tertiary alcohols from AlCl3, aryl olefins, and ketones under the action of Cp2TiCl2.
2. Results and Discussion
We found that the reaction of styrene with AlCl3 and methyl ethyl ketone in the presence of metallic Mg as an acceptor of halide anions and Cp2TiCl2 as a catalyst (10 mol%) in THF (tetrahydrofuran) solvent at 20 °C for 8 h leads to the formation of 3-methyl-1-phenylpentan-3-ol 1a in a 76% yield (Scheme 1).
Scheme 1.
The reaction of styrene with AlCl3 and methyl ethyl ketone in the presence of metallic Mg.
In non-ether solvents (hexane, DMSO (dimethyl sulfoxide), DMF (N,N-dimethylformamid), and methylene chloride), the yield of reaction product 1a is less than 11%. Carrying out the reaction at ~0 °C reduces its rate and the conversion of the initial styrene, which does not exceed 20% for 15 h. With an increase in temperature to ~65 °C, the reaction is completed in almost 2 h, but it is less selective. The best results were obtained when the reaction was carried out in tetrahydrofuran in the presence of Ti-containing catalysts. The reaction does not proceed in the absence of a catalyst.
The developed method for producing tertiary alcohols has a general character and allows the conversion of styrene and substituted styrenes (ortho-, para-methylstyrenes) into aryl-substituted tertiary alcohols with 66–73% yields in the reaction with acetone or methyl ethyl ketone (Scheme 2).

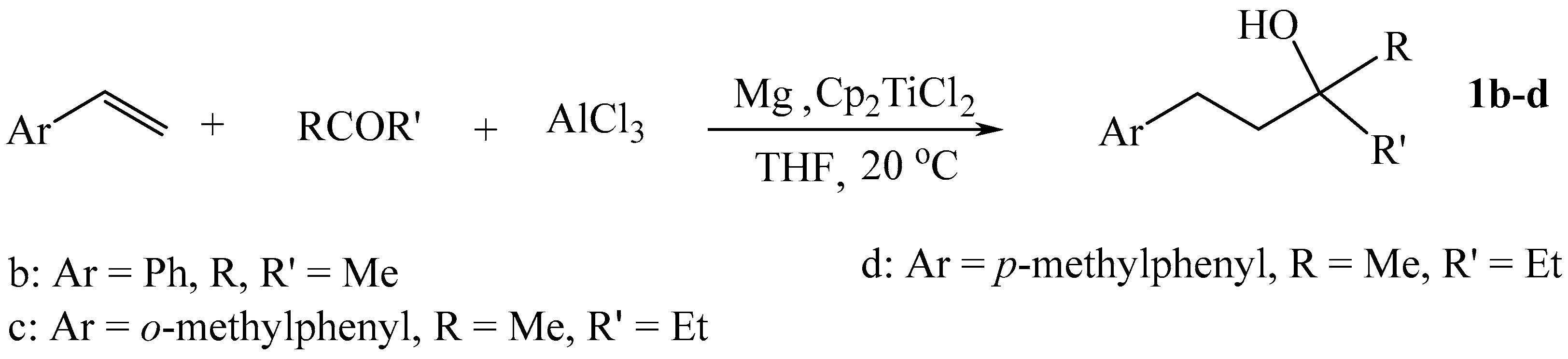

Scheme 2.
Cp2TiCl2—Catalyzed synthesis of tertiary alcohols by the reaction of AlCl3 with ketones and aryl olefins.
The structures of compounds 1a–d were identified using one-dimensional (1H, 13C, DEPT135) and two-dimensional (HSQC (heteronuclear single quantum correlation), HMBC (heteronuclear multiple bond correlation) and HHCOSY (HH correlation spectroscopy) NMR (nuclear magnetic resonance spectroscopy, HRMS (high resolution mass-spectrometry).
3. Conclusions
Thus, we have developed a new one-pot method for the production of substituted tertiary alcohols from aryl olefins and ketones in the presence of AlCl3 and catalytic amounts of Cp2TiCl2.
4. Experimental Part
General. 1H and 13C NMR spectra were recorded on a Bruker Avance II 400 Ascend (400 MHz for 1H and 100 MHz for 13C) and Bruker Avance II HD 500 Ascend (500.17 MHz for 1H and 125.78 MHz for 13C) instruments (“Bruker”, Germany) in CDCl3. Mass spectra were obtained on a Finnigan 4021 instrument (“Thermo Electron Corporation”, Waltham, MA, USA) Chromatographic analysis was performed on a Shimadzu GC-9A instrument (“Shimadzu”, Kyoto, Japan) using a 2000 × 2 mm column, the SE-30 (5%) stationary phase on a Chromaton N-AW-HMDS (0.125–0.160 mm), helium carrier gas (30 mL/min), temperature programming from 50 to 300 °C at an 8 °C/min rate. IR spectra were recorded on a Bruker VE Vertex 70v spectrometer (“Bruker”, Bremen, Germany) as liquid films and are reported in wavenumbers (cm−1). Elemental analysis was performed using a Carlo-Erba CHN 1106 elemental analyzer (“Carlo Erba Instruments”, Cornaredo, Italy). For column chromatography, Acros silica gel (0.060–0.200 mm) (“Acros Organics”, Geel, Belgium) was used. Reactions with organometallic compounds were performed in a dry argon flow. Commercially available styrenes, ketones, Cp2TiCl2, Mg, and AlCl3 (“Sigma-Aldrich”, St. Louis, MO, USA) were used. The solvents were dried and distilled immediately prior to use.
Experimental Procedures. A 50 mL glass reactor equipped with a magnetic stirrer under a dry argon atmosphere at 0 °C was charged under stirring with 5 mL of THF, 2 mmol aryl olefin, 4 mmol AlCl3, 2 mmol ketone, 4 mmol Mg (powder), and 0.2 mmol Cp2TiCl2. The temperature was brought to room temperature (20–21 °C) and the reaction mixture was stirred for 8 h. The reaction mixture was treated with a 7–10% HCl aqueous solution, the reaction products were extracted with diethyl ether, dried over calcined MgSO4, and the solvent was evaporated on a rotary evaporator. The products were isolated by column chromatography (silica gel L, 180/250 μ, eluent—hexane:ethyl acetate (1:1)).
Compound 1a was isolated by column chromatography and provided 3-methyl-1-phenylpentan-3-ol as a yellow oil (73%). Rf 0.61. IR (film): 3375; 3027; 2930; 2873; 1454; 1379; 1137; 1026; 752 cm−1. 1H NMR (500.1 MHz, CDCl3), δ: 0.97 (t 3H, J 7.0 Hz), 1.26 (s 3H), 1.55–1.62 (m 2H), 1.77–1.81 (m 2H), 2.68–2.72 (m 2H), 7.27–7.30 (m 5H). 13C NMR (500.1 MHz, CDCl3), δ: 8.30, 26.34, 30.35, 34.42, 43.28, 72.85, 125.75, 128.36, 128.43, 142.73. HRMS, m/z: 201.0618 [M + Na]+. Found (%): C, 80.82; H, 10.06. Calc. for C12H18O (%): C, 80.85; H, 10.18.
Compound 1b was isolated by column chromatography and provided 2-methyl-4-phenylbutan-2-ol as a yellow oil (69 %). Rf 0.61. IR (film): 3376; 3011; 2916; 2902; 1466; 1359; 1131; 828; 744 cm−1. 1H NMR (500.1 MHz, CDCl3), δ: 1.32 (s 6H), 1.80–1.84 (m 2H), 2.71–2.75 (m 2H), 7.19–7.33 (m 5H). 13C NMR (500.1 MHz, CDCl3), δ: 29.35, 30.76, 45.75, 70.92, 125.76, 128.32, 128.42, 142.53. HRMS, m/z: 187.0274 [M + Na]+. Found (%): C, 80.40; H, 9.70. Calc. for C11H16O (%): C, 80.44; H, 9.82.
Compound 1c was isolated by column chromatography and provided 3-methyl-1-(2-methylphenyl)pentan-3-ol as a yellow oil (66%). Rf 0.61. IR (film) 3301; 3037; 2902; 1647; 1359; 1016; 746 cm−1. 1H NMR (400 MHz, CDCl3) δ: 0.98 (t 3H, J 7.0 Hz), 1.28 (s 3H), 1.61–1.64 (m 2H), 1.70–1.74 (m 2H), 2.35 (s 3H), 2.67–2.71 (m 2H), 7.14–7.17, 7.28 (m 4H). 13C NMR (400 MHz, CDCl3) δ: 8.28, 19.23, 26.28, 27.67, 34.37, 41.98, 72.90, 125.92, 126.09, 128.75, 130.23, 135.81, 140.79. HRMS, m/z: 215.0726 [M + Na]+. Found (%): C, 81.17; H, 10.35. Calc. for C13H20O (%): C, 81.20; H, 10.48.
Compound 1d was isolated by column chromatography and provided 3-methyl-1-(4-methylphenyl)pentan-3-ol as a yellow oil (70%). Rf 0.61. IR (film) 3309; 3063; 2935; 1674; 1386; 1081; 751 cm−1. 1H NMR (400 MHz, CDCl3) δ: 0.97 (t 3H, J 7.0 Hz), 1.21 (s 3H), 1.58–1.61 (m 2H), 1.67–1.71 (m 2H), 2.21 (s 3H), 2.62–2.67 (m 2H), 7.12–7.16 (m 4H). 13C NMR (400 MHz, CDCl3) δ: 8.26, 21.00, 26.26, 30.01, 34.37, 41.68, 72.90, 126.99, 128.05, 136.11, 139.60. HRMS, m/z: 215.0735 [M + Na]+. Found (%): C, 81.18; H, 10.35. Calc. for C13H20O (%): C, 81.20; H, 10.48.
Author Contributions
Conceptualization, L.K.D. and M.G.S.; methodology, M.G.S.; software, L.K.D.; validation, L.K.D.; formal analysis, L.K.D.; investigation, L.K.D.; resources, I.R.R.; data curation, L.K.D.; writing—original draft preparation, L.K.D.; writing—review and editing, I.R.R.; visualization, L.K.D.; supervision, M.G.S.; project administration, I.R.R.; funding acquisition, I.R.R. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Russian Science Foundation, grant number 19-73-20128. The analytical part of the study was carried out within the framework of the state assignment of the Ministry of Education and Science (No. FMRS-2022-0076).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Acknowledgments
The results were obtained on unique equipment at the “Agidel” Collective Usage Center (Ufa Federal Research Center, Russian Academy of Sciences).
Conflicts of Interest
The authors declare no conflict of interest.
References
- Richey, H.G. Grignard Reagents: New Developments; Wiley: New York, NY, USA, 1999. [Google Scholar]
- de Vries, J.G. Quaternary Stereocenters, Challenges and Solutions for Organic Synthesis; Christoffers, J., Baro, A., Eds.; Wiley-VCH: Weinheim, Germany, 2005; Chapter 2; pp. 25–50. [Google Scholar]
- Grignard, V.; Hebd, C.R. Sur quelques nouvelles combinaisons organomé talliques du magné sium et leur application à des synthè ses d’alcools et d’hydrocarbures. Seances Acad. Sci. 1900, 130, 1322. [Google Scholar]
- Seyferth, D. The Grignard Reagents. Organometallics 2009, 28, 1598–1605. [Google Scholar] [CrossRef] [Scilit]
- Khafizova, L.; Gubaidullin, R.R.; Shaibakova, M.; Dzhemilev, U.M. Synthesis of substituted cyclopropanes from vinylarenes and esters in the presence of ClnAlEt3−n and Cp2ZrCl2 as catalyst. Rus. J. Org. Chem. 2013, 49, 815–821. [Google Scholar] [CrossRef] [Scilit]
- Khafizova, L.; Shaibakova, M.; Dzhemilev, U. A new one-pot synthesis of tetrasustituted pyrazines by the Ti-catalyzed reaction of aromatic and benzyl-substituted nitriles with EtAlCl2. Chem. Sel. 2018, 3, 11451–11453. [Google Scholar] [CrossRef] [Scilit]
- Shaibakova, M.; Khafizova, L.; Chobanov, N.; Gubaidullin, R.; Popod’ko, N.; Dzhemilev, U. The efficient one-pot synthesis of tetraalkyl substituted furans from symmetrical acetylenes, EtAlCl2 and carboxylic esters catalyzed by Cp2TiCl2. Tetrahedron Lett. 2014, 55, 1326–1328. [Google Scholar] [CrossRef] [Scilit]
