1. Introduction
Gaskets are small, yet crucial parts of many technical systems. Failure of a gasket can lead to malfunction or failure of the system. It is of particular interest to monitor the condition of elastomer gaskets in order to predict and prevent failure. A study about the energy loss in compressed air systems within the European Union shows an annual loss of energy of approx. 12.8 billion kWh caused by leakage only [
1]. Therefore, prevention of leakage can lower the amount of energy needed. Condition monitoring of gaskets might as well lower maintenance costs by introducing flexible, degradation-based maintenance cycles, thereby, decreasing down times of machines and production systems.
2. Degradation Mechanism of Elastomer Gaskets
Elastomers show a complex aging behavior. Two competing processes mainly determine the degradation: polymer chain splitting and repolymerization. Depending on which process dominates during aging, elastomers either soften or harden over time [
2]. Transferring this behavior to an elastomer gasket, the gasket tends to plastically flow or plasticize and get brittle, respectively, over its lifetime. A commonly used indicator for the degradation status of a gasket is the compression set CS, which is defined as [
3].
with being the initial height of the gasket, being the height of the gasket while compressed and being the height of the gasket after the compression is released. Both aging mechanisms cause a loss of elastic restoring forces within the material, thereby, determining the compression set. The measurement of the compression set is only possible after the gasket has been uninstalled. Hence, it is desirable to establish a method to monitor the compression set during the lifetime of a gasket.
3. Monitoring of Elastomer Gaskets with Integrated Strain Gauges

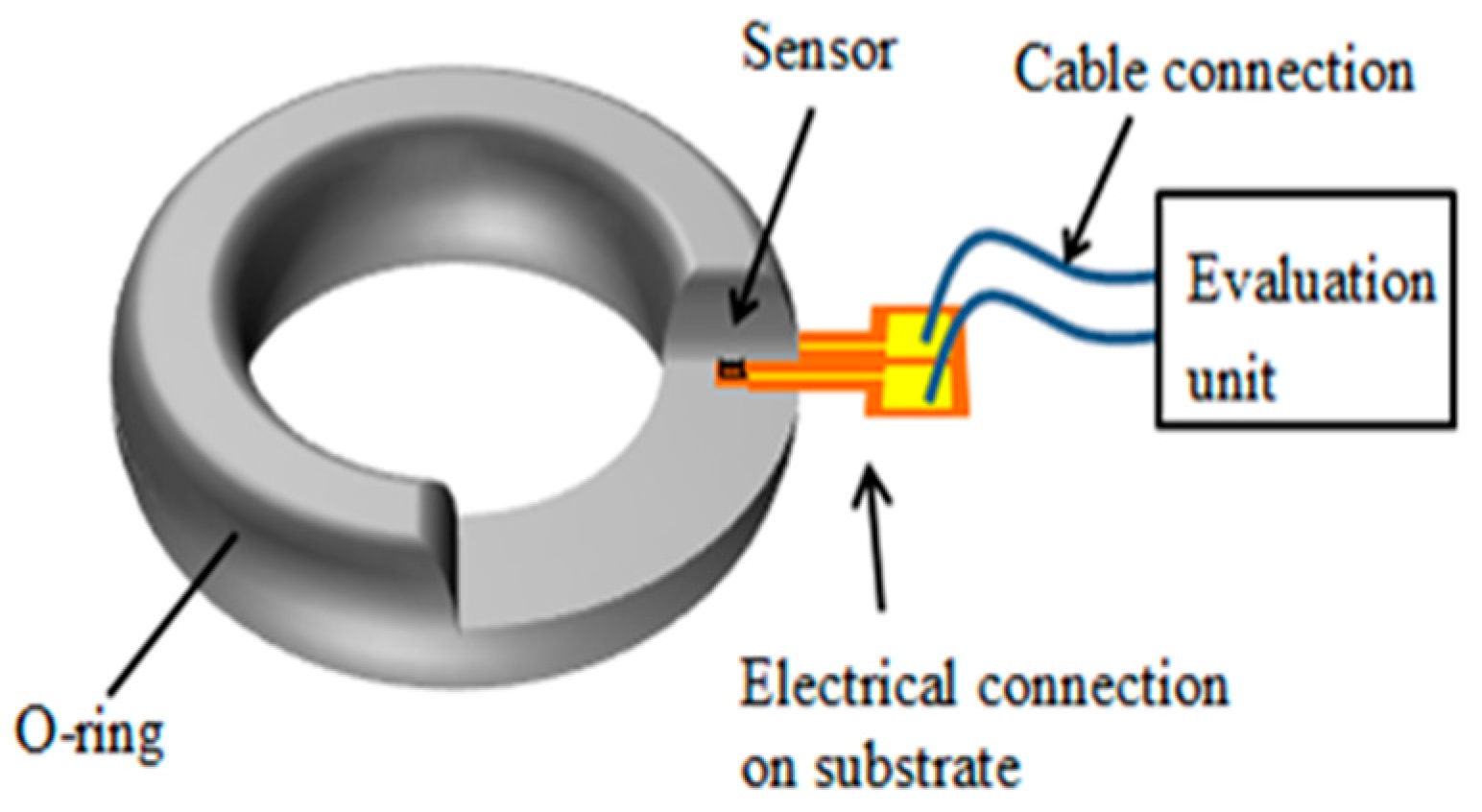

The decrease in the elastic restoring force of the gaskets material can be measured by a strain gauge, which is integrated into the gasket. When the gasket is installed and compressed, forces are transferred from the gasket to the sensor. This leads to an elongation of the strain gauge and, hence, a measurable change the strain gauges signal. The general concept is depicted in
Figure 1.
The integration of the sensor into the gasket is done during the fabrication of the gasket by compression molding. The elastomer material is pressed into the final shape and vulcanized to 25% of the final crosslinking. A small hole is cut into this preform and the sensor is put inside. The actual strain sensing structure of the strain gauge is placed at the center of the gaskets cross sectional diameter. Then the vulcanization process is continued. Computer tomographic analysis shows, that the sensor stays in place during the final vulcanization step.
For expedited aging experiments an HNBR elastomer has been chosen as gasket material and a simple, Polyimide-foil based resistive strain gauge has been fabricated. The sensor was integrated into a gasket as described above.

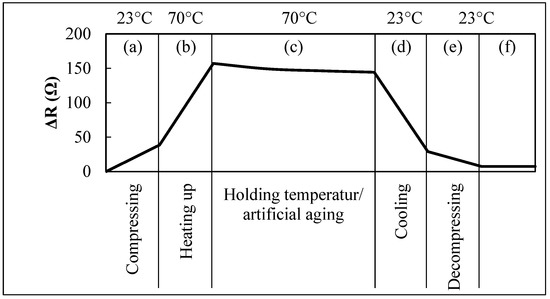

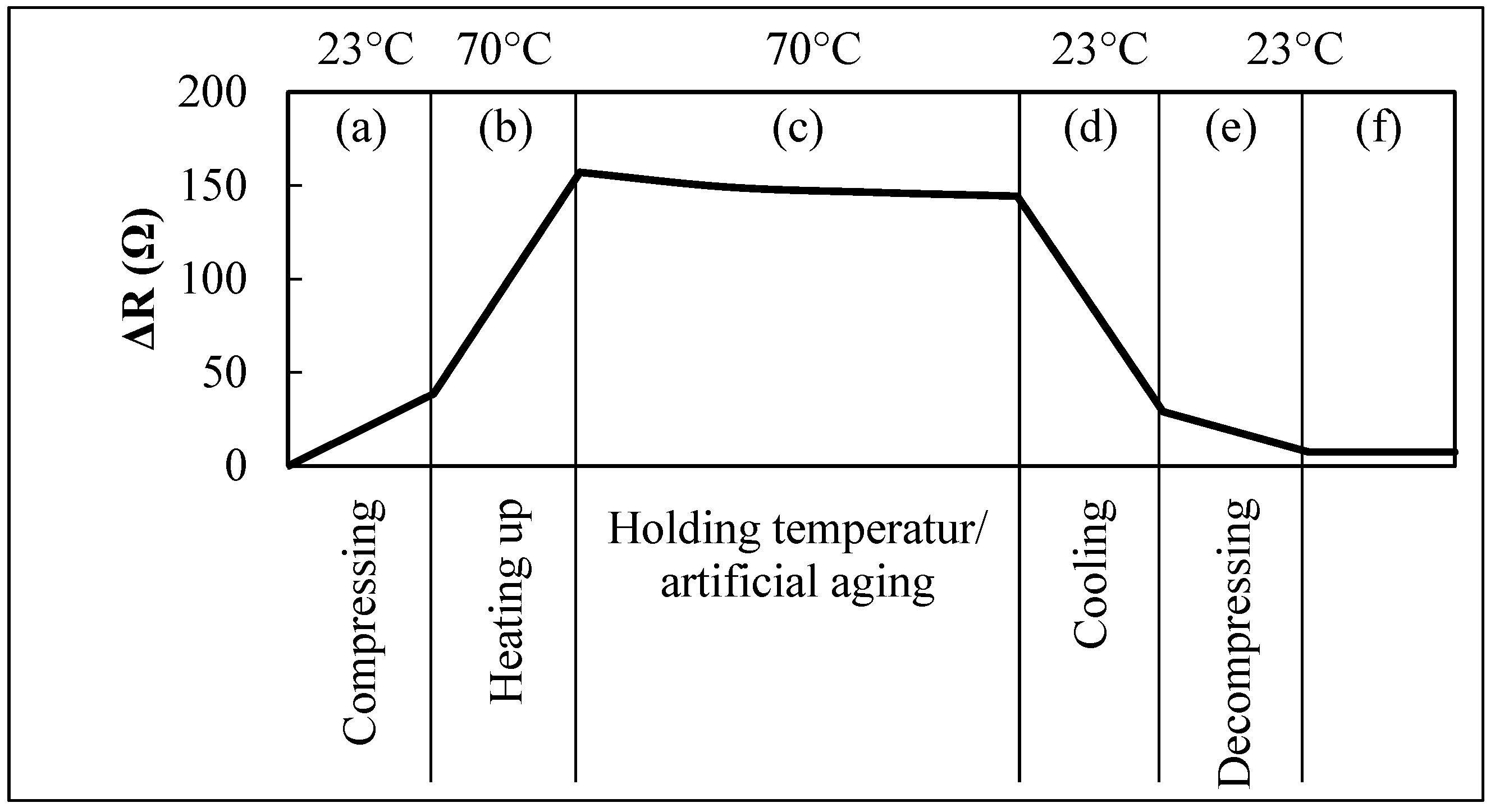

Figure 2 shows the strain gauges resistance during expedited aging from previously published experiments [
4]. In these experiments, the temperature during aging was stable and no pressure was applied to the gasket from within the sealed volume. After aging and decompression a remaining zero-shift of the strain gauges resistance of 7.5 Ω was recorded. A compression set of 34% was measured, indicating an advanced degradation of the gasket.
4. Challenges in Condition Monitoring by Varying Environmental Conditions
Under controlled and stable environmental conditions, the monitoring of a gaskets degradation is possible. However, in most applications environmental conditions will vary. Temperature has a major influence on the strain gauges resistance, as can be seen in
Figure 2. The change in resistance caused by increasing temperature is much greater than the change by the compression of the gasket and, especially, the change in resistance caused by aging. Therefore, varying temperature during the gaskets lifetime can lead to a wrong estimation of the current state of degradation of the gasket.
A simple way to compensate the influence of temperature on the strain gauges signal is to add a second, passive structure to the strain gauge as shown in

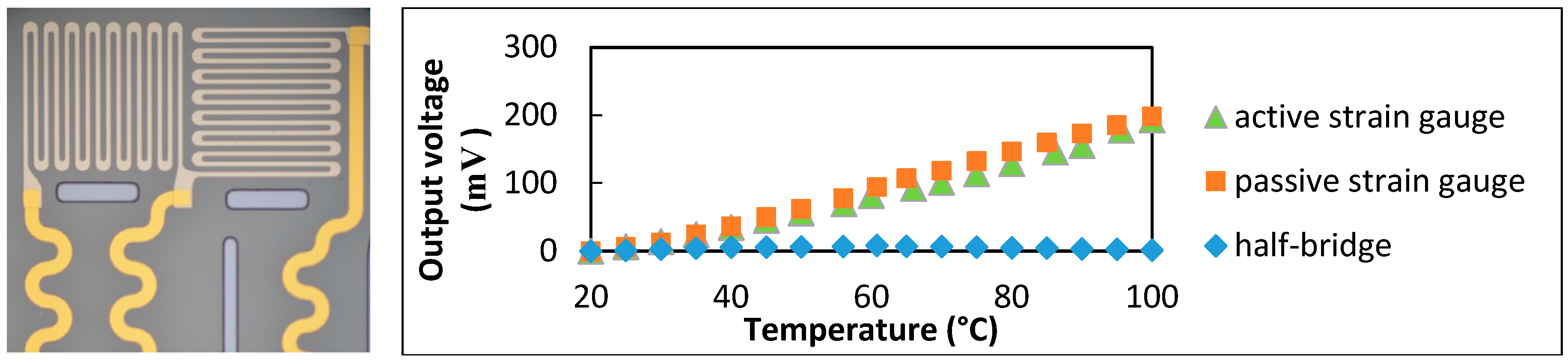

Figure 3(left). The left meandering structure is used as active strain gauge and the orthogonally placed right meandering structure is a passive strain gauge. Both strain gauges are connected in a half-bridge layout.
Figure 3(right) shows the temperature dependency of the strain gauges signal in a compressed gasket. The active as well as the passive strain gauges show strong temperature dependency when used individually, whereas the half-bridge almost completely compensates the influence of temperature.
FEM simulation indicates, that not only the temperature has an influence on the strain gauges signal and, therefore, on the capability to monitor a gaskets condition, but also lateral pressure on the gasket from inside of the sealed volume might cause an unneglectable change in the measurement signal. The measurement setup to determine the influence of this pressure is depicted in

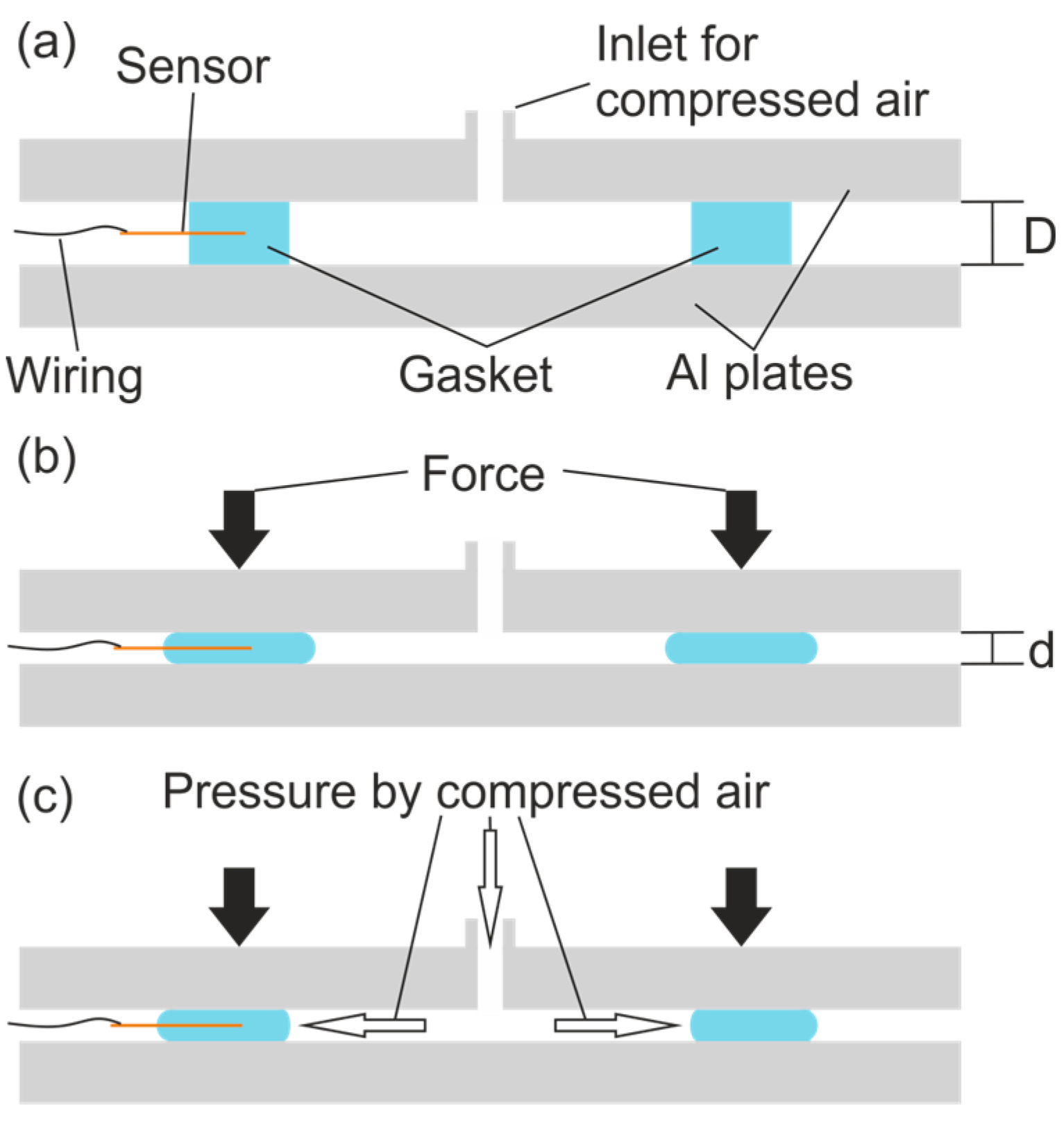

Figure 4. The gasket is placed between to aluminum plates; one of which has an inlet for compressed air (a). The gasket is then compressed by applying a force on the top plate (b). In step (c), compressed air creates pressure inside the sealed space between the plates.
The pressure is varied from 0 to 7 bar. The initial compression of the gasket increases the resistance from 1269 Ω to 1327 Ω, which indicates a large elongation of the strain gauge.

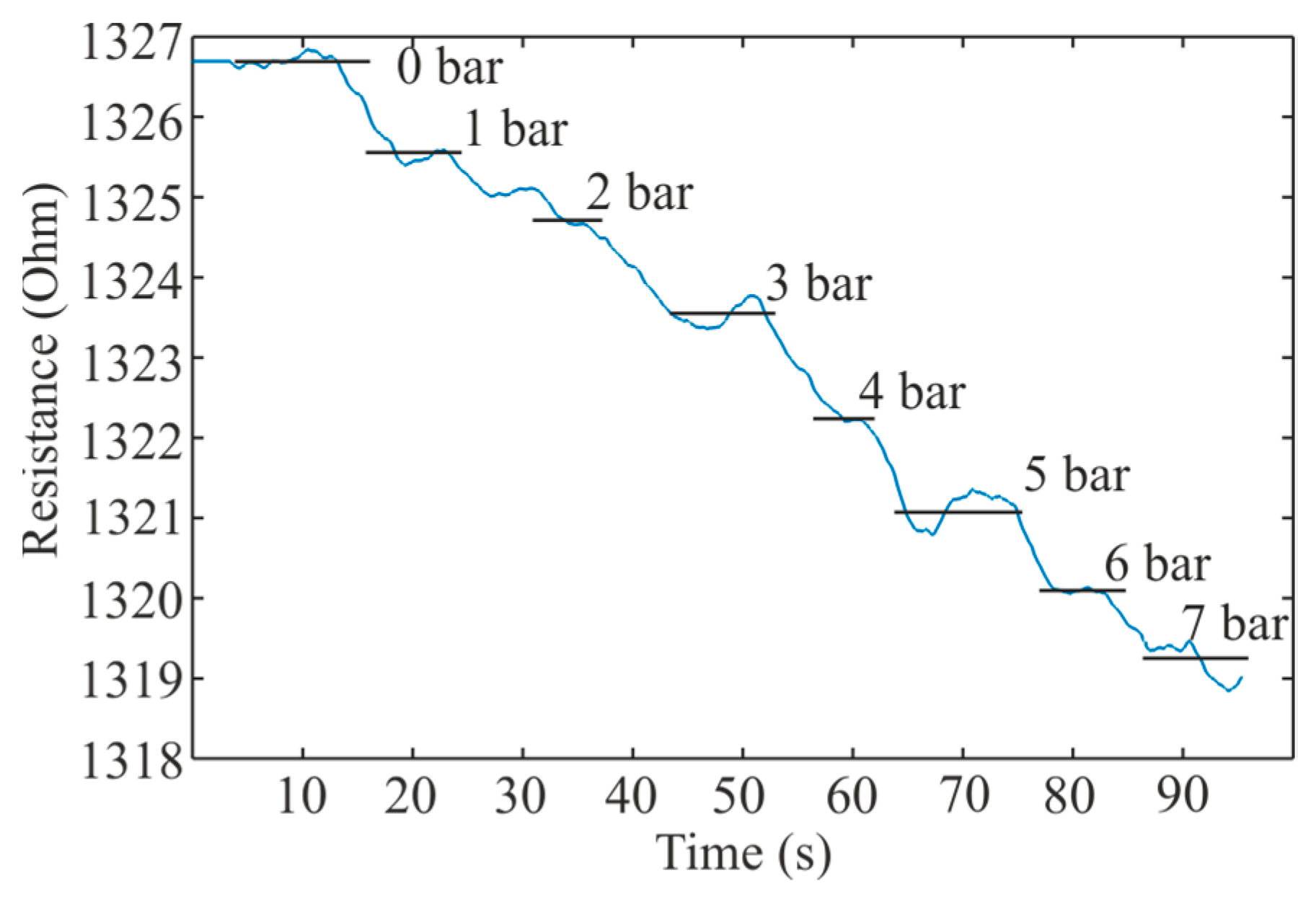

Figure 5 shows the change of the strain gauges resistance over time with different applied pressures. When a pressure of 7 bar is applied to the sealed volume, the resistance decreases by approx. 8 Ω. The average rate of the change of resistance is around 1 Ω/bar. As the change in resistance caused by the applied pressure is in the same range as the change caused by aging, the systems reliability for condition monitoring is limited.
5. Conclusions
The monitoring of the condition of an elastomer gasket during its lifetime with an integrated strain gauge is possible under controlled environmental conditions. The influence of varying temperature on the strain gauges signal can be compensated by adding a second, passive resistive structure to the strain gauge. By contrast, the influence of lateral pressure applied to the gasket causes an unneglectable change in the strain gauges signal, thereby, compromising the system’s ability to monitor the gaskets condition reliably. Hence, in future work we will focus on integrating a pressure sensor into the gasket, which can measure the remaining elastic restoring force within the gasket vertically and at the same time is insensitive to lateral deformation.
Acknowledgments
This research was conducted as part of the IGF-project Nr. 18695N from the German Research Association for Measurement, Controls and Systems Engineering supported by the AiF in the funding structure for industrial co-operative research (IGF) by the Federal Ministry of Economics and Technology based on a decision from the German Bundestag.
Conflicts of Interest
The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.
