Low-Temperature Ordering in the Cluster Compound (Bi8)Tl[AlCl4]3
Faculty of Chemistry and Food Chemistry, Technische Universität Dresden, D-01069 Dresden, Germany
Chair of Inorganic Chemistry, Brandenburg University of Technology Cottbus-Senftenberg, Universitätsplatz 1, D-01968 Senftenberg, Germany
Max Planck Institute for Chemical Physics of Solids, Nöthnitzer Str. 40, D-01187 Dresden, Germany
Author to whom correspondence should be addressed.
Received: 25 February 2019 / Revised: 18 March 2019 / Accepted: 18 March 2019 / Published: 27 March 2019
PDF [1912 KB, uploaded 27 March 2019]
The reaction of Bi, BiCl3
, and TlCl in the ionic liquid [BMIm]Cl·4AlCl3
(BMIm = 1-n
-butyl-3-methylimidazolium) at 180 °C yielded air-sensitive black crystals of (Bi8

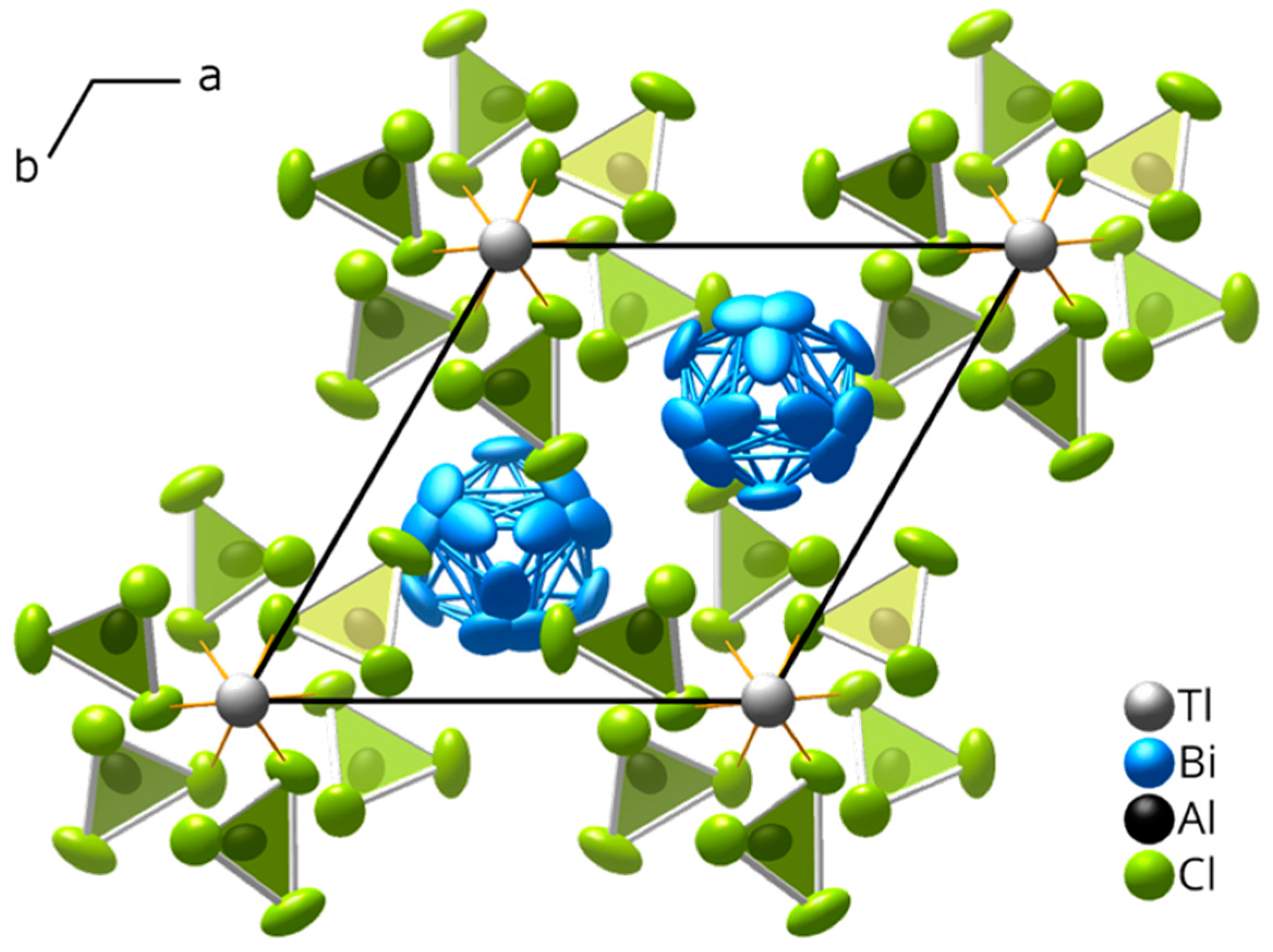

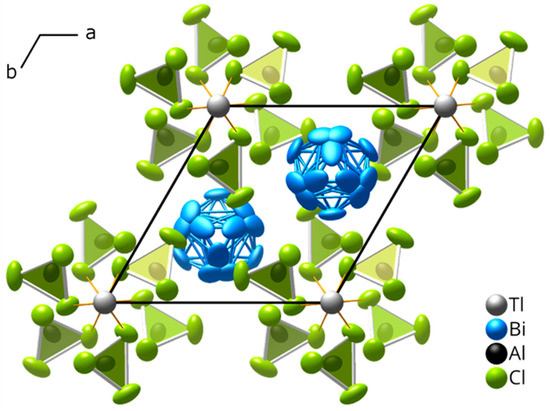

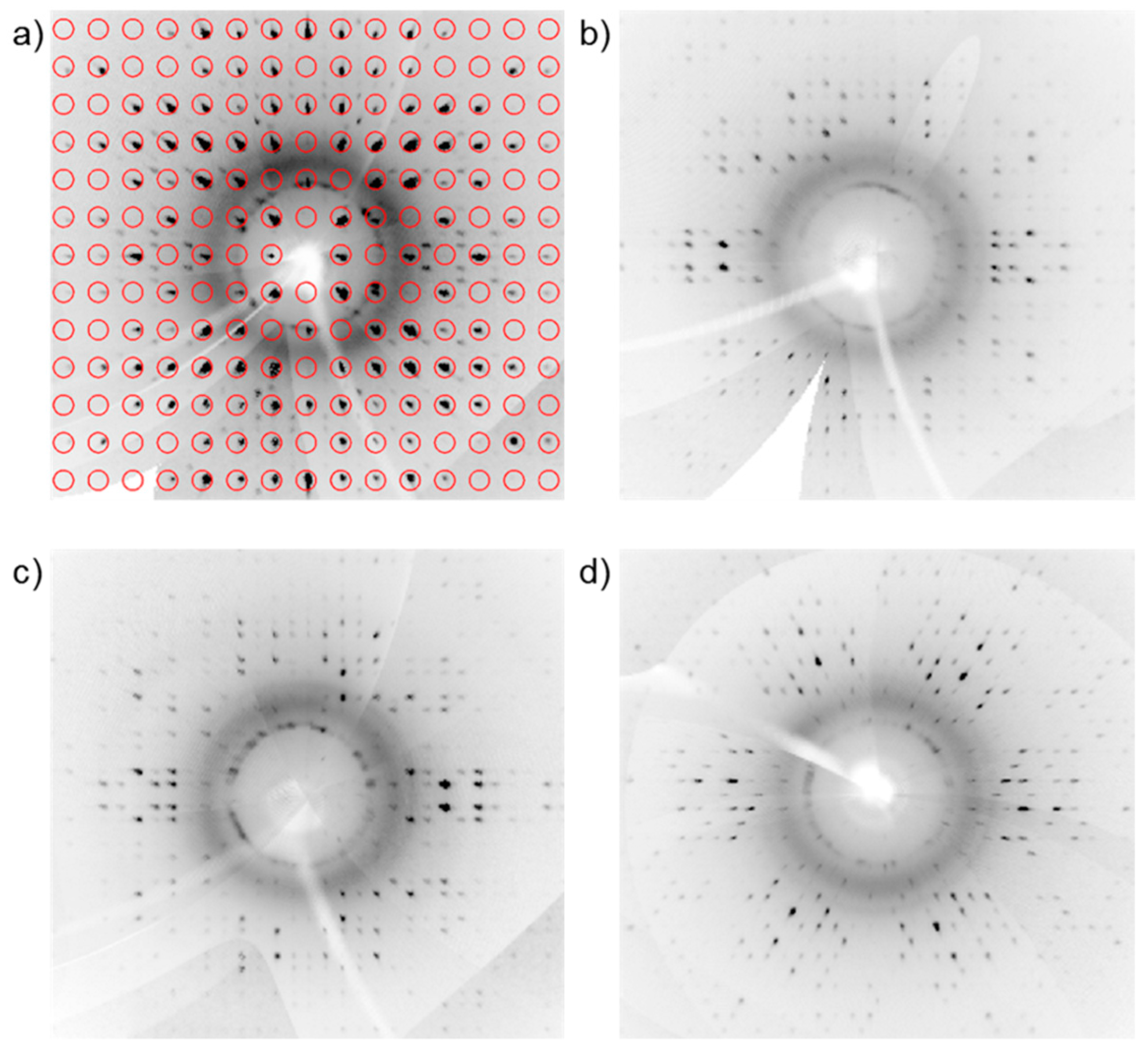

. X-ray diffraction on single crystals at room temperature revealed a structure containing
strands separated by isolated Bi82+

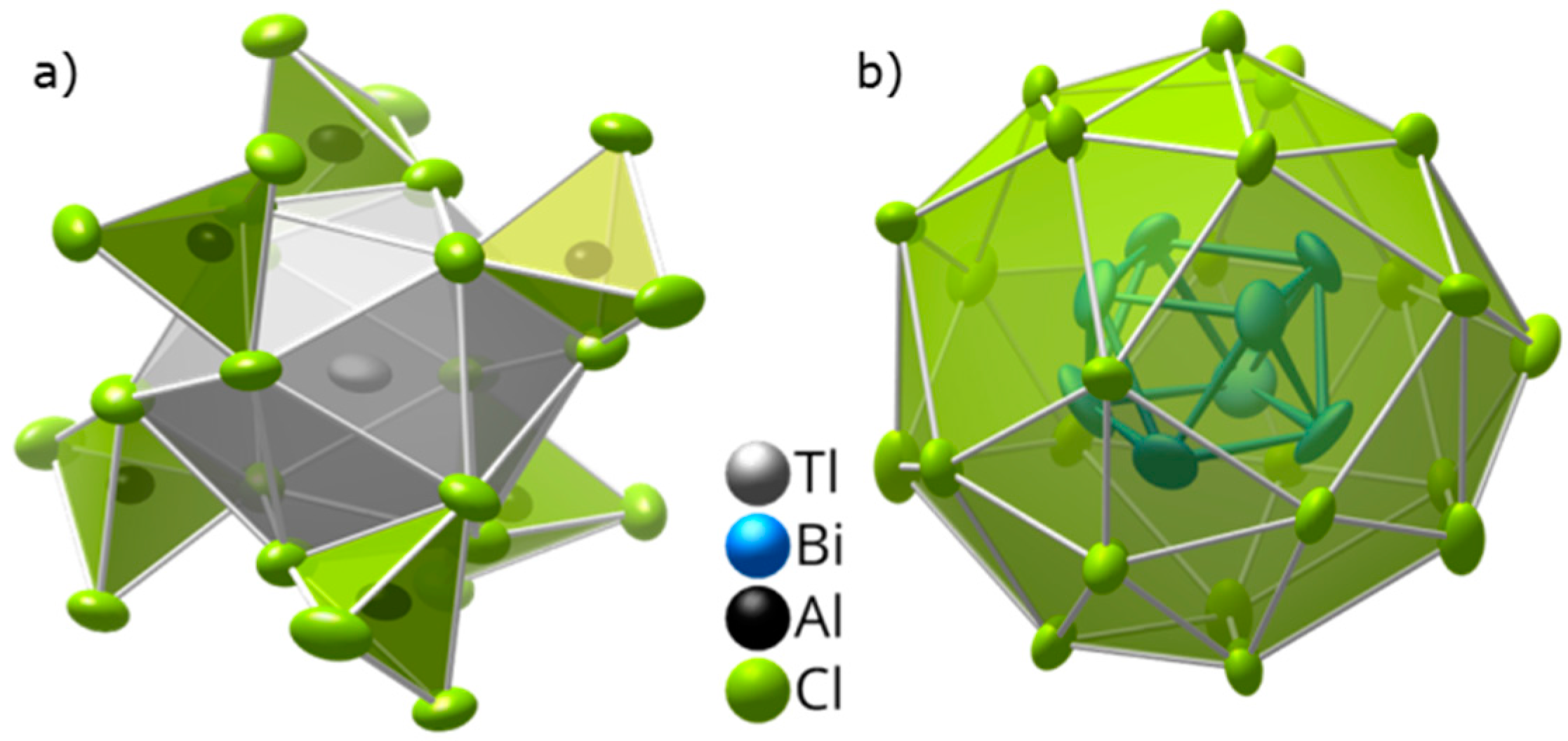

square antiprisms. The thallium(I) ion is coordinated by twelve Cl−
ions of six [AlCl4
groups, resulting in a chain of face-sharing [TlCl12
icosahedra. The Bi82+
polycation is disordered, simulating a threefold axis through its center and overall hexagonal symmetry (space group P

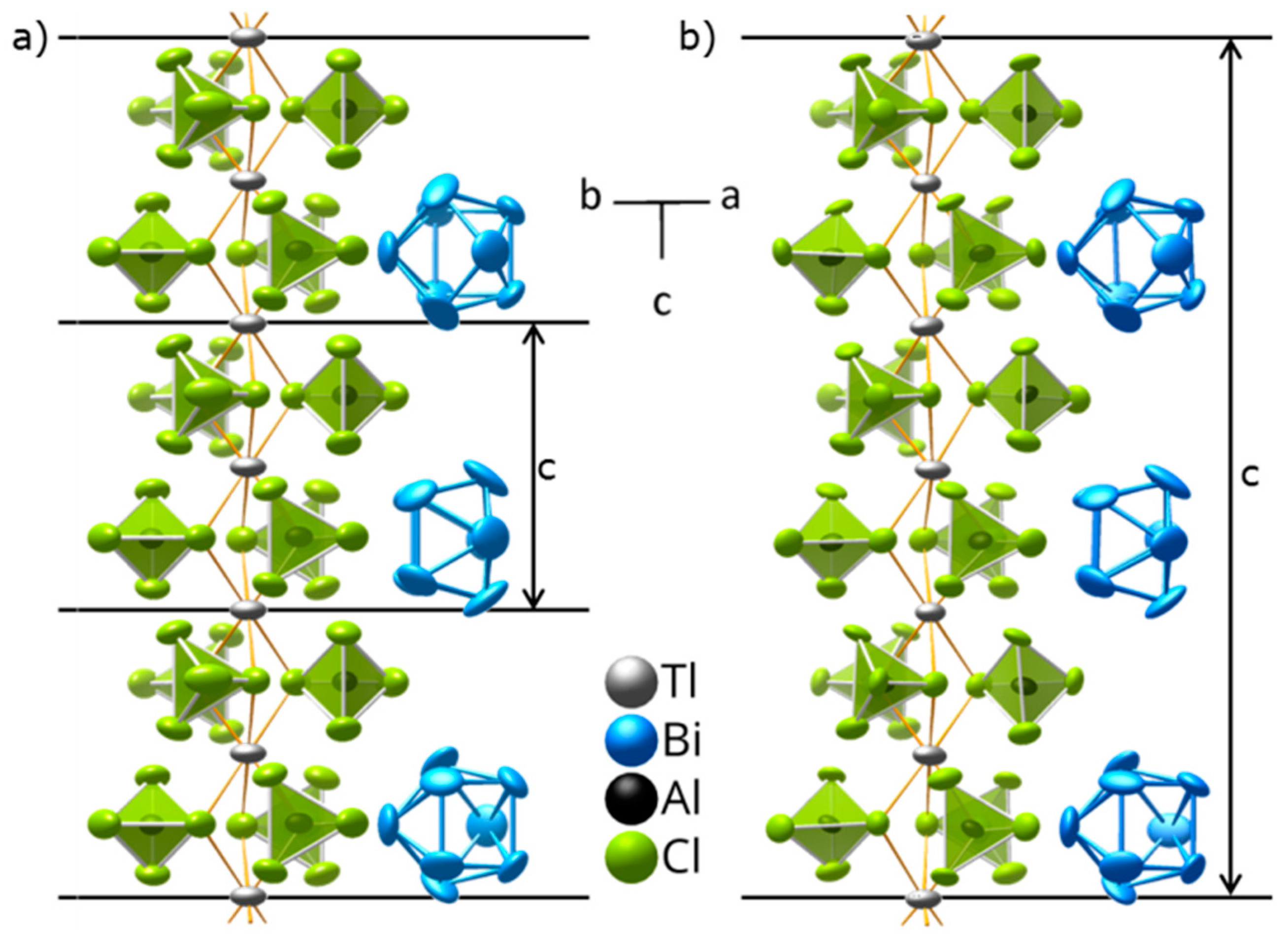

). Slowly cooling the crystals to 170 K resulted in increased order in the Bi8
cluster orientations. An ordered structure model in a supercell with a
’ = 2a
’ = 2b
’ = 3c
and the space group P
was refined. The structure resembles a hexagonal perovskite, with complex groups in place of simple ions.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
