Numerical Simulation of Tritiated Water Transfer by Moist Air in Nuclear Power Station

,
,
,
,
,
and
1
Anhui Advanced Technology Research Institute of Green Building, Anhui Jianzhu University, Hefei 230601, China
2
School of Environment and Energy Engineering, Anhui Jianzhu University, Hefei 230601, China
3
Institute of Nuclear Energy Safety Technology, Hefei Institutes of Physical Science, Chinese Academy of Sciences, Hefei 230031, China
4
School of Materials and Chemical Engineering, Anhui Jianzhu University, Hefei 230601, China
This article belongs to the Section Process Safety and Risk Management

Abstract

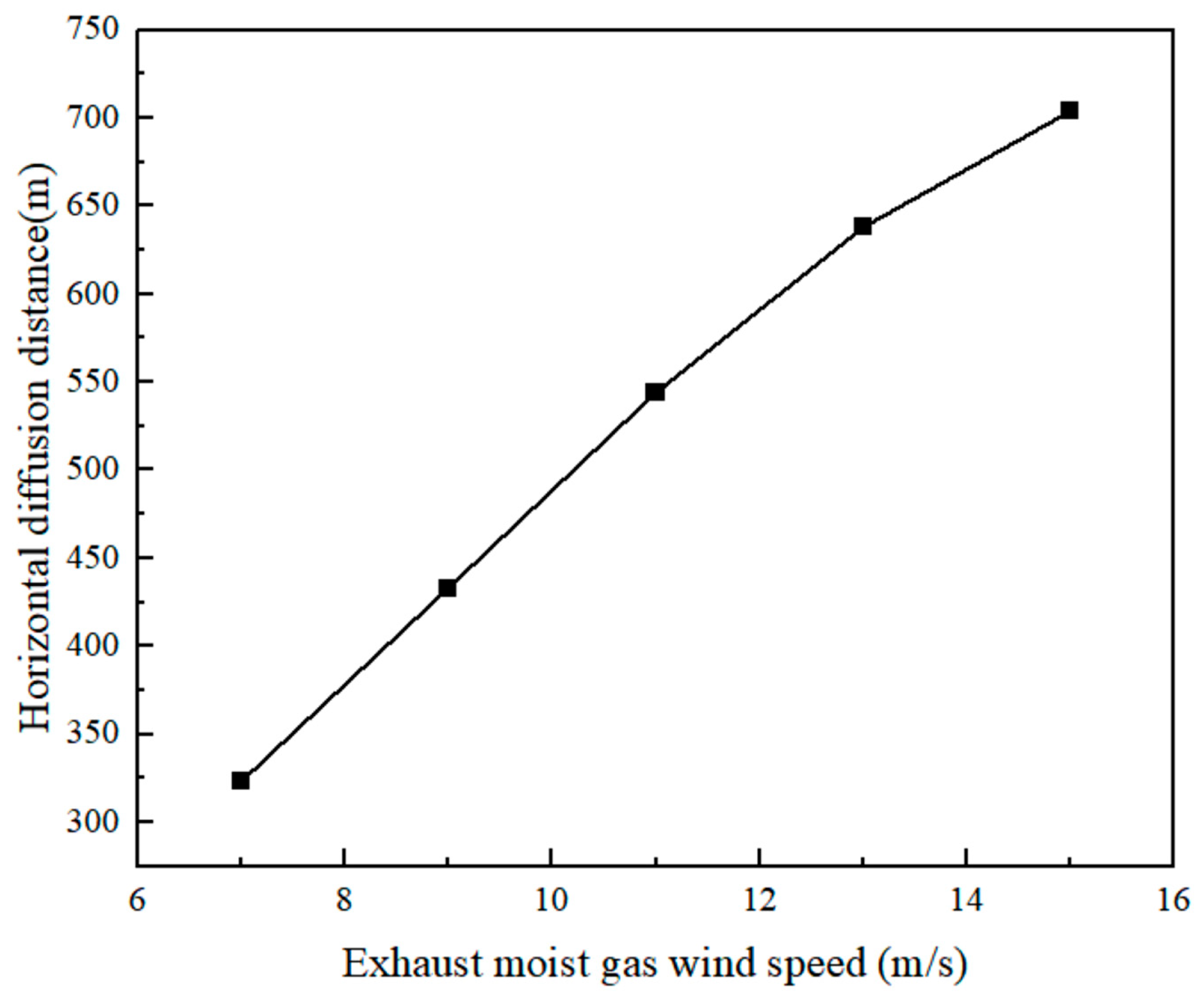

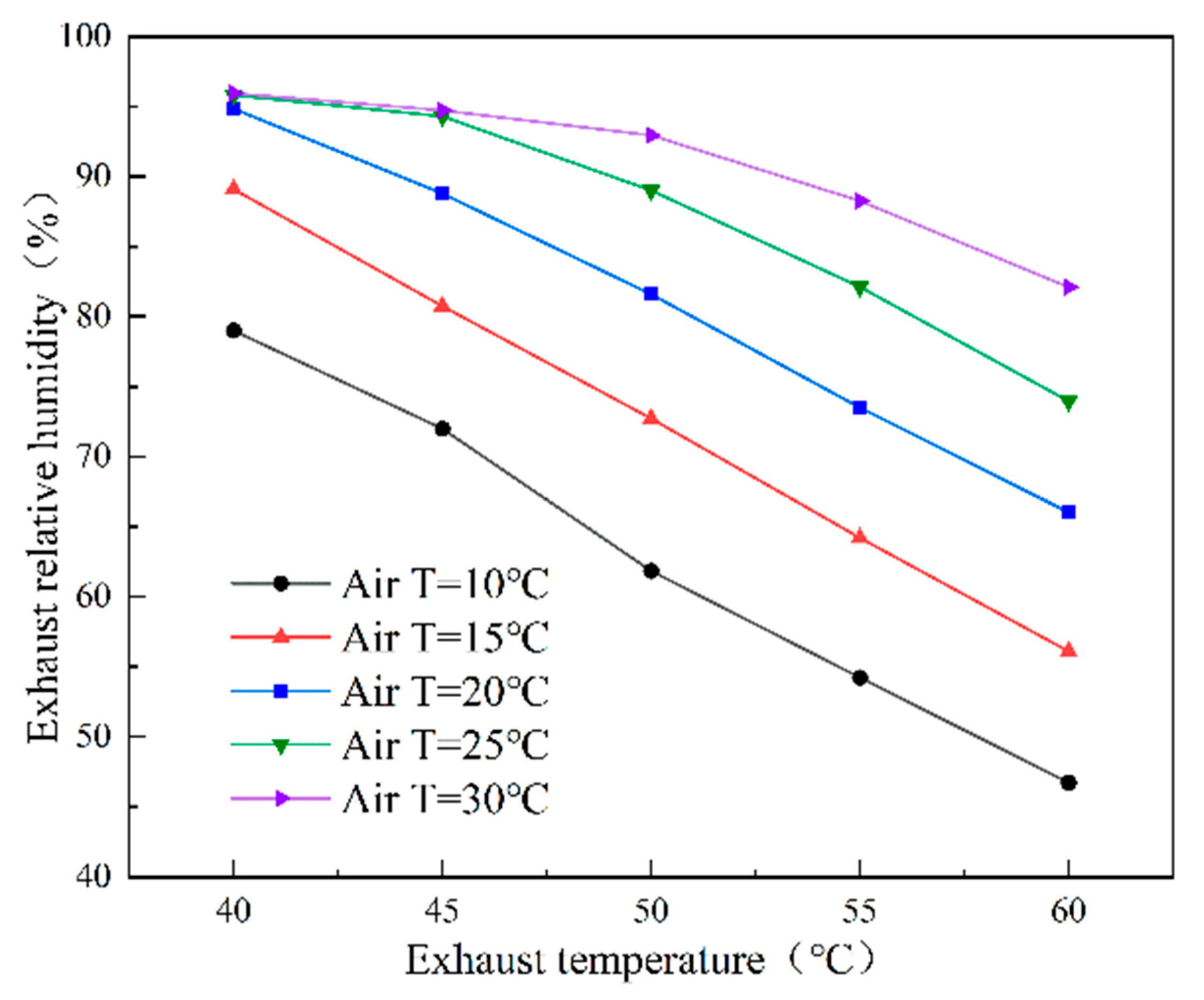

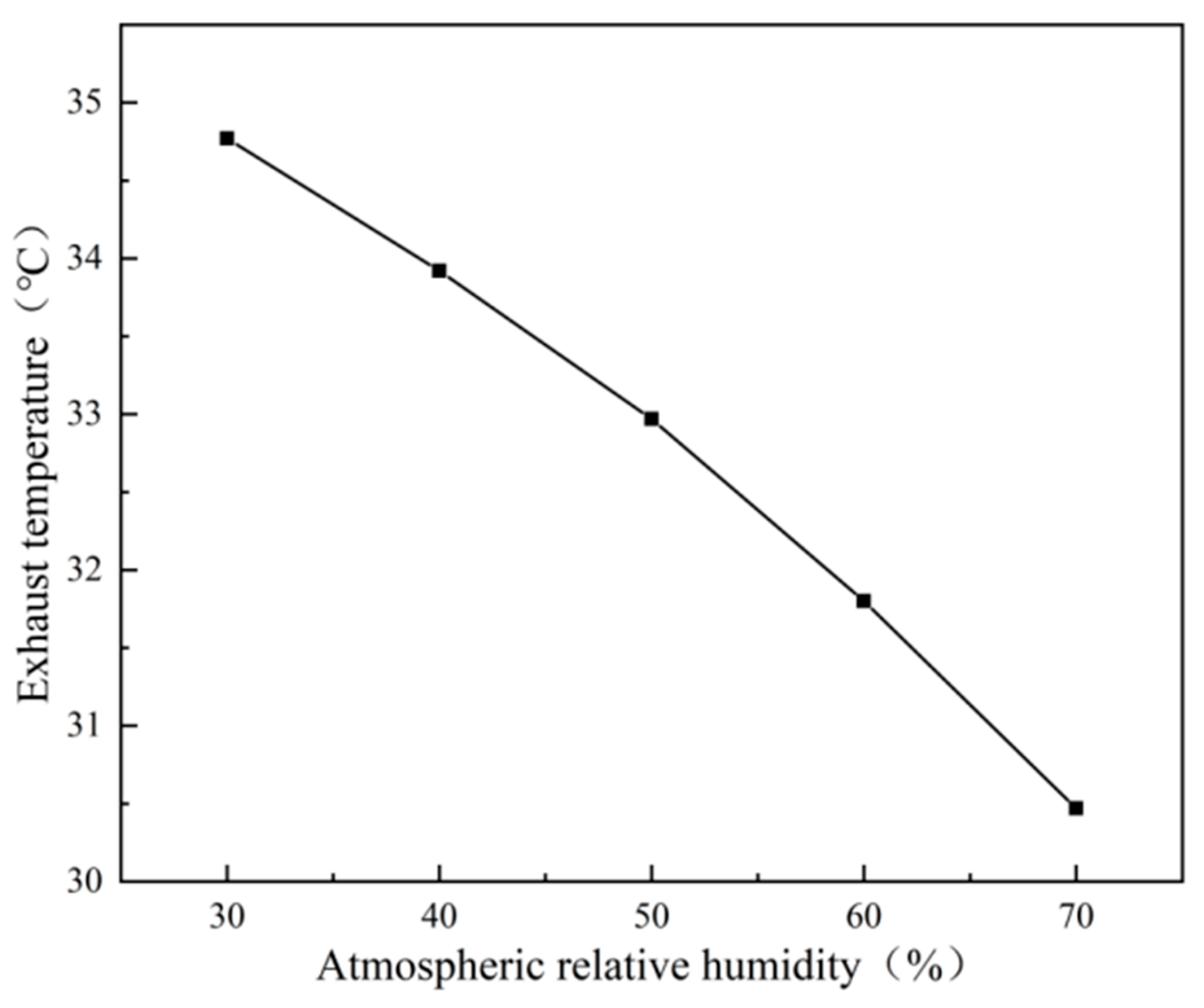

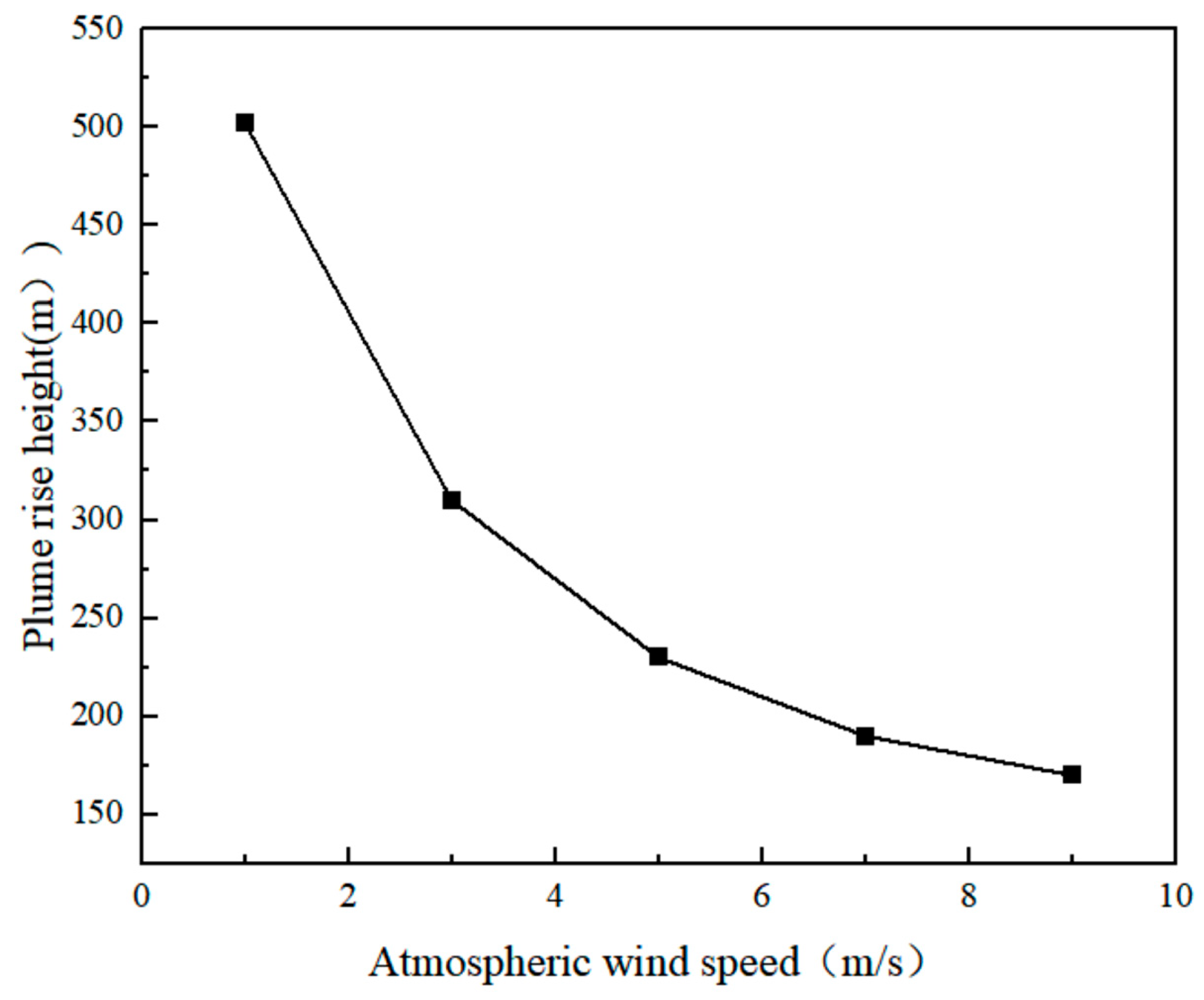

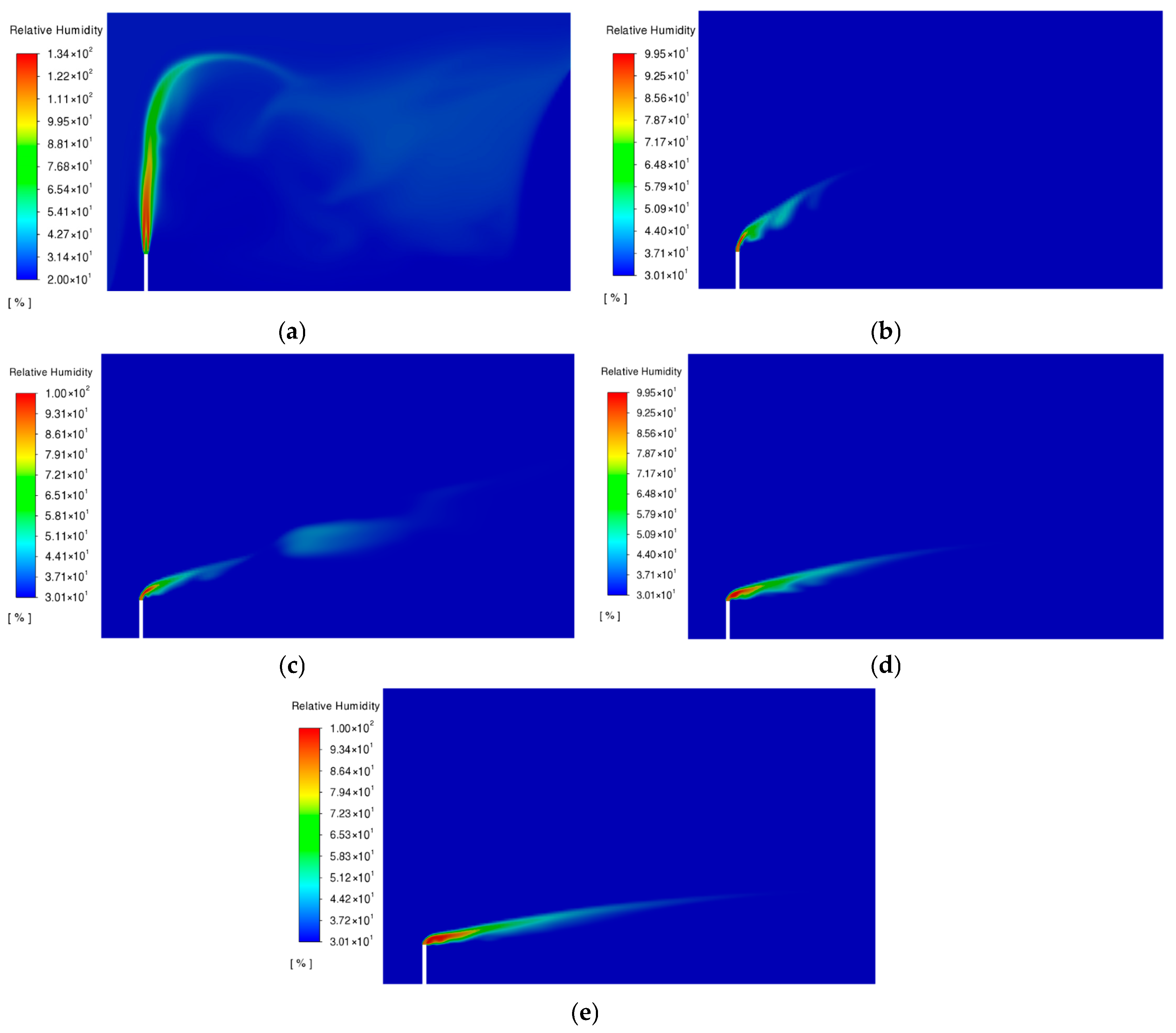

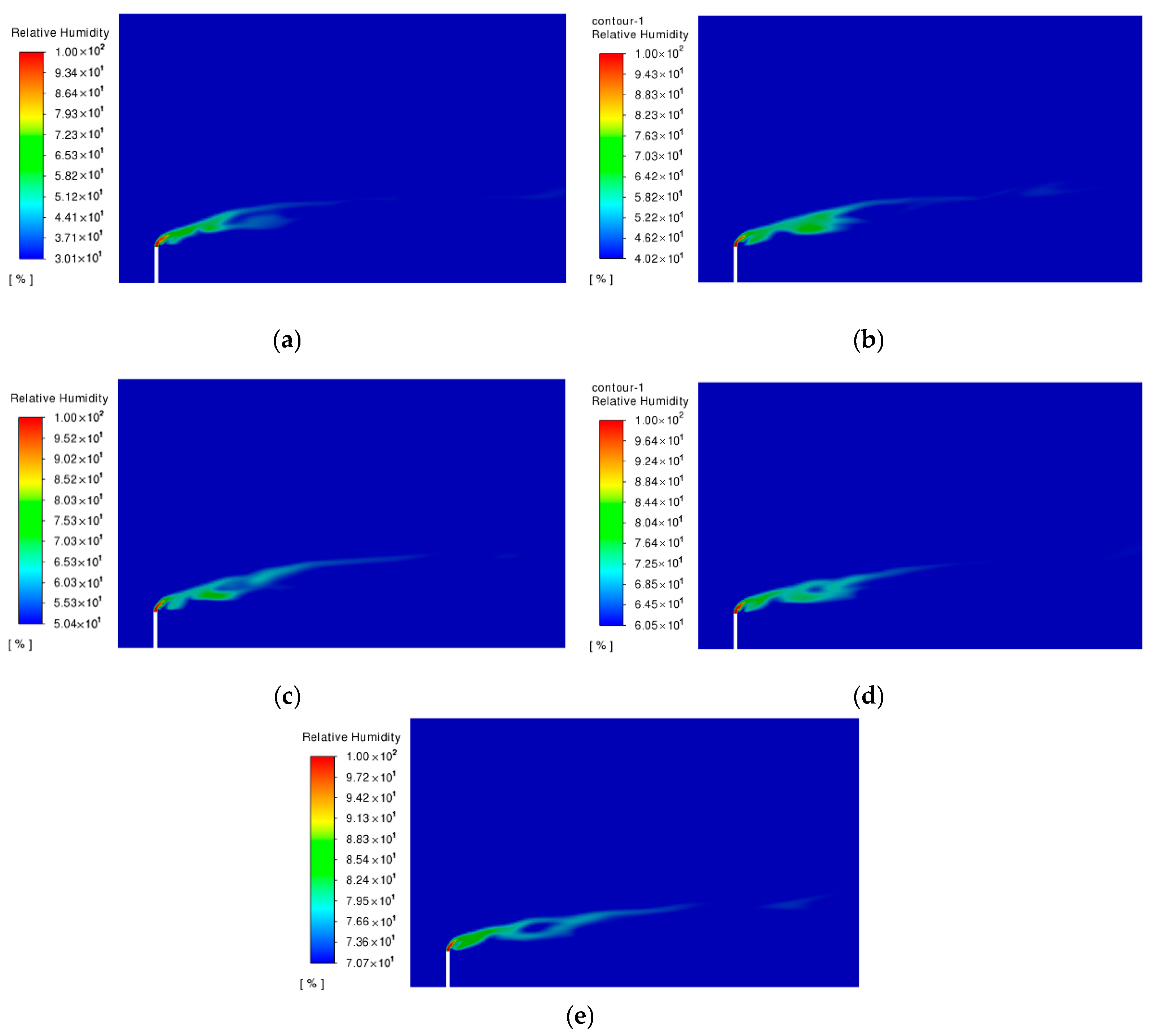

This study investigates the dispersion and condensation behavior of tritiated water vapor released into the atmosphere using moist air as a carrier, with an emphasis on safety optimization for nuclear power plant effluent discharge. A coupled heat and mass transfer model was developed and implemented in CFD simulations to analyze the evolution of temperature and relative humidity during the mixing of exhaust moist air with ambient air. The effects of key atmospheric and operational parameters—including the ambient wind speed, turbulence intensity, ambient temperature, relative humidity, and exhaust velocity—were systematically examined. The results indicate that the temperature difference between the exhaust gas and ambient air is the primary factor governing condensation risk. Low wind speeds and weak turbulence favor near-field humidity accumulation, while higher wind speeds and turbulence intensities enhance mixing and dilution, thereby reducing local humidity peaks but extending the downwind impact range. Increasing exhaust velocity strengthens plume rise and long-range transport due to enhanced momentum and latent heat release, mitigating accumulation near the chimney outlet. Furthermore, high ambient temperatures significantly increase the air’s moisture-holding capacity, allowing higher exhaust humidity without inducing condensation.
