Experimental Study on Water-Hammer-Effect Fracturing Based on High-Frequency Pressure Monitoring

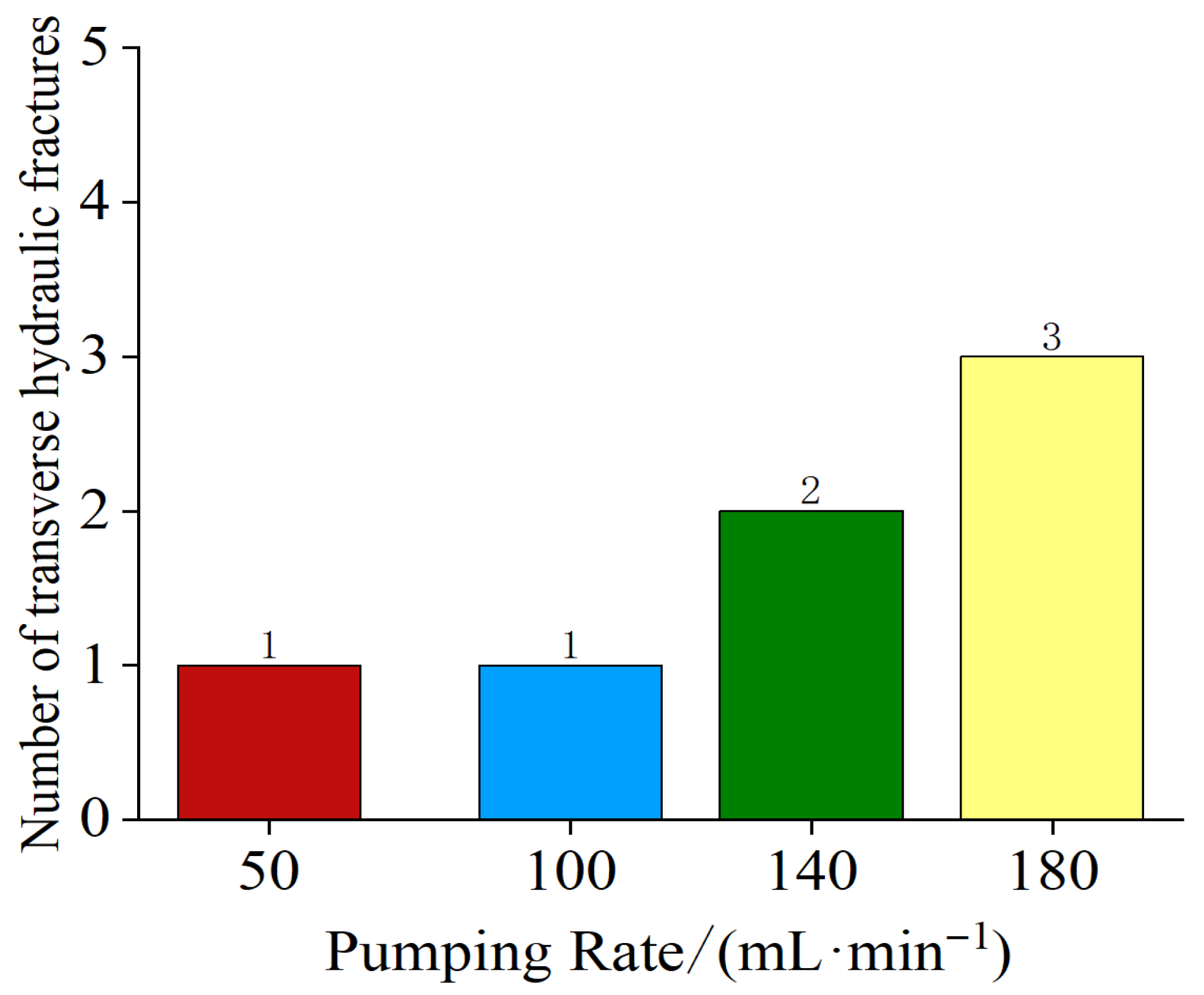

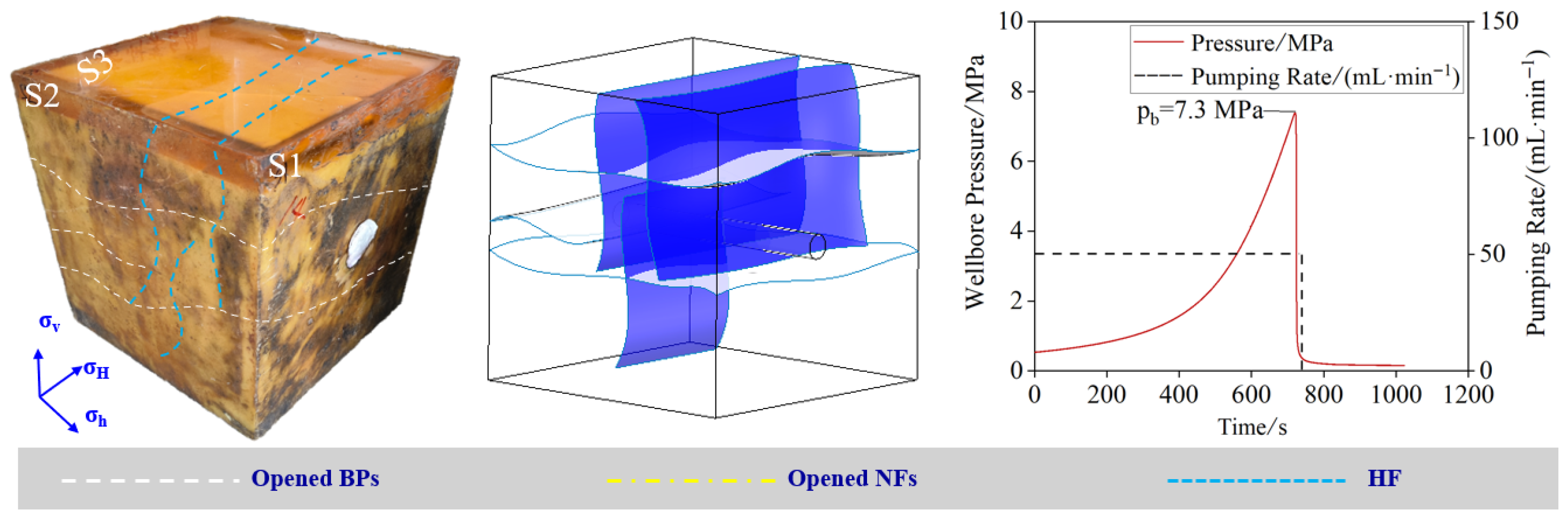

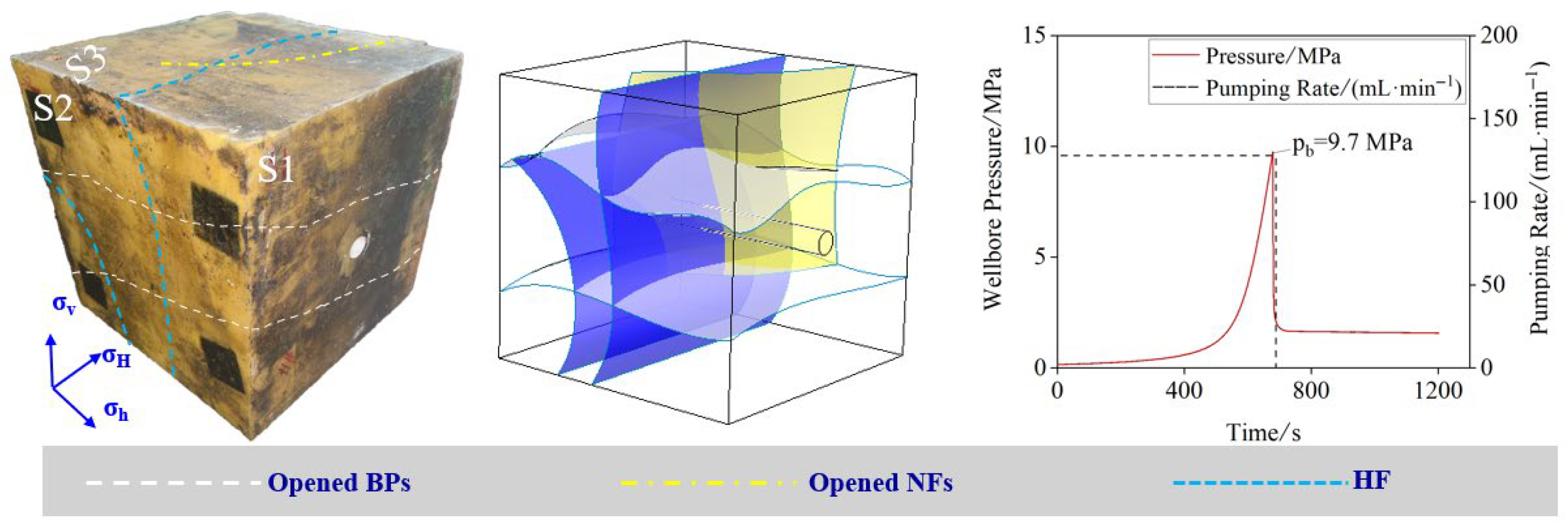

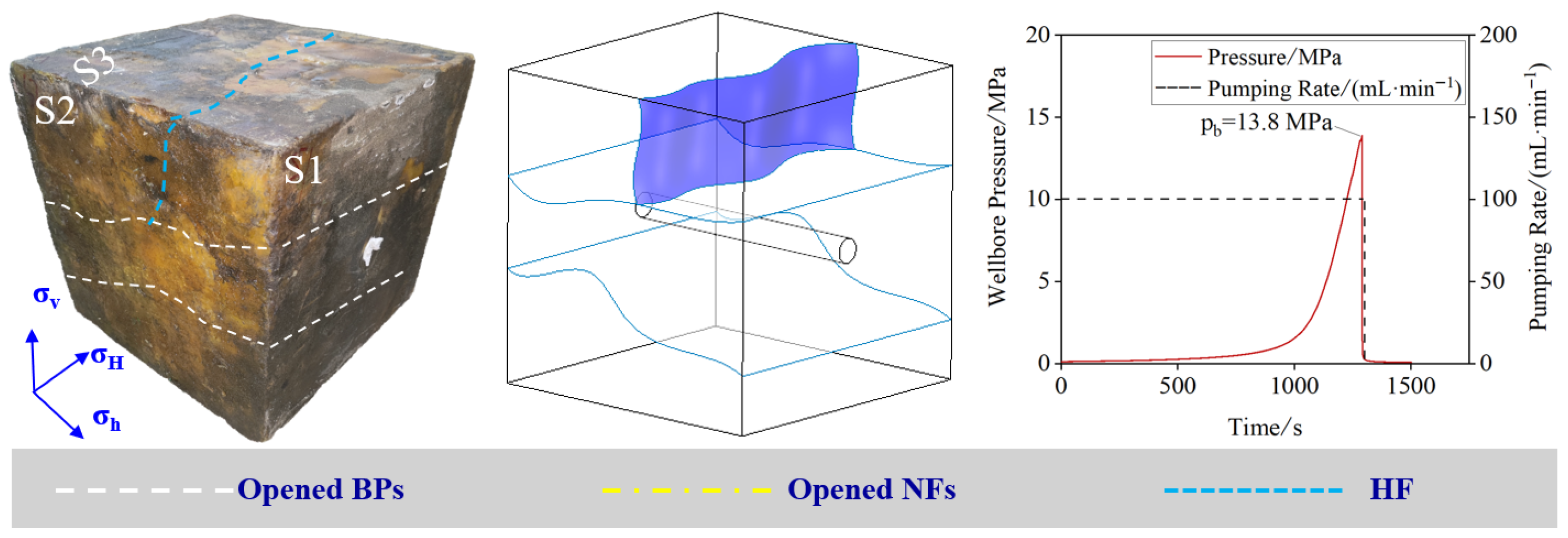

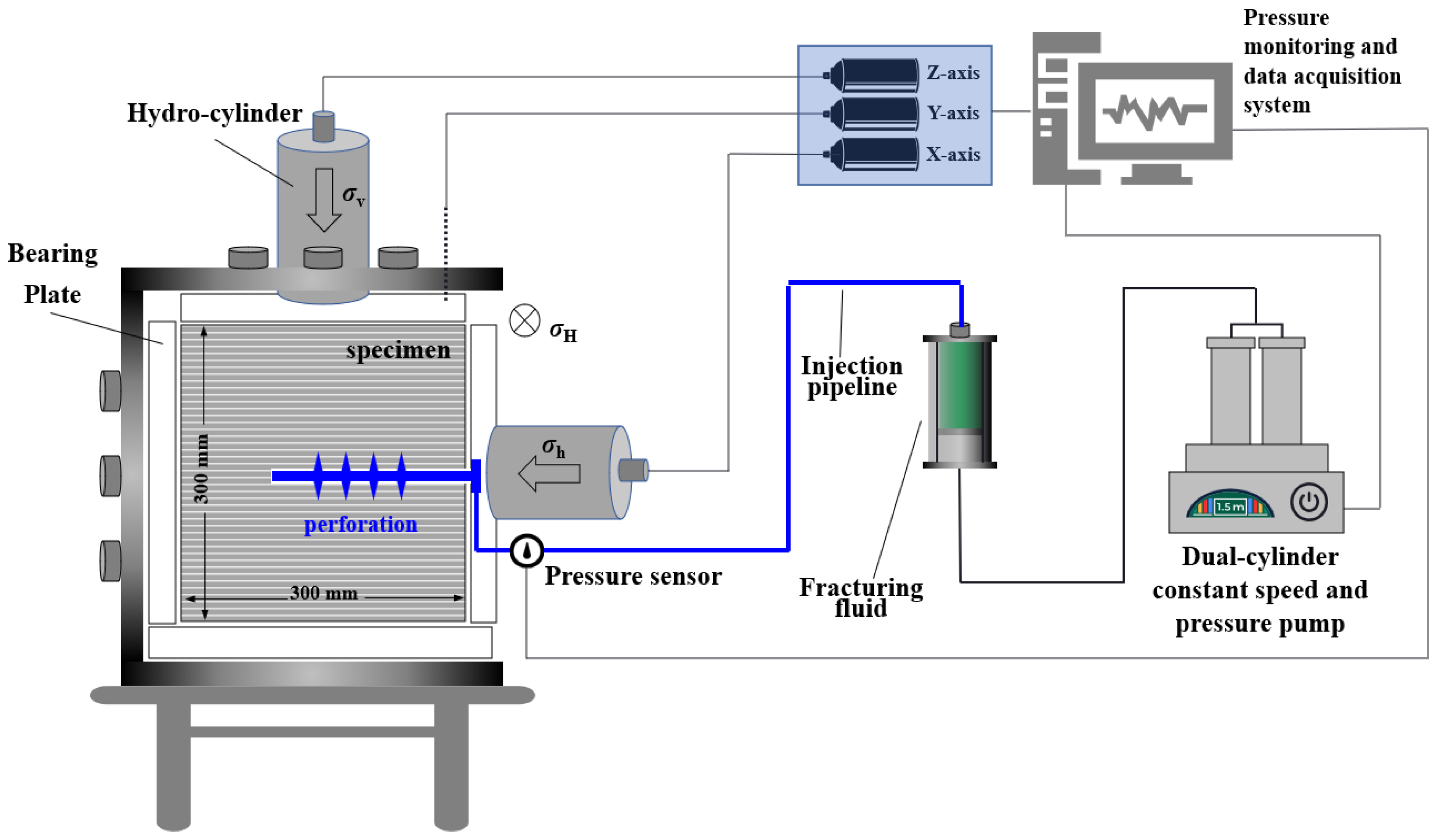

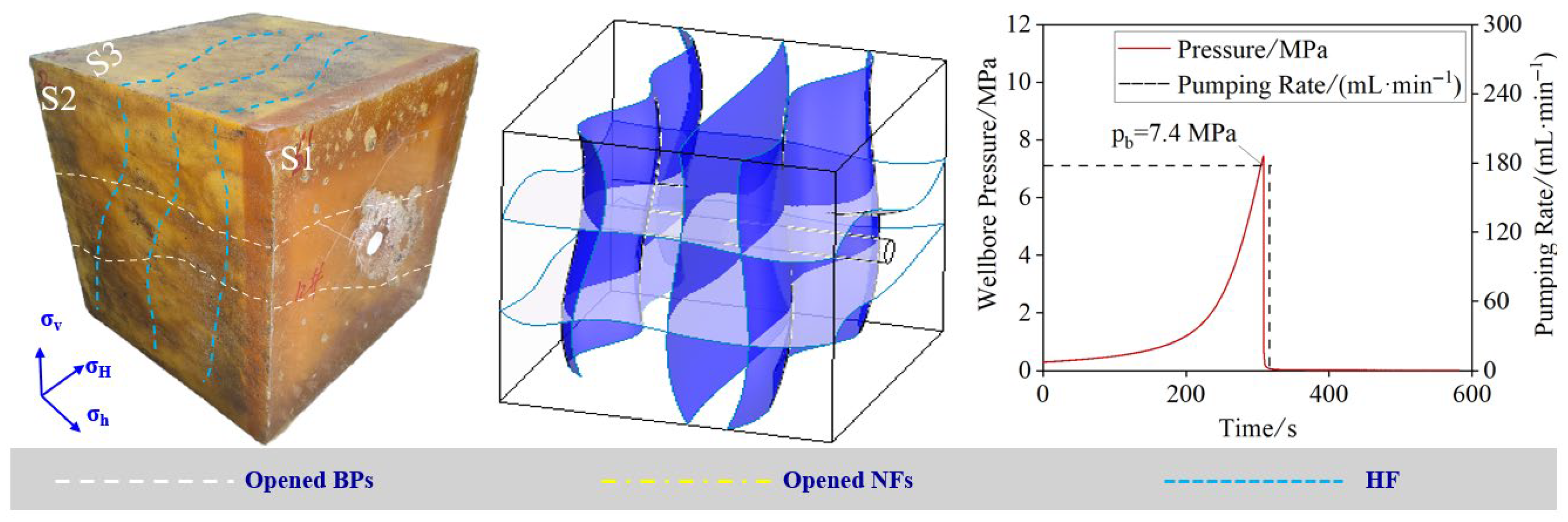

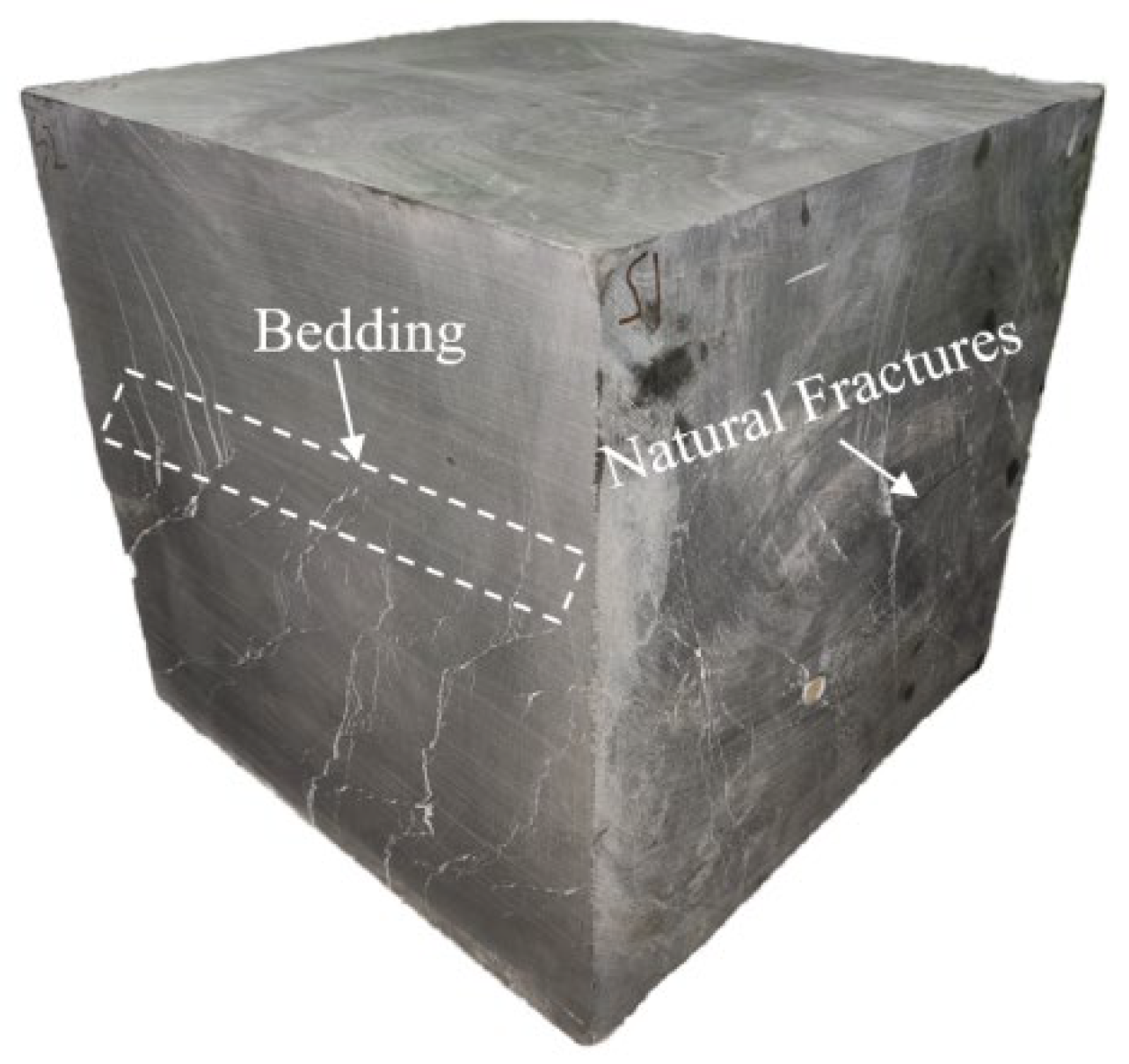

Horizontal well multi-stage fracturing is the primary technology for deep shale gas development, but dense multi-cluster fractures are prone to non-uniform initiation and propagation, requiring real-time monitoring and interpretation techniques to adjust fracturing parameters. Although high-frequency water hammer pressure-monitoring technology shows diagnostic potential, the correlation mechanism between pressure response characteristics and multi-cluster fracture morphology remains unclear. This study utilized outcrop rock samples from the Longmaxi Formation shale to construct a long-injection-tube pipeline system and a 1 kHz high-frequency pressure acquisition system. Through a true triaxial fracturing simulation test system, it systematically investigated the effects of flow rate (50–180 mL/min) and fracturing fluid viscosity (3–15 mPa·s) on water hammer signal characteristics and fracture morphology. The results reveal that when the flow rate rose from 50 mL/min to 180 mL/min, the initiation efficiency of transverse fractures significantly improved, artificial fractures more easily broke through bedding plane limitations, and fracture height propagation became more complete. When the fracturing fluid viscosity increased from 3–5 mPa·s to 12–15 mPa·s, fracture height propagation and initiation efficiency significantly improved, but fewer bedding plane fractures were activated. The geometric complexity of fractures positively correlated with the water hammer decay rate. This research demonstrates a link between water hammer signal features and downhole fracture morphology, giving a theoretical basis for field fracturing diagnostics.
