Shock Control on a Double-Fuselage Aircraft with a Natural Laminar Flow Wing

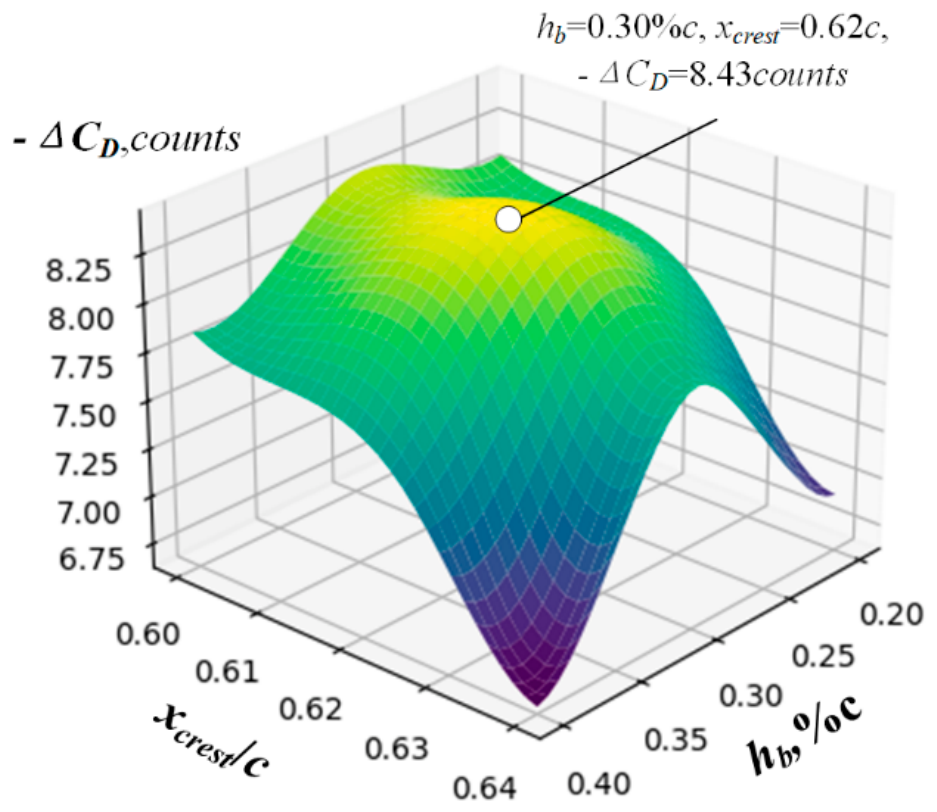

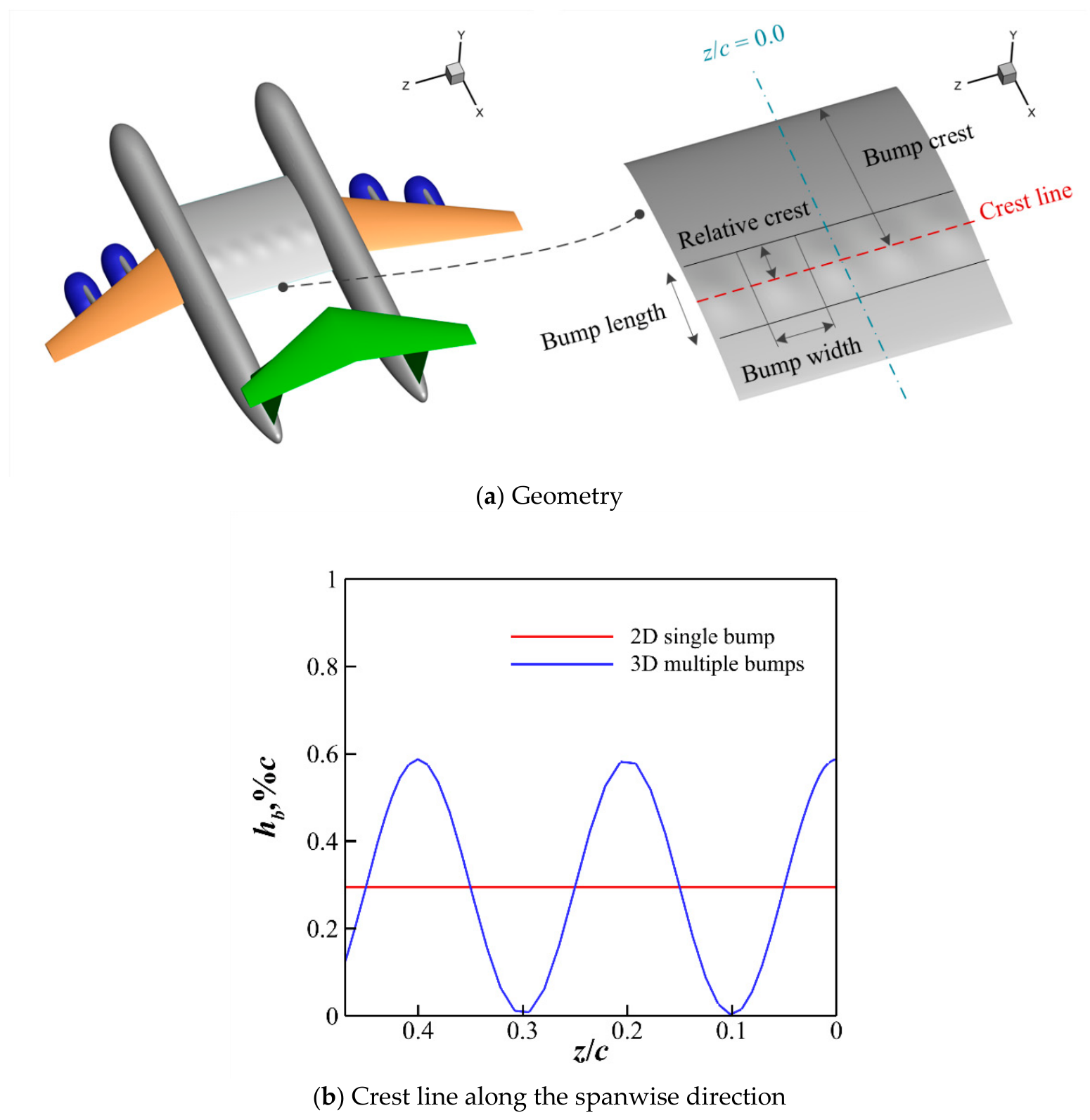

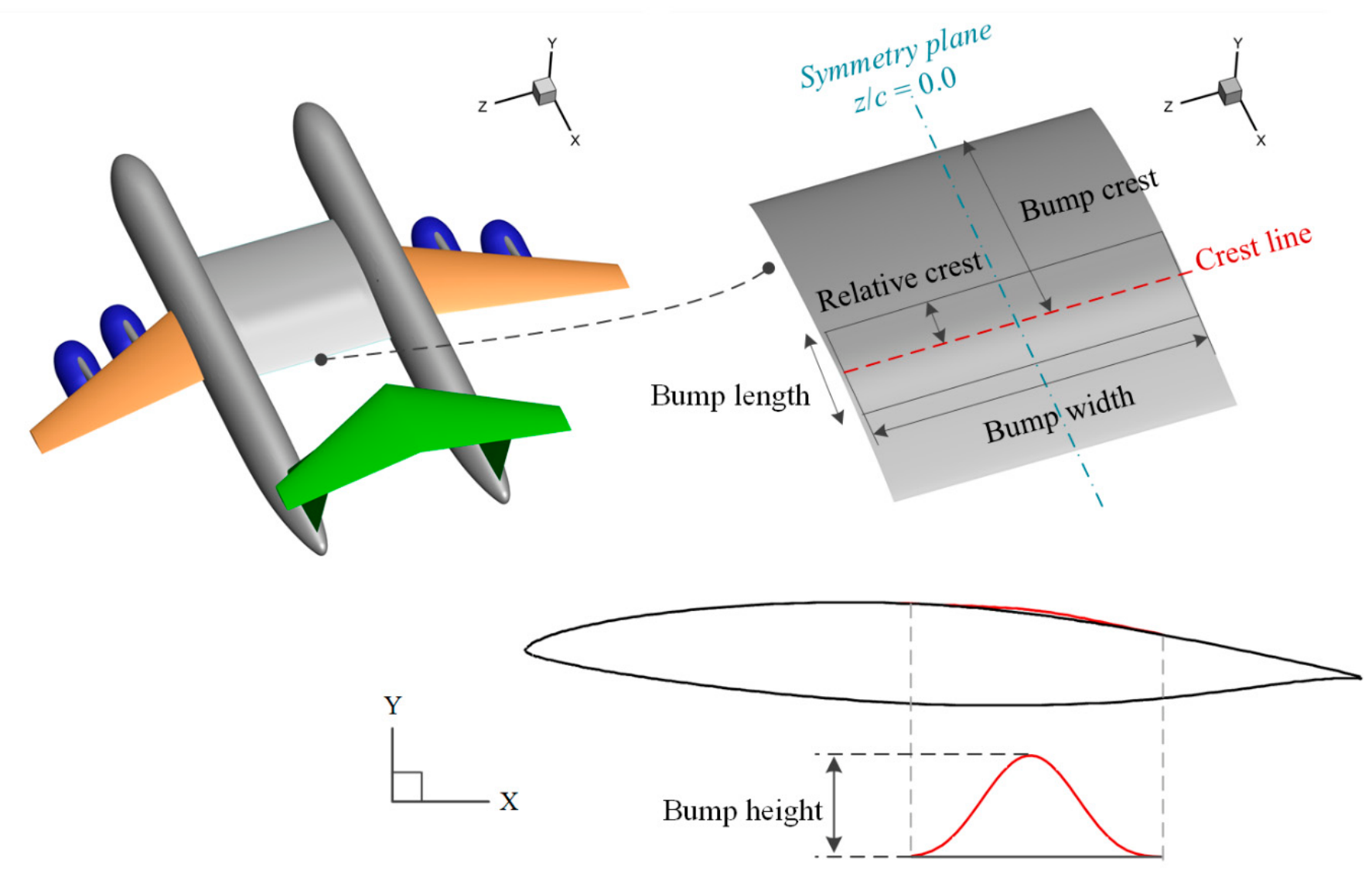

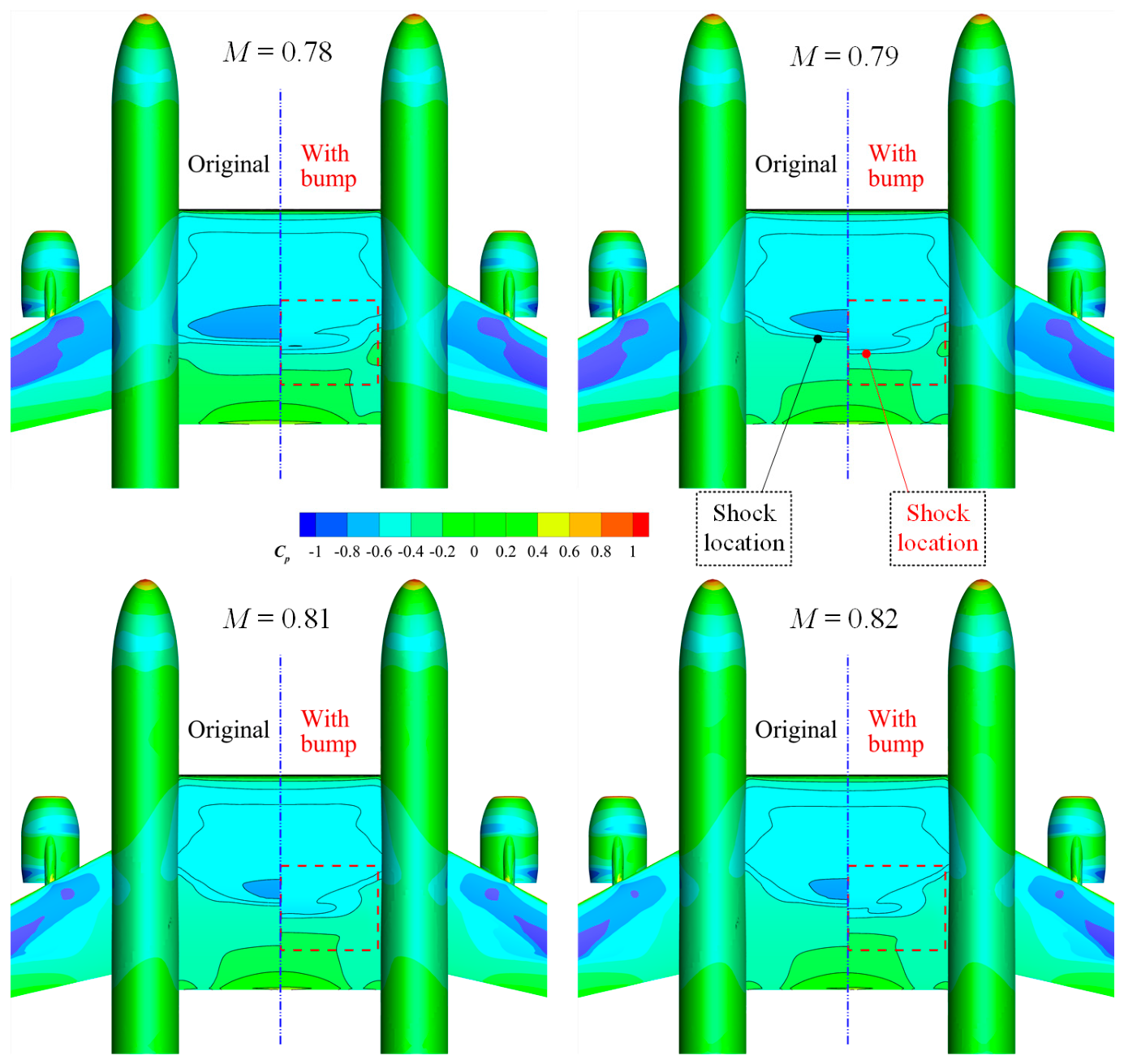

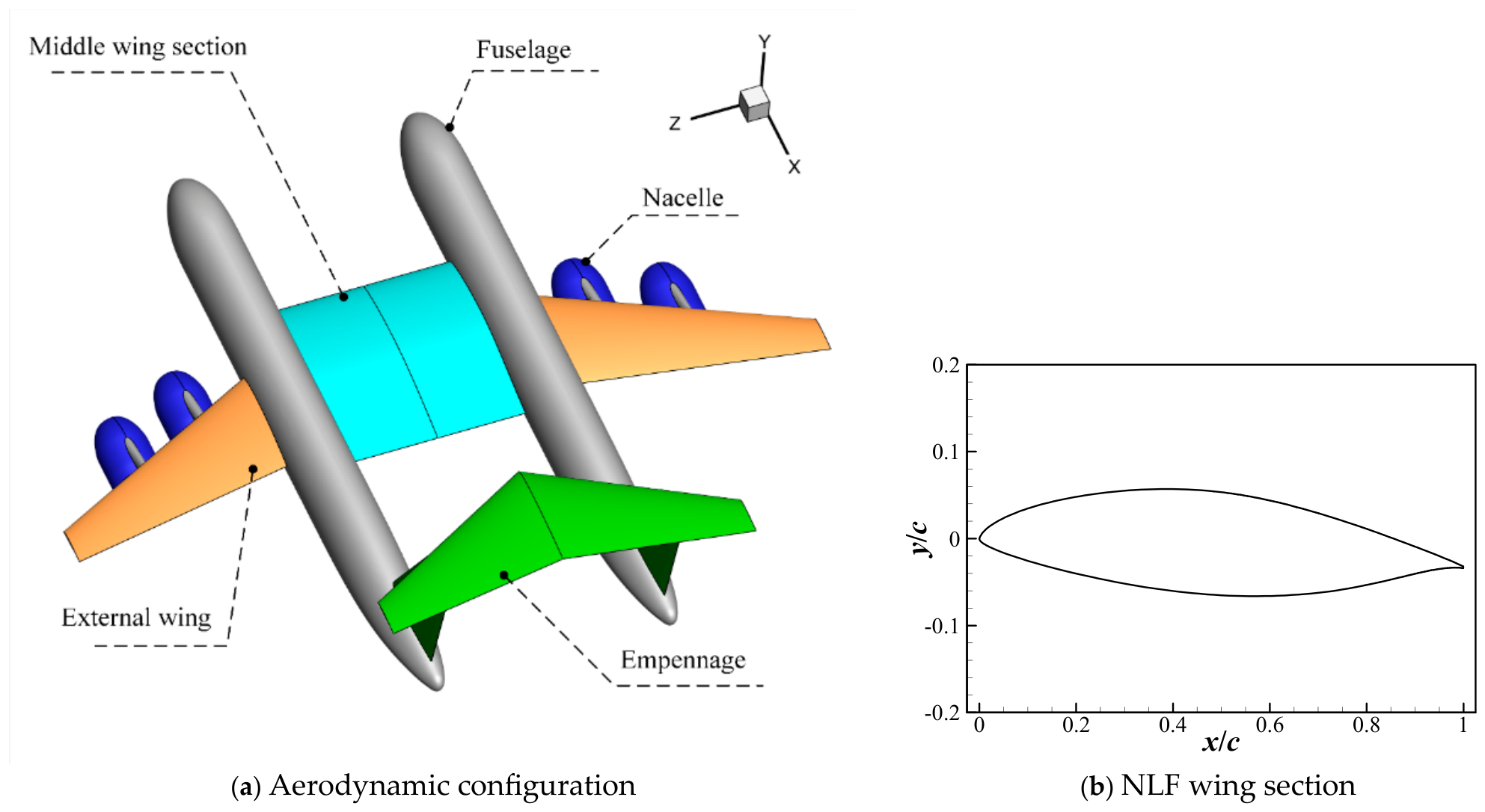

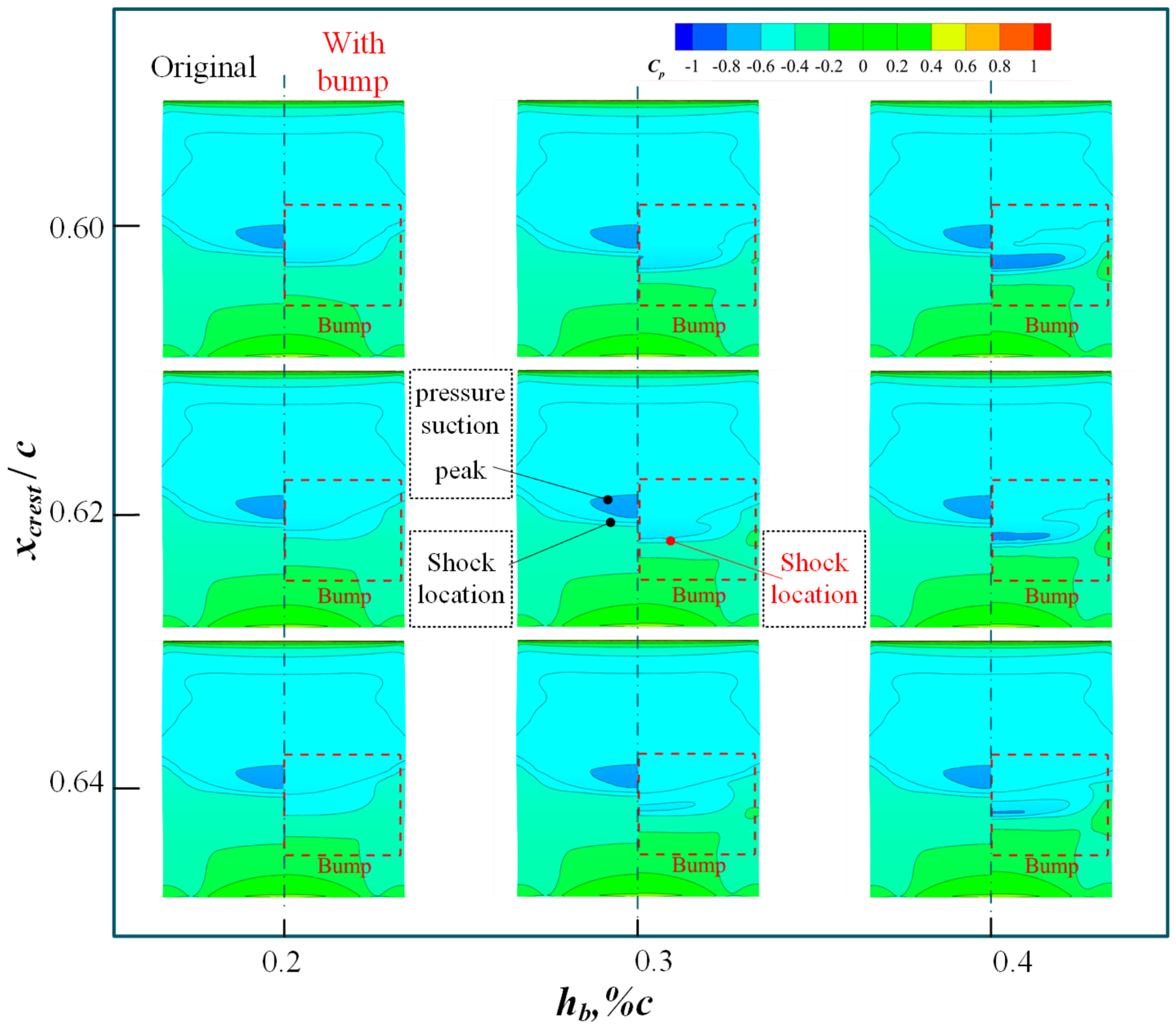

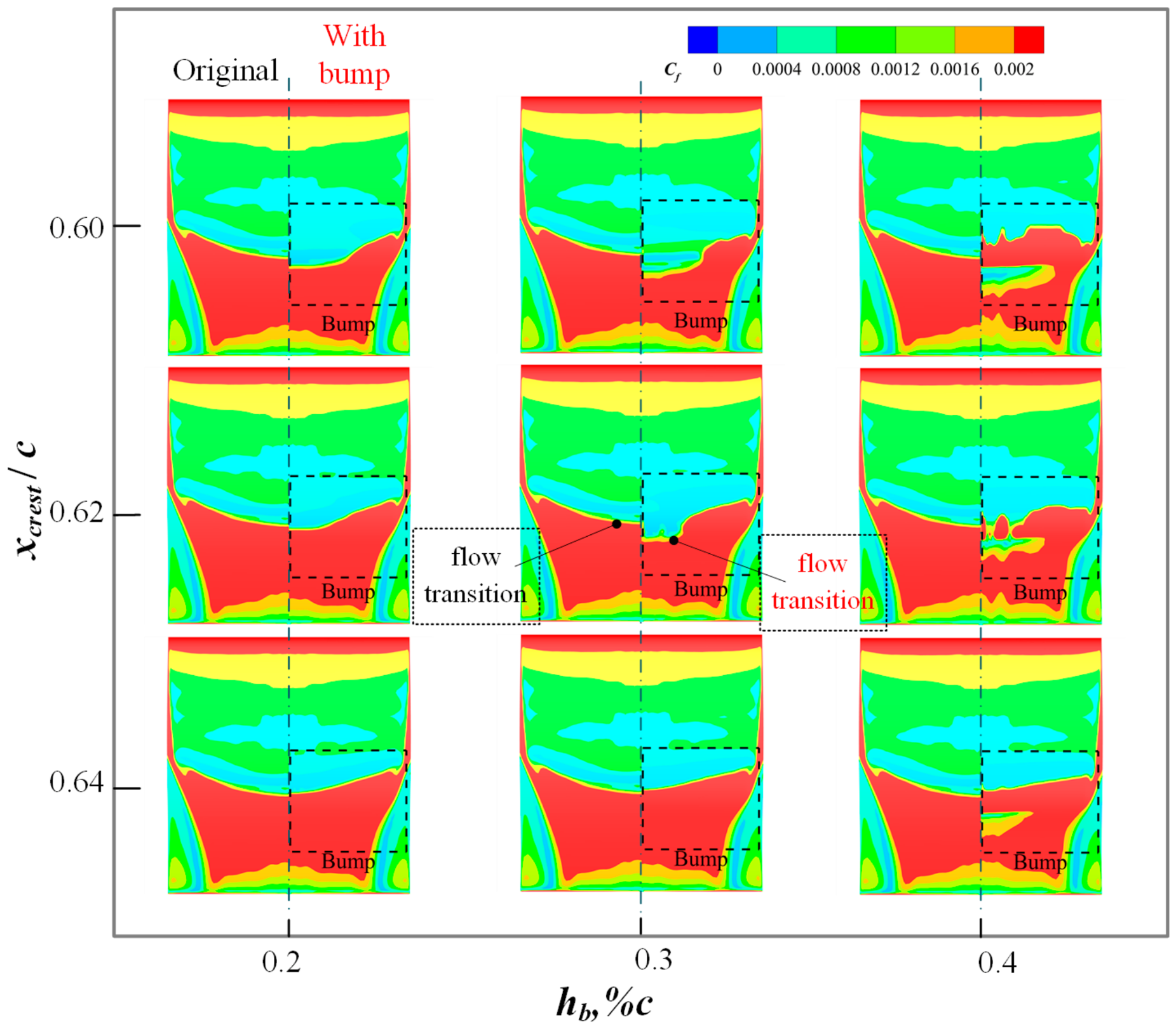

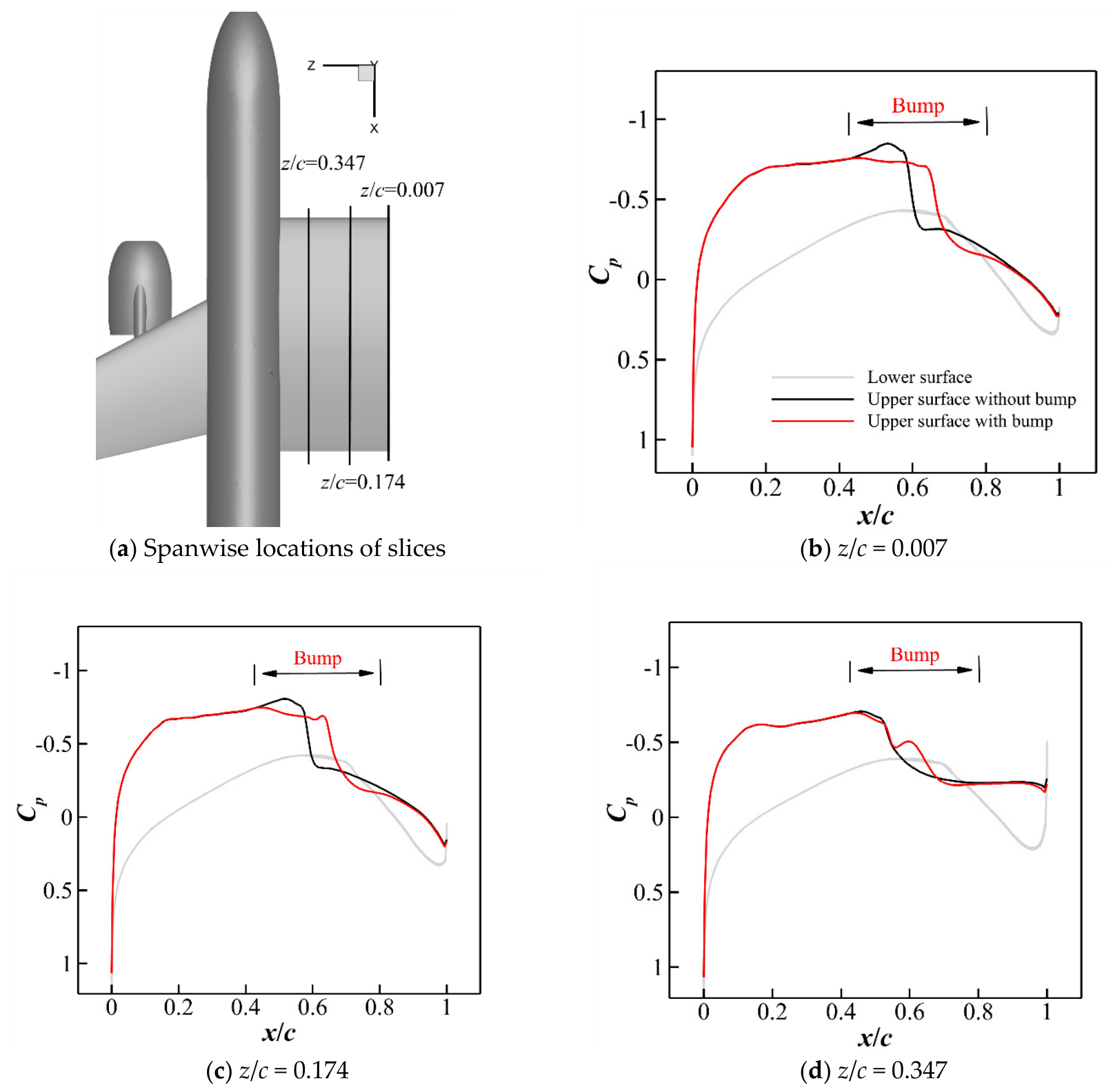

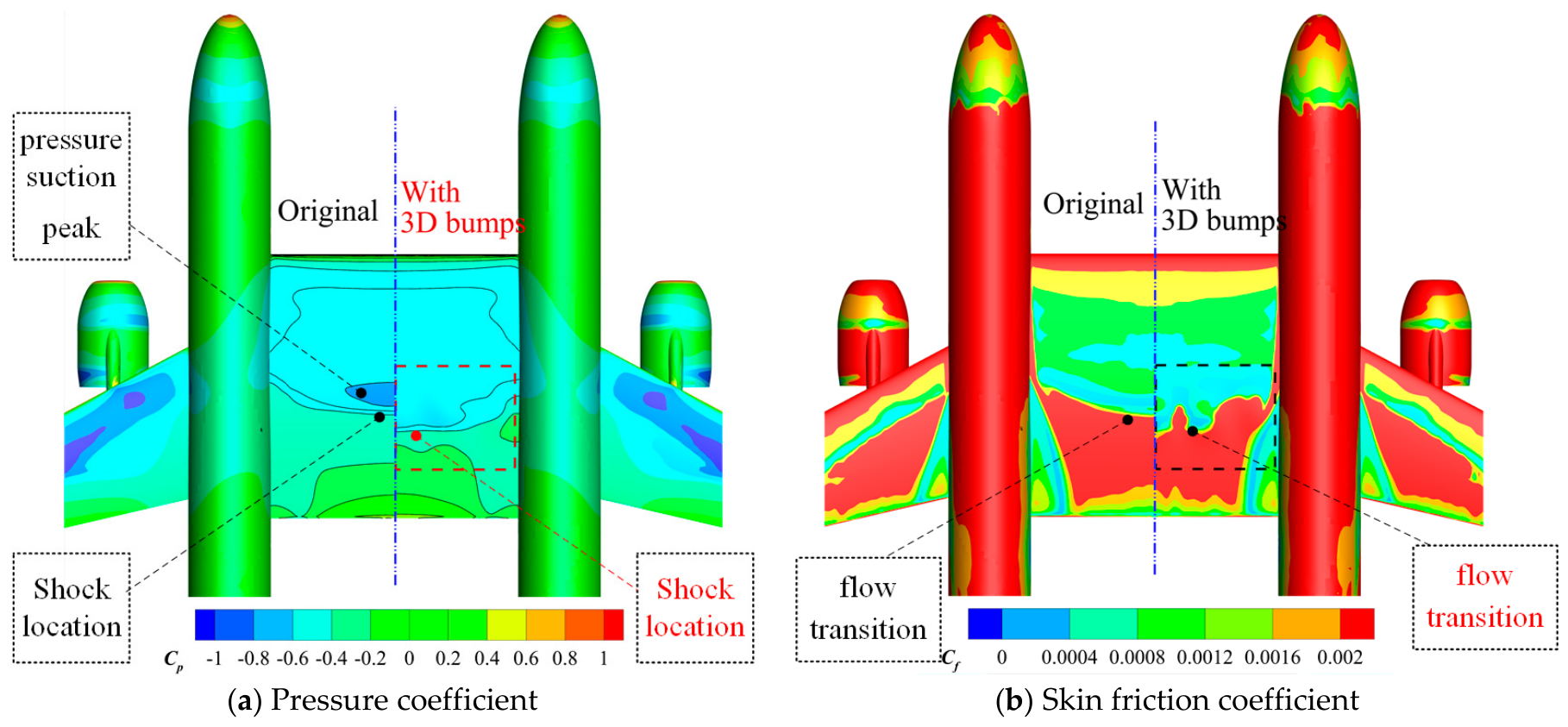

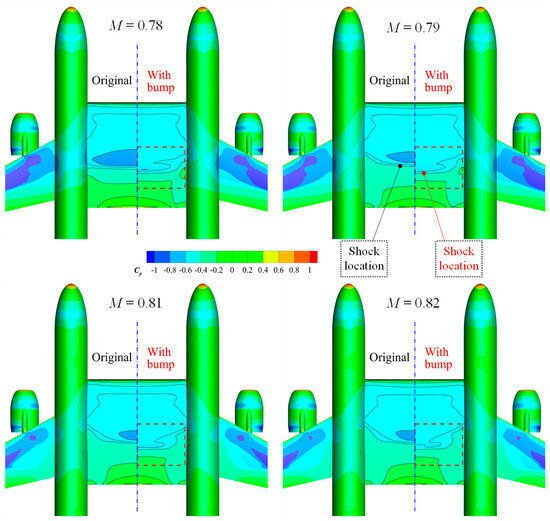

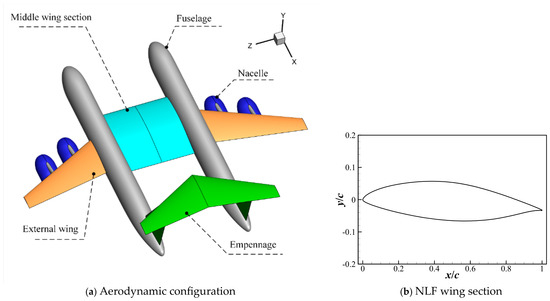

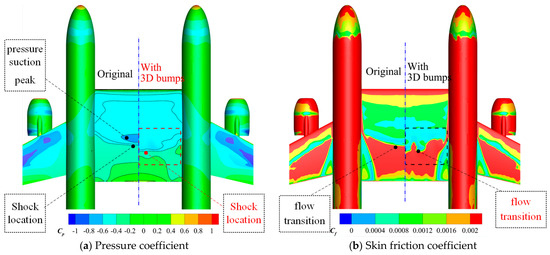

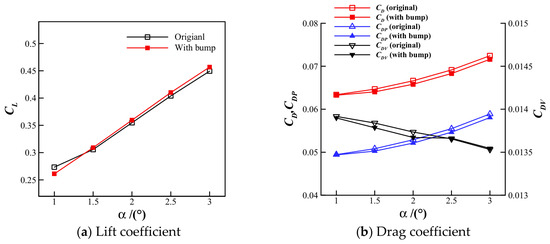

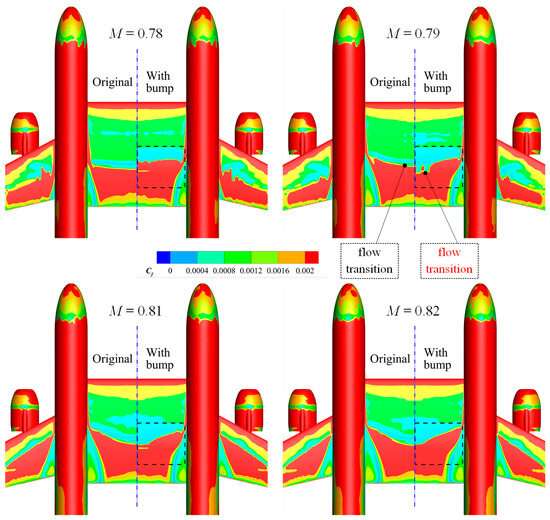

This paper presents the design of shock control bumps on a double-fuselage aircraft with a natural laminar flow (NLF) wing section. Both two-dimensional (2D) and three-dimensional (3D) bumps were investigated to identify the high-impact factors on both shock control and natural laminar flow for the aircraft, and to understand the associated flow physics. Firstly, two key geometric parameters, namely the bump crest location and the bump height, were optimized to trade off shock control and laminar flow. The optimized 2D bump results in 8.19% total drag reduction in the wing section, specifically, 8.61% pressure drag reduction and 6.23% viscous drag reduction. The total drag coefficient of the aircraft reduces by 8.12 counts while the lift slightly increases. Then, the robustness of the bump at off-design conditions was verified as well. Finally, the 2D bump was converted to 3D bumps according to the transonic area rule to explore more alternative designs, and it was found that the two have similar performances, confirming the effectiveness of the transonic area rule applied in the shock-control-bump design.
