Abstract

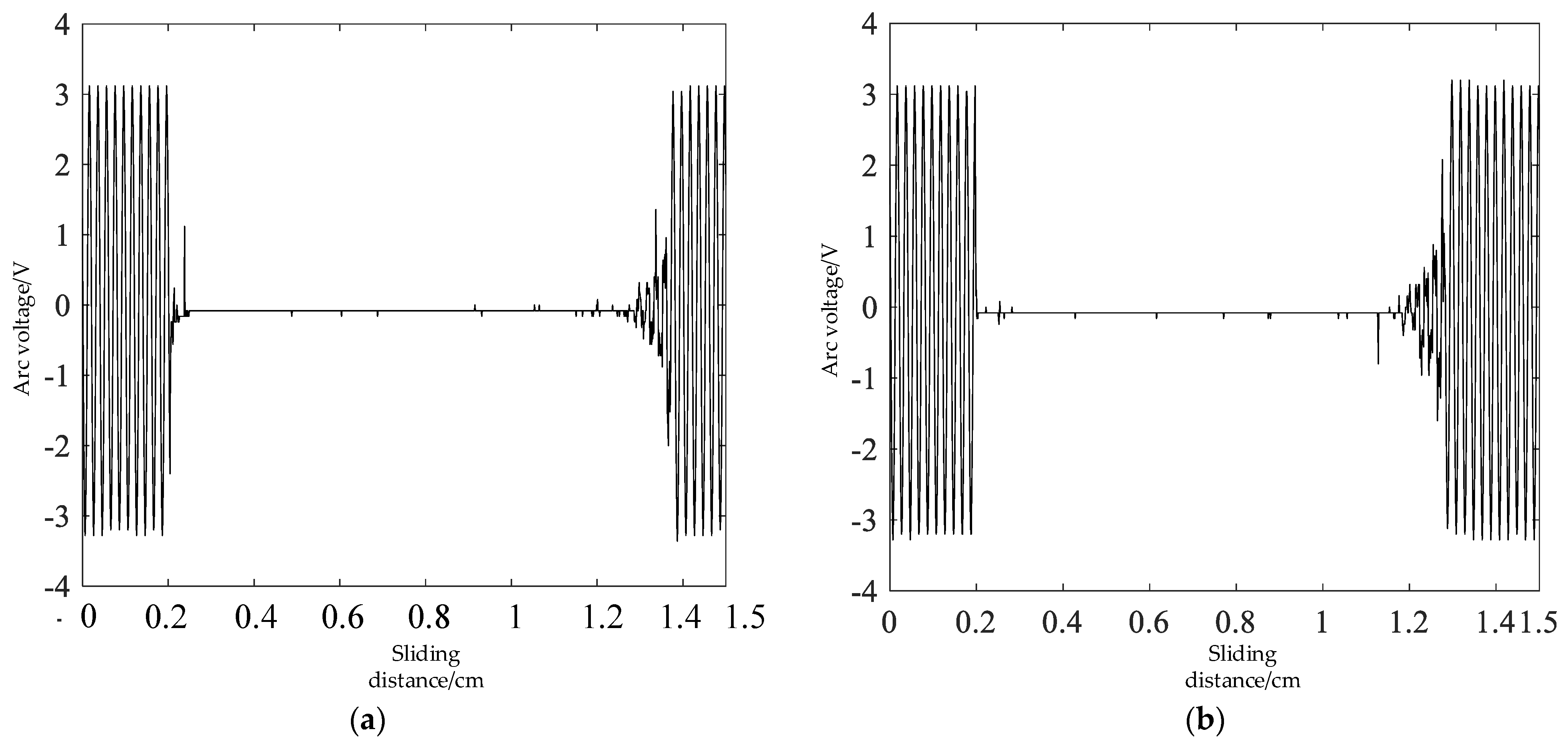

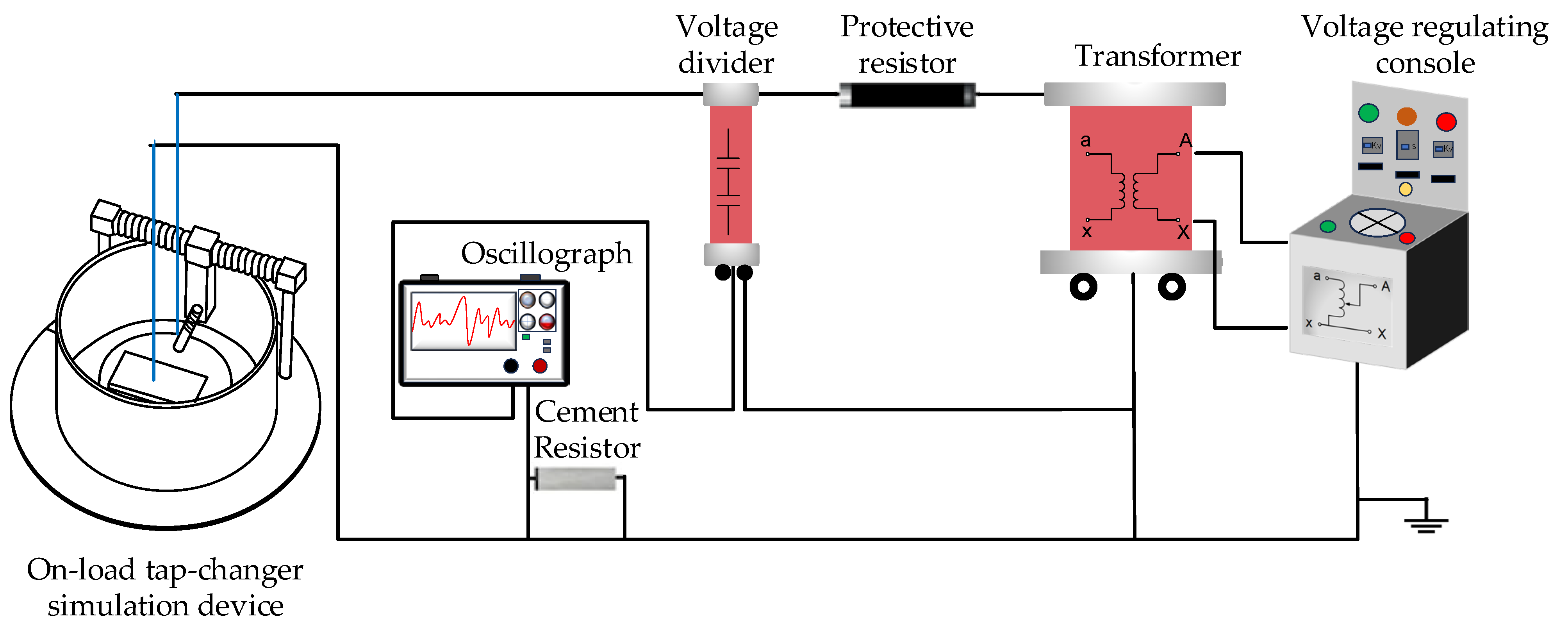

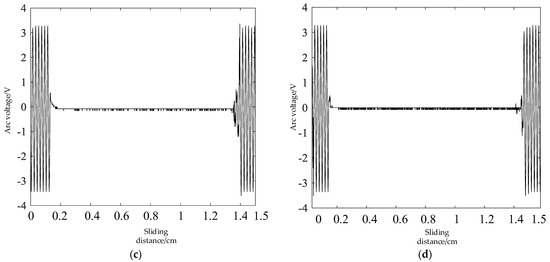

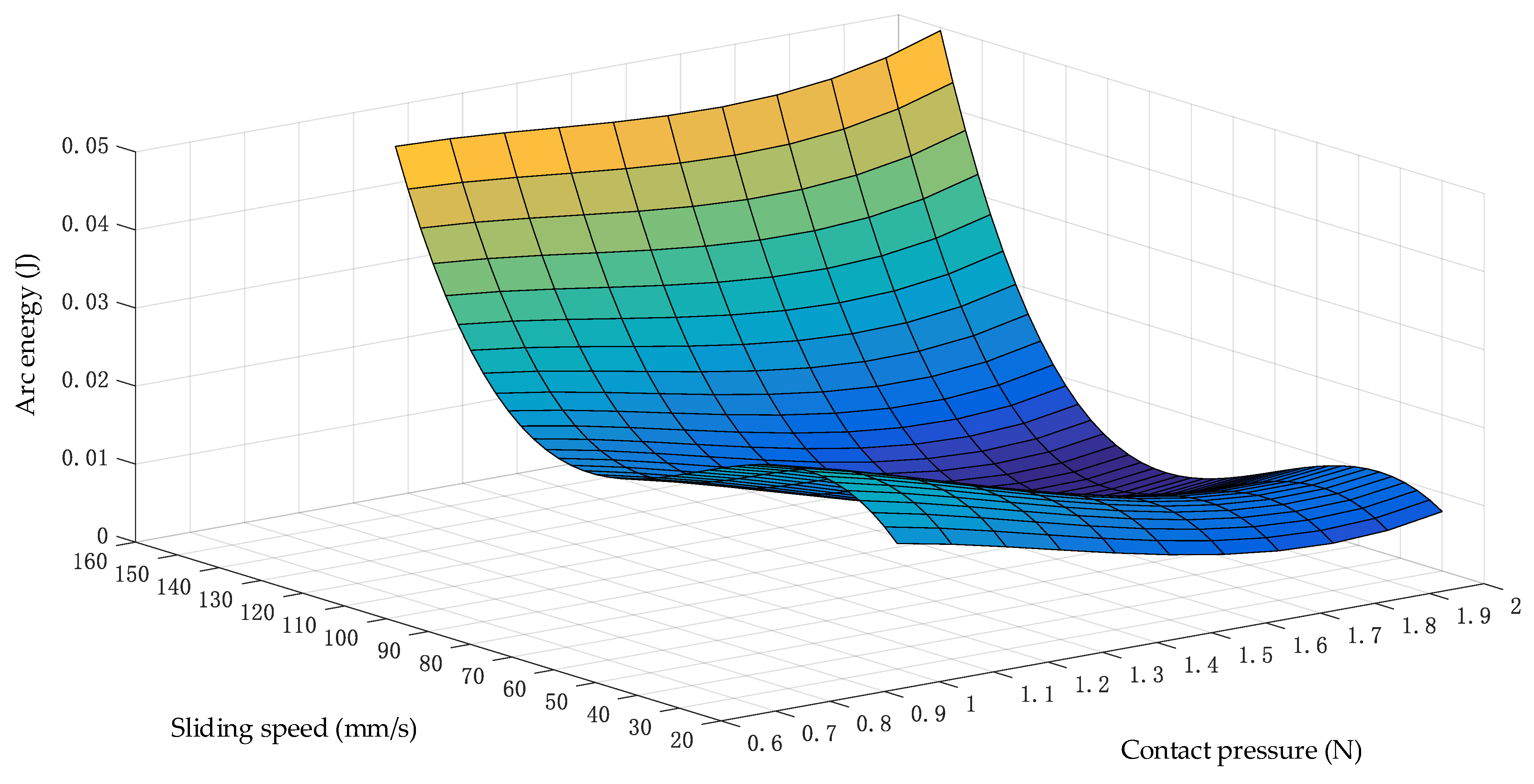

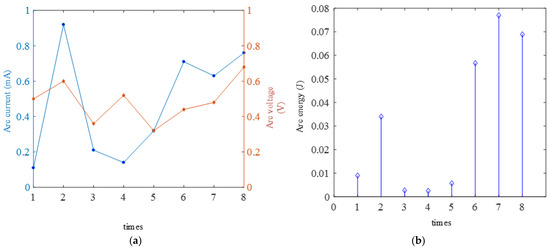

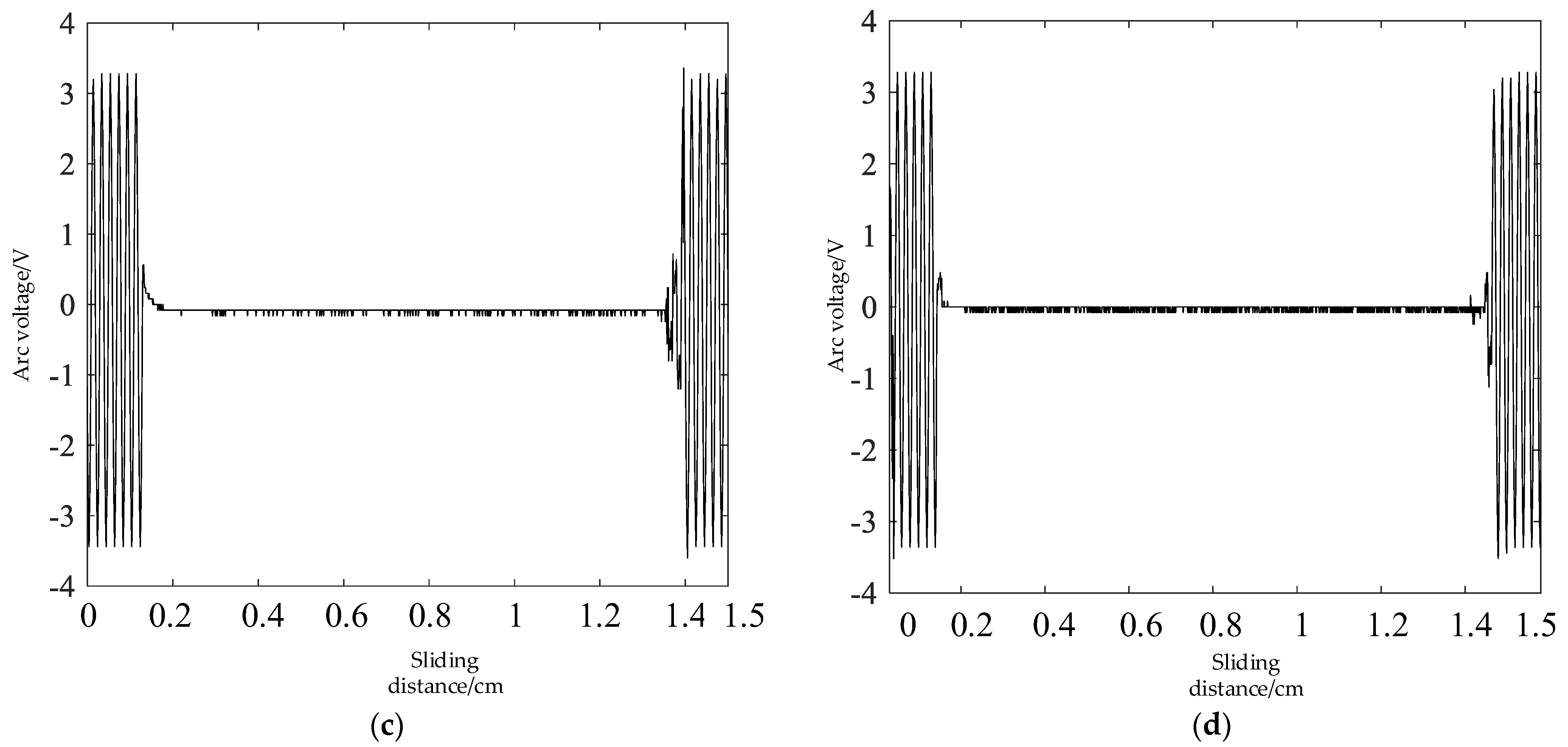

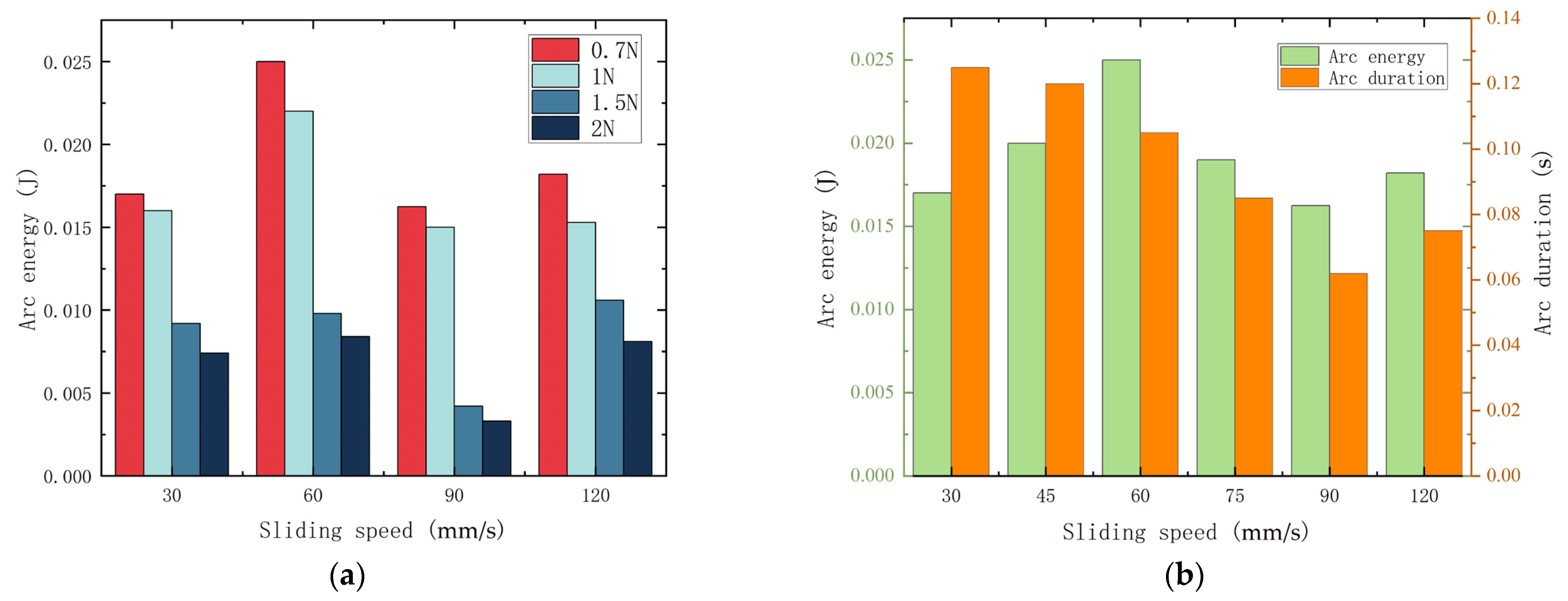

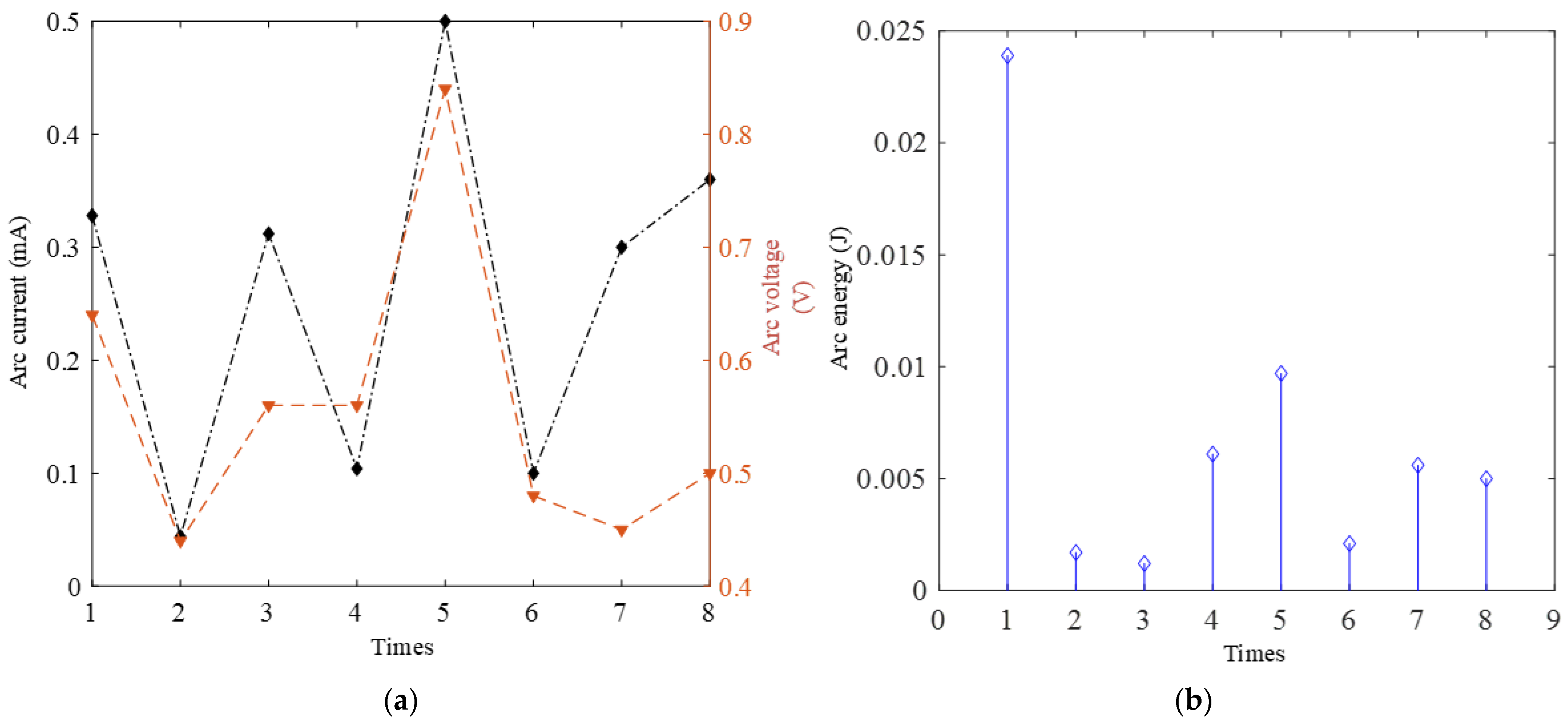

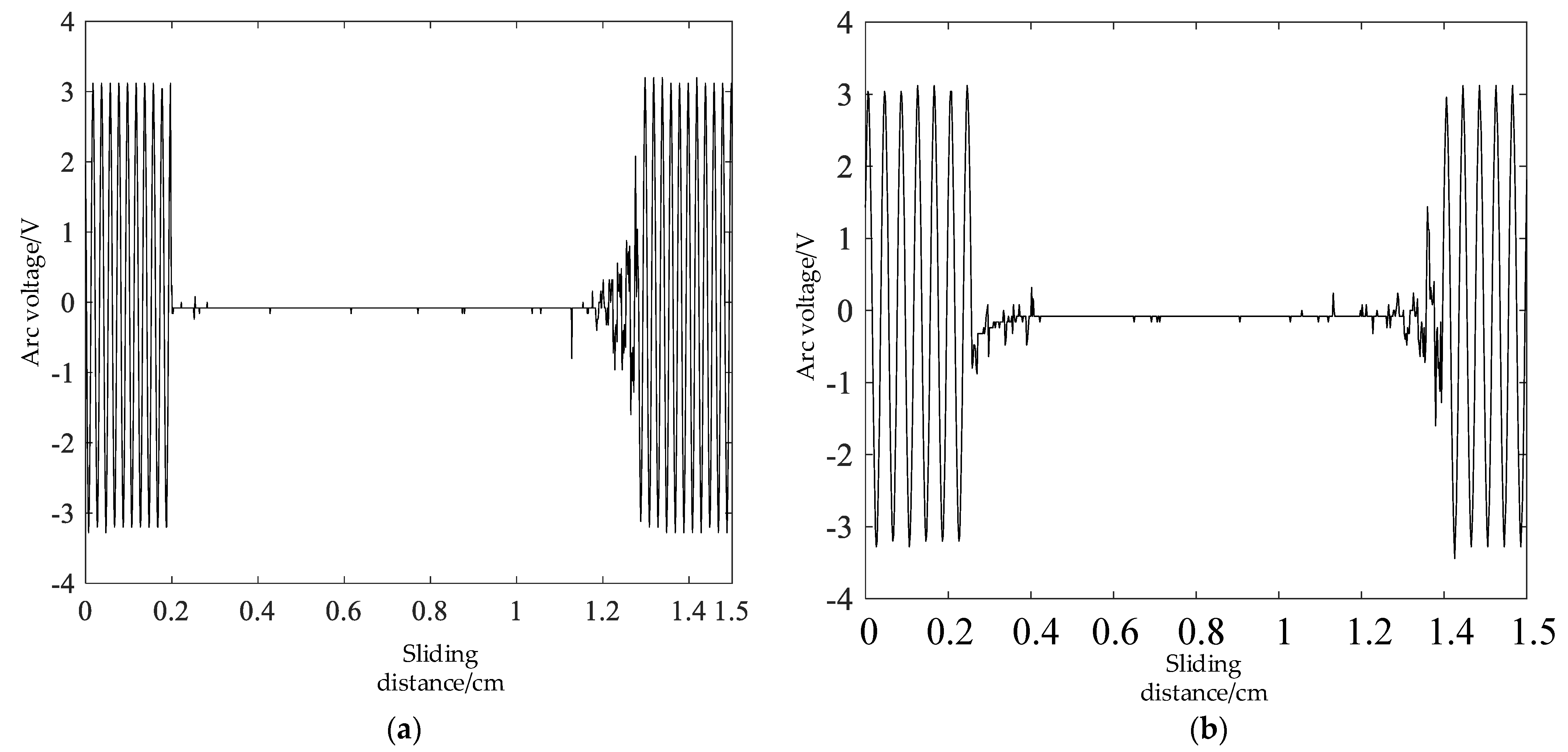

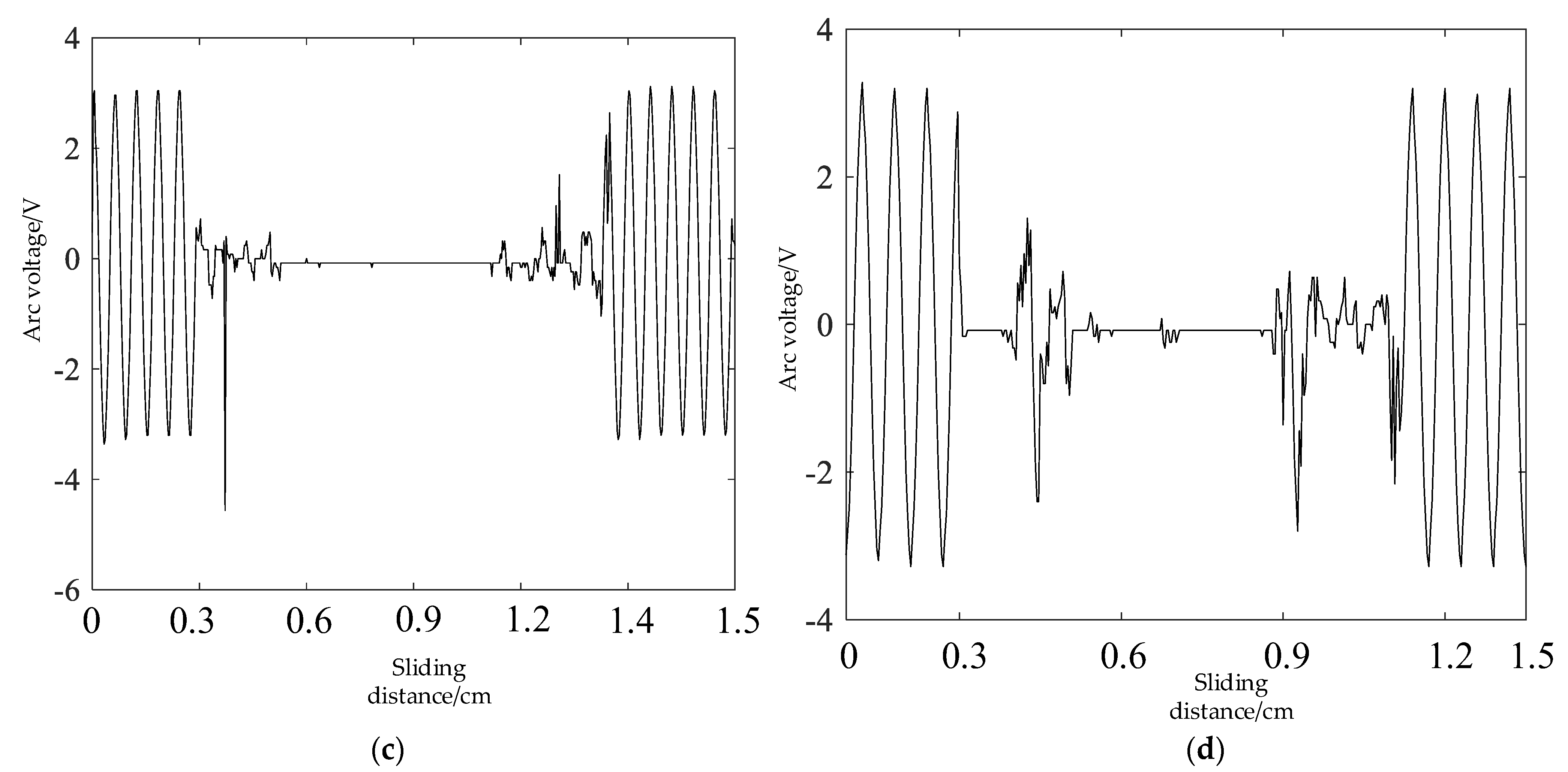

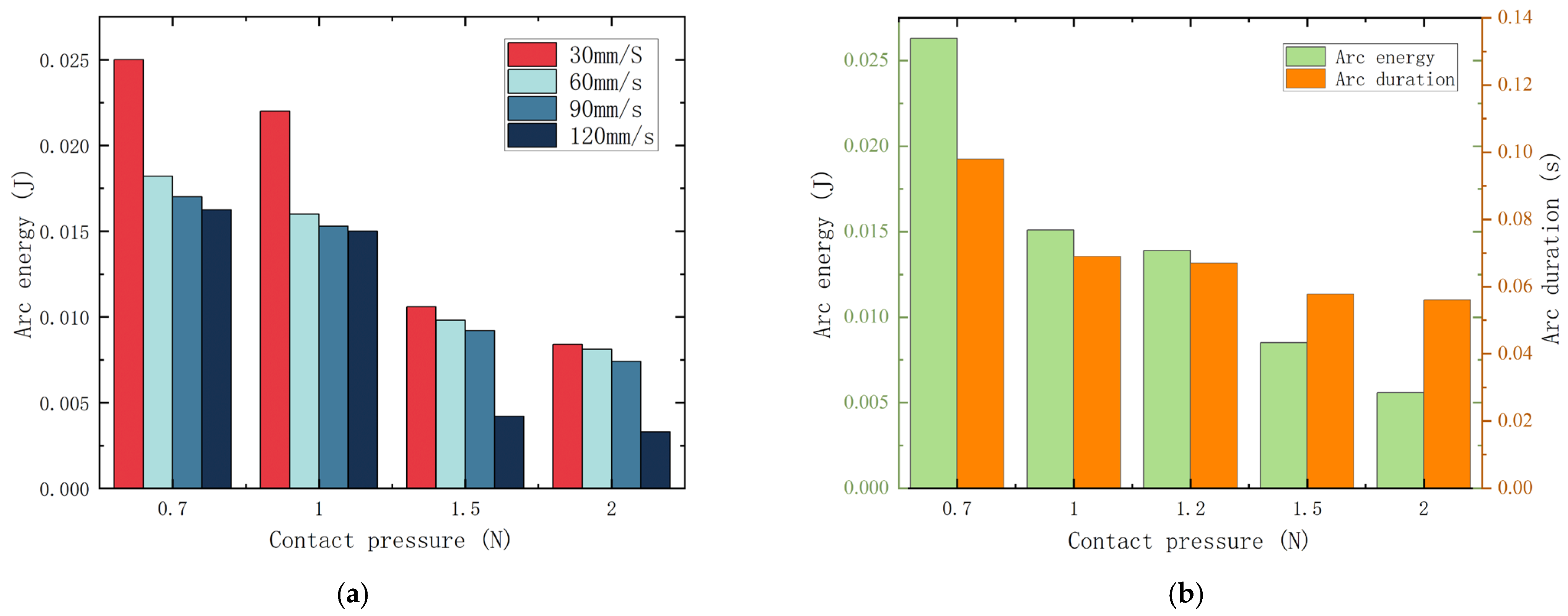

During the voltage regulation of on-load tap changers (OLTCs), the movement of the contacts can easily cause arcing, which may lead to erosion or malfunction. To reduce the energy and probability of arcing, we focus on designing an optimal range for the sliding speed and contact pressure of the contacts to minimize arc energy. Initially, our research introduces a novel OLTC arc testing platform to simulate the motion of static and dynamic contacts, exploring the relationship between different sliding speeds, contact pressures, and factors like arc voltage waveform, arcing rate, arc resistance, and arc energy. Subsequently, by employing multiple nonlinear regression methods, we establish functional relationships between sliding speed and arc energy, as well as contact pressure and arc energy, evaluating the fit using correlation coefficients. Finally, through analyzing their nonlinear behaviors, we determine the ideal sliding speed and contact pressure. The results indicate that when the OLTC contacts slide at an optimal speed between 89 and 103 mm/s and optimal contact pressure between 1.5 and 1.7 N, the arc energy can be minimized, thereby enhancing the performance and lifespan of the on-load tap changer. This study offers feasible insights for the design and operation of OLTCs, aiding in the improvement of power system regulation.
