Selection of Third-Party Reverse Logistics Service Provider Based on Intuitionistic Fuzzy Multi-Criteria Decision Making

Abstract

The scientific selection of a third-party reverse logistics service provider (3PRLP) is helpful for enterprises to obtain the expected ecological and economic benefits. Different enterprises have different requirements for 3PRLP selection and, thus, should adopt personalized and simplified evaluation criteria. However, there is a lack of research on criteria screening. Therefore, this paper proposes a criteria screening method based on a rough set for the first time. The 3PRLP selection is a multi-criteria decision making (MCDM) problem in essence, and different criteria can be expressed in different forms. The existing research mostly uses one method for 3PRLP selection, lacking the comprehensive application of various methods. In this paper, various criteria values are transformed into intuitionistic fuzzy numbers (IFNs) for the comparison and combination of various intuitionistic fuzzy MCDM methods. In terms of criteria weighting, a subjective weighting method based on an analytical network process (ANP) is proposed due to the possible correlation between the criteria at the same level. Meanwhile, an objective weighting method based on intuitionistic fuzzy entropy is proposed. The subjective and objective weights are integrated to form the more scientific combination weights. Combining the modeling principles of different intuitionistic fuzzy MCDM methods, the representative methods under each principle are chosen to build a combination evaluation idea that integrates multiple single evaluation models, and the specific evaluation steps are given, including the single evaluation, Kendall compatibility test, combination evaluation, and Spearman consistency test. An illustrative example of 3PRLP selection is provided to verify the feasibility of the methods of criteria screening and weighting and the combination evaluation idea.

1. Introduction

With the continuous development of the global economy, more and more resources are consumed. However, resource waste, improper disposal of a large amount of waste, and the resulting environmental damage also occur frequently. In order to improve the utilization rate of resources, save costs, and reduce environmental damage, many enterprises have taken a series of measures, such as resource conservation and recycling, reverse logistics (RL), and green material supply [1]. Reverse logistics can be defined as “the process of planning, implementing, and controlling the efficient, cost-effective flow of raw materials, in-process inventory, finished goods, and related information from the point of consumption to the point of origin for the purpose of recapturing value or proper disposal” [2]. In the past few decades, RL has been highly valued by academics and entrepreneurs for three main reasons. First, more and more enterprises have realized that a win-win situation can be achieved in corporate image and interests through RL activities, such as recycling of the back-flow products and waste materials [3]. Second, the development of e-commerce has led to a sharp increase in online sales, meaning that the return flow of goods has continued to increase [4]. Third, environmental protection laws and policies, corporate social responsibility, and other factors induce the development of RL [5]. Due to the complexity of RL related activities, an enterprise must have a professional team responsible for this part of the business and must also provide the necessary infrastructure and expertise to maintain its normal operation. However, most enterprises tend to focus on their core competitiveness, and they do not handle RL business by themselves, but outsource it to a trusted third-party RL provider (3PRLP) [6]. In reality, there are many 3PRLPs to choose from. These 3RPLPs differ in professional level, service content, service cost, output benefit, etc. Therefore, an enterprise should select the best provider from these 3PRLPs according to its own requirements. This means that the selection process of the best 3PRLP is a complex multi-criteria decision making (MCDM) problem. However, different enterprises have different requirements for RL. For example, an enterprise with strong economic strength may not consider the cost factor but might instead pay more attention to cultural compatibility and try to highlight the exchange of corporate culture through cooperation with 3PRLPs. Another enterprise, limited by capital, may emphasize cost more than cultural compatibility. This shows that different enterprises may use different evaluation criteria when selecting the best 3PRLP. How to screen the evaluation criteria that meet the personalized requirements of one enterprise from many alternative criteria is an important part of the 3PRLP election. In addition, the expression forms of these criteria are different, which can be expressed as certain crisp numbers, uncertain interval numbers, linguistic variables, fuzzy numbers, hesitant fuzzy numbers, intuitionistic fuzzy numbers (IFNs), Fermatean fuzzy numbers, interval-valued IFNS, bipolar complex fuzzy numbers (BCFNs), linear Diophantine fuzzy numbers (LDFNs), etc. There are also many applicable MCDM models. How to scientifically choose MCDM models, compare and integrate the results of various models, and give a more reliable and consistent conclusion are also important aspects that should be paid attention to in the 3PRLP selection.

However, the existing research on screening evaluation criteria that meet the personalized requirements of enterprises has yet to be seen. The rough set method can be used to analyze whether there is redundancy among condition attributes relative to the decision attribute in a knowledge representation system, and an realize effective reduction in conditional attributes on the premise of meeting decision support [7]. We use the rough set method to screen the 3RPLPs evaluation criteria that meet the personalized requirements of enterprises. Due to the complexity of the 3PRLP selection problem, most research only considers one expression of the criteria and one MCDM model. In fact, there are many models applicable to a certain type of expression, and there are no strict pros and cons among them. Even some models that consider hybrid expressions only give the subjective weights of the criteria, but fail to give the objective weights by the data dispersion degree of the criteria. Thus, IFN, through the concepts of membership, non-membership, and hesitation [8], can better reflect the uncertainty of information than the special case forms, such as the crisp number and interval number. Compared with the generalized forms, such as interval-valued IFN, BCFN, neutrosophic numbers, and LDFN, IFN is easier for evaluators to understand and assign. Moreover, the intuitionistic fuzzy entropy reflecting information difference is relatively mature in theory, and there are many intuitionistic fuzzy MCDM models, which have been used for 3PRLP selection [9,10]. Therefore, we apply IFNs to unify various expression forms of all criteria, calculate the criteria’s objective weights by means of a intuitionistic fuzzy entropy method, and determine the combination weights with an ANP subjective weighting method, which can reflect the association among the criteria at the same level. Based on various single intuitionistic fuzzy MCDM models, we propose a combination evaluation idea for their comparison and integration. The key novelties of this research can be presented as follows:

(1)

A rough set method is proposed for criteria screening, which can reflect the comprehensive judgment of experts on the condition attributes (i.e., evaluation criteria) that affect the 3PRLP evaluation of an enterprise;

(2)

A combined weighting method is proposed, which can combine the subjective weighting based on ANP (analysis network process) and the objective weighting based on intuitionistic fuzzy entropy, and reflect the subjective preferences of experts and the objective differences among evaluation objects;

(3)

A systematic combination evaluation idea for 3PRLP selection is put forward, including a single evaluation, compatibility test, combination evaluation, and consistency test.

The rest of this paper is organized as follows. Section 2 provides a review of the literature on 3PRLP selection and intuitionistic fuzzy MCDM. Section 3 presents the preliminaries about IFS and the transformation of hybrid expressions into IFNs. Section 4 presents a criteria screening method based on rough set and criteria weighting methods based on ANP and intuitionistic fuzzy entropy. Section 5 presents the process and model system of 3PRLP evaluation based on intuitionistic fuzzy MCDM methods. A case study is presented in Section 6, and the paper is concluded in Section 7.

2. Literature Review

2.1. Selection of 3PRLPs

Scholars have conducted a lot of research on the evaluation or selection of 3PRLPs. The evaluation objects include electric power products [11], household electrical appliances [12], automobiles [13,14], mobile phones [15,16,17,18,19,20], medical appliance products [21,22], and electric vehicle power battery recycling [23]. Due to different evaluation objects, purposes, or priorities, the proposed evaluation criteria are different [24]. Table 1 shows four typical evaluation criteria. These criteria are all constructed by scholars based on the literature and reclassification. It can be seen that it is difficult to give a unified category of criteria and specific criteria, and that different enterprises need to screen and establish the corresponding criteria according to their own evaluation requirements.

Table 1. Four typical evaluation criteria.

Criteria Setting Category	Document	Criteria	Application Object
BOCR (benefits, opportunities, costs, and risks)	[10]	Benefits: Competitive advantage, corporate image, reducing production cost by using recycled materials, economic/financial benefits, energy saving	PV industry
		Opportunities: Government policy, environmental consciousness, quality of life
		Costs: Transportation cost, equipment and building cost, labor cost, maintenance cost, opportunity cost, social responsibility, recycling education and promotion cost
		Risks: Customer risk, financial risk, internal business process risk, learning and innovation risk, legislation/political risk
EESR (economic, environmental, social, and risk and safety)	[21]	Economic: Quality, cost, lead time, delivery, services, capability of R&D	All
		Environmental: Green Design, reuse, remanufacture, refurbish, recycle, disposal, air emissions, green packaging
		Social: Health, flexible working arrangements, voice of customer, respect for the policy, reputation
		Risk and Safety: Operational risk, organizational risk, financial risk, safety
SWOT (strength, weakness, opportunity, and threat)	[24]	Strength: Focus on the main business, risk sharing, product quality, enhanced return on investment, cost management, customer satisfaction	Manufacturer of composite pipes
		Weakness: Hidden costs of outsourcing, giving the full power of attorney to a third party, organizational control, flexibility reduction, commitment and risk coverage
		Opportunity: Environmental compatibility, increasing market share, standardization, proper relations among staffs, organizational growth
		Threat: Carry risk, stealing materials and data, increasing inventory, economic recession, tax risk
CRSCSE (cost, revenue, functions, service, capacity, strategy, and environment)	[25]	Reverse logistics cost: Cost of shipment, fixed cost of warehouse and processing facility, unit operation cost for recycle and disposal, environmental expenditure, redistribution cost	All
		Reverse logistics revenue: Cost savings, revenue from the sale of recyclables, recapturing value, green policy returns
		Organizational functions: Collection, sorting, reclamation process, warehousing, delivery, waste disposal, value added service, after sale service, system flexibility
		Quality of service: Voice of customer, accuracy of order fulfillment, personalized service, customer satisfaction, rejection rate, confirmed fill rate, total order cycle time
		Company capacity/competence: Financial capacity, human resource, network capacity, capacity usage ratio, integration technology, market share, storage capacity, inability to meet future, experience
		Strategic alliance: Risk sharing, culture compatibility, information system, technology, supplier mentoring, employment stability, knowledge management.
		Environmental friendliness: Environmental expenditure rate, waste reduction, environmental protection certification, eco-design, production, green technology capability

According to the expression forms of criteria, the constructed MCDM models for 3PRLP selection can be divided into the following three categories: (1) qualitative comparison between two alternatives, which is mainly the ANP model; (2) when the criteria are expressed in certain crisp numbers. The models mainly include TOPSIS (technique for order preference by similarity to ideal solution), DEA (data envelopment analysis), and ANN (artificial neural networks); (3) The expression forms of the criteria include the linguistic variable, fuzzy number, IFN, and other uncertain forms. The models include an aggregation operator (AO), TOPSIS, MOORA (multi-objective optimization on the basis of ratio analysis), EDAS (evaluation based on distance from average solution), projection, COPRAS (complex proportional assessment), GRA (grey relation analysis), CPT (cumulative prospect theory), CoCoSo (combined compromise solution), etc. The weighting methods in the MCDM models include AHP (analytic hierarchy process), ANP, SWARA (step-wise weight assessment ratio analysis), linguistic rating variables, linguistic data quantified with fuzzy numbers, deviation coefficient, entropy, CRITIC (criteria importance through intercriteria correlation), BWM (best–worst method), principal component analysis, etc. The representative examples from the literature are shown in Table 2.

Table 2. The constructed MCDM models for 3PRLP selection.

Expression Form of Criteria	Model	Criteria Weighting Method	Document
Paired comparison with 1–9 scale	ANP	ANP	[26,27,28,29]
Crisp numbers	TOPSIS	AHP	[13,15]
	DEA	No	[20]
	ANN	AHP	[30]
Linguistic variables quantified with rating number	VIKOR	AHP	[19]
Linguistic variables quantified with fuzzy numbers	TOPSIS	Linguistic rating variables	[6]
	TOPSIS	AHP	[31]
	VIKOR	Linguistic data quantified with fuzzy numbers	[32]
Fuzzy numbers	COPRAS	SWARA	[3]
	MOORA	SWARA	[33]
2-tuple linguistic values	AO	Deviation coefficient	[34]
Hesitant fuzzy linguistic terms	AO	Linguistic rating variables	[35]
IFNs	TOPSIS	Fuzzy entropy	[9]
Linguistic variables quantified with IFNs	GRA	ANP	[10]
Interval-valued IFNs	projection	Entropy	[36]
Fermatean fuzzy numbers	EDAS	CRITIC	[37]
Single-valued neutrosophic numbers	CoCoSo	CRITIC	[38]
Interval Pythagoras hesitant fuzzy numbers	AO	BWM	[18]
BCFNs	AO	CRITIC	[39]
LDFNs	AO	Proportion of expectation score of LDFN	[40]
Crisp numbers and linguistic variables	Neighborhood rough set-TOPSIS-VIKOR	No	[41]
Crisp numbers, IFNS and hesitant fuzzy numbers	Optimization of the weighted distance measures with ideal solutions	Optimization method	[42]
Crisp numbers, intervals, and linguistic terms	CPT	Principal component analysis and AHP	[25]

According to the literature and the meaning of specific criteria, the criteria for 3PRLP evaluation can be expressed in hybrid forms. For example, the cost criterion can be expressed as crisp numbers or as interval numbers, while the capacity criterion can be expressed as linguistic variables, fuzzy numbers, IFNs, or other forms. The concepts of the crisp number, interval number, fuzzy number and linguistic variable are special cases of IFNs, and they can be transformed into IFNs with little information distortion. The concepts, such as the federal fuzzy number, interval-valued IFN, BCFN, neutrosophic number, and LDFN are the extension or improvement of IFN, but compared with them, the membership and non-membership of an IFN make it easier to assign values to the 3PRLP evaluation criteria. In addition, the theoretical basis of intuitionistic fuzzy entropy based on the intuitionistic fuzzy set (IFS) is relatively mature. Therefore, intuitionistic fuzzy MCDM methods are used for evaluating 3PRLPs in this research.

2.2. Intuitionistic Fuzzy MCDM

The core idea of the fuzzy set theory proposed by Zadeh [43] in 1965 is to expand the characteristic function whose value is 0 or 1 to the membership function which can take any value in the closed interval [0, 1]. In 1986, Atanassov [44] generalized the fuzzy set theory and proposed the concept of IFS. In addition to membership, IFS also considered the information of non-membership and hesitation, which can more accurately describe uncertainty and fuzziness. Therefore, IFS has been widely used in pattern recognition, medical diagnosis, image processing, MCDM, and other fields [45,46]. For the MCDM problem under the intuitionistic fuzzy environment, scholars have proposed a variety of models. According to the modeling principle, the models can be divided into the following four categories: (1) models based on AOs, including various AOs and WASPAS (weighted aggregates sum product assessment); (2) models based on criteria preferences, including ELECTRE (elimination et choice translating reality) and PROMETHEE (preference ranking organization method for enrichment evaluation); (3) models based on evidential reasoning (ER); (4) models based on distance, trend, or utility from reference points, including TOPSIS, EADS, MABAC (multi-attributive border approximation area comparison), GRA, MULTIMOORA (multiplicative MOORA), CPT, MARCOS (measurement of alternatives and ranking according to the compromise solution), and VIKOR. Typical intuitionistic fuzzy MCDM models are shown in Table 3.

Table 3. Typical intuitionistic fuzzy MCDM models.

Model Category	Model	Modeling Principle
AO	Weighted averaging AO, ordered weighted averaging AO, hybrid averaging AO, geometric AOs, power AOs [47]; neutral averaging AO [48]; geometric Heronian mean AOs [49]; Einstein weighted averaging AO [50]; weighted Heronian mean AO [51]; WASPAS [52]	The aggregation of decision information is realized through the weighting operator, and the alternatives are ranked according to the aggregated scores.
Criteria preferences	ELECTRE [53,54,55]	According to the harmony and disharmony indexes of the criteria set, the preference relationship on the alternative set is constructed, and the alternatives are ranked accordingly.
	PROMETHEE [56,57]	According to the preference function of each criterion given by the decision-maker, the priority relationship between alternatives and the complete ranking of alternatives are determined.
Evidential reasoning	ER [58,59,60]	Each criterion is regarded as an evidence, and the ER algorithm is applied to aggregate the basic reliability allocation of each criterion to obtain the comprehensive evaluation value, and then the alternatives are ranked accordingly.
Reference points	TOPSIS [61,62,63,64]	The alternatives are ranked according to the relative distance between each alternative and the positive and negative ideal points.
	EADS [52,65]	The evaluation score of alternatives is calculated according to the positive and negative distance between each alternative and the average solution, and the alternatives are ranked accordingly.
	MABAC [66]	According to the distance between the criterion function of each alternative and the border approximation area, the comprehensive value of each alternative is calculated, and the alternatives are ranked accordingly.
	GRA [67,68]	The alternatives are ranked according to the trend correlation between each alternative and the ideal reference point.
	MULTIMOORA [69]	The alternatives are ranked by calculating the additive utility function value (the ratio system to the ideal point) of each alternative.
	CPT [70,71,72]	According to the value function result relative to the reference point, the cumulative prospect value of each alternative is calculated, and the alternatives are ranked accordingly.
	MARCOS [73]	According to the utility value relative to the positive and negative ideal points, the comprehensive utility value of each alternative is obtained, and the alternatives are ranked accordingly.
	VIKOR [74,75,76,77,78]	According to the group utility value and individual regret value relative to the reference points, the benefit ratio value of each alternative is obtained by compromise, and the alternatives are ranked accordingly.

3. Preliminaries

3.1. IFS and Related Concepts

Definition 1 [44].

 $A=\left\{⟨x,u_A\left(x\right),v_A\left(x\right)⟩|x\in X\right\}$ is defined as an IFS of the domain of X, where 0 ≤ u_A(x), v_A(x) ≤ 1, u_A(x) + v_A(x) ≤ 1. u_A(x) and v_A(x) are the membership degree and non-membership degree that x belongs to the IFS A, respectively.

Definition 2 [44].

For an IFN $x=⟨u_A\left(x\right),v_A\left(x\right)⟩$, s_A(x) = u_A(x) − v_A(x) is defined as the score function of x, here s_A ∈ [−1,1] reflecting the net membership degree or non-ambiguity degree of x belonging to A. π_A(x) = u_A(x) + v_A(x) is defined as the accuracy function of x, reflecting the degree of accuracy or non-hesitation of x belonging to A.

Definition 3 [44].

Let$x=⟨u,v⟩$, $x_1=⟨u_1,v_1⟩$and $x_2=⟨u_2,v_2⟩$are intuitionistic fuzzy numbers, then the following is true:

①

$\lambda x=⟨1-{\left(1-u\right)}^{\lambda },v^{\lambda }⟩$, λ > 0.

②

$x_1+x_2=⟨u_1+u_2-u_1{u}_2,v_1{v}_2⟩$.

③

$x_1{x}_2=⟨u_1{u}_2,v_1+v_2-v_1{v}_2⟩$.

④

if s₁ ≤ s₂, then x₁ ≤ x₂; if s₁ = s₂ and π₁ ≤ π₂, then x₁ ≤ x₂.

Definition 4 [79].

For an IFS A, real function E: A→R⁺ is an intuitionistic fuzzy entropy, if it meets the following conditions:

①

E(A) = 0 ⇔ A ∈ P(X);

②

E(A) = 1 ⇔ ∀x ∈ X, u_A(x) = v_A(x) = 0;

③

∀x ∈ X, if π_A(x) = π_B(x) and |s_A(x)| ≥ |s_B(x)|, or |s_A(x)| = |s_B(x)| and π_A(x) ≥ π_B(x), then E(A) ≤ E(B);

④

E(A) = E(A^C),where A^C is the complement set of A:$A^C=\left\{⟨x,v_A\left(x\right),u_A\left(x\right)⟩|x\in X\right\}$.

Definition 5.

For an IFS $A=\left\{⟨x_i,u_A\left(x_i\right),v_A\left(x_i\right)⟩|i=1,2,\cdots ,n;x_i\in X\right\}$, an intuitionistic fuzzy entropy can be defined as follows:

$$E\left(A\right)=\frac{1}{n}{\sum }_{i=1}^n\frac{1-s_A{\left(x_i\right)}^2+2h_A\left(x_i\right)}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}$$

(1)

where h_A(x_i) = 1 − π_A(x_i).

Proof.

①

E(A) = 0 ⇔ ∀ x_i ∈ X, 1 − s_A(x_i)² + 2h_A(x_i) = 0 ⇔ s_A(x_i)² − 2h_A(x_i) = 1. s_A(x_i)² ≤ 1, 0 ≤ h_A(x_i) ≤ 1, so s_A(x_i)² − 2h_A(x_i) = 1 ⇔ |s_A(x_i)| = 1, h_A(x_i) = 0 ⇔ |u_A(x_i) − v_A(x_i)| = 1, u_A(x_i) + v_A(x_i) = 1 ⇔ u_A(x_i) = 1, v_A(x_i) = 0 or u_A(x_i) = 0, v_A(x_i) = 1, which means A ∈ P(X).

②

E(A) = 0 ⇔ ∀x_i ∈ X, 1 − s_A(x_i)² + 2h_A(x_i) = 2 − s_A(x_i)² + h_A(x_i) ⇔ h_A(x_i) = 1 ⇔ u_A(x_i) + v_A(x_i) = 0 ⇔ u_A(x_i) = v_A(x_i) = 0.

③

∀x_i ∈ X, if π_A(x_i) = π_B (x_i) and |s_A(x_i)| ≥ |s_B(x_i)|,

$$1-\frac{1-s_A{\left(x_i\right)}^2+2h_A\left(x_i\right)}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}=\frac{1-h_A\left(x_i\right)}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}\ge \frac{1-h_B\left(x_i\right)}{2-s_B{\left(x_i\right)}^2+h_B\left(x_i\right)}=1-\frac{1-s_B{\left(x_i\right)}^2+2h_B\left(x_i\right)}{2-s_B{\left(x_i\right)}^2+h_B\left(x_i\right)}$$

So, E(A) ≤ E(B).

∀x_i ∈ X, if π_A(x_i) ≥ π_B(x_i) and |s_A(x_i)| ≥ |s_B(x_i)|,

$$2-\frac{1-s_A{\left(x_i\right)}^2+2h_A\left(x_i\right)}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}=\frac{3-s_A{\left(x_i\right)}^2}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}\ge \frac{3-s_B{\left(x_i\right)}^2}{2-s_B{\left(x_i\right)}^2+h_B\left(x_i\right)}=2-\frac{1-s_B{\left(x_i\right)}^2+2h_B\left(x_i\right)}{2-s_B{\left(x_i\right)}^2+h_B\left(x_i\right)}$$

So, E(A) ≤ E(B).

④

$\frac{1-s_A{\left(x_i\right)}^2+2h_A\left(x_i\right)}{2-s_A{\left(x_i\right)}^2+h_A\left(x_i\right)}=\frac{1-{\left(-s_A\left(x_i\right)\right)}^2+2h_A\left(x_i\right)}{2-{\left(-s_A\left(x_i\right)\right)}^2+h_A\left(x_i\right)}$, so E(A) = E(A^c). □

Definition 6 [80].

Let $x_1=⟨u_1,v_1⟩$and $x_2=⟨u_2,v_2⟩$be two IFNs, the intuitionistic fuzzy distance of them is as follows:

$$\begin{gathered} d\left(x_1,x_2\right)=\frac{1}{6}\left[\left|u_1-u_2\right|+\left|v_1-v_2\right|+\left|s_1-s_2\right|+\left(1-{\pi }_1\right)+\left(1-{\pi }_2\right)\right] \\ +\frac{1}{3}\max \left(\left|u_1-u_2\right|,\left|v_1-v_2\right|,\frac{\left|{\pi }_1-{\pi }_2\right|}{2}\right) \end{gathered}$$

(2)

3.2. Transformation of Hybrid Expressions into IFNs

In order to transform crisp numbers, interval numbers, and linguistic variables into IFNs, their values need to be standardized first. Subsequent intuitionistic fuzzy AO involves the multiplication of multiple IFNs. As long as the membership degree of one criterion of an evaluation object equals 1 or the non-membership degree equals 0, the membership degree or the non-membership degree in the comprehensive evaluation result is 0, which is not conducive to the comparison between evaluation objects. Therefore, normalization and vector normalization methods are preferred in the standardization. The value by normalization is usually smaller than that by vector normalization, and the latter is preferred in the case that its standardization result is in the range of [0, 1]. Let the values of n criteria C₁, C₂, …, C_n in m alternatives form the evaluation matrix [x_ij]_m×n, where x_ij > 0, i = 1, 2, …, m; j = 1,2, …, n. The value of x_ij after intuitionistic fuzzy transformation is [z_ij]_m×n.

① For a crisp number x_ij, vector normalization and normalization formula are (3) and (4), respectively, as follows:

$$y_{ij}=\left\{\begin{array}{c}\frac{x_{ij}}{{{\displaystyle \sum }}_{i=1}^m{x_{ij}}^2},c_j\in C_{Benefit}\\ \frac{\frac{1}{x_{ij}}}{{{\displaystyle \sum }}_{i=1}^m{\left(1/x_{ij}\right)}^2},c_j\in C_{Cost}\end{array}\right.$$

(3)

$$y_{ij}=\left\{\begin{array}{c}\frac{x_{ij}}{{{\displaystyle \sum }}_{i=1}^m{x}_{ij}},c_j\in C_{Benefit}\\ \frac{1/x_{ij}}{{{\displaystyle \sum }}_{i=1}^m\left(1/x_{ij}\right)},c_j\in C_{Cost}\end{array}\right.$$

(4)

where C_Benefit and C_Cost are benefit-type and cost-type criteria sets, respectively. Then transform y_ij into the IFN $z_{ij}=⟨u_{ij},v_{ij}⟩=⟨y_{ij},1-y_{ij}⟩$.

② If x_ij is an interval number [x_ij^L, x_ij^R], vector normalization and normalization formula are (5) and (6), respectively, as follows.

$$y_{ij}^L=\left\{\begin{array}{c}\frac{x_{ij}^L}{{{\displaystyle \sum }}_{i=1}^m{\left(x_{ij}^R\right)}^2},c_j\in C_{Benefit}\\ \frac{1/x_{ij}^R}{{{\displaystyle \sum }}_{i=1}^m{\left(1/x_{ij}^L\right)}^2},c_j\in C_{Cost}\end{array}\right., y_{ij}^R=\left\{\begin{array}{c}\frac{x_{ij}^R}{{{\displaystyle \sum }}_{i=1}^m{\left(x_{ij}^L\right)}^2},c_j\in C_{Benefit}\\ \frac{1/x_{ij}^L}{{{\displaystyle \sum }}_{i=1}^m{\left(1/x_{ij}^R\right)}^2},c_j\in C_{Cost}\end{array}\right.$$

(5)

$$y_{ij}^L=\left\{\begin{array}{c}\frac{x_{ij}^L}{{{\displaystyle \sum }}_{i=1}^m{x}_{ij}^R},c_j\in C_{Benefit}\\ \frac{1/x_{ij}^R}{{{\displaystyle \sum }}_{i=1}^m\left(1/x_{ij}^L\right)},c_j\in C_{Cost}\end{array}\right., y_{ij}^R=\left\{\begin{array}{c}\frac{x_{ij}^R}{{{\displaystyle \sum }}_{i=1}^m{x}_{ij}^L},c_j\in C_{Benefit}\\ \frac{1/x_{ij}^L}{{{\displaystyle \sum }}_{i=1}^m\left(1/x_{ij}^R\right)},c_j\in C_{Cost}\end{array}\right.$$

(6)

Then transform the interval number [y_ij^L, y_ij^R] into the IFN $z_{ij}=⟨u_{ij},v_{ij}⟩=⟨y_{ij}^L,1-y_{ij}^R⟩$.

③ If x_ij is an uncertain linguistic variable [x_ij^L, x_ij^R], where $x_{ij}^L\prec x_{ij}^R$, x_ij^L and x_ij^R can be first transformed into standard values d_j^L and d_ij^R by the bipolar ratio method, respectively [81]. Taking seven-level linguistic variables as an example, the standard values of the bipolar ratio method are shown in Table 4. Then, transform the interval number [d_j^L, d_ij^R] into the IFN according to the transformation method of the benefit-type criteria.

Table 4. Standard values of seven-level linguistic variables.

Serial Number	Benefit-Type Linguistic Variable	Cost-Type Linguistic Variable	Standard Value
1	Lowest	Highest	0
2	Very low	Very high	0.02857
3	Low	High	0.08571
4	Average	Average	0.1429
5	High	Low	0.2
6	Very high	Very low	0.2571
7	Highest	Lowest	0.2857

4. Criteria Screening and Weighting

4.1. Criteria Screening Based on Rough Set

It is difficult for different enterprises to establish a consistent index system because of different objects and requirements for 3PRLP evaluation. In order to fully reflect the personalized requirements of an enterprise’s 3PRLP selection and to simplify the criteria, considering the advantages of rough set theory in conditional attribute reduction, we apply a rough set method to screen the criteria. The process depends on the individual experience and judgment of experts in the field. Supposing that an enterprise has established a preliminary evaluation criteria system with t criteria and the corresponding sub-criteria, the organizers consult h experts with high theoretical level and practical experience about 3PRLP, and each expert evaluates the importance of the t criteria and the corresponding sub-criteria according to Likert’s five-point scale. The values 1, 2, 3, 4, and 5 represent unimportant, general, important, very important and especially important, respectively. With each criterion as the decision attribute and the corresponding sub-criteria as the condition attributes, t decision tables can be obtained. Taking one decision table as an example, as shown in Table 5, the condition attributes C₁, C₂, …, C_s are the corresponding sub-criteria, the decision attribute D is the criterion, and x_i^(j) and d_i are, respectively, Likert values given by the ith expert on the importance of C_j and D relative to 3PRLP evaluation.

Table 5. Decision table of one criterion.

Serial Number of Experts	Condition Attributes				Decision Attribute D
	C1	C2	…	Cs
1	x1(1)	x2(1)	…	xs(1)	d1
2	x1(2)	x2(2)	…	xs(2)	d2
…	…	…	…	…	…
h	x1(h)	x2(h)	…	xs(h)	dh

The steps of criteria screening are as follows [81]:

Step 1: According to the decision attribute D, divide the domain U = {1, 2, …, h} into q equivalent classes about D: U/D = {H₁, H₂, …, H_q};

Step 2: Calculate the lower approximation of the kth equivalence class H_k with respect to the conditional attribute set C = {C₁, C₂, …, Cs}: $C_{-}{H}_k=\cup \left\{Y\in U/C\right\},k=1,2,\cdots ,q$. Meanwhile, calculate the C positive domain of D: $pos\left(C,D\right)={\cup }_{k=1}^q{C}_{-}{H}_k$;

Step 3: Remove the attribute C_j from C, j = 1, 2, … s, and calculate pos(C − C_j, D). If pos(C − C_j, D) = pos(C, D), it indicates that C_j is a redundant attribute. Delete C_j from C, and get the reduced set of conditional attributes;

Step 4: According to Step 2 and Step 3, test whether there is a redundant attribute in the reduced condition attribute set. Repeat the above steps until all the attributes are non-redundant. Then, we obtain the reduced secondary index set C^r corresponding to the primary index.

4.2. Criteria Weighting

The weights reflect the importance of criteria and have an important impact on 3PRLP evaluation. There are many methods of criteria weighting, including subjective weighting, objective weighting, and combination weighting. Subjective weighting methods mainly include AHP [82], ANP [82], BWM [83], SWARA [84], PIPRECIA (pivot pairwise relative criteria importance assessment) [85], FUCOM (full consistency method) [86], LBWA (level-based weight assessment) [87], etc. For the 3PRLP evaluation problem, there are usually some correlations among the criteria of the same level. For example, timeliness of response is not only associated with customer satisfaction, value recovery ratio, and environmental protection effect, which are all the sub-criteria of service quality, but also associated with value-added service capability and network coverage rate, which are both in the sub-criteria of service capability. In the subjective weighting methods, the ANP method can take the relations among the criteria at the same level into consideration, so we apply it for criteria weighting subjectively. Objective weighting methods mainly include CRITIC [8], deviation coefficient, entropy, etc. Considering that intuitionistic fuzzy entropy can better reflect the degree of dispersion among criterion data, and has a mature theoretical basis compared with other concepts, such as the correlation coefficient and standard deviation of IFNs, we apply the intuitionistic fuzzy entropy method for criteria weighting objectively.

4.2.1. Subjective Weighting Based on ANP

Step 1: Construct the typical structure of the ANP. A simple schematic diagram is shown in Figure 1. The first part is the control layer that represents the evaluation based on the network structure criteria system. The second part is the network layer, where each element group or element is not independent, one element may affect any element in the entire network system, and vice versa. In Figure 1, C_i represents the ith element group, e_ik represents the kth element of C_i, and the directed line represents the relationship between elements.

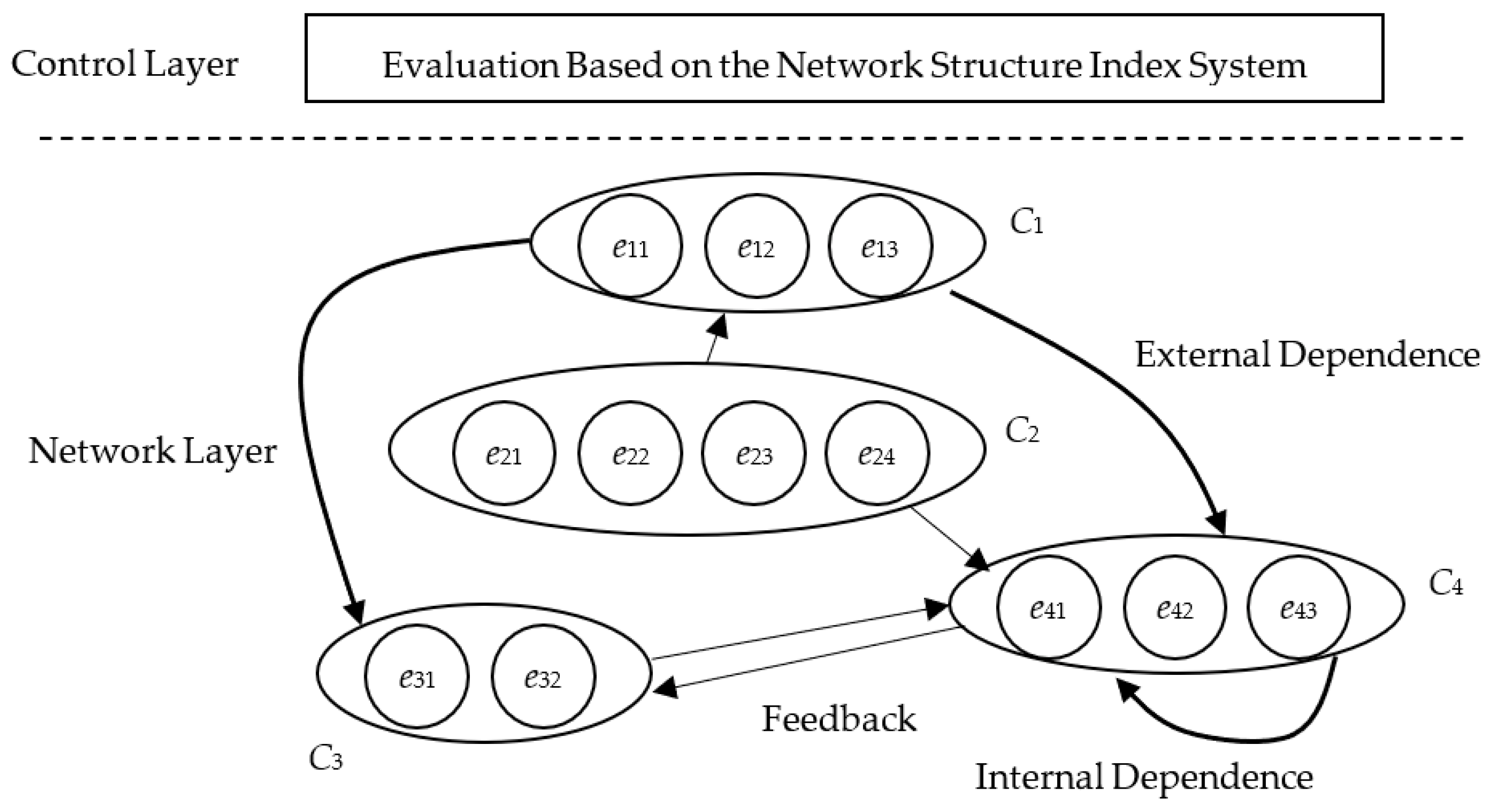

Figure 1. A simple schematic diagram of typical structure of the ANP.

Step 2: Construct a weightless hypermatrix. Taking the element e_jl in a certain element group C_j as criterion, in terms of the degree that e_jl affects each element e_ik (k = 1, 2, …, n_i) in the element group C_i, we can construct a judgment matrix. After the consistency test, we output the eigenvector ${\left(\begin{array}{cc}\begin{array}{cc}{W}_{i1}^{jl}& W_{i2}^{jl}\end{array}& \begin{array}{cc}\cdots & W_{i{n}_i}^{jl}\end{array}\end{array}\right)}^T$ that satisfies the consistency. Summarizing the eigenvectors of each judgment matrix into a matrix W_ij, which reflects the influence relationship between the elements in the element group C_i and those in C_j, and we can obtain the weightless hypermatrix as follows:

$$W_S=\left[\begin{array}{ccc}{W}_{11}& W_{12}& \begin{array}{cc}\cdots & W_{1N}\end{array}\\ W_{21}& W_{22}& \begin{array}{cc}\cdots & W_{2N}\end{array}\\ \begin{array}{c}⋮\\ W_{N1}\end{array}& \begin{array}{c}⋮\\ W_{N2}\end{array}& \begin{array}{cc}\begin{array}{c}\ddots \\ \cdots \end{array}& \begin{array}{c}⋮\\ W_{NN}\end{array}\end{array}\end{array}\right]$$

where,

$$W_{ij}=\left[\begin{array}{ccc}{W}_{i1}^{j1}& W_{i1}^{j2}& \begin{array}{cc}\cdots & W_{i1}^{j{n}_j}\end{array}\\ W_{i2}^{j1}& W_{i2}^{j2}& \begin{array}{cc}\cdots & W_{i2}^{j{n}_j}\end{array}\\ \begin{array}{c}⋮\\ W_{i{n}_i}^{j1}\end{array}& \begin{array}{c}⋮\\ W_{i{n}_i}^{j2}\end{array}& \begin{array}{cc}\begin{array}{c}\ddots \\ \cdots \end{array}& \begin{array}{c}⋮\\ W_{i{n}_i}^{j{n}_j}\end{array}\end{array}\end{array}\right]$$

Step 3: Construct weighted hypermatrix. With element group C_j as criterion, we conduct pairwise comparison of element groups and construct the judgment matrix as follows:

$$\left[\begin{array}{ccc}{a}_{11}^j& a_{12}^j& \begin{array}{cc}\cdots & a_{1N}^j\end{array}\\ a_{21}^j& a_{22}^j& \begin{array}{cc}\cdots & a_{2N}^j\end{array}\\ \begin{array}{c}⋮\\ a_{N1}^j\end{array}& \begin{array}{c}⋮\\ a_{N2}^j\end{array}& \begin{array}{cc}\begin{array}{c}\ddots \\ \cdots \end{array}& \begin{array}{c}⋮\\ a_{NN}^j\end{array}\end{array}\end{array}\right]$$

After the consistency test, we output the eigenvector ${\left(\begin{array}{cc}\begin{array}{cc}{a}_{1j}& a_{2j}\end{array}& \begin{array}{cc}\cdots & a_{Nj}\end{array}\end{array}\right)}^T$ that satisfies the consistency. Therefore, the weight matrix A reflecting the relationship between elements is as follows:

$$A=\left[\begin{array}{ccc}{a}_{11}& a_{12}& \begin{array}{cc}\cdots & a_{1N}\end{array}\\ a_{21}& a_{22}& \begin{array}{cc}\cdots & a_{2N}\end{array}\\ \begin{array}{c}⋮\\ a_{N1}\end{array}& \begin{array}{c}⋮\\ a_{N2}\end{array}& \begin{array}{cc}\begin{array}{c}\ddots \\ \cdots \end{array}& \begin{array}{c}⋮\\ a_{NN}\end{array}\end{array}\end{array}\right]$$

Multiplying the weightless hypermatrix W_S by the weight matrix A, we obtain the weighted hypermatrix W: W = AW_S.

Step 4: Calculate the limit hypermatrix. Due to the introduction of feedback and interdependence in ANP, it is relatively complicated to determinate element priority. The two elements can be compared directly or indirectly, and the stable element priority is ensured by solving the limit hypermatrix, as follows:

$$W^l=\underset{k\to \infty }{\lim }{W}^k$$

In the limit hypermatrix W^l, the value of element in each column is its weight, which reflects the limit relative priority of each element to the corresponding elements in this column. We denote the subjective weights of n sub-criteria by ANP method as η_j, j = 1, 2, …, n.

4.2.2. Objective Weighting Based on Intuitionistic Fuzzy Entropy

By evaluating n sub-criteria of m 3PRLPs (A₁, A₂, …, A_m), we obtain the evaluation matrix [x_ij]_m×n, and transform it into the intuitionistic fuzzy matrix [z_ij]_m×n. The intuitionistic fuzzy entropy of the jth criterion is as follows:

$$E_j=\frac{1}{m}{{\displaystyle \sum }}_{i=1}^m\frac{1-{s_{ij}}^2+2\left(1-{\pi }_{ij}\right)}{2-{s_{ij}}^2+\left(1-{\pi }_{ij}\right)},j=1,2,\cdots ,n$$

(7)

The objective weight of the jth criterion is as follows:

$${\tau }_j=\left(1-E_j\right)/{{\displaystyle \sum }}_{j=1}^n\left(1-E_j\right),j=1,2,\cdots ,n$$

(8)

By synthesizing the subjective and objective weights with the weight α and 1 − α, respectively, we can obtain the combination weight of each criterion as follows: w_j = αη_j + (1 − α)τ_j, j = 1, 2, …, n.

5. Evaluation Model Based on Intuitionistic Fuzzy MCDM

There is no strict distinction between the intuitionistic fuzzy MCDM methods in Table 3, and they can be theoretically used for 3PRLP evaluation. Since models based on criteria preferences require more subjective parameter values, we do not consider such methods. Among the models based on AOs, the hybrid weighted averaging operator (HWAO) considers the importance and position of each criterion simultaneously and has some good properties, such as idempotency and boundedness [8], so we apply HWAO for 3PRLP evaluation. Among the three models based on the distance from the reference points, namely TOPSIS, EADS, and MABAC, we choose TOPSIS because of its clear meaning, simple calculation, because it has the most extensive application. Among the models based on the utility from the reference points, namely MULTIMOORA, CPT, MARCOS, and VIKOR, we choose VIKOR because it considers group utility and individual regret simultaneously. In this way, we use five single MCDM methods to evaluate 3PRLPs at the same time, namely HWAO, ER, TOPSIS, GRA, and VIKOR. Because the results of single evaluation methods may not be the same, we need to test their compatibility using Kendall’s concordance coefficient method and obtain the compatible models [81]. Since the purpose of 3PRLP evaluation is to determine the reasonable and consistent ranking of multiple 3PRLPs, we apply the ranking-based combination evaluation models, and include Borda count, comprehensive Borda, Copeland, and fuzzy Borda models [88], to combine the results of compatible models. Finally, we output the best combination evaluation results that pass the Spearman consistency test [81]. The evaluation process is shown in Figure 2, which includes the single evaluation, Kendall compatibility test, combination evaluation, and Spearman consistency test.

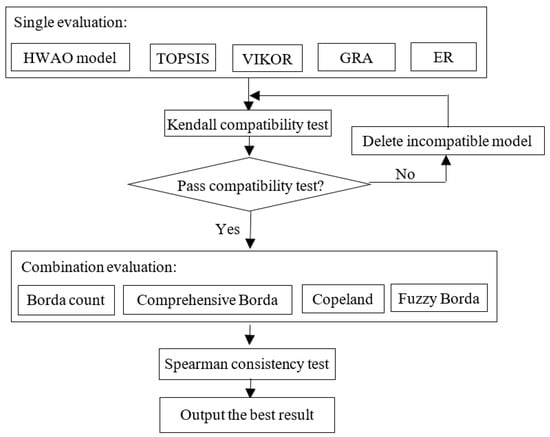

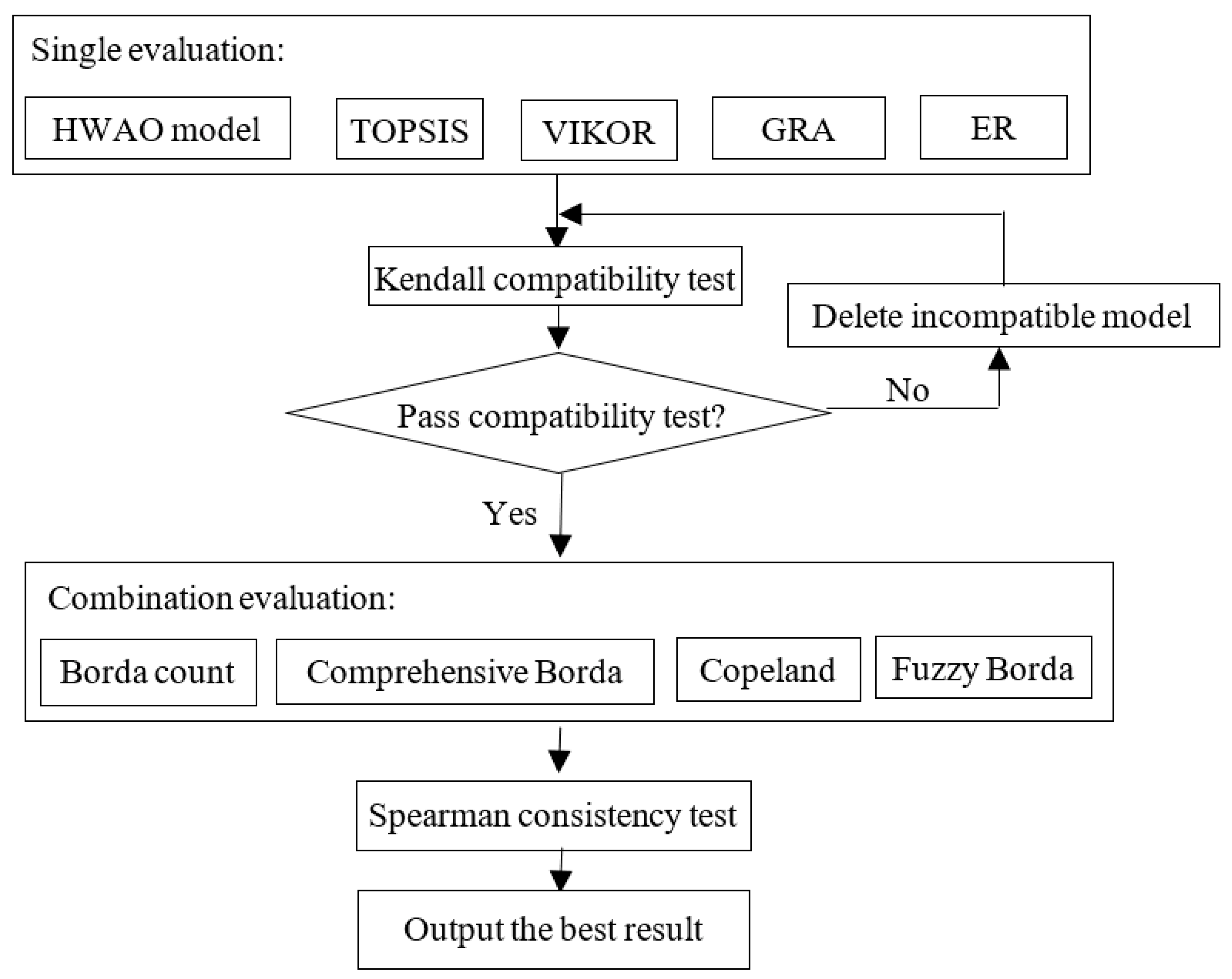

Figure 2. The process of 3PRLP evaluation.

5.1. Single Evaluation Models

5.1.1. HWAO Model

The steps of the HWAO model for 3PRLP evaluation are as follows:

Step 1: Calculate the weighted matrix, as follows: $Z^{\prime }={\left[z_{ij}^{\prime }\right]}_{m\times n}$, where $z_{ij}^{\prime }=w_j{z}_{ij}=w_j⟨u_{ij},v_{ij}⟩$.

Step 2: Reorder the values of n criteria of each 3PRLP from large to small. Let $z_{i\sigma \left(j\right)}^{’}$ be the jth IFN, j = 1, 2, …, n, and the corresponding value before weighting is z_iσ(j), and the criterion weight is w_iσ(j).

Step 3: Apply a normal distribution method to calculate the position weight ω_j, j = 1, 2, …, n, and then the comprehensive value of the ith 3PRLP is as follows:

$$f_i=⟨1-{{\displaystyle \prod }}_{j=1}^n{\left(1-u_{i\sigma \left(j\right)}\right)}^{\frac{{\omega }_j{w}_{i\sigma \left(j\right)}}{{{\displaystyle \sum }}_{j=1}^n{\omega }_j{w}_{i\sigma \left(j\right)}}},{{\displaystyle \prod }}_{j=1}^n{\left(v_{i\sigma \left(j\right)}\right)}^{\frac{{\omega }_j{w}_{i\sigma \left(j\right)}}{{{\displaystyle \sum }}_{j=1}^n{\omega }_j{w}_{i\sigma \left(j\right)}}}⟩,i=1,2,\cdots ,m$$

(9)

Step 4: Rank m 3PRLPs according to their comprehensive values.

5.1.2. TOPSIS

The steps of TOPSIS model are as follows:

Step 1: Determine the positive and negative ideal points as follows:

$$z^{+}=\left[\begin{array}{ccc}{z}_1^{+}& z_2^{+}& \begin{array}{cc}\cdots & z_n^{+}\end{array}\end{array}\right], z^{-}=\left[\begin{array}{ccc}{z}_1^{-}& z_2^{-}& \begin{array}{cc}\cdots & z_n^{-}\end{array}\end{array}\right]$$

(10)

where $z_j^{+}=⟨\underset{i}{\max }{u}_{ij},\underset{i}{\min }{v}_{ij}⟩, z_j^{-}=⟨\underset{i}{\min }{u}_{ij},\underset{i}{\max }{v}_{ij}⟩$.

Step 2: Calculate the distances of each 3PRLP from the positive and negative ideal points as follows:

$$d_i^{+}={{\displaystyle \sum }}_{j=1}^n{w}_{j}d\left(z_{ij},z_j^{+}\right), d_i^{-}={{\displaystyle \sum }}_{j=1}^n{w}_{j}d\left(z_{ij},z_j^{-}\right), i=1,2,\cdots ,m$$

(11)

Step 3: Calculate the proximity of each 3PRLP as follows:

$$c_i=\frac{d_i^{-}}{d_i^{+}+d_i^{-}}, i=1,2,\cdots ,m$$

(12)

Step 4: Rank m 3PRLPs according to their proximities from large to small.

5.1.3. VIKOR

The steps of the VIKOR model are as follows:

Step 1: Calculate the group utility value P_i and the individual regret value N_i of the ith 3PRLP as follows:

$$P_i={{\displaystyle \sum }}_{j=1}^n\frac{w_{j}d\left(z_{ij},z_j^{+}\right)}{d\left(z_j^{-},z_j^{+}\right)}, N_i=\underset{j}{\max }\frac{w_{j}d\left(z_{ij},z_j^{+}\right)}{d\left(z_j^{-},z_j^{+}\right)}, i=1,2,\cdots ,m$$

(13)

Step 2: Calculate the benefit ratio value Q_i as follows:

$$Q_i=\gamma \ast \frac{P_i-\underset{k}{\min }{P}_k}{\underset{k}{\max }{P}_k-\underset{k}{\min }{P}_k}+\left(1-\gamma \right)\ast \frac{N_i-\underset{k}{\min }{N}_k}{\underset{k}{\max }{N}_k-\underset{k}{\min }{N}_k}, i=1,2,\cdots ,m$$

(14)

where γ is the compromise coefficient between the group utility and individual regret, 0 ≤ γ ≤ 1.

Step 3: Rank m 3PRLPs according to their benefit ratio values from small to large.

5.1.4. GRA

The GRA method evaluates each object based on its relation degree with the reference sequence. Its steps are as follows:

Step 1: Take the positive ideal point as reference point, and calculate the relation coefficient between the jth criterion of each 3PRLP and reference point as follows:

$${\xi }_{ij}=\frac{\underset{i}{\min } \underset{j}{\min } d\left(z_{ij},z_j^{+}\right)+\rho \underset{i}{\max } \underset{j}{\max } d\left(z_{ij},z_j^{+}\right)}{d\left(z_{ij},z_j^{+}\right)+\rho \underset{i}{\max } \underset{j}{\max } d\left(z_{ij},z_j^{+}\right)}, i=1,2,\cdots ,m;j=1,2,\cdots ,n$$

(15)

where ρ is the distinguishing coefficient, ρ ∈ [0, 1].

Step 2: Calculate the relation degree of each 3PRLP as follows:

$${\xi }_i={{\displaystyle \sum }}_{j=1}^n{w}_j{\xi }_{ij}, i=1,2,\cdots ,m$$

(16)

Step 3: Rank m 3PRLPs according to their relation degrees from large to small.

5.1.5. ER

As an uncertain reasoning method, ER takes the index values as the evidence source and the evaluation grades as the identification frame and uses the ER algorithm to fuse the index information to obtain the confidence distribution belonging to each grade and expected utility of each evaluation object [89]. We apply the ER software IDS, developed by Professor Yang of the University of Manchester, for the 3PRLP evaluation [90].

Step 1: Establish an indicator hierarchy structure composed of target and n sub-criteria. Set the best and worst grades for the target, and the utility value is 1 and 0, respectively. According to the rule method, the confidence levels of the best and worst grades of each sub-criterion belonging to the (best, worst) are set as $⟨1,0⟩$ and $⟨0,1⟩$, respectively.

Step 2: Add m 3PRLPs, and the confidence level of the jth sub-criterion of the ith 3PRLP belonging to the best and worst grades is $⟨u_{ij},v_{ij}⟩$.

Step 3: Input the weights of n sub-criteria and evaluate the confidence level $⟨u_i,v_i⟩\left(i=1,2,\cdots ,m\right)$ so that the target of each 3PRLP belongs to the (best, worst).

Step 4: Rank m 3PRLPs according to their confidence levels.

5.2. Compatibility Test

We test the compatibility of single evaluation models using Kendall’s concordance coefficient method. Let r_ik be the order value of the ith 3PRLP in the kth single model, i = 1, 2, …, m; k = 1, 2, …, g, and we can calculate the value of statistical indicator as follows:

$${\chi }^2=\frac{12{\sum }_{i=1}^m{\left({\sum }_{k=1}^g{r}_{ik}\right)}^2}{gm\left(m+1\right)}-3g\left(m+1\right)$$

(17)

Given the significance level α, if the value of ${\chi }^2$ is not less than the critical value ${\chi }_{\alpha }^2\left(m-1\right)$, then the g models are compatible. In the case of incompatibility, we eliminate one single model and calculate the value of the statistical indicator of the remaining models. The set of compatible models with the largest statistical value can be obtained.

5.3. Combination Evaluation Models

5.3.1. Borda Count

By converting the ranking value p_ik of A_i in the kth single evaluation model into a score, namely $f_{ik}=m-p_{ik}+1$, we calculate the average score of each 3PRLP as follows:

$$f_i=\frac{{\sum }_{k=1}^g{f}_{ik}}{g}, i=1,2,\cdots ,m$$

(18)

We then rank m 3PRLPs according to the average scores from large to small. If there are multiple 3PRLPs whose average sores are same, we calculate the variance of scores in different evaluation models and prefer the 3PRLP with a smaller variance.

5.3.2. Comprehensive Borda

Based on the results of each 3PRLP in g compatible single evaluation models, we count the number of models in which the ranking value of A_i is less than that of A_l and the number of models in which the ranking value of A_l is less than that of A_i. If the former is larger than the latter, b_il = 1; otherwise, b_il = 0. Calculate the Borda score of each 3PRLP as follows:

$$b_i={{\displaystyle \sum }}_{l=1}^m{b}_{il}, i=1,2,\cdots ,m$$

(19)

and rank m 3PRLPs according to the Borda scores from large to small.

5.3.3. Copeland

The Copeland model is an extension of the Borda model. In addition to defining the value of superior order, it also defines the values of equivalent and inferior orders. If the frequency of A_i ranking superior to A_l in g compatible single evaluation models is greater than that of A_l ranking superior to A_i, c_il = 1; if the former is equal to the latter, c_il = 0; if the former is smaller than the latter, c_il = −1. Calculate the Copeland score of each 3PRLP as follows:

$$c_i={{\displaystyle \sum }}_{l=1}^m{c}_{il}, i=1,2,\cdots ,m$$

(20)

and rank m 3PRLPs according to the Copeland scores from large to small.

5.3.4. Fuzzy Borda

The fuzzy Borda model takes the difference in scores and in ranking order of various models into consideration, and the calculation steps are as follows:

Step 1: Calculate the membership degree of A_i that is excellent in the kth model as follows:

$$u_{ik}=\frac{f_{ik}-\underset{i}{\min }{f}_{ik}}{\underset{i}{\max }{f}_{ik}-\underset{i}{\min }{f}_{ik}}\ast 0.9+0.1, i=1,2,\cdots ,m;k=1,2,\cdots ,g$$

(21)

where, if the kth model is HWAO or ER, f_ik is the score of IFN; if it is TOPSIS or GRA, f_ik is the value of proximity or relation degree, respectively. If the model is VIKOR, as the benefit ratio is a cost-type index, the following membership function is used:

$$u_{ik}=\frac{\underset{i}{\max }{f}_{ik}-f_{ik}}{\underset{i}{\max }{f}_{ik}-\underset{i}{\min }{f}_{ik}}\ast 0.9+0.1, i=1,2,\cdots ,m;k=1,2,\cdots ,g$$

(22)

Step 2: Count the fuzzy frequency of A_i ranking the hth in g compatible single evaluation models, as follows:

$$v_{ih}={{\displaystyle \sum }}_{k=1}^g{t}_{ikh},i=1,2,\cdots ,m$$

(23)

where,

$$t_{ikh}={\delta }_{ikh}{u}_{ik}, {\delta }_{ikh}=\left\{\begin{array}{c}1,A_i \mathrm{r}\mathrm{a}\mathrm{n}\mathrm{k}\mathrm{s} \mathrm{t}\mathrm{h}\mathrm{e} h\mathrm{t}\mathrm{h} \mathrm{i}\mathrm{n} \mathrm{t}\mathrm{h}\mathrm{e} k\mathrm{t}\mathrm{h} \mathrm{m}\mathrm{o}\mathrm{d}\mathrm{e}\mathrm{l}\\ 0, others\end{array}\right.$$

(24)

Then, calculate the fuzzy frequency ratio as follows:

$${\phi }_{ih}=\frac{v_{ih}}{{\sum }_{h=1}^m{v}_{ih}},i=1,2,\cdots ,m;h=1,2,\cdots ,m$$

(25)

Step 3: Calculate the fuzzy Borda score of each 3PRLP as follows:

$$F_i={{\displaystyle \sum }}_{h=1}^m\frac{\left(m-h\right)\left(m-h+1\right)}{2}{\phi }_{ih},i=1,2,\cdots ,m$$

(26)

and rank m 3PRLPs according to the fuzzy Borda scores from large to small.

5.4. Spearman Consistency Test

The Spearman rank correlation coefficient between the lth combination evaluation model and the kth single evaluation model is as follows:

$${\rho }_{lk}=1-\frac{6{\sum }_{i=1}^m{\left(p_{il}-p_{ik}\right)}^2}{m\left(m^2-1\right)}, l=1,2,3,4;k=1,2,\cdots g$$

(27)

where p_il and p_ik are the ranking values of A_i in the lth combination model and the kth single model, respectively. We calculate the value of statistical indicator as follows:

$$t_l={\rho }_l\sqrt{\frac{m-2}{1-{{\rho }_l}^2}}$$

(28)

where ρ_l is the average correlation coefficient as follows:

$${\rho }_l=\frac{{\sum }_{k=1}^g{\rho }_{lk}}{g}, l=1,2,3,4$$

(29)

Given the significance level α, if the value of t_l is not less than the critical value t_α(m − 2), it means that the lth combination evaluation model is consistent with all the compatible single evaluation models. We output the rank result of the combination evaluation model that satisfies the consistency test and has the maximum value of the statistical indicator.

6. An Illustrative Example

Company H is a manufacturer of cold chain equipment. In order to realize the recycling and reuse of waste products, the decision-makers of Company H plan to select the best 3PRLP from six 3PRLPs including A₁, A₂, …, and A₆. Based on the criteria systems proposed in a variety of sources in the literature, a preliminary evaluation criteria system is constructed, as shown in Table 6.

Table 6. The preliminary evaluation criteria system for 3PRLP selection for Company H.

Preliminary Criteria	Sub-Criteria
Cooperative alliance	Corporate reputation, experience in industry, benefit-risk sharing level, communication level, cultural and strategic compatibility, geographical proximity
Service cost	Explicit cost, transportation cost, inventory cost, implicit cost, cost savings
Service capacity	Transportation capacity, inventory capacity, added-value service capacity, information level, network coverage, professional talent ratio, cooperative working ability, logistics visualization
Service quality	Customer satisfaction, timeliness of response, commitment reliability, complaint rate, value recovery ratio, environmental protection effect, service security

By consulting ten experts with high theoretical level and practical experience, four decision tables are established, which include service quality, service competency, service cost, and cooperative alliance decision tables. For example, the service capacity decision table is shown in Table 7.

Table 7. Service capacity decision table for 3PRLP selection for Company H.

Serial Number of Experts	Transportation Capacity	Inventory Capacity	Added-Value Service Capacity	Information Level	Network Coverage	Professional Talent Ratio	Cooperative Working Ability	Logistics Visualization	Service Capacity
1	5	3	4	5	5	4	3	3	4
2	4	2	5	5	4	4	4	2	5
3	3	2	4	4	3	4	2	4	3
4	4	3	4	5	4	3	3	2	4
5	4	2	4	4	4	4	5	3	5
6	4	3	5	5	4	4	4	4	4
7	5	3	5	4	4	5	5	2	5
8	4	4	4	4	4	5	3	3	5
9	5	3	5	4	3	4	3	3	3
10	4	2	5	4	3	4	4	3	4

According to the reduction steps of the rough set method, we obtain 15 reduction sets of conditional attributes as shown in Table 8. By consulting experts, we select the elements in the last one with the longest length as the secondary indexes of service capacity.

Table 8. The reduction result of conditional attributes of service capacity decision table.

No.	Reduction Set	Support	Length
1	{Inventory capacity, information level, cooperative working ability}	100	3
2	{Professional talent ratio, cooperative working ability, logistics visualization}	100	3
3	{Inventory capacity, added-value service capacity, logistics visualization}	100	3
4	{Inventory capacity, professional talent ratio, cooperative working ability}	100	3
5	{Transportation capacity, inventory capacity, professional talent ratio}	100	3
6	{Transportation capacity, added-value service capacity, logistics visualization}	100	3
7	{Inventory capacity, professional talent ratio, network coverage, logistics visualization}	100	4
8	{Transportation capacity, professional talent ratio, network coverage, logistics visualization}	100	4
9	{Inventory capacity, information level, cooperative working ability, logistics visualization}	100	4
10	{Added-value service capacity, network coverage, cooperative working ability, logistics visualization}	100	4
11	{Transportation capacity, information level, cooperative working ability, logistics visualization}	100	4
12	{Information level, network coverage, cooperative working ability, logistics visualization}	100	4
13	{Inventory capacity, added-value service capacity, professional talent ratio, network coverage}	100	4
14	{Added-value service capacity, information level, cooperative working ability, logistics visualization}	100	4
15	{Transportation capacity, inventory capacity, added-value service capacity, information level, network coverage}	100	5

Similarly, we can obtain the sub-criteria of the other criteria. The final evaluation criteria system for 3PRLP selection of company H is shown in Table 9, where the content in parentheses represents the code for the criterion.

Table 9. Evaluation criteria system for 3PRLP selection for Company H.

Preliminary Indexes	Secondary Indexes
Cooperative alliance (B1)	Corporate reputation (C1)
	Benefit-risk sharing level (C2)
	Cultural and strategic compatibility (C3)
	Communication level (C4)
Service cost (B2)	Explicit cost (C5)
	Implicit cost (C6)
Service capacity (B3)	Information level (C7)
	Add-value service capacity (C8)
	Inventory capacity (C9)
	Network coverage (C10)
	Transportation capacity (C11)
Service quality (B4)	Value recovery ratio (C12)
	Timeliness of response (C13)
	Customer satisfaction (C14)
	Environmental protection effect (C15)

Through a questionnaire survey on the correlations of evaluation criteria, we obtain the correlation matrix as shown in Table 10, where the number 1 means that the influencing factor on the left affects the affected factor on the top, and the number 0 means that the factor on the left has no impact relationship with the factor at the top.

Table 10. Correlation matrix of evaluation criteria.

	Affected Factors	C1	C2	C3	C4	C5	C6	C7	C8	C9	C10	C11	C12	C13	C14	C15
Influencing Factors
C1		0	1	1	1	1	1	0	1	0	1	0	0	1	1	1
C2		1	0	0	1	1	1	0	0	0	0	0	1	1	1	1
C3		1	1	0	1	1	1	0	0	0	0	0	1	1	1	1
C4		1	1	1	0	1	1	1	1	0	1	0	1	1	1	1
C5		1	1	0	0	0	0	1	1	1	1	1	0	0	1	0
C6		1	1	0	0	0	0	1	1	0	1	0	0	0	1	0
C7		1	1	1	1	1	0	0	1	1	1	1	1	1	1	1
C8		1	1	1	0	1	1	0	0	1	1	1	1	1	1	1
C9		0	0	0	0	1	0	0	0	0	1	1	1	1	1	1
C10		1	1	1	0	1	0	0	1	1	0	1	1	1	1	1
C11		0	0	0	0	1	0	0	0	0	1	0	1	1	1	0
C12		1	1	1	0	1	1	0	0	0	0	0	0	0	1	1
C13		1	1	0	0	1	1	0	1	0	1	0	1	0	1	1
C14		1	1	0	0	0	0	0	1	0	1	0	0	0	0	0
C15		1	1	1	0	0	1	0	0	0	1	0	1	0	1	0

Then, we apply the software SuperDecisions (www.superdecisions.com) to draw the network hierarchy, as shown in Figure 3.

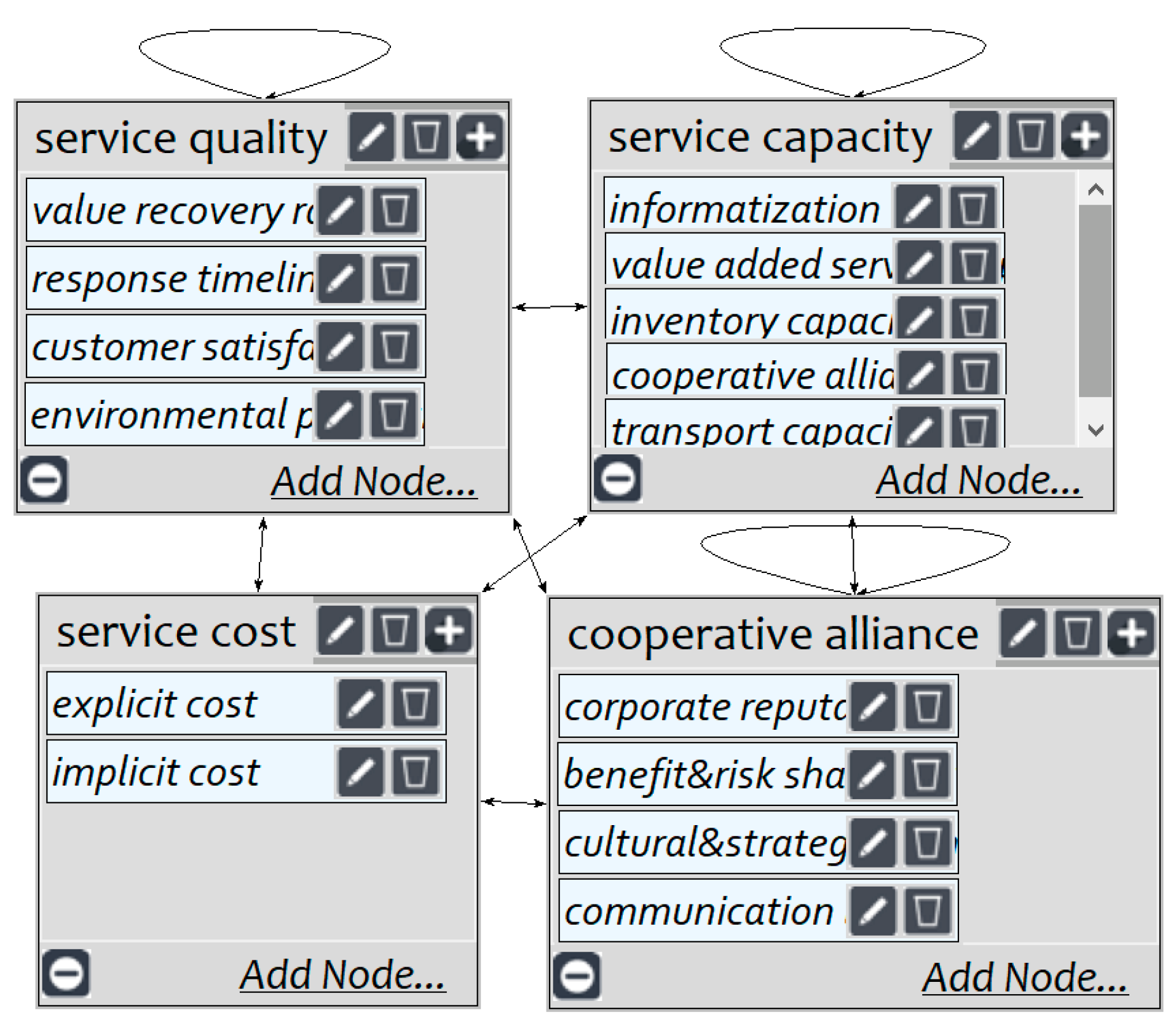

Figure 3. Network hierarchy for 3PRLP selection for Company H.

Inputting comparison judgement matrixes of criteria and sub-criteria, we conduct consistency tests and obtain the weightless hypermatrix W_S that satisfies consistency as follows:

$$\left[\begin{array}{ccccccccccccccc}\begin{array}{c}0.0000\\ 0.4286\\ 0.1429\\ 0.4286\\ 0.2500\\ 0.7500\\ 0.0000\\ 0.2500\\ 0.0000\\ 0.7500\\ 0.0000\\ 0.0000\\ 0.2297\\ 0.6483\\ 0.1220\end{array}& \begin{array}{c}0.7500\\ 0.0000\\ 0.0000\\ 0.2500\\ 0.7500\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.2720\\ 0.1570\\ 0.4829\\ 0.0882\end{array}& \begin{array}{c}0.2000\\ 0.6000\\ 0.0000\\ 0.2000\\ 0.3333\\ 0.6667\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1998\\ 0.5222\\ 0.0781\\ 0.1998\end{array}& \begin{array}{c}0.6483\\ 0.2297\\ 0.1220\\ 0.0000\\ 0.6667\\ 0.3333\\ 0.1095\\ 0.3090\\ 0.0000\\ 0.5816\\ 0.0000\\ 0.1682\\ 0.5167\\ 0.2382\\ 0.0769\end{array}& \begin{array}{c}0.2500\\ 0.7500\\ \begin{array}{c}0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0950\\ 0.3396\\ 0.2156\\ 0.1892\\ 0.1607\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\end{array}\end{array}& \begin{array}{c}0.8333\\ 0.1667\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.2000\\ 0.4000\\ 0.0000\\ 0.4000\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\end{array}& \begin{array}{c}0.2082\\ 0.1034\\ 0.0949\\ 0.5936\\ 1.0000\\ 0.0000\\ 0.0000\\ 0.0679\\ 0.3899\\ 0.1524\\ 0.3899\\ 0.2622\\ 0.5650\\ 0.1175\\ 0.0553\end{array}& \begin{array}{c}0.6483\\ 0.2297\\ 0.1220\\ 0.0000\\ 0.7500\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.2000\\ 0.6000\\ 0.2000\\ 0.4601\\ 0.1486\\ 0.3249\\ 0.0665\end{array}& \begin{array}{c}0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.7500\\ 0.2500\\ 0.1740\\ 0.4769\\ 0.2697\\ 0.0795\end{array}& \begin{array}{c}0.6483\\ 0.2297\\ 0.1220\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.0000\\ 0.6000\\ 0.2000\\ 0.0000\\ 0.2000\\ 0.3899\\ 0.3899\\ 0.1524\\ 0.0679\end{array}& \begin{array}{c}0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.2970\\ 0.5396\\ 0.1634\\ 0.0000\end{array}& \begin{array}{c}0.2297\\ 0.6483\\ 0.1220\\ 0.0000\\ 0.7500\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.7500\\ 0.2500\end{array}& \begin{array}{c}0.7500\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.7500\\ 0.2500\\ 0.0000\\ 0.7500\\ 0.0000\\ 0.2500\\ 0.0000\\ 0.6483\\ 0.0000\\ 0.2297\\ 0.1220\end{array}& \begin{array}{c}0.8333\\ 0.1667\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.7500\\ 0.0000\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\end{array}& \begin{array}{c}0.6483\\ 0.1220\\ 0.2297\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.1667\\ 0.0000\\ 0.8333\\ 0.0000\end{array}\end{array}\right]$$

The weighted hypermatrix W is as follows:

$$\left[\begin{array}{ccccccccccccccc}\begin{array}{c}0.0000\\ 0.1166\\ 0.0389\\ 0.1166\\ 0.0393\\ 0.1177\\ 0.0000\\ 0.0220\\ 0.0000\\ 0.0661\\ 0.0000\\ 0.0000\\ 0.1109\\ 0.3131\\ 0.0589\end{array}& \begin{array}{c}0.2237\\ 0.0000\\ 0.0000\\ 0.0746\\ 0.1291\\ 0.0430\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1440\\ 0.0831\\ 0.2557\\ 0.0467\end{array}& \begin{array}{c}0.0597\\ 0.1790\\ 0.0000\\ 0.0597\\ 0.0574\\ 01148\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1058\\ 0.2766\\ 0.0414\\ 0.1058\end{array}& \begin{array}{c}0.1763\\ 0.0625\\ 0.0332\\ 0.0000\\ 0.1047\\ 0.0523\\ 0.0097\\ 0.0272\\ 0.0000\\ 0.0513\\ 0.0000\\ 0.0812\\ 0.2495\\ 0.1150\\ 0.0372\end{array}& \begin{array}{c}0.0773\\ 0.2318\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0552\\ 0.1975\\ 0.1254\\ 0.1100\\ 0.0934\\ 0.0000\\ 0.0000\\ 0.1095\\ 0.0000\end{array}& \begin{array}{c}0.2575\\ 0.0515\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1163\\ 0.2326\\ 0.0000\\ 0.2326\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1095\\ 0.0000\end{array}& \begin{array}{c}0.0202\\ 0.0100\\ 0.0092\\ 0.0577\\ 0.1854\\ 0.0000\\ 0.0000\\ 0.0126\\ 0.0723\\ 0.0283\\ 0.0723\\ 0.1395\\ 0.3006\\ 0.0625\\ 0.0294\end{array}& \begin{array}{c}0.0630\\ 0.0223\\ 0.0119\\ 0.0000\\ 0.1391\\ 0.0464\\ 0.0000\\ 0.0000\\ 0.0371\\ 0.1113\\ 0.0371\\ 0.2448\\ 0.0791\\ 0.1728\\ 0.0354\end{array}& \begin{array}{c}0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.2054\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1540\\ 0.0513\\ 0.1025\\ 0.2810\\ 0.1589\\ 0.0469\end{array}& \begin{array}{c}0.0630\\ 0.0223\\ 0.0110\\ 0.0000\\ 0.1854\\ 0.0000\\ 0.0000\\ 0.113\\ 0.0371\\ 0.0000\\ 0.0371\\ 0.2074\\ 0.2074\\ 0.0811\\ 0.0361\end{array}& \begin{array}{c}0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.2054\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.2054\\ 0.0000\\ 0.1750\\ 0.3180\\ 0.0963\\ 0.0000\end{array}& \begin{array}{c}0.0582\\ 0.1644\\ 0.0309\\ 0.0000\\ 0.1127\\ 0.0376\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.4471\\ 0.1490\end{array}& \begin{array}{c}0.1742\\ 0.0581\\ 0.0000\\ 0.0000\\ 0.1033\\ 0.0344\\ 0.0000\\ 0.0628\\ 0.0000\\ 0.0209\\ 0.0000\\ 0.3541\\ 0.0000\\ 0.1254\\ 0.0667\end{array}& \begin{array}{c}0.6125\\ 0.1225\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.1988\\ 0.0000\\ 0.2500\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\\ 0.0000\end{array}& \begin{array}{c}0.1506\\ 0.0284\\ 0.0534\\ 0.0000\\ 0.0000\\ 0.1377\\ 0.0000\\ 0.0000\\ 0.0000\\ 1.0000\\ 0.0000\\ 0.0910\\ 0.0000\\ 0.4552\\ 0.0000\end{array}\end{array}\right]$$

The limit hypermatrix W^l is:

$$\left[\begin{array}{ccccccccccccccc}\begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}& \begin{array}{c}0.1901\\ 0.0903\\ 0.0149\\ 0.0303\\ 0.0698\\ 0.0444\\ 0.0093\\ 0.0779\\ 0.0147\\ 0.0633\\ 0.0312\\ 0.0831\\ 0.0707\\ 0.1868\\ 0.0412\end{array}\end{array}\right]$$

According to the limit hypermatrix, we get the weights of the sub-criteria C₁, C₂, …, C₁₅ as 0.1901, 0.0903, 00149, 0.0303, 0.0698, 0.0444, 0.0093, 0.0779, 0.0147, 0.0633, 0.0132, 0.0831, 0.0707, 0.1868 and 0.0412, respectively. Through site investigation and evaluation of the expert group, the original evaluation data of 15 criteria of six 3PRLPs are obtained, as shown in Table 11. The criteria C₃ and C₁₃ are expressed as interval-value fuzzy numbers; C₅, C₆, C₁₀ and C₁₂ are expressed as general interval numbers; C₁₄ is expressed as crisp number, and the other five criteria are expressed as linguistic variables with seven-level linguistic term set {highest, very high, high, average, low, very low, lowest}.

Table 11. The original evaluation data of 15 indexes of 6 3PRLPs.

Criterion	A1	A2	A3	A4	A5	A6
C1	[average, high]	[low, average]	very high	high	[high, highest]	average
C2	[low, average]	[average, high]	[very low, average]	[average, very high]	[low, high]	[high, highest]
C3	[0.65, 0.8]	[0.5, 0.7]	[0.4, 0.55]	[0.7, 0.85]	[0.3, 0.5]	[0.7, 0.9]
C4	[high, highest]	[average, high]	[average, very high]	[low, average]	average	[low, high]
C5	[6, 15]	[12, 20]	[10, 18]	[8, 17]	[10, 15]	[12, 18]
C6	[10, 25]	[9, 20]	[12, 28]	[15, 30]	[13, 25]	[9, 18]
C7	high	[low, high]	[average, high]	[high, highest]	[low, average]	[average, very high]
C8	[low, high]	[average, high]	high	[average, high]	[average, high]	[low, average]
C9	average	[low, average]	average	[low, high]	[high, highest]	high
C10	[0.4, 0.62]	[0.35, 0.54]	[0.42, 0.6]	[0.36, 0.48]	[0.56, 0.72]	[0.42, 0.55]
C11	[low, average]	average	low	[average, high]	[low, high]	[high, highest]
C12	[0.15, 0.22]	[0.1, 0.18]	[0.12, 0.2]	[0.08, 0.18]	[0.1, 0.15]	[0.07, 0.16]
C13	[0.7, 0.8]	[0.8, 0.9]	[0.7, 0.85]	[0.65, 0.8]	[0.7, 0.9]	[0.6, 0.8]
C14	88%	81%	78%	80%	82%	76%
C15	low	[average, high]	[low, high]	average	very high	[average, high]

By standardizing the values of various variables and transforming them into IFNs, we get the intuitionistic fuzzy matrix as follows

$$Z^T=\left[\begin{array}{cccccc}\begin{array}{c}⟨0.2840,0.5463⟩\\ ⟨0.1704,0.5397⟩\\ ⟨0.6500,0.2000⟩\\ ⟨0.3785,0.2447⟩\\ ⟨0.1013,0.5282⟩\\ ⟨0.0728,0.6072⟩\\ ⟨0.3830,0.4567⟩\\ ⟨0.1826,0.4126⟩\\ ⟨0.2999,0.6119⟩\\ ⟨0.2769,0.4030⟩\\ ⟨0.1945,0.5546⟩\\ ⟨0.3343,0.1576⟩\\ ⟨0.7000,0.2000⟩\\ ⟨0.4440,0.5560⟩\\ ⟨0.1853,0.7726⟩\end{array}& \begin{array}{c}⟨0.1704,0.6759⟩\\ ⟨0.2840,0.3556⟩\\ ⟨0.5000,0.3000⟩\\ ⟨0.2704,0.4126⟩\\ ⟨0.0759,0.7641⟩\\ ⟨0.0911,0.5636⟩\\ ⟨0.1642,0.4567⟩\\ ⟨0.3043,0.4126⟩\\ ⟨0.1799,0.6119⟩\\ ⟨0.2423,0.4800⟩\\ ⟨0.3241,0.5546⟩\\ ⟨0.2229,0.3107⟩\\ ⟨0.8000,0.1000⟩\\ ⟨0.4086,0.5914⟩\\ ⟨0.3089,0.4693⟩\end{array}& \begin{array}{c}⟨0.5112,0.4166⟩\\ ⟨0.0568,0.5397⟩\\ ⟨0.4000,0.4500⟩\\ ⟨0.2704,0.2447⟩\\ ⟨0.0844,0.7169⟩\\ ⟨0.0650,0.6727⟩\\ ⟨0.2736,0.4567⟩\\ ⟨0.4260,0.4126⟩\\ ⟨0.2999,0.4567⟩\\ ⟨0.2907,0.4222⟩\\ ⟨0.1945,0.7327⟩\\ ⟨0.2675,0.2342⟩\\ ⟨0.7000,0.1500⟩\\ ⟨0.3935,0.6065⟩\\ ⟨0.1853,0.4693⟩\end{array}& \begin{array}{c}⟨0.3976,0.5463⟩\\ ⟨0.2840,0.1715⟩\\ ⟨0.7000,0.1500⟩\\ ⟨0.1622,0.5804⟩\\ ⟨0.0894,0.6462⟩\\ ⟨0.0607,0.7382⟩\\ ⟨0.3830,0.3015⟩\\ ⟨0.3043,0.4126⟩\\ ⟨0.1799,0.4567⟩\\ ⟨0.2492,0.5378⟩\\ ⟨0.3241,0.3764⟩\\ ⟨0.1783,0.3107⟩\\ ⟨0.6500,0.2000⟩\\ ⟨0.4036,0.5964⟩\\ ⟨0.3089,0.6210⟩\end{array}& \begin{array}{c}⟨0.3976,0.4166⟩\\ ⟨0.1704,0.3556⟩\\ ⟨0.3000,0.5000⟩\\ ⟨0.2704,0.5804⟩\\ ⟨0.1013,0.7169⟩\\ ⟨0.0728,0.6979⟩\\ ⟨0.1642,0.6119⟩\\ ⟨0.3043,0.4126⟩\\ ⟨0.4198,0.3015⟩\\ ⟨0.3876,0.3067⟩\\ ⟨0.1945,0.3764⟩\\ ⟨0.2229,0.4256⟩\\ ⟨0.7000,0.1000⟩\\ ⟨0.4137,0.5863⟩\\ ⟨0.5560,0.3177⟩\end{array}& \begin{array}{c}⟨0.2840,0.6759⟩\\ ⟨0.3976,0.1715⟩\\ ⟨0.7000,0.1000⟩\\ ⟨0.1622,0.2447⟩\\ ⟨0.0844,0.7641⟩\\ ⟨0.1012,0.5636⟩\\ ⟨0.2736,0.3015⟩\\ ⟨0.1826,0.5804⟩\\ ⟨0.4198,0.4567⟩\\ ⟨0.2907,0.4704⟩\\ ⟨0.4537,0.1982⟩\\ ⟨0.1560,0.3873⟩\\ ⟨0.6000,0.2000⟩\\ ⟨0.3834,0.6166⟩\\ ⟨0.3089,0.4693⟩\end{array}\end{array}\right]$$

According to Formulas (7) and (8), we calculate the intuitionistic fuzzy entropy weights of the criteria C₁, C₂, …, C₁₅ as 0.0803, 0.0460, 0.0752, 0.0517, 0.0781, 0.0677, 0.0580, 0.0595, 0.0670, 0.0594, 0.0648, 0.0402, 0.0843, 0.0930 and 0.0748, respectively. By synthesizing the subjective and objective weights with the same weight of 0.5, we obtain the combination weights of 15 criteria as 0.1352, 0.0681, 0.0450, 0.0410, 0.0740, 0.0561, 0.0337, 0.0687, 0.0408, 0.0614, 0.0390, 0.0617, 0.0775, 0.1399, and 0.0580, respectively. It can be seen from Figure 4 that, among the 15 criteria, customer satisfaction (C₁₄) and corporate reputation (C₁) are the two most important criteria for Company H to select 3PRLP, and the sum of their weights is close to 30%.

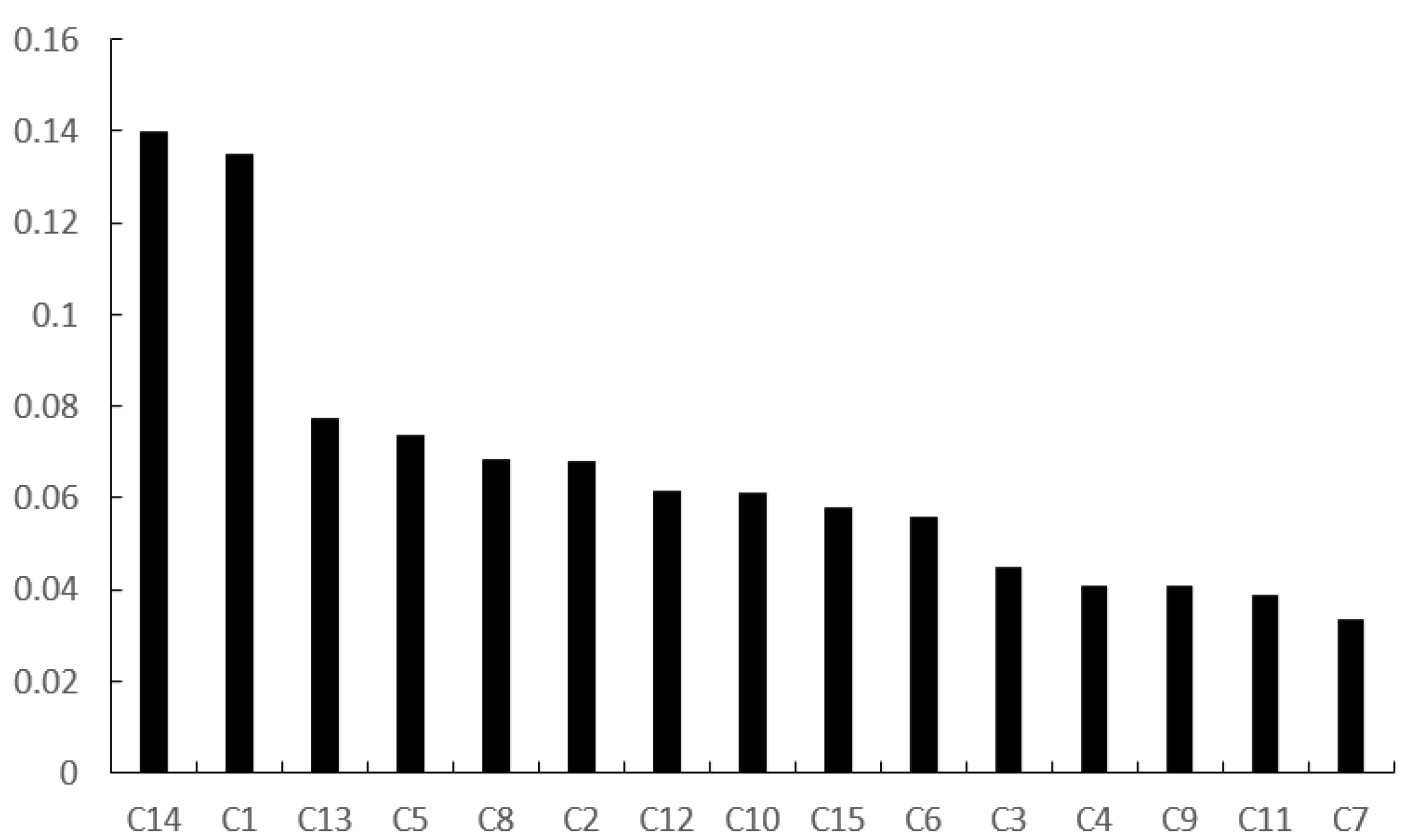

Figure 4. Weight distribution of each criterion from large to small.

We use the HWAO, TOPSIS, VIKOR, GRA, and ER models to evaluate the six 3PRLPs; their evaluation results are shown in Table 12, where the compromise coefficient in VIKOR and the distinguishing coefficient in GRA are both 0.5.

Table 12. The results of single evaluation models.

Model	Result	A1	A2	A3	A4	A5	A6
Aggregation operator	Comprehensive value	$⟨0.3110,0.4268⟩$	$⟨0.2984,0.4670⟩$	$⟨0.3205,0.4359⟩$	$⟨0.3383,0.4060⟩$	$⟨0.3340,0.4133⟩$	$⟨0.3213,0.4230⟩$
	Score	−0.1158	−0.1686	−0.1154	−0.0677	−0.0793	−0.1017
	rank	5	6	4	1	2	3
TOPSIS	Proximity	0.4827	0.419	0.4868	0.4943	0.5181	0.4845
	rank	5	6	3	2	1	4
VIKOR	Benefit ratio	0.1465	0.8494	0.5412	0.4352	0.0610	1
	rank	2	5	4	3	1	6
GRA	Relation degree	0.6075	0.5758	0.6257	0.5965	0.6265	0.5844
	rank	3	6	2	4	1	5
ER	Confidence level	$⟨0.3219,0.5112⟩$	$⟨0.2983,0.5414⟩$	$⟨0.3310,0.5120⟩$	$⟨0.3327,0.5079⟩$	$⟨0.3446,0.4882⟩$	$⟨0.3229,0.5112⟩$
	score	−0.1893	−0.2431	−0.181	−0.1752	−0.1436	−0.1883
	rank	5	6	3	2	1	4

The result of the compatibility test using Kendall’s concordance coefficient method is shown in Table 13. The value of Asymp. sig. is 0.0024, which indicates that the evaluation results of five models have a relatively significant consistency, and the five single evaluation models are compatible.

Table 13. The result of Kendall’s concordance coefficient method.

Compatibility Test	N	Kendall’s W	Chi-Square	df	Asymp. Sig.
Value	5	0.7394	18.4857	5	0.0024

By inputting the results of the above single evaluation models into four combination evaluation models, we calculate the results of combination evaluation, which can be seen in Table 14.

Table 14. The results of combination evaluation models.

3PRLP	Borda Count		Comprehensive Borda		Copeland		Fuzzy Borda
	Score	Rank	Score	Rank	Score	Rank	Score	Rank
A1	3	4	1	5	−3	5	4.3876	4
A2	1.2	6	0	6	−5	6	0.3792	6
A3	3.8	3	3	3	1	3	6.1717	3
A4	4.6	2	4	2	3	2	9.7697	2
A5	5.8	1	5	1	5	1	14.0844	1
A6	2.6	5	2	4	−1	4	3.5499	5

The ranking results of the Borda count and fuzzy Borda models are identical, and those of the comprehensive Borda and Copeland models are also identical. We calculate the values of statistical indicator in two cases, and the former and the latter are 3.2468 and 2.9598, respectively. They are greater than the critical value t_0.05(4) = 2.132, and the former is larger, so we output the former result as the final ranking result. Therefore, A₅ ranks the first in the six 3PRLPs, and Company H can select it as the 3PRLP partner. According to the scores of IFNs of 6 3PRLPs’ 15 criteria (see Figure 5), A₅ ranks second in the 2 most important criteria C₁₄ and C₁, which is the main reason for it ranking first. In addition, A₅ ranks the sixth in cultural and strategic compatibility (C₃) and information level (C₇), the fifth in communication level (C₄), implicit cost (C₆), and value recovery ratio (C₁₂), and the fourth in benefit-risk sharing level (C₂), which indicate that A₅ has certain gaps in the above six criteria compared with the other 3PRLPs. Therefore, Company H can enhance communication with A₅ to improve the strategic compatibility, and require it to improve its information level, communication level, value recovery ratio, and benefit-risk sharing level, and lower implicit cost.

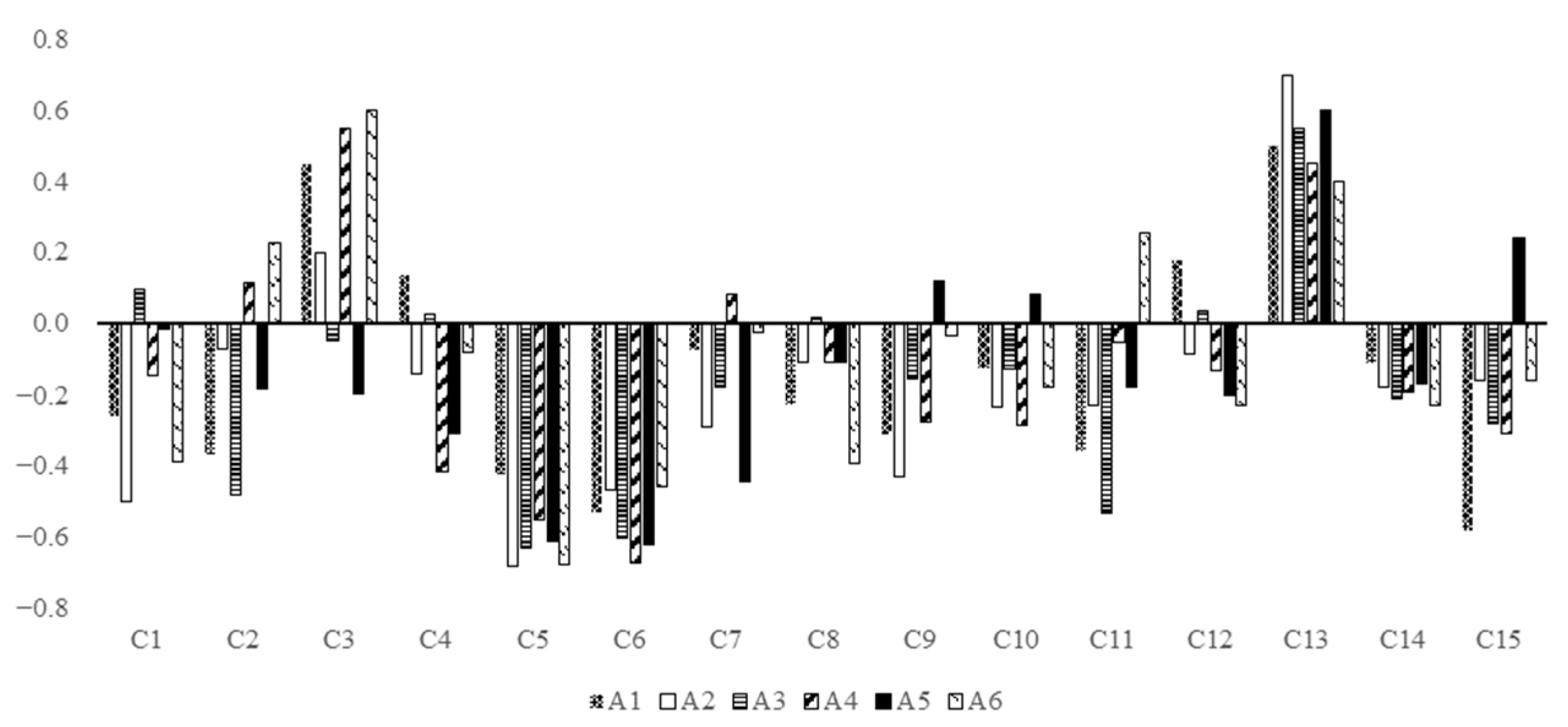

Figure 5. The scores of IFNs of the 6 3PRLPs’ 15 criteria.

7. Conclusions

The evaluation or selection of 3PRLPs plays an important role in helping enterprises to carry out RL effectively and achieve the goal of environmental protection and the associated economic benefits. In view of the personalized requirements of enterprises in the process of selecting 3PRLP, this paper puts forward a criteria screening method based on a rough set. In terms of the interactive relationship of the criteria in the same layer, an ANP-based subjective weighting method is put forward. Combined with the hybrid attribute characteristics of the criteria, this paper puts forward the unified IFN transformation methods, and constructs five single evaluation models based on intuitionistic fuzzy decision making, including HWAO, TOPSIS, VIKOR, GRA, and ER. Kendall’s concordance coefficient method is applied for compatibility test on the single evaluation models. Based on the ranking methods, Borda count, comprehensive Borda, Copeland, and fuzzy Borda models are applied for combination evaluation on the results of compatible single evaluation models. Meanwhile, the Spearman rank correlation coefficient method is applied to conduct a consistency test and obtain the best 3PRLP. The results of an illustrative example verify that the criteria screening method and the evaluation models are feasible and effective.

Compared with the existing literature, this paper makes the following contributions: (1) The problem of criteria screening based on a rough set method is discussed, which can meet the personalized requirements of an enterprise and achieve the reduction in criteria; (2) considering the subjective guidance of the important criteria and the objective differences between the evaluation objects, a combined weighting method based on ANP subjective weighting and intuitionistic fuzzy entropy objective weighting is proposed; (3) by combining the principles of different intuitionistic fuzzy MCDM methods and based on the representative models, a combination evaluation idea integrating multiple intuitionistic fuzzy MCDM models is put forward, which enhances the consistency and credibility of decision-making results.

There are some shortcomings in this research, as follows: (1) Only one criteria screening method is provided. In fact, there are other methods, such as the direct scoring and screening of the importance of the criteria by experts. Are these methods compatible? Can they be used together? These questions must be considered; (2) there are many criteria weighting methods. For example, the CRITIC method considers the correlation and difference between criteria at the same time. When a scientific correlation coefficient of IFN_S is defined and CRITIC objective weighting is adopted, is it more advantageous than the intuitionistic fuzzy entropy weighting? This must be determined; (3) the single MCDM models can replace each other. For example, VIKOR can be replaced by MARCOS, another utility-based model, while an intuitionistic fuzzy MCDM model can be replaced by its generalized form, such as an interval-valued intuitionistic fuzzy MCDM model. Under these circumstances, how will the evaluation results change? Combined with the above shortcomings, further research should be carried out on the following aspects: (1) In terms of criteria screening, other screening methods can be considered; (2) in terms of criteria weighting, other subjective, objective and combination weighting methods can be adopted; (3) in terms of evaluation models, other single evaluation models can be explored.
