Next Article in Journal
Retraction: Gao, W., et al. Exploration of Growth Window for Phase-Pure Cubic Boron Nitride Films Prepared in a Pure N2 Plasma. Coatings 2018, 8, 82, doi:10.3390/coatings8020082
Next Article in Special Issue
Destructive Effect of Water Vapour on an In Situ Diffusion Barrier Layer within an Aluminide Coating on IN738 Alloy
Previous Article in Journal
Facile Solution Spin-Coating SnO2 Thin Film Covering Cracks of TiO2 Hole Blocking Layer for Perovskite Solar Cells
Previous Article in Special Issue
Corrosion Behavior of Fe/Zr Composite Coating on ZK60 Mg Alloy by Ion Implantation and Deposition
Article Menu
Issue 9 (September) cover image

Export Article

Open AccessArticle
Coatings 2018, 8(9), 315; https://doi.org/10.3390/coatings8090315

Corrosion Protection of N80 Steel in Hydrochloric Acid Medium Using Mixed C15H15NO and Na2WO4 Inhibitors

1
School of Chemical Engineering, Northwest University, Xi’an 710069, China
2
School of Materials Science and Engineering, Nanyang Technological University, 50 Nanyang Avenue, Singapore 639798, Singapore
*
Authors to whom correspondence should be addressed.
Received: 10 July 2018 / Revised: 8 August 2018 / Accepted: 3 September 2018 / Published: 6 September 2018
(This article belongs to the Special Issue Advanced Coatings for Corrosion Protection in Extreme Environments)
Full-Text   |   PDF [3817 KB, uploaded 6 September 2018]   |

Abstract

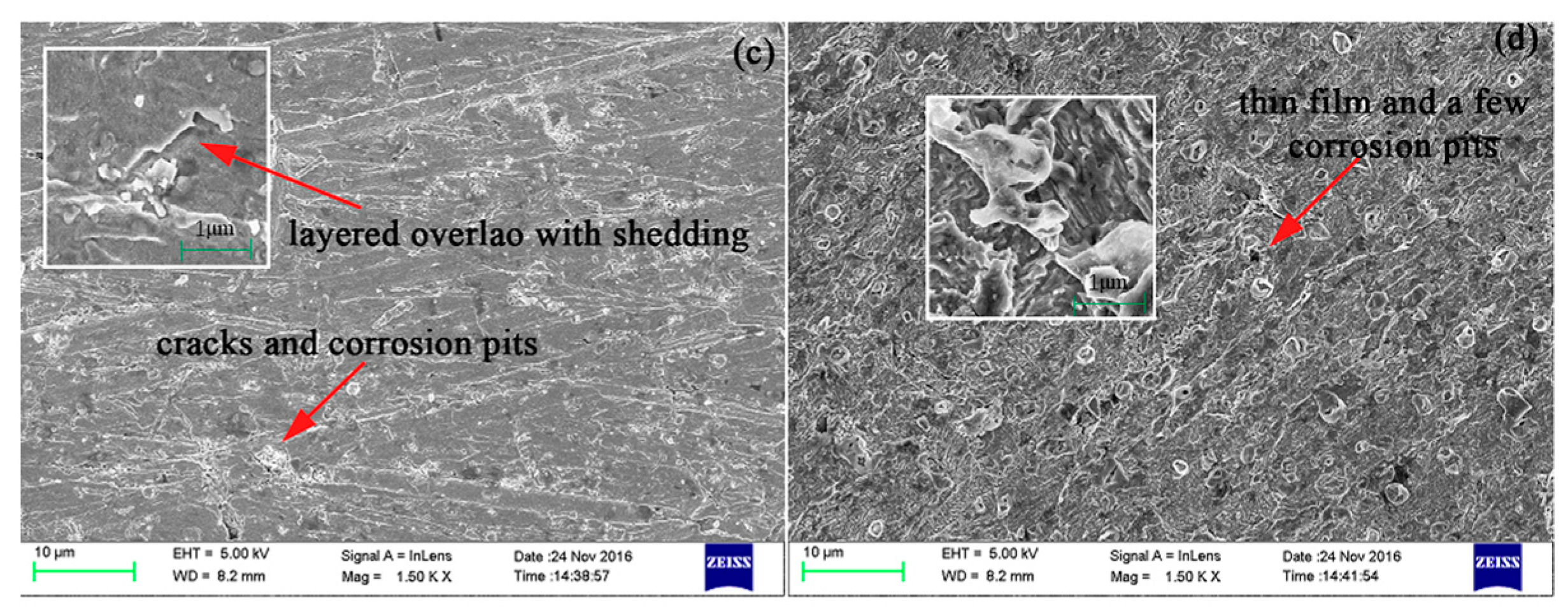

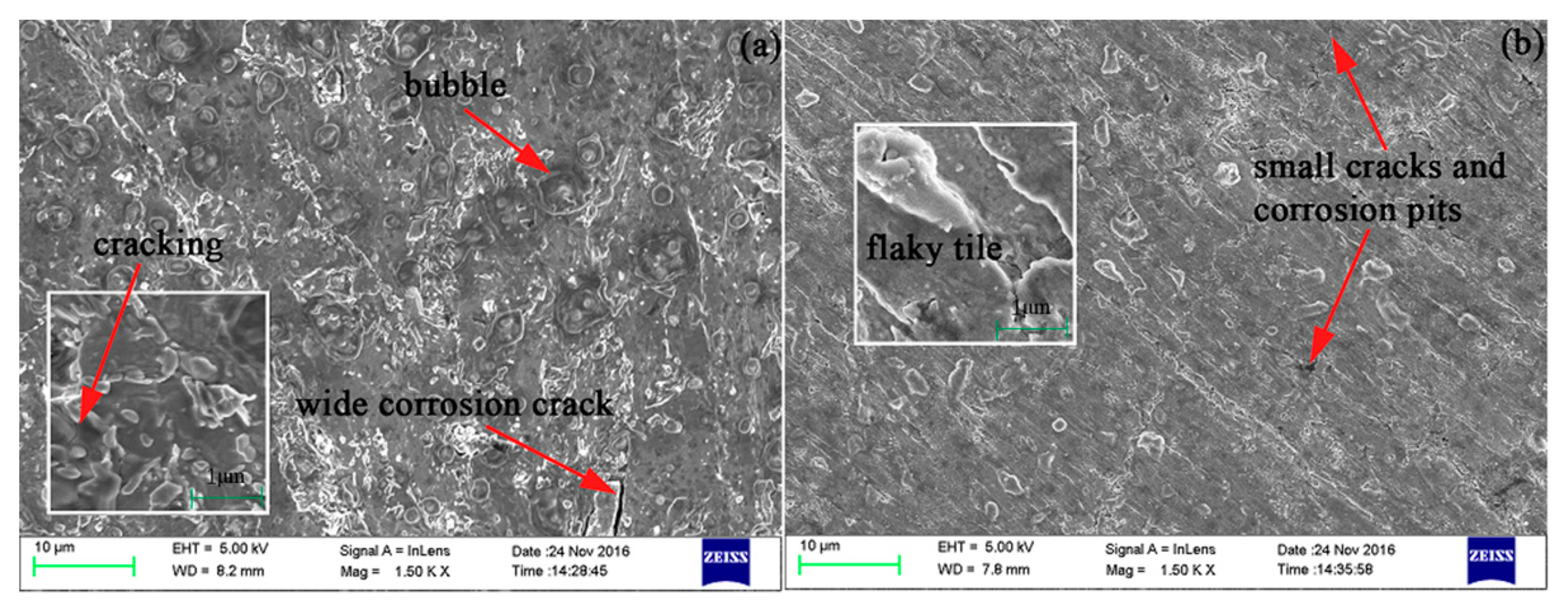

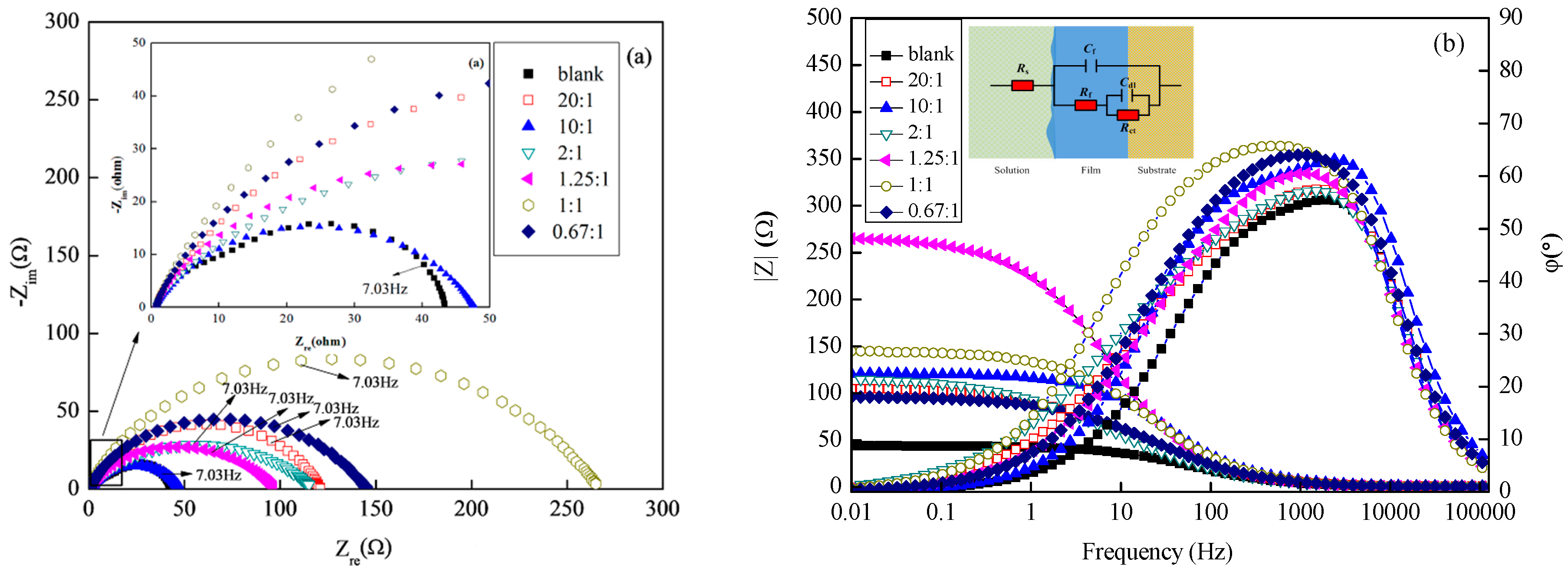

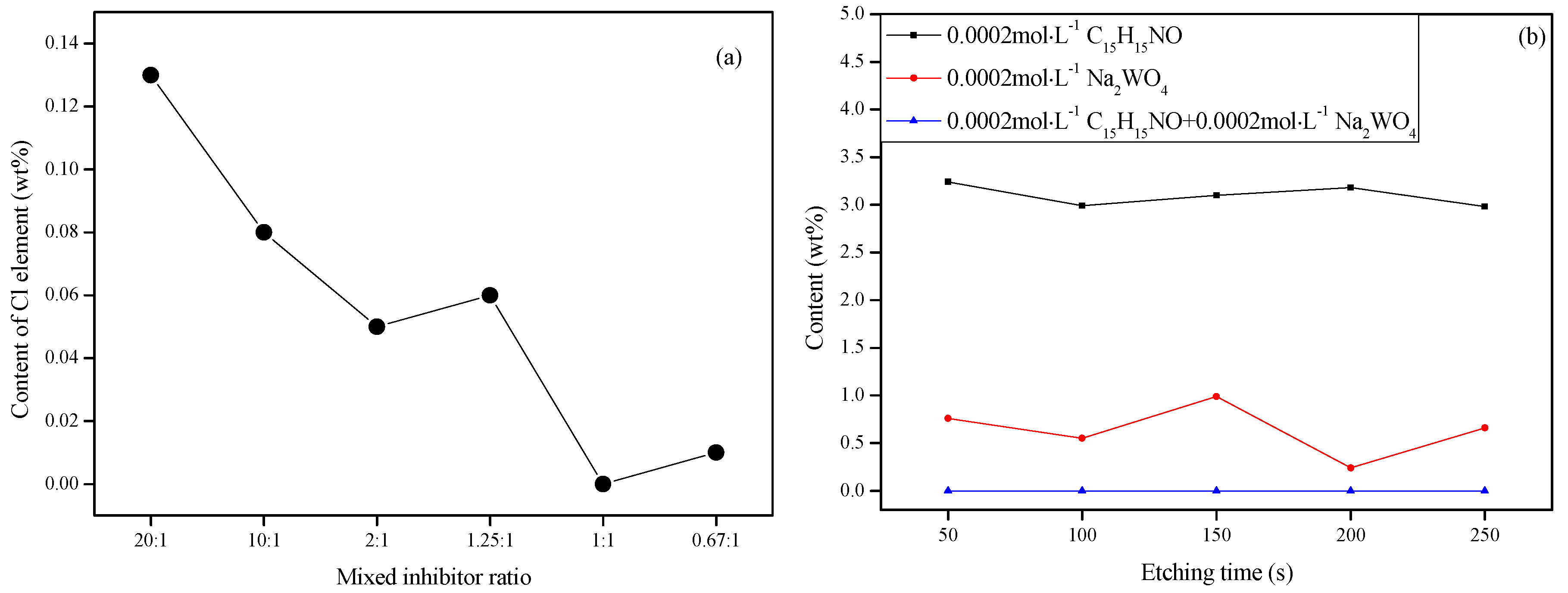

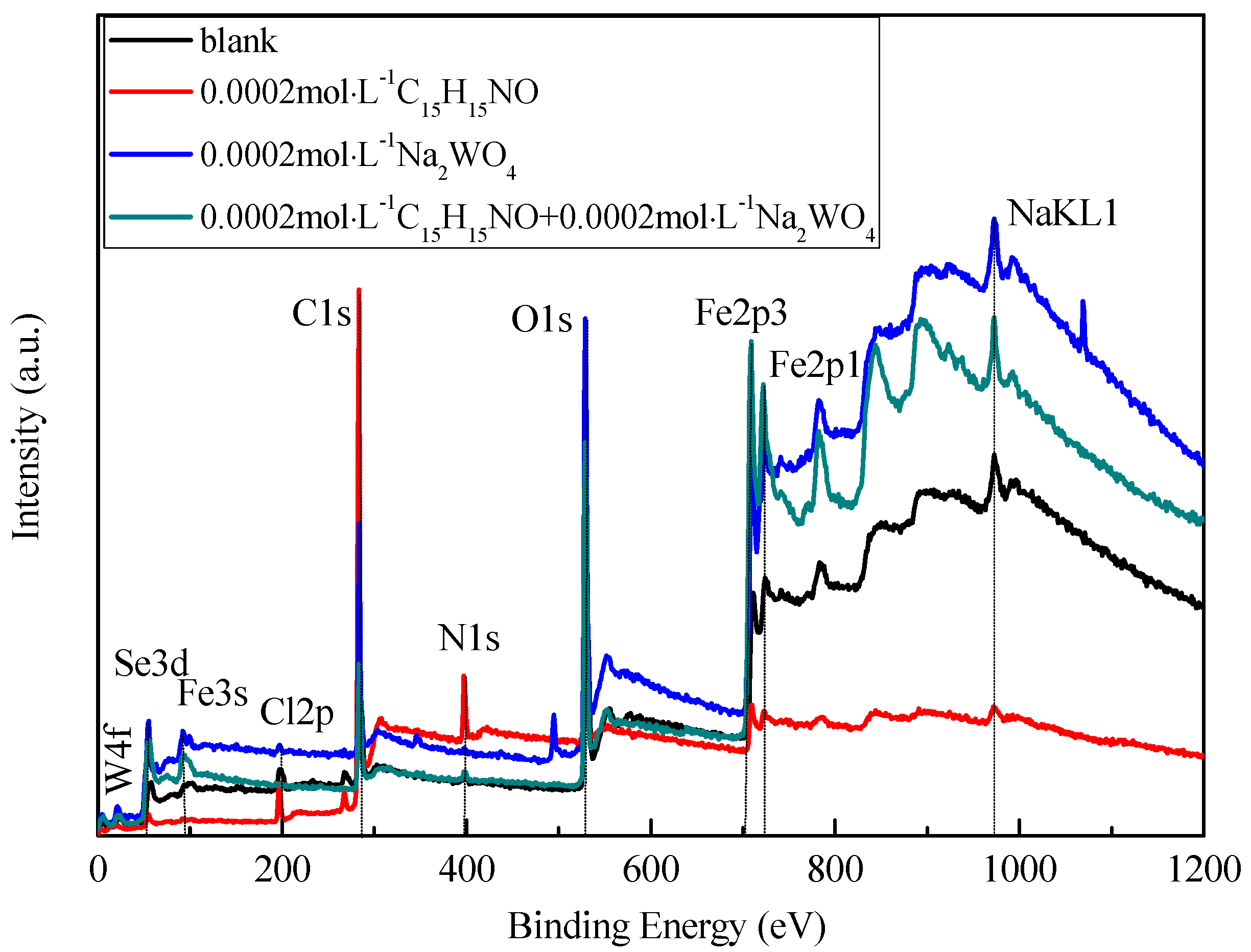

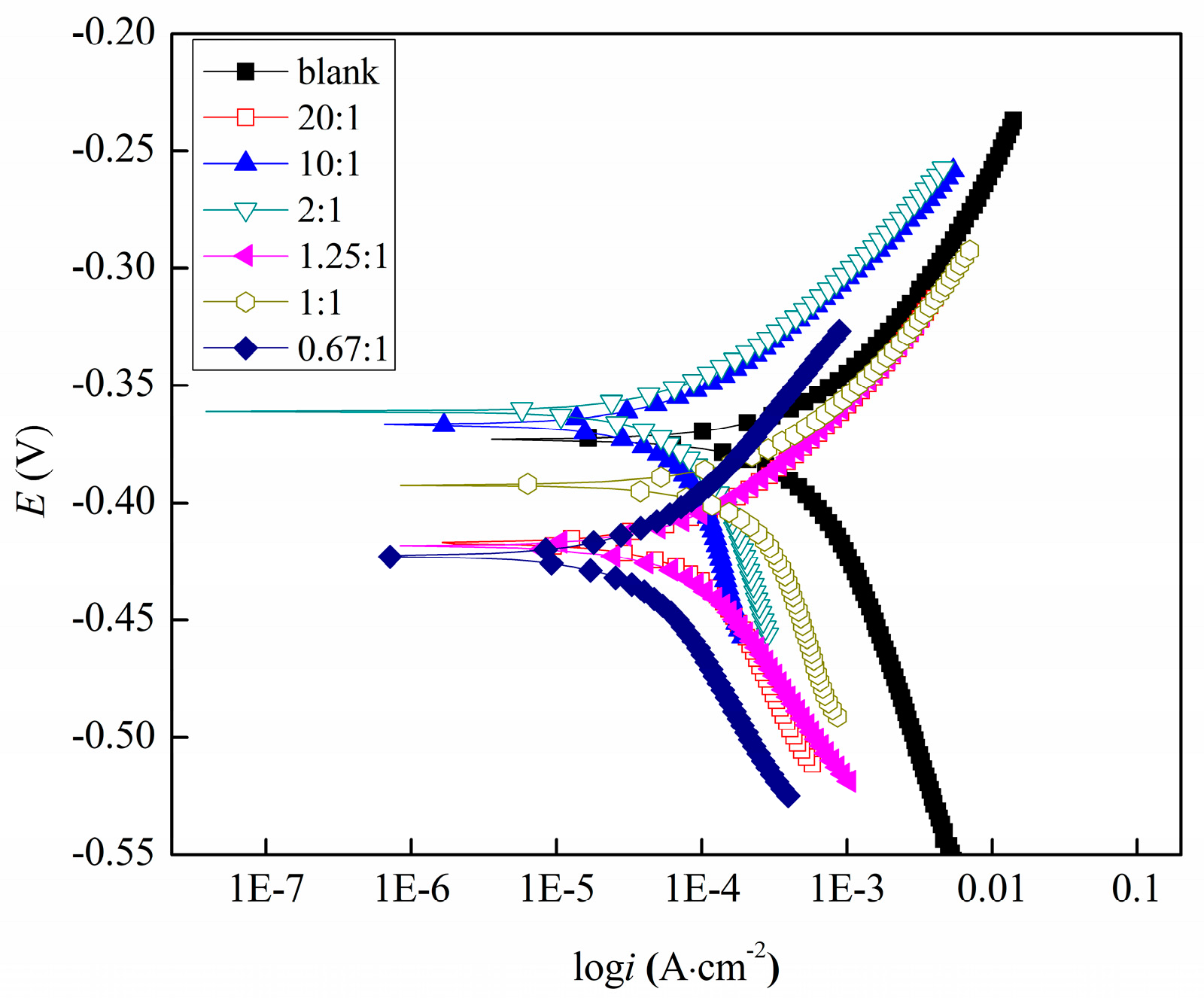

A novel inhibitor based on mixed Mannich base (C15H15NO) and Na2WO4 was developed for the corrosion prevention of N80 steel in hydrochloric acid solution. Infra-red spectrum, electrochemical measurements, X-ray Photoelectron Spectroscopy, and Scanning Electron Microscopy were used to understand the inhibition efficiency and mechanism. The results showed that the mixed inhibitors reduced the corrosion current density and increased the interface resistance. The inhibition efficiency is the highest when the ratio of C15H15NO to Na2WO4 is 1:1 in the mixture. Observed from the surfaces, the number of pits and small cracks was reduced on the surface in the presence of the optimized inhibitors. The inhibition film can successfully hinder the chloride ions from reaching the bulk steel. View Full-Text
Keywords: corrosion inhibition; binding energy; N80 steel corrosion inhibition; binding energy; N80 steel

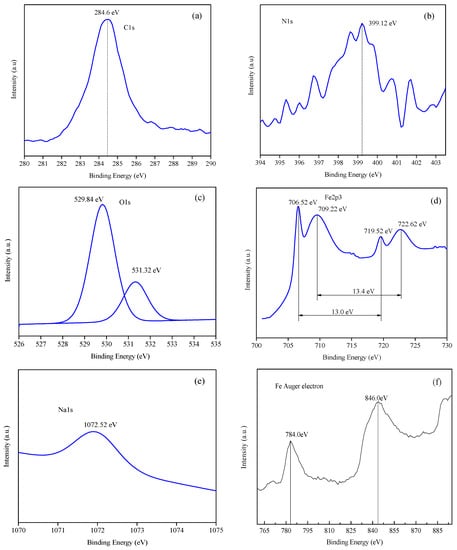

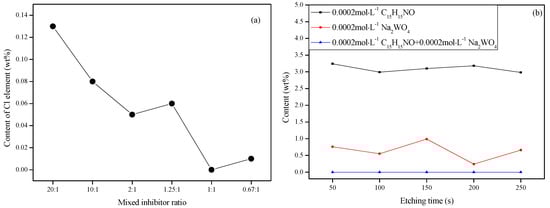

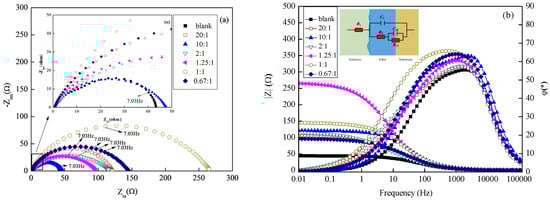

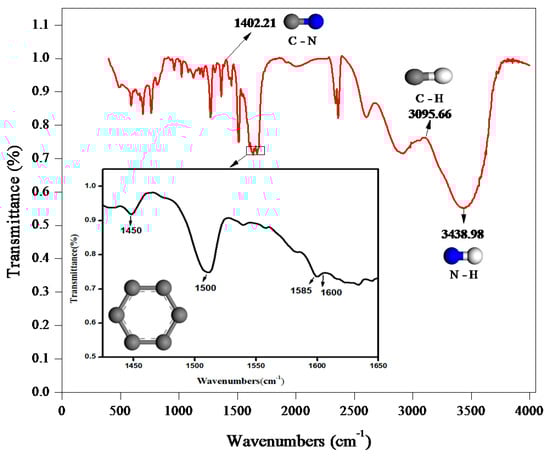

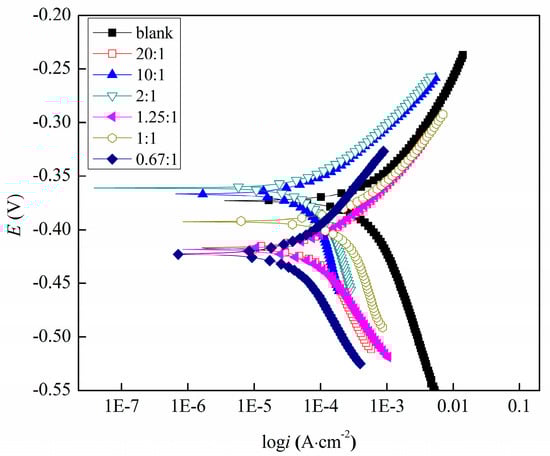

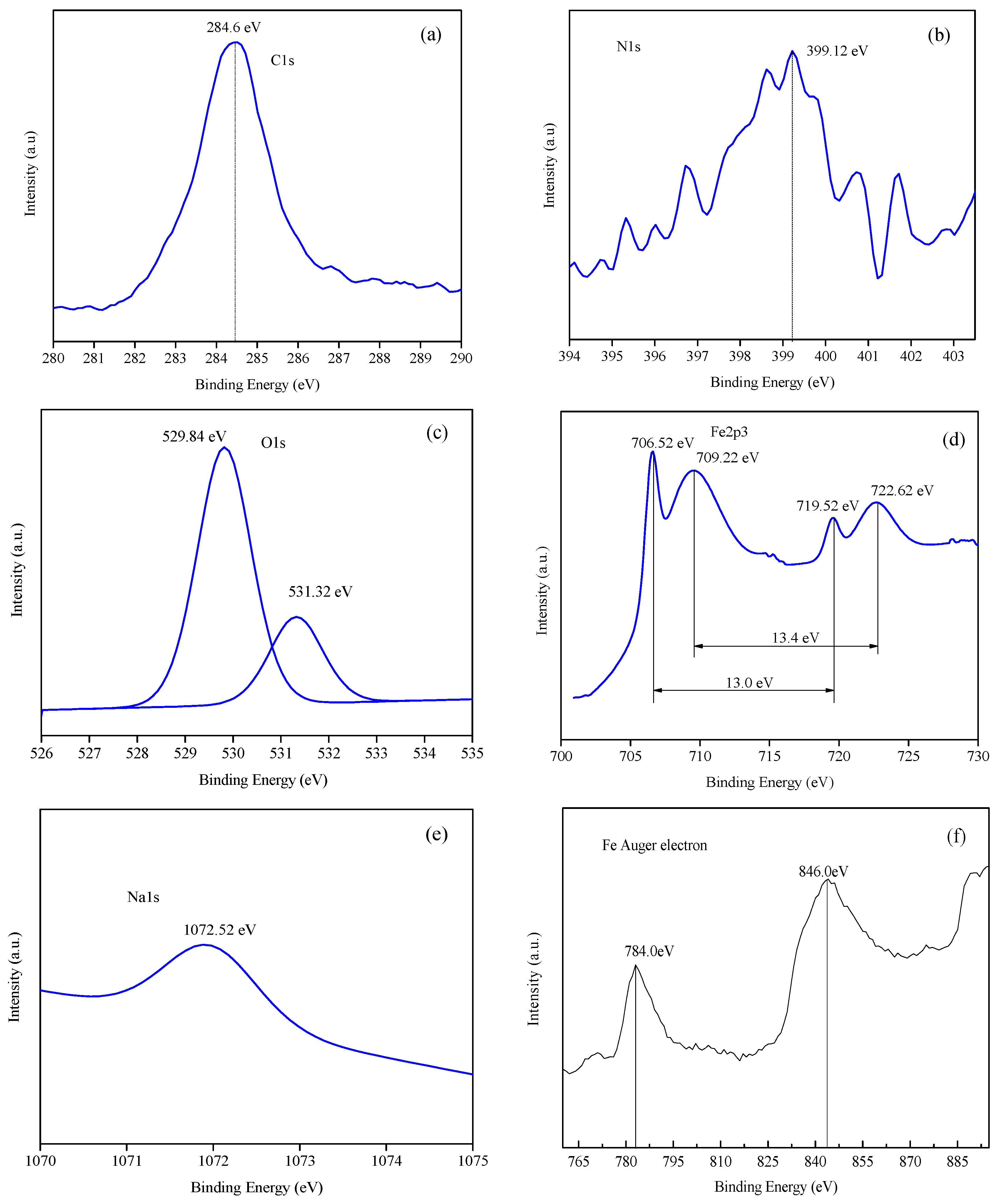

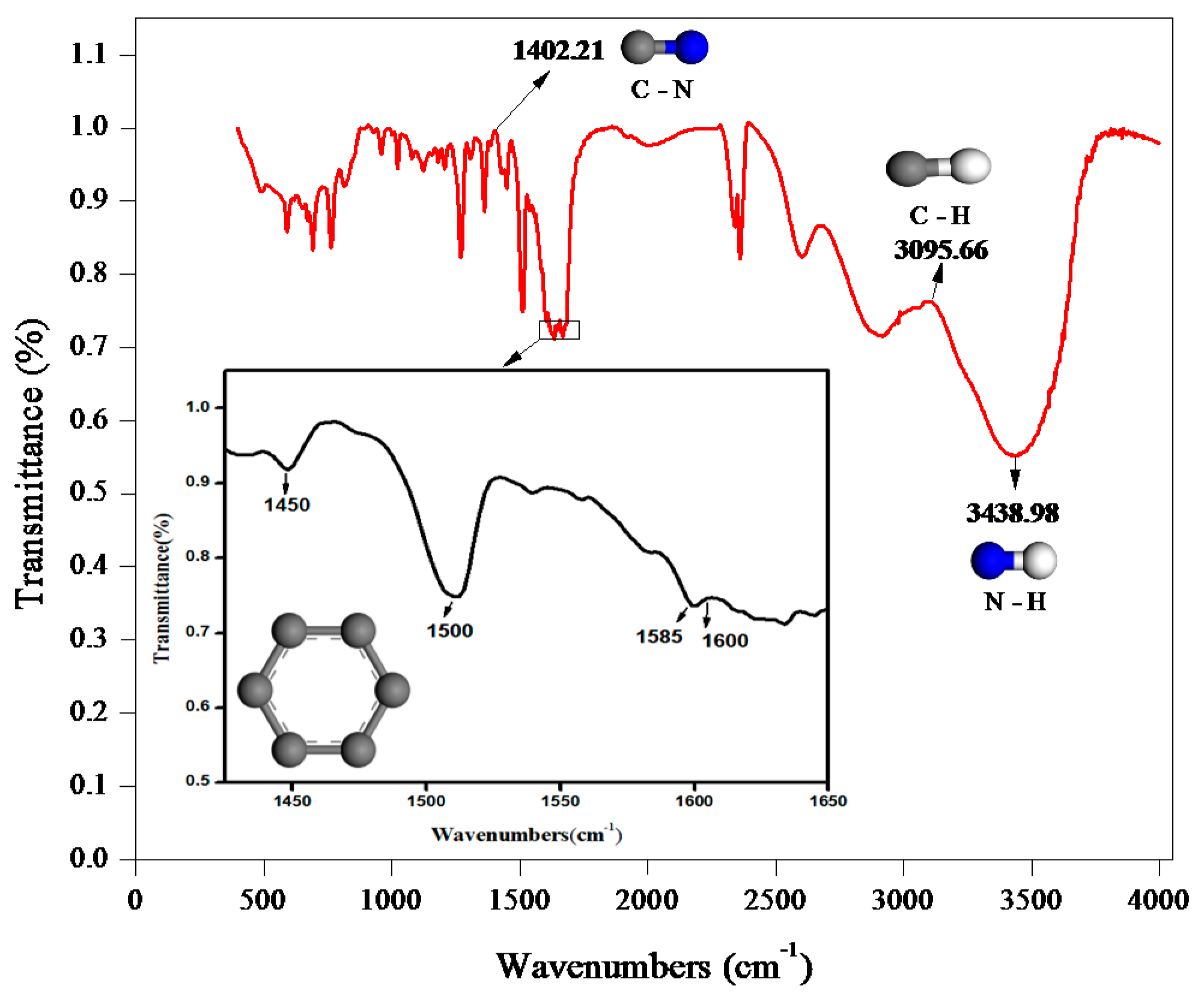

Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Hu, J.; Wang, T.; Wang, Z.; Wei, L.; Zhu, J.; Zheng, M.; Chen, Z. Corrosion Protection of N80 Steel in Hydrochloric Acid Medium Using Mixed C15H15NO and Na2WO4 Inhibitors. Coatings 2018, 8, 315.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
