Next Article in Journal / Special Issue
Non-Cyanide Electrodeposited Ag–PTFE Composite Coating Using Direct or Pulsed Current Deposition
Previous Article in Journal
A Novel Technique for the Deposition of Bismuth Tungstate onto Titania Nanoparticulates for Enhancing the Visible Light Photocatalytic Activity
Previous Article in Special Issue
Wear Behaviour of Nanostructured Polymer-Based Safety Films on Soda-Lime Glass


Article

A Surface Photovoltage Study of Surface Defects on Co-Doped TiO2 Thin Films Deposited by Spray Pyrolysis

1
Department of Physics, Masinde Muliro University of Science and Technology, P.O. Box 190, Kakamega 50100, Kenya
2
Department of Physics and Astronomy, Botswana International University of Science and Technology, Private Bag 16, Palapye, Botswana
3
Department of Physics, University of Nairobi, P.O. Box 30197, Nairobi 00100, Kenya
*
Author to whom correspondence should be addressed.
Academic Editor: Alessandro Lavacchi
Coatings 2016, 6(3), 30; https://doi.org/10.3390/coatings6030030
Received: 20 May 2016 / Revised: 12 July 2016 / Accepted: 14 July 2016 / Published: 22 July 2016

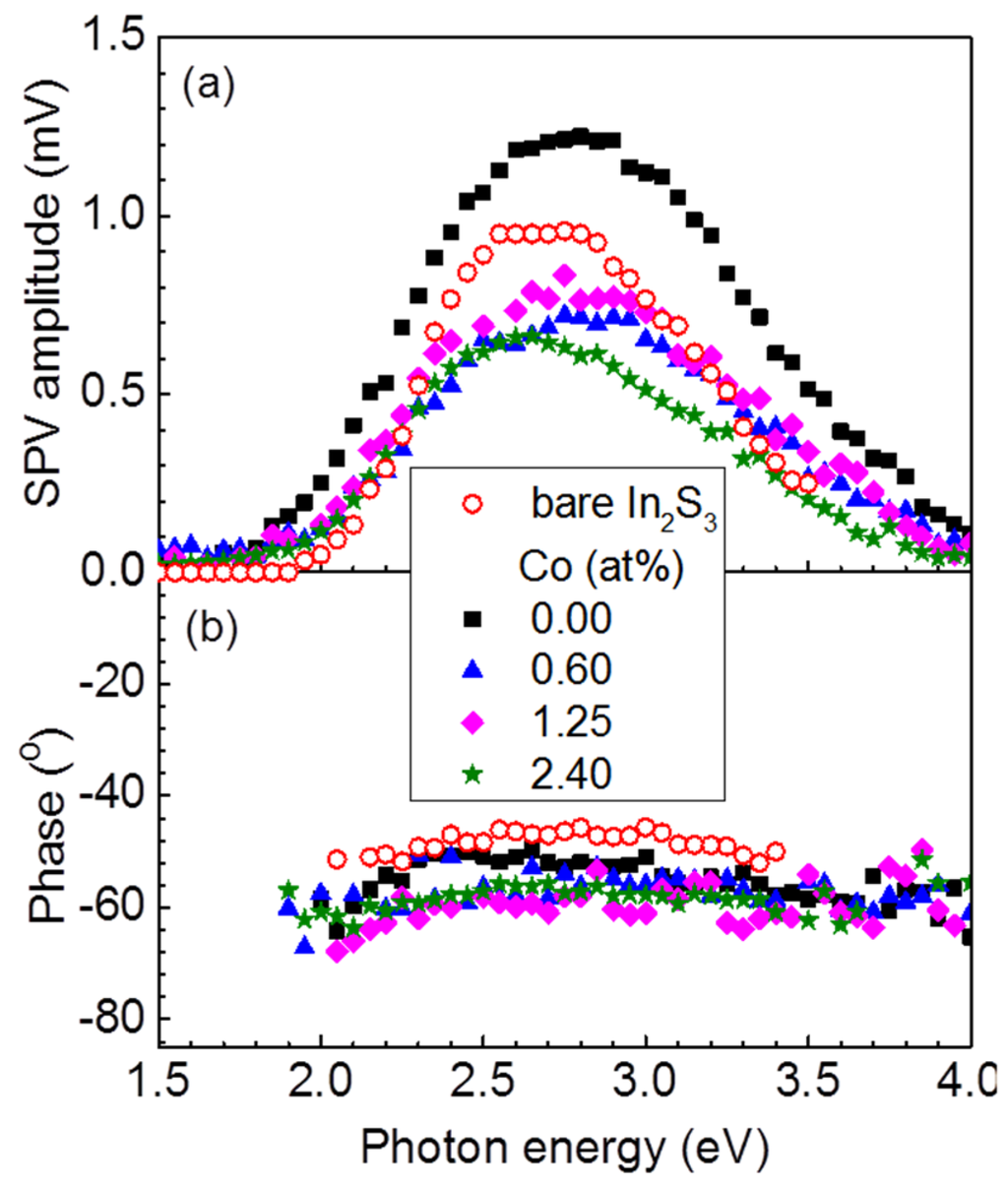

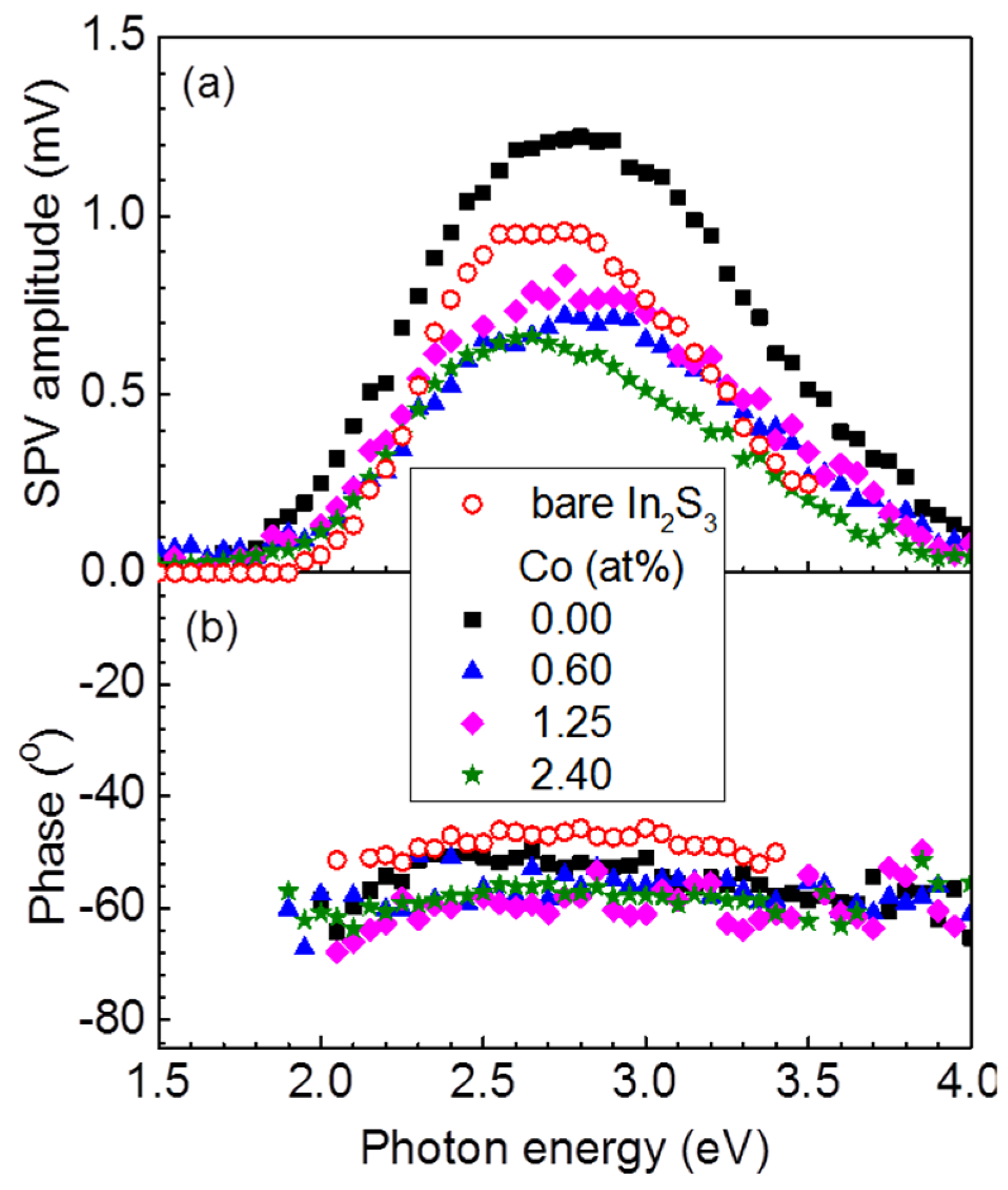

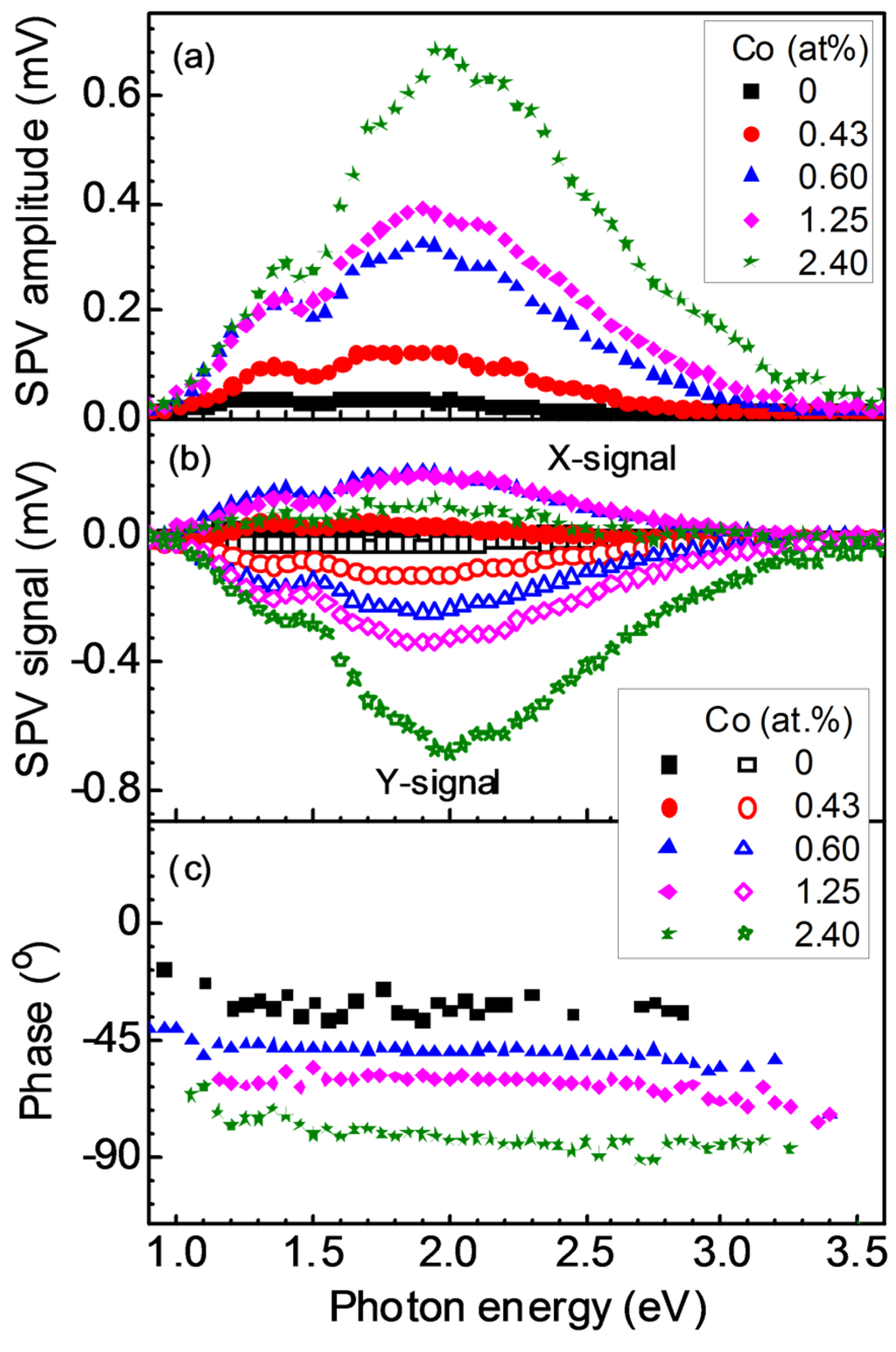

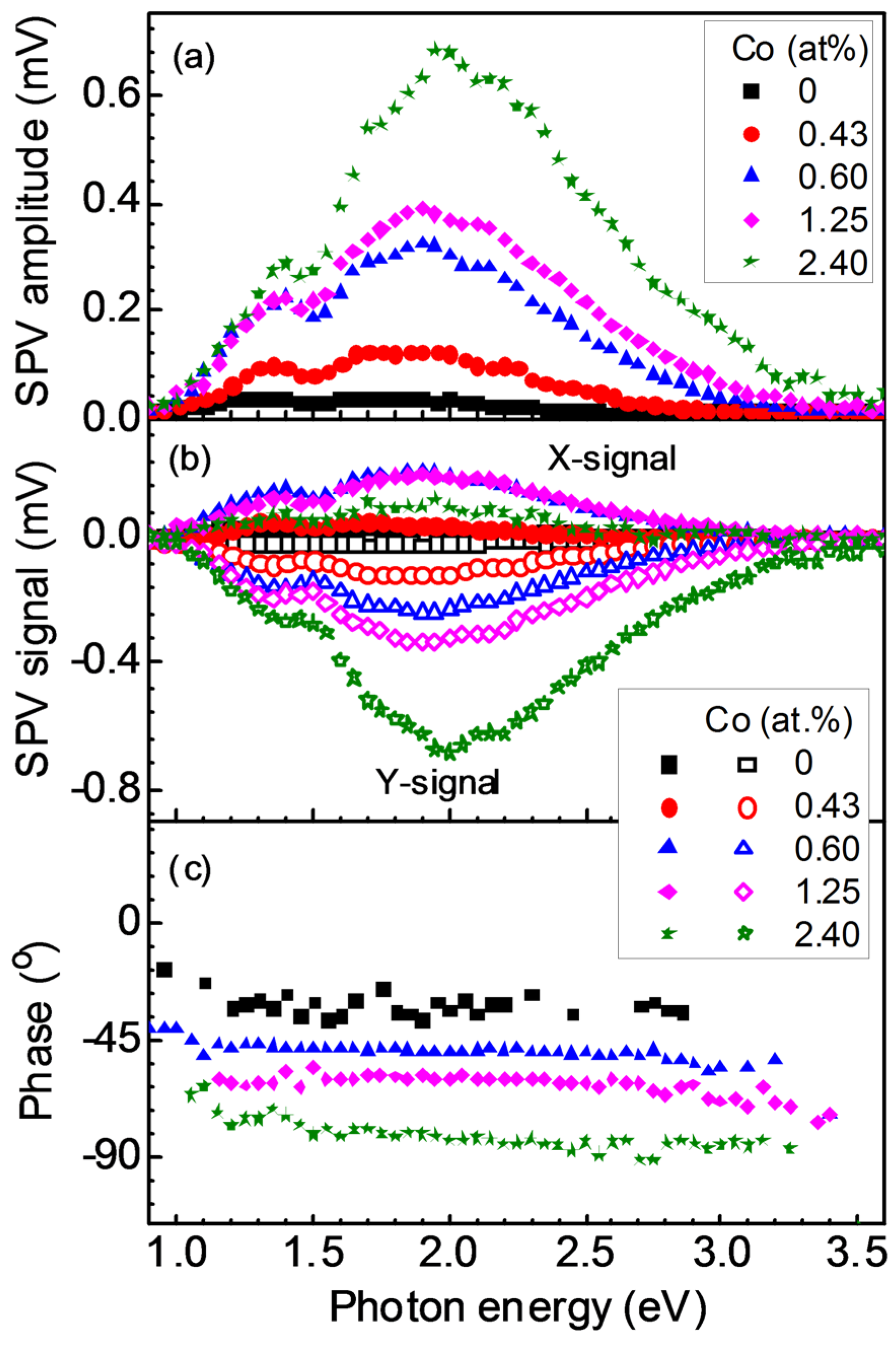

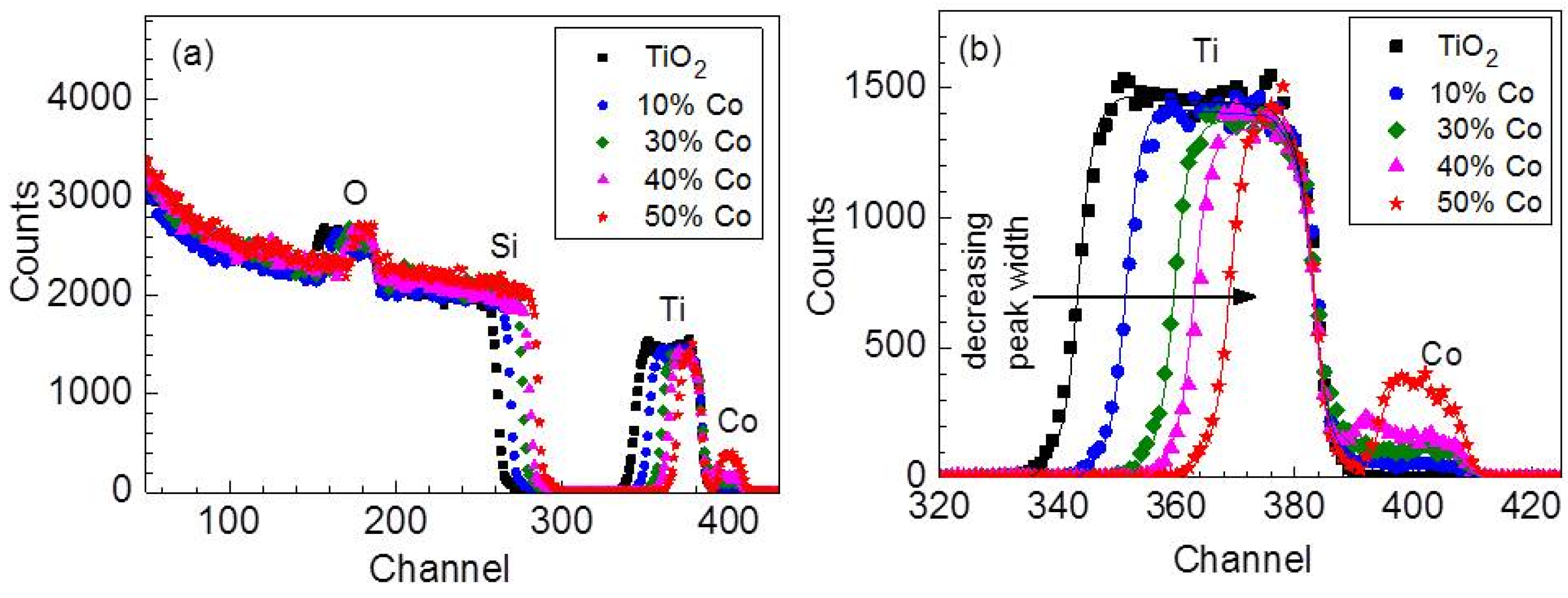

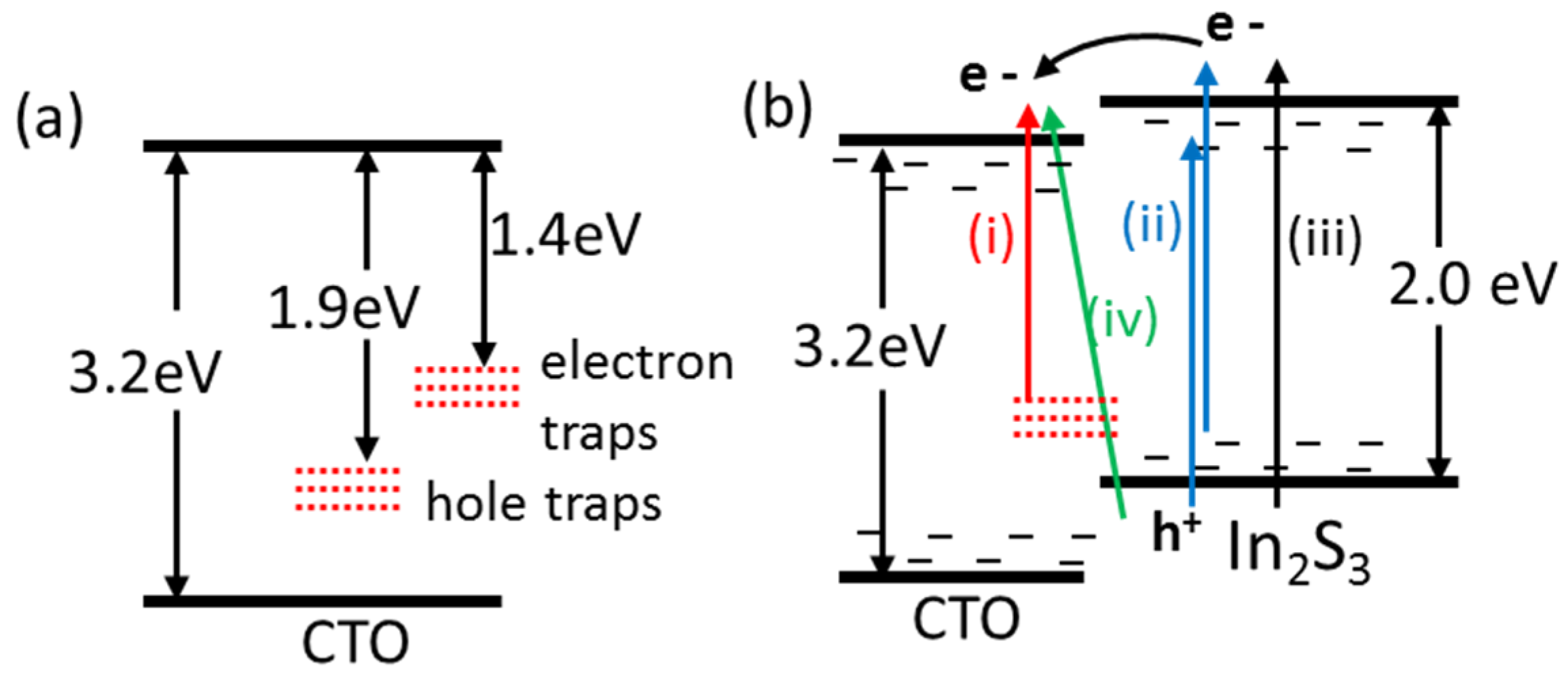

Surface photovoltage (SPV) spectroscopy is a powerful tool for studying electronic defects on semiconductor surfaces, at interfaces, and in bulk for a wide range of materials. Undoped and Cobalt-doped TiO2 (CTO) thin films were deposited on Crystalline Silicon (c-Si) and Flourine doped Tin oxide (SnO2:F) substrates by chemical spray pyrolysis at a substrate temperature of 400 °C. The concentration of the Co dopant in the films was determined by Rutherford backscattering spectrometry and ranged between 0 and 4.51 at %. The amplitude of the SPV signals increased proportionately with the amount of Co in the films, which was a result of the enhancement of the slow processes of charge separation and recombination. Photogenerated holes were trapped at the surface, slowing down the time response and relaxation of the samples. The surface states were effectively passivated by a thin In2S3 over-layer sprayed on top of the TiO2 and CTO films. View Full-Text
Keywords: doping; photovoltage; spray pyrolysis doping; photovoltage; spray pyrolysis
Show Figures

Figure 1

MDPI and ACS Style

Wafula, H.; Juma, A.; Sakwa, T.; Musembi, R.; Simiyu, J. A Surface Photovoltage Study of Surface Defects on Co-Doped TiO2 Thin Films Deposited by Spray Pyrolysis. Coatings 2016, 6, 30. https://doi.org/10.3390/coatings6030030

AMA Style

Wafula H, Juma A, Sakwa T, Musembi R, Simiyu J. A Surface Photovoltage Study of Surface Defects on Co-Doped TiO2 Thin Films Deposited by Spray Pyrolysis. Coatings. 2016; 6(3):30. https://doi.org/10.3390/coatings6030030

Chicago/Turabian Style

Wafula, Henry, Albert Juma, Thomas Sakwa, Robinson Musembi, and Justus Simiyu. 2016. "A Surface Photovoltage Study of Surface Defects on Co-Doped TiO2 Thin Films Deposited by Spray Pyrolysis" Coatings 6, no. 3: 30. https://doi.org/10.3390/coatings6030030

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
