Effect of HfO2 Particles on Ceramic Coating Fabricated on Ti6Al4V Alloy via Plasma Electrolytic Oxidation

,
,
,
,
and
1
School of Mechanical and Engineering, Xihua University, Chengdu 610039, China
2
College of Materials Science and Engineering, Xihua University, Chengdu 610039, China
3
School of New Energy and Materials, Southwest Petroleum University, Chengdu 610500, China
*
Author to whom correspondence should be addressed.
This article belongs to the Section Corrosion, Wear and Erosion

Abstract

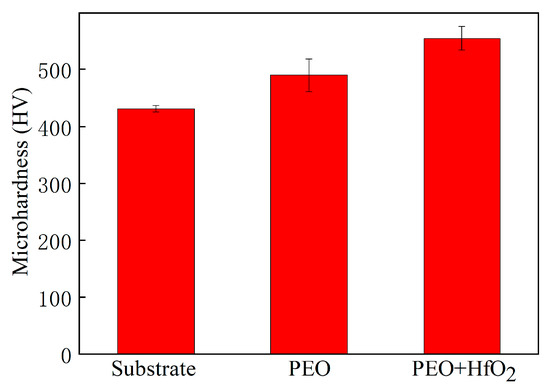

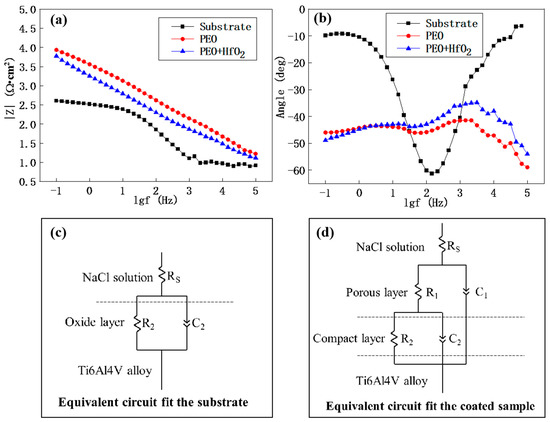

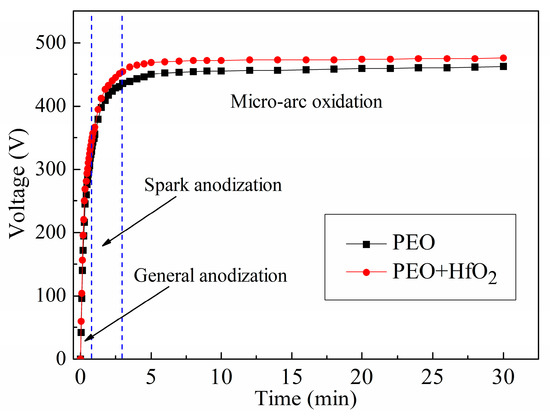

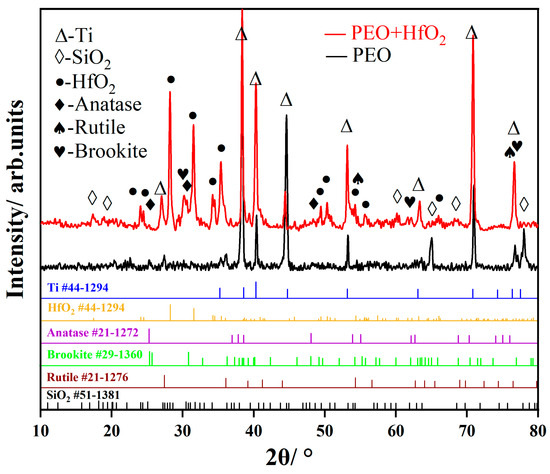

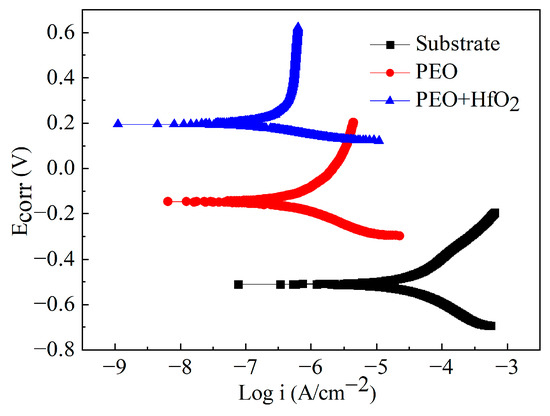

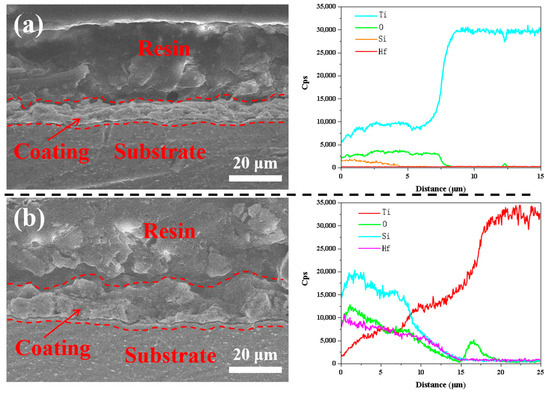

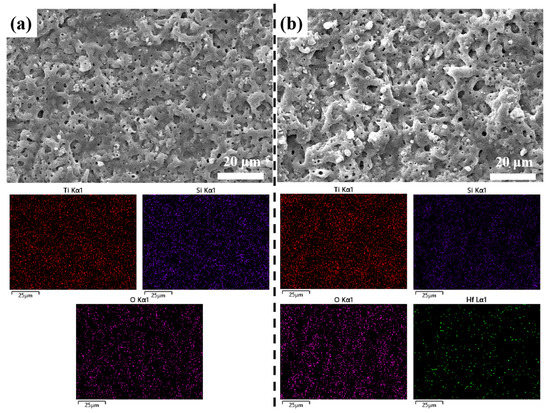

Hafnium dioxide (HfO2) has a wide bandgap and high dielectric constant. We prepared ceramic coatings on Ti6Al4V alloys via plasma electrolytic oxidation (PEO) in an electrolyte with HfO2 particles. The influence of the HfO2 particles on the microstructure, phase composition, elemental distribution, and corrosion resistance of the PEO coatings was systematically investigated. The results showed that the addition of HfO2 increased the oxidation voltage (from 462 to 472 V) and promoted the microarc sintering reaction so that the thickness and hardness of the resulting PEO coating increased. Moreover, the quantity of the micropores on the coating surface caused by the discharge decreased after adding the HfO2 particles. The X-ray diffraction patterns confirmed that the HfO2 particles were incorporated into the coating by remelting and sintering the microarc. Furthermore, the corrosion resistance of the PEO coating was remarkably increased after introducing HfO2, which was attributed to the increase in the electrode potential and the densification of the coating structure.
