3D Multilayered Metamaterials with High Plasmonic Hotspot Density for Surface—Enhanced Raman Spectroscopy

,
,
,
,
,
,
,
and
1
Research Center of Laser Fusion, China Academy of Engineering Physics, Mianyang 621900, China
2
Joint Laboratory for Extreme Conditions Matter Properties, Southwest University of Science and Technology, Mianyang 621010, China
*
Authors to whom correspondence should be addressed.
This article belongs to the Special Issue Micro-Nano Optics and Its Applications

Abstract

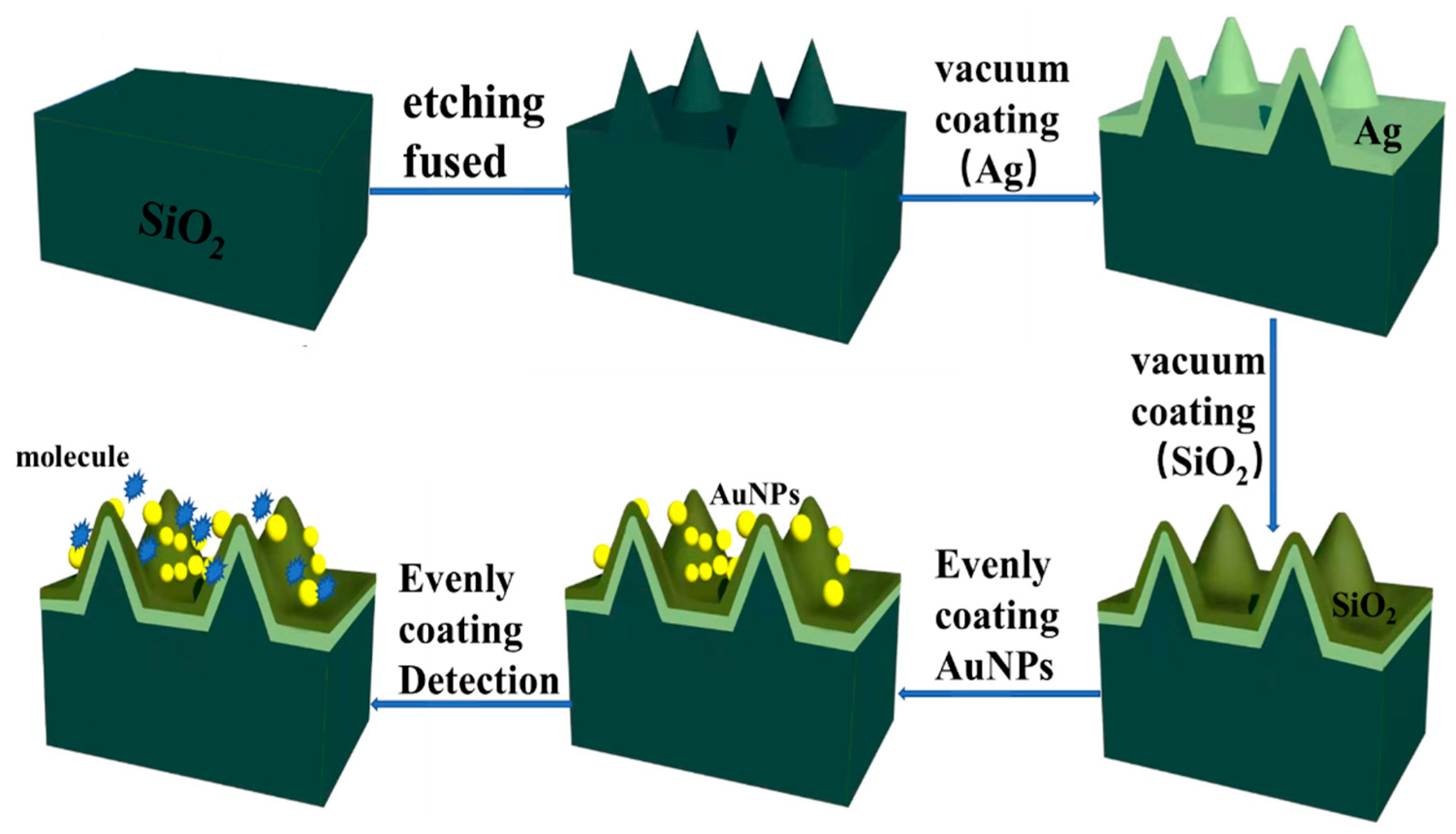

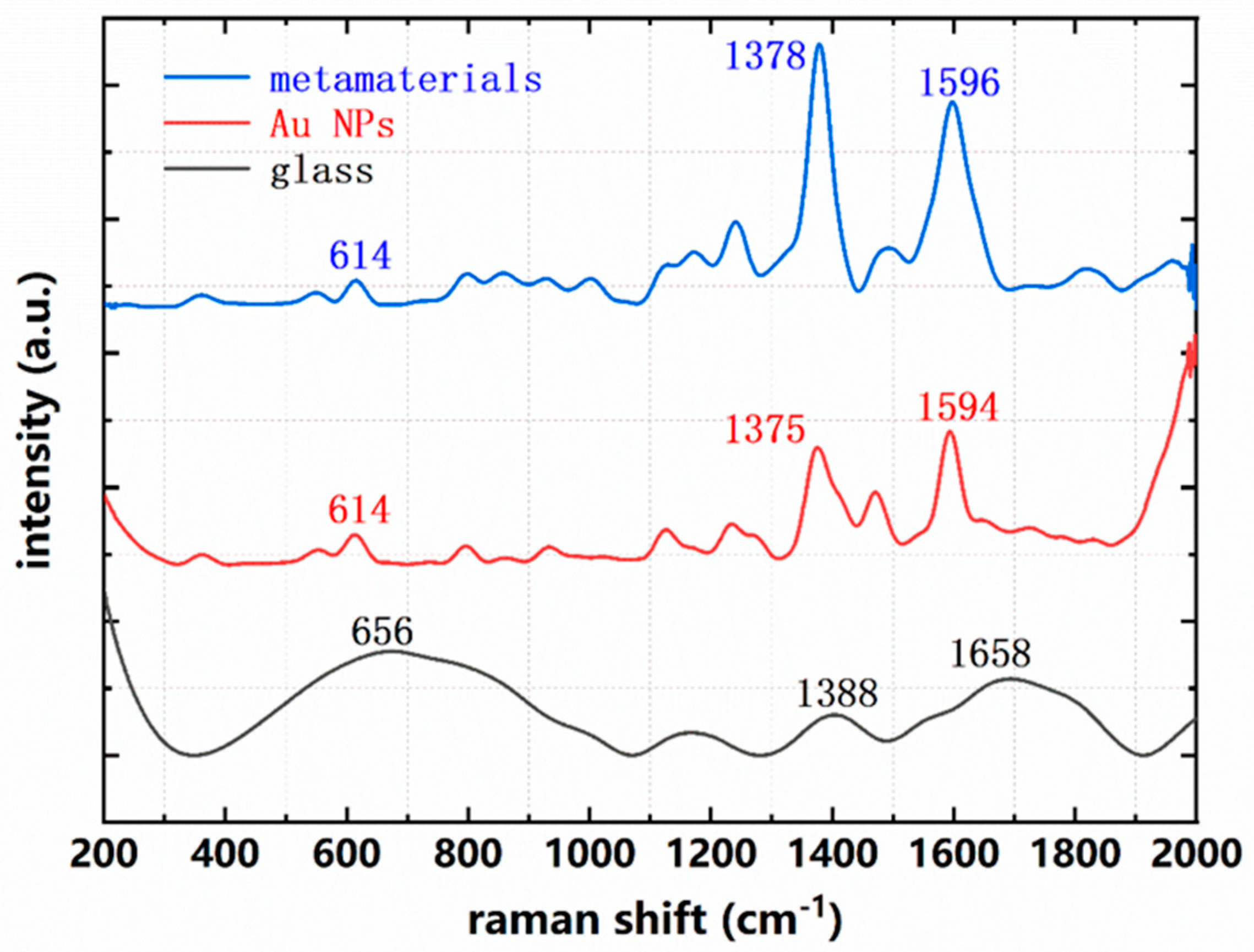

Three-dimensional (3D) plasmonic metamaterials have become a trend in the application of nanophotonic devices. In this paper, a convenient and inexpensive method for the design of 3D multilayer plasmonic metamaterials is constructed using a one-step self-shielded reactive-ion-etching process (OSRP) and a thermal evaporation system, which provides an efficient and low-cost method for the preparation of surface-enhanced Raman spectroscopy (SERS) substrates. The near-field enhancement of the 3D plasmonic metamaterials provides highly efficient electromagnetic resonance, and highly sensitive and uniform SERS sensing capabilities. The SERS detection results of rhodamine B (Rh. B) and rhodamine 6G (R6G) on this substrate show that the detection limit could reach 10–13 mol/L, and the signal could give expression to excellent uniform stability. The results show that high sensitivity and high robustness SERS substrates can be prepared with high efficiency and low cost.
