Investigation on Microstructure and Properties of the Electrodeposited Ni-SiC Composite Coating

,
,
,
,
,
,
and
1
Merchant Marine College, Shanghai Maritime University, Shanghai 201306, China
2
Marine Design & Research Institute of China, Shanghai 200011, China
3
School of Materials Science and Engineering, Shanghai Institute of Technology, Shanghai 201418, China
4
Shanghai Nanotechnology Promotion Center, Shanghai 200237, China

Abstract

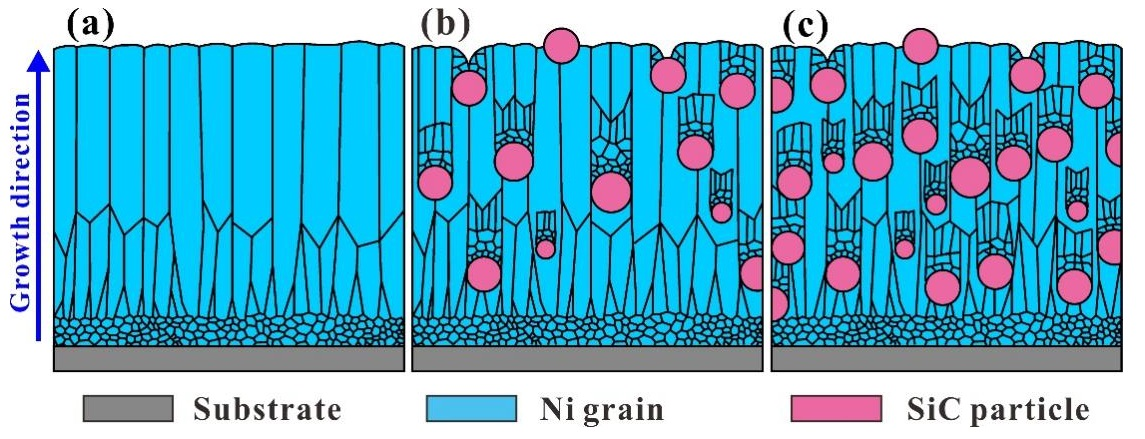

The current work synthesized Ni-SiC composite coating with different SiC microparticle contents. The role of the SiC microparticle in designing the Ni-SiC composite microstructure was revealed. The SiC microparticle physically interrupted the continuous growth of the underlying columnar Ni grains. The columnar Ni grain between the embedded SiC microparticle grew without disturbance. Only upon SiC microparticles was a new layer starting with refined Ni grains observable. The vertical columnar Ni grains reappeared as the position departed the SiC microparticle upper surface. The increase in the contents of the SiC microparticle led to an increased level of grain refinement and the elimination of the (200) fiber texture. Besides that, the number of V-shaped valleys increased as well. Corrosion testing results show that the corrosion resistance of Ni-SiC composite coating increased with the increased SiC contents, which was mainly due to the optimized microstructure.
