Fabrication of Ag and Mn Co-Doped Cu2ZnSnS4 Thin Film
School of Materials and Energy, Guangdong University of Technology, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(11), 1520; https://doi.org/10.3390/nano9111520
Received: 30 September 2019
/
Revised: 17 October 2019
/
Accepted: 23 October 2019
/
Published: 25 October 2019

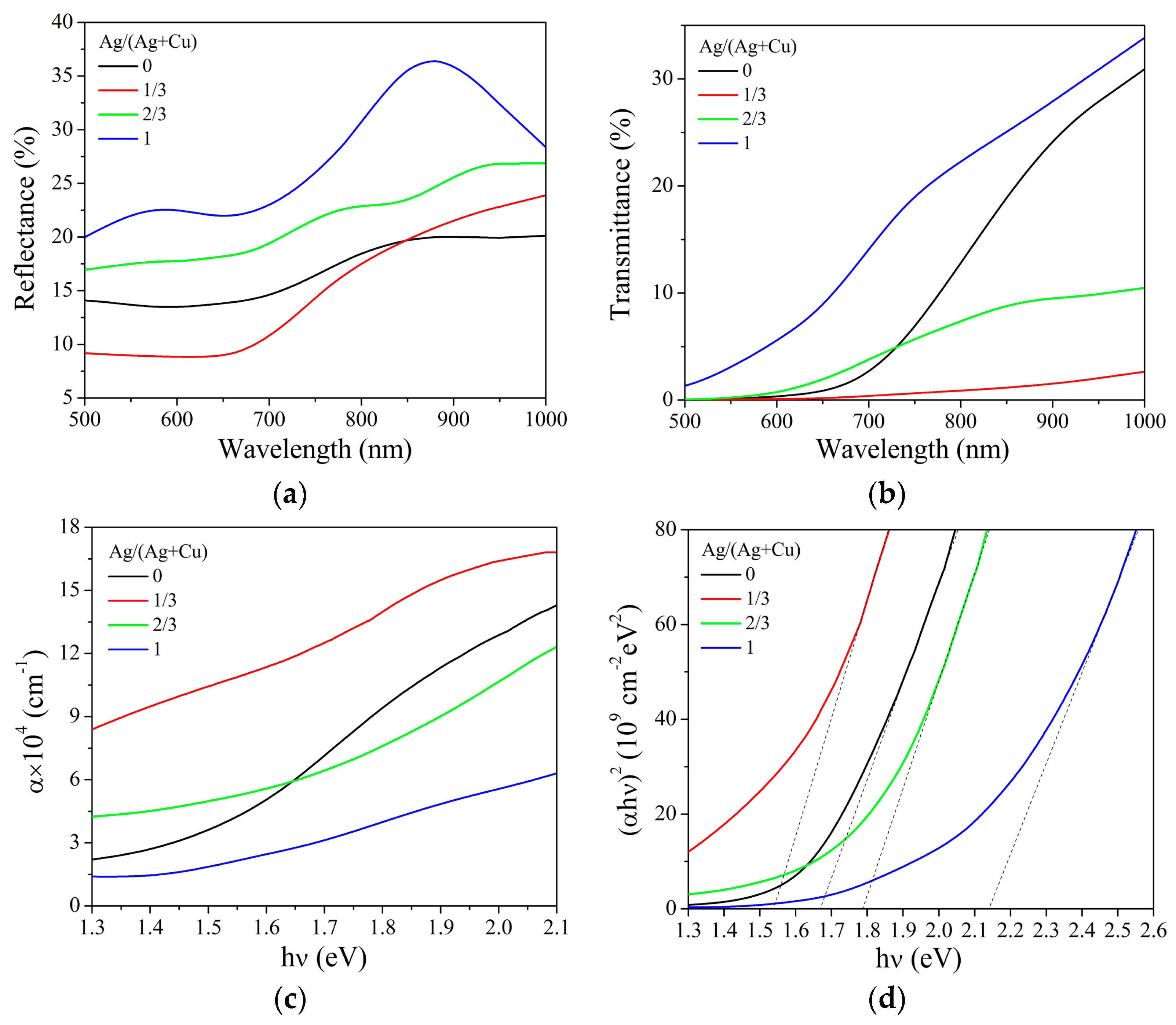

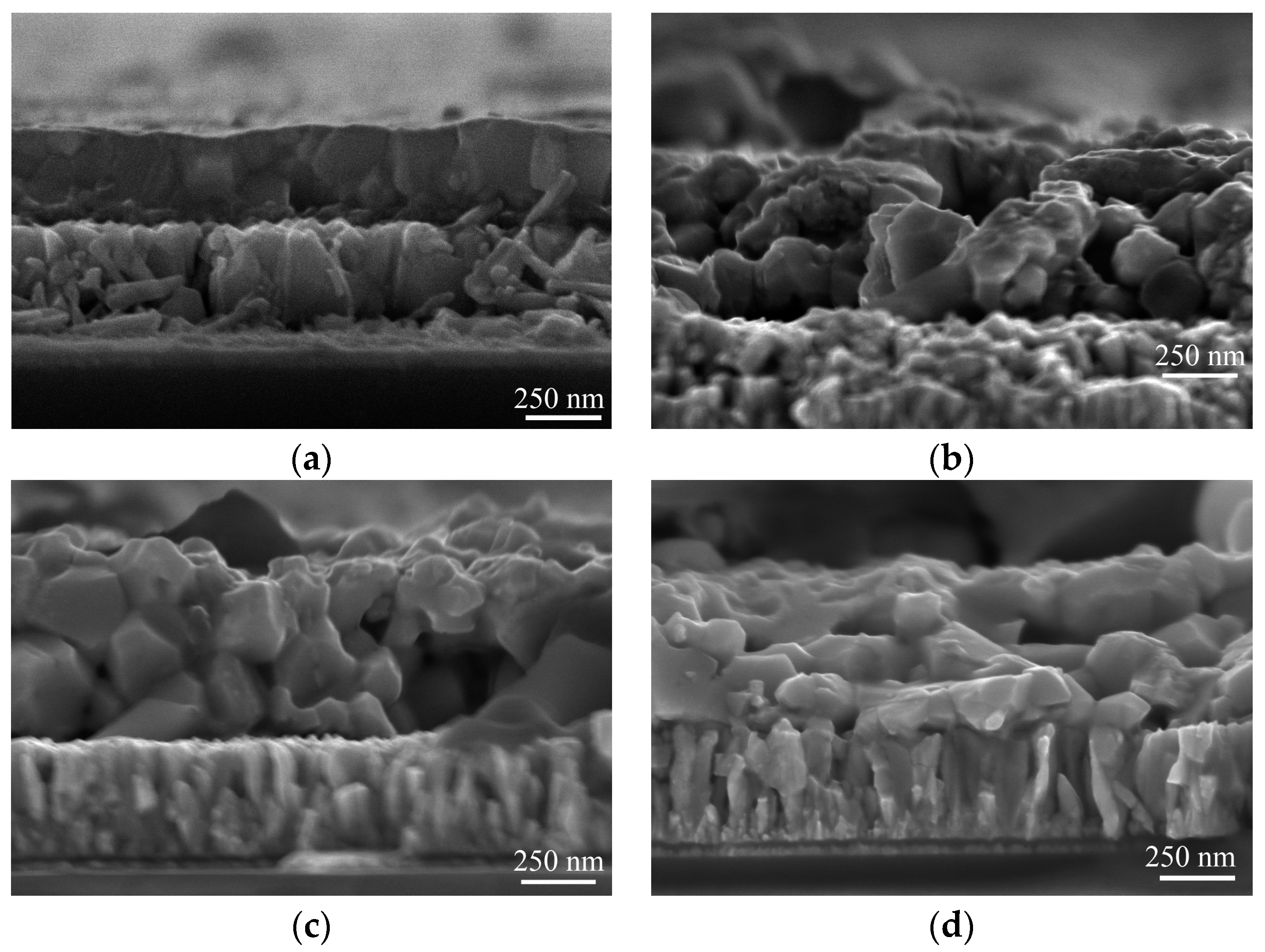

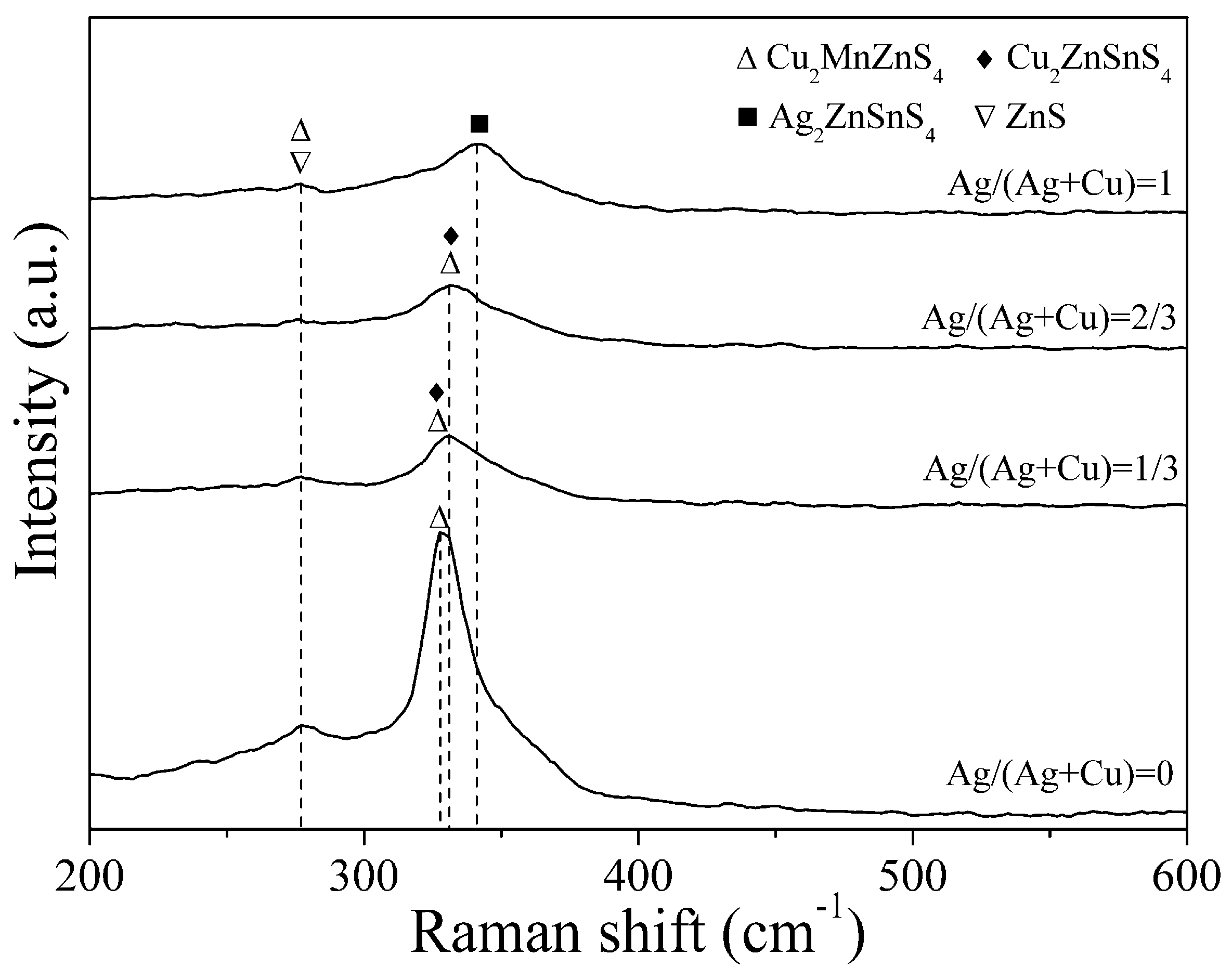

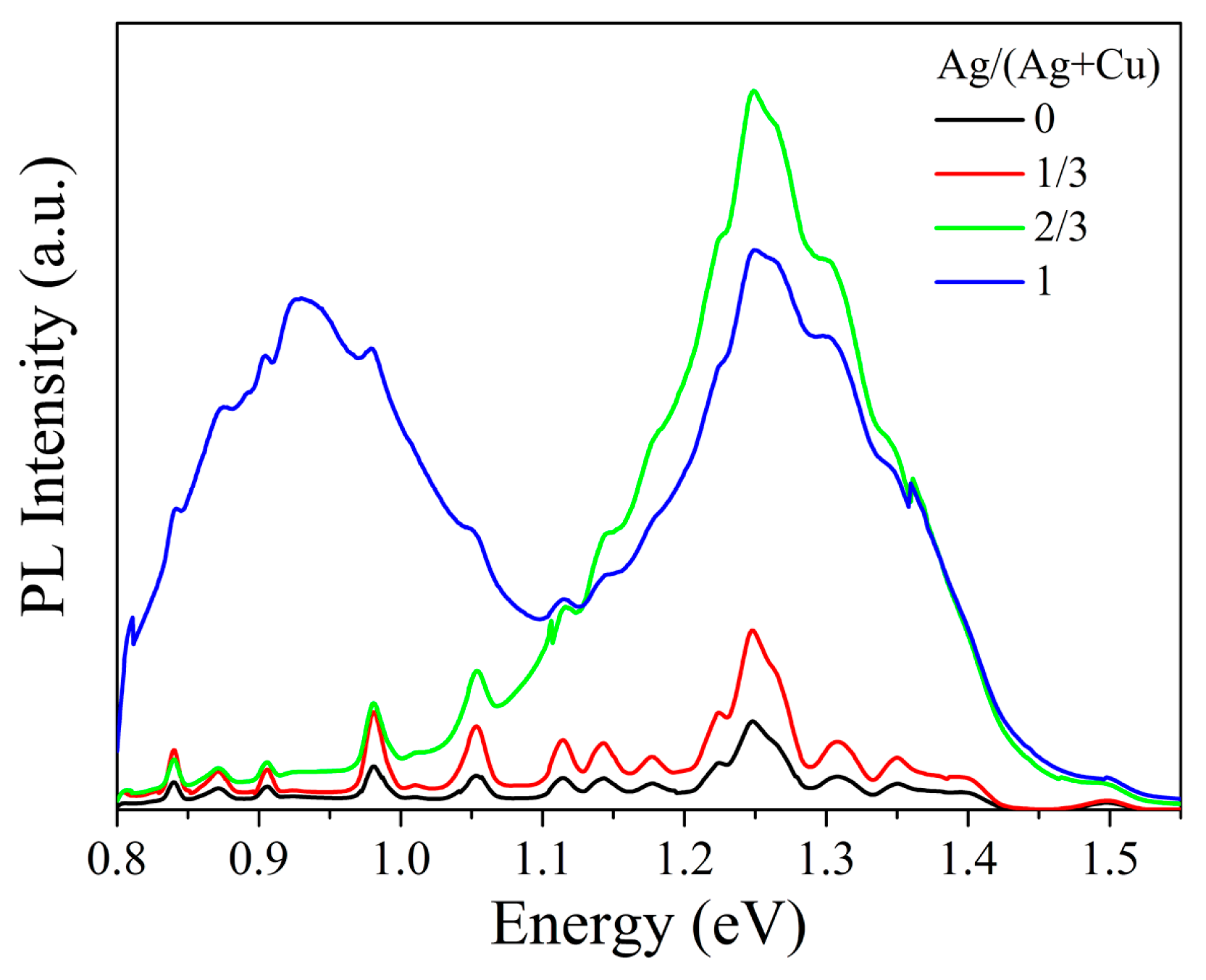

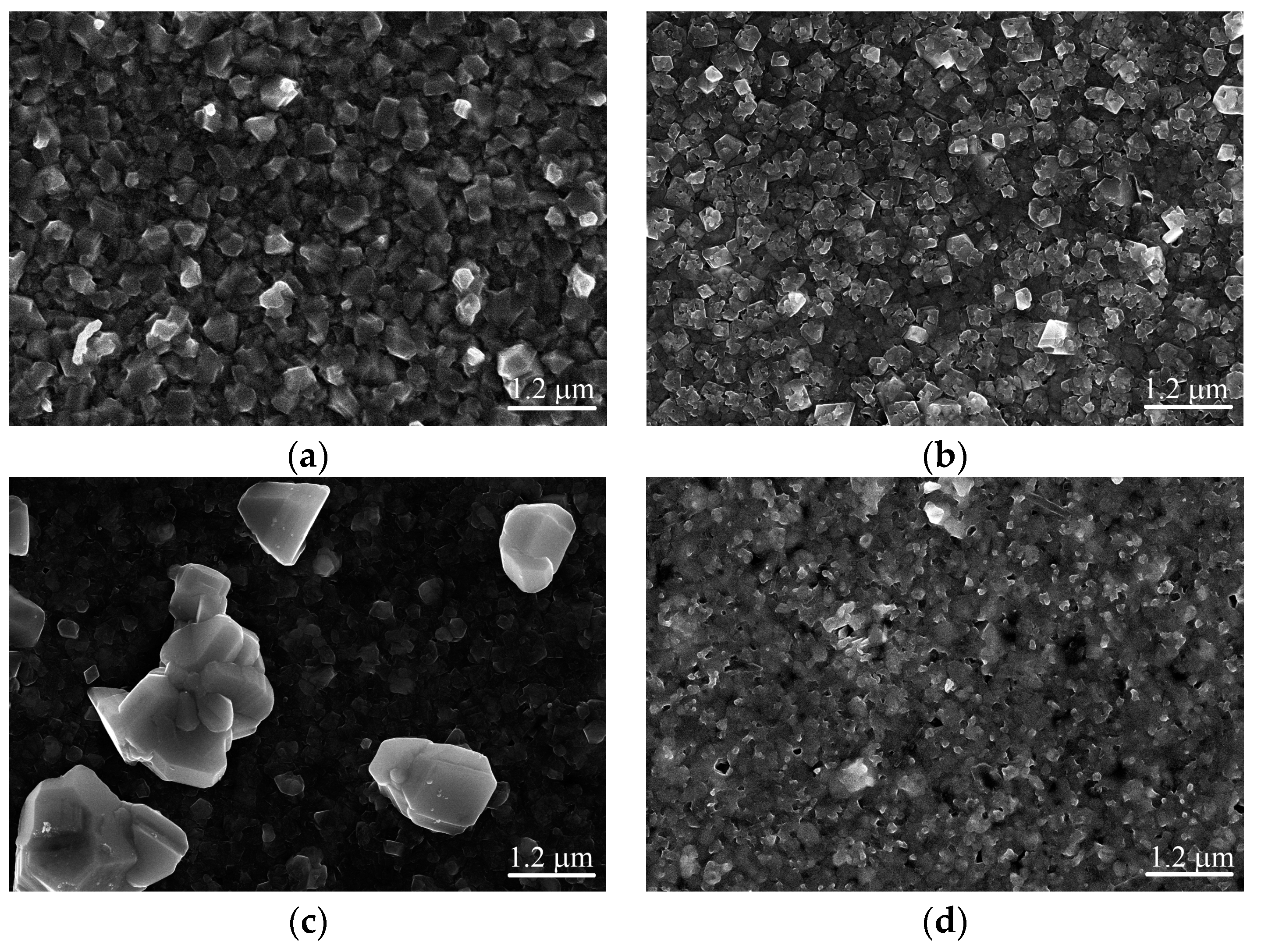

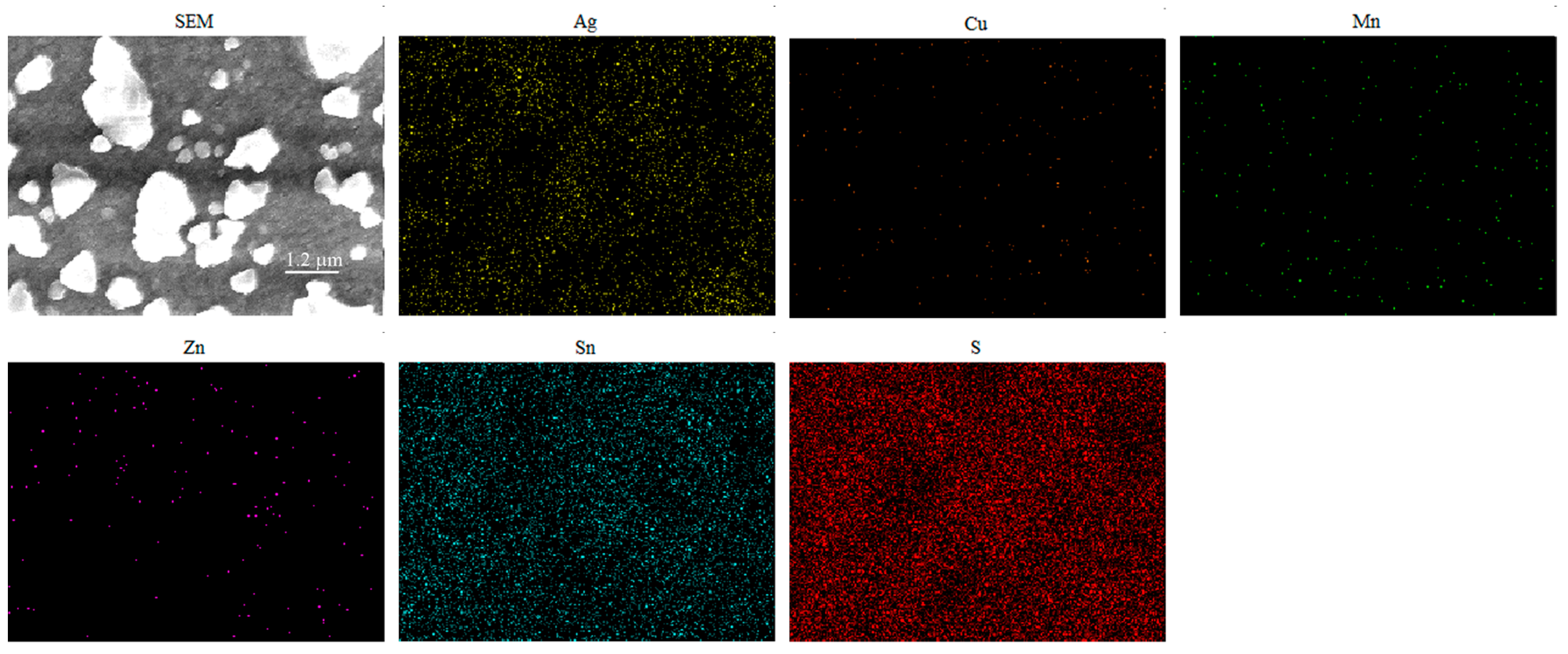

Ag and Mn dopants were incorporated into Cu2ZnSnS4 thin film to reduce defects in thin film and improve thin film properties. Sol–gel and spin-coating techniques were employed to deposit Ag and Mn co-doped Cu2ZnSnS4 thin films. The structures, compositions, morphologies, and optical properties of the co-doped thin films were characterized. The experimental results indicate the formation of kesterite structure without Ag and Mn secondary phases. The amount of Ag in the thin films is close to that in the sols. The co-doped Cu2ZnSnS4 thin films have an absorption coefficient of larger than 1.3 × 104 cm−1, a direct optical band gap of 1.54–2.14 eV, and enhanced photoluminescence. The nonradiative recombination in Cu2ZnSnS4 thin film is reduced by Ag and Mn co-doping. The experimental results show that Ag and Mn incorporation can improve the properties of Cu2ZnSnS4 thin film.
View Full-Text
Keywords:
Cu2ZnSnS4; Ag and Mn co-doping; thin films; sol–gel preparation
▼
Show Figures

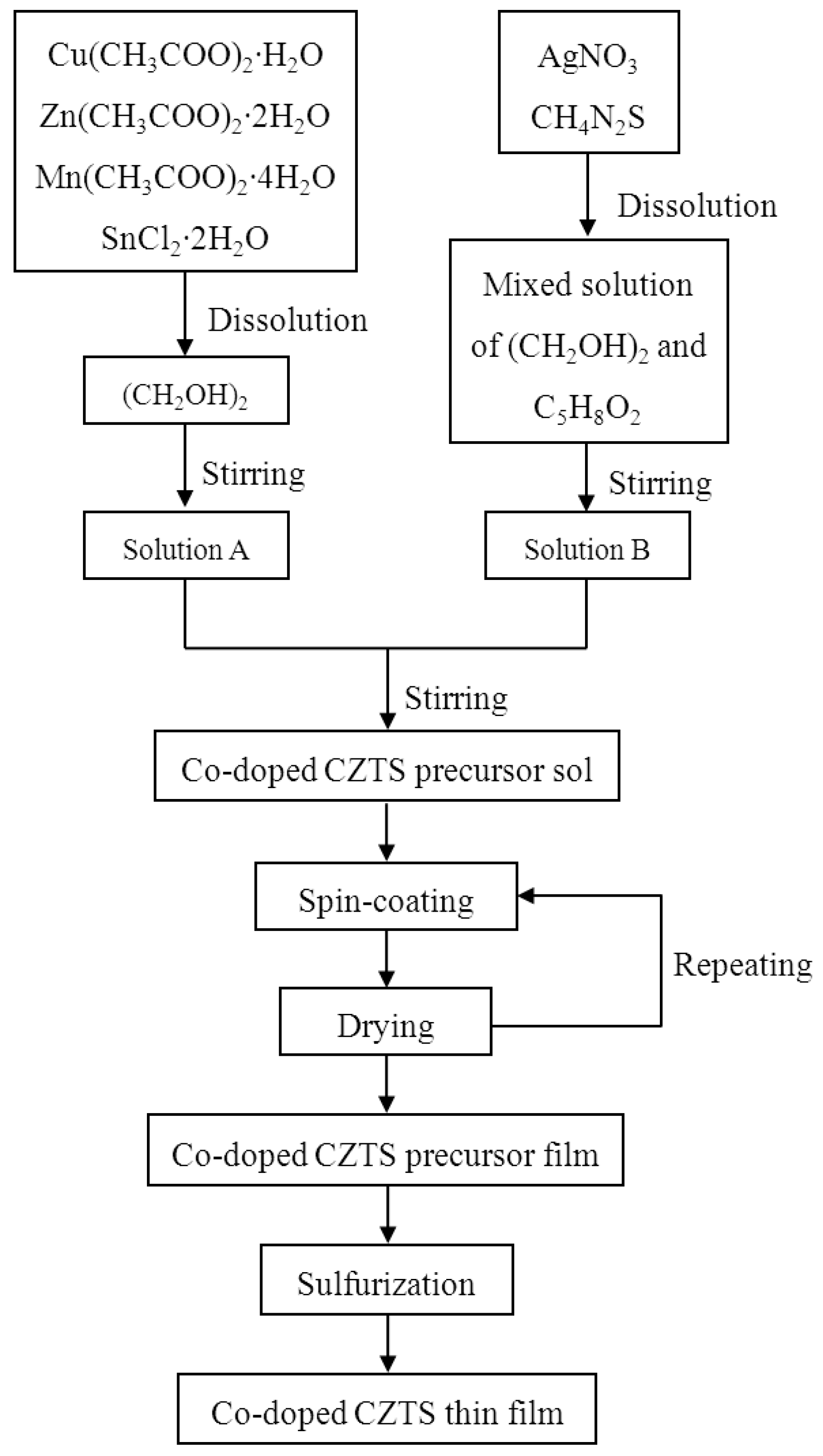

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Qiu, L.; Xu, J.; Tian, X. Fabrication of Ag and Mn Co-Doped Cu2ZnSnS4 Thin Film. Nanomaterials 2019, 9, 1520. https://doi.org/10.3390/nano9111520
AMA Style
Qiu L, Xu J, Tian X. Fabrication of Ag and Mn Co-Doped Cu2ZnSnS4 Thin Film. Nanomaterials. 2019; 9(11):1520. https://doi.org/10.3390/nano9111520
Chicago/Turabian StyleQiu, Lei, Jiaxiong Xu, and Xiao Tian. 2019. "Fabrication of Ag and Mn Co-Doped Cu2ZnSnS4 Thin Film" Nanomaterials 9, no. 11: 1520. https://doi.org/10.3390/nano9111520
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
