Ion Drift and Polarization in Thin SiO₂ and HfO₂ Layers Inserted in Silicon on Sapphire

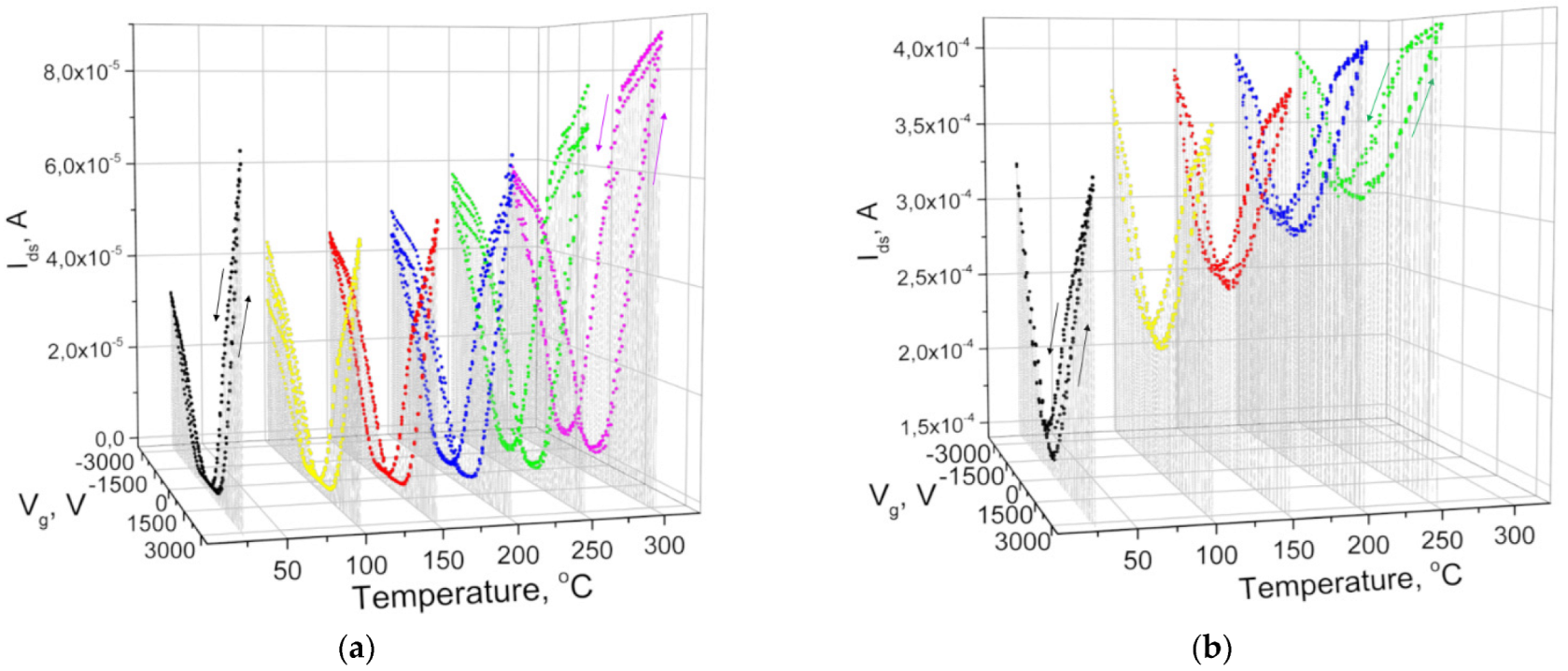

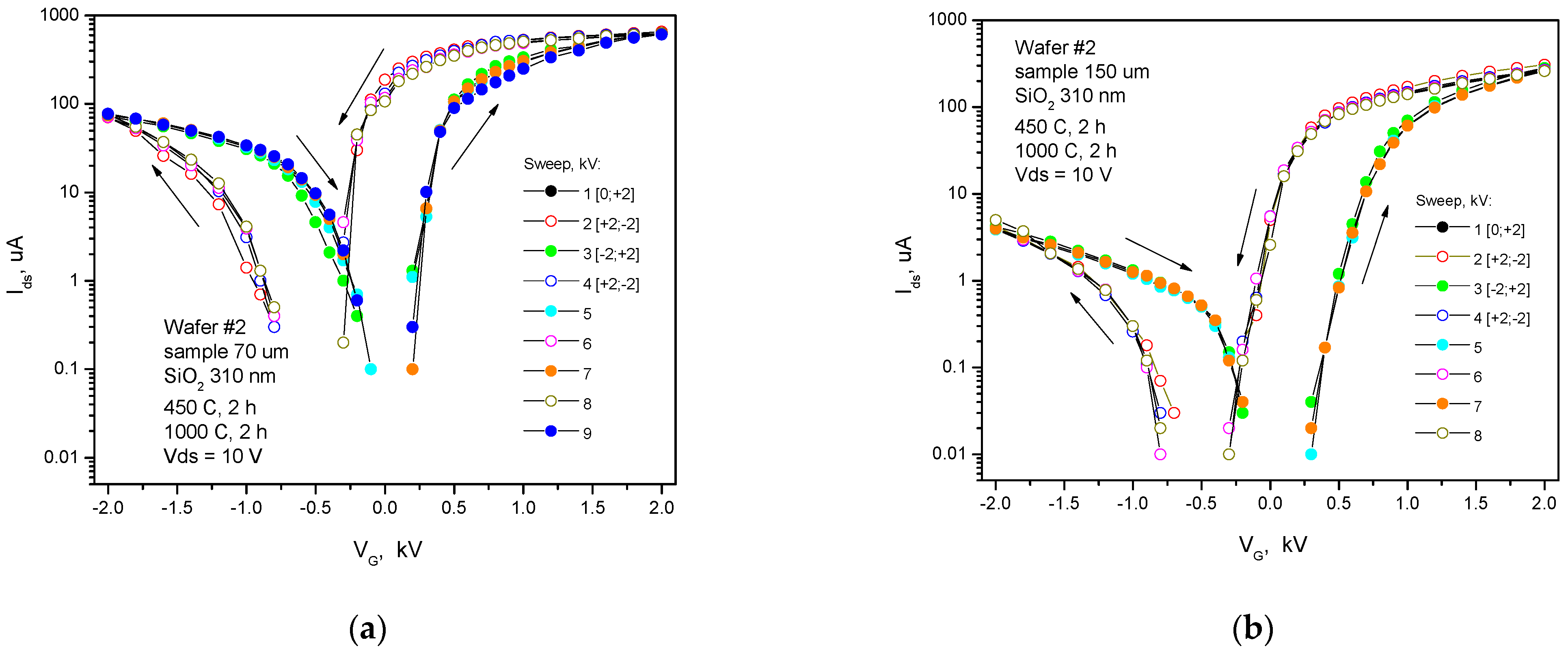

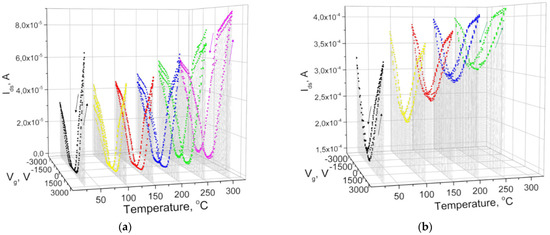

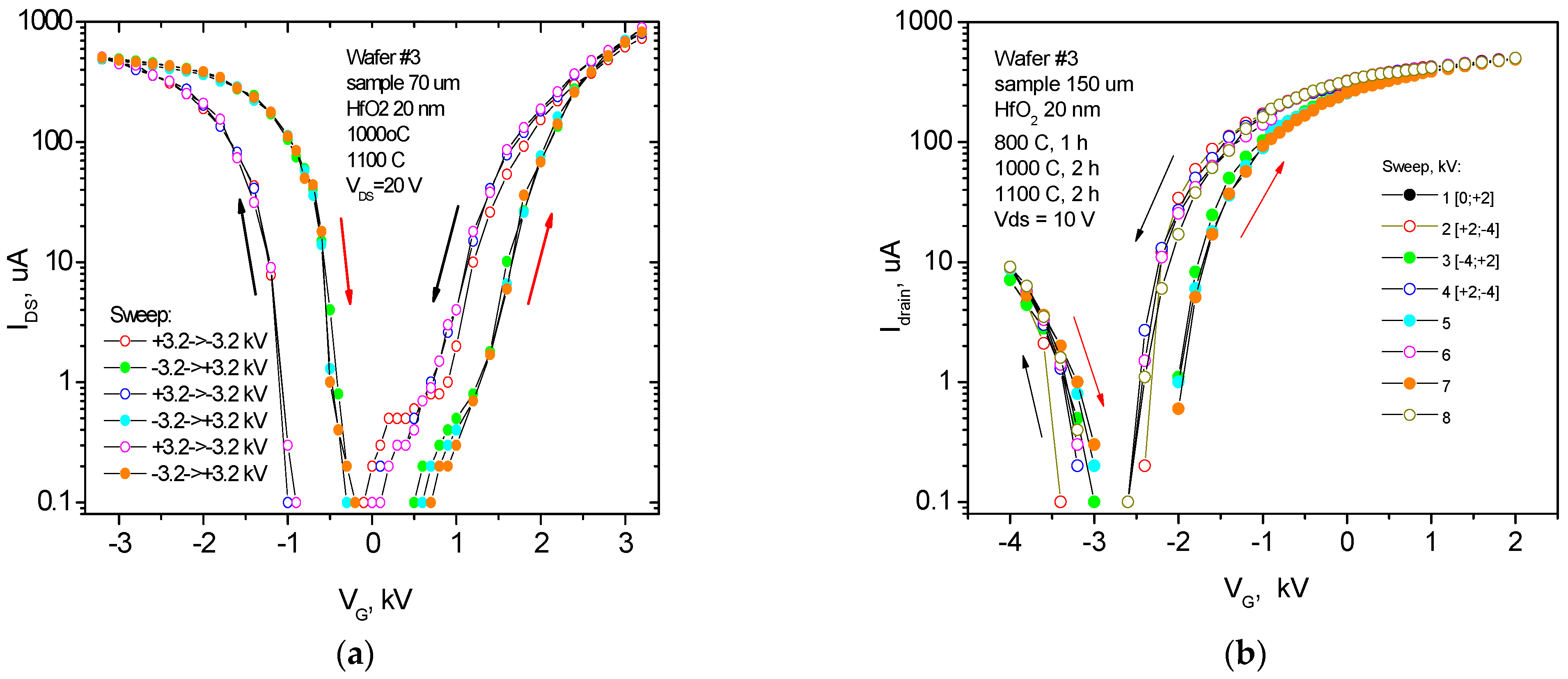

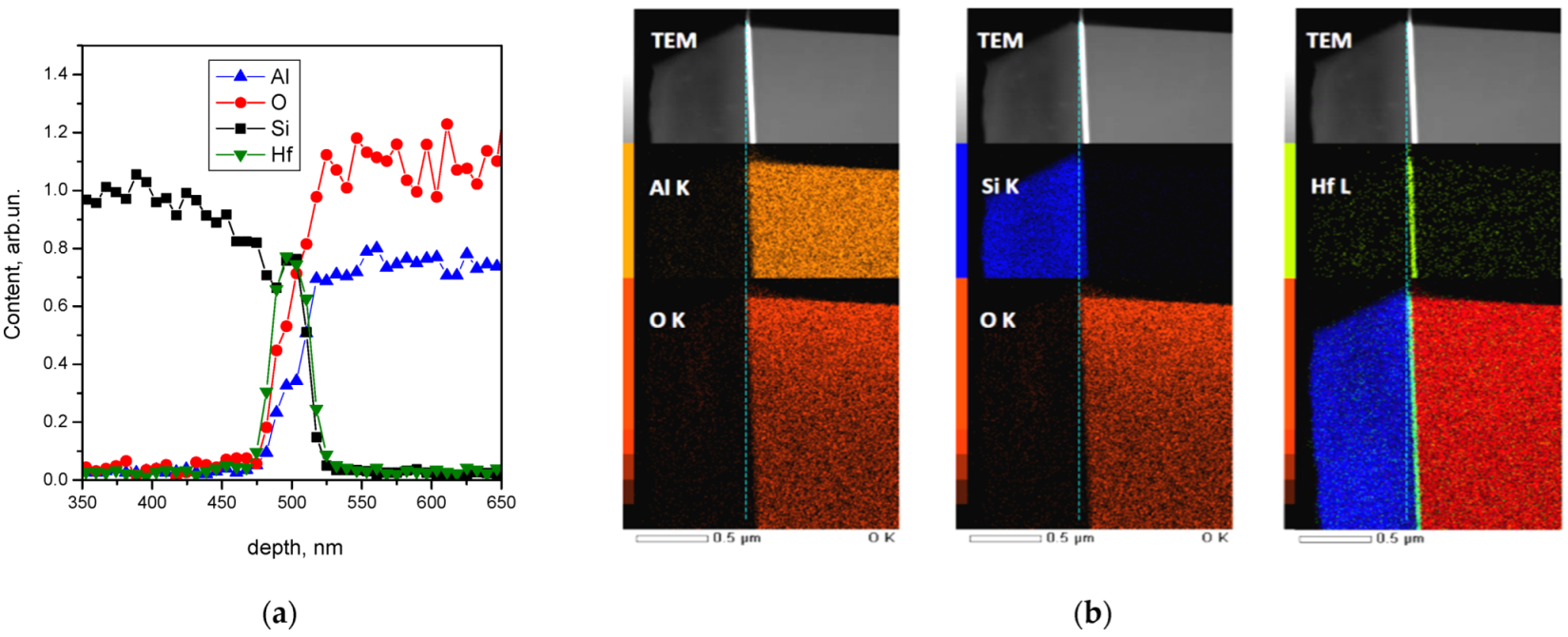

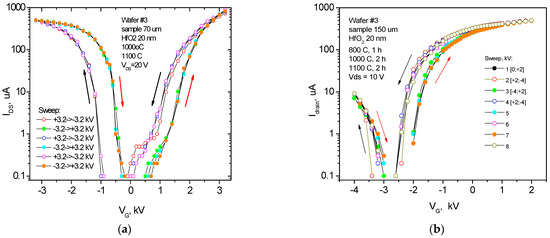

To reduce the built-in positive charge value at the silicon-on-sapphire (SOS) phase border obtained by bonding and a hydrogen transfer, thermal silicon oxide (SiO₂) layers with a thickness of 50–310 nm and HfO₂ layers with a thickness of 20 nm were inserted between silicon and sapphire by plasma-enhanced atomic layer deposition (PEALD). After high-temperature annealing at 1100 °C, these layers led to a hysteresis in the drain current–gate voltage curves and a field-induced switching of threshold voltage in the SOS pseudo-MOSFET. For the inserted SiO₂ with a thickness of 310 nm, the transfer transistor characteristics measured in the temperature ranging from 25 to 300 °C demonstrated a triple increase in the hysteresis window with the increasing temperature. It was associated with the ion drift and the formation of electric dipoles at the silicon dioxide boundaries. A much slower increase in the window with temperature for the inserted HfO₂ layer was explained by the dominant ferroelectric polarization switching in the inserted HfO₂ layer. Thus, the experiments allowed for a separation of the effects of mobile ions and ferroelectric polarization on the observed transfer characteristics of hysteresis in structures of Si/HfO₂/sapphire and Si/SiO₂/sapphire.
