Fast Filling of Microvia by Pre-Settling Particles and Following Cu Electroplating

,
,
and
1
School of Mechanical and Electronic Engineering, East China University of Technology, Nanchang 330013, China
2
State Key Laboratory of High Performance Complex Manufacturing, School of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
3
Shenzhen Institute of Advanced Electronic Materials, Shenzhen Institute of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.

Abstract

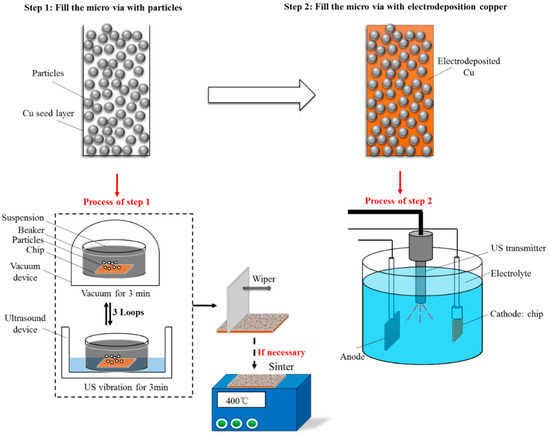

Microvia interconnectors are a critical element of 3D packaging technology, as they provide the shortest interconnection path between stacked chips. However, low efficiency of microvia filling is a long-standing problem. This study proposed a two-step method to enhance the electroplating filling efficiency by pre-setting metal particles in microvias and later electroplating the Cu to fill the gaps among the pre-settled particles. Since these particles occupy a certain volume in the microvia, less electroplating Cu is needed for microvia filling, leading to a shorter electroplating period.
