A Bio-Inspired Flexible Arm for Subsea Inspection: A Water Hydraulically Actuated Continuum Manipulator

,
and
1
Advanced Microturbines Srl, 16121 Genova, Italy
2
Faculty of Engineering, The University of Nottingham, University Park, Nottingham NG7 2RD, UK
3
Dipartimento di Ingegneria Meccanica, Energetica, Gestionale e dei Trasporti (DIME), Università degli Studi di Genova, Via all’Opera Pia 15A, 16145 Genova, Italy
*
Author to whom correspondence should be addressed.

Abstract

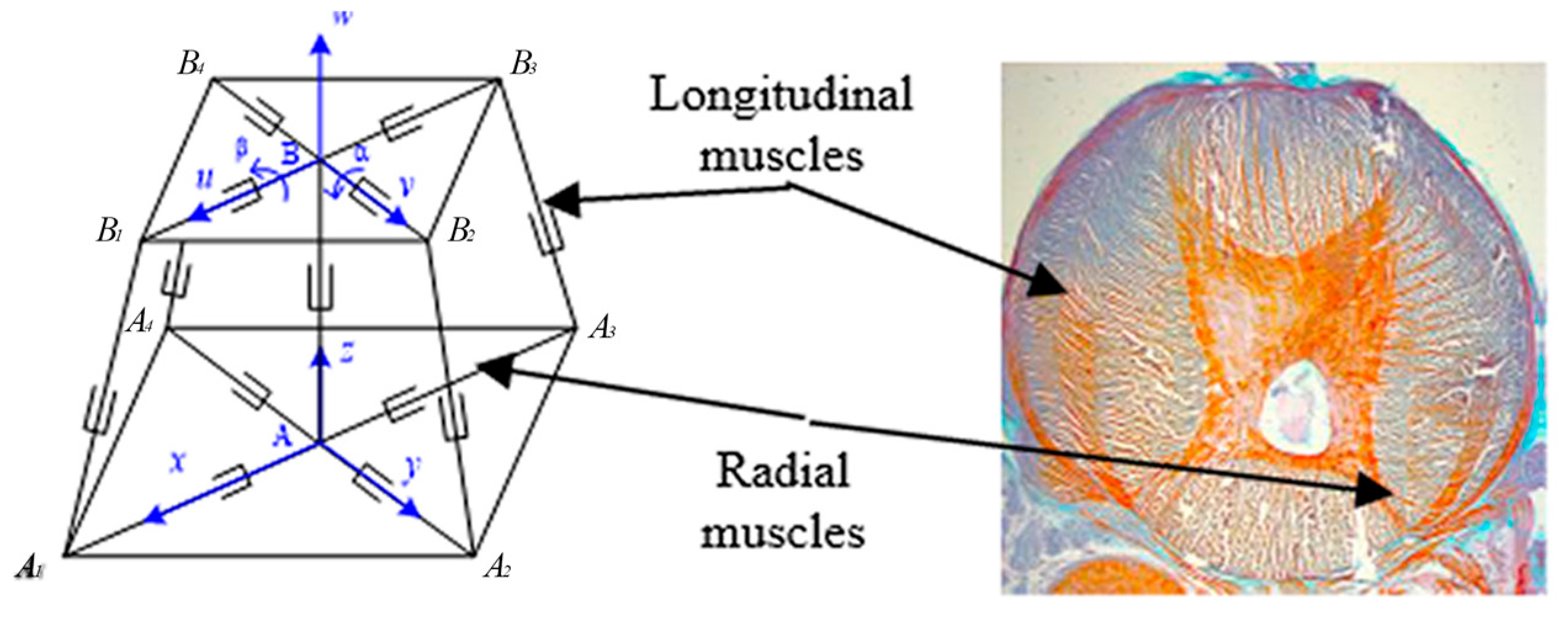

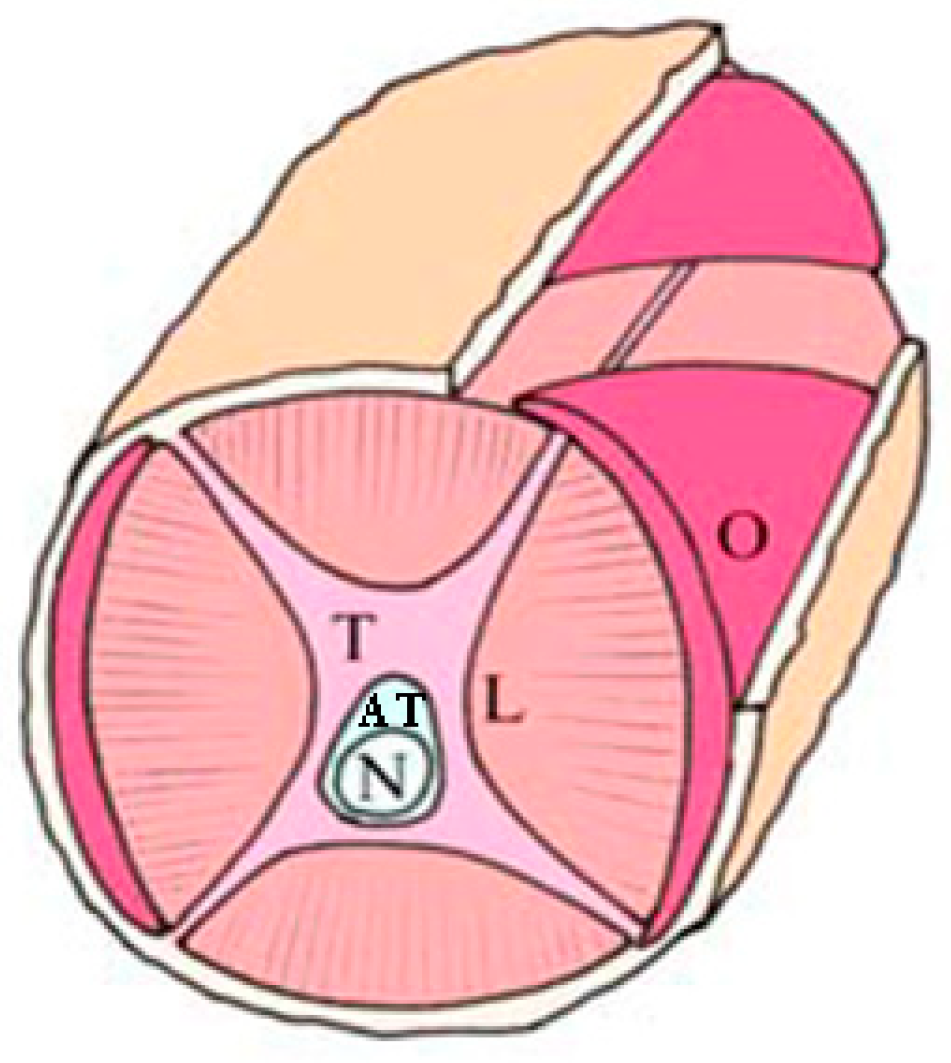

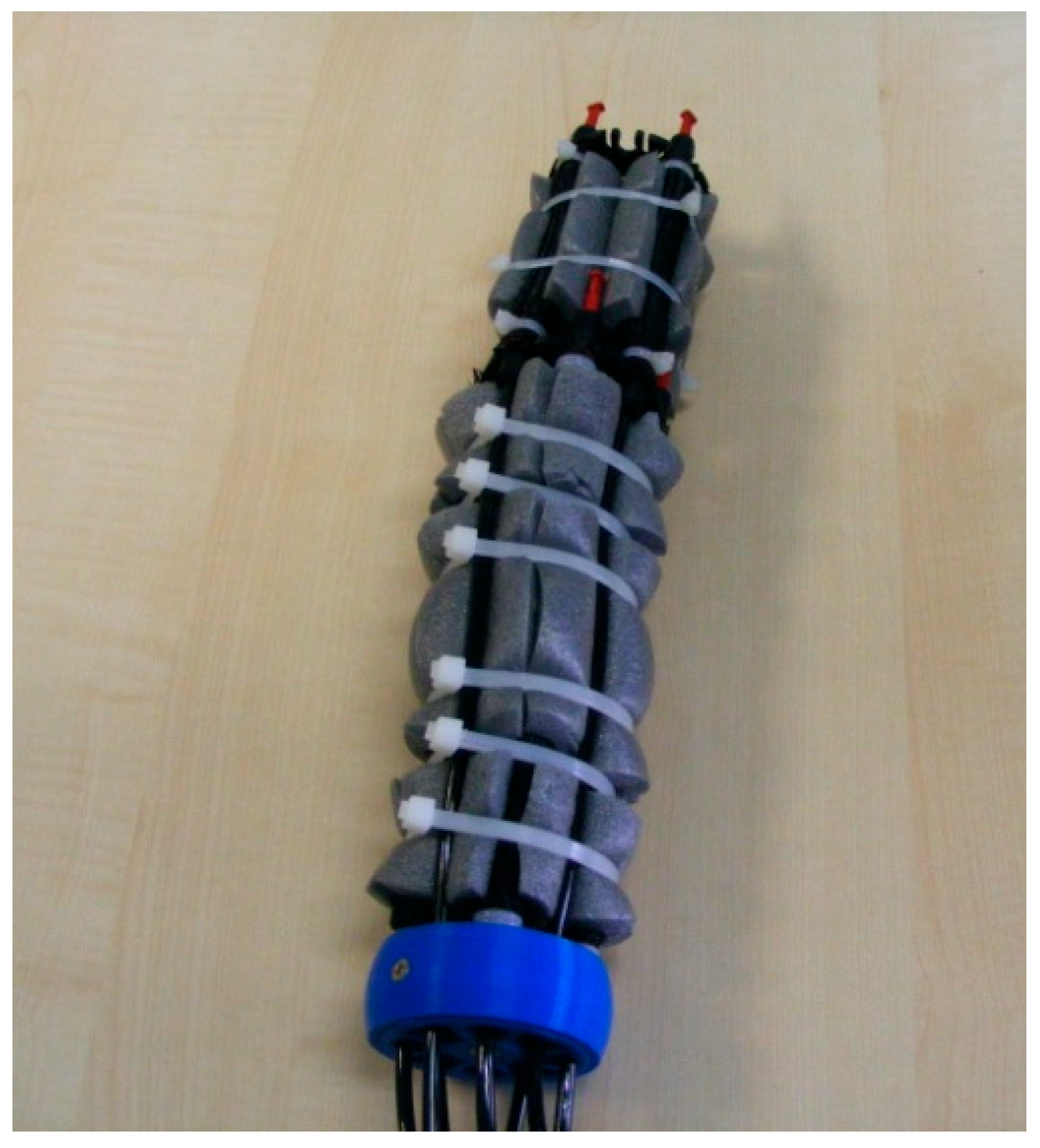

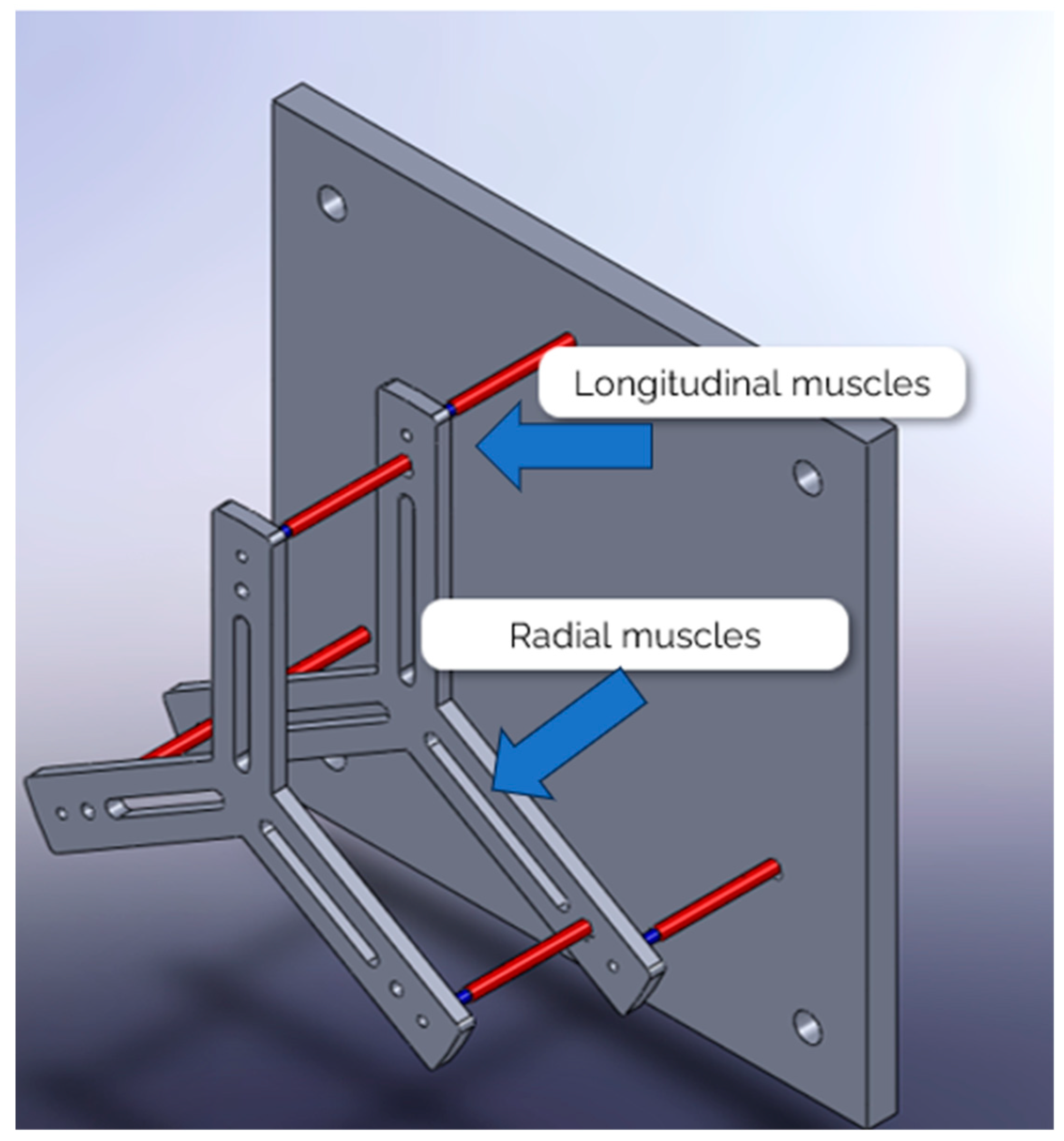

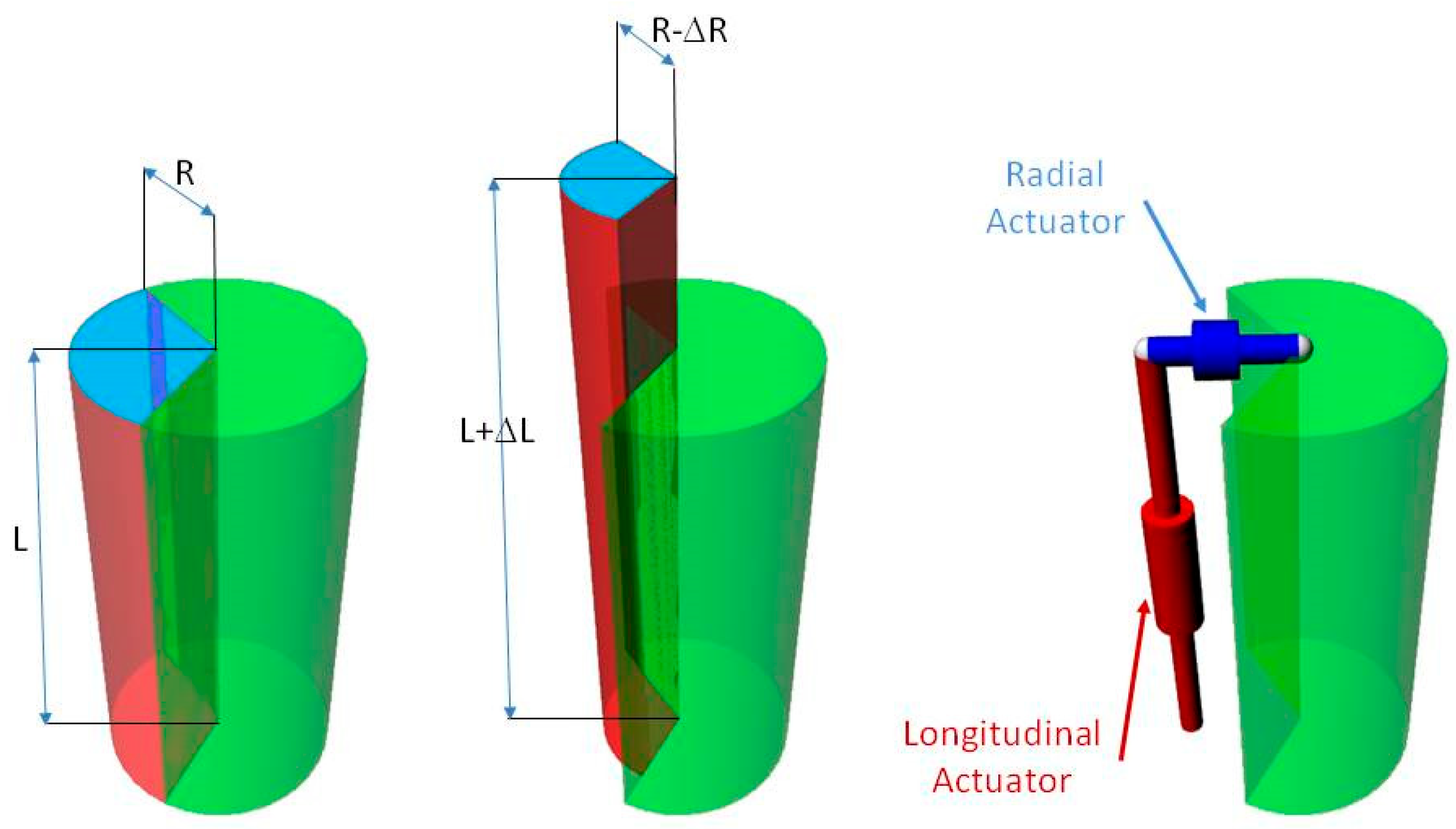

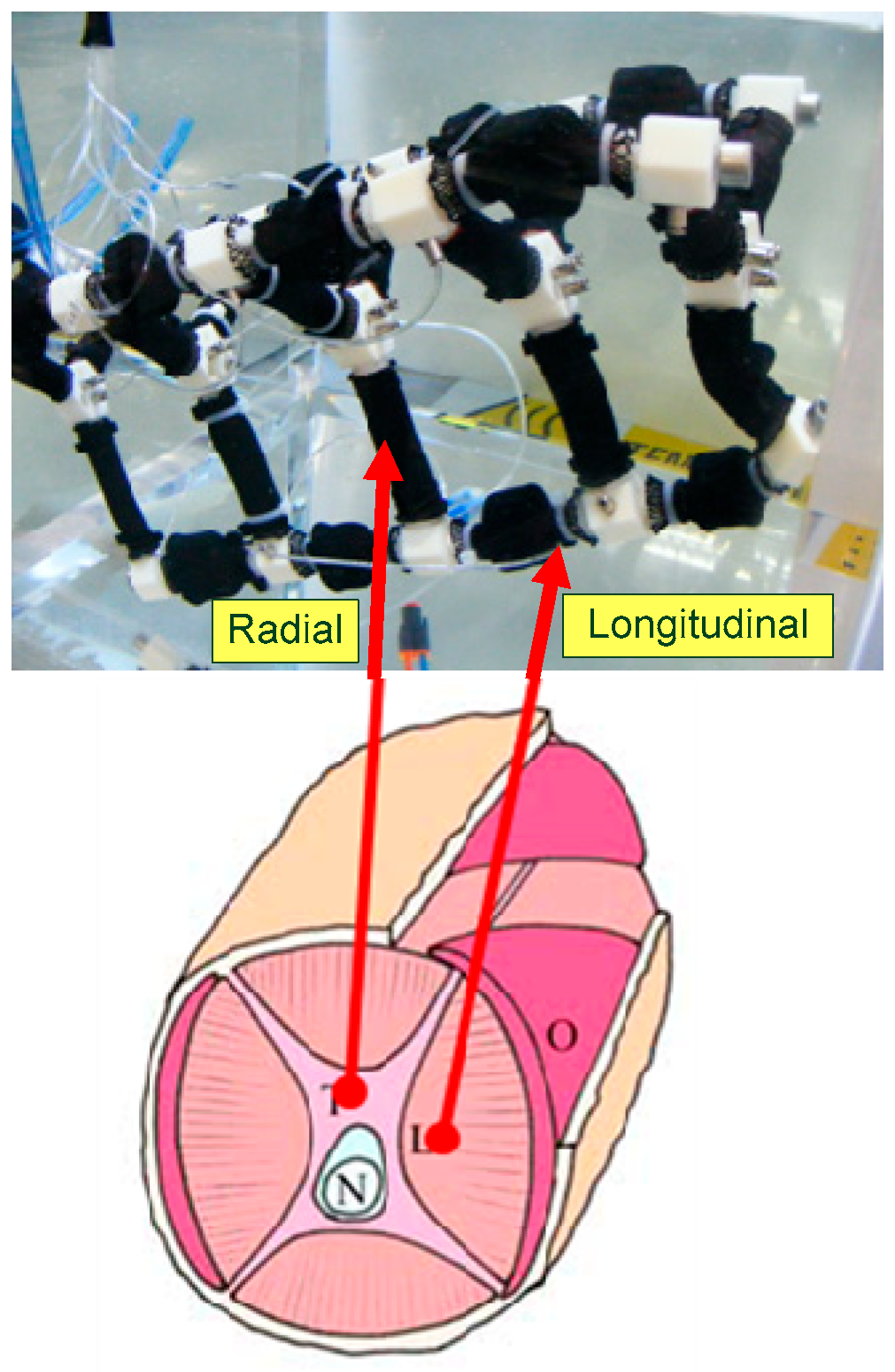

This paper outlines the outcomes of a multidisciplinary initiative aimed at creating flexible arms that leverage key aspects of soft-bodied sea animal anatomy. We designed and prototyped a flexible arm inspired by nature while focusing on integrating practical engineering technologies from a system perspective. The mechanical structure was developed by studying soft-bodied marine animals from the cephalopod order. Simultaneously, we carefully addressed engineering challenges and limitations, including material flexibility, inherent safety, energy efficiency, cost-effectiveness, and manufacturing feasibility. The design process is demonstrated through two successive generations of prototypes utilizing fluidic actuators. The first one exhibited both radial and longitudinal actuators, the second one only longitudinal actuators, thus trading off between bio-inspiration and engineering constraints.
