Accuracy of the Garmin Vivoactive 4 for Estimating Heart Rate, Energy Expenditure, and Step Count During Treadmill Exercise

Abstract

The purpose of this study was to examine the validity of a Garmin device for estimating heart rate, energy expenditure, and step count during incremental treadmill exercise. Eighteen physically active males (n = 12; mean ± SD age = 22.8 ± 4.7 years; body mass = 83.8 ± 13.4 kg) and females (n = 6; 24.2 ± 5.6 years; 65.2 ± 9.6 kg) completed an incremental treadmill test with the Garmin Vivoactive 4 and criterion methods measuring heart rate, energy expenditure, and step count. Mean absolute percent error (MAPE) and Bland–Altman plots were used to assess accuracy. Acceptable accuracy was defined as MAPE < 5% for heart rate and <10% for energy expenditure and step count. MAPE (±SD) values were 13.0 (±10.1), 19.1 (±15.0), and 4.6 (±5.3)% for heart rate, energy expenditure, and step count, respectively. The Bland–Altman regression analyses illustrated proportional bias was present for heart rate (r = 0.591, p < 0.001) and step count (r = 0.516, p = 0.028), but not energy expenditure (r = 0.351, p = 0.153). These findings indicated that the Garmin Vivoactive 4 provided acceptable accuracy for step count but unacceptable accuracy for heart rate and energy expenditure during incremental treadmill exercise.

1. Introduction

Wearable technology was named as the top fitness trend by the American College of Sports Medicine’s 2026 worldwide survey for the eighth time in the last 10 years [1]. The global popularity of fitness wearables is largely driven by increased public awareness of preventative health and the capability of these devices to track physical activity data in real time [2]. Approximately 45% of adults report using wearable fitness technology in the United States [3], contributing to the $96 billion global market in 2025 with projections reaching $186 billion by 2030 [1,4]. Fitness wearables include a range of device categories (e.g., heart rate monitors, smartwatches, fitness trackers, sensor-based clothing) that can be worn on various anatomical locations depending on measurement requirements, functionality, user preference, or intended application [5]. Smartwatches and other wrist-worn activity trackers (i.e., Apple, Garmin, and Fitbit), however, dominate the market [6] due to their smartphone integration, user-friendly interfaces, and ability to monitor multiple physiological and behavioral metrics. In addition, these devices support adherence to healthy behaviors such as increased physical activity from improved self-awareness [7]. Given their widespread accessibility and multi-functional capabilities, wrist-worn smartwatches have become valuable tools for tracking health, fitness, and performance outcomes.

Smartwatches provide both primary and derived metrics by collecting raw physiological signals that are subsequently processed through algorithmic systems [8]. Specifically, primary metrics are directly measured through sensors on the device such as heart rate, movement, and body temperature [9]. Derived metrics, however, are calculated from primary sensor data using proprietary algorithms and represent estimations of more complex variables (e.g., energy expenditure, step count, oxygen uptake, recovery) [10]. Although most companies that produce fitness wearables do not disclose the specific details of their proprietary algorithms, it is likely that errors in primary measurements may propagate into derived outcomes. Among primary metrics, heart rate is the most fundamental and serves as an important physiological indicator of cardiovascular health and exercise intensity. In various populations, heart rate monitors are used to establish optimized workout zones, detect arrhythmias, and track sleep for recovery [11]. Energy expenditure is another widely utilized and clinically relevant variable that relies heavily on heart rate inputs [12] and is commonly used to monitor weight management, dietary adjustments, and exercise prescription [13]. Step count remains one of the most popular indicators of daily activity and is reportedly incorporated into smartwatch algorithms that estimate energy expenditure [14]. The American Heart Association and other health organizations have established guidelines that promote daily step goals of approximately 8000–10,000 steps to encourage increased physical activity and wellness. Thus, the accurate estimation of heart rate, energy expenditure, and step count is essential to guide training decisions and track progress towards health goals.

Most wrist-based fitness wearables operate using non-invasive photoplethysmography (PPG) technology, thereby allowing users to record real-time heart rate data that can also be incorporated into proprietary algorithms to estimate metabolic and stress-related variables [15]. PPG functions by emitting green light-emitting diode (LED) light into the skin and detecting variations in the reflected signal corresponding to microvascular changes in blood volume [16]. The validity of PPG measurements can be influenced by several factors including the mode and intensity of exercise, sensor technology and placement, motion artifact, and skin tone [5,17]. In wrist-worn wearable devices, accuracy may be further affected by movement patterns, physiological characteristics, and subject demographics [5,8,10,17]. Some devices demonstrate greater heart rate measurement accuracy at lower intensities of exercise when motion artifact is minimal [18], whereas others achieve greater accuracy at higher exercise intensities, likely due to increased blood perfusion [17,19]. Since heart rate serves as a foundational signal for many derived metrics, limitations in its accuracy can introduce error into secondary calculations including energy expenditure, heart rate variability, and pulse oxygen saturation [16,20]. Provided with these known limitations of wrist-based PPG technology and metric estimation, it is important to evaluate the accuracy of both primary and derived variables across progressive exercise intensities.

Previous investigations have reported substantial error in wrist-based wearable measurements, with mean absolute percentage error (MAPE) values for heart rate exceeding 30% compared to criterion measures of electrocardiography (ECG) and chest-strap monitors [21,22]. Inaccurate heart rate estimations may further compromise the validity of derived metrics such as energy expenditure, which has also demonstrated error of greater than 40% and systemic bias across exercise intensities in several wearable devices [23]. Although step count is often considered a more reliable indicator of physical activity, inaccuracies have been reported that vary by device model, exercise intensity, and movement velocity [24]. Given the increased reliance on wrist-worn devices in recreational, clinical, and athletic populations, inconsistent accuracy across key physiological and activity metrics raises concerns about their utility for monitoring training load, managing energy balance, and informing health-related decisions [25,26]. As Garmin smartwatches continue to gain widespread adoption, there is a substantial need for updated validation studies evaluating their performance across progressive exercise intensities. The Vivoactive 4 (Garmin Ltd., Olathe, KS, USA) is a widely used multisport smartwatch positioned within Garmin’s mainstream fitness wearable series and intended for everyday physical activity monitoring among active individuals. The Vivoactive series is designed to provide integrated real-time estimates of heart rate, energy expenditure, and step count across a range of exercise intensities. Thus, it is considered representative of the type of fitness wearable utilized by a large segment of the general population. Given the broad adoption and practical use of Garmin watches, establishing the validity of the Vivoactive 4 for these metrics is warranted. Although previous studies have evaluated earlier Garmin models (Fenix 4, MAPE = 13.4–13.7% for heart rate [5]; Forerunner 235, MAPE = 11.0–13.0% for heart rate [11]) and other consumer wearables, it is possible that accuracy may vary across series models and this highlights the need for device-specific validation. Therefore, the purpose of the present study was to examine the validity of a Garmin wrist-based device for estimating heart rate, energy expenditure, and step count during incremental treadmill exercise in college-aged individuals. Based on previous findings, we hypothesized that the Garmin Vivoactive 4 would demonstrate acceptable accuracy for step count (MAPE < 10%) but reduced accuracy for heart rate (MAPE > 5%) and energy expenditure (MAPE > 10%) [21,22,23,24]. We further hypothesized that the error for energy expenditure would be greater than that associated with heart rate due to its reliance on derived calculations.

2. Materials and Methods

2.1. Subjects

This was a laboratory-based validation study conducted at Northern Illinois University (DeKalb, IL, USA). Eighteen males (n = 12; mean ± SD age = 22.8 ± 4.7 years; body mass = 83.8 ± 13.4 kg) and females (n = 6; 24.2 ± 5.6 years; 65.2 ± 9.6 kg) volunteered to participate in this study that required two visits to the laboratory. Although the sample size was consistent with previous validation studies using agreement-based analyses (e.g., MAPE and Bland–Altman) [5,8,9,17,20,21,22,23], it may have limited our ability to examine sex-related differences. The recruitment of subjects was completed through flyers and class scripts at Northern Illinois University seeking physically active individuals. Eligible participants were those within the age range of 19–29, not reporting any musculoskeletal, metabolic, or cardiovascular related diseases or conditions, and regularly engaging in exercise training over the prior six months according to the American College of Sports Medicine Guidelines [27] (i.e., ≥150 min per week of moderate-intensity aerobic activity (~30 min on ≥5 days per week) or ≥75 min per week of vigorous-intensity aerobic activity (~20 min on ≥3 days per week) or a combination). Subjects were instructed to avoid strenuous exercise for at least 24 h and be in a postprandial state (≥2–3 h) for the beginning of each laboratory visit [28]. Strenuous exercise was defined as vigorous intensity (e.g., high-intensity interval training, competitive sports, or prolonged endurance exercise) and subject compliance was confirmed through self-reporting upon arrival to the laboratory. In addition, all subjects were required to complete a PAR-Q+ form, health history questionnaire, and sign an informed consent document prior to any testing procedures. The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Review Board of Northern Illinois University (IRB #HS21-0152, 1 December 2020). Participants completed a total of two study visits separated by 24 h and at the same time of day, including a familiarization session and an exercise trial.

2.2. Familiarization Session

The first laboratory visit served as an informational meeting that provided subjects with detailed requirements and expectations of their participation in the study. In addition, all subjects completed a familiarization protocol that involved orientation to the testing equipment and procedures (i.e., the treadmill, Garmin Smartwatch, electrocardiogram, metabolic cart, and video recording). Specifically, the subjects briefly walked on the treadmill for approximately 10 min at 4.8 and 7.2 km·h⁻¹ and were allowed to ask questions to ensure comfort with equipment and procedures. The familiarization session lasted approximately 20–30 min with the participants wearing all monitoring devices simultaneously prior to the experimental trial. All subjects confirmed comfort with equipment and understanding of the procedures.

2.3. Exercise Protocol

During the second laboratory visit, subjects completed an exercise trial to evaluate device validity. For this trial, participants completed an incremental exercise test on a motorized treadmill (Woodway Desmo HP; Woodway USA, Inc., Waukesha, WI, USA) that involved four continuous, 4 min stages at 4.8, 7.2, 9.7, and 12.1 km·hr⁻¹ at 0% grade [28]. These treadmill speeds were selected to range from walking to moderate-to-vigorous running intensities typical for this age group and to elicit progressive increases in heart rate and metabolic demand. Heart rate, energy expenditure, and step count values were assessed using the Garmin Smartwatch and criterion methods throughout the 16 min treadmill test.

2.4. Garmin Watch

The Garmin Smartwatch (Vivoactive 4, Garmin Ltd., Olathe, KS, USA; currently available online for $200–350) was secured on the left wrist of each subject according to the manufacturer’s recommendations for location (two finger widths proximal to the wrist) and tightness (snug but comfortable) prior to the incremental treadmill test. All history was cleared from the device before placement, synched to an online mobile application, and then individually programmed for each subject according to their age, biological sex, body mass, and height with the settings standardized to the left wrist and the global positioning system turned off. The Garmin device was also programmed to start recording heart rate, energy expenditure, and step count at the initiation of the incremental treadmill test. Instantaneous readings of heart rate (bpm) from the Garmin Smartwatch were recorded at the end of each minute during the 16 min test. In addition, total energy expenditure (kcal) and step count were recorded as single values that represented the entire 16 min treadmill test. As soon as the treadmill test was completed, the exercise “session” on the Garmin Smartwatch was stopped simultaneously with criterion measurement devices (ECG, metabolic cart, and video recording of step count). The Garmin device operated with manufacturer-installed firmware version 5.00 throughout data collection.

2.5. Criterion Measurements

2.5.1. Heart Rate

A standard 12-lead ECG (Marquette Case Plus Stress Test Monitor, General Electric, Boston, MA, USA) was used as the criterion method for heart rate. Specifically, subjects were placed on an examination table for skin preparation prior to placement of the electrodes (Skintact Electrodes, Leonhard Lang GmbH, Innsbruck, Austria). To maximize signal quality (i.e., reduce electrical impedance) and establish optimal adhesive contact between the skin and electrodes, the chest was shaved to remove hair (if necessary) and lightly abraded with gauze and cleaned with isopropyl alcohol to remove any surface contaminants. The ECG electrodes were then placed on the chest with the Mason–Likar configuration. Instantaneous measurements of heart rate (bpm) from the ECG were recorded at the end of each minute of the 16 min test.

2.5.2. Energy Expenditure

Criterion measurement of energy expenditure during the 16 min treadmill test was completed using a metabolic cart (TrueOne 2400, Parvo Medics, Sandy, UT, USA) that was powered on for proper warm-up 60 min prior to the calibration procedures. Prior to each test, the metabolic cart was calibrated for flow volume using a 3 L calibration syringe and gas analysis using room air and a certified standard mixture of oxygen (16.00%) and carbon dioxide (4.00%). Ambient conditions for atmospheric pressure, temperature, and humidity were included in all calibration procedures for the metabolic cart. When necessary, multiple calibration attempts were performed to ensure stability. Energy expenditure was then calculated by the TrueOne 2400 system using the manufacturer’s software (Parvo Medics, Sandy, UT, USA). Total energy expenditure from indirect calorimetry included both resting metabolic rate and exercise-induced metabolic costs during the testing period to ensure consistency with the total energy expenditure values reported by the Garmin device. The total energy expenditure (kcal) from the 16 min treadmill test was used as the representative criterion value.

2.5.3. Step Count

All 16 min treadmill tests were video recorded for the criterion measurement of step count [29]. The recording device was placed approximately two meters from the subject at a 90-degree angle from the ground to ensure the entire lower body was captured in the frame. Following the test, two research assistants independently reviewed the video from start to finish in slow motion while tracking the number of steps using handheld tally counters (KTRIO LLC, Long Island City, NY, USA). These two independent step count numbers from each treadmill test were then averaged and used as the representative criterion step count score. Inter-rater reliability for step count of all (n = 18) 16 min treadmill tests resulted in an ICC of R = 0.999 (model: two-way mixed, random with absolute agreement) and no significant mean differences (2235 ± 335 vs. 2232 ± 335 steps, p = 0.320) between counters.

2.6. Data Analysis

Microsoft Excel (Microsoft Corp, Redmond, WA, USA) was used to record and organize all study data. SPSS (Version 29.0, SPSS Inc., Armonk, NY, USA: IBM Corp.,) was utilized for all subsequent data analysis. Heart rate values from the Garmin device and ECG measurements were recorded simultaneously as instantaneous values at the end of each minute of the treadmill test. Energy expenditure and step count values from the Garmin device and criterion methods (metabolic cart and video recording, respectively) were recorded as single values across the entire 16 min treadmill test. Validity of the Garmin device compared to criterion methods was assessed through: (1) calculation of mean absolute percent error (MAPE), (2) simple linear regression for determination of the correlation coefficient (r) and standard error of estimate (SEE), and (3) Bland–Altman plots with regression analyses for constant error (CE = criterion method − Garmin device) across the range of criterion values. MAPE provides the average amount of error from a non-criterion method of measurement relative to the criterion measurement and has been recommended as the primary statistical measure for assessing the validity of wearable heart rate monitors [30]. The Bland–Altman regression analyses were used to assess proportional bias. Acceptable MAPE accuracy thresholds and categories were variable specific. Since heart rate is a directly measured physiological variable of the Garmin device, more conservative MAPE values were required to meet the “acceptable” classification: MAPE of <5.0% was defined as “high accuracy” and the threshold for “acceptable” [31,32]; MAPE of 5.0–10.0% was defined as “moderate accuracy” [33]; and MAPE of >10% was classified as “unacceptable”, consistent with the general consensus in the literature that errors above this magnitude are not typically considered valid for physiological monitoring in controlled laboratory environments [32,33]. Neudorfer et al. [34] proposed that conservative MAPE criteria (of <5.0%) is necessary for practical application, thereby preventing measurement error from exceeding heart rate intensity zones used in exercise prescriptions. For the model-derived metrics of energy expenditure and step count, however, a MAPE value of <10.0% was considered an “acceptable” indicator of accuracy [35,36]. Thus, these thresholds were selected to reflect practical considerations since relatively smaller errors in heart rate can alter exercise intensity classification but relatively larger errors for derived metrics (energy expenditure and step count) are considered more acceptable. The classification of correlation (r) strength was based on Jo et al. [31]: 0.90–1.00 = strong, 0.80–0.89 = moderately strong, 0.70–0.79 = moderate, 0.60–0.69 = moderately weak, and ≤0.59 = weak. Regression assumptions including normality were evaluated through inspection of residual plots, Q-Q plots, and Shapiro–Wilk tests. Residuals were approximately normally distributed. MAPE values and correlation coefficients are presented with 95% confidence intervals (CI) obtained using bootstrap resampling (1000 samples, BCa). An alpha of 0.05 was used for statistical significance. All values are presented as mean (±SD).

3. Results

3.1. Heart Rate

The overall MAPE (±SD) value for heart rate across all four treadmill stages was 13.0 (±10.1)% (95% CI: 11.9–14.3%). MAPE values for each stage were 12.0 (±8.2), 14.1 (±10.1), 14.5 (±11.3), and 11.2 (±10.8)% at 4.8, 7.2, 9.7, and 12.1 kph, respectively. The linear regression analysis for the ECG vs. Garmin resulted in a moderately strong correlation (r = 0.808, 95% CI: 0.78–0.85, p < 0.001) and SEE value of 21.1 bpm (Figure 1). Although the strength of the relationship was defined as moderately strong, correlation coefficients do not reflect the measurement agreement or absolute error provided by MAPE. The CE (actual ECG heart rate—predicted Garmin heart rate) values were 17.4 (±21.0) bpm. The Bland–Altman regression analysis resulted in a significant relationship for CE vs. ECG heart rate (r = 0.591, 95% CI: 0.50–0.66, p < 0.001) and illustrated that the Garmin device tended to overestimate heart rate at lower exercise intensities (below approximately 120 bpm) and underestimate at higher exercise intensities (above approximately 150 bpm) (Figure 2).

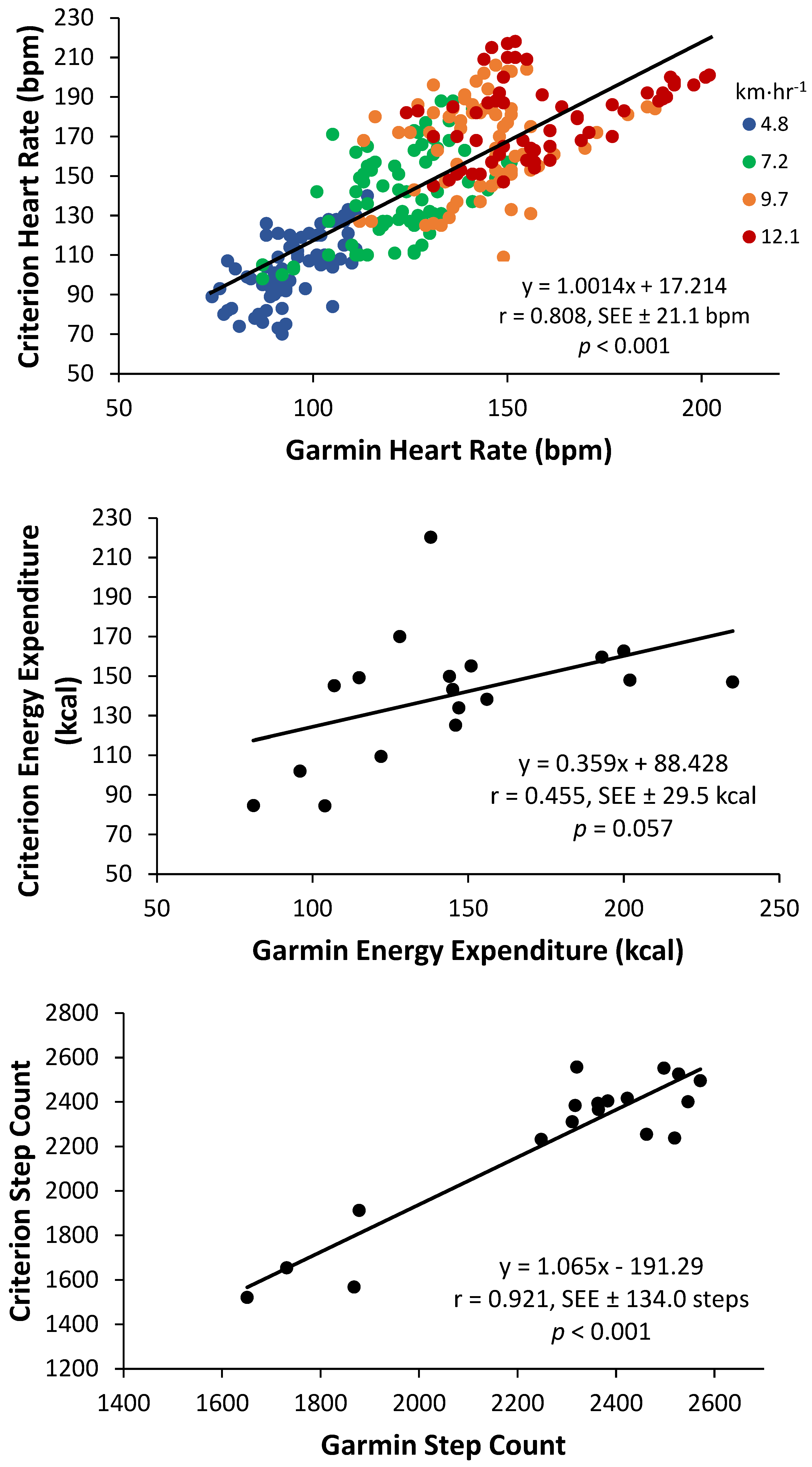

Figure 1. Relationships between criterion measures and the Garmin Smartwatch for heart rate, energy expenditure, and step count.

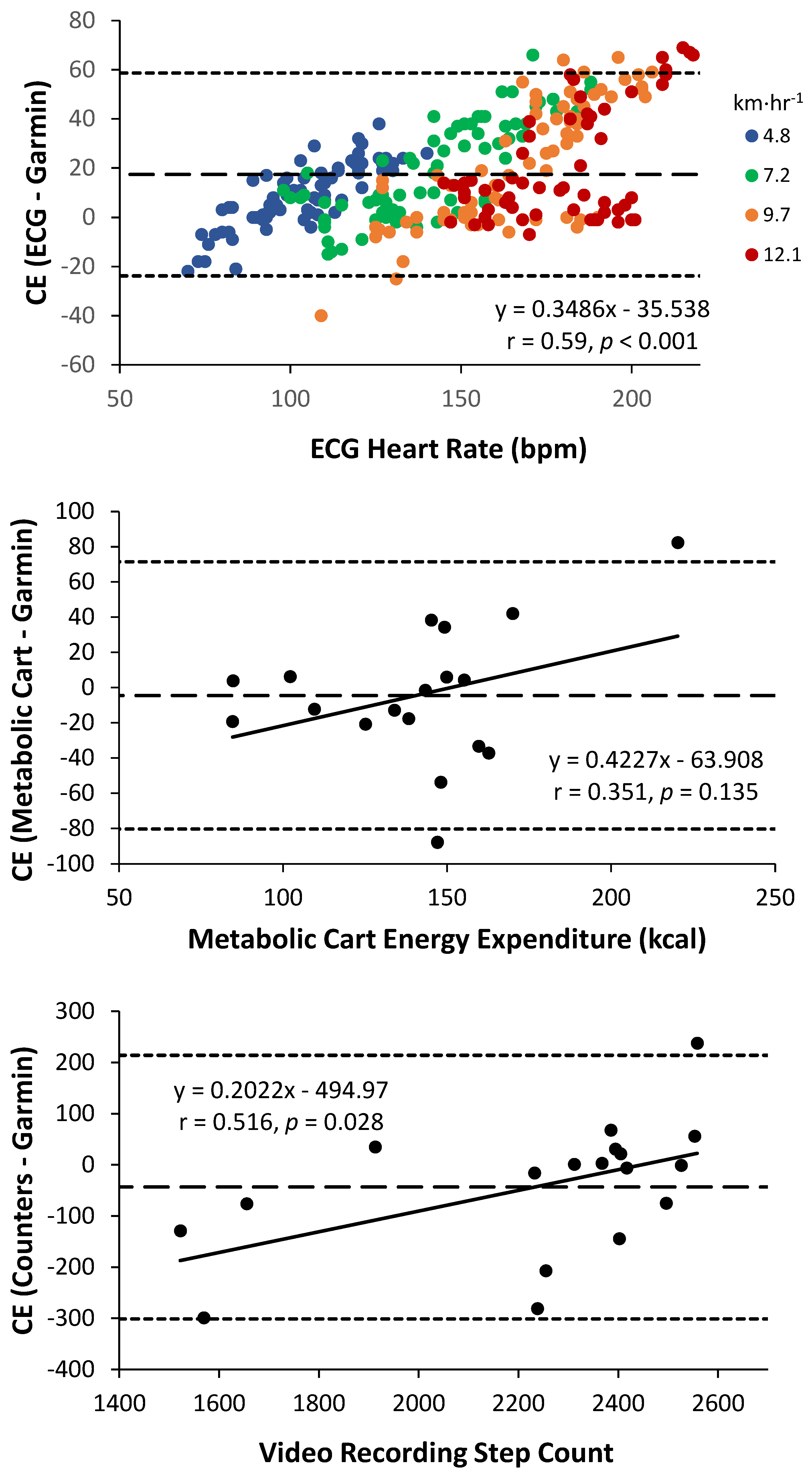

Figure 2. Bland–Altman plots for the relationships between constant error (CE) and the criterion heart rate, energy expenditure, and step count values. CE (dashed lines); upper and lower limits of agreements (dotted lines); and lines of regression (solid lines). Upper and lower limits of agreement were 58.6 and −23.8, 71.4 and −80.5, and 214.2 and −300.9 for heart rate, energy expenditure, and step count, respectively.

3.2. Energy Expenditure

The MAPE (±SD) value associated with energy expenditure was 19.1 (±15.0)% (95% CI: 12.3–26.1%). The linear regression analysis for the metabolic cart vs. Garmin resulted in a non-significant, weak correlation (r = 0.455, 95% CI: −0.05–0.85, p = 0.057) and an SEE value of 29.5 kcal (Figure 1). While this correlation coefficient value (r = 0.455) was weak and did not reach statistical significance (p = 0.057), larger sample sizes may help clarify this relationship. The mean (±SD) CE (actual metabolic cart energy expenditure—predicted Garmin energy expenditure) value was −4.5 (±38.7) kcal. The Bland–Altman regression analysis resulted in a non-significant relationship (r = 0.351, 95% CI: −0.24–0.69, p = 0.153) for CE vs. metabolic cart energy expenditure (Figure 2). Thus, the CE of the Garmin device for estimating energy expenditure of the metabolic cart was uniform across the range of energy expenditure values (Figure 2).

3.3. Step Count

The MAPE (±SD) value for step count was 4.6 (±5.3)% (95% CI: 2.5–7.1%). Step count was the only metric to demonstrate acceptable accuracy (MAPE = 4.6%) and indicated there was a strong agreement between the Garmin Vivoactive 4 and criterion method. The linear regression analysis for the video recording and hand-counters compared to the Garmin resulted in a strong correlation (r = 0.921, 95% CI: 0.72–0.98, p < 0.001) and SEE value of 134.0 steps (Figure 1). The SEE of 134 steps translates to approximately 6% of the total step count accumulated (2235 average steps) and suggests relatively small absolute error during the 16 min treadmill test. The mean (±SD) CE (counters step count—Garmin step count) value was −43.4 (±131.4) steps. The Bland–Altman regression analysis resulted in a significant relationship for CE vs. the video recording of step count (r = 0.516, 95% CI: 0.15–0.76, p = 0.028) and demonstrated that step count was generally overestimated by the Garmin device compared to the video recording but more accurate at the higher range (>2300 steps) (Figure 2).

4. Discussion

Our main findings indicated the Garmin Vivoactive 4 provided acceptable estimates for step count, but unacceptable estimates for heart rate and energy expenditure during an incremental treadmill test. Overall, the Garmin wrist-based monitor tended to underestimate heart rate, with error increasing at higher exercise intensities. While energy expenditure did not meet the MAPE criteria and was weakly correlated with the criterion measurement (i.e., indirect calorimetry), the associated error was consistent across the range of total kcal values. Step count estimated from the Garmin device, however, was accepted as accurate and strongly correlated with the criterion values.

Heart rate data across the incremental treadmill test from the Garmin device did not achieve the criteria defined as “acceptable” proposed by Jo et al. [31] and Navalta et al. [32]. Specifically, the MAPE value for heart rate during the entire 16 min protocol was 13.0% with values remaining consistent across the four individual 4 min stages. From a practical perspective, 13% error at a true heart rate of 150 bpm corresponds to an absolute error of approximately 20 bpm and could result in significant misclassification of exercise intensity zones. The Bland–Altman plot for mean CE across ECG values demonstrated that the Garmin device generally overestimated heart rate at lower exercise intensities and underestimated at higher intensities (Figure 2). Numerous studies have suggested that the reduced accuracy (MAPE = 6.3–20.1%) for heart rate measurements in wrist-based wearables is due to motion artifact, especially at higher speeds or with greater arm movement that can heavily influence sensor-to-skin contact in PPG technology [21,37,38]. In support, Merrigan et al. [39] and Bunn et al. [24] demonstrated that the heart rate accuracy from Garmin wrist-based devices is highest during submaximal cycling (MAPE = 4.2%) compared to steady state (MAPE = 5.4%) and incremental (MAPE = 4.4%) treadmill exercise, as well as Tabata-style circuit training (MAPE = 10.2%). Other devices placed on more proximal locations (e.g., the forearm or chest) have shown acceptable accuracy (MAPE < 5.0%) during exercise modalities with substantial wrist movement [28,32,40]. Therefore, the compromised accuracy of heart rate measurements from wrist-based wearables is a function of distal location placement that can be further exacerbated by increased arm movement. Although the present study demonstrated similar MAPE values across the four incremental stages, other investigations [39] have reported improved Garmin accuracy with increases in exercise intensity. Improved accuracy at higher workloads has largely been attributed to increased blood perfusion of the arms that enhances heart rate estimates from PPG technology [17,19]. It is possible the discrepancy in findings may be attributed to differences in protocol design and inter-individual variability. For example, the current range in treadmill velocities (4.8–12.1 km·hr⁻¹) may not have been sufficient to influence motion artifact or cardiac output to the extent that the PPG readings are altered. Furthermore, differences in wrist movement patterns and PPG sensor contact among subjects may have contributed more to measurement error than exercise intensity. Collectively, these factors indicated that improvements in heart rate accuracy at higher exercise intensities are not universal and may be affected by the treadmill protocol or subject movement patterns. Due to these factors, the selection of an optimal fitness wearable for tracking heart rate should be based on intended application with specific consideration for the influence of motion and intensity on overall accuracy.

The accuracy of energy expenditure estimates derived from commercial wearables is difficult to evaluate since many companies such as Garmin rely on proprietary algorithms. In general, wearable energy expenditure algorithms integrate physiological signals (e.g., heart rate) with anthropometric inputs (e.g., age, sex, body mass) and it is possible that inaccuracies in any of these variables may contribute to estimation error. Thus, validation efforts are primarily limited to sensor performance rather than the underlying computational models [20]. In the present study, the Bland–Altman (Figure 2) for energy expenditure predictions indicated that both overestimations and underestimations occurred, with greater error at approximately ≥150 kcals. Zakeri et al. [12] identified several factors that may influence energy expenditure estimation accuracy, including heart rate measurement error, incorrect metabolic equivalent assignments, and inaccuracies in body anthropometric inputs, all of which may vary depending on the algorithm employed. Although there are conflicting data, the integration of PPG for heart rate measurement with accelerometry has been proposed to improve energy expenditure estimation accuracy [41]. Hajj-Boutros et al. [42], however, reported that despite acceptable heart rate accuracy in two wrist-worn devices (Apple Watch 6 and Polar Vantage V), energy expenditure estimates exhibited substantial error (MAPE = 25.8–47.8%) during different physical activities (i.e., sitting, walking, running, cycling, and resistance training). Furthermore, the present investigation did not demonstrate acceptable heart rate accuracy (MAPE = 19.1%) and the linear regression analysis between energy expenditure estimated by the Garmin device and criterion measurement illustrated a weak, non-significant relationship (Figure 1). This weak association suggested that energy expenditure estimated by the Garmin device may have limited ability to reflect individual differences in energy expenditure determined from criterion methods during treadmill exercise. From a practical view, a reported energy expenditure of 200 kcals (with MAPE of 19.1%) could reflect an actual energy expenditure of approximately 162 kcals, thereby representing an absolute error of 38 kcals and potentially leading to an energy balance miscalculation. Our results were consistent with previous findings that reported high estimation error for energy expenditure from Garmin devices (e.g., Garmin Fenix 6) during walking (MAPE = 32.0%) and running (MAPE = 21.8%) [20]. Collectively, the present findings and those of others [20,42] supported the conclusion that energy expenditure estimates from consumer wearables should be interpreted with caution, as overestimation may create a false perception of achieving physical activity goals and misinform training or health-related decisions [35]. Thus, the fitness wearable examined in the current study should be considered a general reference tool rather than a precise measure of energy expenditure.

The present study found that the Garmin Vivoactive4 provided valid step count estimations (MAPE = 4.6%) during incremental treadmill exercise. In practical terms, a MAPE of 4.6% corresponded to approximately 460 steps for a 10,000-step daily goal and suggested the Garmin device provided sufficiently accurate step counts for tracking physical activity levels. The device also resulted in a strong correlation (Figure 1) with the criterion measure (i.e., hand-counters), yet visual inspection of the Bland–Altman and CE (Figure 2) illustrated a slight overestimation compared to the video recording with error generally decreasing for subjects achieving higher step counts. Since all subjects completed the same 16 min treadmill protocol, differences in total step count reflected variations in gait characteristics (e.g., stride length, cadence, arm swing patterns) and not differences in exercise intensity. Participants who accumulated higher total step counts exhibited closer agreement between the Garmin device and criterion method. Thus, it is likely that more consistent or repetitive movement patterns may improve accelerometer step detection independent of protocol intensity. Mora-Gonzalez et al. [29] examined the validity of 21 devices for step count during treadmill exercise (0.8–8.0 km·hr⁻¹) and reported progressively higher accuracy with increasing speed. In addition, Hao et al. [35] investigated 11 commercially available wrist-worn devices and found that step count was overestimated during a free-living simulation and three bouts of exercise at progressing intensities, with none of the devices achieving acceptable MAPE values (14.2–27.6%). It is possible that step count error at low intensities is due to the reduced amplitude of the arm swing motion during slow walking or light running, thereby failing to trigger accelerometer detection due to insufficient movement [43]. In contrast, increased accuracy at higher intensity levels can be attributed to more pronounced arm swing to balance gait that results in improved sensor activation and step count detection accuracy [44]. Although step count was assessed as a single value across the entire test and not individual stages, the findings of the present study indicated that the Garmin device provided acceptably accurate step count estimates for activity tracking during moderate to vigorous intensity treadmill exercise. Therefore, users of the Garmin Vivoactive 4 can rely on reasonably accurate step count data for tracking daily physical activity goals and progress.

There were a number of limitations in the present study. Variation in skin pigmentation and body composition were not assessed but have been shown to influence PPG accuracy [45], potentially leading to error between subjects. In addition, the inclusion of both male and female participants introduces possible sex-related differences in energy expenditure prediction. Due to the small sample size and unequal sex distribution, sex-specific analyses were not performed. Another limitation of the present investigation is the laboratory-based design, which may not be applicable to free-living environments and may yield different accuracy due to movement patterns that require unique wrist usage. For example, it is likely that activities involving greater wrist motion (e.g., racquet sports, manual labor) may demonstrate different accuracy profiles. Reliability was not assessed and it is possible that device location placement on the wrist could potentially influence the accuracy of the wearable between individuals. We examined a single Garmin device, and therefore, device-to-device variability was not investigated and no comparisons with other smartwatch brands were performed. Thus, the present findings are limited to healthy, college-aged (19–29 years old) individuals and should not be generalized to older adults, clinical populations, or free-living settings.

In conclusion, the Garmin Vivoactive 4 may assist users in achieving daily activity goals through accurate step count tracking, but heart rate and energy expenditure outputs should be interpreted as approximations rather than precise physiological measurements. This device demonstrated poor validity for heart rate (MAPE > 5%) and energy expenditure (MAPE > 10%) but acceptable validity for step count (MAPE < 10%) during incremental treadmill running in healthy, college-aged individuals. Future studies should examine additional Garmin models, device-to-device variability within the same model, evaluate performance across diverse demographic groups and activity types (e.g., resistance training, sports-specific movements, free-living conditions), and determine whether accuracy is influenced by firmware updates.
