The Numerical Simulation of the Transient Plane Heat Source Method to Measure the Thermophysical Properties of Materials

,
,
,
,
and
1
School of Mathematics and Science, Joint Laboratory for Extreme Conditions Matter Properties, The State Key Laboratory of Environment-Friendly Energy Materials, Tianfu Institute of Research and Innovation, Southwest University of Science and Technology, Mianyang 621010, China
2
College of Physics, Central South University, Changsha 410083, China
3
School of Physics and Electronic-Information Engineering, Hubei Engineering University, Xiaogan 432000, China
*
Authors to whom correspondence should be addressed.

Abstract

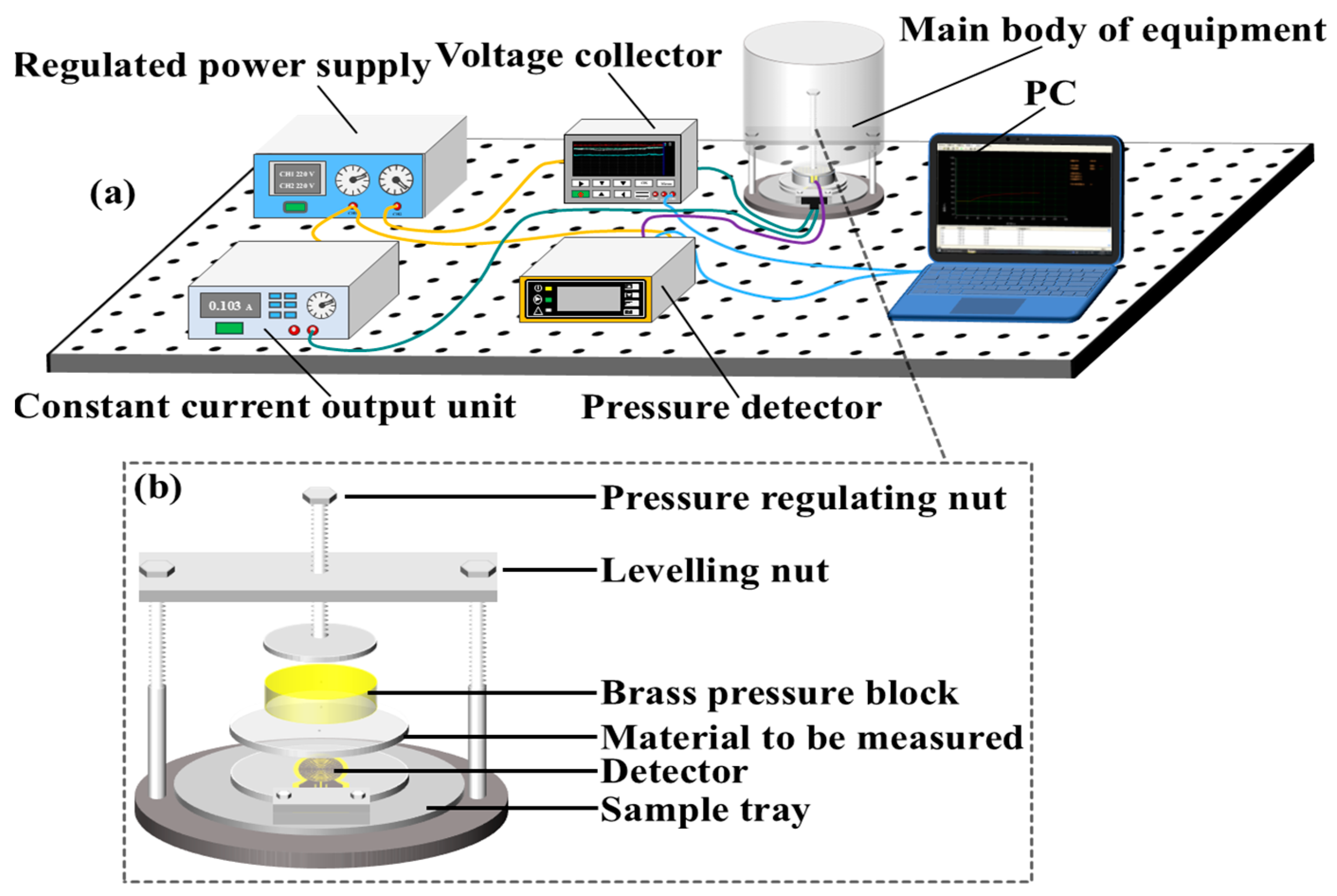

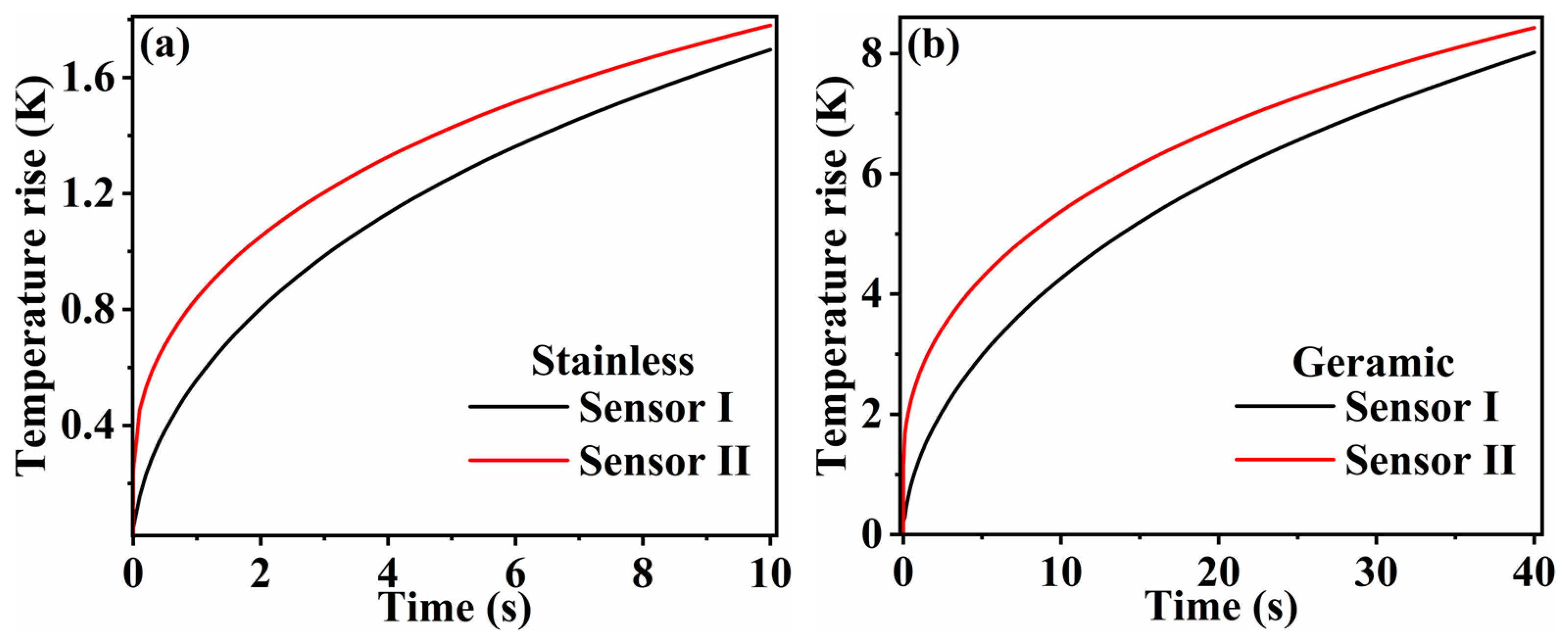

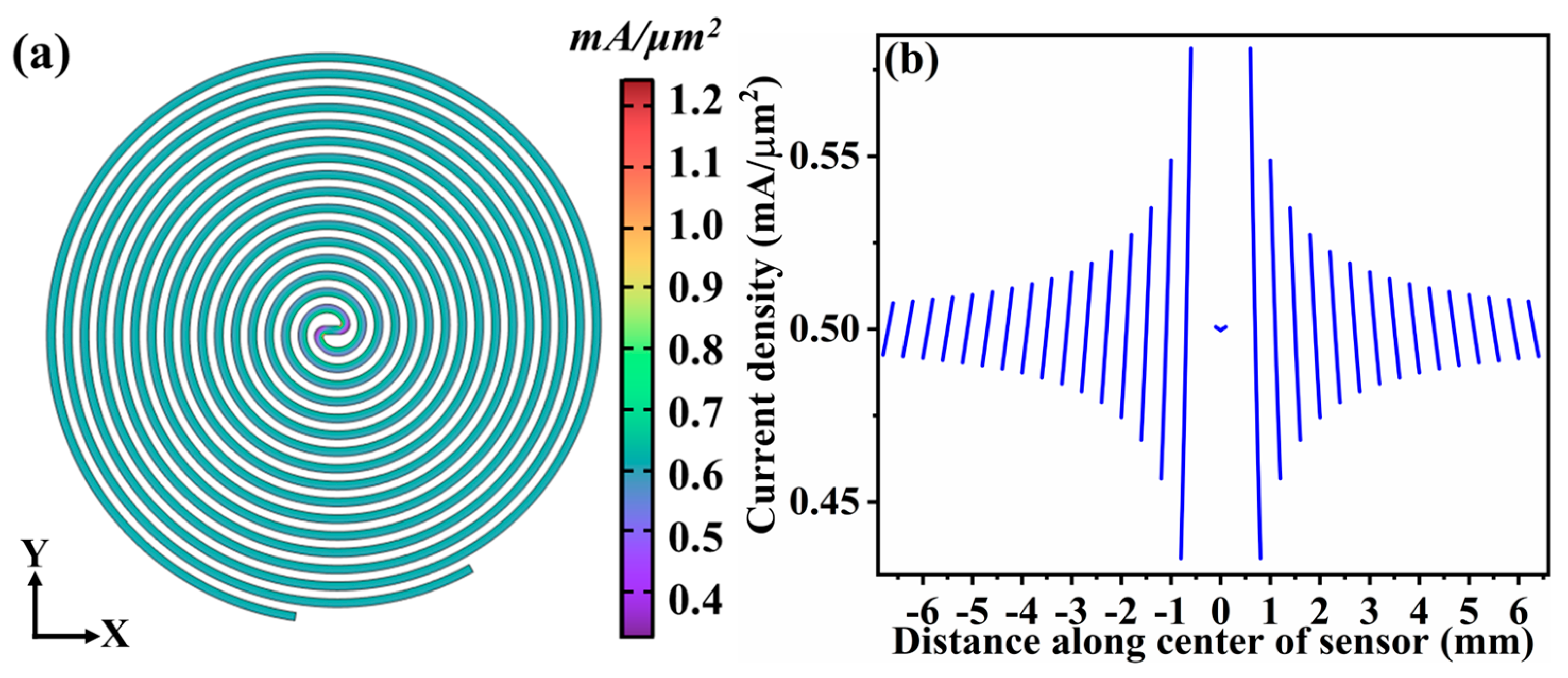

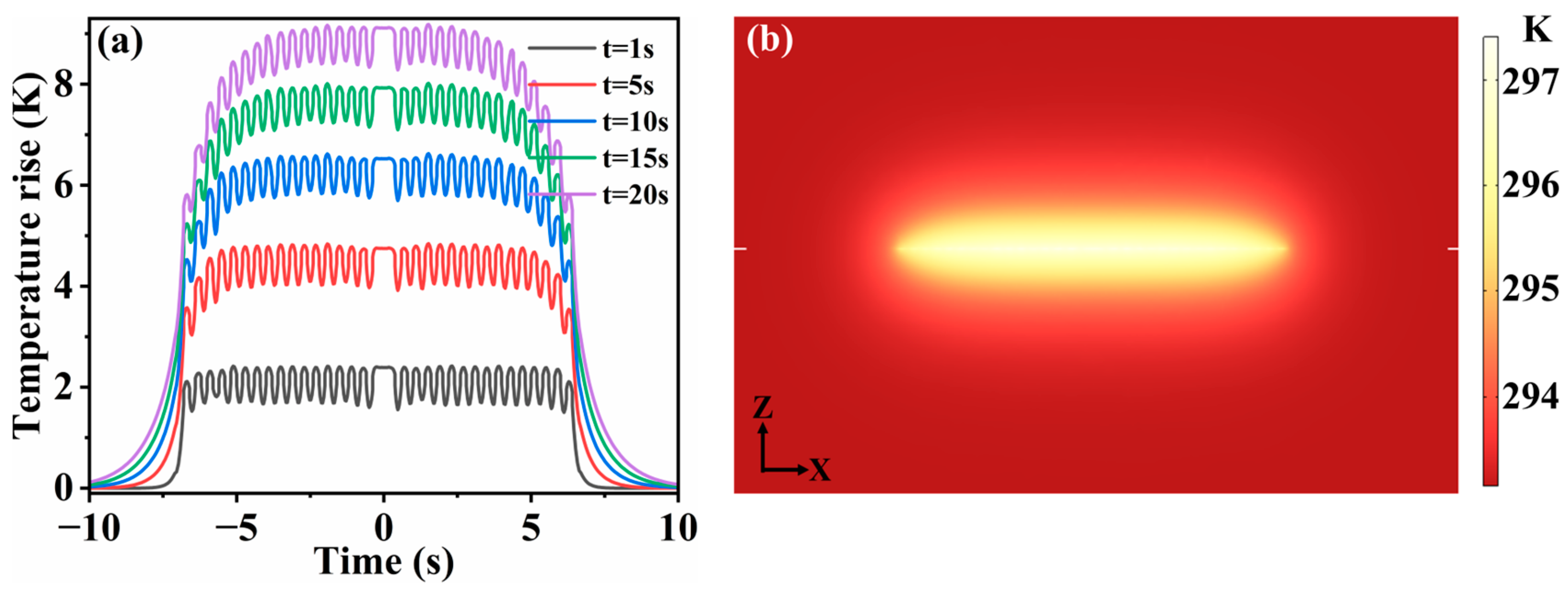

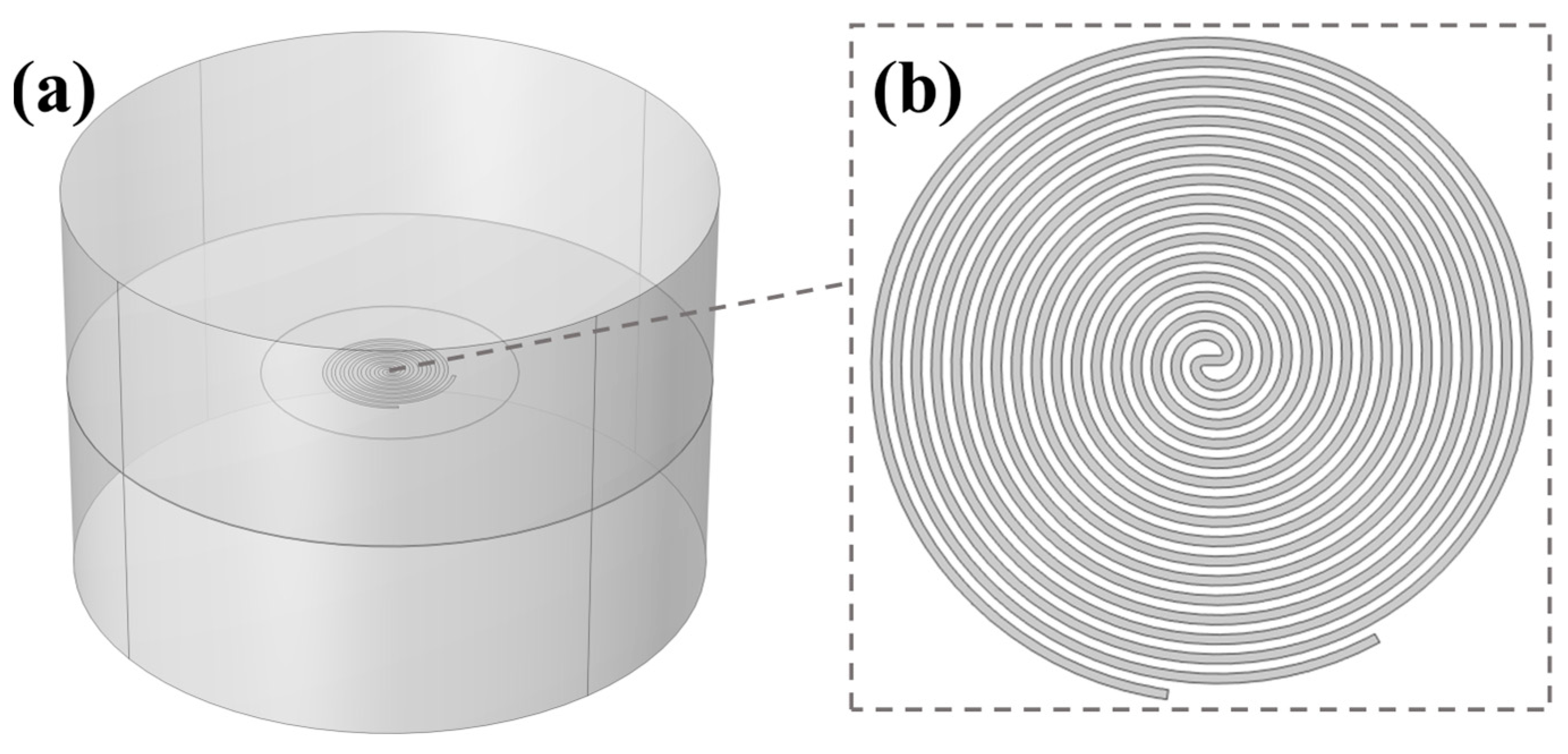

The transient plane heat source method (TPS), also known as the hot disc method, is an experimental method for determining the thermal transport properties of materials. The method’s main element is a sensor made of a nickel metal strip in the shape of a double helix, which is inserted into an insulating polymer film. In this work, we used the finite element method to create a three-dimensional model of the sensors and compared the simulated and experimentally recorded mean temperature rise data. The volume mean temperature rise of the sensor, as determined through simulation, exhibits a high level of resemblance with the corresponding experimental data. Additionally, temperature rise curves of several other materials are also simulated based on the model and the thermal performance parameters are calculated from these data. In the meantime, this paper presents an evaluation and discussion of the current density distribution of the sensor and the temperature distribution during the testing of the sample. This simulation has the potential to be utilized for future geometry and parameter estimate optimization, and provides a theoretical reference for detector design.
