Tracking and Registration Technology Based on Panoramic Cameras

,
,
,
,
and
1
School of Computer Science and Technology, Changchun University of Science and Technology, Changchun 130022, China
2
School of Information Engineering, Changchun College of Electronic Technology, Changchun 130114, China
*
Authors to whom correspondence should be addressed.

Abstract

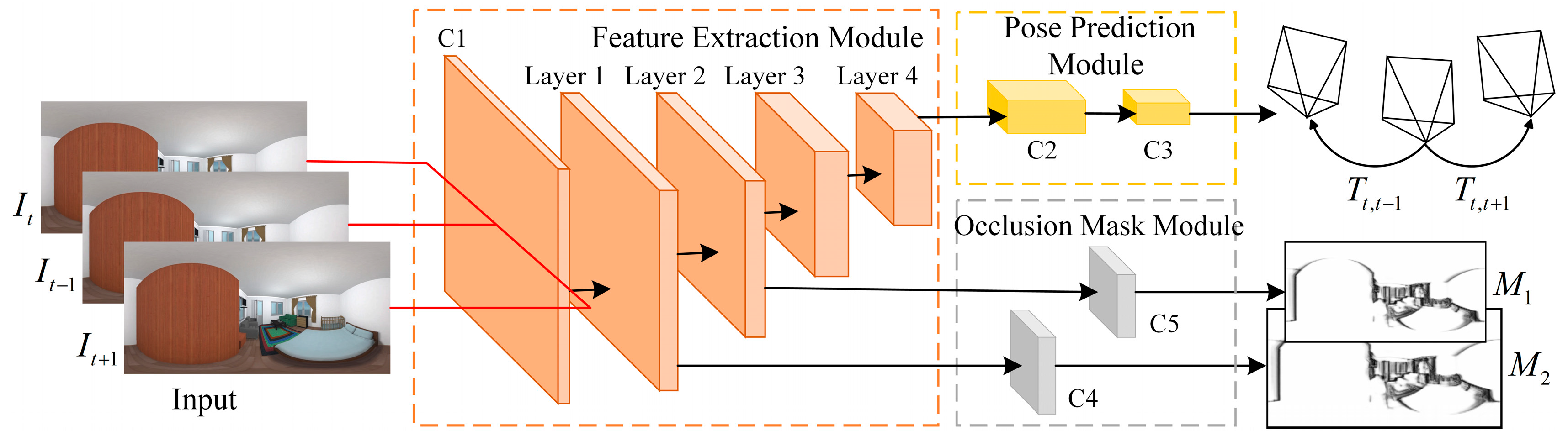

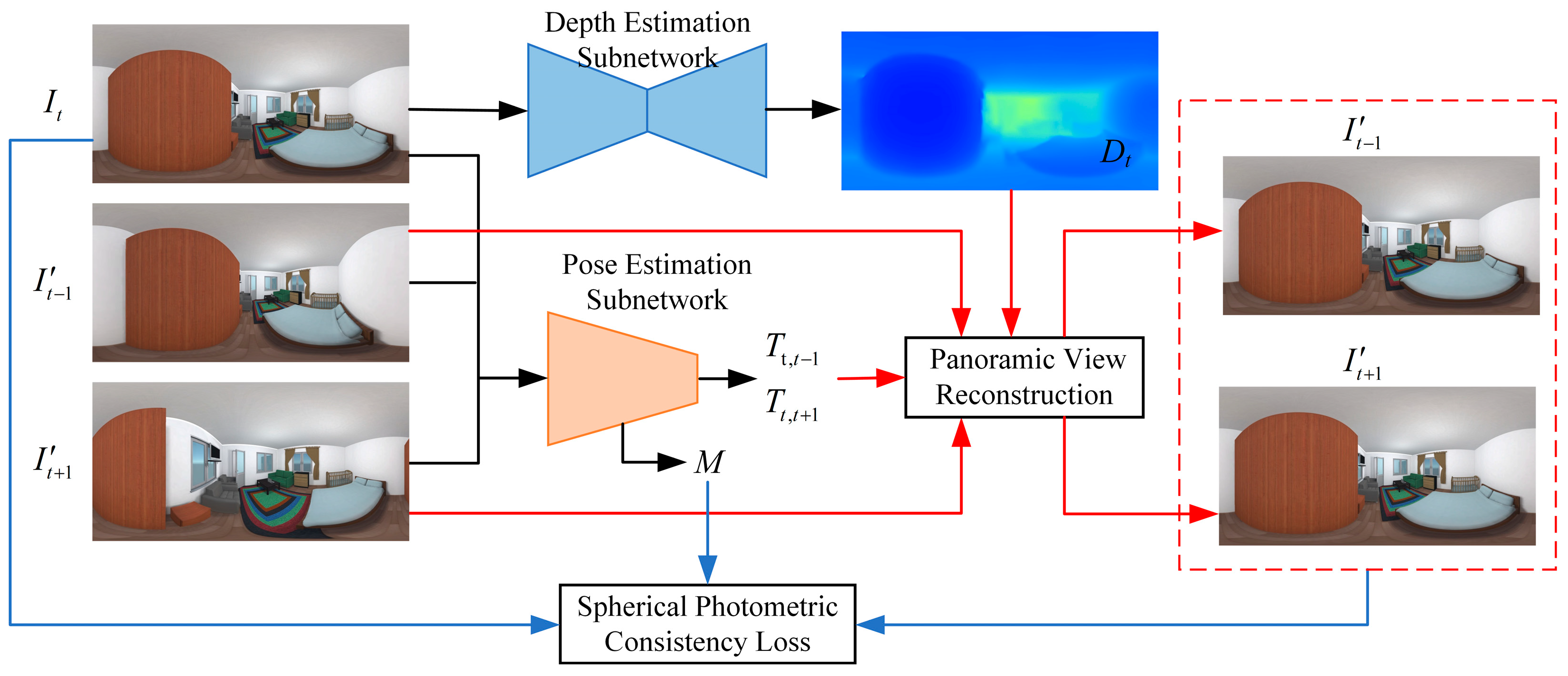

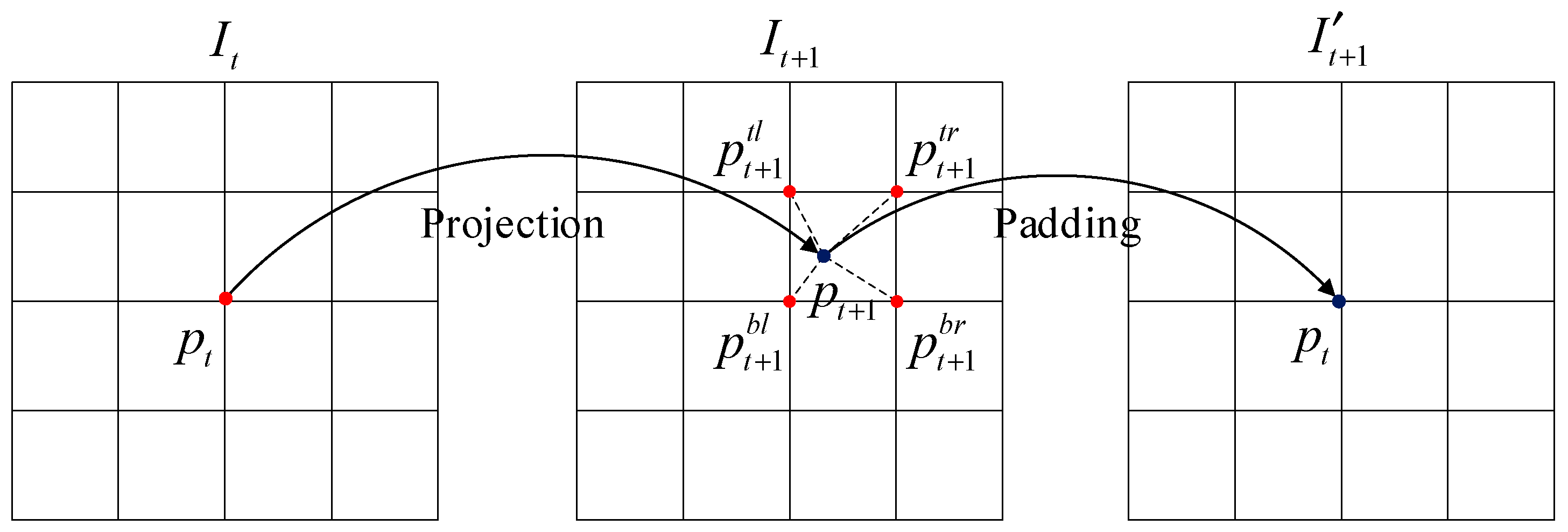

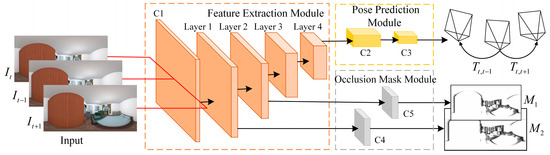

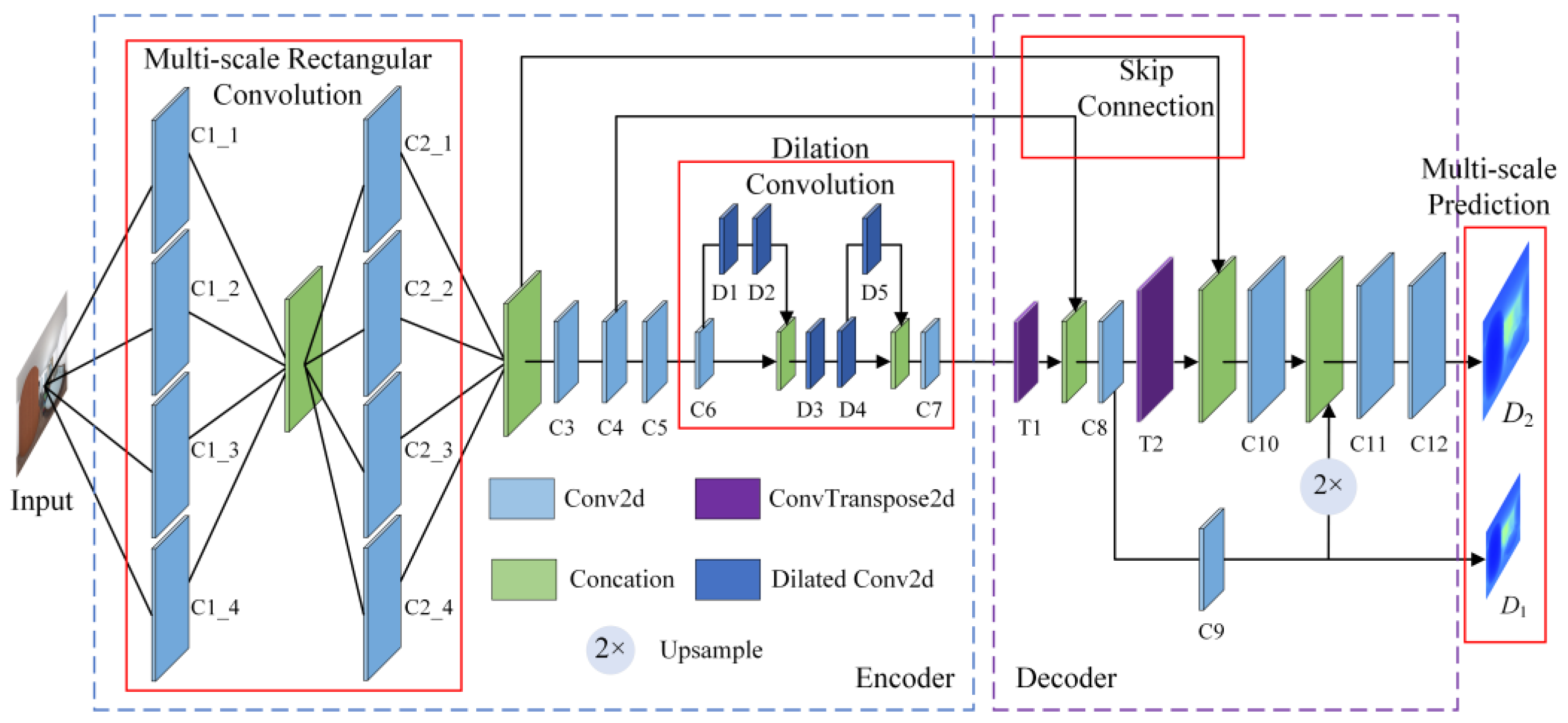

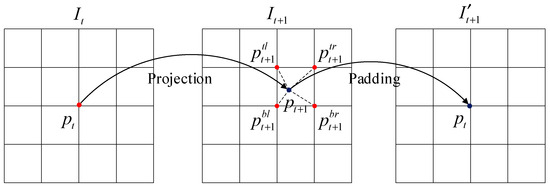

Augmented reality (AR) has become a research focus in computer vision and graphics, with growing applications driven by advances in artificial intelligence and the emergence of the metaverse. Panoramic cameras offer new opportunities for AR due to their wide field of view but also pose significant challenges for camera pose estimation because of severe distortion and complex scene textures. To address these issues, this paper proposes a lightweight, unsupervised deep learning model for panoramic camera pose estimation. The model consists of a depth estimation sub-network and a pose estimation sub-network, both optimized for efficiency using network compression, multi-scale rectangular convolutions, and dilated convolutions. A learnable occlusion mask is incorporated into the pose network to mitigate errors caused by complex relative motion. Furthermore, a panoramic view reconstruction model is constructed to obtain effective supervisory signals from the predicted depth, pose information, and corresponding panoramic images and is trained using a designed spherical photometric consistency loss. The experimental results demonstrate that the proposed method achieves competitive accuracy while maintaining high computational efficiency, making it well-suited for real-time AR applications with panoramic input.
